Kitchen Design Dimensions in mm: 5 Proven Ideas: How I plan ergonomic kitchens in millimeters—5 smart ideas backed by experience and data

As an interior designer focused on compact homes, I’ve learned that precise kitchen design dimensions in mm are the difference between a cramped corner and a cooking zone that flows. Trends like slim profiles, integrated storage, and multi-functional layouts are redefining small kitchens. And yes—small spaces spark big creativity. In this guide, I’ll share 5 practical design inspirations, grounded in my project experience and supported by expert data, to help you plan a kitchen that works down to the millimeter. You’ll find real pros and cons, tips, and exact measurements that I trust on site. Also, if you’re curious how I visualize early layout ideas, you can peek at a case using “L-shaped layout adds more counter space” here: L-shaped layout adds more counter space.

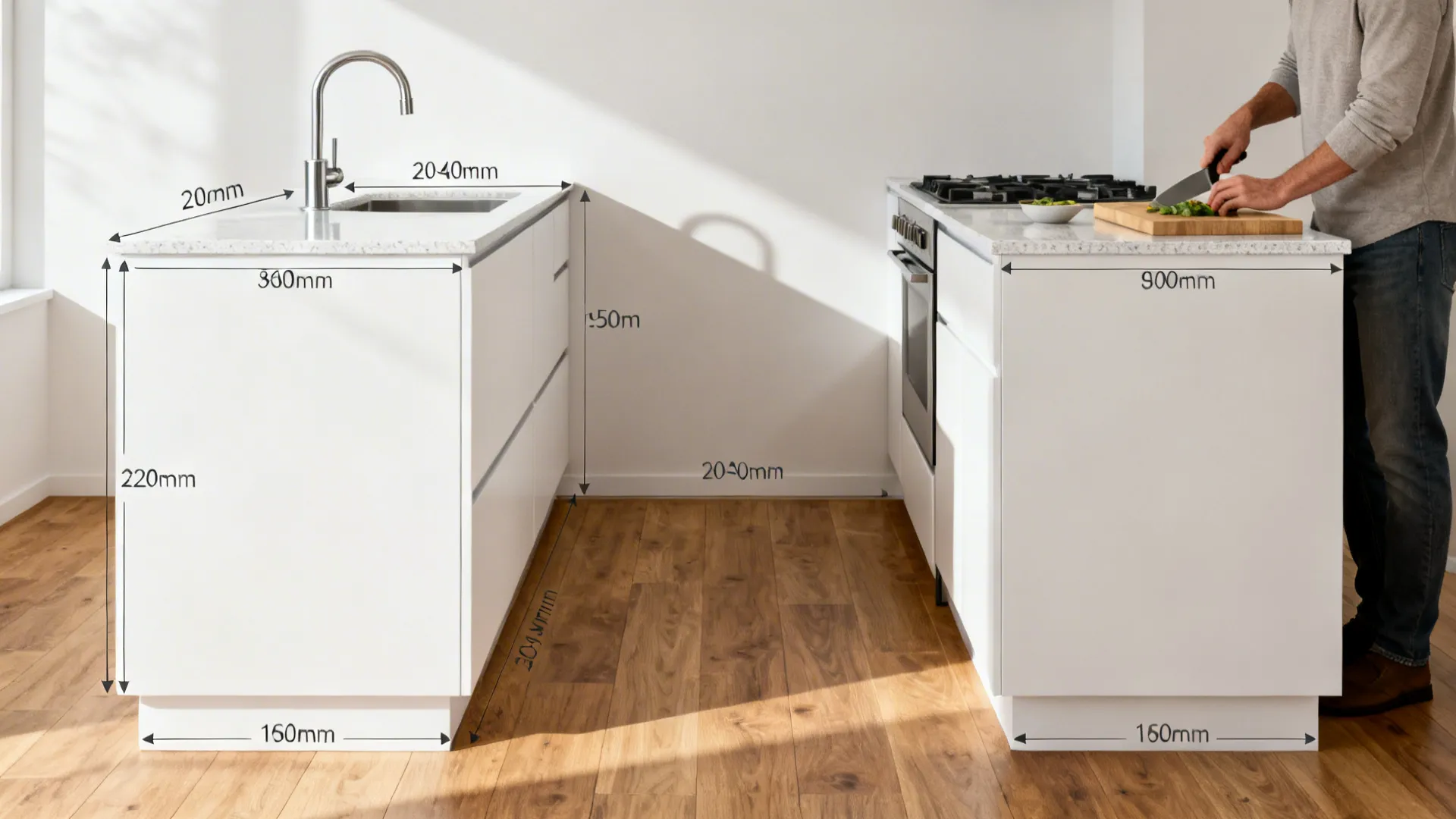

Ergonomic Counter Heights in mm

My Take

I start every kitchen by dialing in counter height to the user. For most clients, 900 mm is the sweet spot, but I’ve customized from 860–940 mm depending on height and posture. In my own tiny galley, shifting from 920 mm to 890 mm eliminated shoulder strain—and made chopping feel effortless.

Pros

- A standard 900 mm bench height aligns well with common appliance heights and improves workflow; pairing this with a 600 mm countertop depth offers reliable reach. This aligns with ergonomic long-tail practices like “best counter height for cooking in mm.”

- Taller users benefit from 920–940 mm, reducing back-bend during prep; shorter users often prefer 860–880 mm, keeping elbows around 90°. Studies from standards like ISO ergonomics support neutral joint positioning for reduced fatigue.

- With 150 mm (plinth/toe-kick), you can fine-tune cabinet body heights (720–760 mm) and countertop thickness (20–40 mm) to hit the exact target height.

Cons

- One height doesn’t fit every task—kneading dough or heavy prep sometimes wants slightly lower surfaces; installing a drop zone at 860–880 mm can complicate cabinet lines.

- Retrofits can be tricky: raising to 920+ mm may clash with windowsills at 950–1000 mm.

- Thick stone (40 mm) can push heights up quickly, while ultra-thin tops (12–20 mm) may need sturdier cabinet construction to limit deflection.

Tips / Cost Factor

- If two users differ by >150 mm in height, consider a split-height island: 860–880 mm for prep, 1000–1050 mm for bar seating.

- For wheelchair users, target a 760–800 mm worktop with 700–720 mm clear knee space (min 650 mm height clearance) and 600–650 mm depth.

save pin

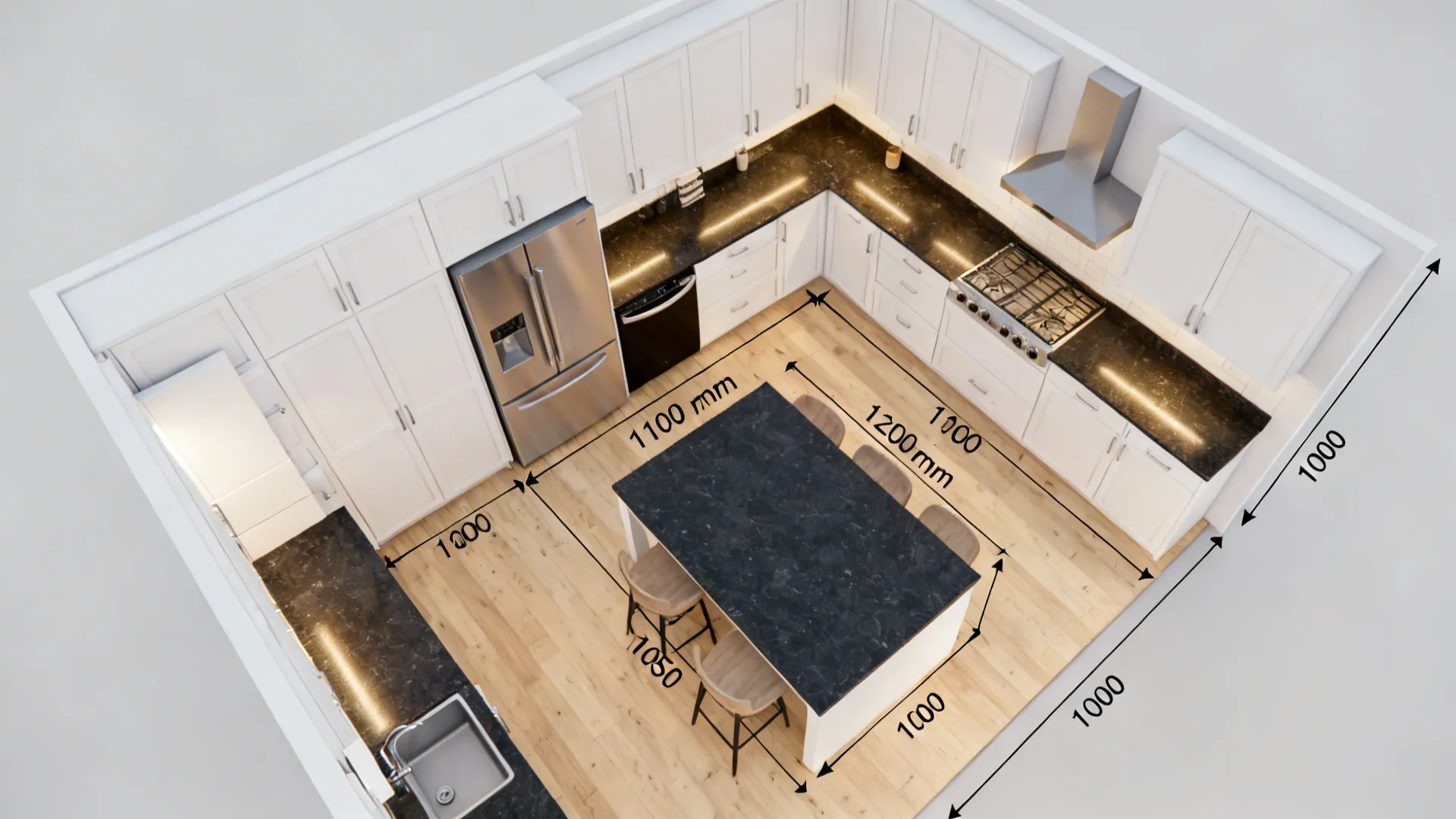

Minimum Clearances for Safe Movement

My Take

When I re-plan circulation in small kitchens, I treat millimeters like currency. A 1000–1050 mm aisle feels surprisingly ample in a one-cook space. For two cooks, I push to 1100–1200 mm; anything tighter and elbows—and tempers—collide.

Pros

- Aisle width of 1000–1200 mm is a reliable long-tail standard for “kitchen walkway clearance in mm,” ensuring doors, drawers, and hips move freely.

- Fridge and dishwasher doors need swing zones: allow 900–1000 mm in front of the appliance so you can unload without bottlenecks.

- Corner drawers love 1000+ mm clearance to open fully; with 105° hinges, you’ll skip door clashing.

Cons

- In ultra-compact layouts, 1200 mm can feel luxurious you can’t afford; shaving to 900–950 mm is doable but requires careful handle choices and appliance placement.

- Parallel galley aisles under 900 mm often cause drawer collisions; choosing shallow drawers may reduce storage efficiency.

- Oversizing aisles eats storage; every extra 50 mm can be a lost pull-out.

Tips / Case

- For a galley, aim 1000–1050 mm between counters; in an island setup, allow 1100–1200 mm on the working side and 900–1000 mm on the seating side (plus knee overhang).

- Plan a 300–350 mm overhang for counter seating; pair with 650–700 mm knee clearance height and 250–300 mm toe depth.

save pin

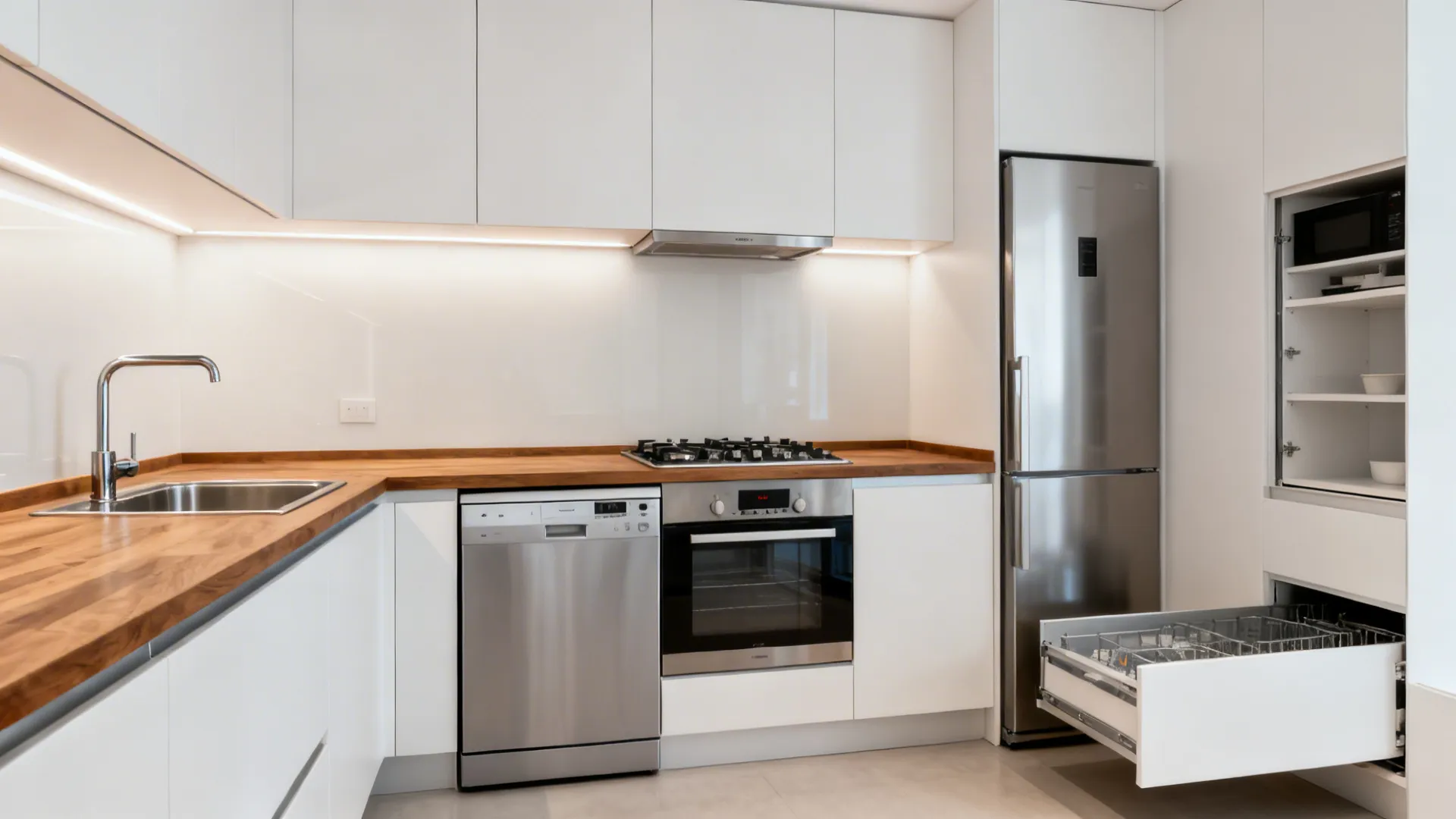

Appliance Zones and the 5-Zone Workflow

My Take

I map kitchens into five zones—consumables, non-consumables, cleaning, prep, and cooking—then work backward from appliance dimensions in mm. This trims steps and clutter. On a recent 6.5 m² project, just shifting the dishwasher 450 mm closer to the sink saved a daily dance.

Pros

- Sink-dishwasher spacing of 450–900 mm (center to center) is optimal; shorter hoses, smoother unloading. This matches best practices for “dishwasher placement dimensions in mm.”

- Cooktop to wall cabinets: keep 450–600 mm clearance from burners to overheads; range hoods typically recommend 650–750 mm above gas, 600–700 mm above induction (follow brand specs). The U.S. IRC and manufacturer guides echo these clearances.

- Fridge adjacency: 300–400 mm landing space on the handle side prevents traffic jams; in compact kitchens, a 300 mm pull-out pantry beside the fridge punches above its weight.

Cons

- Counter-depth fridges are often 600–650 mm, but door and handle projections can add 30–60 mm—plan recesses or step the cabinets.

- Narrow dishwashers (450 mm) save space but hold fewer pots; you’ll run more cycles.

- Wall cabinets too close to cooktops discolor faster; you may need deeper hoods or deflectors to protect finishes.

Tips / Data

- Microwaves: 350–450 mm above counter with 300 mm clear side ventilation; built-in models specify 50–100 mm rear and side airflow—always check manuals.

- Oven stacking: center of oven handle around 1000–1100 mm for best ergonomics; bottom of top oven around 800–900 mm. For planning variants and quick scenario testing, I reference a case showing “glass backsplash opens up the kitchen” to visualize heat and splash zones, which you can see here: glass backsplash opens up the kitchen.

save pin

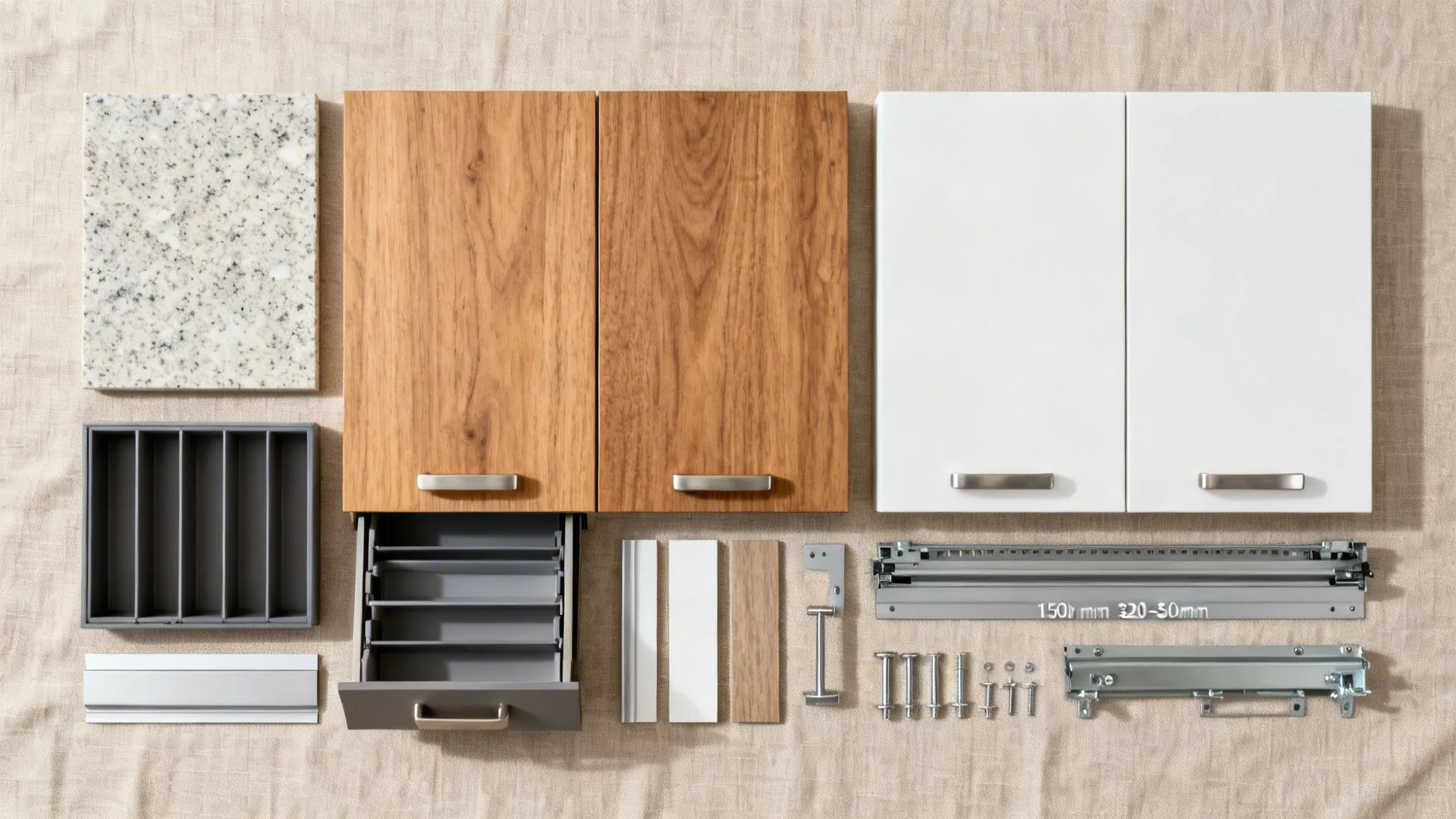

Storage Modules That Actually Fit

My Take

Flat numbers stop chaos. I standardize base cabinets at 600 mm depth, wall cabinets at 320–350 mm, and tall units at 600–650 mm. In a micro kitchen, I’ve gone 560 mm base depth with 20 mm top overhang to gain aisle space without losing pan storage.

Pros

- Drawers beat doors for access; 450–600 mm wide drawers balance capacity and smooth slides. For long-tail needs like “optimal drawer width in mm,” 500 mm often hits the sweet spot for pots and lids.

- Toe-kick at 100–150 mm height and 50–75 mm recess depth improves stance and reach into deep cabinets.

- Wall cabinets at 700–920 mm height provide 2–3 usable shelves; mount the bottom 500–600 mm above the counter for comfortable reach (upper shelf tops around 2000–2100 mm for average height users). The National Kitchen & Bath Association (NKBA) guidelines align with these reach ranges.

Cons

- Overly wide drawers (>900 mm) can rack under load; premium runners raise cost fast.

- Deep wall cabinets (≥400 mm) look bulky and invite head bumps; lighter 320–350 mm keeps lines clean.

- Mid-height tall units can block lateral sight lines in tiny spaces; you’ll feel boxed in.

Tips / Cost Factor

- Use 150 mm pull-outs for spices and oils near the cooktop; 300 mm for baking trays. Shelf thickness at 18–25 mm prevents sagging under dinnerware.

- If ceilings allow, top cabinets to 2400–2700 mm with a closed bulkhead to avoid dust ledges; plan a step-stool niche (100 mm wide) near the fridge.

save pin

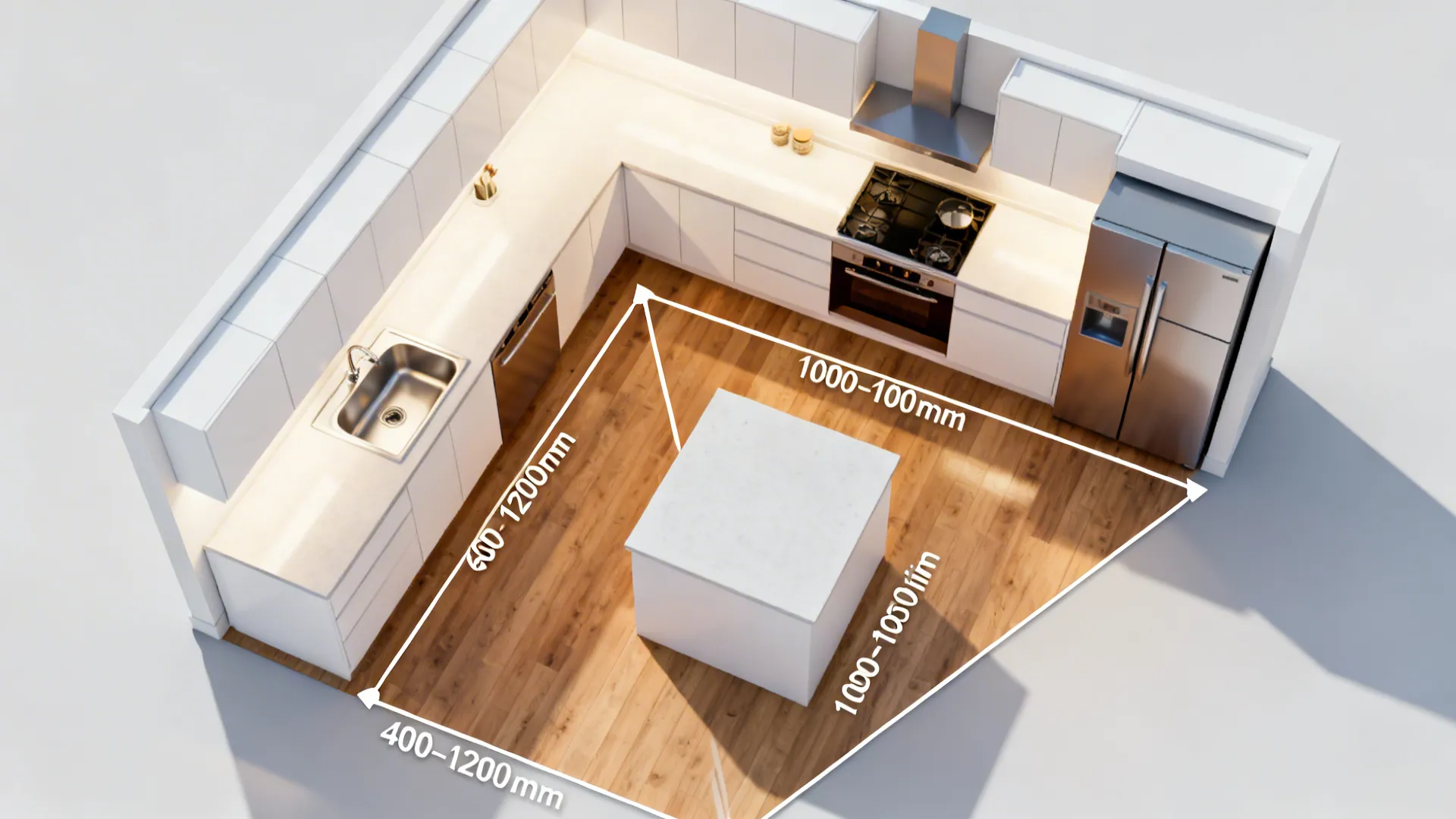

The 3 Work Triangles That Fit Small Kitchens

My Take

Classic work triangle rules still help—but I often design micro-triangles inside zones. In a small L, I keep sink-cooktop 900–1200 mm apart, with the fridge 1200–2100 mm away, depending on whether it’s a one- or two-cook scenario. The numbers keep you nimble.

Pros

- A traditional triangle totals 4000–7600 mm, with each leg 1200–2700 mm. Keeping these long-tail ranges (“work triangle distances in mm”) makes prep feel intuitive.

- In a galley, parallel triangles become a “work corridor”: 900–1200 mm from sink to cooktop, 1200–2100 mm to fridge; this reduces crossover when two people cook.

- Adding a 300–400 mm landing next to each station (sink, cooktop, fridge) cuts spills and awkward shuffles; it’s a small-space game changer.

Cons

- Super tiny studios may force a line kitchen where the “triangle” becomes a linear workflow; you’ll rely on smart staging and prep boards.

- Oversized islands inflate triangle legs beyond 2700 mm; you’ll walk miles for a forgotten spoon.

- Corner sinks can shorten one leg too much (<800–900 mm), leading to splash zones across the corner.

Tips / Source

- NKBA suggests 610 mm minimum landing space on at least one side of a sink; in compact kitchens, I adapt to 450–600 mm with a fitted drainboard. NKBA Kitchen Planning Guidelines provide broader ranges that many pros reference.

Midway through planning, some clients want to iterate layouts in 3D to check those millimeters. For that, I often reference a case that shows “warmth from wood elements” in a compact plan to test finishes against clearances—have a look here: warmth from wood elements.

save pin

Key Dimension Cheat Sheet (in mm)

My Take

Here’s the compact crib sheet I keep on my phone and site clipboard. It’s saved me from more than one mid-install panic and helps clients visualize scale quickly.

Pros

- Counter height: 860–940 (typical 900); depth: 600. Toe-kick: 100–150 H × 50–75 D. Tall unit depth: 600–650. Wall cabinet depth: 320–350 and 500–600 above counter; these “standard kitchen dimensions in mm” make cross-brand coordination easier.

- Aisles: 1000–1200 one-cook; 1100–1200 two-cook. Seating: 300–350 overhang; stool seat 650–700 height for 900 counter; 750–800 for 1000–1050 counter.

- Appliances: DW next to sink 450–900 center spacing; hood 650–750 above gas, 600–700 above induction; fridge landing 300–400. Oven handle center 1000–1100.

Cons

- Cheat sheets don’t replace manufacturer specs—tolerances matter, especially for built-ins and ventilation.

- Structural quirks (radiators, columns) steal millimeters where you least expect; keep a 20–30 mm tolerance buffer in joinery.

- Thin walls and out-of-square rooms mean what’s perfect on paper may need onsite scribing—and extra labor.

Tips / Case

- Plan services: power at 1100–1200 mm above finished floor for countertop appliances; GPOs under counters at 200–300 mm AFF with water loop provisions. Leave 50–80 mm rear void in base cabinets for services.

- For visual calm in tiny kitchens, align front edges: doors, drawers, and appliances on a single 20–40 mm reveal line. Near the end of a project, I like to validate measurements with a scenario that tests “minimalist kitchen storage design” in 3D—see an example here: minimalist kitchen storage design.

save pin

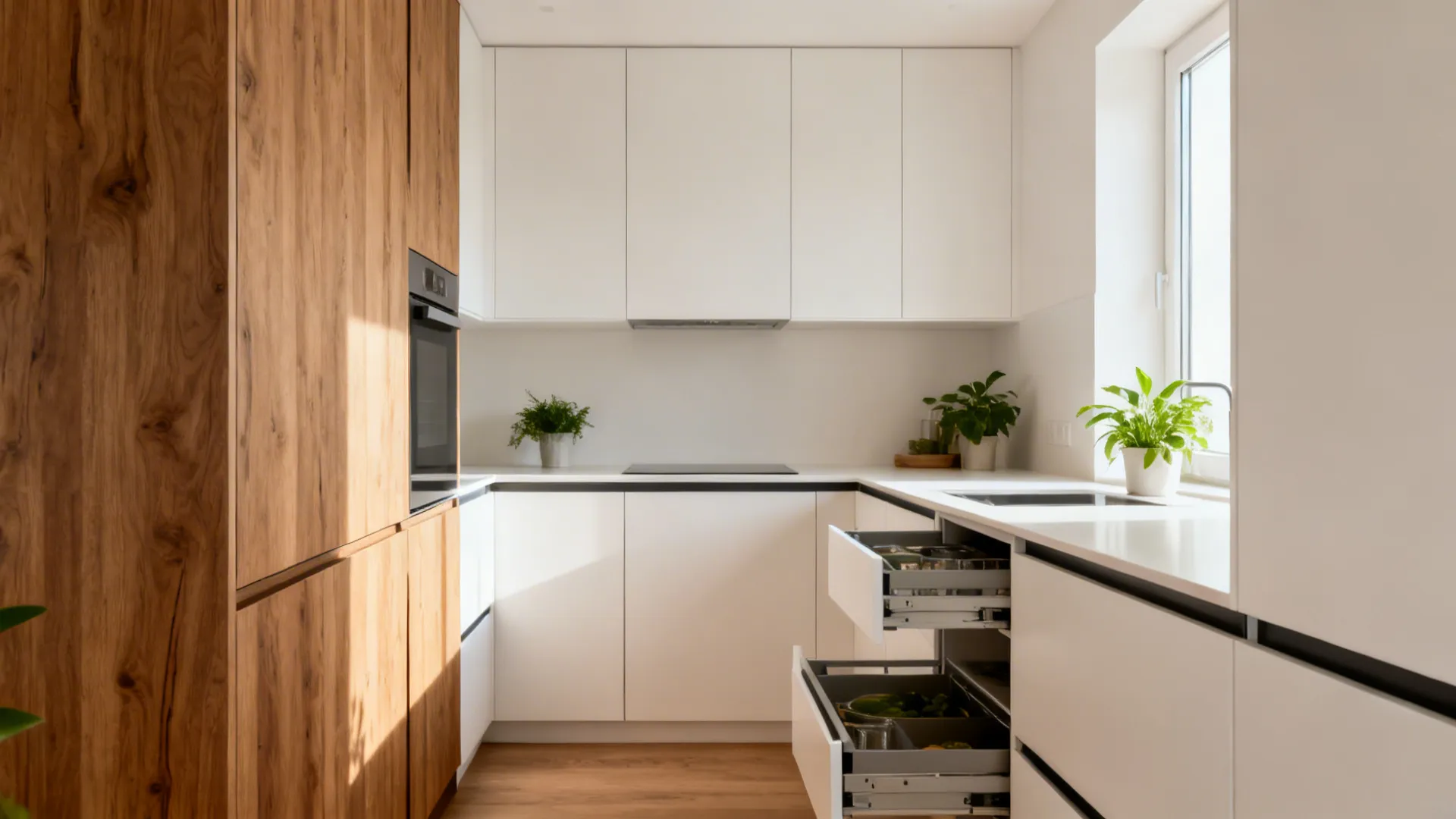

Summary

Here’s the bottom line: small kitchens aren’t a limitation—they’re an invitation to design smarter. When you lock in kitchen design dimensions in mm, everything else flows: ergonomics, storage, and style. NKBA and manufacturer guidance provide guardrails, but your body and habits should set the final numbers. Which of these five inspirations are you most excited to try in your own space?

save pin

FAQ

1) What are the standard kitchen design dimensions in mm?

Common baselines include 900 mm counter height, 600 mm counter depth, 100–150 mm toe-kick, and 1000–1200 mm aisle width. Treat these as starting points and adjust to user height and appliance specs.

2) What is the ideal work triangle distance in mm?

Each leg is typically 1200–2700 mm, total 4000–7600 mm. In compact kitchens, aim for the lower end and ensure 300–400 mm landing next to each key station.

3) How high should a range hood be in mm?

Most brands specify 650–750 mm above gas cooktops and 600–700 mm above induction. Always follow the manufacturer’s installation manual and local code.

4) How much space do I need in front of a dishwasher in mm?

Allow 900–1000 mm clear space to open the door and unload comfortably. Keep the dishwasher 450–900 mm from the sink for easy loading.

5) What’s a good overhang for counter seating in mm?

Plan 300–350 mm for knee comfort. Pair with stool seat height 650–700 mm for a 900 mm counter, or 750–800 mm for a 1000–1050 mm counter.

6) How deep should wall cabinets be in mm?

Go for 320–350 mm to avoid head bumps and maintain sight lines. Mount the bottom 500–600 mm above the counter for an easy reach.

7) Are there authoritative guidelines I can follow?

Yes. The National Kitchen & Bath Association (NKBA) Kitchen Planning Guidelines offer evidence-backed ranges for clearances and ergonomics. Manufacturer manuals and local code (e.g., ventilation) always take precedence for safety.

8) Can I test my kitchen design dimensions in mm before building?

Yes—mock up with painter’s tape and cardboard, or use a 3D planning case to validate clearances like aisle width and door swings. For example, reviewing “L-shaped layout adds more counter space” visuals can help sense scale: L-shaped layout adds more counter space.
