Kitchen Design Elevation CAD Block: 5 Expert Ideas: How I plan smarter elevations with CAD blocks for compact kitchens

As a kitchen designer who’s spent a decade juggling tight footprints and tighter budgets, I’ve seen how the right kitchen design elevation CAD block can turn guesswork into a clean, buildable plan. Small spaces force big ideas, and that’s where elevations shine—they show exactly how tall your backsplash runs, where your mixer lift hides, and how your hood lines up with the cooktop. In this guide, I’ll share 5 elevation-focused design inspirations grounded in real projects and expert references—and yes, I’ll show you how I use CAD blocks to keep everything consistent and contractor-ready.

One more thing before we dive in: small kitchens aren’t a limitation—they’re an invitation to design smarter. The five ideas below mix hands-on lessons (including a few mistakes I’ve learned from) with data-backed tips to help you control proportions, storage, and lighting directly in your elevation drawings. For a deeper look at how I test layouts before I draft elevations, I often start with L shaped layout frees more countertop space and then translate those decisions into precise elevation blocks.

1) Minimalist elevation library for clean storage lines

My Take

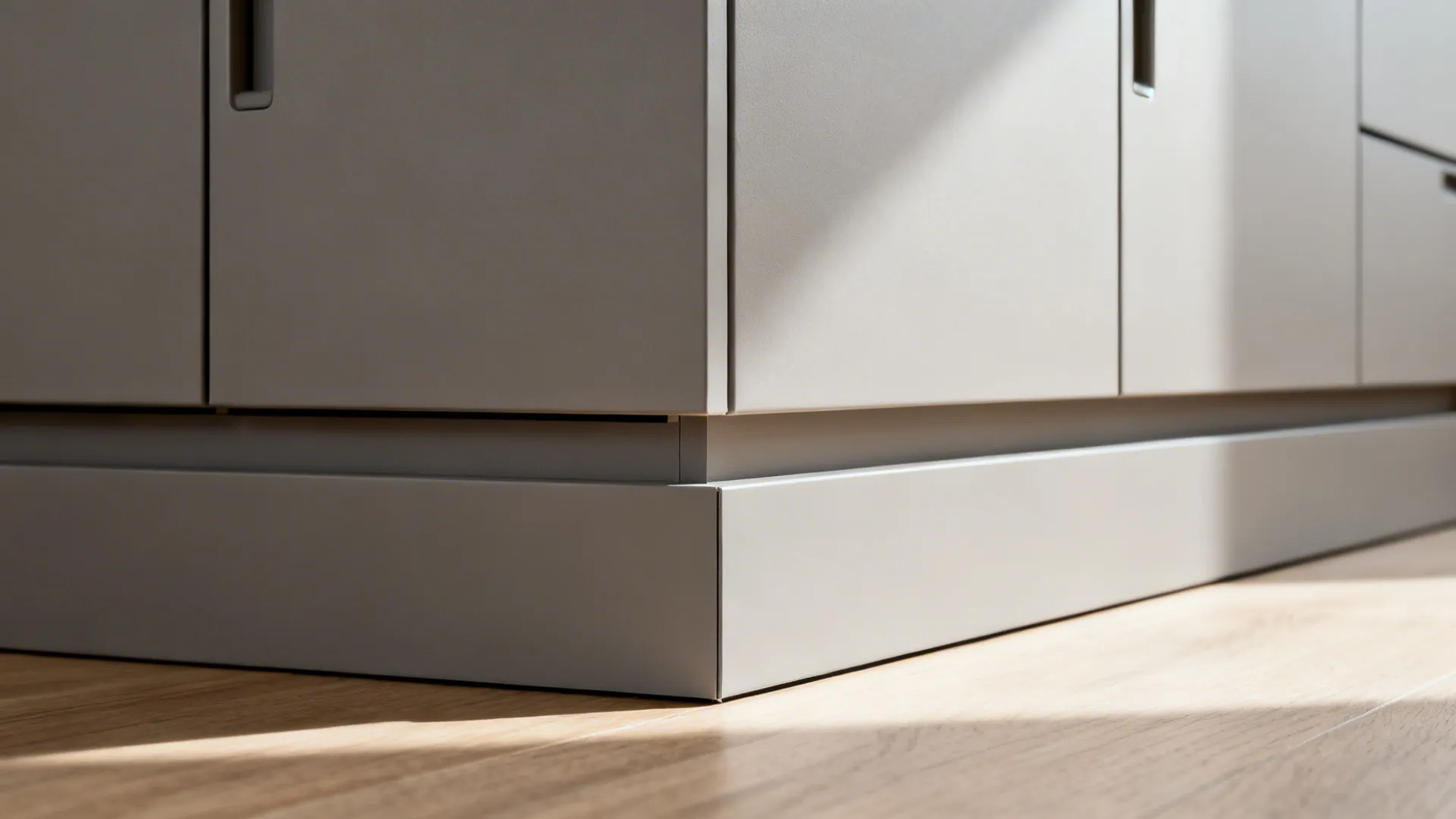

I keep a curated elevation CAD block library—face-frame, frameless, and ultra-minimal fronts—so every project starts with consistent proportions. In a 7.5 m² galley I did last year, swapping to flat-panel fronts and a slim 100 mm toe-kick cleaned up the elevation instantly and actually made the room feel wider.

Pros

- A minimalist cabinet front CAD block set makes alignment of reveals dead simple and speeds up revisions—perfect for long-tail needs like “frameless kitchen elevation detail.”

- Reusable appliance and hardware blocks (integrated pulls, low-profile hoods) keep line weights consistent, which helps contractors read the kitchen elevation drawing without confusion.

- According to NKBA’s Kitchen Planning Guidelines (2023), consistent clearances and standardized cabinet widths reduce field modifications—your CAD blocks lock those standards right into the elevation.

Cons

- Minimal doesn’t mean forgiving: any millimeter misalignment shows. I once drew a 2 mm reveal mismatch; the GC caught it and now teases me about being “off by a credit card.”

- Too-clean elevations can hide real-world texture—clients sometimes struggle to visualize warmth without material callouts and swatches.

Tips / Cost

- Build your set around common module sizes (300/400/600/900 mm) and keep a secondary set for odd widths so your elevation CAD block library stays compact but flexible.

- Add material tags directly on elevations—e.g., “matte PET, 18 mm, edge radius 1 mm”—to reduce RFIs.

save pin

save pin

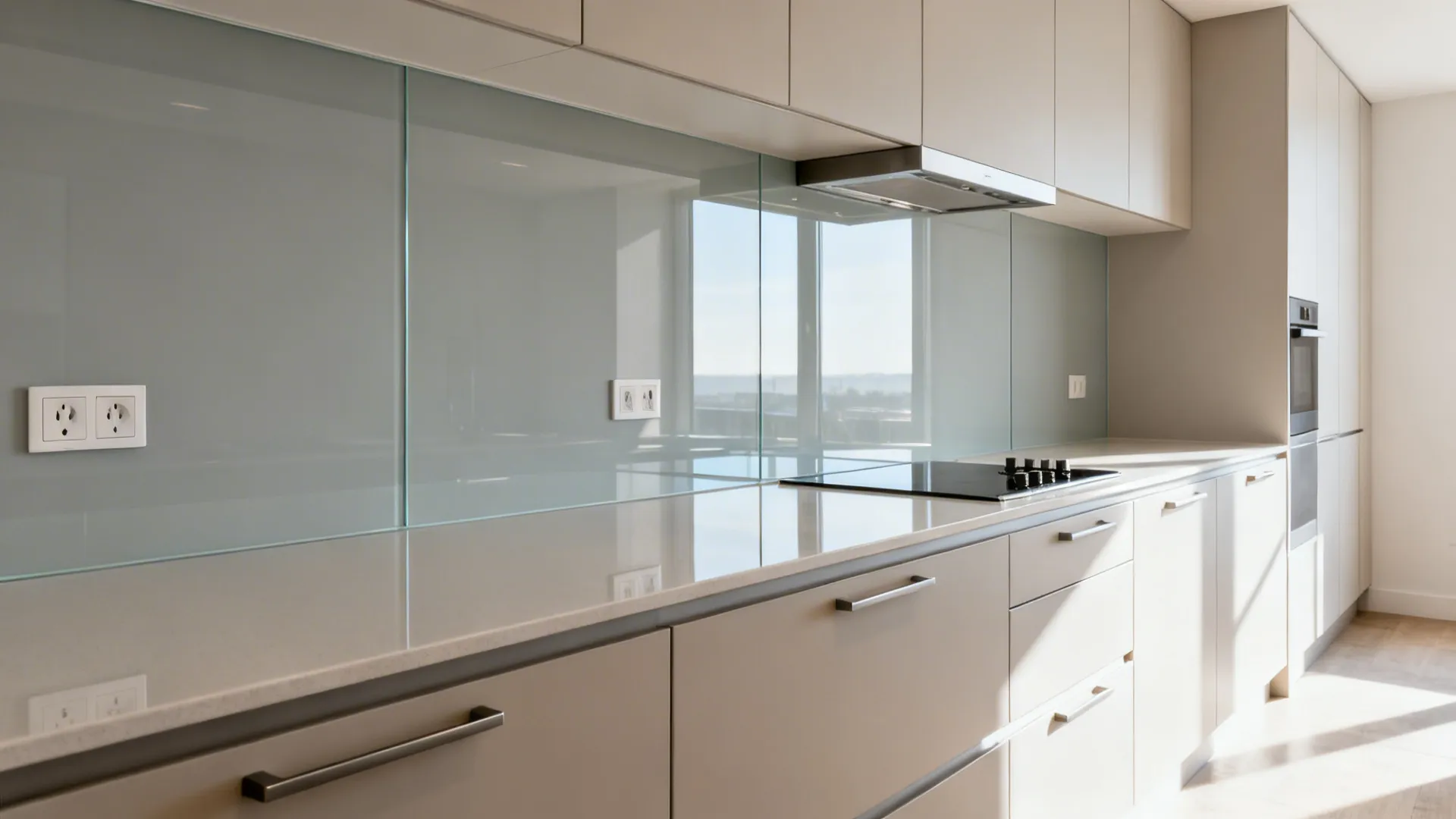

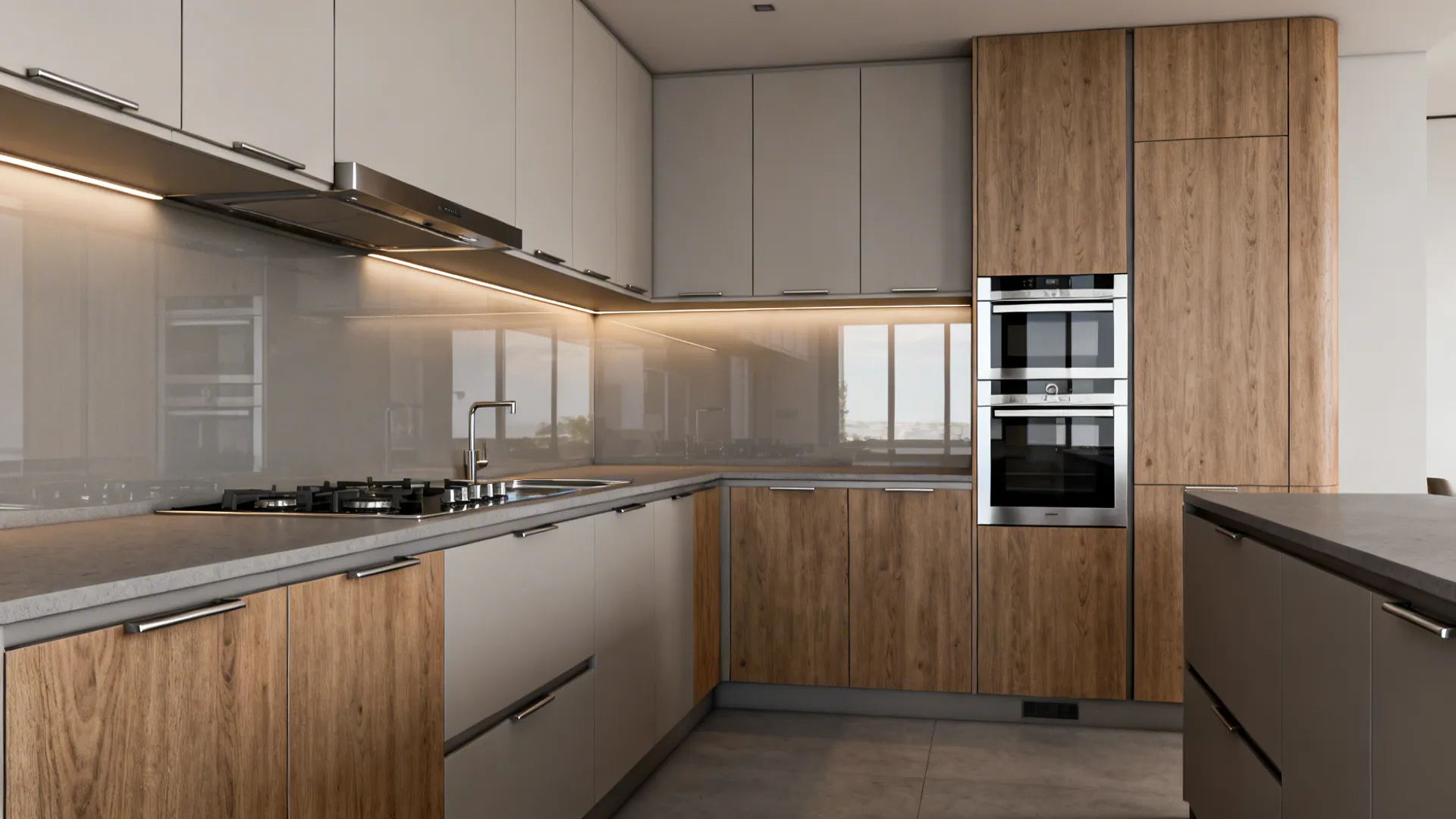

2) Glass backsplash elevations for depth and light

My Take

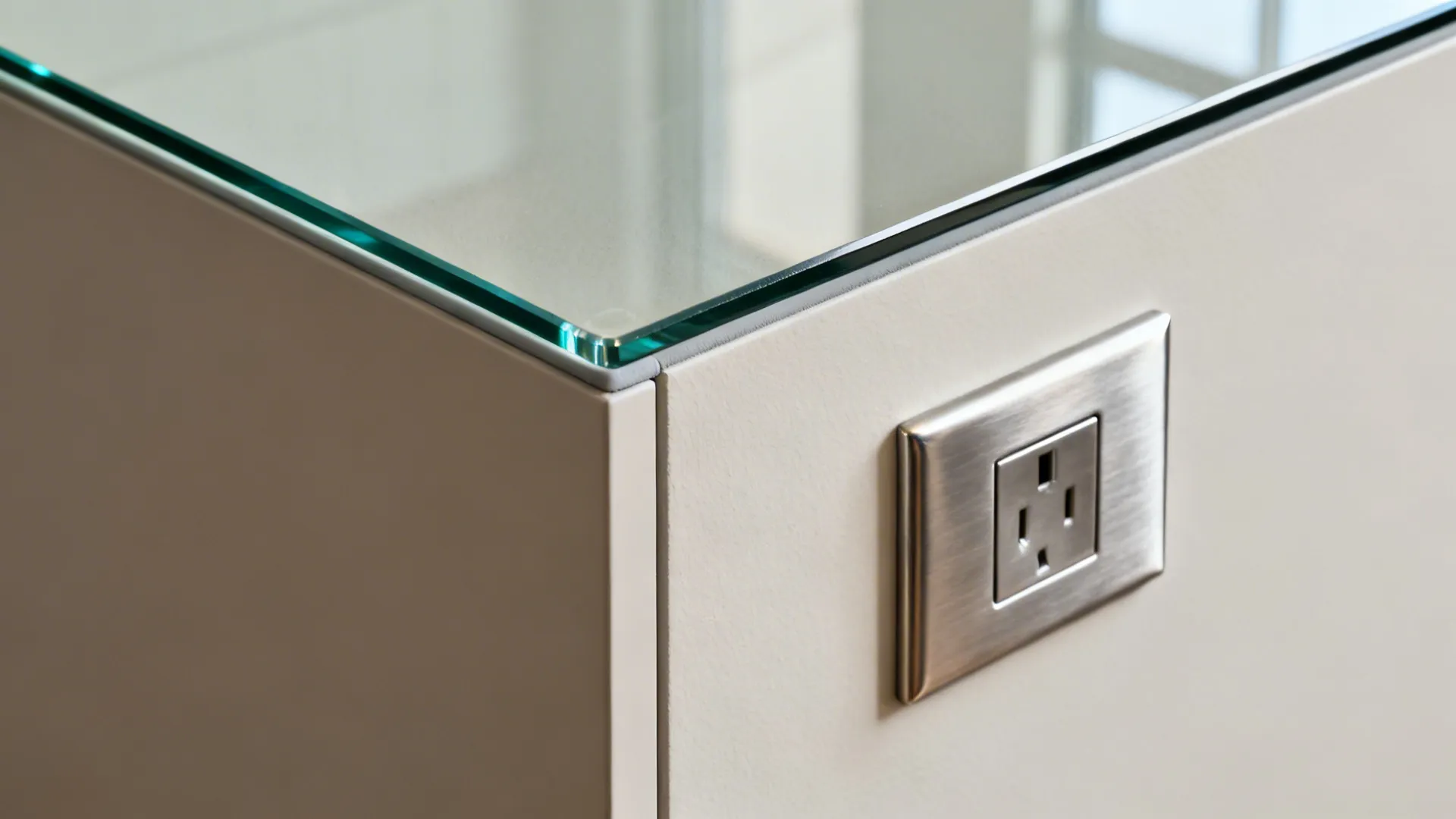

In a windowless apartment kitchen, I used a low-iron glass backsplash with a pale gray back-paint. On the elevation, I detailed the panel seams and outlet cutouts with CAD blocks—this forced us to coordinate exact outlet heights before fabrication and gave the client confidence in a reflective surface.

Pros

- A “glass backsplash elevation detail” block set lets you lock outlet heights (typically 1100–1200 mm above finished floor, depending on countertop height), minimizing clashes.

- Reflective surfaces visually double narrow spaces; Per the WELL Building Standard v2 (Light), brighter surfaces and well-placed task lighting improve perceived brightness, which you can plan precisely in elevations.

- With a parametric block for backsplash thickness (6–10 mm) and edge returns, fabricators can price faster and more accurately.

Cons

- Glass is unforgiving with crooked grout lines or bowed walls—your elevation needs true datum lines, or you’ll pay for shimming during install.

- Fingerprints and outlet covers show; I’ve had clients text me mid-cooking asking for the “magic cloth” recommendation.

Tips / Case

- Detail outlet plate finishes (brushed stainless, color-matched) in the elevation legend so the visual read stays clean.

- If cabinets aren’t straight, draw a tolerance note on the elevation and spec a forgiving silicone color to match the back-paint.

save pin

save pin

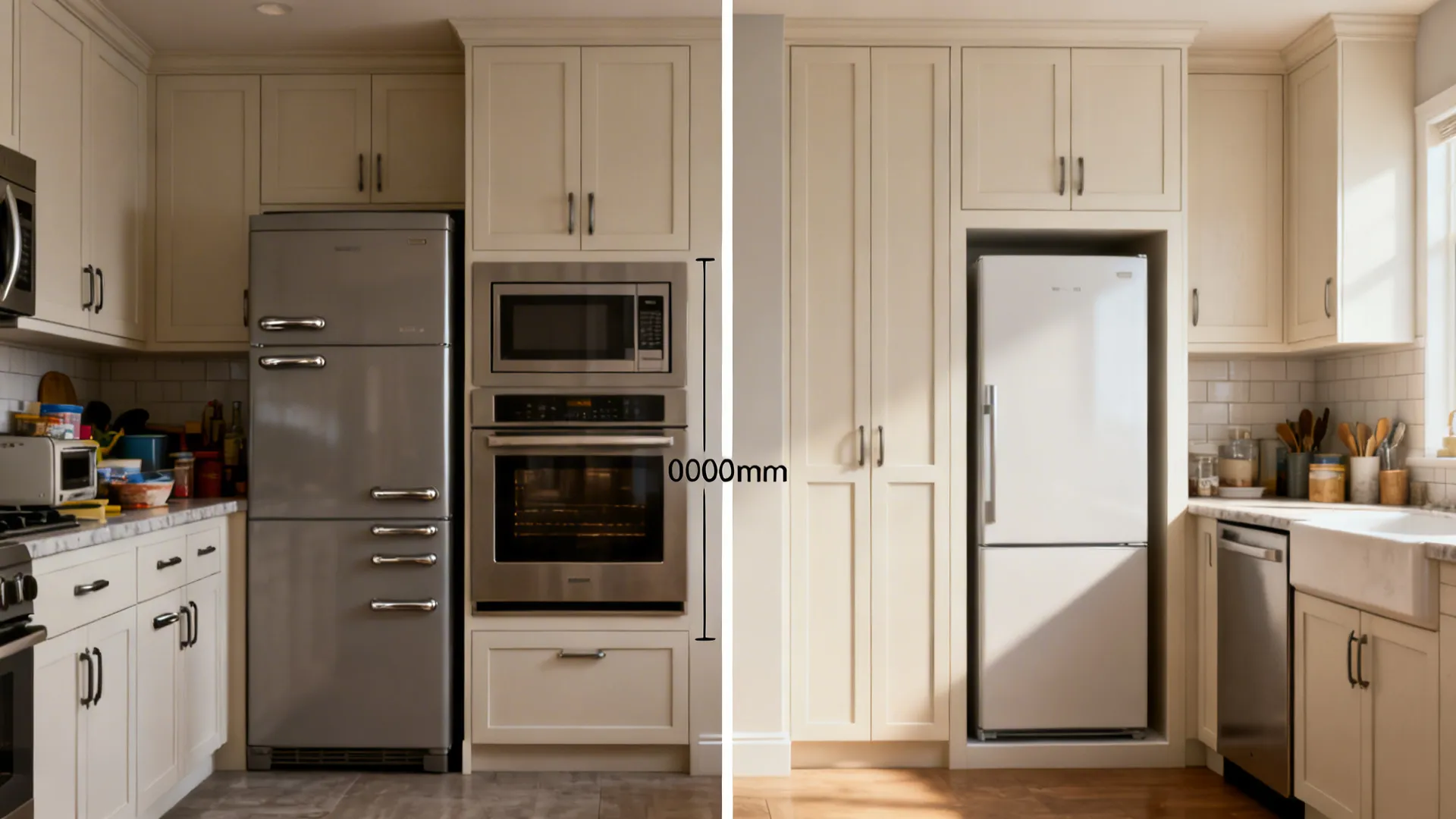

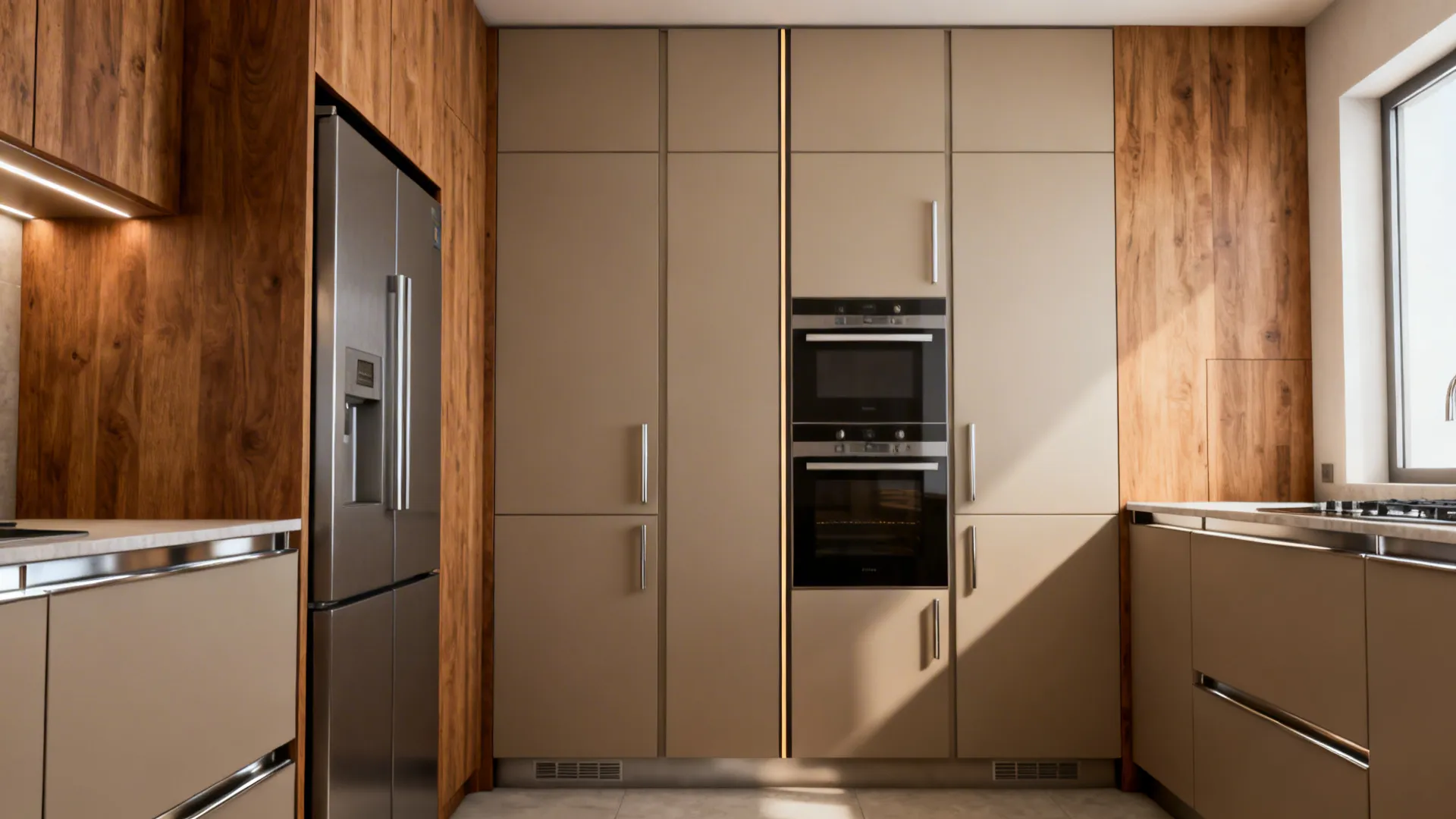

3) Tall storage elevation planning around appliances

My Take

Tall units can make or break a small kitchen. In a 2.4 m ceiling project, I used a full-height pantry and a built-in oven column, then adjusted the door and oven centerlines in the elevation CAD block so handles lined up. That single alignment detail made the whole wall feel custom.

Pros

- Purpose-built “tall cabinet elevation for small kitchen” blocks help visualize handle heights, hinge swing clearances, and oven centers (typically 1000–1100 mm AFF for ergonomics).

- The 600 mm fridge niche block with service void makes electrical and water line placement obvious in elevation, reducing site conflicts.

- The NKBA Guidelines recommend ergonomic oven heights to reduce bending; clear elevation notation keeps the centerline consistent across trades (NKBA, 2023).

Cons

- Tall walls can feel imposing; I’ve accidentally created a “wardrobe wall” look. Breaking with a niche or open shelf in elevation helps.

- Deep tall cabinets can shadow counters—if you don’t call out under-cabinet lighting in elevation, you’ll forget it until the first dark dinner prep.

Tips / Cost

- Add a standard appliance block set: oven (600 mm), microwave (450 mm), fridge (600–900 mm) with vent gaps and service zones. This keeps MEP coordination clear in the elevation.

- For compact projects, I often test alternative arrangements in a live model first. When I’m evaluating appliance stacks vs. pantry runs, I’ll prototype with glass backsplash makes the kitchen feel more open to simulate sightlines and then lock the winning elevation.

save pin

save pin

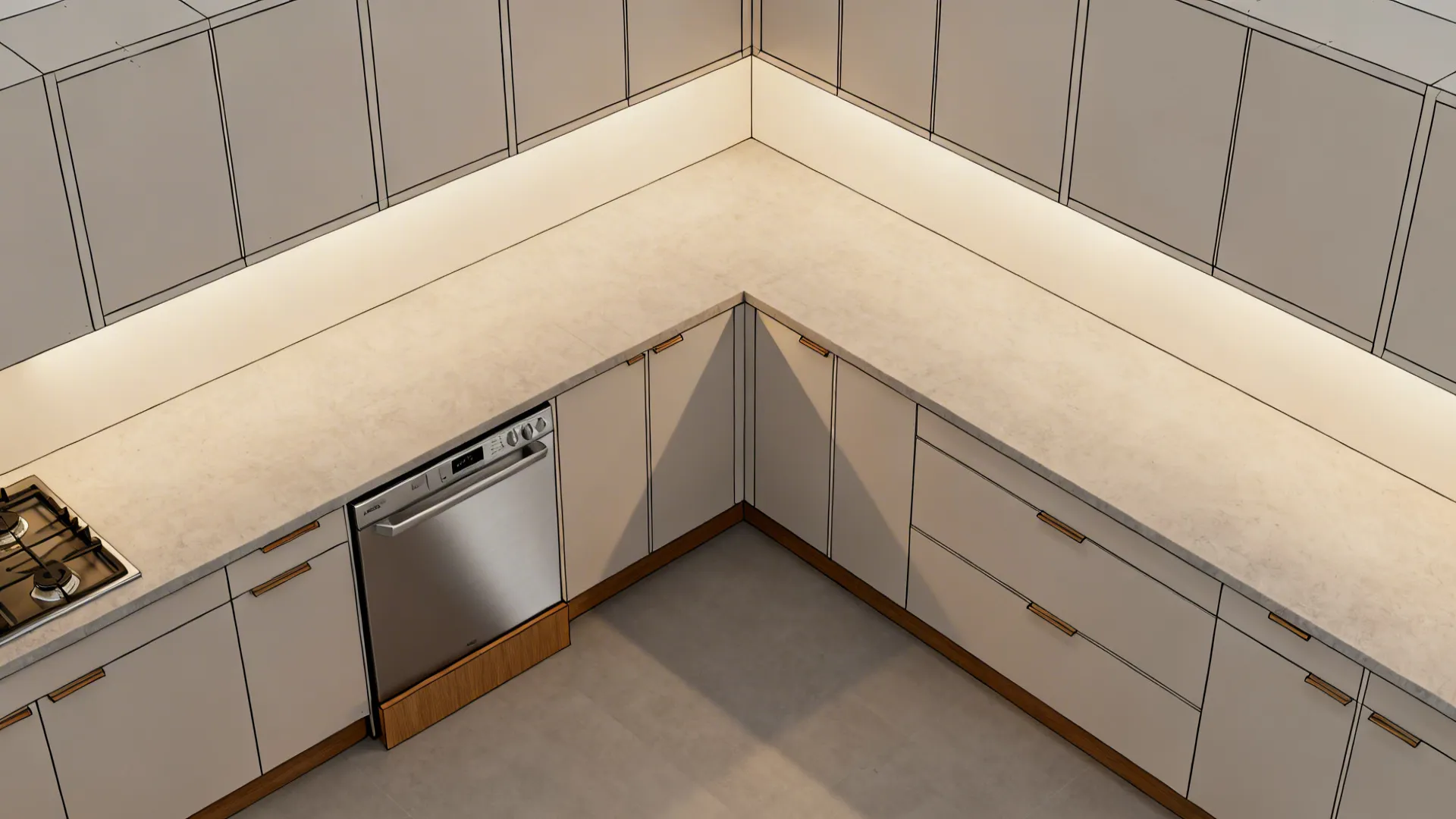

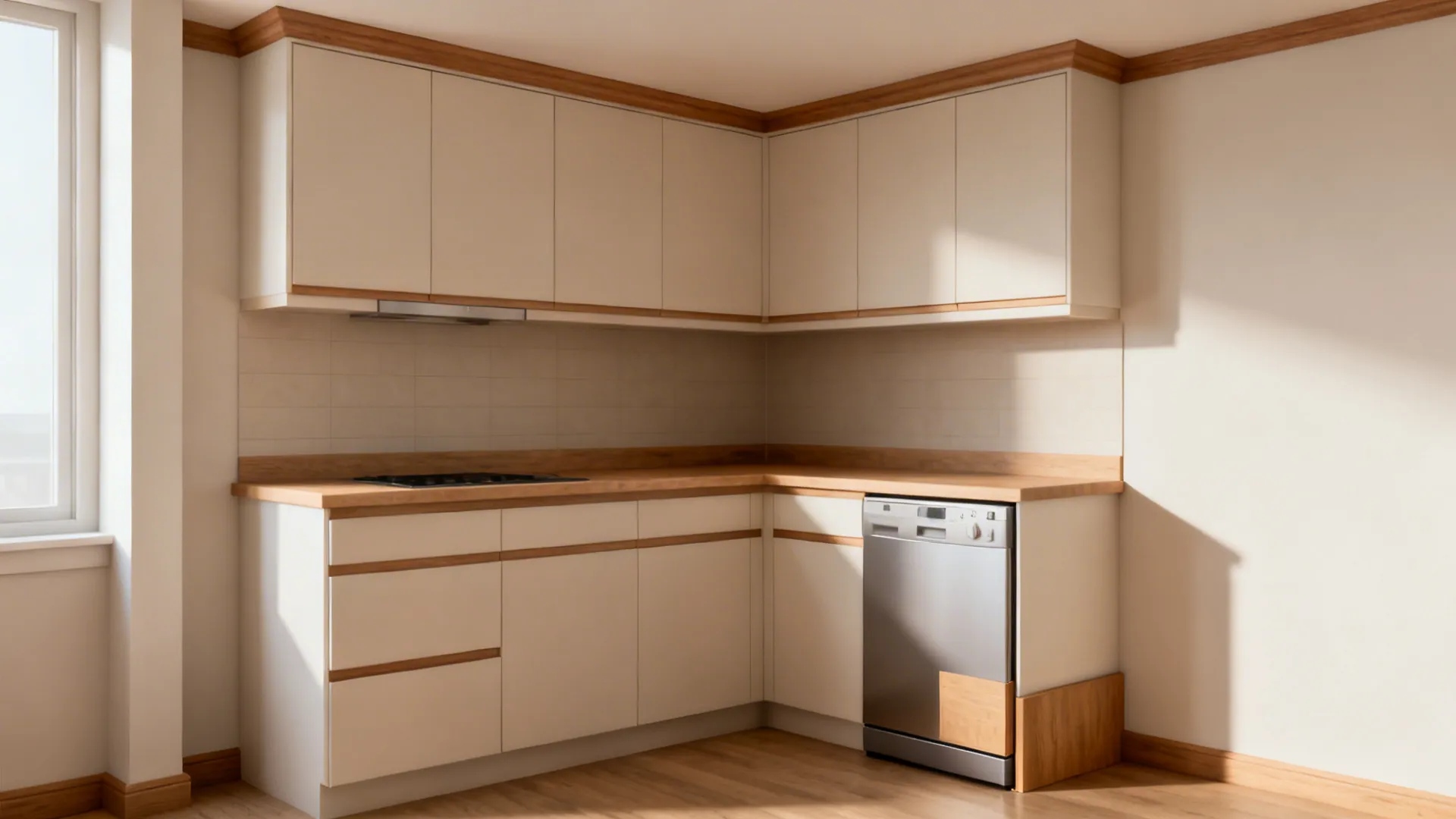

4) L-shaped elevation strategies for countertop continuity

My Take

Corner transitions can corrupt a clean elevation if you don’t plan them in parallel. In an L-shaped layout, I set consistent upper cabinet heights and continuous backsplash datum lines in both elevations so the corner feels seamless once built.

Pros

- A “corner cabinet elevation with blind corner” block helps position fillers, handle clearances, and door swing overlap—crucial long-tail detail for tight L kitchens.

- Planning consistent upper heights (e.g., 700–750 mm) and crown termination in elevation improves visual rhythm and simplifies crown return details.

- A 600 mm dishwasher elevation block with finished end panels prevents “surprise” exposed carcass edges at corners.

Cons

- Corners are where measurements lie. I’ve had walls out by 10 mm and paid for it in a skewed backsplash line—measure twice, block once.

- Too much symmetry in L-shapes can look sterile; it’s okay to break the run with a display shelf or a warm material break.

Tips / Case

- Use a dedicated corner note in elevations: “Countertop scribe to wall ±5 mm” to pre-empt installers’ questions.

- If space allows, I’ll sometimes rotate appliance orientation in plan, verify clearances, and then re-draft elevations—tools that simulate real-world corner sightlines help. When I need rapid concepting, I test variants with warmth from wood accents in render, then finalize elevation CAD blocks accordingly.

save pin

save pin

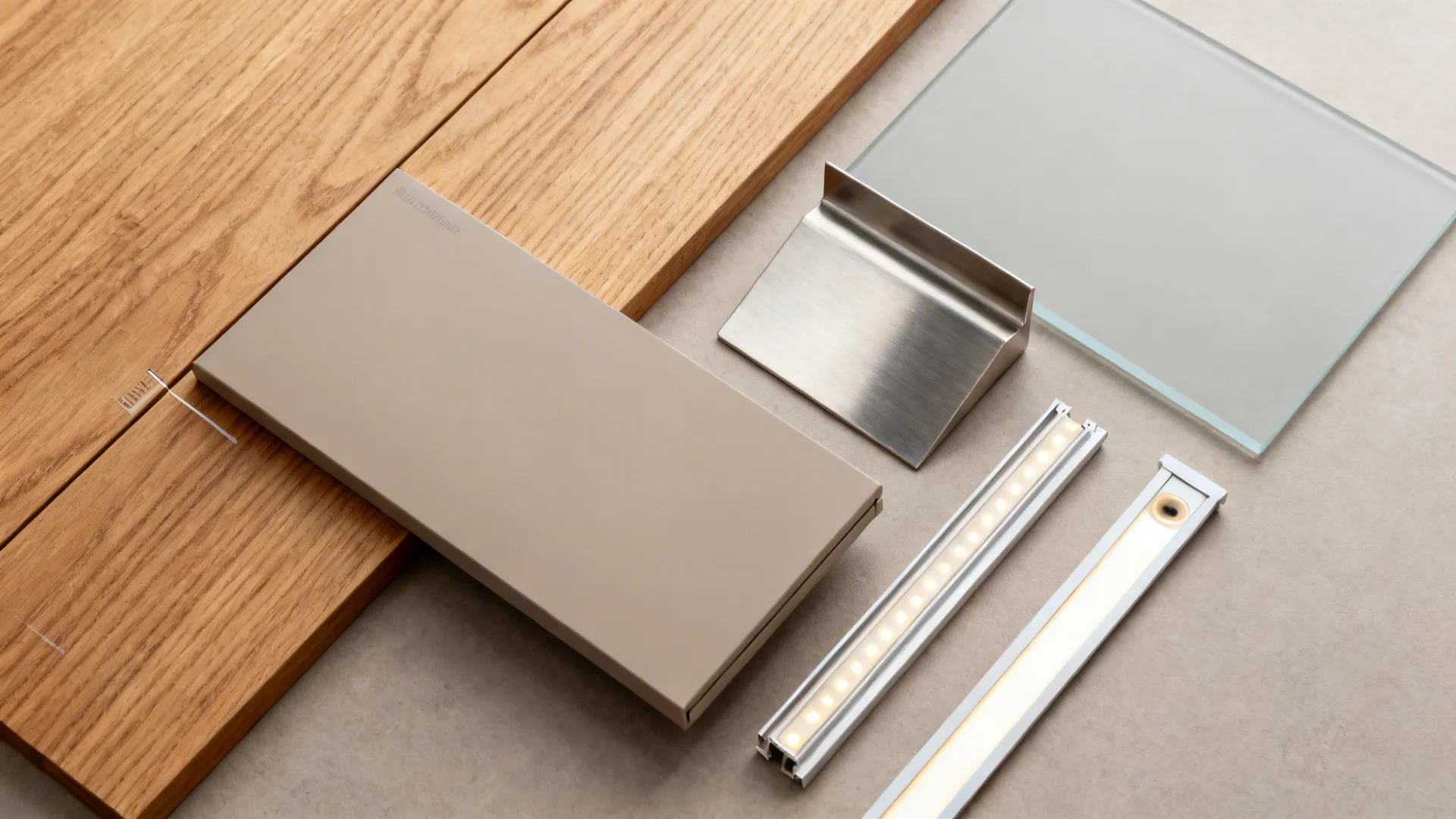

5) Material rhythm and lighting notes directly on elevations

My Take

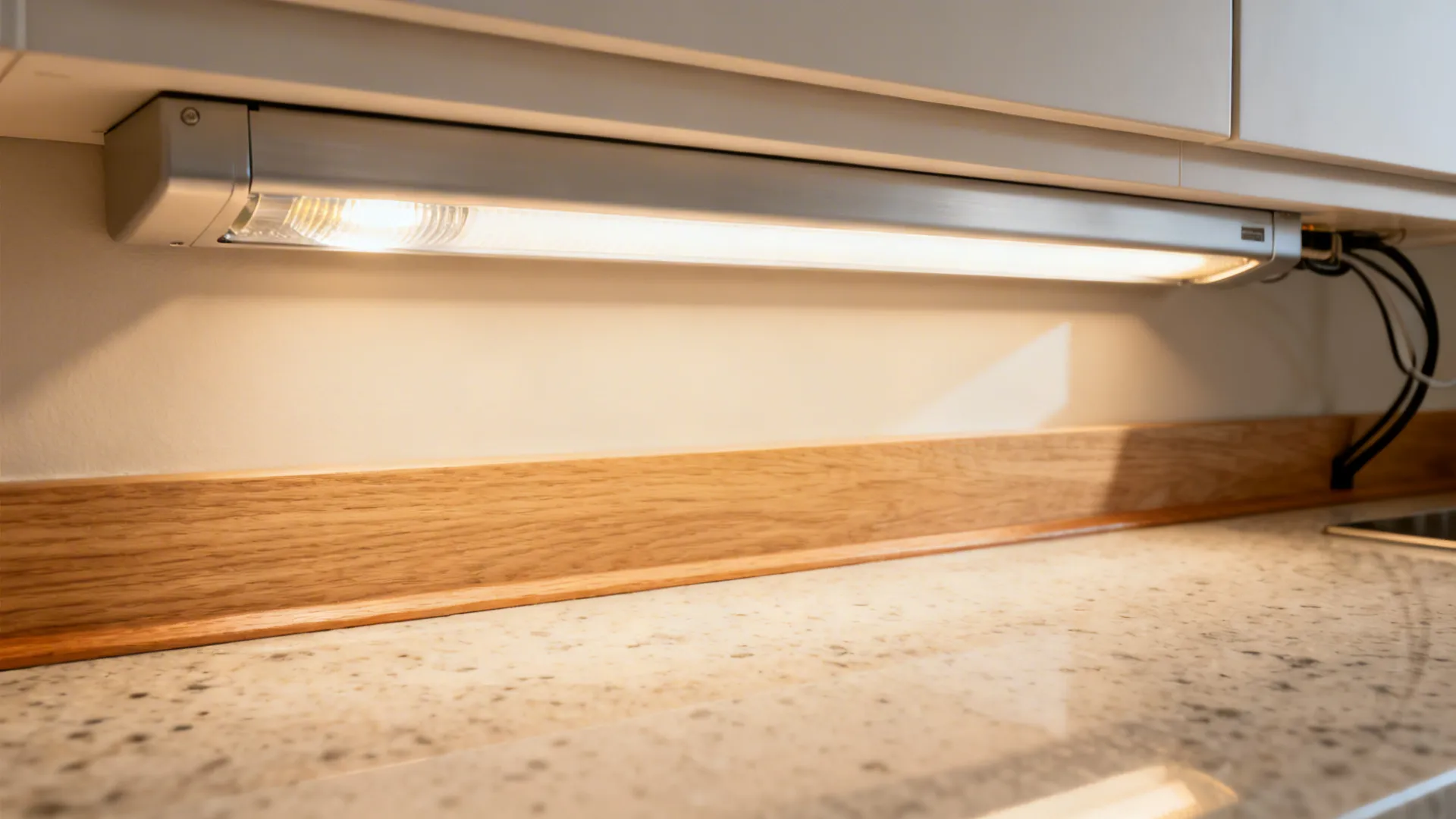

My most successful small kitchens nail “material rhythm”—solid, reflective, warm—in the elevation itself. I use hatch patterns for wood grain direction, a separate layer for LED strips, and call out trim channels so the contractor can order before drywall closes.

Pros

- Annotating LED strip heights (typically 1400–1500 mm AFF for upper cabinet bottoms in small kitchens) and diffuser types in the elevation becomes a single source of truth—great for “kitchen elevation lighting detail” briefs.

- Hatch and line weight discipline means clients and fabricators interpret the drawing the same way, reducing change orders and lead time.

- Per CIBSE LG7 and IES recommendations, task lighting at counters should deliver adequate vertical illuminance; calling this in elevation ensures placement aligns with work zones.

Cons

- Over-annotating can make elevations unreadable. I’ve had to split one elevation into two just to stop the squinting.

- If you don’t coordinate with plan and section, elevation-only lighting notes can lead to misaligned junction boxes.

Tips / Cost

- Create symbol blocks for LED drivers, dimmers, and channel types (recessed vs. surface). Add a small legend to every sheet.

- For budget projects, spec a 3000–3500K LED with a CRI ≥ 90; note it in elevation to avoid substitutions that flatten color.

save pin

save pin

Conclusion

Small kitchens demand sharper drawings, not fewer ideas. A well-crafted kitchen design elevation CAD block library lets you control lines, lighting, and storage rhythm so the build looks intentional—even on a tight wall. If you calibrate your elevations to recognized guidelines (e.g., NKBA and IES) and keep your blocks tidy, you’ll spend less time firefighting and more time refining details clients notice. Which one of these elevation strategies are you most excited to try in your next compact kitchen?

FAQ

1) What is a kitchen design elevation CAD block?

A CAD block is a reusable, pre-drawn element (like a cabinet, oven, or backsplash detail) that you can insert into elevation drawings. For kitchens, it standardizes dimensions and line weights, speeding up iterations and reducing drafting errors.

2) Why use elevation CAD blocks instead of drafting from scratch?

Blocks enforce consistent heights, reveals, and appliance clearances, which is critical in compact kitchens. They also help keep long-tail standards—like “frameless kitchen elevation detail”—inline across multiple drawings.

3) What sizes should I build into my cabinet elevation blocks?

Common modules are 300, 400, 600, and 900 mm widths; upper cabinet heights often range 600–750 mm in small spaces. Always cross-check against your countertop and ceiling heights to maintain clean datums.

4) How do I handle outlet placement in glass backsplash elevations?

Use a dedicated block for outlet centerlines (e.g., 1100–1200 mm above finished floor, depending on counter height) and call out cover plate finishes. Detailing cutouts in elevation helps fabricators price the glass and prevents site rework.

5) What’s the ideal oven centerline height in elevation?

For comfort, many guidelines place oven centers around 1000–1100 mm above finished floor. The NKBA Kitchen Planning Guidelines (2023) support ergonomic appliance placement to minimize bending and improve safety.

6) How should I document under-cabinet lighting in elevation?

Show diffuser channel type, LED color temperature (e.g., 3000–3500K), and driver location. Mark the strip height relative to the counter so the electrician and installer align on exact placement.

7) Are there standards for clearances I should note in elevations?

Yes—coordinate with plan-based clearances for appliance doors, handle projections, and walkways. Elevations should reflect those dimensions and add vertical information like hood-to-cooktop spacing per manufacturer specs.

8) Can I test layouts visually before committing to elevation blocks?

Absolutely. I often prototype in a quick 3D environment to evaluate sightlines and then finalize the elevation set. If you need a starting point for compact kitchens, exploring more counter continuity in an L-shape can help before you lock your elevation details.
