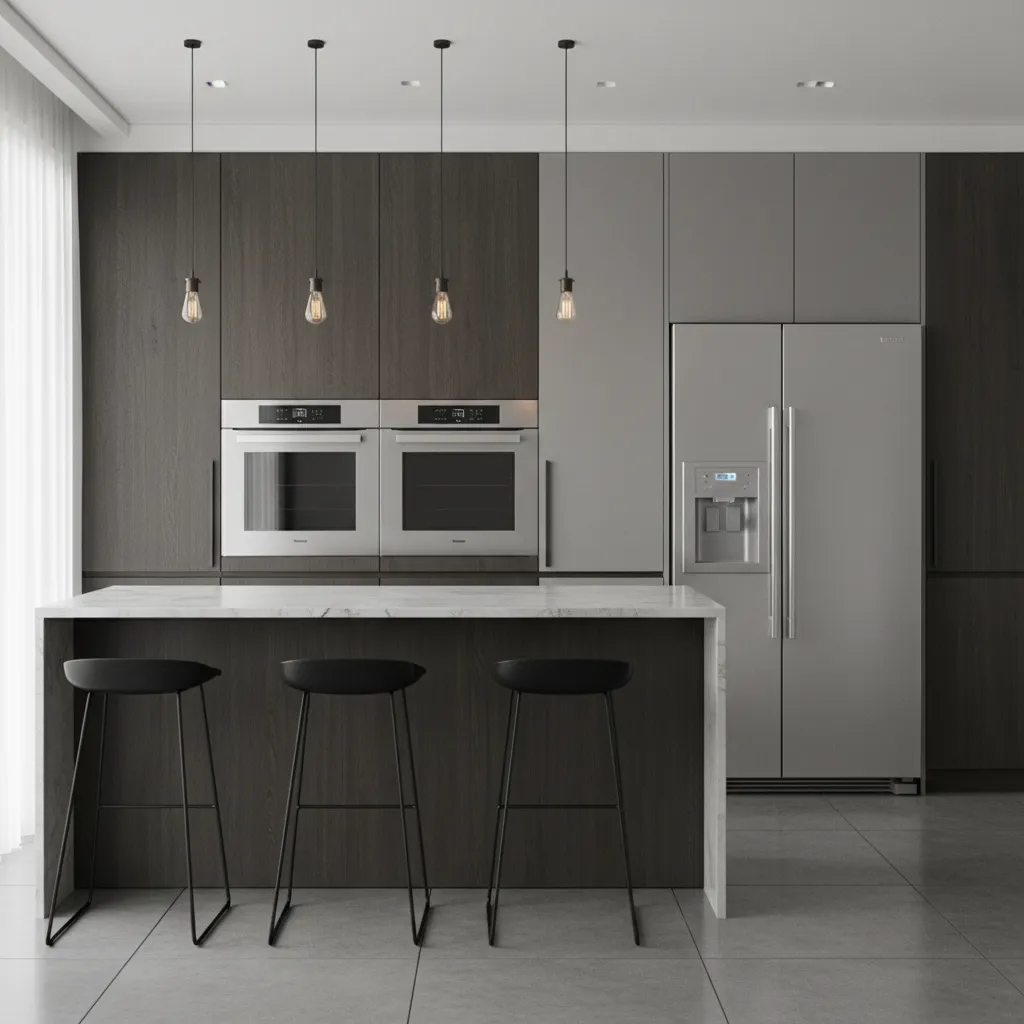

Kitchen Design: Wall Oven Next to Refrigerator: Is placing a wall oven next to a refrigerator smart kitchen planning or a costly mistake?

Direct Answer

Yes, a wall oven can be placed next to a refrigerator in kitchen design, but only when heat protection, spacing, and ventilation are properly planned. Without insulation panels or cabinet buffers, oven heat can force the refrigerator to work harder and shorten its lifespan.

Professional kitchen layouts usually include a tall cabinet divider, heat-resistant panels, or a small buffer zone to protect efficiency and maintain safe appliance performance.

Quick Takeaways

1. A wall oven next to a refrigerator is safe if insulation and spacing are designed correctly.
2. Most professional kitchens include a cabinet panel buffer between the two appliances.
3. Poor placement can increase refrigerator energy use and compressor wear.
4. Tall appliance walls work best when ventilation and door clearance are planned first.
5. Layout planning tools help visualize appliance heat zones before installation.

Introduction

In modern kitchen design, placing a wall oven next to refrigerator has become surprisingly common—especially in compact kitchens and appliance wall layouts. I’ve designed dozens of kitchens where clients wanted everything aligned into a sleek tower of appliances. It looks clean. It saves space. And it photographs beautifully.

But here’s the part most homeowners don’t realize until too late: ovens produce concentrated heat, and refrigerators are designed to stay cool. When these two appliances are installed side by side without planning, the fridge often works harder to maintain temperature, which can quietly increase energy consumption and wear down the compressor.

When I plan layouts for clients, I usually test appliance placement using a visual planning workflow similar to interactive kitchen layout planning for appliance placement. Seeing the full wall configuration helps identify heat conflicts, door clearance issues, and workflow problems before cabinets are ordered.

The good news: with the right cabinet structure and spacing, this layout can work beautifully. In fact, in many modern kitchens it’s the most efficient solution.

Let’s break down when it works, when it fails, and the hidden design details most guides never mention.

save pin

Is It Safe to Put a Wall Oven Next to a Refrigerator?

Key Insight: Yes, but only when heat transfer is controlled through cabinet insulation and proper spacing.

From a technical standpoint, appliance manufacturers don't forbid placing a wall oven next to a refrigerator. However, they expect kitchen designers to create a thermal buffer between the two.

In my projects, I typically add a narrow cabinet panel or tall divider between the appliances. Even a small buffer dramatically reduces heat transfer.

Common protection methods:

1. Heat‑resistant cabinet panel (1–2 inches)
2. Tall pantry cabinet between appliances
3. Insulated oven cabinet housing
4. Air ventilation gaps behind appliances

Many appliance installation manuals actually recommend maintaining a small separation to avoid thermal interference. The goal is simple: prevent the refrigerator condenser from fighting oven heat.

When the layout ignores this principle, the refrigerator compressor cycles more frequently, which increases long‑term wear.

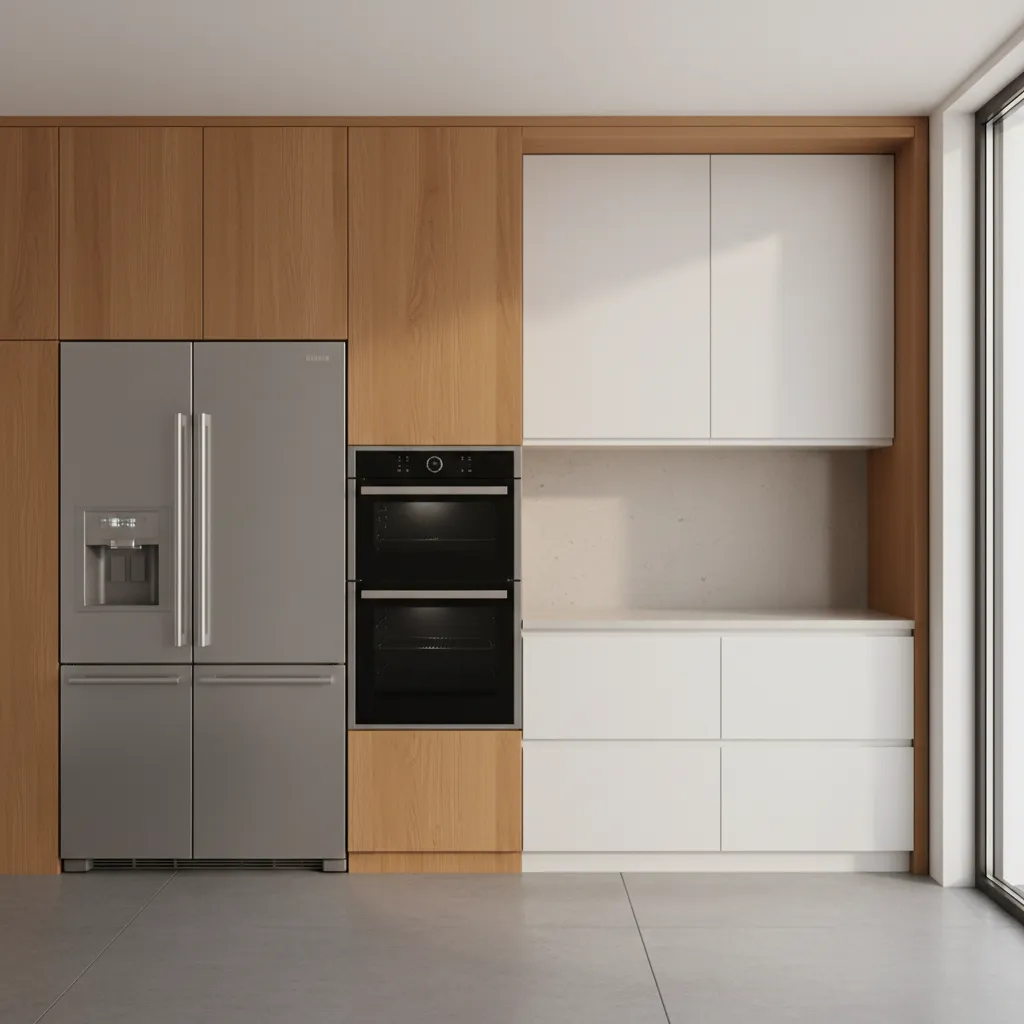

Why Designers Often Place Ovens and Refrigerators Together

Key Insight: Designers group tall appliances together to simplify kitchen workflow and create cleaner visual structure.

In contemporary kitchen design, the "appliance wall" has become a standard layout strategy. Instead of spreading appliances across multiple walls, designers concentrate tall units in one zone.

Advantages of an appliance wall:

1. Creates a clean architectural focal point
2. Frees up counter space elsewhere
3. Improves kitchen work triangle flow
4. Allows symmetrical cabinet design

In smaller kitchens, this approach often solves multiple problems at once. I’ve used it in urban condos where space was limited but clients still wanted a built‑in oven.

Instead of scattering appliances randomly, grouping them vertically creates a controlled utility zone.

save pin

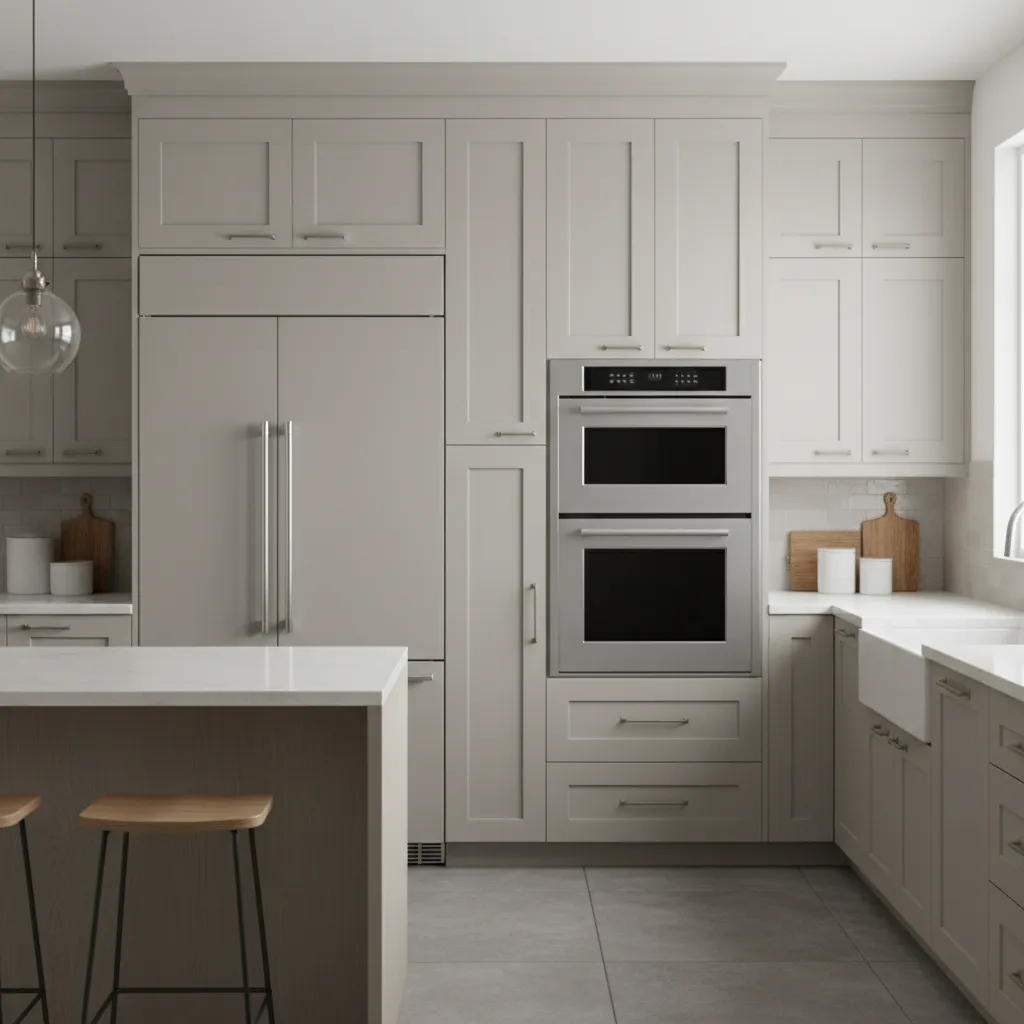

What Spacing Should Exist Between a Wall Oven and Refrigerator?

Key Insight: Even a small buffer—typically 1–3 inches or a cabinet divider—dramatically improves appliance performance.

This is where most DIY kitchen plans go wrong. The appliances technically "fit," but no thermal buffer exists.

Recommended spacing guidelines:

1. 1–2 inch cabinet panel between appliances
2. Heat‑insulated oven housing cabinet
3. Rear ventilation space behind refrigerator
4. Door swing clearance of at least 2 inches

Major appliance manufacturers emphasize ventilation zones around refrigerators because the condenser coils release heat during cooling cycles.

If oven heat accumulates in that same zone, the refrigerator must work harder to stabilize internal temperature.

During kitchen planning, I often test these clearances using tools similar to visual 3D floor planning for appliance spacing. Seeing the exact cabinet depth and door swing prevents mistakes that drawings alone miss.

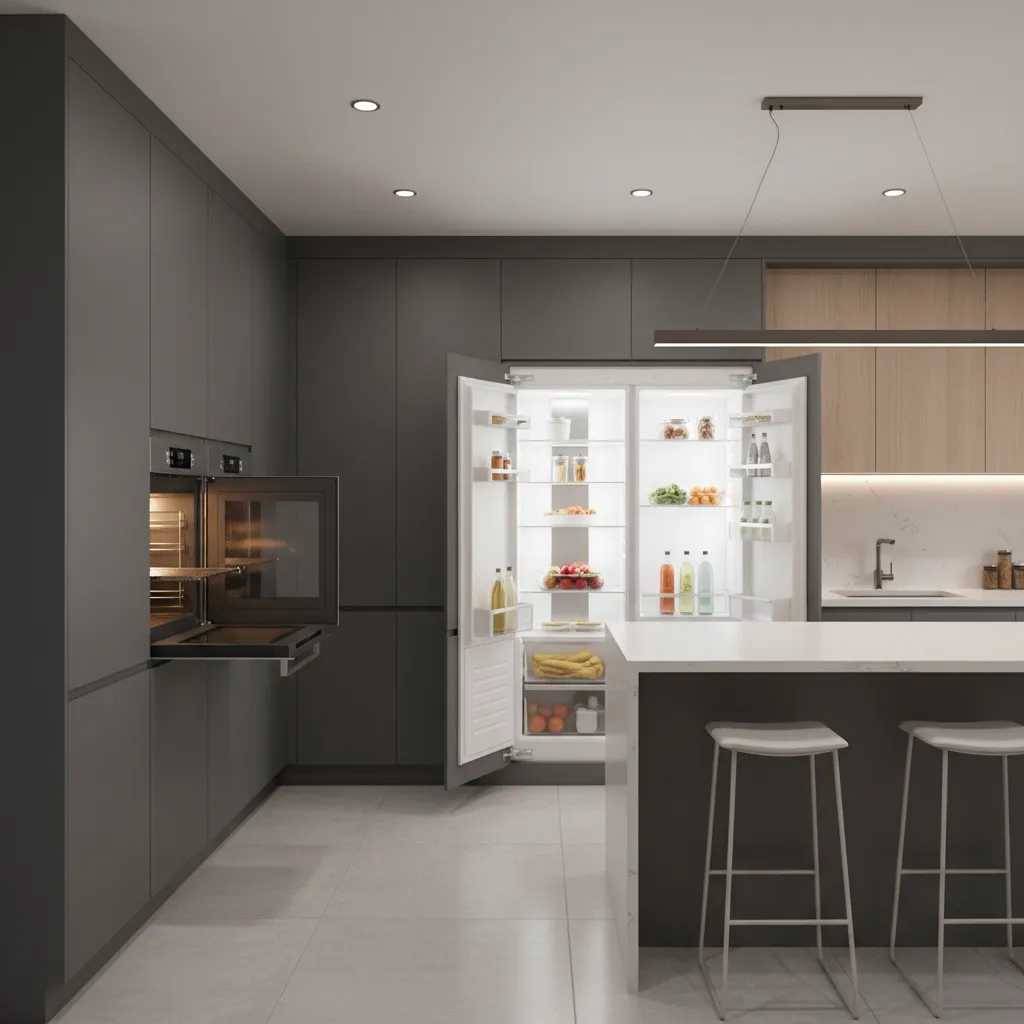

Hidden Mistake: The Door Clearance Problem

Key Insight: The biggest design mistake isn’t heat—it’s appliance door collision.

This is the problem almost no kitchen blog mentions.

Wall ovens open downward, while refrigerators typically require wide door swing angles. If the appliances are installed too tightly, both doors can interfere with each other.

I’ve seen homeowners install a beautiful appliance tower only to realize the oven door blocks the refrigerator drawer.

Common clearance issues:

1. Oven door blocking refrigerator drawers
2. Refrigerator handle hitting cabinet trim
3. Limited space for standing in front of both appliances
4. Double oven doors conflicting with adjacent fridge

The safest fix is a small filler panel or tall cabinet between units. That extra inch often prevents years of daily frustration.

save pin

Does Oven Heat Affect Refrigerator Efficiency?

Key Insight: Yes—excess heat forces refrigerators to run longer cooling cycles.

Refrigerators maintain temperature through a compressor system that removes internal heat. When the surrounding air becomes warmer, the system works harder.

Placing a high‑temperature appliance like a wall oven next to it can increase the ambient temperature around the refrigerator cabinet.

Possible consequences:

1. Higher electricity consumption
2. Shorter compressor lifespan
3. More frequent cooling cycles
4. Reduced energy efficiency

In real projects, this usually isn't catastrophic—but poor ventilation can amplify the effect. That's why professional kitchen cabinetry includes thermal barriers.

Answer Box

A wall oven next to a refrigerator works best when separated by a cabinet divider or insulation panel. Proper spacing prevents heat transfer, protects refrigerator efficiency, and avoids door clearance conflicts.

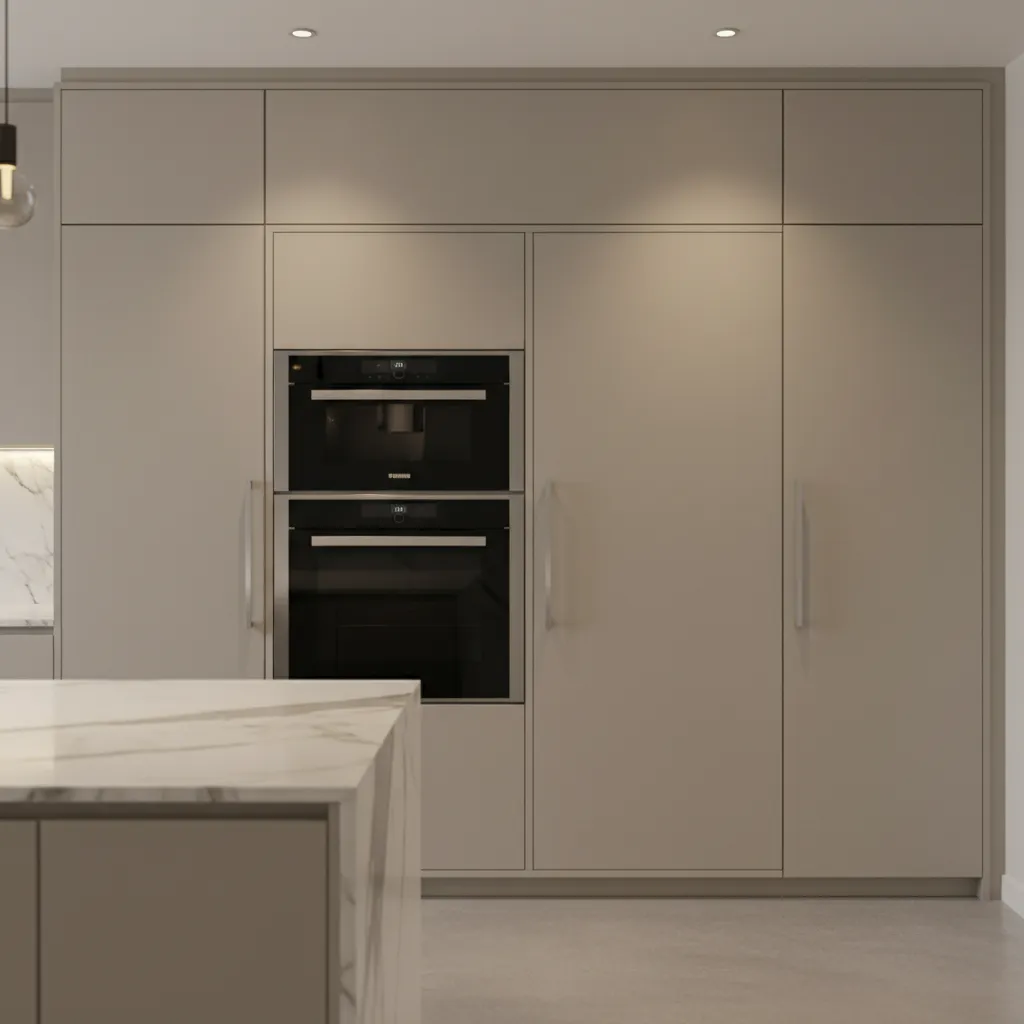

How Do Designers Build a Safe Appliance Wall?

Key Insight: The best appliance walls prioritize ventilation, symmetry, and functional spacing.

When designing these zones, I follow a simple layout sequence.

Typical appliance wall structure:

1. Refrigerator
2. 1–2 inch cabinet filler panel
3. Wall oven or oven stack
4. Optional microwave or warming drawer
5. Pantry cabinet for balance

This structure keeps heat‑producing appliances grouped while protecting the refrigerator.

If you're exploring layouts, it helps to visualize full cabinet compositions using AI‑assisted interior layout visualization for kitchens. Seeing the appliance wall in context makes spacing and proportions much easier to evaluate.

save pin

When Should You Avoid This Layout?

Key Insight: Avoid placing ovens beside refrigerators in very tight kitchens without cabinet buffers.

There are situations where this configuration simply isn't ideal.

Problem scenarios:

1. Very small kitchens under 8 feet wide
2. No cabinet divider between appliances
3. Oversized refrigerator doors
4. Double oven stacks beside shallow cabinets

In those cases, separating appliances across different walls often creates a more functional kitchen workflow.

Final Summary

1. Wall ovens can sit next to refrigerators when insulation and spacing are planned.
2. A 1–2 inch cabinet divider significantly reduces heat transfer.
3. The biggest design risk is door clearance conflicts.
4. Appliance walls create efficient, modern kitchen layouts.
5. Careful layout planning prevents long‑term appliance issues.

FAQ

Can a wall oven go next to a refrigerator?

Yes. A wall oven next to refrigerator layouts are common in modern kitchens when a cabinet divider or insulation panel separates the appliances.

How much space should be between oven and refrigerator?

Most designers recommend at least a 1–2 inch cabinet panel or filler strip to reduce heat transfer and allow proper ventilation.

Will oven heat damage a refrigerator?

Not usually, but constant heat exposure can make the refrigerator compressor work harder and reduce long‑term efficiency.

Is this layout common in modern kitchens?

Yes. Many contemporary kitchens use appliance walls where refrigerators, ovens, and microwaves are grouped together.

Should a cabinet panel be placed between appliances?

Yes. Even a thin divider improves insulation and prevents door clearance issues.

Can a double wall oven sit next to a fridge?

Yes, but spacing and ventilation become even more important due to increased heat output.

Does this layout affect kitchen workflow?

Often positively. Grouping tall appliances can free up counter space and simplify cooking zones.

What is the safest wall oven next to refrigerator layout?

The safest layout includes a refrigerator, cabinet filler panel, insulated oven cabinet, and proper ventilation gaps.
