Kitchen Drain Pipes: 5 Smart Ideas for Apartments: My pro playbook for designing apartment kitchen drain pipes that are quiet, compact, and code‑ready

[Section: Meta 信息] [Section: 引言] As an interior designer who has remodeled more than a dozen compact city kitchens, I’ve learned that designing kitchen drain pipes in a residential apartment is equal parts creativity and code. Small spaces force sharper decisions—little kitchens spark big ideas. In this guide, I’ll share 5 design inspirations grounded in field experience and backed by expert sources. Upfront tip: I often preview layouts with digital models so clients can visualize gradients and clearances; in one recent studio, that helped us catch a clash between a dishwasher tailpiece and a drawer bank before demo. For a visual on how I often plan compact layouts, see "L 型布局释放更多台面空间" as a reference model I frequently test in early planning: L 型布局释放更多台面空间. [Section: 灵感列表]

1) Slope Smart: Quiet, Self-Cleaning Drain Lines

My Take:

I still remember a 28 m² micro-apartment where the tenant complained of gurgling and slow drains. The fix wasn’t fancy hardware—it was correcting the slope and trap arm length. Getting the fall right transformed the sink from sluggish to silky.

Pros:

- A consistent 1/4 inch per foot (about 2%) slope on 2-inch waste lines promotes self-scouring flow, reducing clogs and odor—classic plumbing best practice for small apartment kitchens.

- Proper slope also minimizes water velocity noise, a big win in open-plan studios where acoustic comfort is key; this aligns with long-tail planning like "apartment kitchen drain slope 2 percent".

- With correctly sized trap and vent, you’ll maintain a robust water seal and prevent siphonage, improving indoor air quality in tiny homes.

Cons:

- Over-slope (e.g., >3%) can outrun solids, leading to deposits—counterintuitive but real. I’ve had to re-pitch lines after a DIY over-tilt experiment.

- In older buildings with fixed slab penetrations, achieving perfect grade sometimes requires low-profile fittings or minor casework sacrifices.

Tips / Cost:

- Use a digital level and mark studs before closing walls; check slope at rough-in and again after strapping.

- Budget: re-pitching a short run in an apartment typically adds $150–$350 in labor, more if access is tight.

save pin

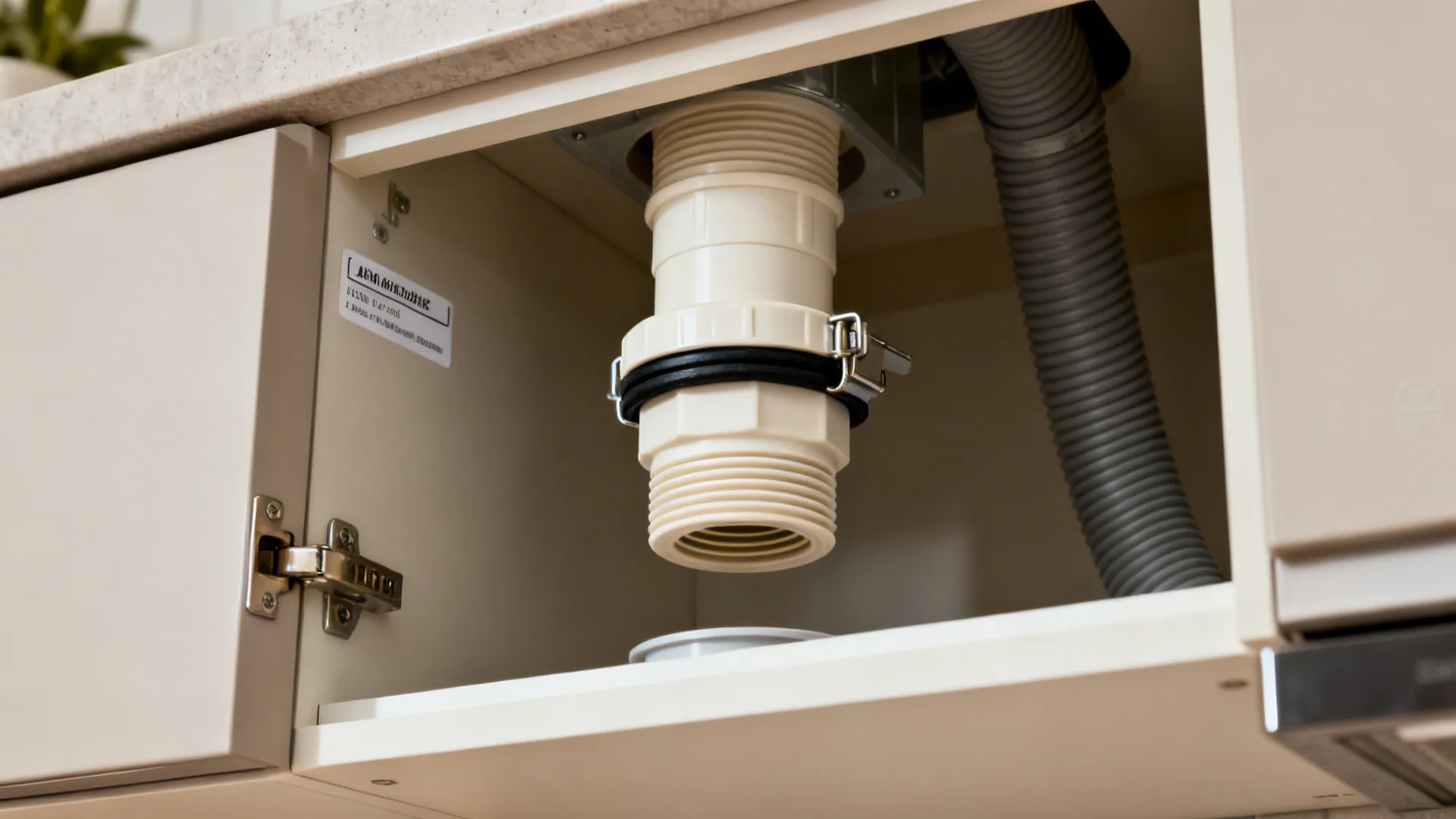

2) Vent Right: Air Admittance or Dedicated Venting

My Take:

In a prewar walk-up, tying into an existing vent stack was impossible without invasive work. We specified a code-listed AAV in a serviceable cabinet bay, and the sink finally drained without gulping. I always design the cabinet interior to keep the valve accessible and above the trap weir.

Pros:

- Proper venting—whether via a dedicated vent or a code-compliant AAV—prevents negative pressure and trap siphonage; it’s the backbone of "residential kitchen sink venting best practices".

- Better venting equals quieter drains and fewer bubble-back events, especially with modern high-flow faucets and dishwashers.

- The International Residential Code (e.g., IRC P3114 for AAVs; check local adoption) recognizes AAVs when correctly installed and accessible, offering flexibility for apartments. Source: International Code Council (ICC).

Cons:

- AAVs are not allowed in some jurisdictions or high-rise builds with special mechanical codes; always verify with your AHJ (Authority Having Jurisdiction).

- Misplaced AAVs (too low, buried, or without clearance) will fail early and can void warranties.

Tips / Case:

- Keep AAV at least 4 inches above the trap arm horizontal and inside a ventilated cabinet grill; log the model and install date for maintenance.

- For stacked units, coordinate riser locations and plan for future service panels behind the backsplash when possible.

save pin

3) Compact Traps and Tailpieces: Clearance Without Compromise

My Take:

I love a deep drawer under the sink, but traps often get in the way. In a recent rental refresh, we used a low-profile, code-listed tubular P-trap and offset tailpiece to clear a recycling drawer without cutting into storage.

Pros:

- Low-profile P-traps and offset tailpieces help maintain a "small apartment under-sink storage" layout while keeping the required trap seal (typically 2–4 inches).

- Using a dishwasher branch tailpiece simplifies connections, reducing extra tees and potential leak points—great for "apartment kitchen dishwasher drain connection" needs.

- Smooth interior fittings (schedule-rated ABS or PVC with solvent weld where allowed) minimize turbulence and buildup, improving long-term flow.

Cons:

- Ultra-compact traps can be too shallow if poorly selected; choose models that meet the minimum water seal depth per code (often 50 mm).

- Decorative apron-front sinks can crowd the trap arm; expect to adjust cabinet backs or use shallower drawers.

Tips / Cost:

- Consider a flexible coupling only for transitional repairs; for permanent work, stick to rigid, code-approved joints.

- Typical parts cost: $35–$70 for a quality trap kit and branch tailpiece; labor varies by access.

At the halfway mark, I often test clearances and pipe runs in 3D to avoid surprises, especially with dishwashers and waste disposers. Visualizing "玻璃背板让厨房更通透" alongside pipe chases helps balance function and aesthetics; see this planning demo I reference in client workshops: 玻璃背板让厨房更通透.

save pin

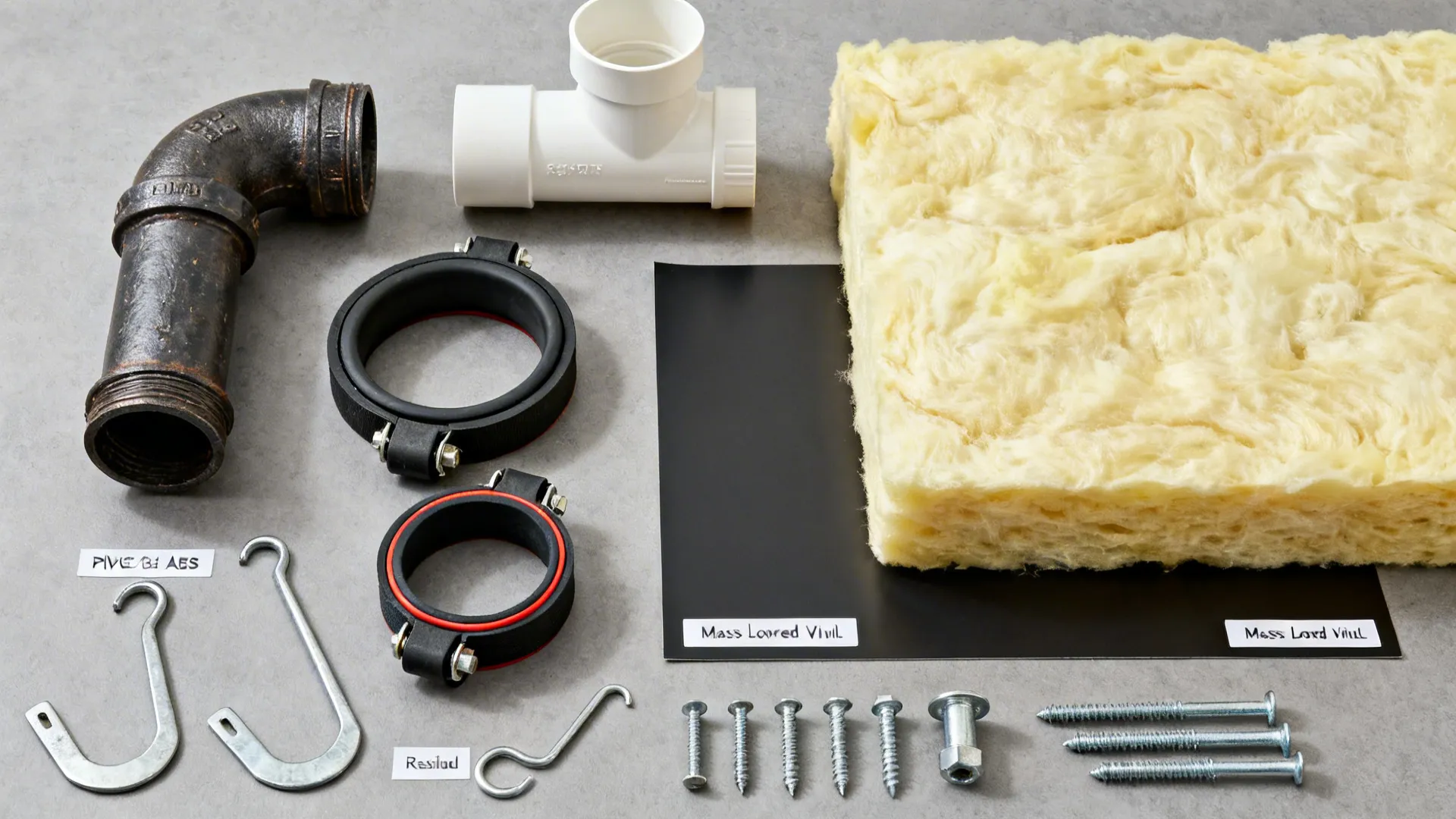

4) Noise Control: Materials, Mounting, and Isolation

My Take:

Thin walls and late-night dish cycles can turn pipes into percussion. In a Midtown condo, we switched to cast-iron for the vertical waste, used isolation clamps on studs, and lined the cabinet base—huge difference in perceived quiet.

Pros:

- Heavier pipe materials (e.g., cast iron for stacks, PVC/ABS for laterals) reduce airborne and structure-borne noise—helpful for "quiet kitchen drain design in apartments".

- Rubber-lined clamps and resilient hangers decouple vibration; adding mass-loaded vinyl in the sink base can cut sound transmission notably.

- Insulating the cavity around the trap arm with mineral wool offers a measurable drop in decibels without much cost.

Cons:

- Cast iron adds weight and cost; in older buildings, it may be impractical for DIY or require building approvals.

- Over-insulation of a closed cabinet can trap humidity; always maintain ventilation to protect woodwork.

Tips / Source:

- Follow manufacturer spacing for supports (often 4 ft for horizontal PVC/ABS, closer for heavier lines). The Copper Development Association and PDI provide noise mitigation guidance for building drains; ASHRAE handbooks discuss transmission paths in light construction.

save pin

5) Layout Finesse: Islands, Disposals, and Backflow Safety

My Take:

An island sink in a compact apartment can be a showstopper—but the plumbing is the real star. We used an island loop vent and a high-loop dishwasher drain with an air gap at the deck. The client got seamless function and a clean silhouette.

Pros:

- Island loop vents provide compliant venting when a vertical vent isn’t nearby; paired with an air gap, they protect against cross-contamination—core to "apartment kitchen dishwasher air gap vs high loop".

- Garbage disposals with anti-vibration mounts and correct baffle design reduce noise and improve flow scaling through the trap.

- Backwater valves and check points protect lower-floor apartments from stack reflux during building events (subject to local code and elevation).

Cons:

- Island loops take space inside cabinetry; you’ll sacrifice a bit of storage and need precise carpentry.

- Air gaps can visually interrupt minimal decks; consider finishes that match faucets to keep the look cohesive.

Tips / Case:

- Confirm that your building allows disposals and that electrical circuits meet GFCI/AFCI requirements; many condos restrict them.

- For flood-sensitive buildings, consult code for backwater valve placement relative to the building’s crown; the Uniform Plumbing Code and local amendments govern these details. For planning an "极简风的厨房收纳设计" alongside your plumbing path and appliance clearances, I prototype options with clients here: 极简风的厨房收纳设计.

[Section: 总结] Designing kitchen drain pipes in a residential apartment isn’t about limits—it’s about smarter layouts, right-sized components, and code-savvy venting. Small kitchens reward precision: correct slope, accessible vents, low-profile traps, quiet materials, and safe island strategies. For a data-driven check, the International Code Council and your local plumbing code are your north stars; they’re the gatekeepers that turn good ideas into approved plans. Which of these five ideas are you most excited to try in your own space? [Section: FAQ 常见问题]

save pin

FAQ

1) What is the ideal slope for designing kitchen drain pipes in a residential apartment?

Aim for 1/4 inch per foot (about 2%) on 2-inch horizontal waste lines; some codes allow 1/8 inch per foot on larger diameters. Always verify local code before rough-in.

2) Do I need an air admittance valve (AAV), or must I tie into a vent stack?

It depends on your jurisdiction. The IRC (e.g., P3114) permits listed AAVs when properly installed and accessible, but some cities prohibit them; consult your AHJ.

3) How can I reduce drain noise in a small apartment kitchen?

Use heavier pipe for verticals, rubber-lined clamps, and cabinet sound lining. A quiet disposer with anti-vibration mounts helps too, especially in open-plan layouts.

4) What trap size is typical for apartment kitchen sinks?

Most codes call for a 1-1/2 inch trap and trap arm for a standard sink, increasing to 2 inches when local amendments or multiple fixtures require it. Maintain a 2–4 inch water seal depth.

5) Is an air gap required for dishwashers in apartments?

Many codes require an air gap; others accept a high loop when air gaps aren’t mandated. Check your local code and manufacturer installation guidelines for compliance.

6) Can I use flexible corrugated tailpieces?

They’re generally discouraged because ridges trap debris and increase clog risk. Smooth interior fittings and solvent-welded joints (where allowed) are more durable.

7) What if the building stack elevation makes my sink prone to backups?

Discuss a backwater valve with your plumber if permitted by code and site conditions. Placement must comply with local code; improper installation can restrict flow.

8) How can I visualize layouts for designing kitchen drain pipes in a residential apartment?

I model cabinet interiors, trap locations, and vent options in 3D to catch conflicts early and maintain storage. When assessing layout flow with fixtures and cabinet clearances, it helps to reference real-case planners like wood accents for a warmer feel for inspiration context only.
