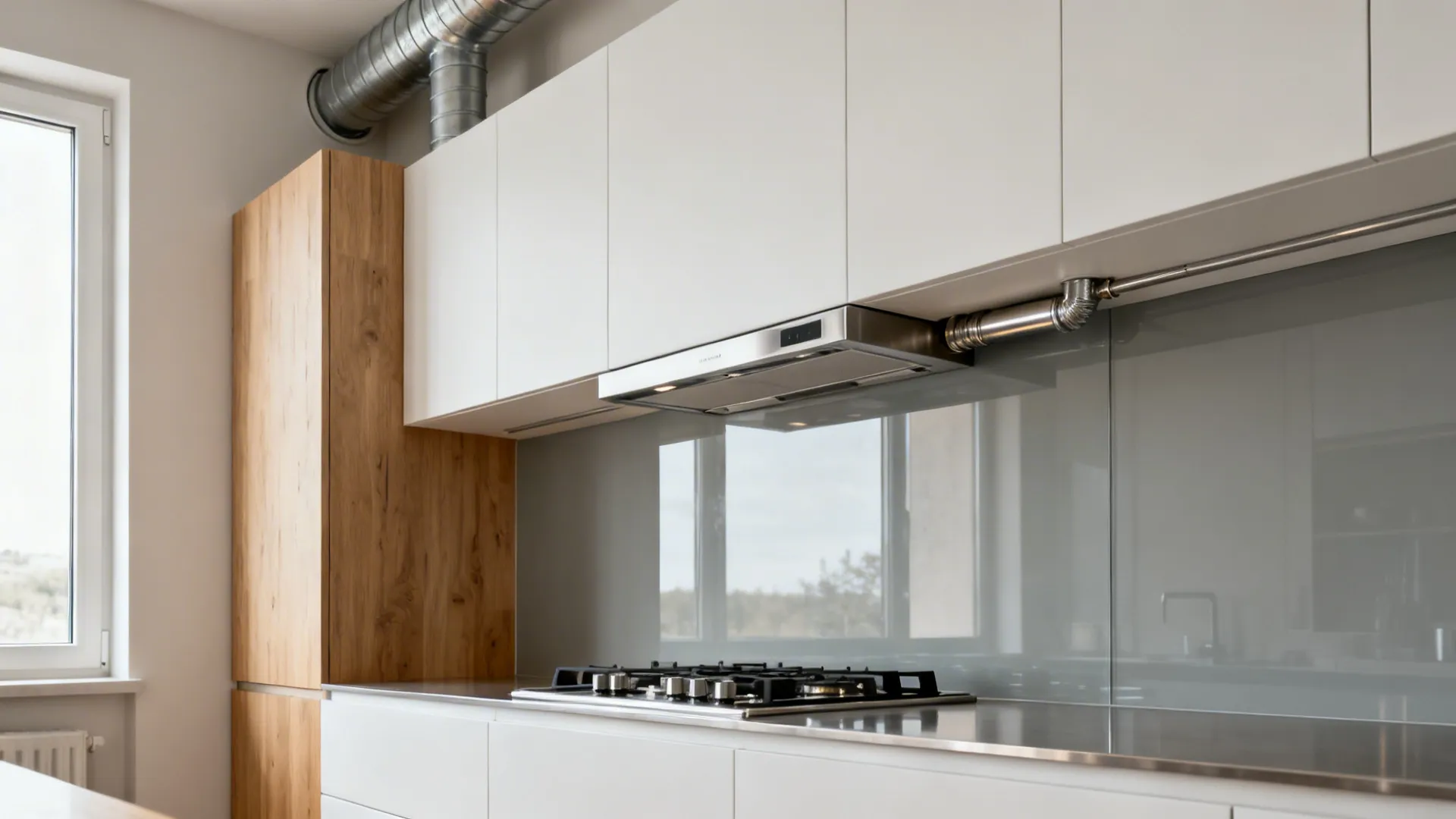

Kitchen Exhaust Fan Design: 5 Ideas That Actually Work: A senior interior designer’s take on small-space kitchen exhaust fan design—5 practical ideas with real pros, cons, costs, and data-backed tips

I’ve redesigned dozens of compact kitchens, and one topic clients always underestimate is kitchen exhaust fan design. Trends like slimmer hoods, integrated ducted systems, and smarter controls are reshaping how we keep small kitchens clean and quiet. In my experience, small spaces spark big creativity—especially when ventilation is tight and every inch counts. In this guide, I’ll share 5 exhaust fan design ideas I use in real projects, blending personal practice with expert data so you can pick what fits your space, budget, and cooking style.

By the way, when I tested cabinet lines for a minimalist remodel, the ventilation path mattered more than the hood brand. Getting the right layout saves noise, grease build-up, and regrets later. If you’re thinking about layout first, this case on L shaped layout adds more counter space shows how placement affects duct runs and fan performance.

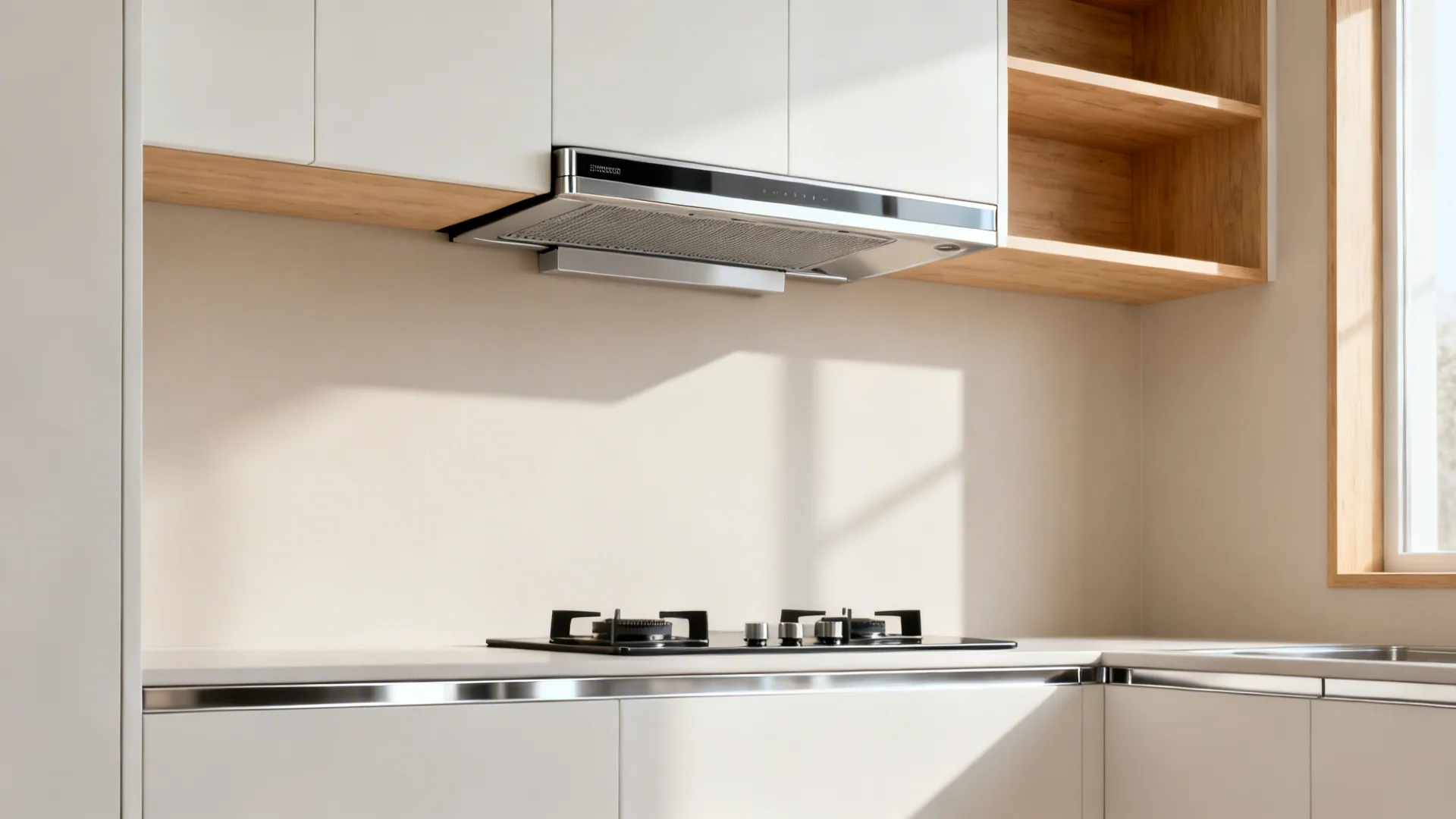

Minimalist Ducted Hood with Slim Profile

My Take

I love a thin, ducted hood in small apartments—especially above a 24–30 inch cooktop. I once tucked a 3.5-inch slim hood into a shallow cabinet, aligned with a narrow duct, and my client’s stir-fry nights no longer smoked out the hallway.

Pros

- A slim, ducted hood offers strong capture for high-heat cooking while keeping a modern, streamlined look. With the right CFM sizing (often 200–400 CFM for small kitchens), you get efficient grease removal without bulk.

- Long-tail keyword fit: A minimalist ducted range hood design maintains upper cabinet storage and supports concealed ductwork for small apartments, reducing visual clutter.

- According to the Home Ventilating Institute (HVI) performance ratings, certified ducted hoods typically deliver more consistent capture efficiency than non-ducted units of similar size.

Cons

- Slim hoods can be louder at the same CFM if the fan wheel is small or ducts are undersized—expect some hum at higher speeds.

- Not every wall can accommodate a short, straight duct; if your duct route snakes around beams, you may lose performance (and patience) fast.

Tips / Cost

- Aim for a short, straight duct run with smooth, rigid ducting—4 to 6 inches in diameter. Every elbow reduces flow.

- Budget: $250–$900 for the hood; $300–$1,200 for ducting and installation depending on wall/ceiling runs.

save pin

save pin

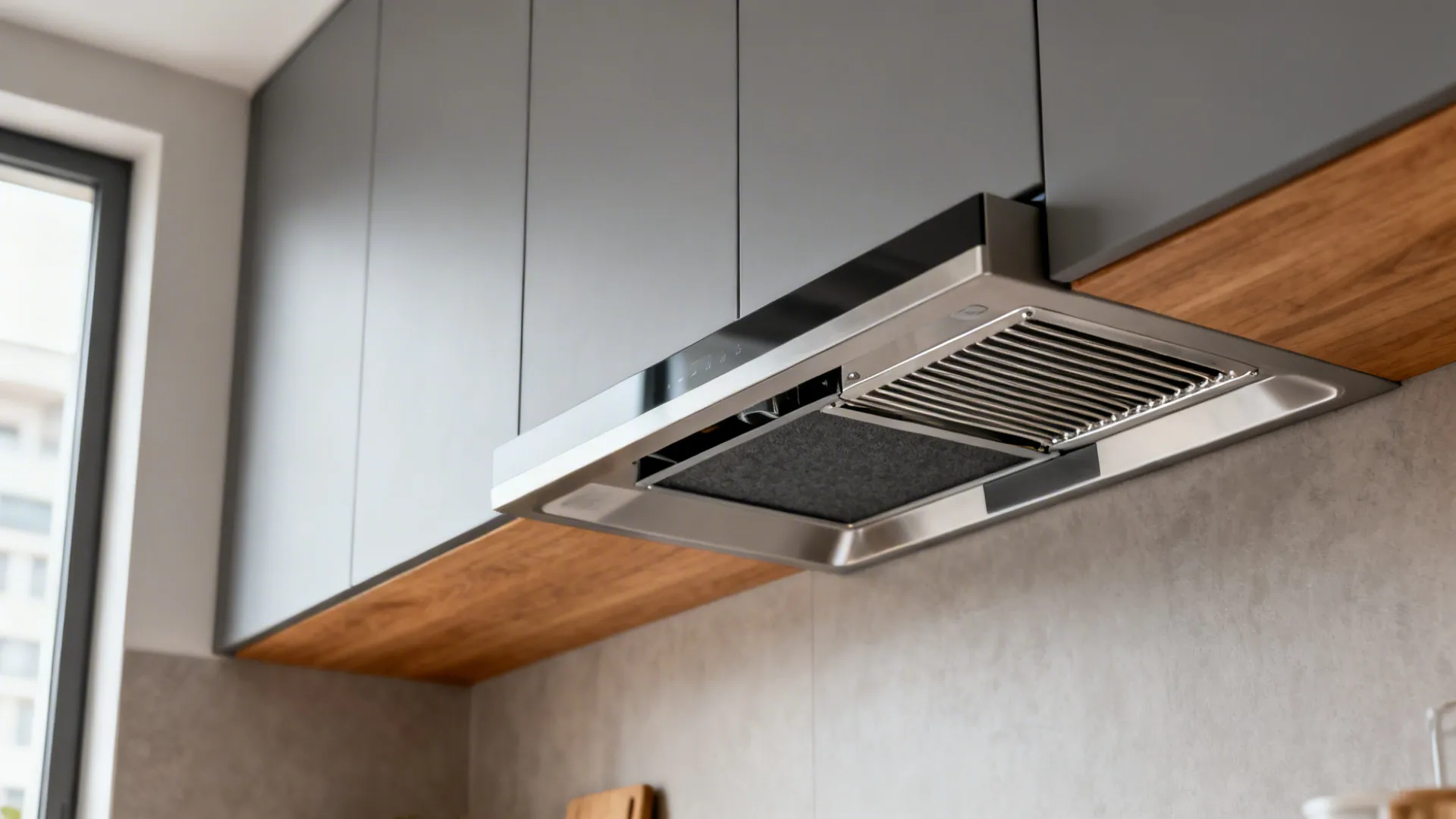

Recirculating Hood with High-Quality Carbon Filters

My Take

In many high-rise renovations, exterior venting is either prohibited or painfully complex. I’ve used recirculating hoods with upgraded carbon filters when clients mainly sauté and simmer. The key is setting expectations and ensuring regular filter swaps.

Pros

- A recirculating kitchen exhaust fan design is often the only option in condos, and modern charcoal filters significantly reduce odors for light-to-medium cooking.

- Long-tail keyword fit: A ductless range hood with replaceable carbon filters is a smart choice for rental apartments where ducted exhaust isn’t possible.

- Some premium models now offer multi-stage filtration and grease baffles that keep cabinets cleaner.

Cons

- Recirculating systems don’t remove moisture; steam stays in the room, which can fog up windows and stress finishes.

- Filters are recurring costs—and if you skip replacements, performance drops off quickly.

Tips / Cost

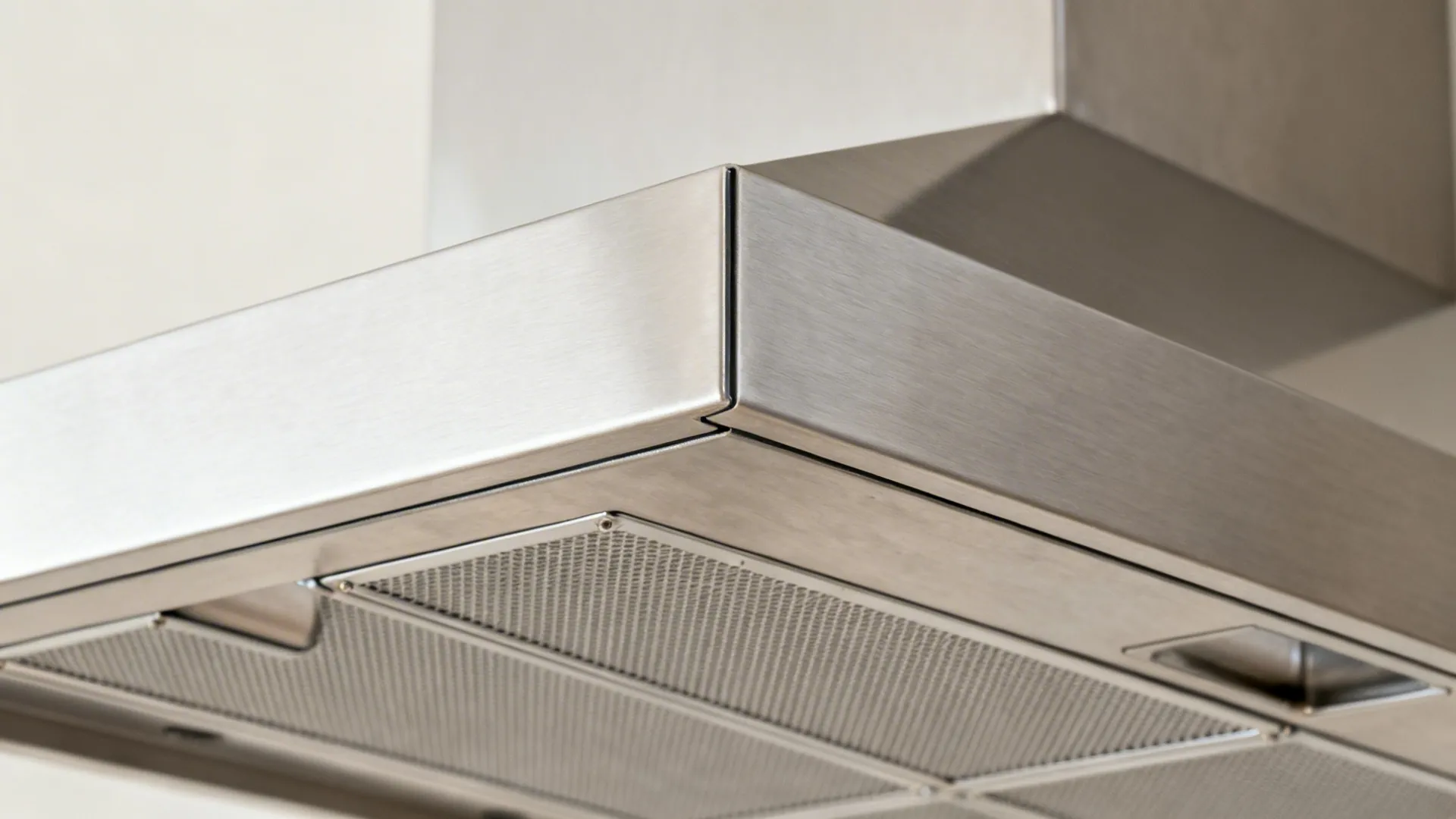

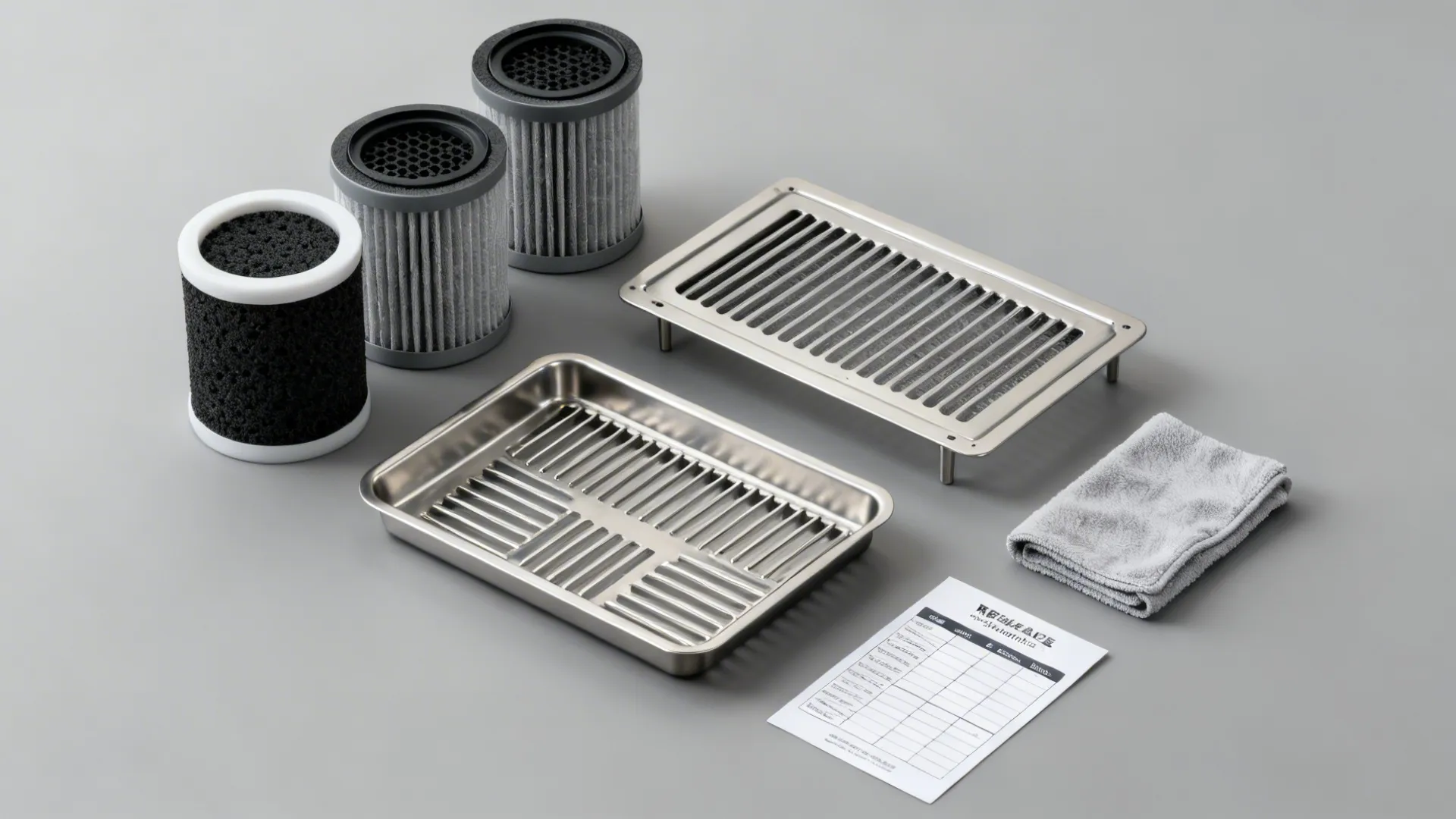

- Choose units with metal baffle filters for easier cleaning and a larger charcoal cartridge. Replace carbon every 3–6 months depending on cooking habits.

- Budget: $150–$700 for the hood; $40–$120 per year for filters.

save pin

save pin

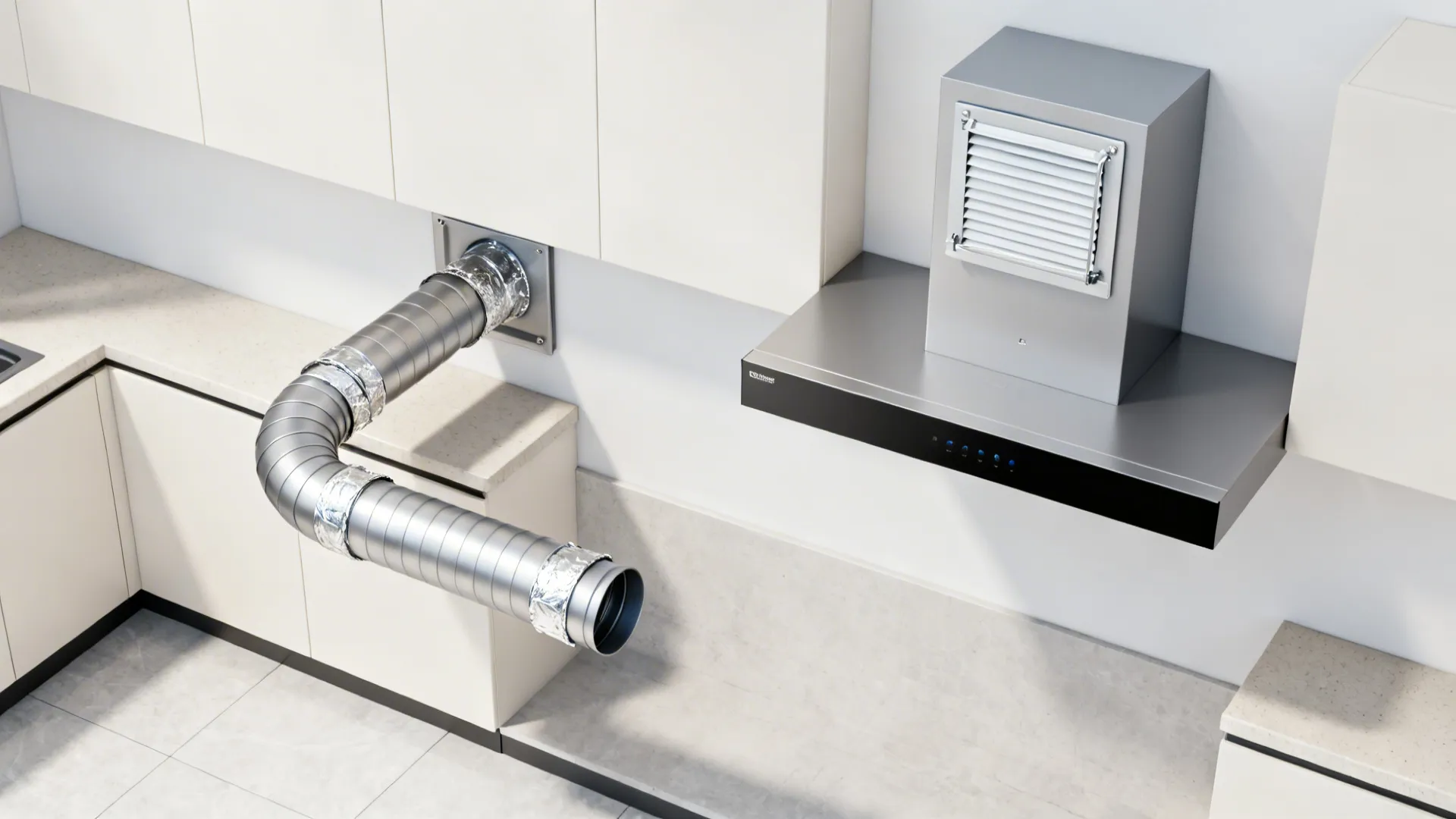

Under-Cabinet Hood with Short, Rigid Duct to Exterior

My Take

When I can vent outside, I prioritize a short, rigid duct. I once shaved 10 decibels off a client’s kitchen by replacing a long, flexible duct with a straight, rigid run. Same hood, dramatically better performance.

Pros

- An under-cabinet exhaust with a direct, rigid duct improves airflow, reduces noise, and boosts capture efficiency—especially for small kitchens with limited upper cabinet space.

- Long-tail keyword fit: A short-run exterior vent for an under-cabinet range hood cuts static pressure and helps maintain real-world CFM close to the rated value.

- The U.S. Department of Energy notes that smooth, rigid ducts reduce resistance compared to flexible ducts, improving ventilation efficiency.

Cons

- You’ll need a clean exterior wall path or a soffit route; older buildings may require patching or permits.

- Wall caps and backdraft dampers can rattle in high winds if you choose flimsy components.

Tips / Case

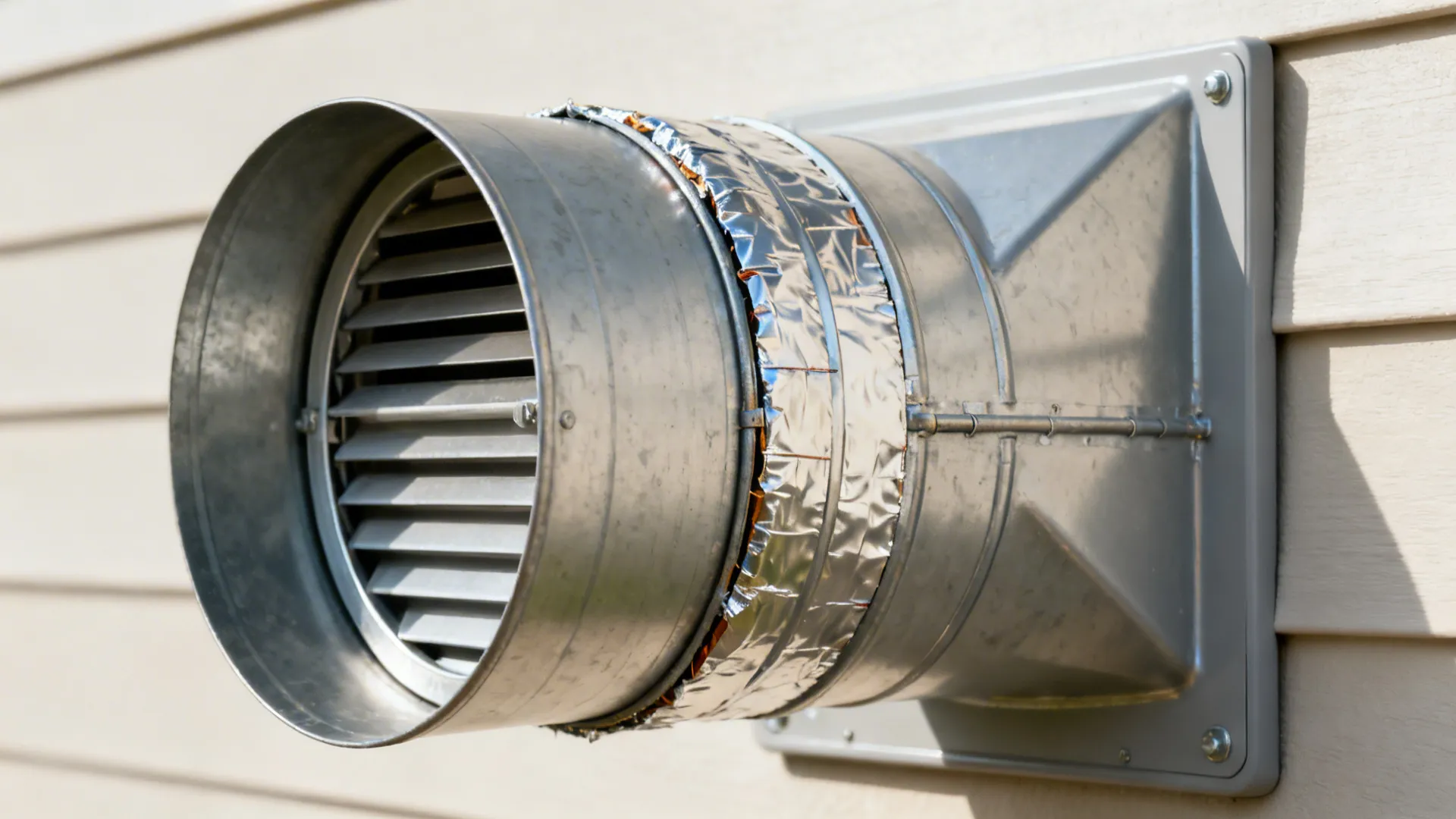

- Keep the duct size equal to or larger than the hood’s outlet; seal joints with foil tape, not duct tape. Add a backdraft damper and a quality wall cap to cut noise and drafts.

- If you’re mapping cabinets and runs, see how an open concept with better airflow changes exhaust routes and reduces bends.

save pin

save pin

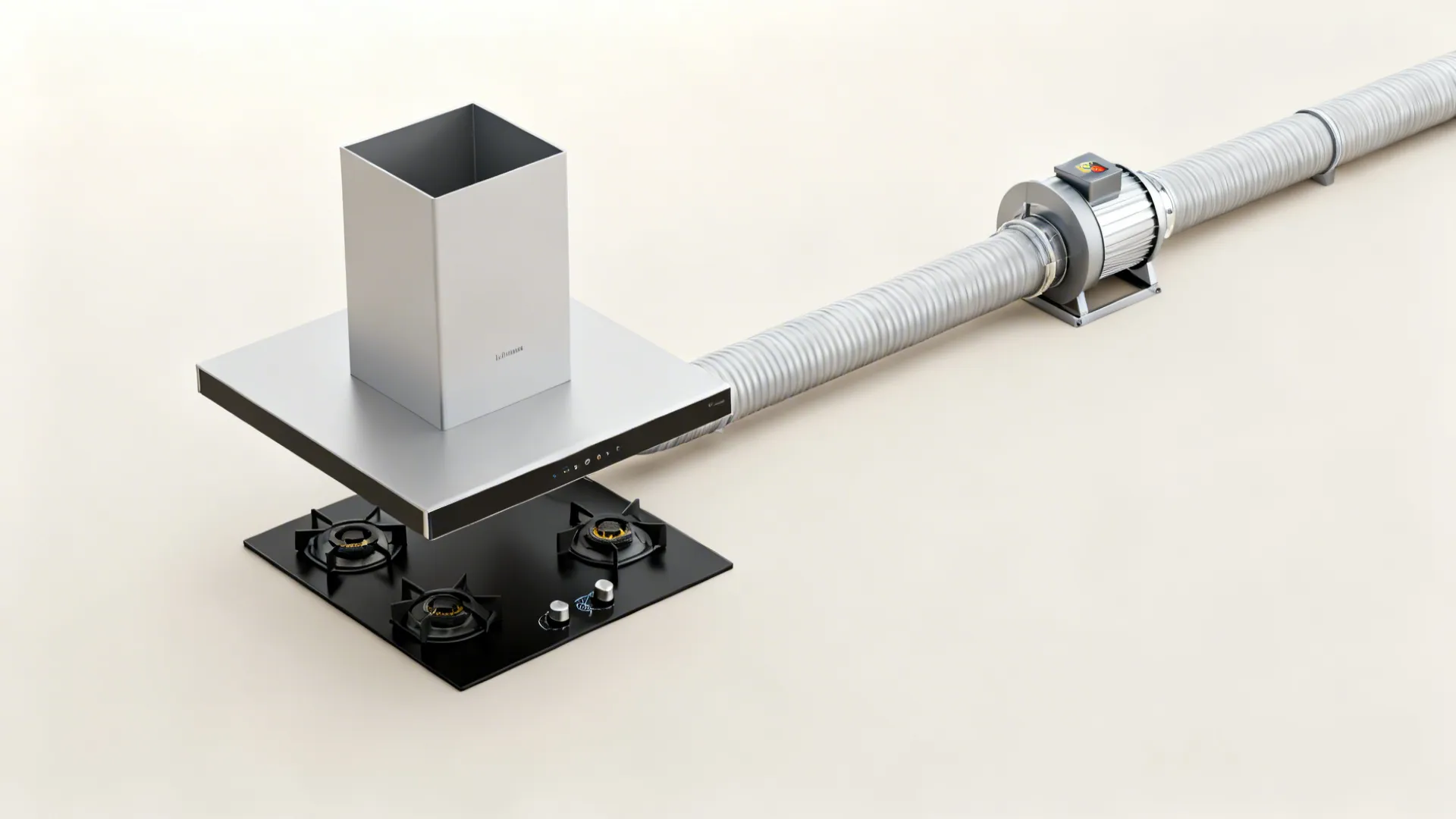

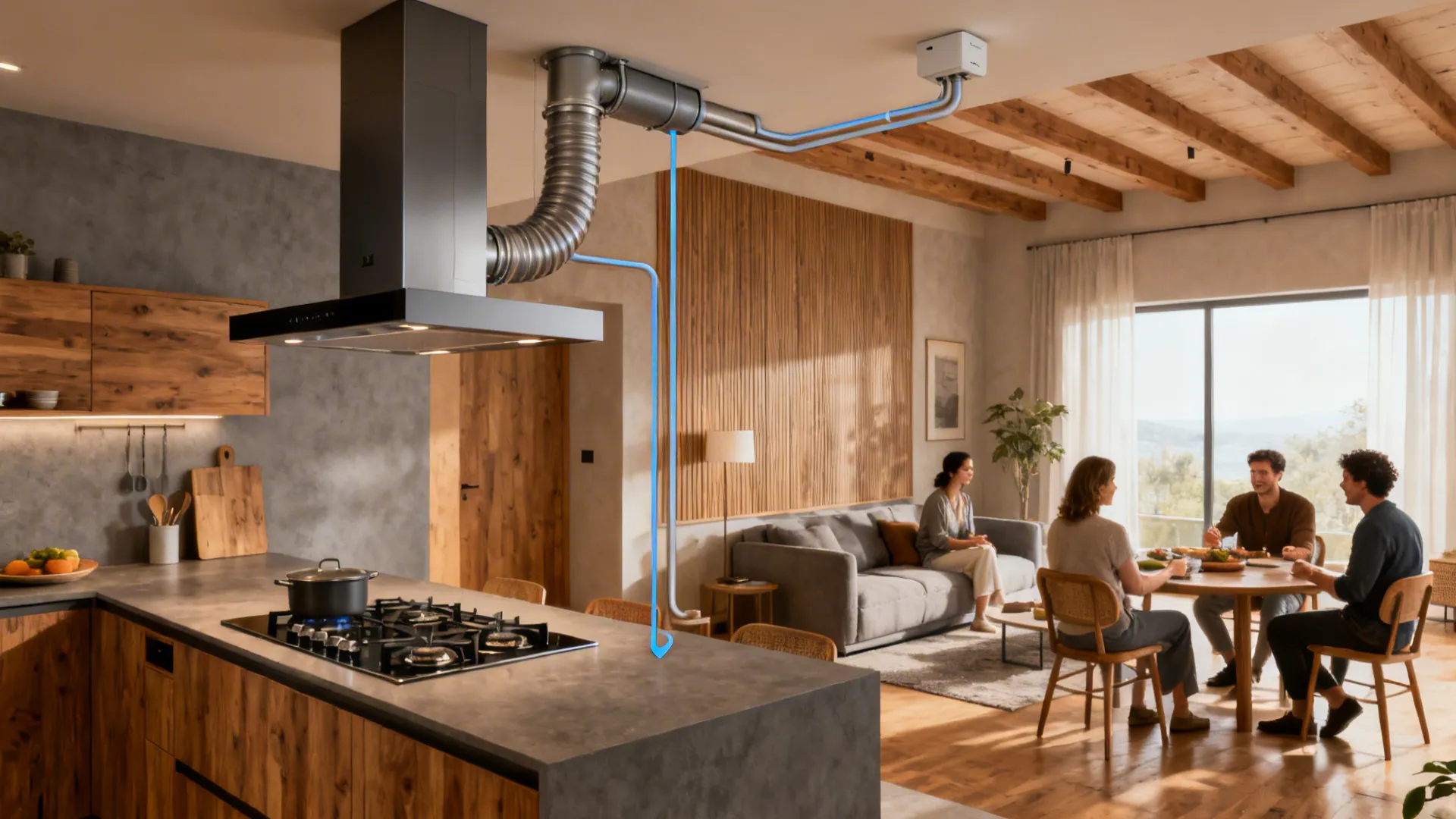

Quiet Inline/Remote Blower for Open-Plan Kitchens

My Take

In open-plan studios, I’ve had clients beg me to “make the fan disappear.” A remote or inline blower relocates the noise—often to the attic or exterior—so you can cook and chat without shouting over the fan.

Pros

- A remote blower reduces perceived sound levels at the cooktop dramatically, making it ideal for kitchen-living combos and small homes where noise carries.

- Long-tail keyword fit: An inline fan with a dedicated silencer and smooth ducting is a premium solution for quiet kitchen ventilation in open-plan apartments.

- When paired with a well-designed capture hood (proper depth and width), performance is excellent for searing and high-heat cooking.

Cons

- Upfront costs are higher; you’ll also need coordination between cabinetry, electrical, and the mechanical run.

- Maintenance access matters—don’t tuck the inline unit where no one can service it.

Tips / Cost

- Size the hood to at least the cooktop width, with 2–3 inches of overhang if possible. Add a speed controller and boost mode for heavy cooking days.

- Budget: $800–$2,500+ depending on blower location, duct length, and acoustic components.

save pin

save pin

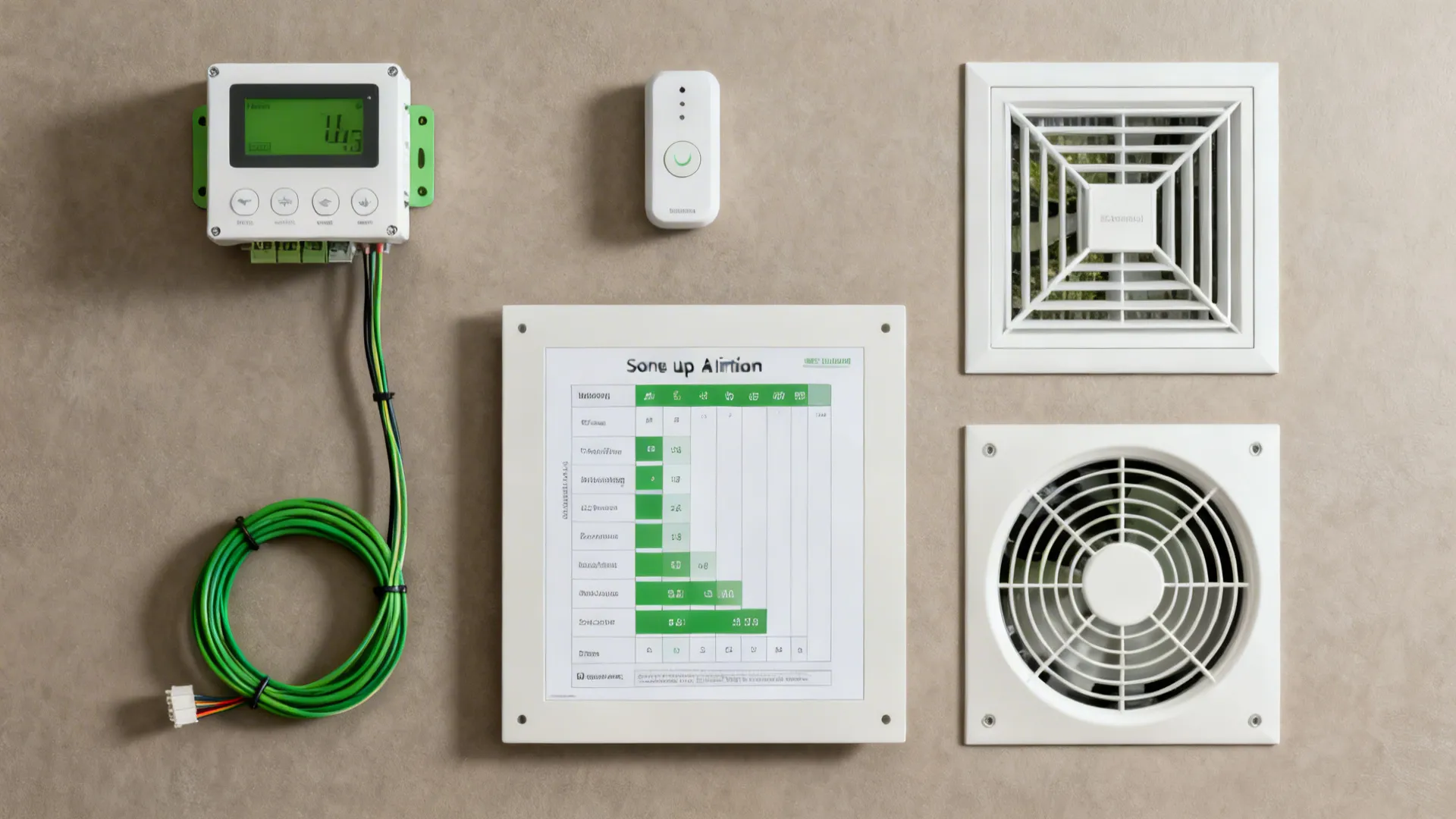

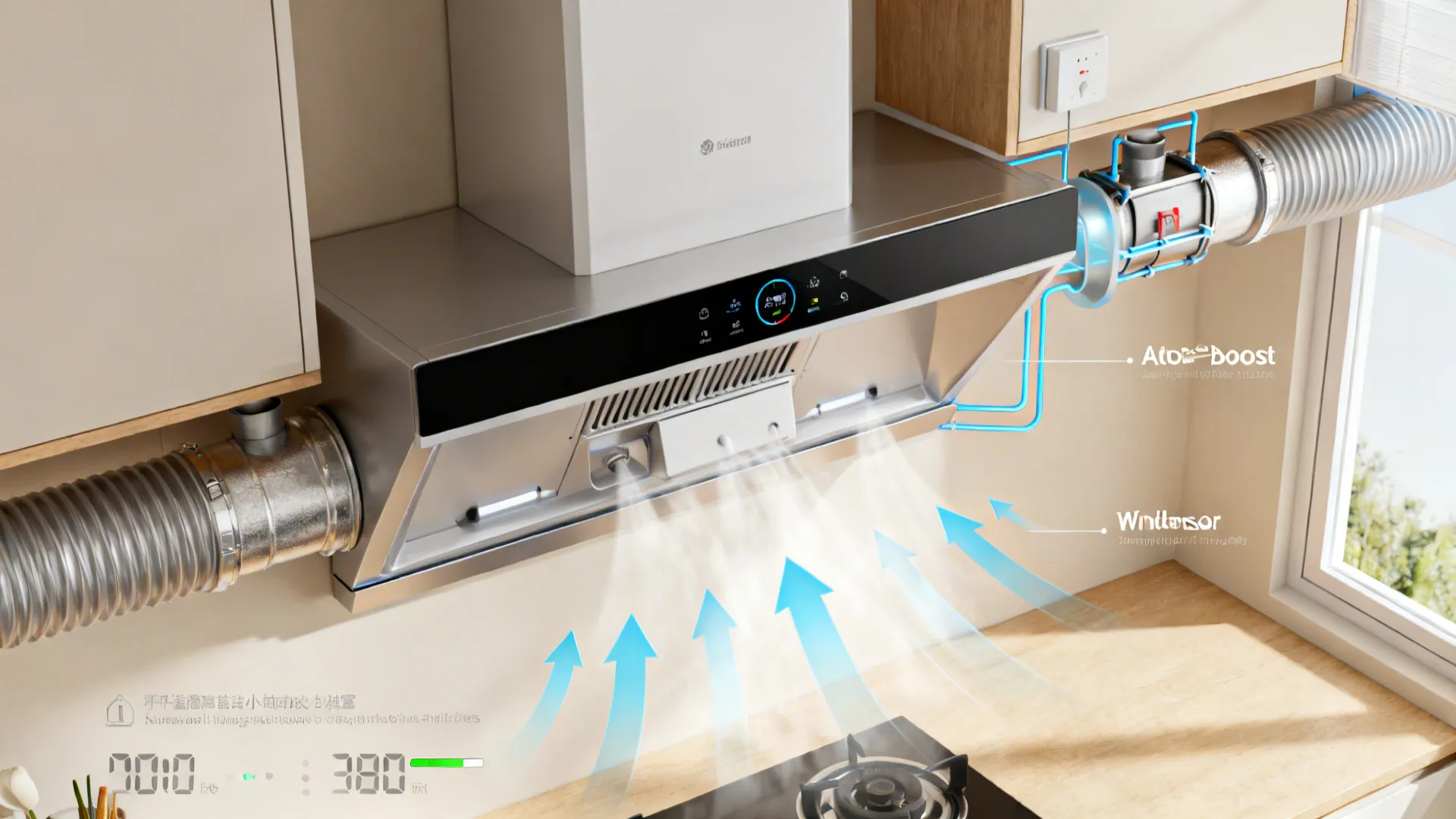

Smart Controls, Auto-Boost, and Make-Up Air Planning

My Take

My most successful small kitchens treat ventilation as a system—hood, ducts, and the air coming in. I once solved a smoky, back-drafting setup by adding a window sensor that nudged openable vents when the hood kicked on. Problem solved, wafts gone.

Pros

- Smart controls and auto-boost features help maintain air quality without you fiddling with switches during cooking. Some hoods even track filter life and adjust fan speed by heat or VOC levels.

- Long-tail keyword fit: A balanced kitchen exhaust system with make-up air avoids negative pressure, improves safety for gas appliances, and stabilizes hood performance.

- For gas ranges, many building codes reference ventilation and combustion safety; balancing exhaust and incoming air mitigates back-drafting of combustion appliances.

Cons

- Extra controls and sensors add complexity—and if you’re not tech-friendly, troubleshooting can feel like you’re cooking with a cockpit overhead.

- Make-up air solutions may require louvered vents or trickle inlets, which need careful placement to avoid drafts.

Tips / Case

- If you run high CFM, coordinate make-up air—especially in tight, well-sealed apartments. Use a range hood with a delayed-off timer to clear residual smoke.

- When I plan a tight urban kitchen, I’ll often prototype placement with a quick mockup—this case study on glass backsplash adds an airy feel also shows how surface choices and reflections reveal lingering grease and smoke paths.

save pin

save pin

FAQ

1) What size CFM do I need for a small kitchen exhaust fan design?

For most 24–30 inch cooktops in small spaces, 200–400 CFM works if ducting is short and smooth. If you cook high-heat or fry often, step up within that range and ensure a deep, well-sized hood.

2) Is a ductless (recirculating) hood good enough?

It’s acceptable for light-to-medium cooking where exterior venting isn’t possible. Choose high-quality carbon filters and replace them regularly; remember, ductless units don’t remove moisture.

3) How loud should a kitchen exhaust be?

Look for sones ratings at low and high speeds. Inline or remote blowers lower perceived noise. Rigid, straight ducts and proper wall caps also help reduce sound.

4) What’s the ideal duct size and type?

Match or exceed the hood’s outlet—often 6 inches for mid-range hoods. Use smooth, rigid ducting and minimize elbows to maintain real-world CFM.

5) Do I need make-up air for a small kitchen?

If your hood pulls strong CFM in a tight, well-sealed apartment, yes—some fresh air path helps prevent negative pressure and back-drafting, especially with gas appliances. Codes vary by region.

6) How high should the hood be above the cooktop?

Commonly 24–30 inches above the cooking surface for most hoods; check the manufacturer’s specs. Too high reduces capture; too low can be uncomfortable and non-compliant.

7) Are there standards or certifications I should look for?

HVI certification provides comparative performance ratings, and ENERGY STAR (where applicable) highlights energy-efficient options. The U.S. Department of Energy also offers guidance on ventilation best practices.

8) What’s the best layout for ducts in small kitchens?

Keep them short, straight, and rigid. If you’re planning a reconfiguration, modeling an L shaped layout releases more worktop area can unlock a cleaner exterior vent path and better fan placement.

Summary

Great kitchen exhaust fan design isn’t about brute force—it’s about smart capture, short and smooth ducts, and, in tight spaces, balancing air in and out. Small kitchens demand sharper design, not compromise. From slim ducted hoods to quiet inline blowers and smart make-up air, the right system keeps cooking joyful and air fresh. Which of these five ideas are you most excited to try in your own kitchen?
