Kitchen Hood Fire Suppression System Design Calculation: A practical guide to sizing, coverage, and compliance for commercial kitchen hood fire suppression systems.

Direct Answer

A kitchen hood fire suppression system design calculation determines the correct nozzle placement, agent quantity, and coverage area required to protect cooking equipment under a commercial hood. The calculation typically follows NFPA 96 and manufacturer-specific guidelines, factoring in hood dimensions, appliance type, plenum volume, and duct protection requirements.

In practice, designers calculate protected surface area, select appropriate nozzle types, and confirm that the fire suppression agent capacity matches the total hazard load of the cooking line.

Quick Takeaways

1. Kitchen hood fire suppression design calculations depend on appliance type, hood size, and duct configuration.
2. Most systems follow NFPA 96 and manufacturer nozzle coverage charts.
3. Incorrect nozzle spacing is the most common real-world design mistake.
4. Agent tank capacity must match the total protected hazard area.
5. Proper layout planning reduces both suppression system cost and installation complexity.

Introduction

In commercial kitchens, a properly engineered kitchen hood fire suppression system design calculation is not just a compliance requirement — it is the difference between a controlled incident and a full kitchen shutdown.

After working on multiple restaurant and hospitality design projects over the last decade, I've noticed that many kitchen layouts are finalized before anyone seriously evaluates fire suppression coverage. That order is backwards. The suppression system, hood geometry, and appliance line should be considered together from the start.

When designers sketch kitchen layouts using tools like a visual workflow for planning commercial kitchen equipment zones, it becomes much easier to estimate suppression coverage early and avoid expensive redesign later.

In this guide, I'll break down how professionals actually approach suppression calculations: from hood measurements to nozzle coverage, agent capacity, and the hidden design issues most guides never mention.

save pin

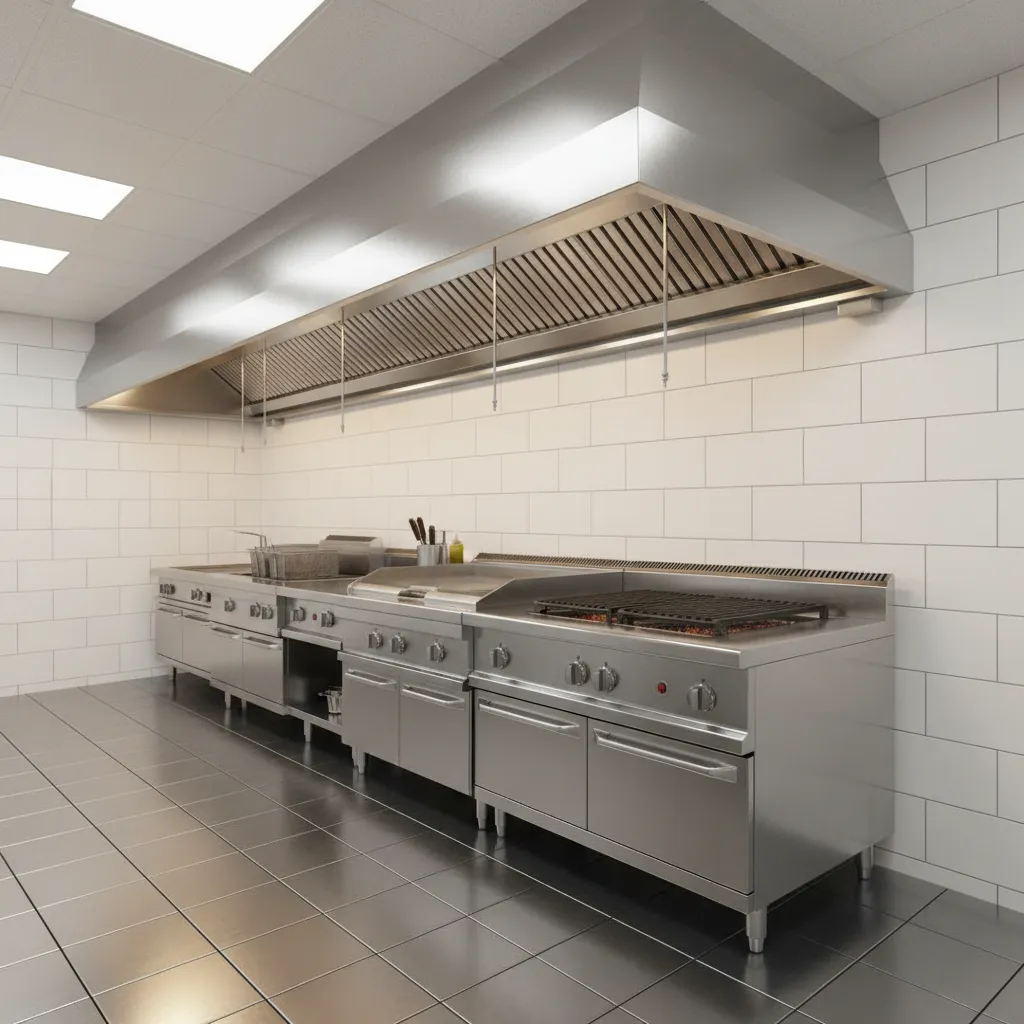

What Is Included in a Kitchen Hood Fire Suppression System Calculation?

Key Insight: A complete suppression system calculation includes appliance hazard classification, hood coverage area, nozzle distribution, duct protection, and agent capacity sizing.

Many people assume the suppression system only protects the cooking surface. In reality, a compliant design protects three separate fire zones:

1. Cooking appliances
2. Hood plenum area
3. Exhaust duct

Each of these areas requires dedicated suppression coverage.

Typical Calculation Components

1. Appliance width and depth
2. Hood internal dimensions
3. Type of cooking equipment (fryer, grill, wok, charbroiler)
4. Nozzle coverage radius
5. Duct diameter and length
6. Agent cylinder capacity

Industry Reference Standards

1. NFPA 96 – Ventilation Control and Fire Protection
2. UL 300 – Wet chemical suppression systems
3. Manufacturer design manuals (Ansul, Amerex, Pyro-Chem)

One overlooked factor is appliance intensity. A charbroiler produces a very different grease fire profile compared to an induction range, which directly changes nozzle requirements.

How Do You Calculate Hood Coverage Area?

Key Insight: Hood protection area is calculated using the internal hood length multiplied by the protected cooking depth, not the external hood dimension.

This is a subtle detail that causes many installation errors.

Basic Hood Coverage Formula

Protected Area = Hood Length × Appliance Protection Depth

Example:

1. Hood length: 10 ft
2. Cooking line depth: 3 ft
3. Total protected area = 30 sq ft

However, the final calculation must align with the suppression manufacturer's nozzle coverage chart.

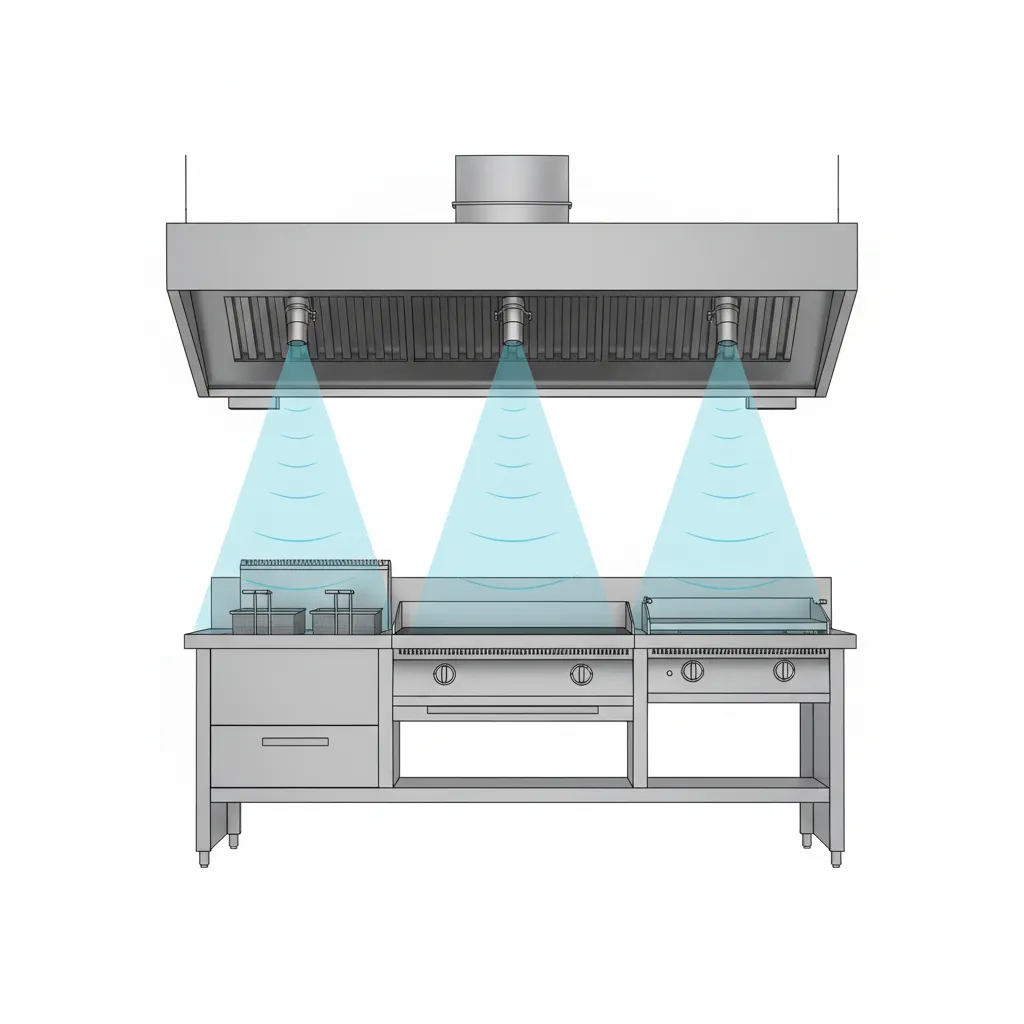

Typical nozzle coverage ranges:

1. Appliance nozzle: 3–4 ft coverage
2. Plenum nozzle: 4–6 ft coverage
3. Duct nozzle: placed at duct entry

In larger kitchens, designers often simulate equipment spacing using a 3D floor layout workflow for restaurant kitchensbefore finalizing hood dimensions. This prevents situations where suppression nozzles cannot cover all appliances evenly.

save pin

Why Appliance Type Changes the Entire Calculation

Key Insight: Fryers, charbroilers, and wok ranges require different suppression nozzle types and discharge rates.

This is where real-world design experience matters. Two kitchens with the same hood size can require completely different suppression systems depending on equipment.

Common Equipment Hazard Levels

1. High hazard: charbroilers, solid fuel grills
2. Medium hazard: deep fryers
3. Lower hazard: griddles, ranges

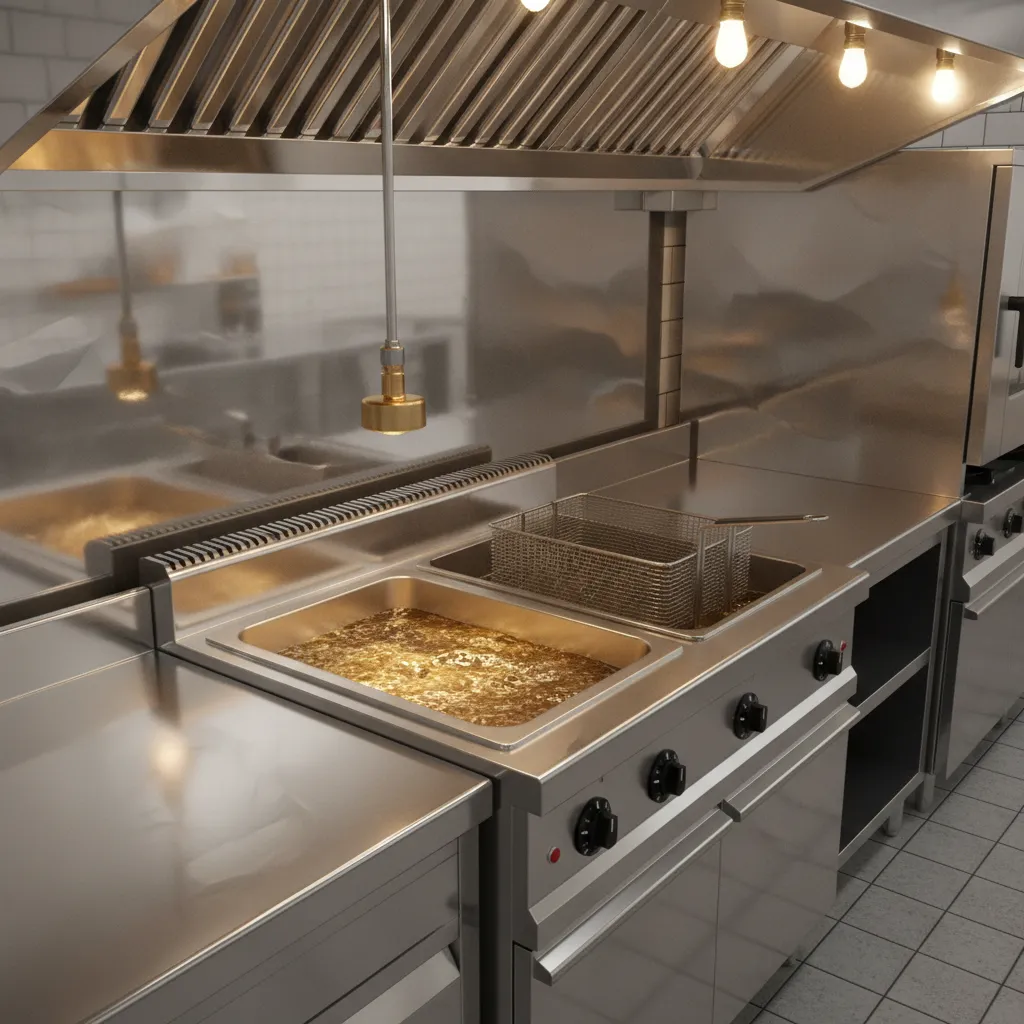

Nozzle Strategy Example

1. Fryer: dedicated appliance nozzle aimed at oil surface
2. Charbroiler: overlapping spray coverage
3. Griddle: wider coverage nozzle

According to UL 300 system design guidance, high‑temperature grease fires require wet chemical agents that create a soap-like foam layer to prevent re‑ignition.

This is why fryer coverage often dictates the total agent tank size.

save pin

What Are the Most Common Design Mistakes?

Key Insight: The biggest failure in suppression design is not system size — it is poor nozzle placement.

Across many restaurant projects I've reviewed, three hidden errors appear repeatedly.

1. Ignoring Appliance Rear Clearance

Equipment is often moved during installation. If the fryer shifts even 6 inches, the nozzle alignment may no longer cover the oil vat.

2. Underestimating Plenum Volume

The hood plenum accumulates grease vapor. Without proper nozzle coverage, fires can spread into ductwork quickly.

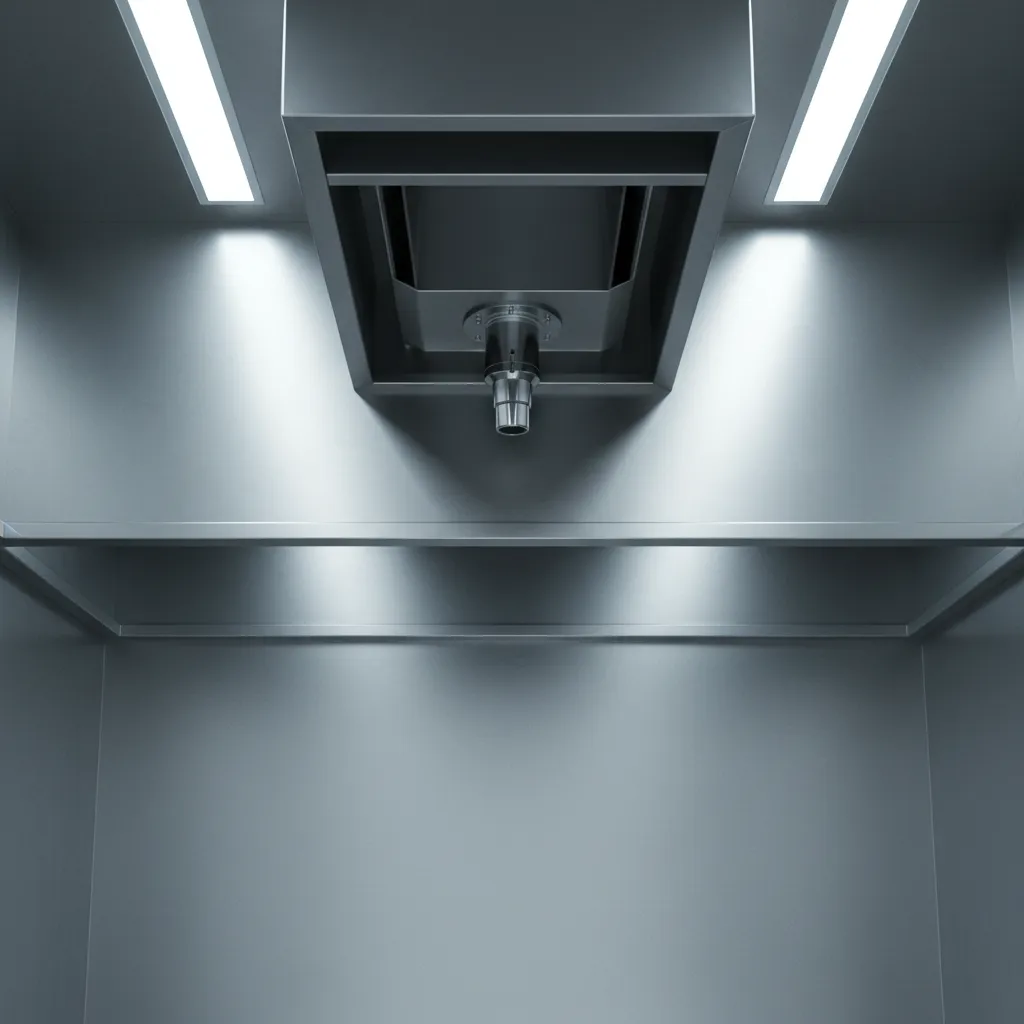

3. Duct Protection Is Skipped in Early Designs

Duct suppression is sometimes added later during inspection corrections, increasing cost and installation complexity.

A smarter approach is to coordinate suppression layout during early kitchen planning, especially when using a visual concept workflow for designing commercial kitchen spacesso appliance spacing and hood coverage evolve together.

save pin

How Do You Determine Agent Tank Size?

Key Insight: Agent tank capacity must cover all appliance, plenum, and duct nozzles simultaneously.

Each nozzle requires a specific discharge volume defined by the system manufacturer.

Basic Sizing Steps

1. Count appliance nozzles
2. Add plenum nozzles
3. Add duct nozzle
4. Check manufacturer flow requirements
5. Select cylinder size exceeding total discharge demand

Example Calculation

1. 3 fryer nozzles
2. 2 plenum nozzles
3. 1 duct nozzle
4. Total nozzles: 6

The system manufacturer manual will specify the minimum cylinder size for this configuration.

Answer Box

A kitchen hood fire suppression system design calculation ensures proper nozzle coverage, agent capacity, and hazard protection based on appliance type and hood dimensions. Following NFPA 96 and UL 300 standards prevents under‑protected cooking equipment and costly inspection failures.

Why Early Kitchen Layout Planning Reduces Fire System Cost

Key Insight: A well‑planned cooking line can reduce suppression hardware and installation cost by up to 20–30%.

Suppression systems scale with equipment complexity. The more fragmented the cooking line becomes, the more nozzles and piping are required.

Efficient Layout Principles

1. Group similar appliances together
2. Minimize hood breaks
3. Align fryer banks
4. Maintain consistent cooking depth

Design teams that integrate fire protection considerations early often avoid expensive redesign during inspection.

Final Summary

1. Kitchen hood suppression design depends on appliance hazard level.
2. Accurate hood area calculation prevents nozzle coverage gaps.
3. Duct and plenum protection are mandatory under NFPA 96.
4. Nozzle placement errors are more common than sizing errors.
5. Early kitchen layout planning simplifies suppression design.

FAQ

1. What standard governs kitchen hood fire suppression design?

NFPA 96 regulates ventilation and fire protection for commercial cooking operations. Most suppression systems must also comply with UL 300 testing standards.

2. How often must kitchen suppression systems be inspected?

Most jurisdictions require inspection every six months by a certified technician.

3. What agent is used in modern kitchen hood systems?

Most systems use wet chemical agents designed to suppress grease fires and prevent re‑ignition.

4. How many nozzles are needed for a hood system?

The number depends on hood length, appliance type, and duct protection requirements defined in the kitchen hood fire suppression system design calculation.

5. Do all cooking appliances require dedicated nozzles?

High‑risk appliances like fryers and charbroilers usually require dedicated nozzles, while some low‑risk equipment may share coverage.

6. Is duct protection mandatory?

Yes. Most codes require a duct nozzle to prevent fire spread through the exhaust system.

7. Can one suppression tank protect multiple hoods?

In some designs it can, but hydraulic calculations must confirm adequate agent discharge capacity.

8. Who performs a kitchen hood fire suppression system design calculation?

Typically a fire protection engineer, suppression system contractor, or certified kitchen ventilation designer.
