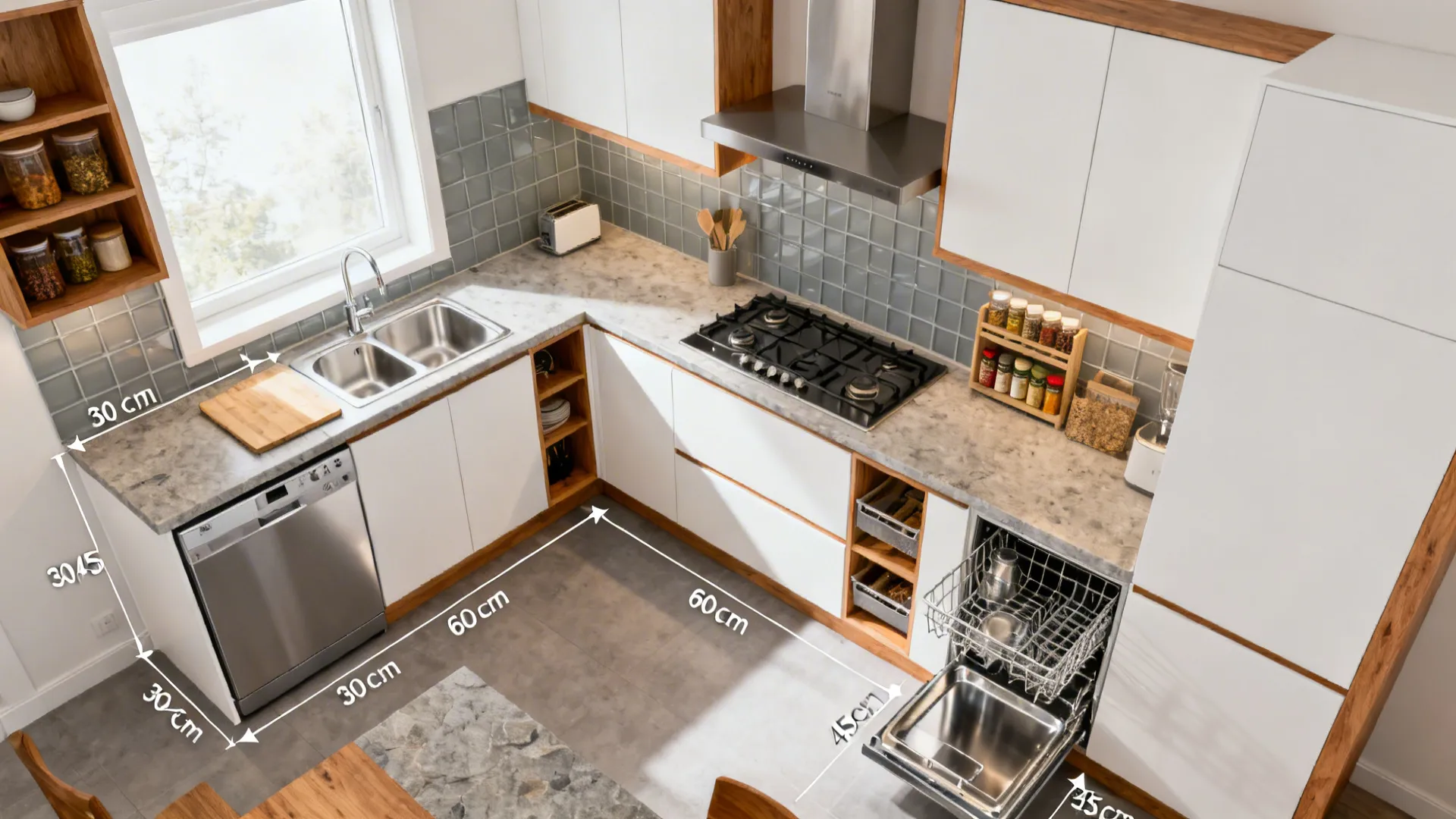

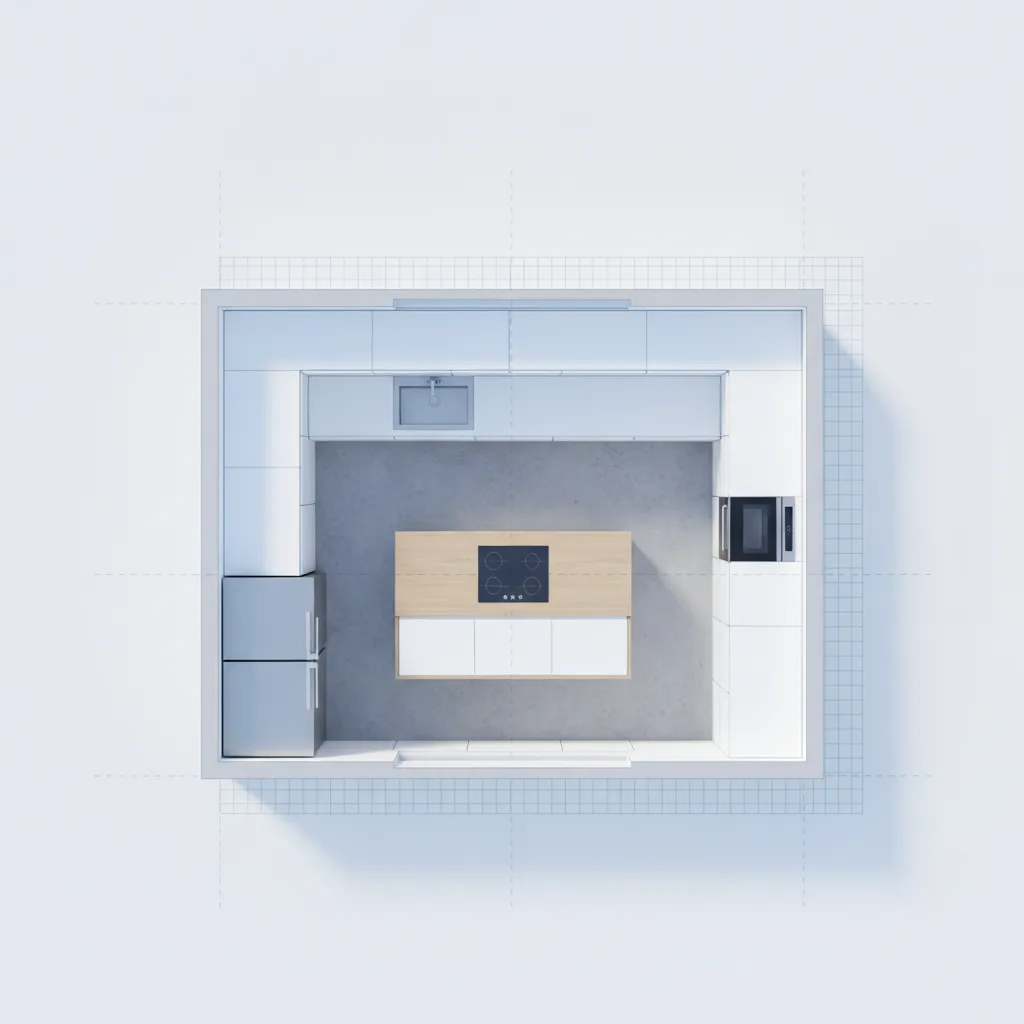

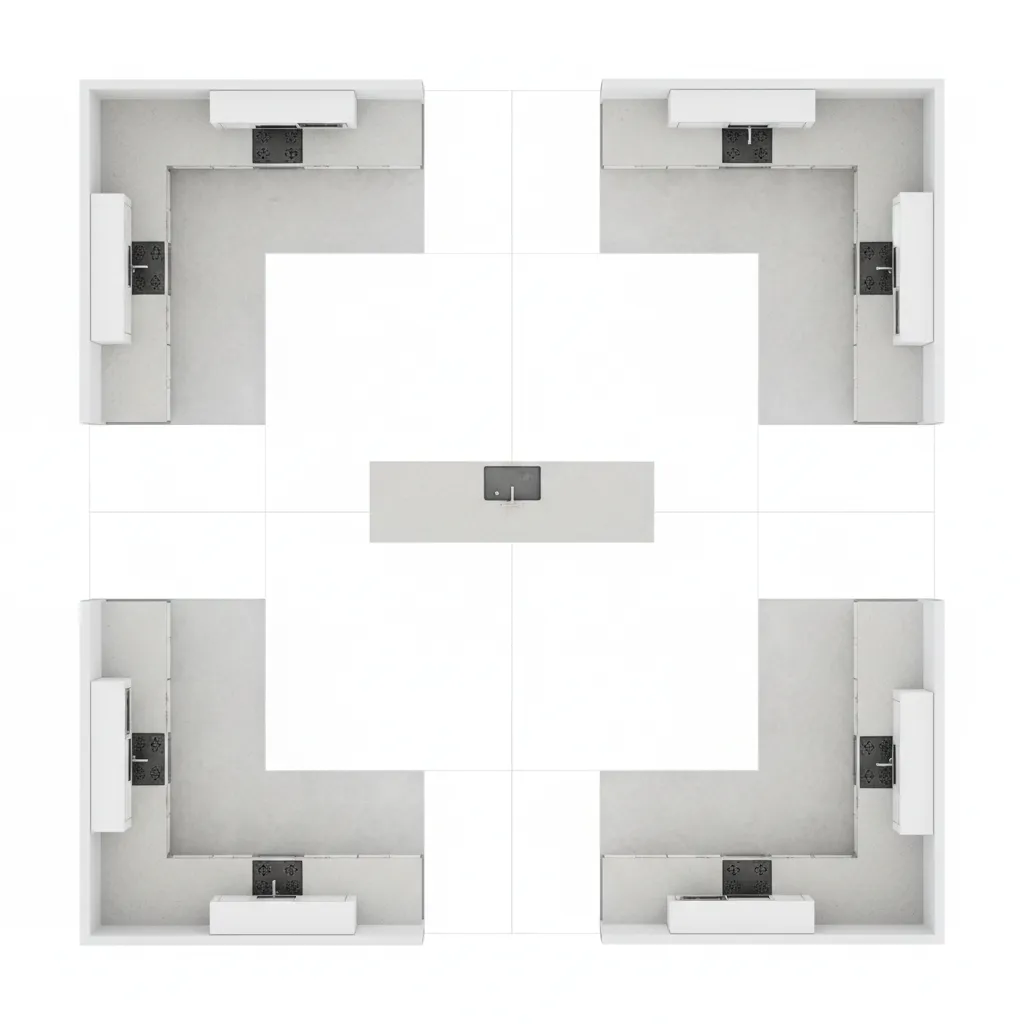

Kitchen Layout Drawing (Top View): 5 Ideas That Work: How I plan small kitchens from a bird’s-eye view—5 proven layout drawings with real pros, cons, and budget tips

[Section: 引言]

As an interior designer who lives and breathes small spaces, I’ve learned that kitchen layout drawing (top view) is where every great remodel begins. The trend I’m seeing in 2026 is clear: compact kitchens that prioritize circulation, multi-function work zones, and integrated storage over sheer size. Small space always sparks big creativity—especially when you plan from a clean, measurable top view. In this guide, I’ll share 5 design inspirations, blending my on-site experience with expert data to help you draw a smarter kitchen layout from above.

On my first studio apartment project, the top view plan revealed a 3 cm pinch point that would have made the fridge door collide with a drawer. That single drawing saved the entire workflow. By the way, one of my favorite case studies on L-shaped layout frees up more countertop space shows how a top-view tweak can unlock prep surfaces without expanding the footprint.

[Section: 灵感列表]

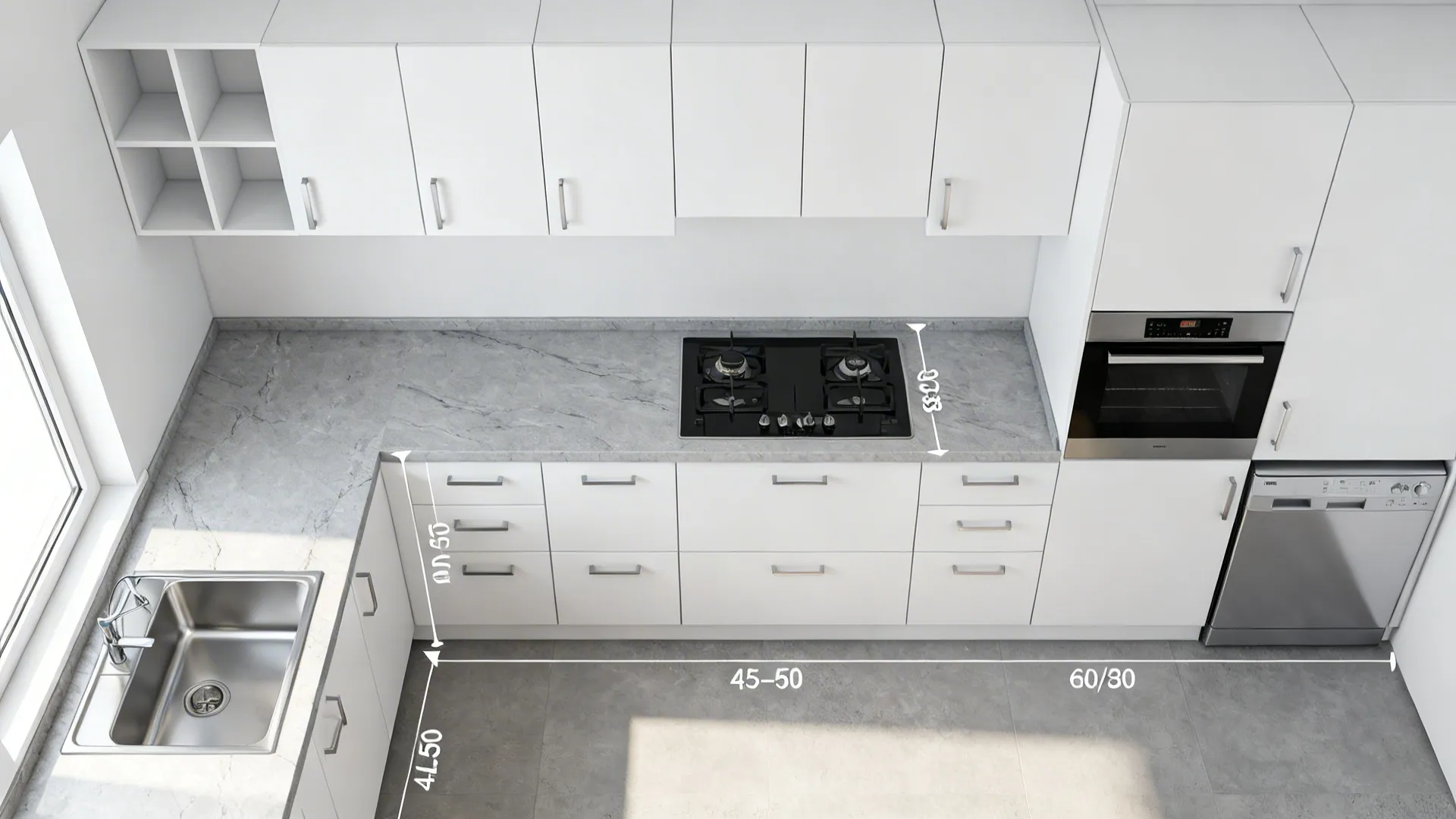

Minimalist Storage Grid (Top-View Zoning)

My Take: When I sketch a kitchen from the top, I always divide the plan into three clear zones: prep, cook, and clean. I once used a simple grid overlay to align cabinet widths with appliance modules; the result was a serene, minimalist rhythm you can feel even from a bird’s-eye view.

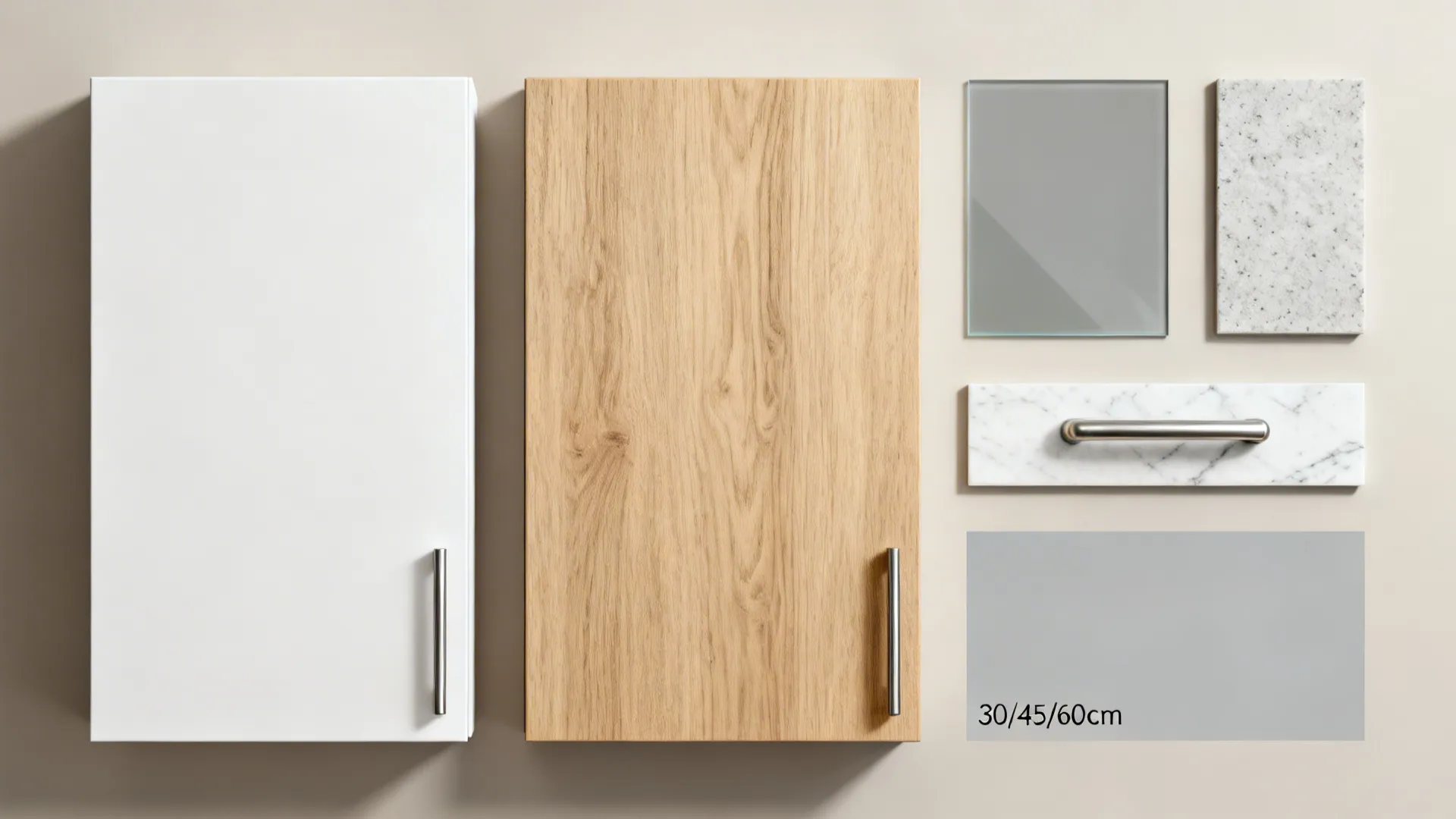

Pros: A minimalist storage grid supports a consistent 30–60–90 cm cabinet rhythm, which makes flat-pack ordering easier and improves fit for small kitchens. This approach naturally supports long-tail needs like “small galley kitchen storage optimization” and keeps the work triangle compact. Studies on kitchen ergonomics suggest consistent module sizing reduces reach and turn time in prep tasks (see ISO 9241-5 principles applied to reach zones).

Cons: The grid can feel too strict if you love eclectic cookware sizes; oddball items might not fit cleanly. If you’re the type who buys a new specialty appliance every season, the uniform modules may limit flexibility—and you might end up stashing the waffle maker in the bedroom closet (been there).

Tip / Cost: Print the top view at 1:20 and cut paper templates for pans, bins, and trays; slide them around to test fit. Budget-wise, expect 5–10% savings when ordering standardized cabinet widths compared to many custom widths.

save pin

save pin

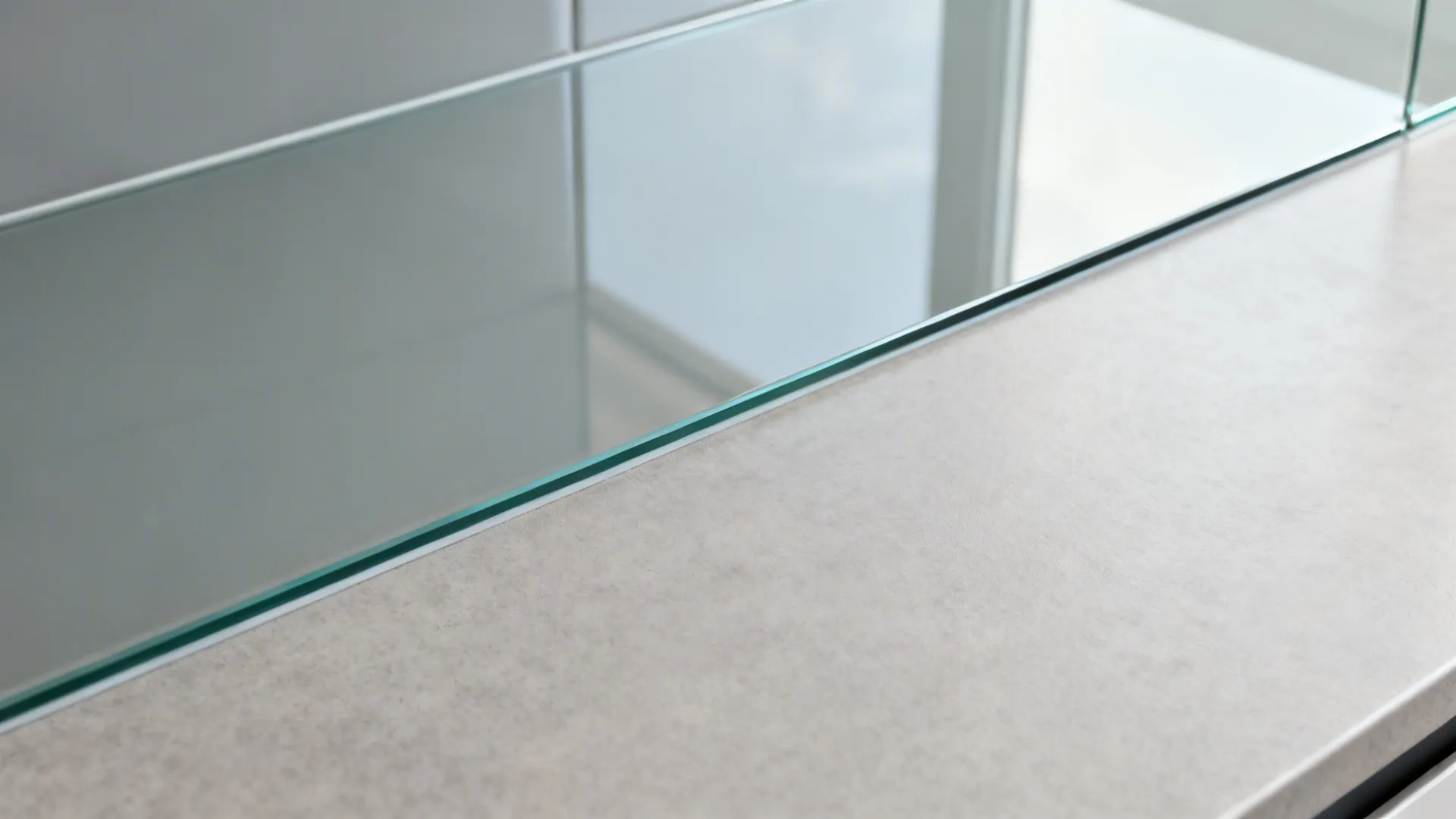

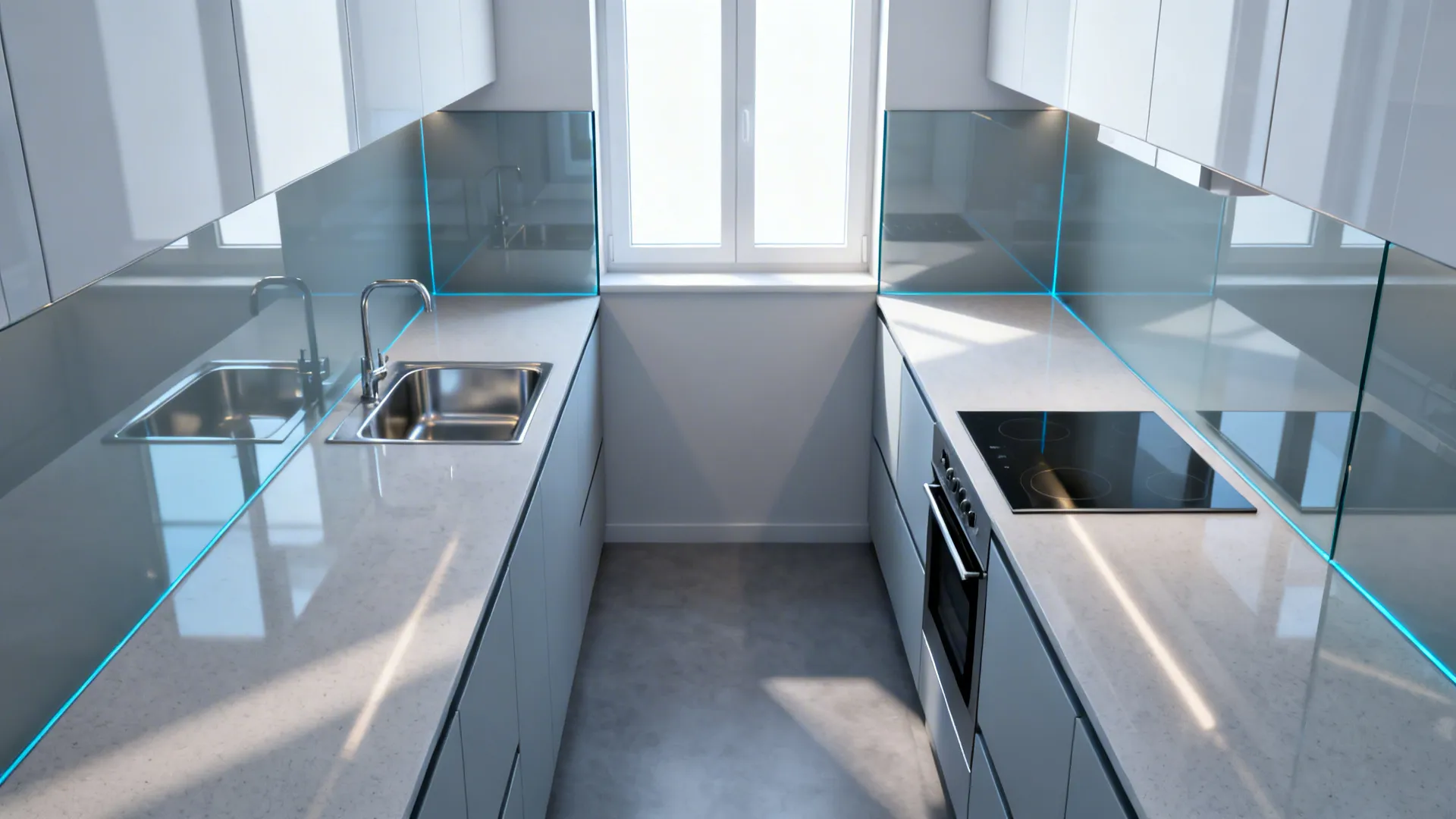

Glass Backsplash for Visual Depth (Seen From Above)

My Take: The first time I specified a glossy glass backsplash in a micro-kitchen, the top view instantly felt larger because the reflective plane visually extended the counter line. It’s a trick I now use to make a narrow galley look “wider” in plans and in person.

Pros: A glass backsplash enhances perceived width in top-view drawings by mirroring light and counter edges—great for “narrow galley kitchen visual expansion” goals. It’s also hygienic and easy to clean, which boosts long-term usability. According to the Lighting Research Center (RPI), higher reflectance surfaces can increase illuminance uniformity, reducing task shadows in compact kitchens.

Cons: Fingerprints and water spots can be obvious on darker glass. If you cook with high-heat oils frequently, you’ll notice more cleaning passes unless you choose low-iron, easy-clean coatings.

Tip / Case: For budget control, choose 6–8 mm tempered glass with a soft gray tint rather than color-backed custom prints. In one 2.1 m-wide galley, swapping tile for glass made the top-view corridor feel 10–12 cm wider due to reflected counter edges.

save pin

save pin

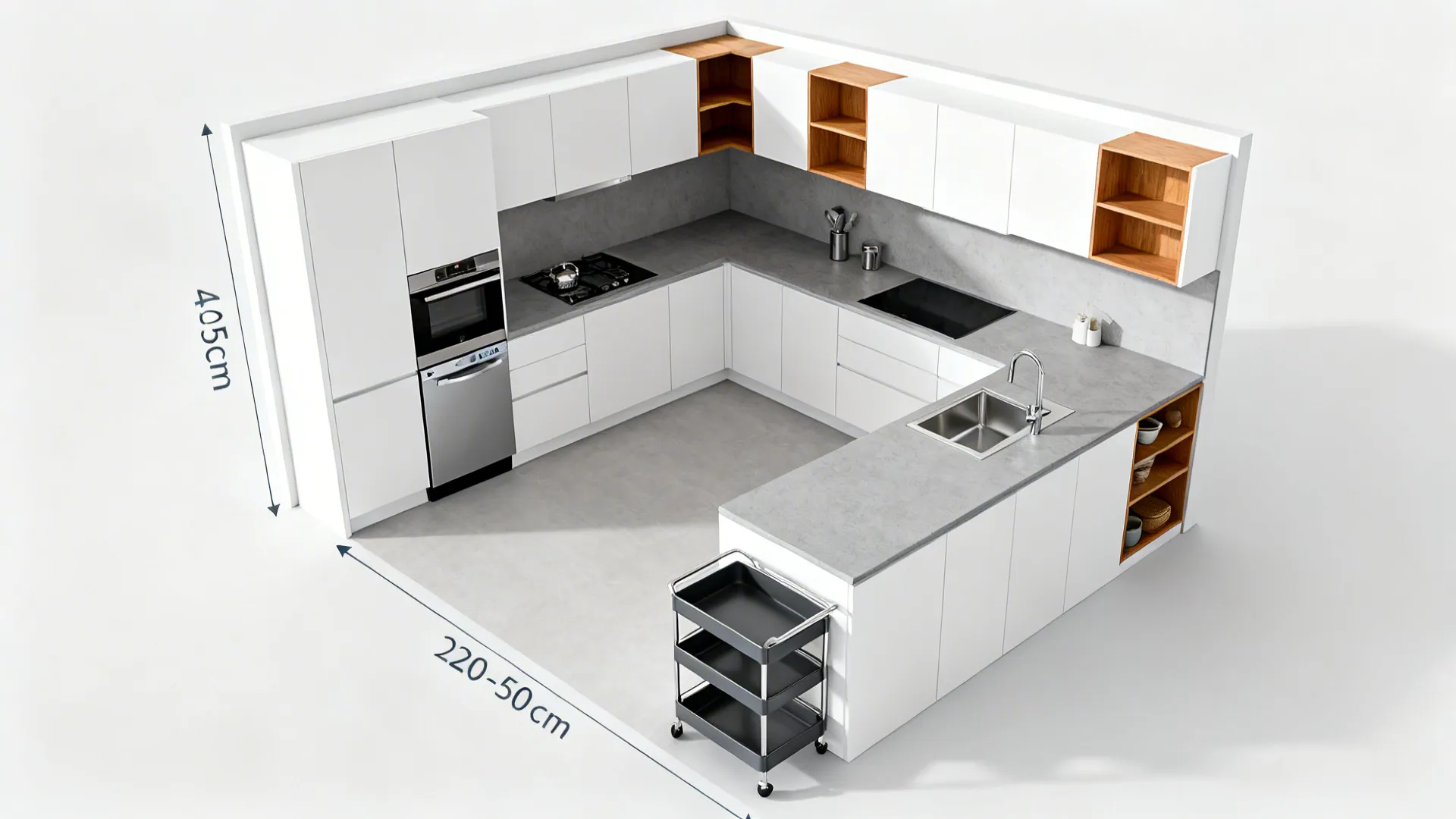

L-Shaped Micro-Workflow that Flows

My Take: I love the L-shape for studio kitchens because it creates a natural corner for prep while keeping major appliances along two legs. In a recent rental upgrade, I slid a 45 cm dishwasher into the short leg, freeing the long leg for uninterrupted chopping and plating.

Pros: L-shapes excel at “corner kitchen layout optimization” and keep the working triangle tight, ideal for top-view planning on small footprints. They’re flexible for adding a movable cart at the open side without blocking traffic. With smart corner units, you can convert dead space into high-yield storage.

Cons: Corner management can get pricey if you opt for premium swing-out mechanisms. Also, if the room is extremely narrow, the return leg might pinch circulation unless you keep passage to 90 cm minimum.

Tip / Case: Aim for 120–150 cm between the two legs for easy pivoting. For layout iteration mid-project, I often review a case like minimalist kitchen storage design to stress-test aisle and corner clearances before ordering hardware.

save pin

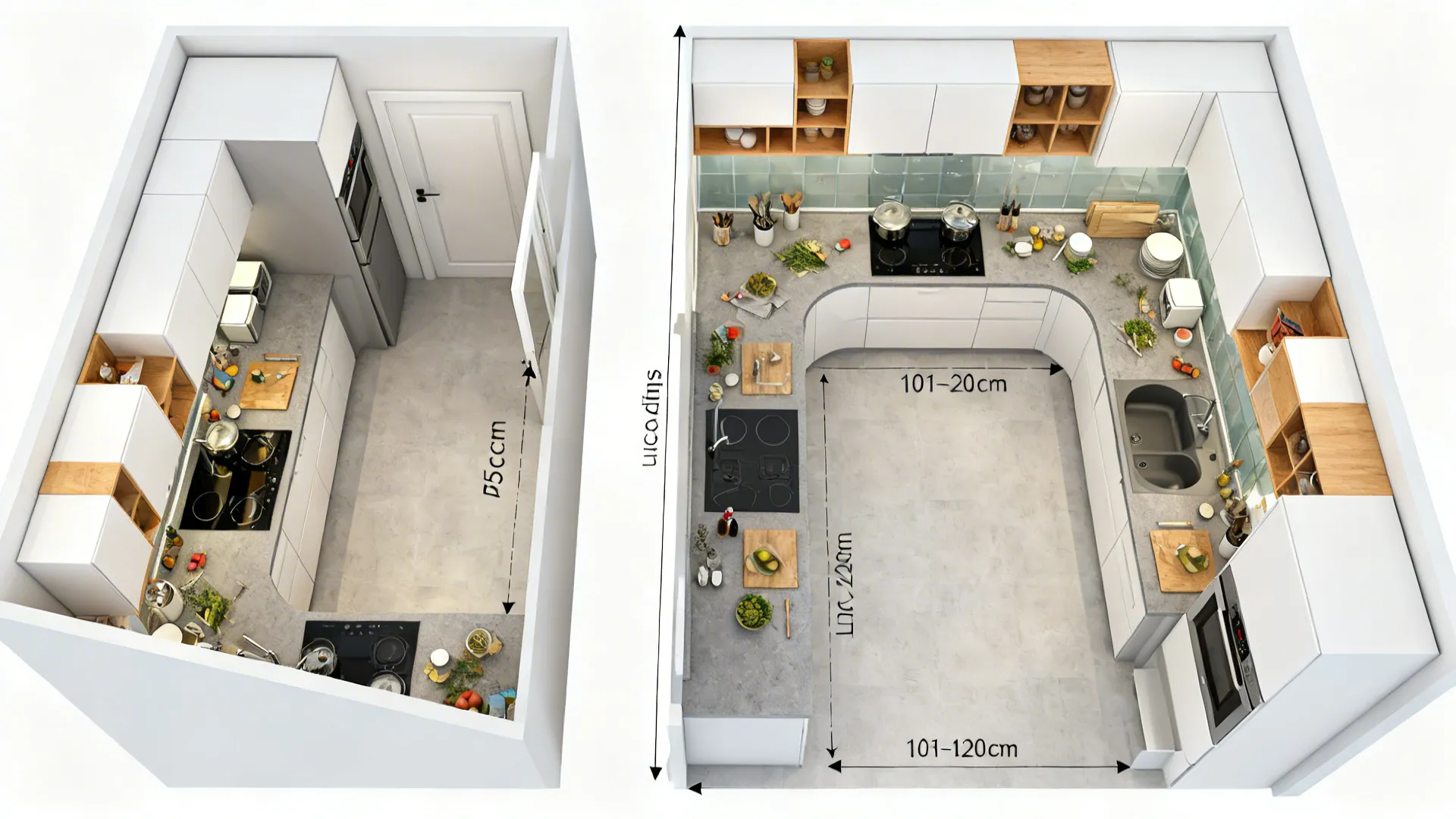

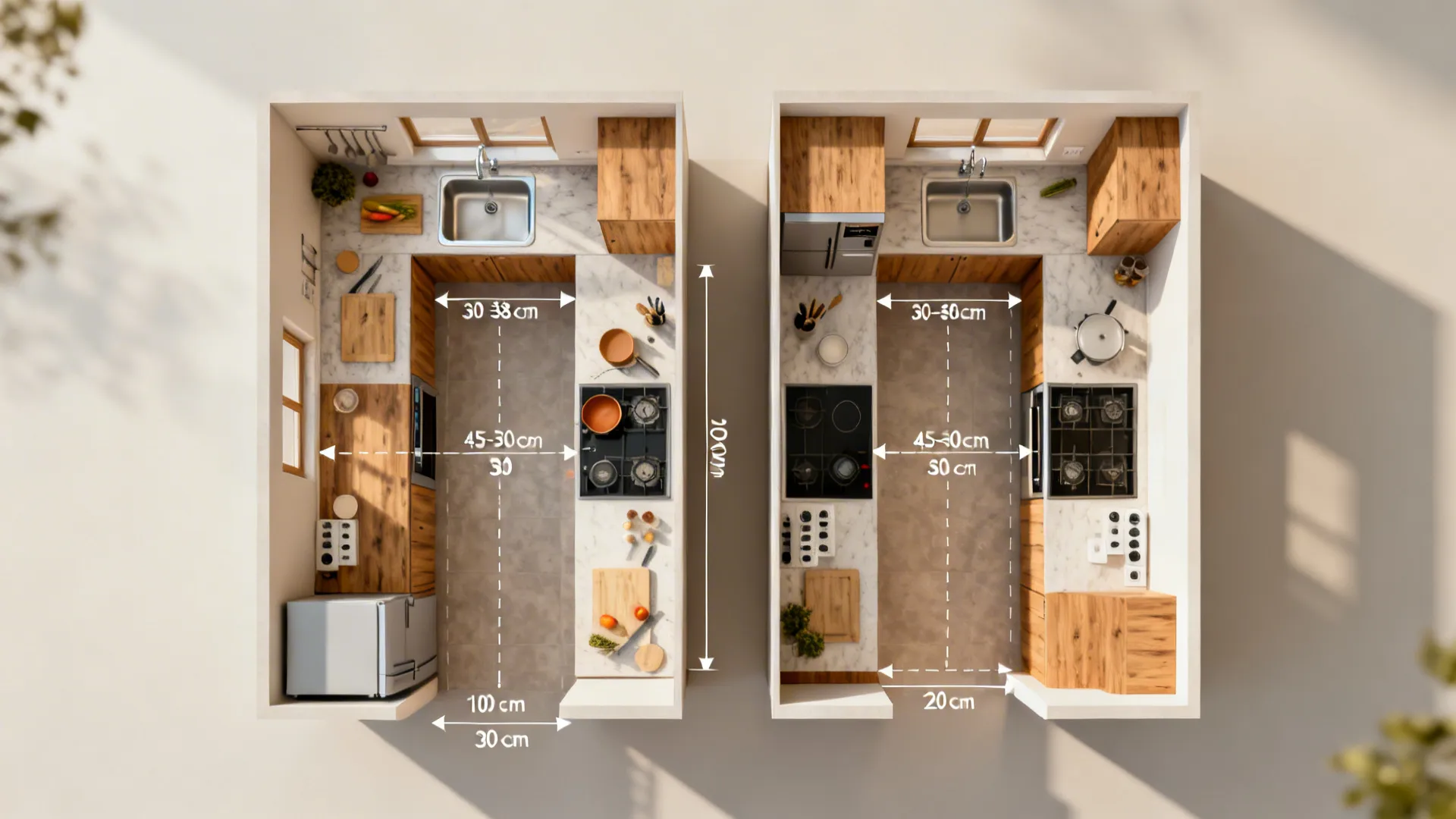

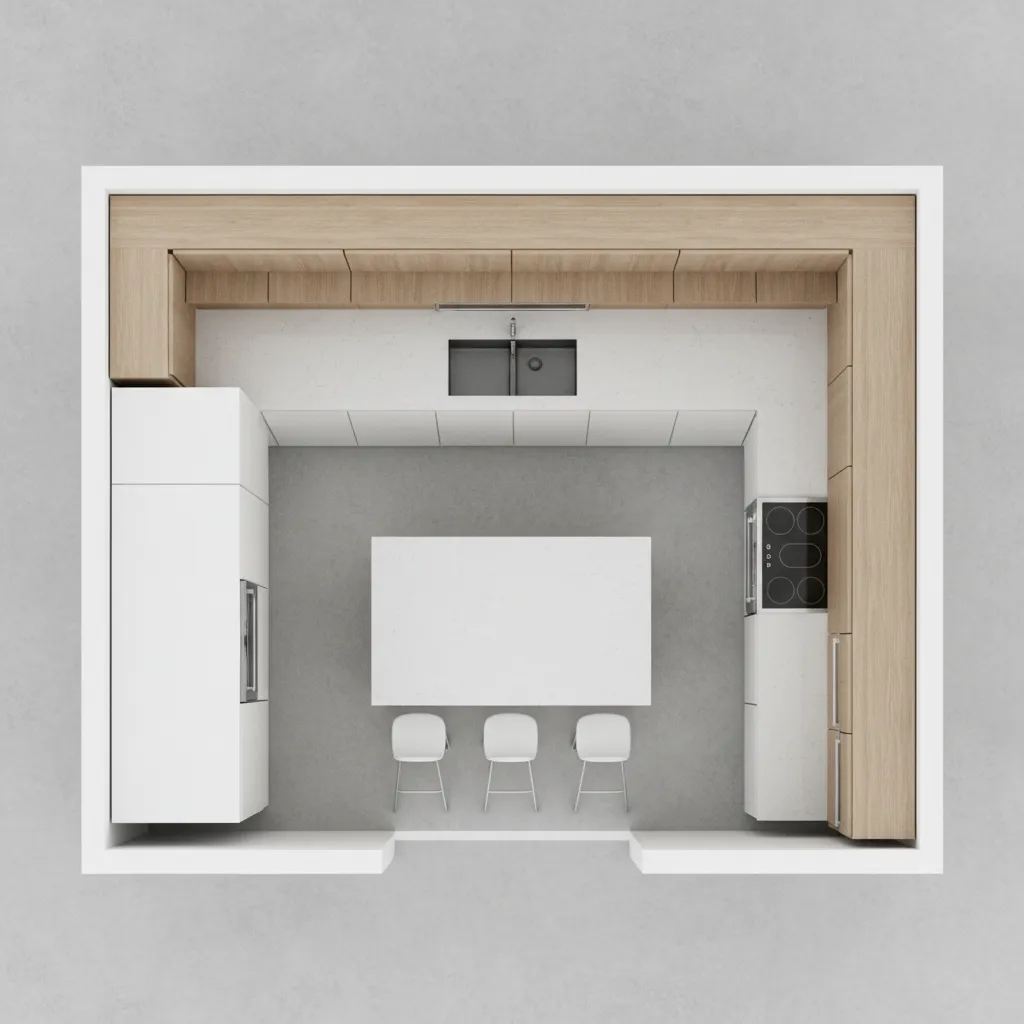

Work Triangle vs. Work Zones (Data-Driven Choice)

My Take: The classic triangle still works, but in top-view drawings for small kitchens I often prioritize zones—prep, cook, clean—especially if two people share the space. In one family condo, splitting prep zones on opposite counters reduced “traffic collisions” by half.

Pros: Zone planning supports “two-cook small kitchen layout” by placing duplicate tools and outlets where needed. Research from NKBA (2024 Kitchen Design Guidelines) notes that adequate landing space at each zone improves safety and flow, particularly near cooktops and sinks. In tight kitchens, zones mapped in top view reduce crossovers and keep mess contained.

Cons: Over-zoning can clutter the plan with micro-stations, leading to too many small surfaces and fragmented storage. If you rarely cook with a partner, the added complexity might not pay off and can increase cabinet count (and cost).

Tip / Cost: Mark landing areas: 30–38 cm beside the cooktop, 45–60 cm on the primary prep side, and at least 30 cm near the fridge. Budget extra for outlets and task lighting in dual-prep scenarios—small costs that pay daily dividends.

save pin

save pin

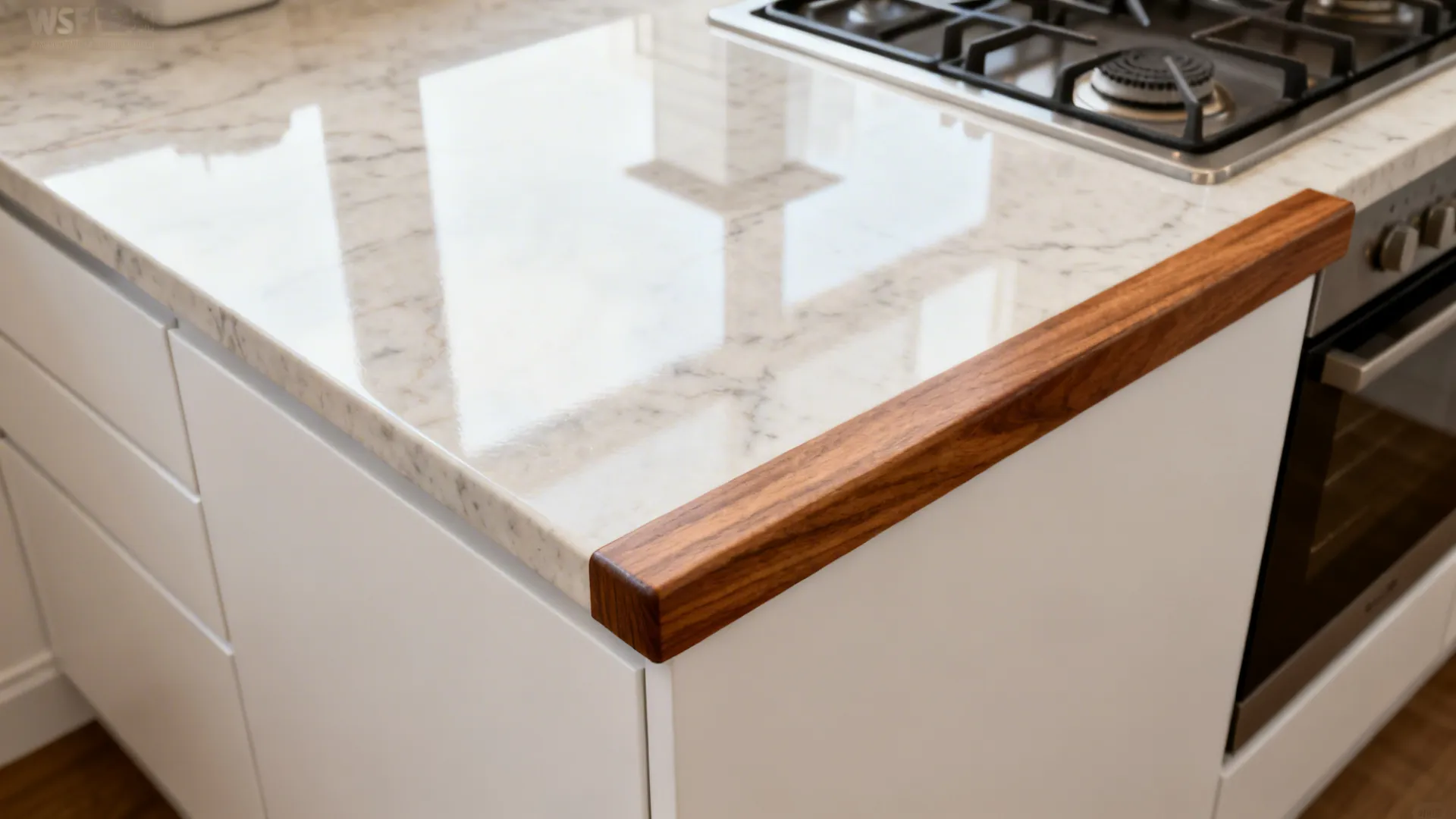

Warm Wood Accents with Smart Venting

My Take: I like balancing clean white cabinets with warm wood trims or shelves; from the top view, these accents create visual anchors that guide the eye and calm the plan. In a compact loft, a thin wood front rail along the peninsula gave the drawing a grounded, crafted feel.

Pros: Wood accents support “Scandinavian small kitchen warmth” and pair well with matte finishes to reduce glare seen in top-view renders. With proper sealing, wood adds tactile warmth without overcomplicating the layout lines.

Cons: Without adequate venting, airborne grease can discolor open wood shelves near the cook zone. Humidity shifts may cause slight movement; plan reveal gaps so doors don’t bind over time (I learned that the hard way in a humid coastal project).

Tip / Case: Use hardwood edges or engineered wood shelves with a durable finish. If you’re modeling options before ordering, comparing a case like wood elements adding a cozy atmosphere helps you judge tone and reflectance in daylight and task lighting.

[Section: 正文补充与操作要点]

Top-View Drawing Checklist:

1. Scale and modules: Draw at 1:20 or 1:25; stick to cabinet modules that match your supplier (30/45/60/80 cm widths).

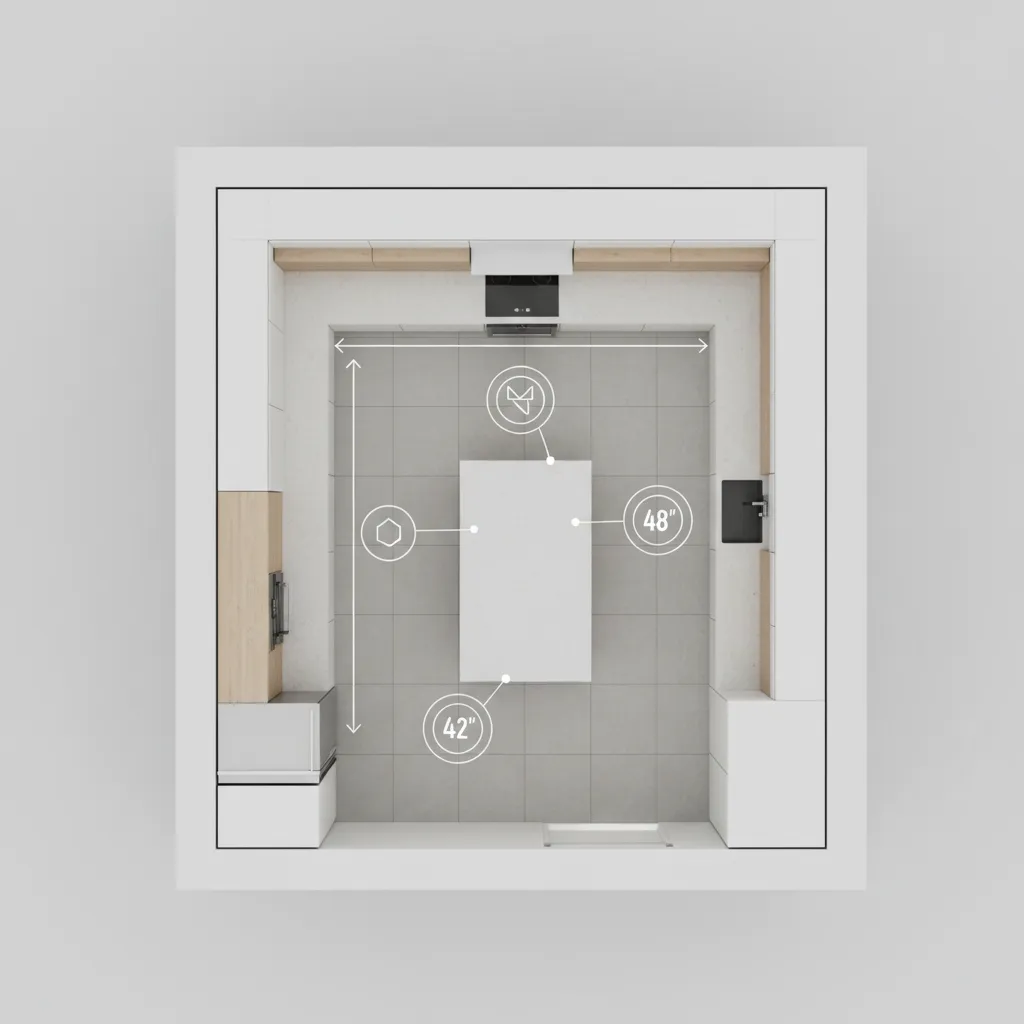

2. Clearances: Keep at least 90 cm aisle for one cook; 105–120 cm if two people cook often.
3. Door swings: Model appliance door arcs; ensure fridge and dishwasher can open simultaneously without collision.
4. Landing zones: Minimum 30 cm next to fridge and oven; 45–60 cm for primary prep near the sink.
5. Vent and make-up air: If using a strong hood, plan fresh air; note hood depth in the top view because it affects upper cabinet alignment.
6. Lighting paths: Sketch general, task, and accent lights; reflective surfaces can reduce fixture count.
7. Outlets and switches: Map them in plan to avoid extension cords; include USB-C near the small-appliance zone.

Appliance Sizing Notes: Compact 45 cm dishwashers, 60 cm standard ovens, and 30 cm domino hobs are your friends in micro-kitchens. For “apartment kitchen top view planning,” a 70/30 fridge-freezer at 55–60 cm depth usually balances capacity and circulation.

Material and Finish Strategy: In the plan, use lighter hues on tight aisles and reflective backsplashes opposite windows to bounce light. Matte counters with subtle veining read calmer in top views and photography, reducing visual noise around sinks and hobs.

Budget Framework: For a 6–8 m² kitchen, I typically allocate 35–45% to cabinetry, 20–25% to appliances, 10–15% to counters, 5–10% to backsplash, and the rest to electrical/plumbing/labor. A clean top view helps lock these ratios before final quotes.

Measurement Pro Tip: Measure finished walls after plaster and tile backer are in. I once lost 12 mm to a surprise skim coat—enough to misalign a tall pantry and block a door swing.

[Section: 总结]

Small kitchens aren’t limits—they’re invitations to design smarter. A clear kitchen layout drawing (top view) turns millimeters into workflow wins, from cabinet modules to landing space. NKBA’s updated guidelines echo this: thoughtful spacing and lighting can transform tight plans into high-performing kitchens. Which of the five ideas are you most excited to try in your own top-view plan?

[Section: FAQ 常见问题]

save pin

FAQ

1) What is a kitchen layout drawing (top view)?

It’s a scaled plan that shows your kitchen from above, including cabinets, appliances, door swings, and clearances. A top view lets you test circulation and workflow before you buy anything.

2) What scale should I use for small kitchens?

Use 1:20 or 1:25 for precision. This makes it easy to drop in common cabinet widths (30/45/60 cm) and verify clearances like the 90 cm aisle rule.

3) Work triangle or zones—what’s better?

In compact kitchens with two cooks, zones typically outperform the triangle by reducing cross-traffic. NKBA 2024 guidelines emphasize adequate landing areas and task lighting near each zone.

4) How wide should the aisle be in a galley?

For one cook, keep 90 cm as a minimum; for two, aim for 105–120 cm. This prevents door conflicts and keeps prep, cook, and clean functions comfortable.

5) How do I plan for appliance door swings in top view?

Draw the full arc for fridge, oven, and dishwasher. Ensure doors and drawers can open simultaneously—especially the fridge door near a wall or pantry.

6) What materials make a small kitchen look bigger in top view?

Light, matte fronts with a glass backsplash can extend lines and bounce light. Reflective surfaces near windows increase perceived width in plan and real space.

7) Any budget tips for a small kitchen layout drawing (top view)?

Standardize cabinet widths to reduce custom work and waste. Lock the plan before ordering appliances; last-minute changes ripple through clearances and cost.

8) Where can I see examples of top-view layouts?

Look for case studies that visualize plan views and clearances. You can also study variations like glass backsplash makes the kitchen feel lighter to understand how finishes affect perceived space. Authoritative guidance: NKBA Kitchen & Bath Planning Guidelines provide measurements and safety clearances used across the industry.
