Kitchen Pass Through in a Load Bearing Wall: What You Need to Know: How to safely add a kitchen pass through without compromising structure, budget, or layout

Direct Answer

Yes, you can add a kitchen pass through in a load bearing wall, but it requires structural reinforcement—usually a properly sized header beam and professional evaluation. The wall cannot simply be cut open. A structural engineer or qualified contractor must determine load distribution and specify the correct beam size to safely transfer the weight.

Quick Takeaways

1. A pass through in a load bearing wall requires a structural header beam.
2. Most projects require permits and sometimes an engineer’s report.
3. The cost is usually driven by structural reinforcement, not the opening itself.
4. Layout planning matters more than opening size for functionality.
5. Poorly placed pass through windows often create awkward kitchen workflow.

Introduction

Adding a kitchen pass through in a load bearing wall is one of the most common renovation requests I see when homeowners want an open-concept feel without fully removing the wall. After working on dozens of kitchen remodels over the past decade, I can tell you that the idea sounds simple—"just cut a window between the kitchen and dining room"—but the structural reality is more complicated.

Load bearing walls support the weight of floors, ceilings, or even the roof above. Cutting into them without reinforcement is a structural risk. The good news is that a well-designed pass through can dramatically improve flow, light, and social interaction between rooms.

Before clients finalize the opening size, I always recommend visualizing layout changes first. Tools that help you experiment with different kitchen layout configurationsmake it much easier to understand how the pass-through affects counters, cabinets, and traffic flow.

The rest of this guide walks through what actually happens structurally, what most homeowners overlook, and how to plan a pass through that improves your kitchen instead of creating new problems.

save pin

Why Structural Reinforcement Is Required

Key Insight: A load bearing wall carries vertical weight from above, so removing any portion requires a beam that redistributes that load to the sides.

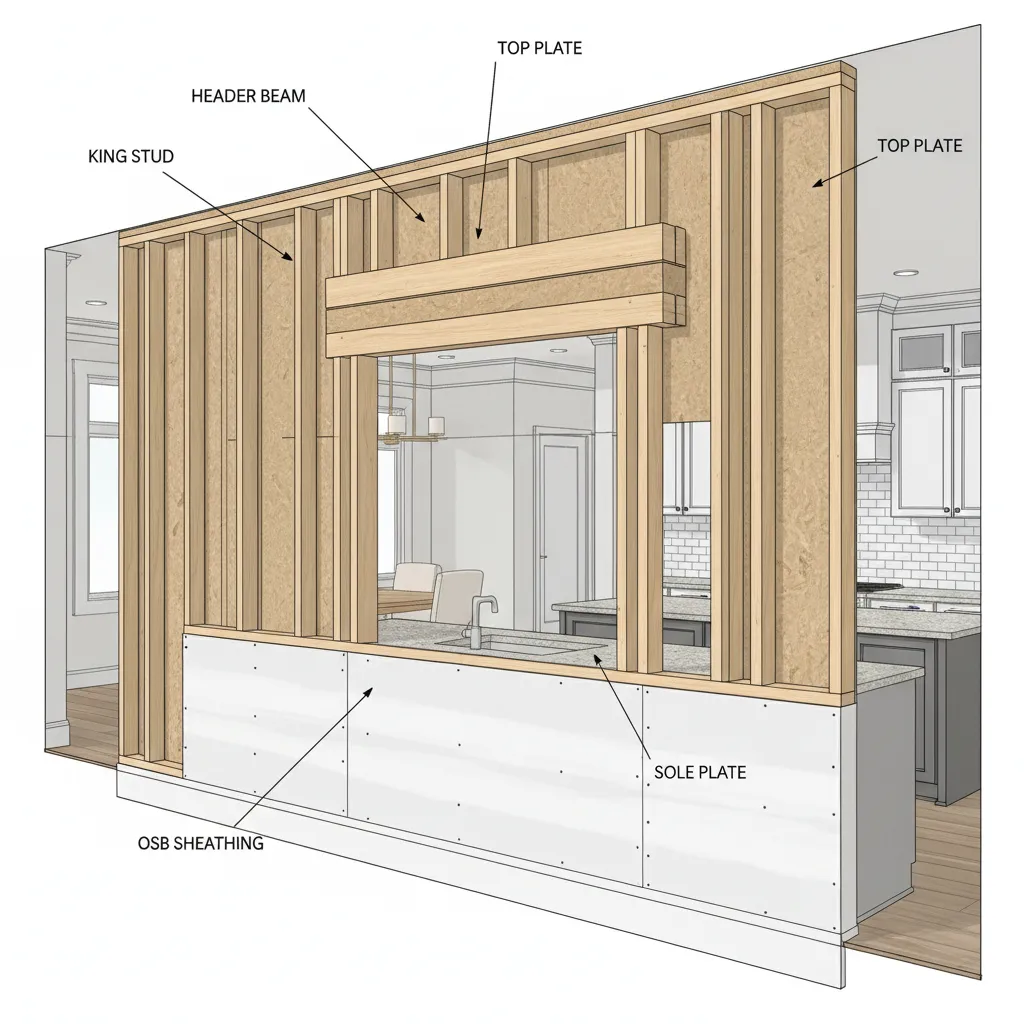

When you cut an opening in a structural wall, the load that used to travel through that section has to go somewhere else. The standard solution is a header beam installed above the opening. This beam transfers the weight to jack studs on each side.

In residential projects, I most commonly see three reinforcement options:

1. Engineered LVL beam – the most common choice for medium openings.
2. Steel beam – used when the opening is very wide or loads are heavy.
3. Built-up lumber header – sometimes used in older homes for smaller openings.

The exact size depends on span, load above, and local building code. That’s why structural calculations are typically required before cutting the wall.

In most jurisdictions, permits are also required for any structural modification.

save pin

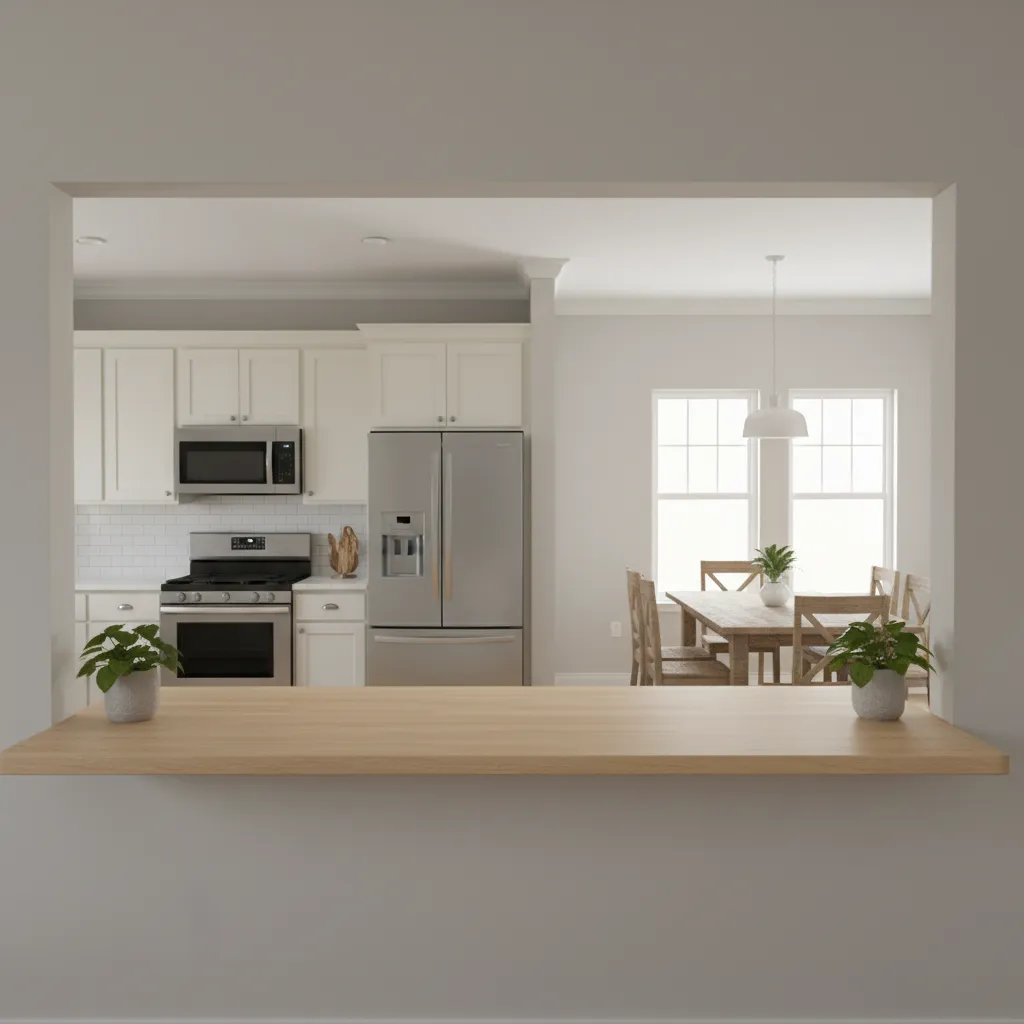

How Big Should a Kitchen Pass Through Opening Be?

Key Insight: The ideal pass through width is usually 36–60 inches—large enough for interaction but small enough to avoid heavy structural costs.

Bigger isn’t always better. I’ve seen homeowners push for six‑foot openings that require expensive steel beams when a four‑foot opening would function better.

Typical pass-through dimensions I recommend:

1. Width: 36"–60"
2. Height from floor: 42"–48"
3. Depth: usually the full wall thickness

A 42" height works particularly well because it aligns with standard bar seating and counter heights.

When clients want to explore proportions before construction, I often have them map the opening inside a 3D floor planning layout. Seeing the spatial relationship between kitchen, dining, and living areas prevents costly guesswork.

Hidden Design Mistakes Most People Make

Key Insight: The biggest pass-through mistakes are functional, not structural.

Structurally, engineers solve the load problem quickly. But from a design standpoint, I repeatedly see three overlooked issues.

1. Blocking cabinet runs – openings often remove critical storage wall space.
2. Interrupting appliance zones – cutting near cooktops or sinks disrupts workflow.
3. Creating awkward counter heights – mismatched surfaces make the opening unusable.

One client insisted on centering the pass through visually in the wall. The problem? It landed directly above the dishwasher zone. The final layout forced an awkward corner sink relocation that increased renovation cost by thousands.

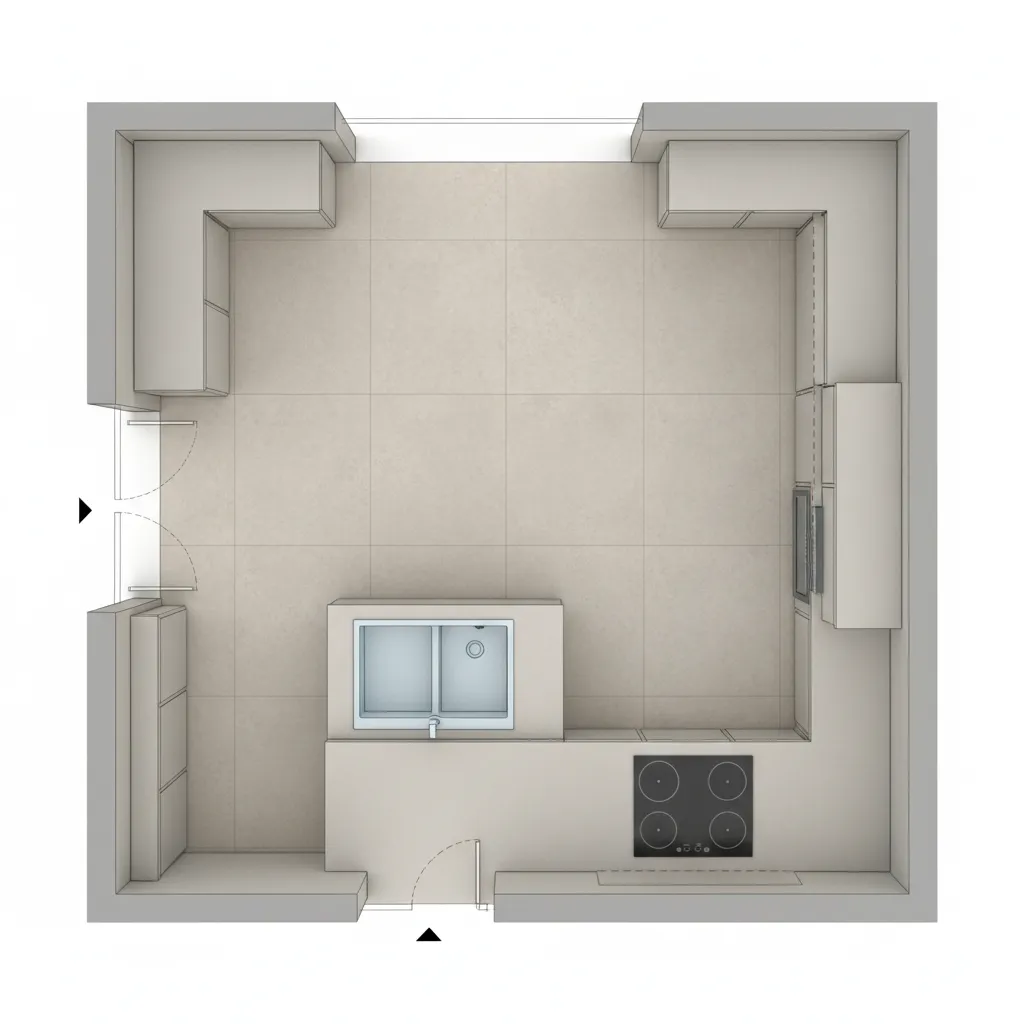

The better approach is to design around the kitchen work triangle first, then position the opening where it supports circulation.

save pin

Can You DIY a Kitchen Pass Through in a Load Bearing Wall?

Key Insight: Technically possible, but structurally risky without professional guidance.

DIY tutorials online make this project look straightforward. In reality, even experienced contractors usually consult a structural engineer when modifying load-bearing framing.

A typical professional process includes:

1. Confirm the wall is load bearing.
2. Calculate structural loads.
3. Specify header beam size.
4. Install temporary support walls.
5. Cut opening and install beam.
6. Transfer load to jack studs.
7. Inspect and finish drywall.

The risk of skipping these steps isn't cosmetic—it’s structural movement, cracked ceilings, or floor sagging.

Answer Box

A kitchen pass through in a load bearing wall is safe when the removed structure is replaced with a properly sized beam. The key factors are load calculations, opening width, and correct beam installation.

How Much Does This Renovation Usually Cost?

Key Insight: Structural reinforcement—not the opening—is what drives most of the cost.

Across projects I've worked on in California and the Midwest, the cost breakdown tends to look like this:

1. Structural engineer: $300–$900
2. Permits and inspections: $200–$800
3. Beam materials: $200–$1500
4. Labor and framing: $1000–$4000
5. Drywall and finishing: $500–$1500

Typical total range: $2,500–$7,000 depending on beam type and wall conditions.

Steel beams, plumbing relocation, or electrical rewiring can push the project higher.

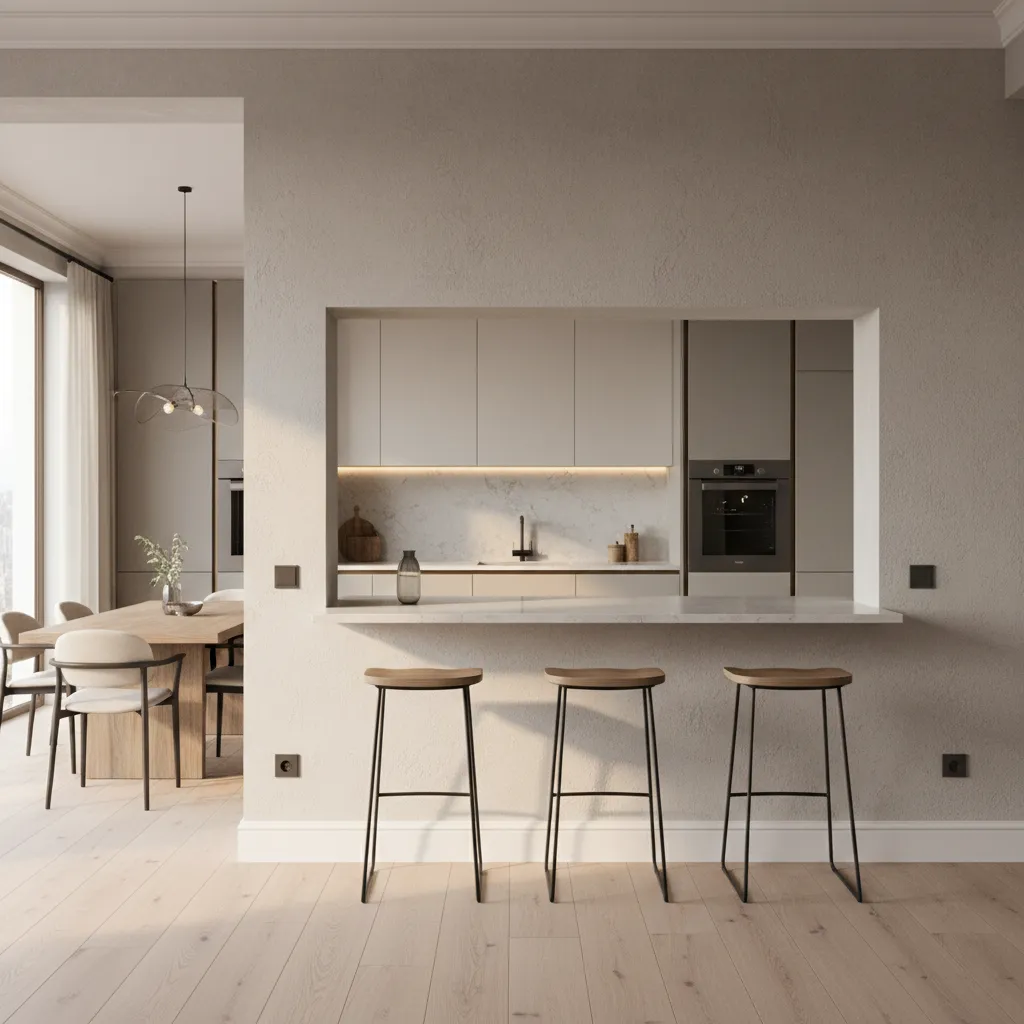

How Do You Make the Pass Through Look Intentional?

Key Insight: The best pass through openings feel like architectural features—not holes cut in a wall.

Design elements that elevate the final result:

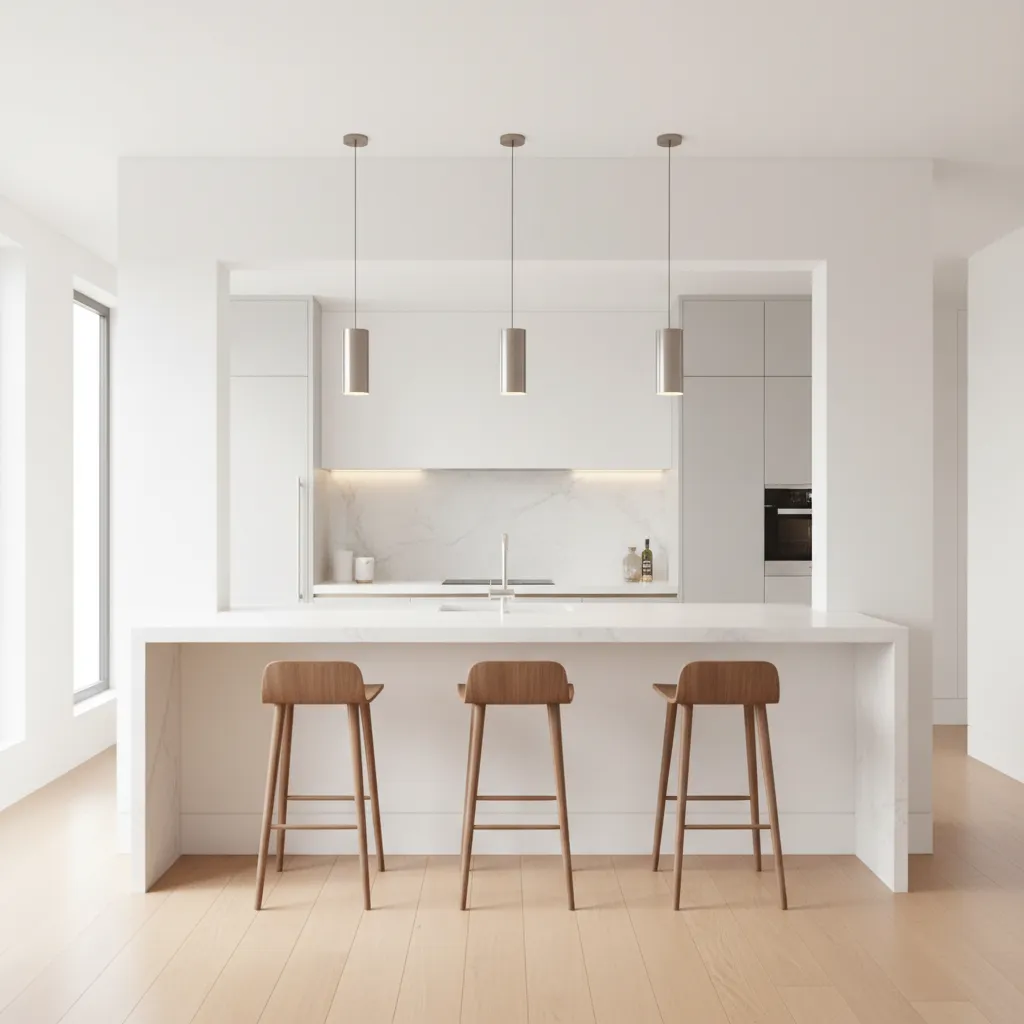

1. Integrated counter ledge or breakfast bar
2. Trim or casing matching the kitchen cabinetry
3. Pendant lighting centered above the opening
4. Bar seating or serving counter

Before committing to construction, many designers create a visualization so homeowners can preview a realistic kitchen renovation render. Seeing the finished space dramatically reduces second‑guessing during remodeling.

save pin

Final Summary

1. A load bearing wall pass through requires a structural beam.
2. Openings between 36–60 inches balance structure and usability.
3. Kitchen workflow matters more than visual symmetry.
4. Structural reinforcement determines most renovation costs.
5. Design details turn a cutout into a functional feature.

FAQ

Can you put a kitchen pass through in a load bearing wall?

Yes. A structural header beam must replace the removed wall section so the load transfers safely to the sides.

Do I need a permit to cut a pass through window?

In most cities, yes. Structural modifications usually require permits and inspections to meet building codes.

How do I know if my wall is load bearing?

Look at joist direction in the attic or basement. If joists rest on the wall, it likely carries load. A contractor or engineer should confirm.

What beam is used for a kitchen pass through?

Most projects use LVL beams. Larger openings may require steel depending on load and span.

Does adding a kitchen pass through increase home value?

Often yes, because it improves visual openness and kitchen interaction with adjacent spaces.

What is the best height for a kitchen pass through?

Around 42 inches from the floor works well because it aligns with counter and bar seating heights.

How long does the renovation take?

Construction usually takes 2–5 days, depending on structural work and finishing.

Can a kitchen pass through be expanded later?

Yes, but expanding the opening often requires installing a larger beam and reframing the wall.
