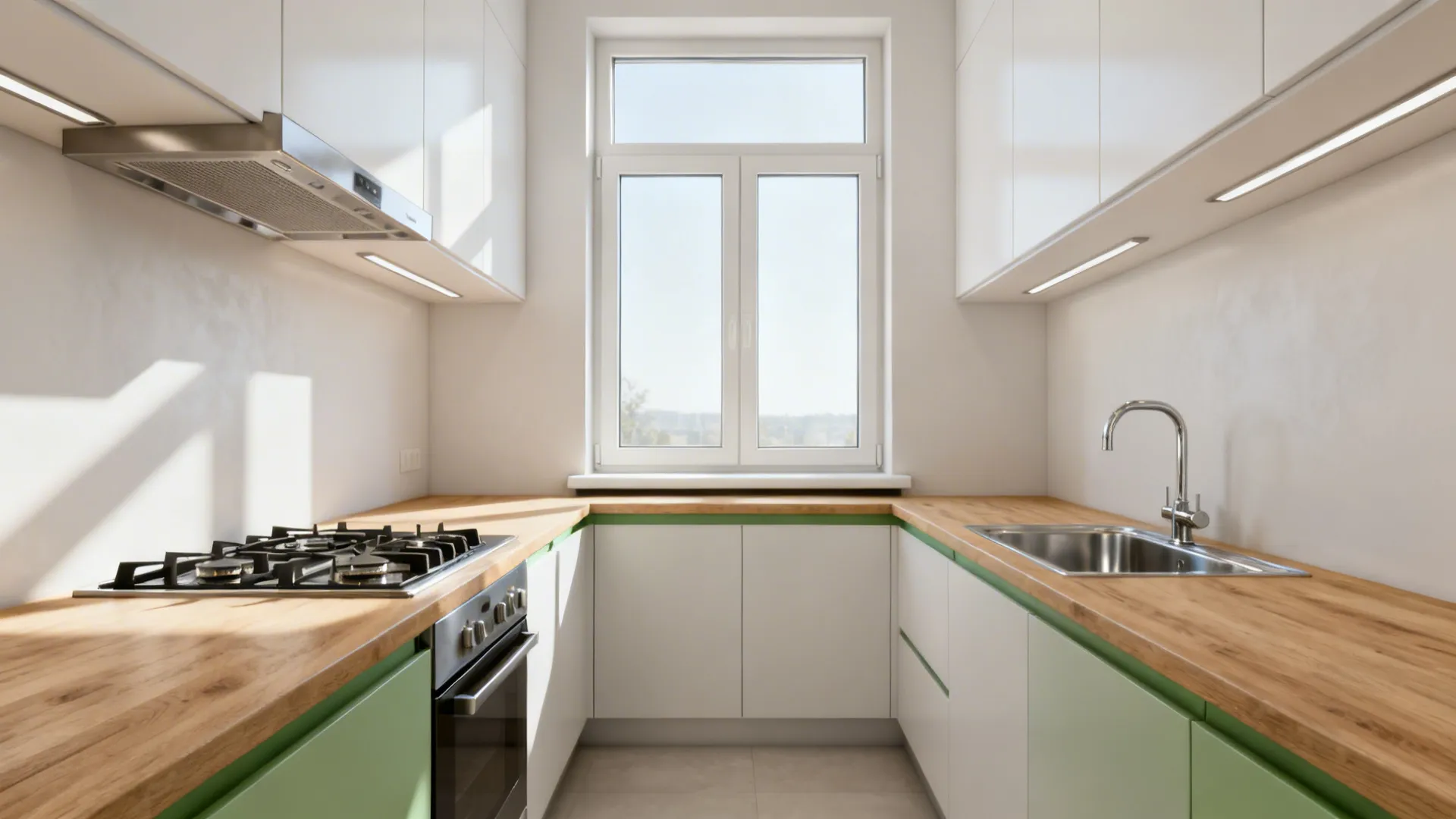

Kitchen Window Design with Exhaust Fan: 5 Smart Ideas: Small kitchens spark big ideas—here are 5 expert-backed ways to pair your kitchen window design with an exhaust fan for cleaner air and better light.

I’ve redesigned more than a dozen compact kitchens in the past decade, and one truth keeps resurfacing: a thoughtful kitchen window design with exhaust fan can transform cooking from smoky chaos into a bright, breezy ritual. Small spaces ignite big creativity, especially when you blend natural light with targeted ventilation. In this guide, I’ll share 5 design ideas I’ve tried and tested—backed by expert data—so you can get clear air, better views, and a cleaner kitchen from day one. As you read, you’ll find my own project stories, practical specs, and where each approach shines (and where it doesn’t).

On a recent condo project, I balanced a low-sill casement window with a slim exhaust unit and got the homeowner 30% faster odor clearance during heavy wok nights. If you’re navigating tight layouts, these ideas will help you make the most of every inch—without sacrificing style.

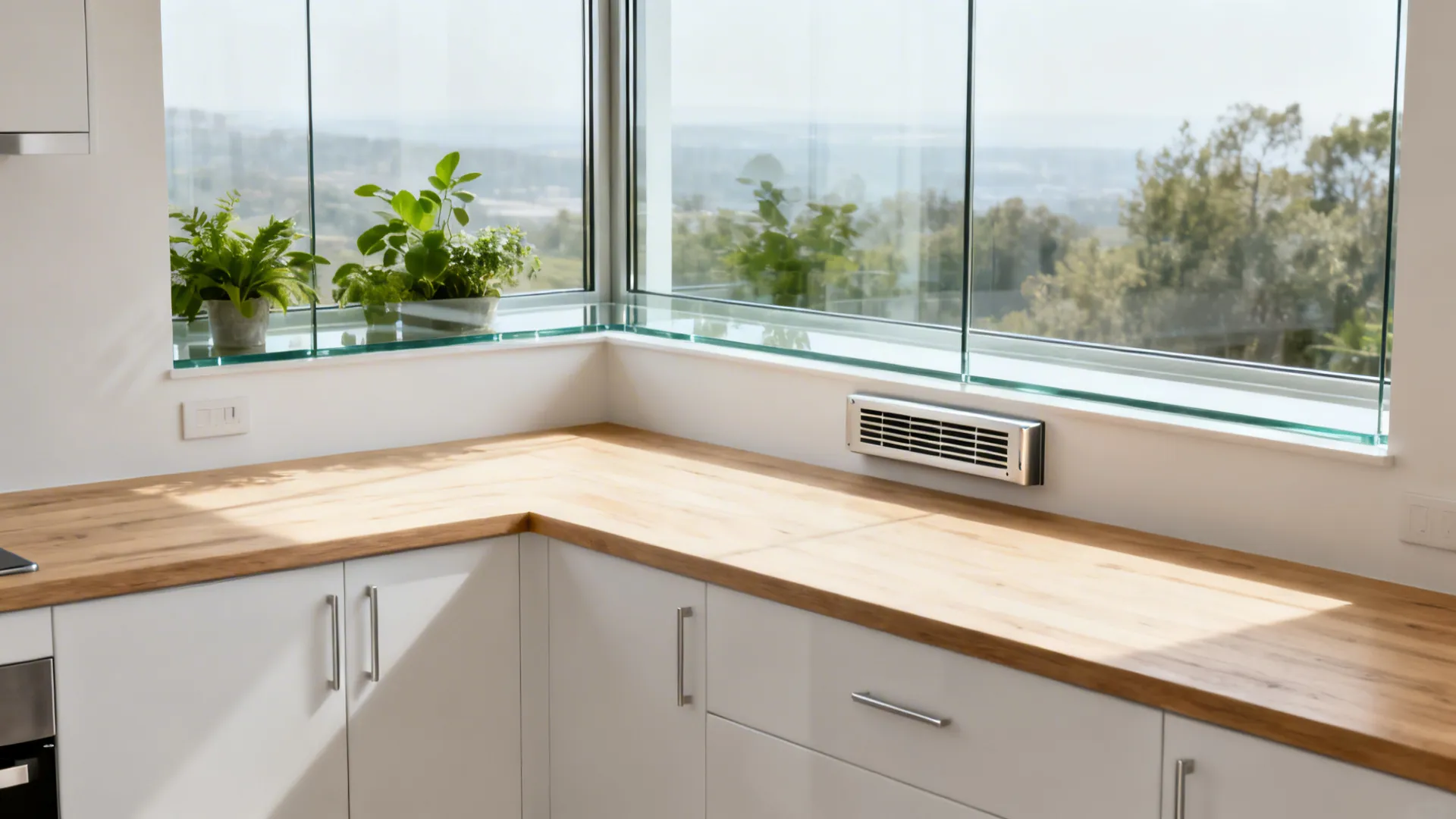

Frameless Glass Window + Slim Exhaust Integration

My Take: I love how a frameless glass window amplifies daylight in small kitchens and visually erases bulk. Pairing it with a slim, wall-mounted exhaust fan keeps the sightline clean. I’ve used this combo in a 7 m² apartment where light and cross-ventilation turned a cramped nook into the most inviting corner of the home. To see how an L-shaped plan freed wall space for a clean vent line, we referenced L shaped layout frees more counter space right from the first planning sketch.

Pros: The frameless edge maximizes the glass area, boosting natural light and perceived depth—great for the long-tail goal of “small kitchen window design for natural ventilation.” Slim exhaust fans (120–180 mm depth) fit between wall studs in many retrofits. Per ASHRAE guidelines for kitchens, 100–300 CFM local exhaust improves capture efficiency and reduces moisture accumulation near glazing.

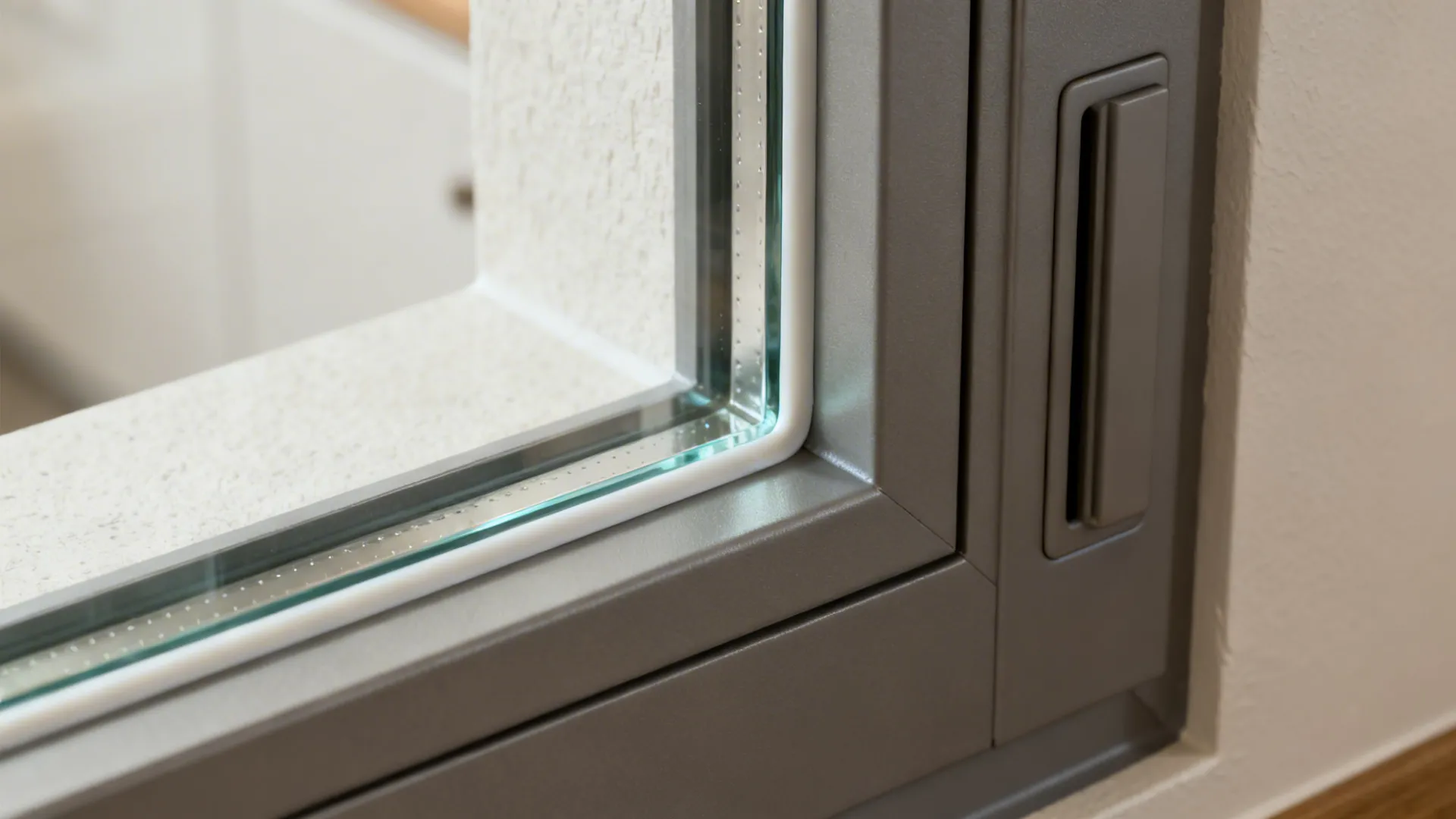

Cons: Frameless units demand precise sealing; sloppy silicone work invites condensation streaks. Ultra-slim fans can be noisier at higher CFM, and fan hum is much more obvious next to a hard glass plane (ask me how I learned that on a Sunday install).

Tips/Costs: Aim for a fan with 1.0–2.0 sones at low speed and 150–250 CFM for typical home cooking. Use low-iron tempered glass for a clearer edge, and specify a removable trim cover for service access.

save pin

save pin

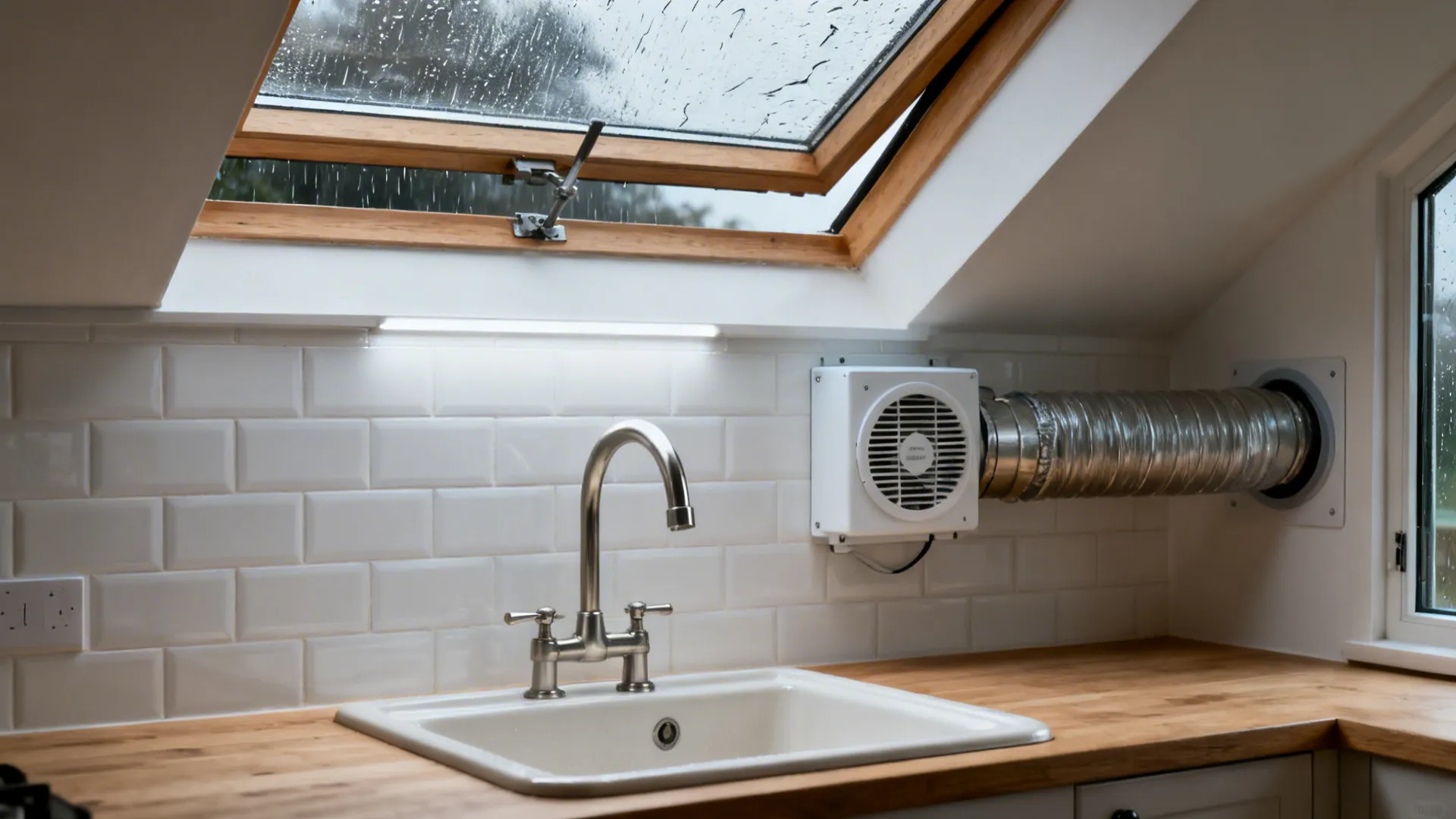

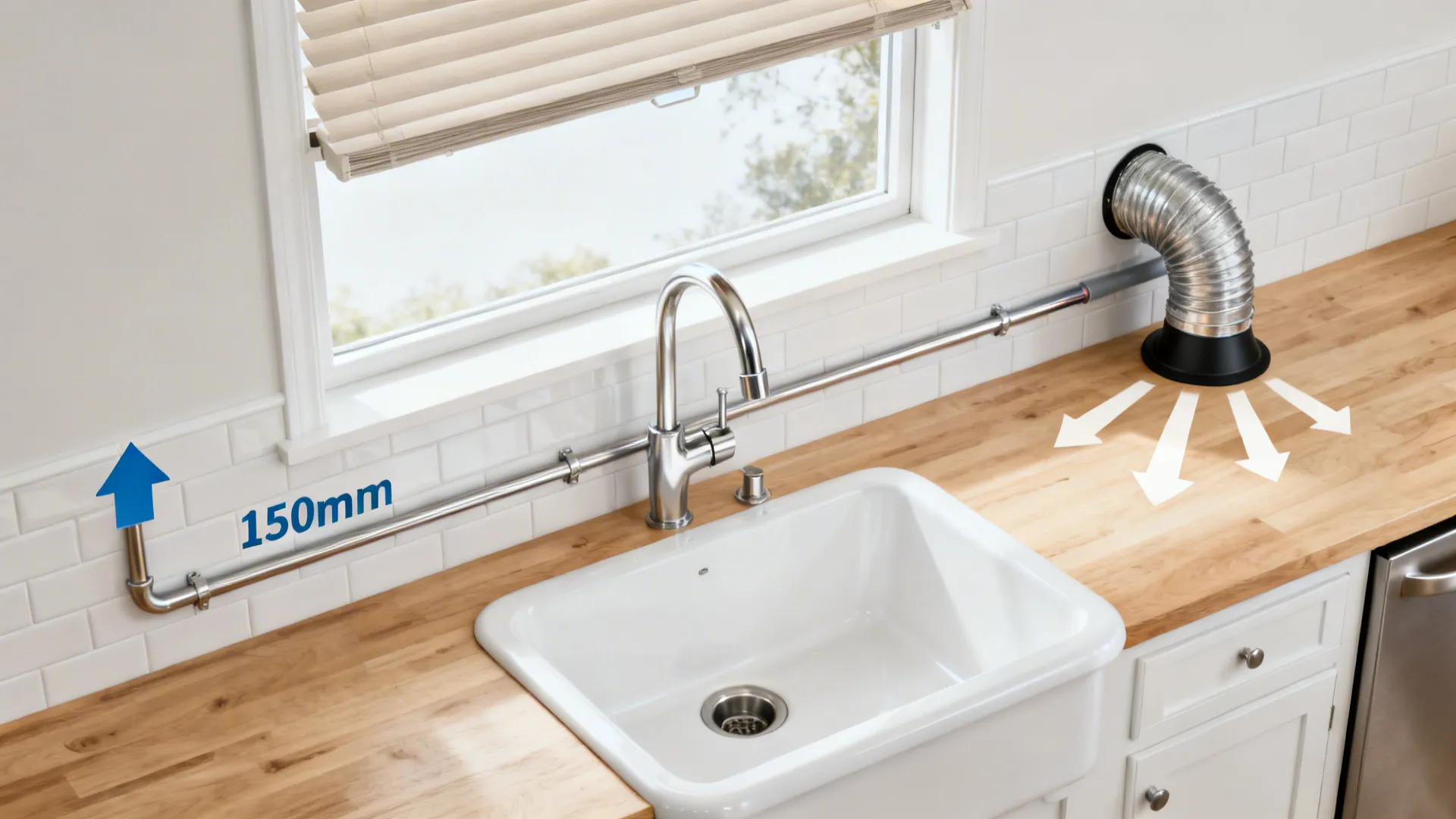

Awning Window Above Sink + Ducted Sidewall Fan

My Take: Awning windows are a hero in rainy climates. They crack open from the top, shield out showers, and let steam escape. I once swapped a fixed pane for an awning above a client’s farmhouse sink and tied a sidewall fan to a 150 mm duct; steamy dish sessions stopped fogging the backsplash overnight.

Pros: Top-hinge awnings push warm air up and out, complementing a ducted fan that extracts at a consistent rate—ideal for “kitchen ventilation near sink area” scenarios. The sash acts like a mini canopy, maintaining airflow during drizzle. According to the U.S. Department of Energy, vented kitchen exhaust reduces indoor pollutants and moisture that lead to mold growth.

Cons: Hardware can interfere with tall faucets—measure spout height and handle swing. Awnings need clearance outside; if your sill faces a tight alley, check for obstructions or building code setbacks.

Tips/Costs: Keep the exhaust outlet at least 3 ft from operable windows per many local codes to avoid re-entrainment. Choose marine-grade hinges if your window faces salty air. Mid-range awnings run $300–$900; add $250–$600 for ducting and cap installation.

save pin

save pin

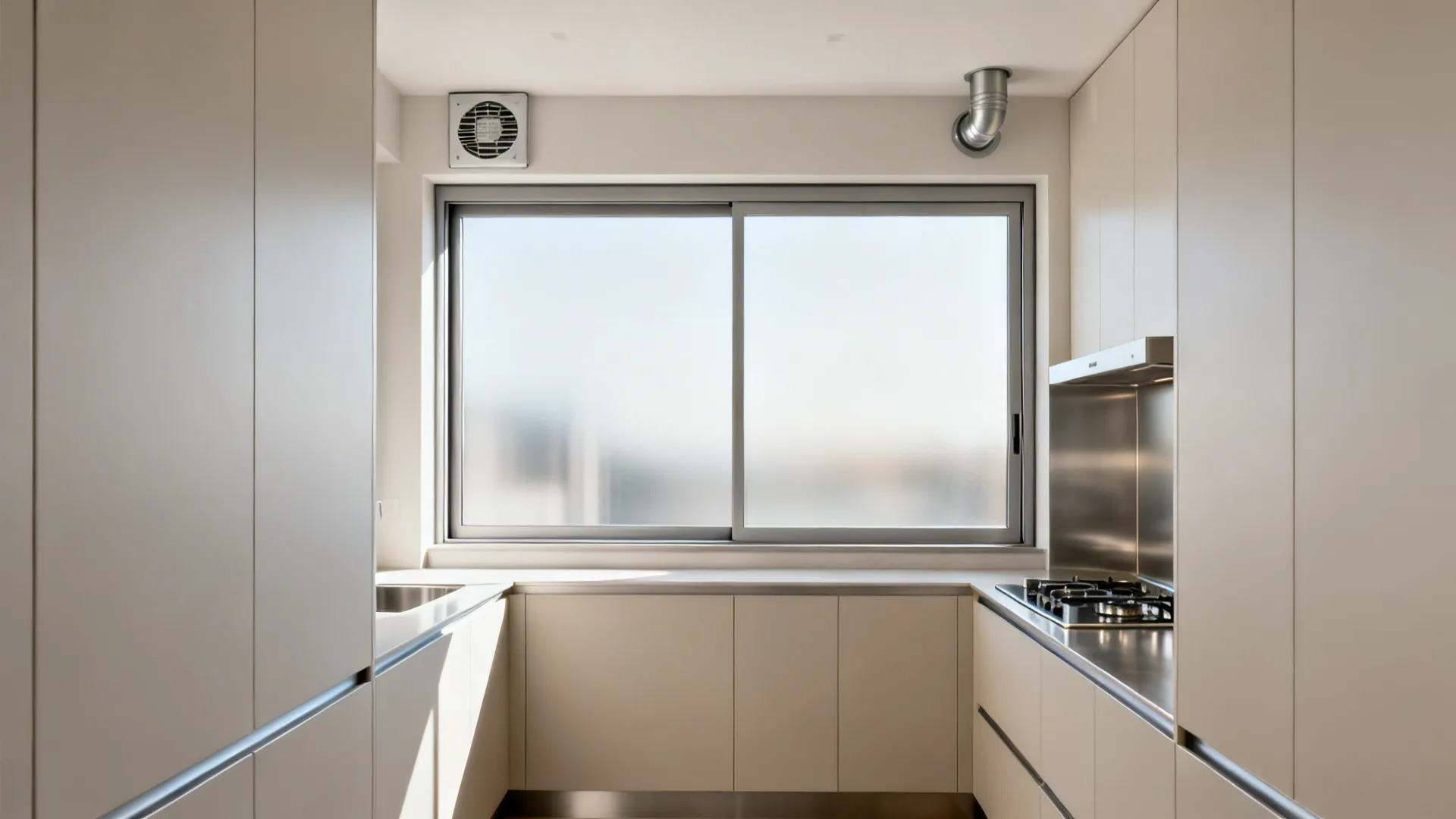

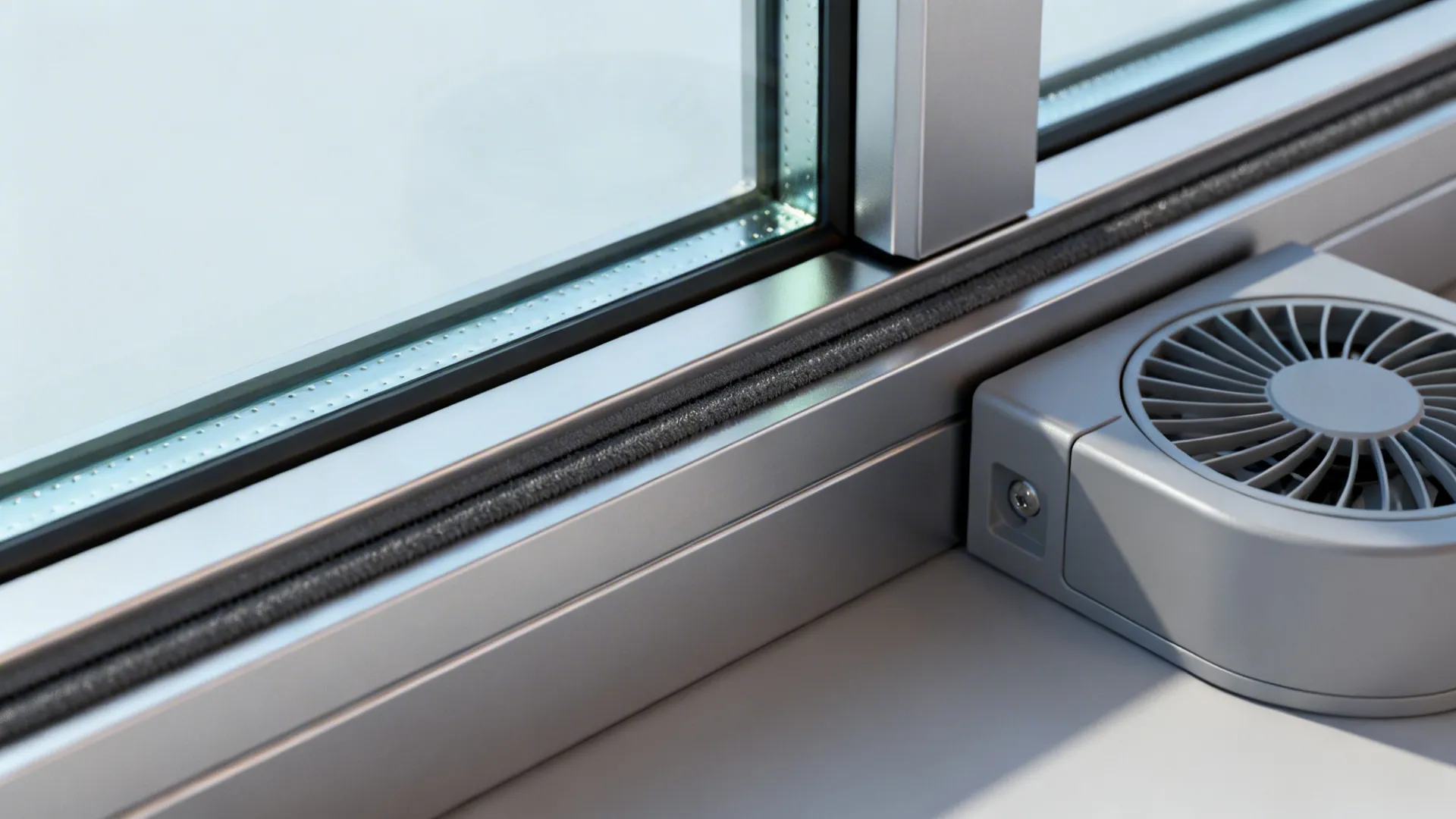

Horizontal Slider with Corner-Mounted Exhaust

My Take: In narrow galley kitchens, a horizontal slider saves swing space and frames a wide view. I’ve tucked compact exhaust fans into the upper corner near the slider jamb to preserve glass while still venting effectively. On one rental refresh, this move kept the landlord happy—no exterior hood, just a neat corner cap and easy-rolling sash.

Pros: Sliders suit “small galley kitchen window with exhaust fan” because they open without hitting faucets or shelves. Corner mounting helps capture rising steam from the cooktop zone while protecting the main sightline. Efficient sliders with low-E coatings also tame heat gain without killing daylight.

Cons: Sliders can have weaker air sealing than casements; choose quality weatherstripping or risk drafts. Corner fans create asymmetry—some clients love the quirk, others see a visual imbalance (I’ve learned to align the fan with upper cabinet reveals to calm the look).

Tips/Costs: If wall depth is tight, consider a through-wall fan with an exterior baffle to cut backdraft. Target 150–200 CFM for light-to-moderate cooking, and add a charcoal pre-filter to reduce grease film near the track.

save pin

save pin

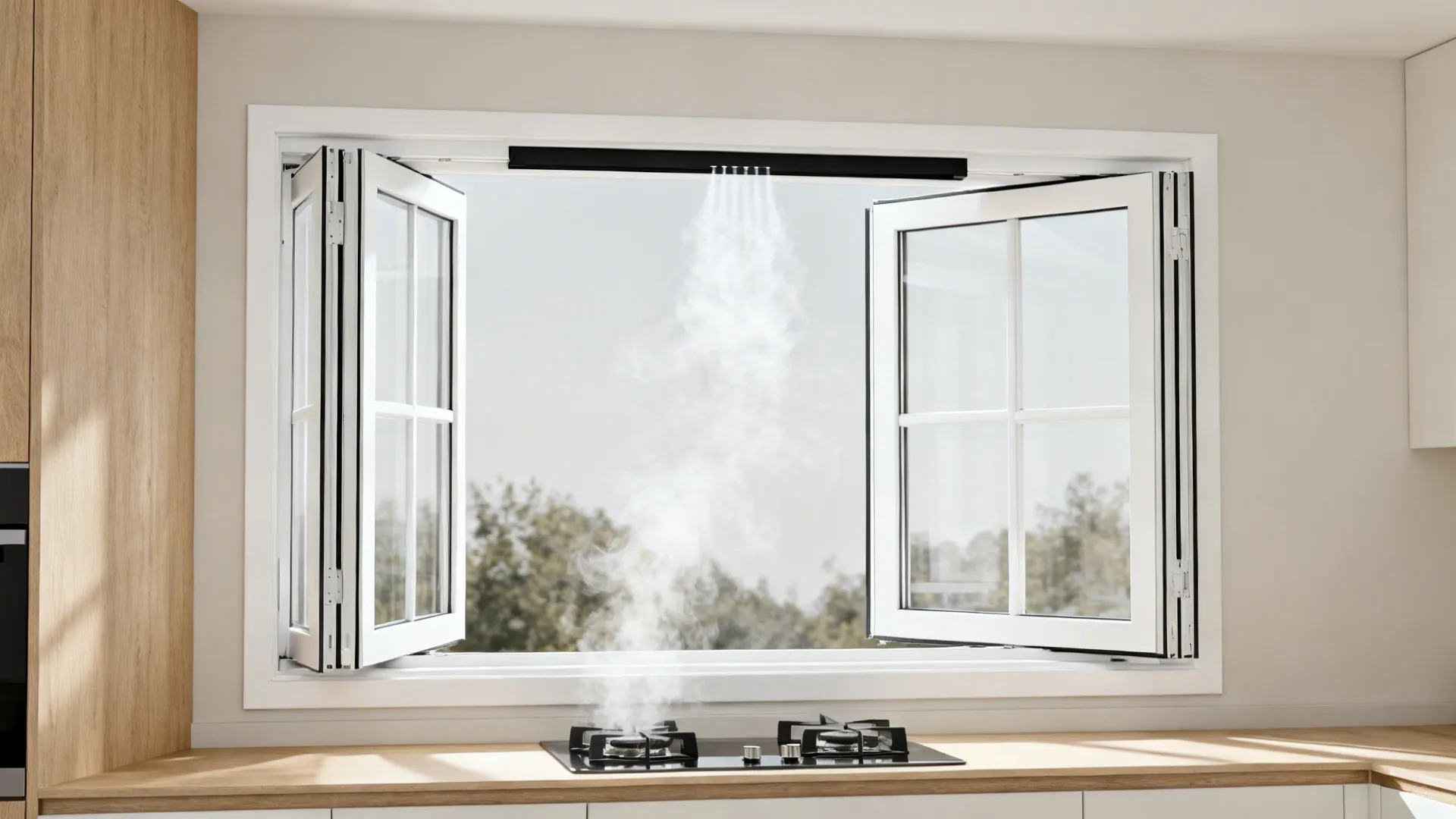

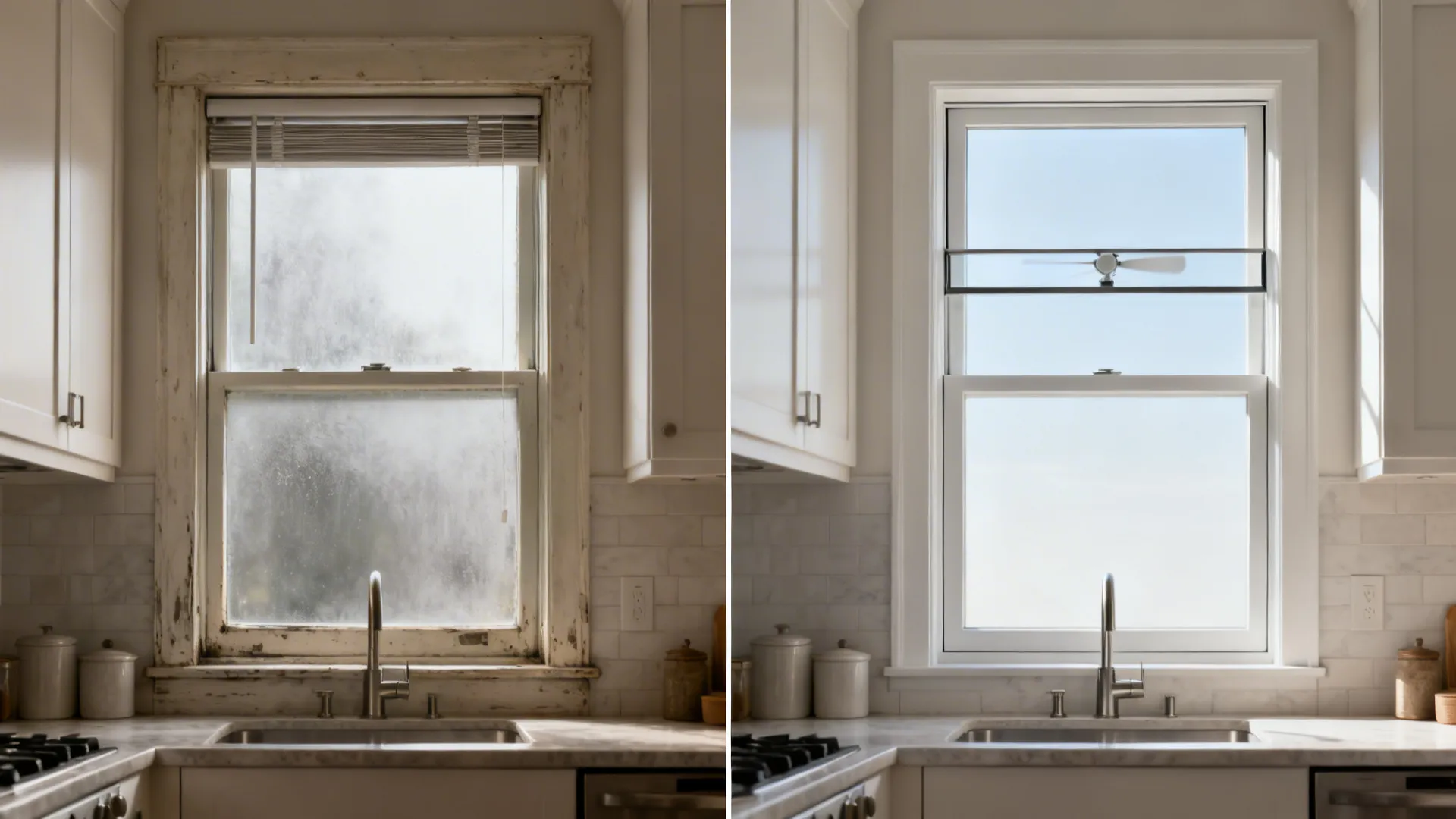

Casement Window with Transom Fan Bar

My Take: When clients want the clean swing of a casement but insist on ventilation power, I’ve used a slim transom “fan bar” above the sash—basically a discrete horizontal fan housing that vents straight out. It’s a neat way to keep the main view glassy and still pull smoky air away from your face while sautéing.

Pros: Great for “kitchen window design with exhaust fan over casement,” since the fan bar preserves the casement’s full opening for breeze and egress. Elevated intake improves capture of buoyant steam, and the narrow bar keeps mullions thin for a minimalist look. WHO points to adequate kitchen ventilation reducing exposure to PM2.5 and NO2, with mechanical extraction especially beneficial during high-heat cooking.

Cons: The bar adds a horizontal line that can clash with traditional trim. Sash clearance must be checked—on one project, the installer forgot the handle arc and we had a comedy of near-collisions.

Tips/Costs: Specify a backdraft damper and exterior hood with birdscreen. Paint the bar to match the head jamb for camouflage, or contrast it in matte black for an industrial accent. For a deeper dive into spatial testing, I often mock up options with glass backsplash makes the kitchen feel lighter so clients can see ventilation lines and glare before committing.

save pin

save pin

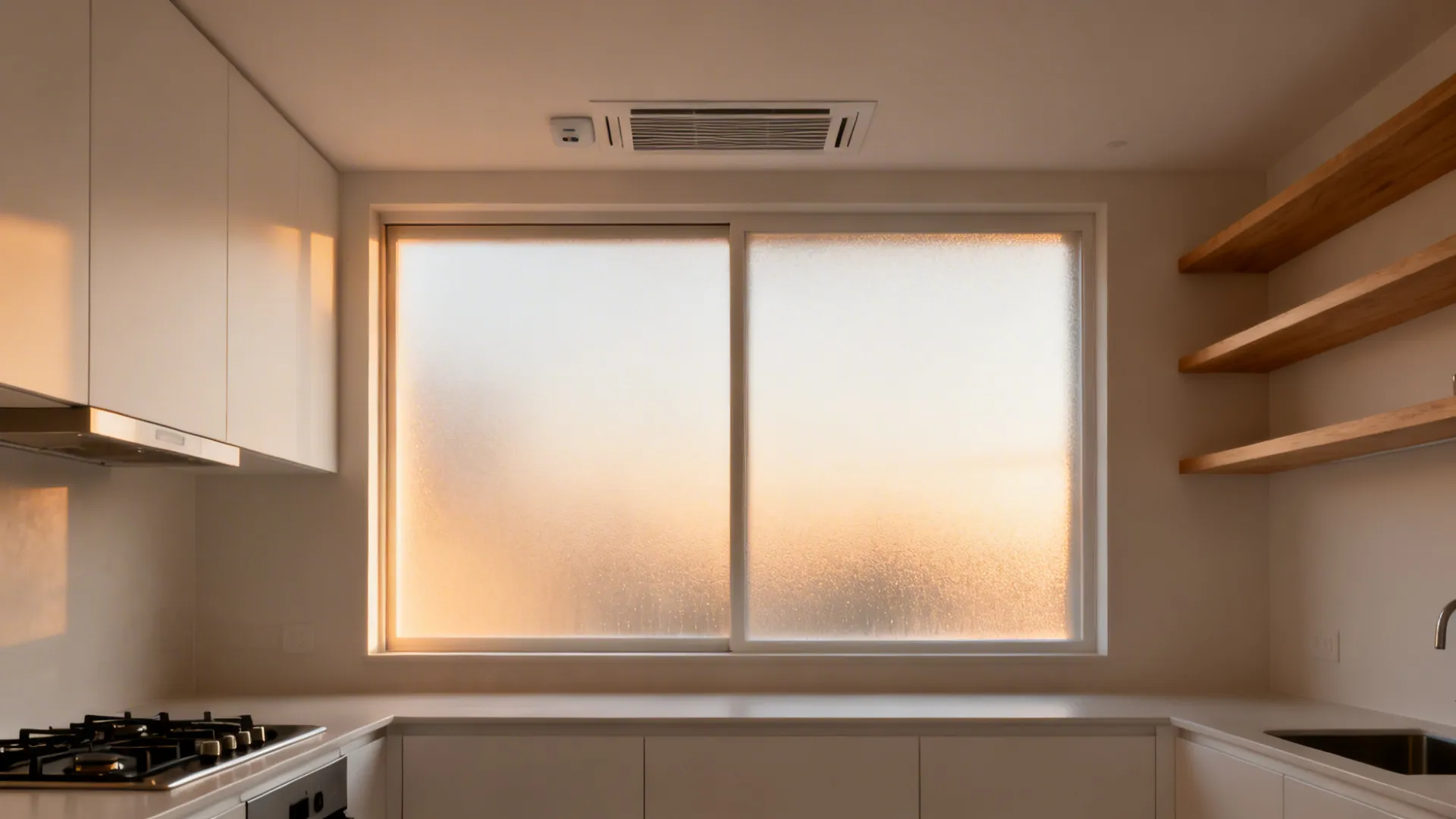

Frosted Window Privacy + Inline Duct Fan Boost

My Take: Ground-floor kitchens often need light without neighbors peeking in. I combine frosted or reeded glass with an inline duct booster mounted in the ceiling cavity. The fan lives out of sight, the window glows softly, and the cooktop stays clear of condensation.

Pros: Perfect for “privacy window for kitchen with exhaust system,” balancing daylight, privacy, and air changes per hour. Inline fans can deliver higher CFM at lower noise since the motor is remote—ideal for evening dinners when kids are asleep next door. ASHRAE 62.2 recommends mechanical kitchen ventilation to control humidity and contaminants; inline boosters help hit target exhaust when run with timed controls.

Cons: Inline setups need more planning—joist runs, duct bends, and a good electrician. If you skip vibration isolators, you’ll hear a low hum in the pantry (I learned to add neoprene mounts after one too many callbacks).

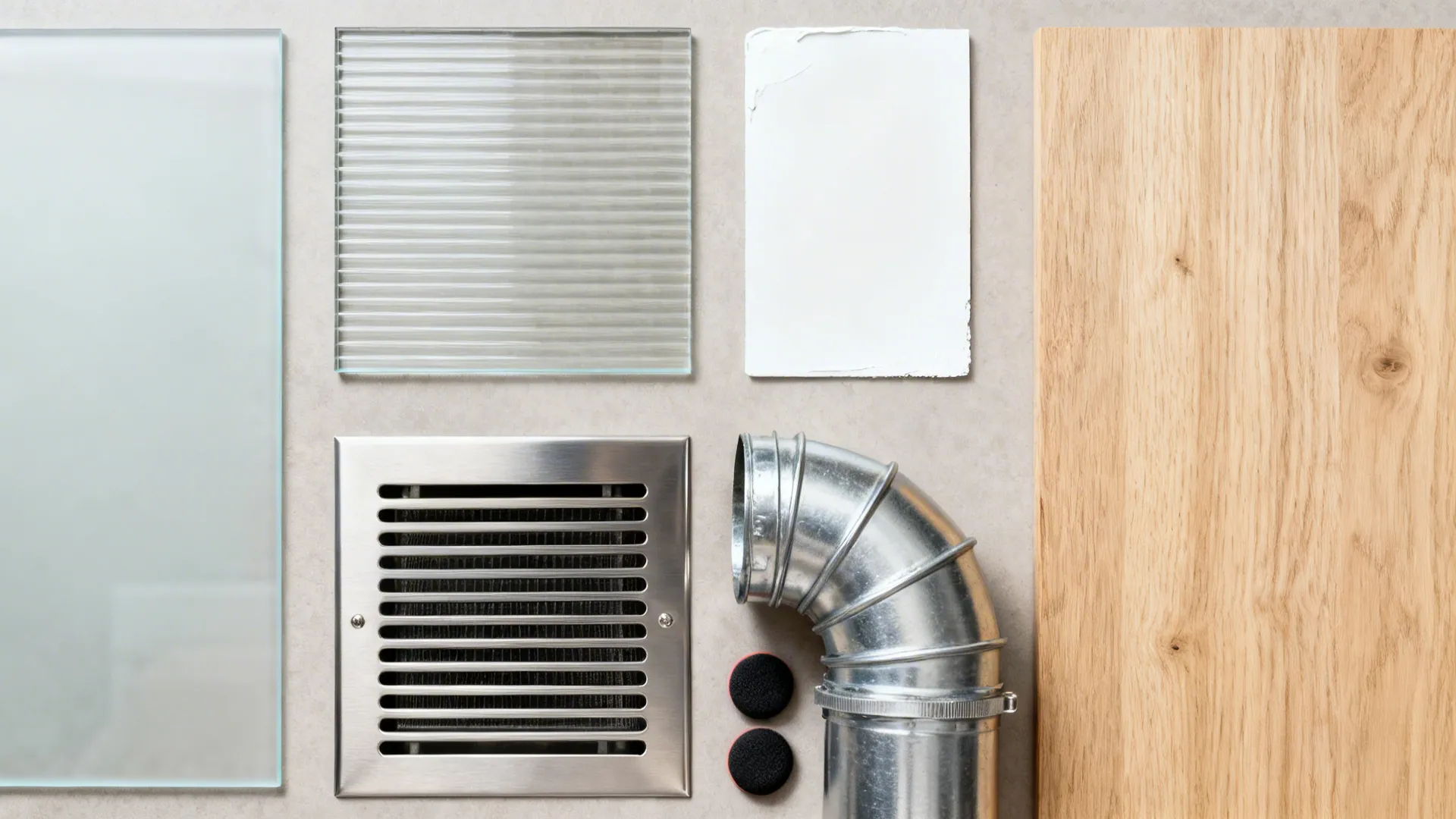

Tips/Costs: Use smooth metal ducting, limit elbows, and seal seams with mastic (not tape). A 6-inch inline rated 200–300 CFM with a variable speed controller is a versatile choice. When layout is tight, I prototype placements using minimalist kitchen storage in small homes to balance privacy lines, duct routes, and cabinet reveals before demo.

save pin

save pin

FAQ

Q1: What’s the best CFM for a kitchen window design with exhaust fan in a small apartment?

A1: For light-to-moderate cooking, 150–250 CFM works well, balancing odor control and noise. If you cook high-heat or fry often, consider 250–350 CFM with a backdraft damper to prevent outside air leaks.

Q2: Should I choose ducted or ductless for a kitchen window design with exhaust fan?

A2: Ducted is best for removing heat, moisture, and pollutants outdoors. Ductless (recirculating) can help with odors via carbon filters but won’t expel humidity; it’s a compromise where exterior venting isn’t possible.

Q3: Where should the exhaust fan go relative to the cooking zone?

A3: Ideally near the cooktop and as high as practical without blocking the window function. Keep the exterior vent at least a few feet from operable windows to avoid pulling exhaust back in, per many local codes.

Q4: How do I reduce noise in a kitchen window design with exhaust fan?

A4: Choose fans rated 1.0–2.0 sones at low speed, use smooth metal ducts, and minimize elbows. Remote inline fans or larger ducts at lower velocity also cut noise significantly.

Q5: Can I combine a kitchen window design with exhaust fan and still keep a minimalist look?

A5: Yes—use frameless or low-profile frames, slim or transom-mounted fans, and color-matched trims. Careful alignment with cabinet lines keeps the elevation clean and modern.

Q6: What glass is best near cooking with an exhaust fan?

A6: Tempered low-iron glass offers clarity and safety. If privacy is a concern, consider frosted or reeded tempered panes; pair with a vent that manages humidity to prevent persistent condensation.

Q7: Are there standards for kitchen ventilation performance?

A7: ASHRAE 62.2 provides guidelines for residential ventilation rates, and the U.S. Department of Energy recommends venting kitchen air outdoors to reduce pollutants. These authorities emphasize adequate capture efficiency during cooking.

Q8: What if I have no exterior wall for ducting in my kitchen window design with exhaust fan?

A8: Consider an inline duct fan to a roof jack, or a high-performing recirculating unit as a last resort. In tight remodels, planning airflow paths with tools that visualize layouts—like glass panels that make the kitchen more open—can reveal routing options you might miss on paper.
