L Shaped Kitchen Floor Plans With Dimensions: Real layout sizes, spacing rules, and design decisions professionals use when planning functional L‑shaped kitchens.

Direct Answer

L shaped kitchen floor plans with dimensions typically use two connected walls ranging from 8–12 feet each. Most functional layouts maintain 36–48 inches of walkway clearance, 24 inches of counter depth, and at least 42 inches of working aisle space for smooth movement.

These dimensions create an efficient work triangle between the sink, stove, and refrigerator while leaving enough counter area for preparation.

Quick Takeaways

1. Most L shaped kitchen walls range between 8–12 feet per side.
2. Maintain at least 42 inches of aisle space for comfortable cooking.
3. 24‑inch base cabinets define standard counter depth.
4. Sink placement usually sits at the corner transition point.
5. L shaped layouts work best in kitchens over 10x10 feet.

Introduction

L shaped kitchen floor plans with dimensions are one of the layouts I recommend most often in residential projects. After designing dozens of kitchens across apartments, suburban homes, and open‑plan remodels, I’ve found that the L shape consistently balances efficiency, openness, and storage better than many alternatives.

The problem most homeowners face isn’t choosing the layout—it’s getting the dimensions right. I’ve walked into plenty of kitchens where someone copied a layout online but ignored spacing rules. The result? Tight walkways, awkward appliance placement, or dead corner cabinets.

If you’re planning a new kitchen layout, it helps to first visualize the proportions using tools designed for layout planning. A practical place to start is exploring interactive kitchen layout planning examples with real measurementsso you can understand how cabinet runs and walkways actually fit together.

In this guide, I’ll walk through realistic L shaped kitchen dimensions, spacing rules professionals follow, and several layout variations that work well in modern homes.

save pin

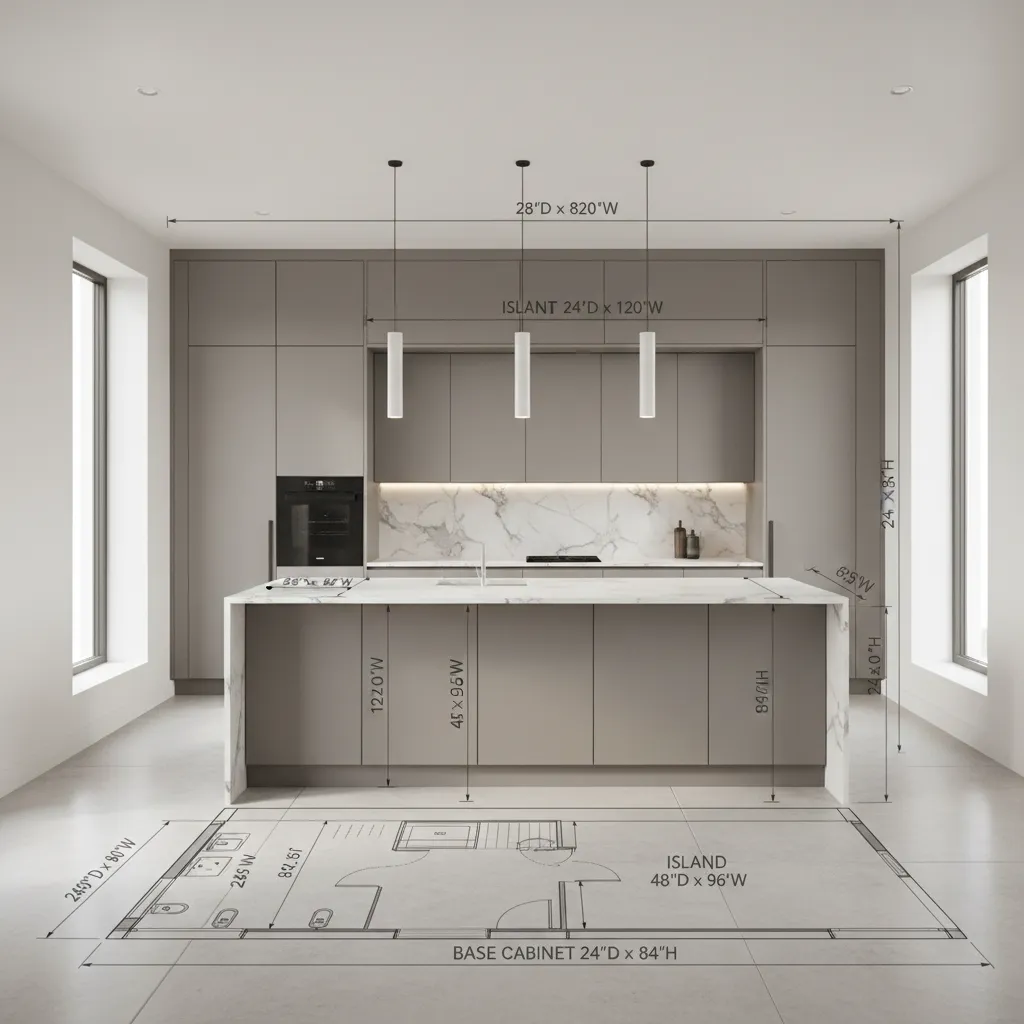

What Are Standard Dimensions for an L Shaped Kitchen?

Key Insight: Most functional L shaped kitchens use two walls between 8 and 12 feet long to balance counter space, appliances, and circulation.

In real residential design, the "perfect" L shaped kitchen rarely comes from symmetry. Instead, it’s about ensuring enough working surface and keeping appliances within comfortable reach.

Here are the most common professional planning dimensions:

1. Base cabinet depth: 24 inches
2. Counter height: 36 inches
3. Upper cabinet depth: 12 inches
4. Recommended aisle width: 42–48 inches
5. Minimum walkway clearance: 36 inches
6. Typical wall lengths: 8–12 feet per side

According to NKBA kitchen planning guidelines, 42 inches of clearance is ideal for single‑cook kitchens, while 48 inches improves comfort for multi‑cook households.

In smaller apartments, I’ve successfully built efficient L shaped layouts with just 7‑foot cabinet runs, but that usually requires compact appliances and careful corner cabinet design.

Why L Shaped Kitchens Work So Well in Modern Homes

Key Insight: The L shape naturally creates an open workflow while preserving continuous countertop space.

One reason this layout appears in so many homes—from condos to luxury renovations—is its flexibility. Unlike galley kitchens, L shaped kitchens leave at least one side open, which connects the cooking zone with dining or living spaces.

Advantages I regularly see in projects:

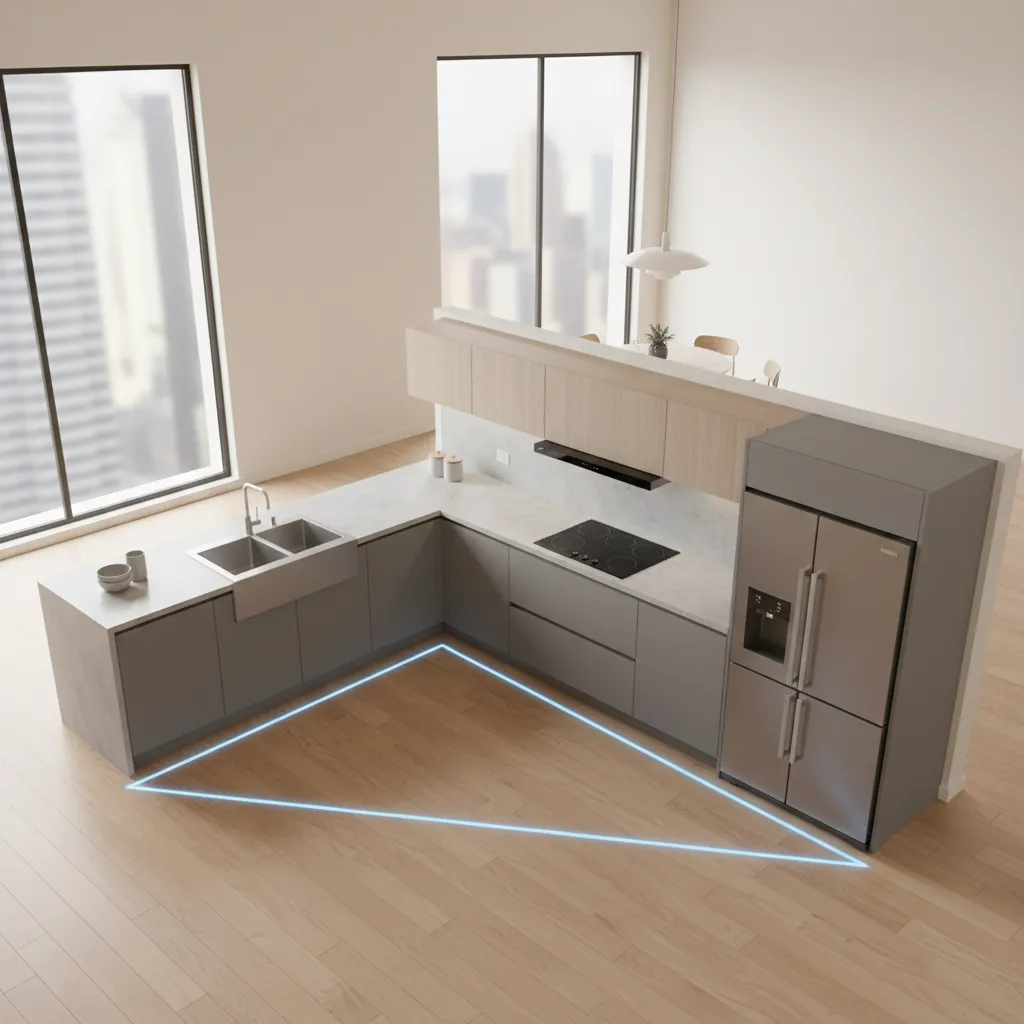

1. Natural work triangle between sink, stove, and refrigerator
2. Open side allows island addition later
3. Corner creates continuous prep surface
4. Better visual openness for open‑plan homes

However, there’s also a hidden design challenge: corner cabinet efficiency. Many homeowners lose valuable storage here because the wrong cabinet system was chosen.

save pin

How Much Space Do You Need for an L Shaped Kitchen?

Key Insight: A comfortable L shaped kitchen usually needs at least a 10x10 foot room to maintain safe working clearances.

While smaller kitchens can technically use the layout, once the space drops below this size, appliance placement becomes restrictive.

Typical room size scenarios:

1. Small kitchen: 8x10 ft
2. Standard kitchen: 10x12 ft
3. Large kitchen: 12x16 ft or more

In design practice, I often sketch multiple layout variations before committing. Visualizing the space in three dimensions helps avoid mistakes with appliance spacing and cabinet depth. Many homeowners find it easier when they can experiment with realistic kitchen layouts in a 3D floor plan environment before construction begins.

Common L Shaped Kitchen Layout Variations

Key Insight: The L shape works in several configurations depending on appliance placement and room orientation.

The most practical variations I use in projects include:

1. Classic L Layout
2. Sink near the corner, stove on one wall, refrigerator at the opposite end.

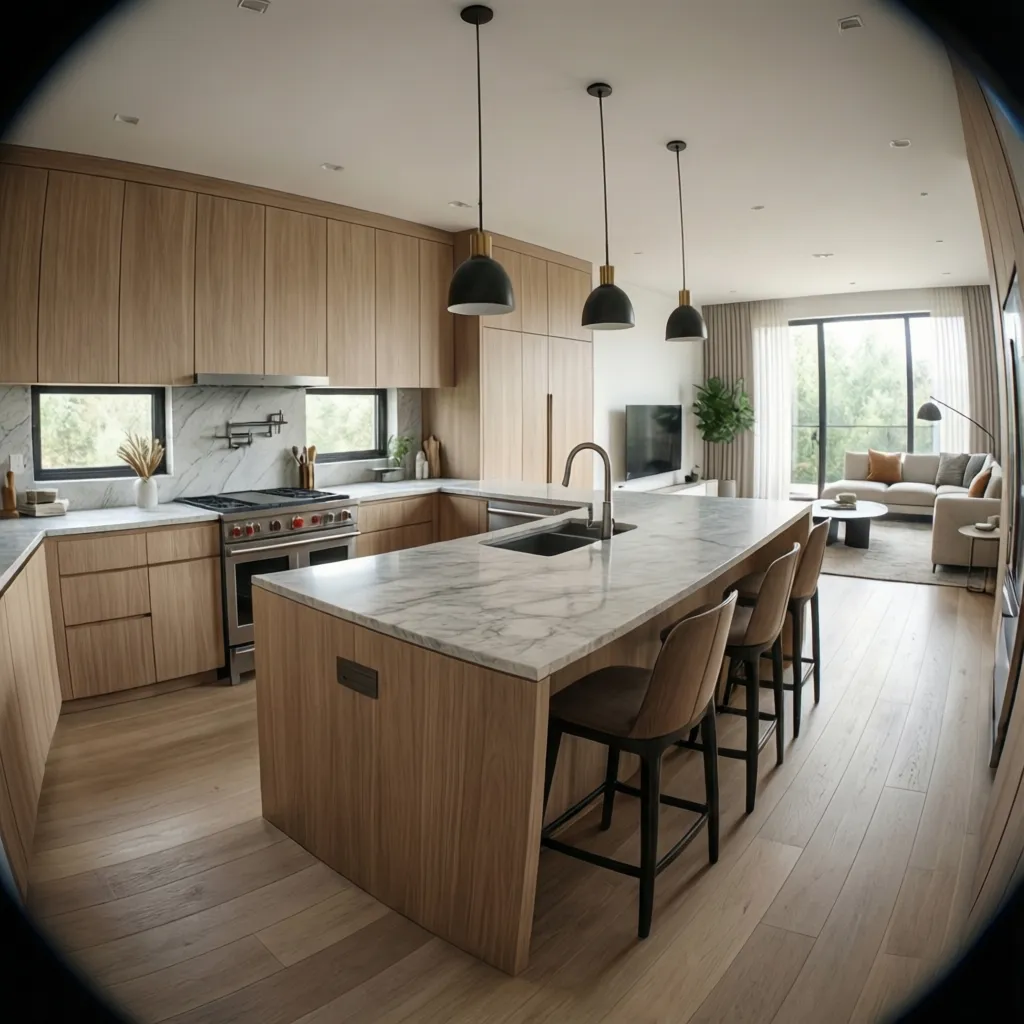

3. L Shape With Island
4. Adds extra prep space and creates a secondary work zone.
5. L Shape With Dining Peninsula
6. Common in apartments where a full island won't fit.
7. Open L Kitchen
8. One side faces the living area for social cooking.

save pin

Hidden Design Mistakes Most People Make

Key Insight: Poor corner planning and incorrect appliance spacing cause most L shaped kitchen problems.

After walking through countless renovations, I see the same issues repeatedly.

Common mistakes:

1. Corner cabinets without pull‑out systems
2. Refrigerator placed too close to the corner
3. Insufficient landing space beside the stove
4. Walkways under 36 inches

One overlooked rule from professional kitchen planning: appliances should always have landing space. For example:

1. 15 inches beside the refrigerator
2. 12–18 inches beside the stove
3. 18 inches near the sink

Ignoring these small details is what turns a good layout into a frustrating one.

Answer Box

The most practical L shaped kitchen floor plans use cabinet runs between 8–12 feet with at least 42 inches of aisle space. Correct appliance spacing and smart corner cabinets are the keys to making the layout efficient.

How Can You Plan an L Shaped Kitchen More Accurately?

Key Insight: Visualizing cabinet runs and appliance spacing before renovation prevents costly layout mistakes.

Professional designers rarely rely on sketches alone. Instead, we simulate layouts to verify movement space and cabinet clearance.

A simple workflow I recommend:

1. Measure the full room dimensions
2. Place base cabinet runs along two walls
3. Add major appliances
4. Verify 42–48 inch aisle spacing
5. Test corner cabinet solutions

If you're planning a remodel yourself, you can create a scaled kitchen floor plan with accurate cabinet spacingbefore committing to construction drawings.

save pin

Final Summary

1. L shaped kitchens typically use two cabinet walls between 8–12 feet.
2. Maintain 42–48 inches of aisle space for comfortable movement.
3. Corner cabinet design strongly affects storage efficiency.
4. Most functional layouts require kitchens around 10x10 feet or larger.
5. Planning with scaled floor layouts prevents costly renovation errors.

FAQ

What is the standard size of an L shaped kitchen?

Most L shaped kitchen floor plans with dimensions use cabinet runs between 8–12 feet per wall with 42 inches of aisle clearance.

What is the minimum room size for an L shaped kitchen?

A 10x10 foot kitchen usually provides enough room for appliances, cabinets, and comfortable movement.

Where should the sink go in an L shaped kitchen?

Many designers place the sink near the corner section because it balances the work triangle between stove and refrigerator.

Is an L shaped kitchen better than a galley kitchen?

For open homes, yes. L shaped kitchens provide more openness and allow island additions later.

Can you add an island to an L shaped kitchen?

Yes, if the room width allows at least 42–48 inches of clearance around the island.

What cabinet depth is used in most kitchens?

Standard base cabinets are 24 inches deep, which defines typical kitchen counter depth.

Do L shaped kitchens work in small apartments?

Yes, but appliance size and corner storage solutions must be carefully planned.

What is the best appliance arrangement in an L shaped kitchen?

The sink, stove, and refrigerator should form a compact work triangle for efficient movement.
