L Shaped Kitchen Floor Plans With Dimensions: Smart Layout Guide: Exact spacing, cabinet sizes, and layout rules designers use to build efficient L‑shaped kitchens

Direct Answer

L shaped kitchen floor plans with dimensions typically use two connected walls with a 90‑degree corner. Standard layouts require 42–48 inches of walkway space, 24‑inch deep base cabinets, and at least 36 inches of counter per work zone to maintain efficient movement.

The ideal L‑shaped kitchen size ranges from about 10×10 feet to 12×14 feet, allowing enough room for the sink, refrigerator, and stove to form a practical work triangle.

Quick Takeaways

1. An efficient L‑shaped kitchen keeps 4–9 feet between each point of the work triangle.
2. Minimum aisle clearance should be 42 inches, or 48 inches for two cooks.
3. Base cabinets are usually 24 inches deep and 34.5 inches high.
4. Most functional layouts need at least 10×10 feet of space.
5. A corner cabinet or lazy Susan prevents wasted storage space.

Introduction

After designing dozens of kitchens over the past decade, I’ve noticed that homeowners consistently underestimate how important the exact dimensions are in an L‑shaped kitchen. The layout looks simple on paper—just two walls forming a corner—but the difference between a cramped kitchen and a highly functional one often comes down to a few inches.

When clients search for l shaped kitchen floor plans with dimensions, what they usually want isn’t just a diagram. They want to know how much space they actually need, where appliances should go, and how to avoid the common layout mistakes that make a kitchen frustrating to use.

In real projects, I usually start by mapping the room with a digital layout tool before placing cabinets or appliances. If you're experimenting with layouts yourself, it helps to visualize the room using a step‑by‑step kitchen layout planning workflow for realistic kitchen spacesso you can see how dimensions translate into actual movement space.

In this guide, I’ll break down the real measurements designers use, the layout rules that matter, and a few hidden issues most articles never mention—especially the corner problems that can quietly destroy storage efficiency.

save pin

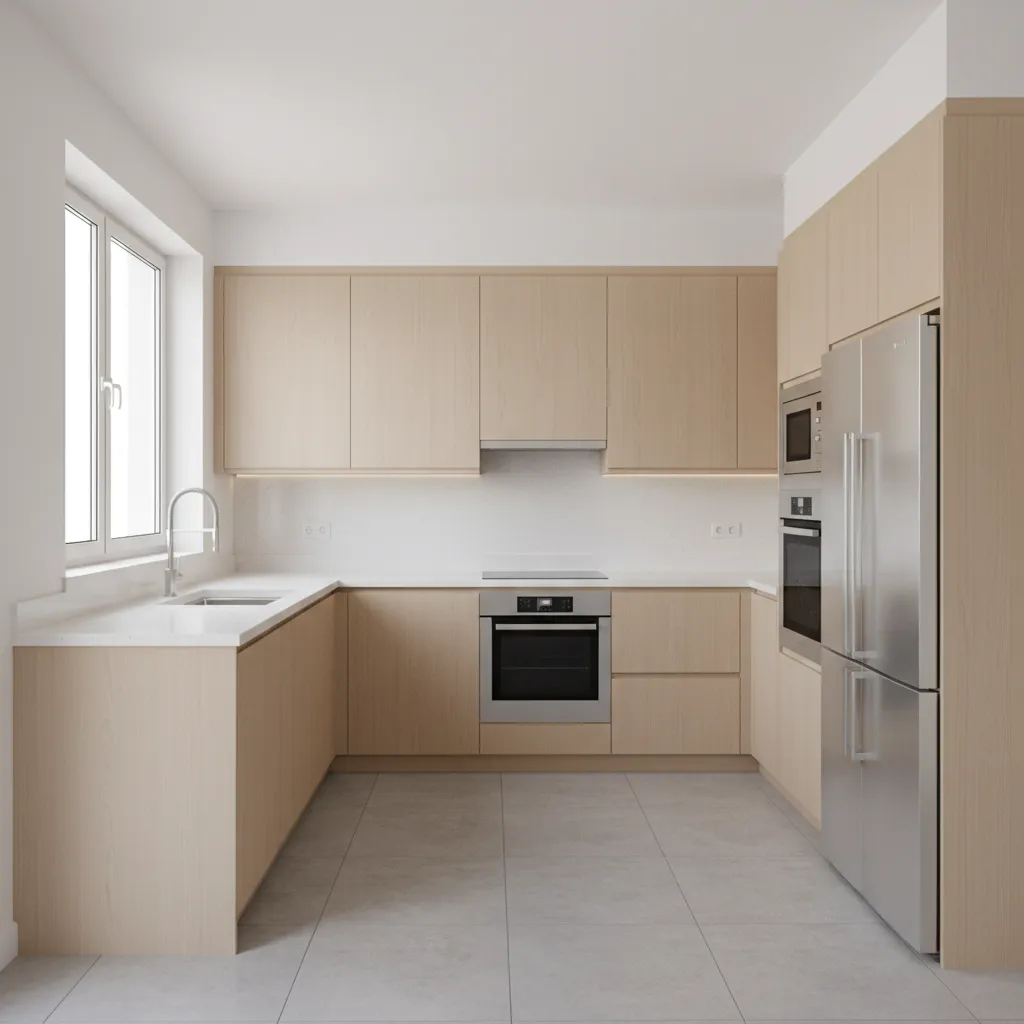

What Is an L Shaped Kitchen Layout?

Key Insight: An L‑shaped kitchen places cabinets and appliances along two adjacent walls, creating an open corner that improves circulation and flexibility.

The biggest advantage of this layout is flow. Compared with galley kitchens, L‑shaped designs allow multiple entry points and often leave one side open to a dining or living area. That’s why it’s one of the most common layouts in modern homes and apartments.

Typical characteristics include:

1. Two perpendicular countertop runs
2. One inside corner cabinet
3. Open space for a table or island
4. Flexible appliance placement

In most residential projects, one wall usually measures 8–12 feet while the second wall ranges from 6–10 feet. The corner becomes the key storage point.

Industry guidelines from the National Kitchen & Bath Association recommend that kitchen work zones follow the “work triangle” rule for efficiency: refrigerator, sink, and cooktop positioned within reachable distances.

Standard L Shaped Kitchen Floor Plan Dimensions

Key Insight: Most functional L‑shaped kitchens rely on a few standard measurements that balance cabinet depth, appliance spacing, and walking clearance.

These are the dimensions I use in most residential design projects.

Typical cabinet and layout dimensions:

1. Base cabinet depth: 24 inches
2. Countertop depth: 25–26 inches
3. Counter height: 36 inches
4. Upper cabinet depth: 12 inches
5. Upper cabinet height: 30–42 inches

Clearance measurements:

1. Minimum walkway: 42 inches
2. Two‑cook walkway: 48 inches
3. Dishwasher clearance: 36 inches in front
4. Fridge opening space: 15–21 inches landing area

Typical L‑shaped kitchen sizes:

1. Small apartment kitchen: 8×10 ft
2. Standard home kitchen: 10×10 ft
3. Large kitchen layout: 12×14 ft or more

These numbers aren’t random—they’re based on decades of ergonomic kitchen research and building standards.

save pin

How Should the Work Triangle Fit in an L Shaped Kitchen?

Key Insight: The work triangle keeps movement efficient by placing the sink, refrigerator, and stove within balanced distances.

One of the most overlooked mistakes I see in remodels is placing appliances too close together. That creates congestion during cooking.

The recommended triangle distances are:

1. Each leg: 4–9 feet
2. Total triangle perimeter: 13–26 feet

A balanced configuration usually looks like this:

1. Sink centered on one wall
2. Refrigerator at the end of a run
3. Cooktop on the opposite wall

When testing layouts with clients, I often generate a quick spatial preview using a visual kitchen floor layout preview with accurate appliance spacing. Seeing the work triangle in 3D makes mistakes obvious before construction starts.

In many small homes, even shifting the fridge by 12 inches can dramatically improve movement flow.

Common Layout Mistakes in L Shaped Kitchens

Key Insight: The biggest design problems in L‑shaped kitchens usually happen in the corner and along appliance landing spaces.

After reviewing hundreds of kitchen plans, these are the issues I encounter most frequently.

Hidden design mistakes:

1. Corner cabinets becoming unusable dead space
2. Dishwasher blocking corner cabinet access
3. Refrigerator doors hitting walls
4. Insufficient landing space near the stove

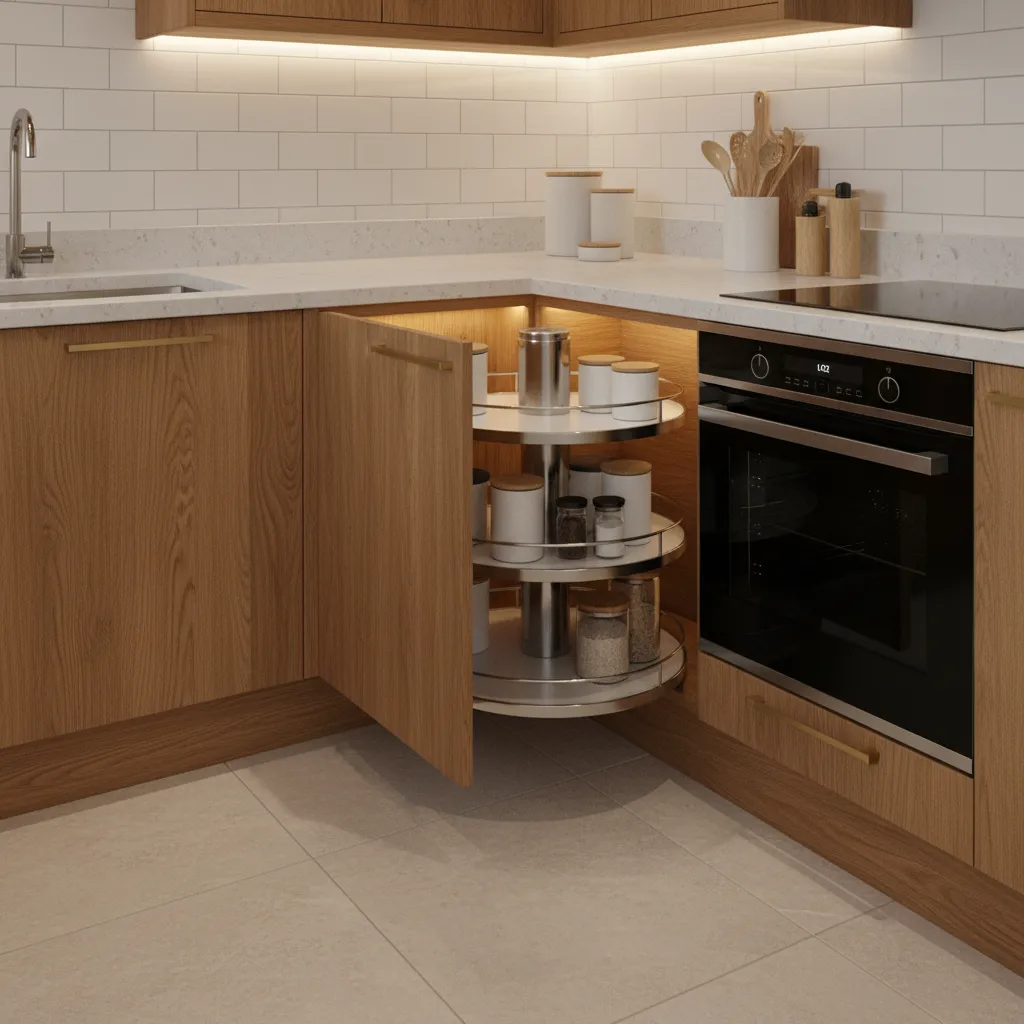

One mistake many homeowners don’t realize is that corners can waste over 10 square feet of storage if they aren’t designed properly. Lazy Susans, diagonal cabinets, or pull‑out systems dramatically improve usability.

This is one of those hidden costs that rarely appears in inspiration photos but becomes very obvious once you start cooking every day.

save pin

Can You Add an Island to an L Shaped Kitchen?

Key Insight: An island works in an L‑shaped kitchen only when at least 42–48 inches of clearance remains on all sides.

In practice, that means your kitchen should usually be at least 12 feet wide.

Recommended island spacing:

1. Island to cabinets: 42 inches minimum
2. Island seating clearance: 48 inches preferred
3. Island depth: 30–36 inches
4. Island length: 4–7 feet

Smaller kitchens sometimes benefit more from a peninsula rather than an island. A peninsula keeps the L‑shape while adding seating and storage without blocking movement.

Answer Box

The best L shaped kitchen floor plans balance cabinet dimensions, walkway clearance, and the work triangle. A typical functional layout requires 10×10 feet of space, 42–48 inch walkways, and appliances spaced 4–9 feet apart.

When these measurements are followed, L‑shaped kitchens become one of the most efficient residential layouts.

How Designers Test L Shaped Kitchen Layouts Before Building

Key Insight: Professional designers rarely rely on flat sketches; we simulate the kitchen in 3D to catch spacing issues early.

In my workflow, every layout goes through three stages:

Design testing process:

1. Measure the room precisely
2. Place cabinets and appliances
3. Simulate walking paths
4. Adjust corner storage and clearances

This process often reveals small but critical issues—like oven doors colliding with cabinet handles or fridge doors blocking walkways.

If you want to experiment with different configurations, exploring AI‑generated kitchen layout ideas based on your room size can quickly produce variations you might not have considered.

In many remodels I’ve worked on, the final layout ended up being noticeably different from the homeowner’s original plan once movement paths were visualized.

Final Summary

1. L‑shaped kitchens use two connected cabinet walls forming a 90‑degree corner.
2. Most functional layouts require at least 10×10 feet of space.
3. Walkways should measure 42–48 inches for comfortable movement.
4. The work triangle should keep appliances 4–9 feet apart.
5. Corner storage design dramatically affects usability.

FAQ

1. What is the minimum size for an L shaped kitchen?

About 8×10 feet is the practical minimum, but 10×10 feet offers better appliance spacing and workflow.

2. What are the standard cabinet dimensions in L shaped kitchen floor plans with dimensions?

Base cabinets are typically 24 inches deep and 34.5 inches high, with 25–26 inch countertops.

3. How much space should be between counters in an L shaped kitchen?

At least 42 inches for one cook and 48 inches for two cooks.

4. Is an L shaped kitchen better than a galley kitchen?

For open homes, yes. L‑shaped layouts allow better traffic flow and room for dining areas or islands.

5. Where should the sink go in an L shaped kitchen?

The sink is often centered on one wall with the dishwasher beside it.

6. Can small kitchens use L shaped layouts?

Yes. Many apartments use compact L‑shaped kitchen floor plans with dimensions around 8×10 feet.

7. How big should an island be in an L shaped kitchen?

Most islands are 4–7 feet long and 30–36 inches deep.

8. What is the biggest mistake in L shaped kitchens?

Poor corner cabinet design, which can waste large amounts of storage.
