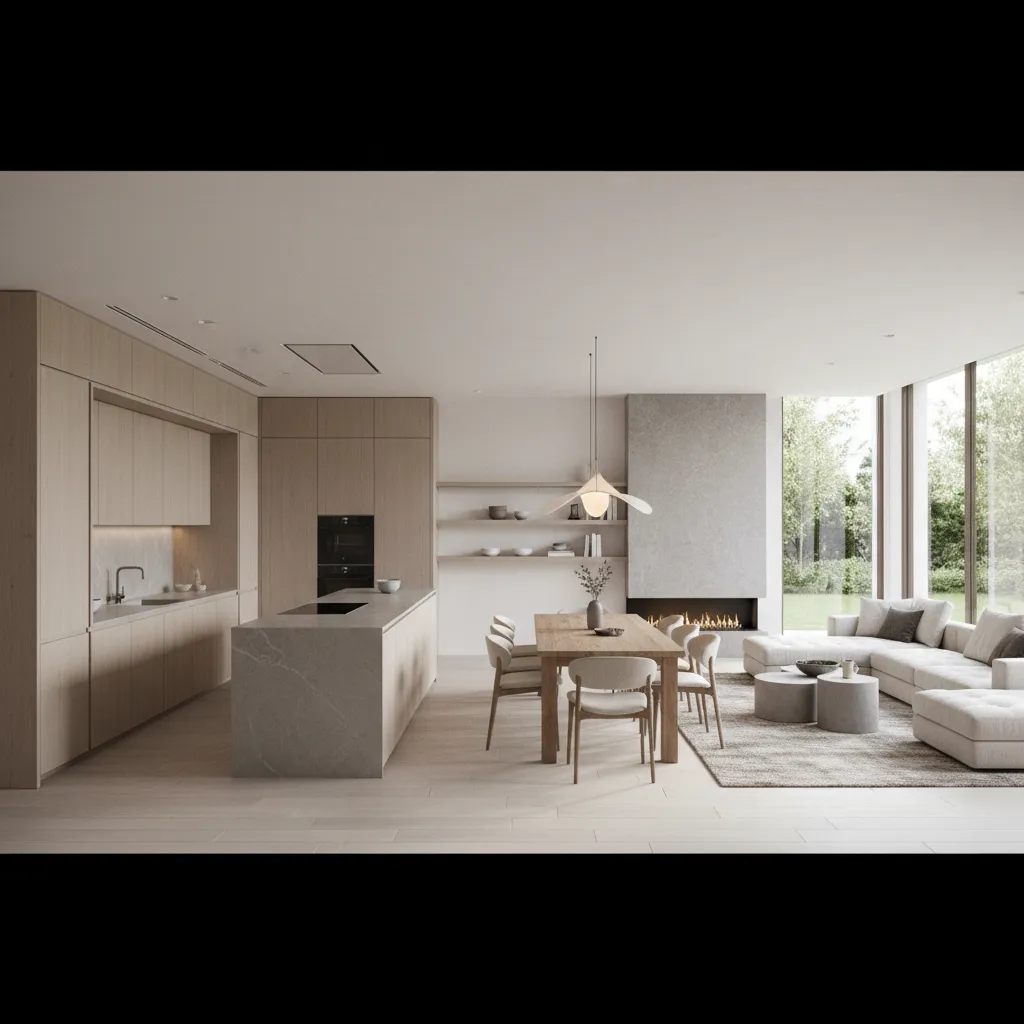

L Shaped Open Plan Kitchen Dining Living: Layout Ideas That Actually Work: Design a functional open-plan space with an L-shaped kitchen that improves flow, storage, and everyday living.

Direct Answer

An L shaped open plan kitchen dining living layout connects cooking, dining, and relaxing zones while keeping the kitchen efficiently organized along two adjoining walls. The L configuration naturally opens the room toward the living area, improving circulation, sightlines, and social interaction. When designed correctly, it creates clear zones without closing the space.

Quick Takeaways

1. An L-shaped kitchen keeps the cooking zone compact while leaving the rest of the room open.
2. Furniture placement, not walls, defines dining and living areas.
3. Traffic flow should bypass the main cooking triangle.
4. Lighting layers are essential to visually separate open-plan zones.
5. Oversized islands often disrupt L-shaped layouts in smaller homes.

Introduction

The l shaped open plan kitchen dining living layout is one of the most common requests I see from homeowners today. After designing dozens of open-plan renovations over the past decade, I’ve noticed something interesting: people love the idea of open space, but many struggle to make it actually work in daily life.

Too often the kitchen dominates the room, the dining table blocks circulation, or the living area ends up feeling like leftover space. The issue usually isn’t the open plan itself—it’s how the layout is organized.

When the L-shape is planned correctly, it becomes one of the most efficient configurations for shared living spaces. It naturally opens the room, keeps the kitchen functional, and creates visual balance between cooking and relaxing zones.

If you're still figuring out your overall layout, exploring examples of visualizing open-plan layouts before building themcan make the design decisions much clearer.

In this guide, I’ll break down the design principles I rely on in real projects—plus a few mistakes I repeatedly see in open-plan homes.

save pin

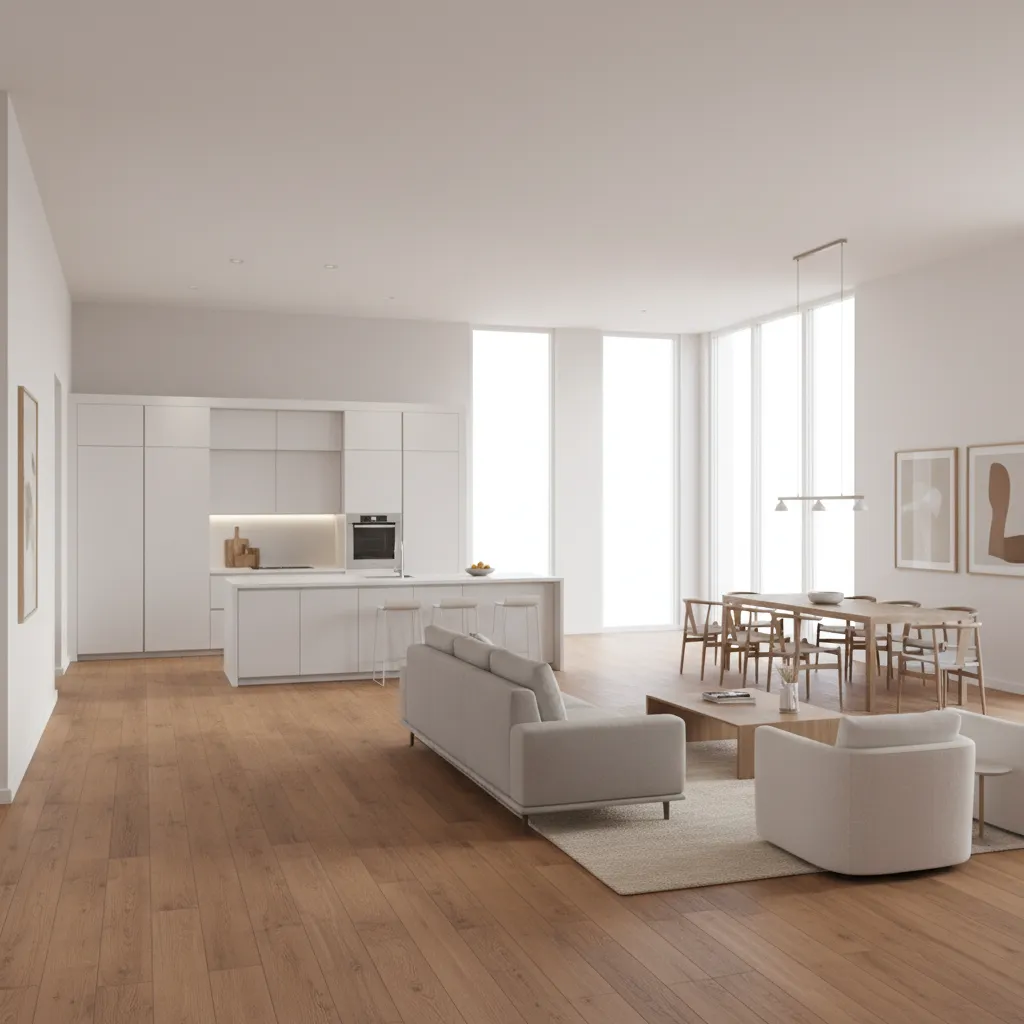

Why an L Shaped Kitchen Works So Well in Open Plan Spaces

Key Insight: The L-shape naturally opens one side of the kitchen, allowing it to connect smoothly with dining and living areas.

In open-plan interiors, the biggest challenge is balancing connection with function. A closed kitchen hides clutter but isolates the cook. A poorly planned open kitchen spreads mess and disrupts movement.

The L-shaped layout solves this by keeping appliances and cabinetry on two connected walls while leaving the rest of the room open.

Why designers often choose this layout:

1. Maintains an efficient kitchen work triangle
2. Leaves room for dining tables or islands
3. Allows natural light to reach deeper into the space
4. Creates a visual "corner anchor" for the room

In my own projects, L-shaped kitchens are especially effective in homes between 900–1800 sq ft where space must serve multiple purposes.

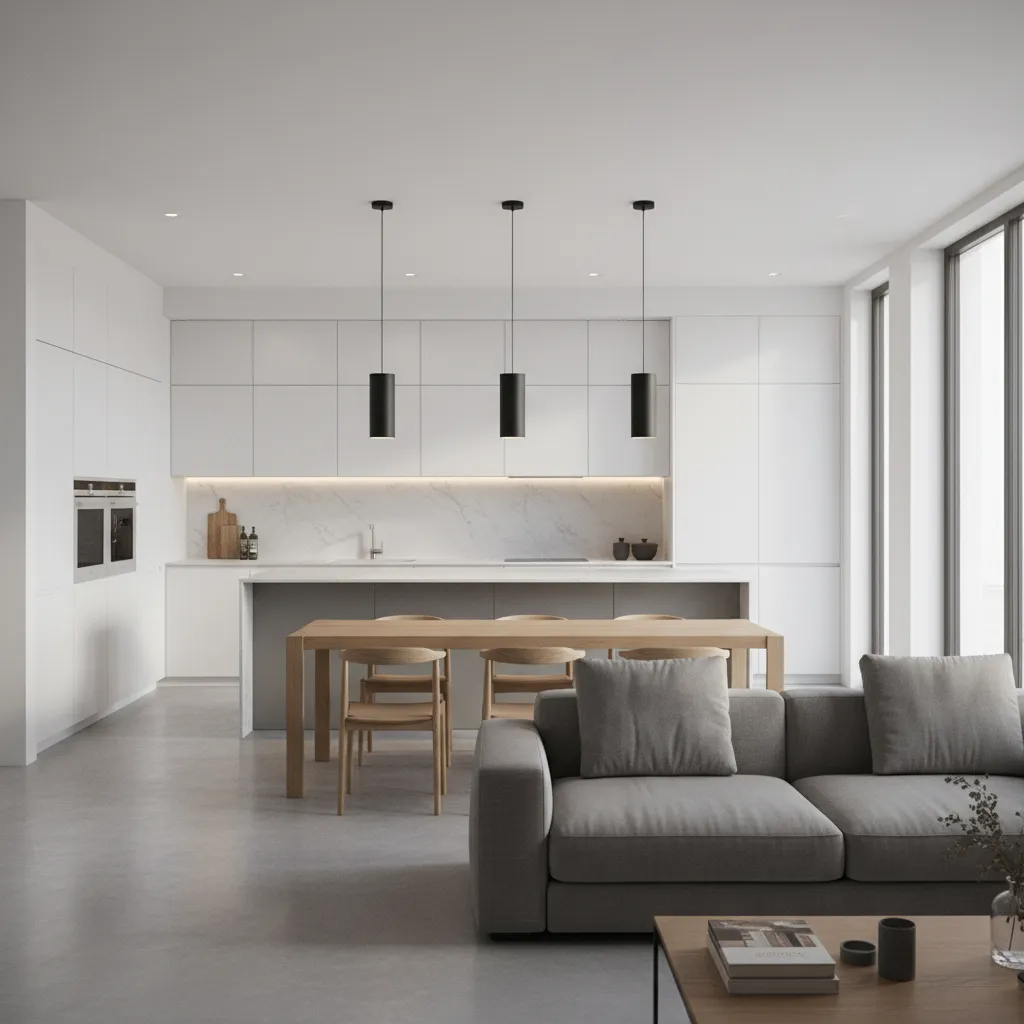

How Do You Zone an L Shaped Open Plan Kitchen Dining Living Area?

Key Insight: Successful open-plan layouts rely on visual zoning rather than walls.

One of the biggest misconceptions is that open-plan means everything blends together. In reality, good design subtly separates functions.

Here are the zoning tools I use most often:

1. Kitchen zone: anchored by cabinets and appliances
2. Dining zone: centered around a table aligned with the kitchen edge
3. Living zone: arranged around a sofa or media wall

Design elements that reinforce zoning:

1. Area rugs under the living room seating
2. Pendant lights above dining tables
3. Different ceiling treatments
4. Partial kitchen islands or peninsulas

These cues guide movement through the space without closing it off.

save pin

Should You Add an Island to an L Shaped Open Plan Kitchen?

Key Insight: Islands work best only when the room has enough clearance—otherwise a peninsula is often smarter.

This is a surprisingly controversial topic among designers. Many homeowners assume every open kitchen needs an island.

But in smaller open-plan homes, oversized islands can cause serious issues:

1. Traffic cuts through the cooking area
2. Dining space becomes cramped
3. Living areas shrink unnecessarily

Clearance guidelines I typically follow:

1. Kitchen aisle: 40–48 inches
2. Island seating clearance: 36 inches minimum
3. Main traffic path: 42+ inches

If the room can’t comfortably support those dimensions, a peninsula attached to the L-shaped counter often works better.

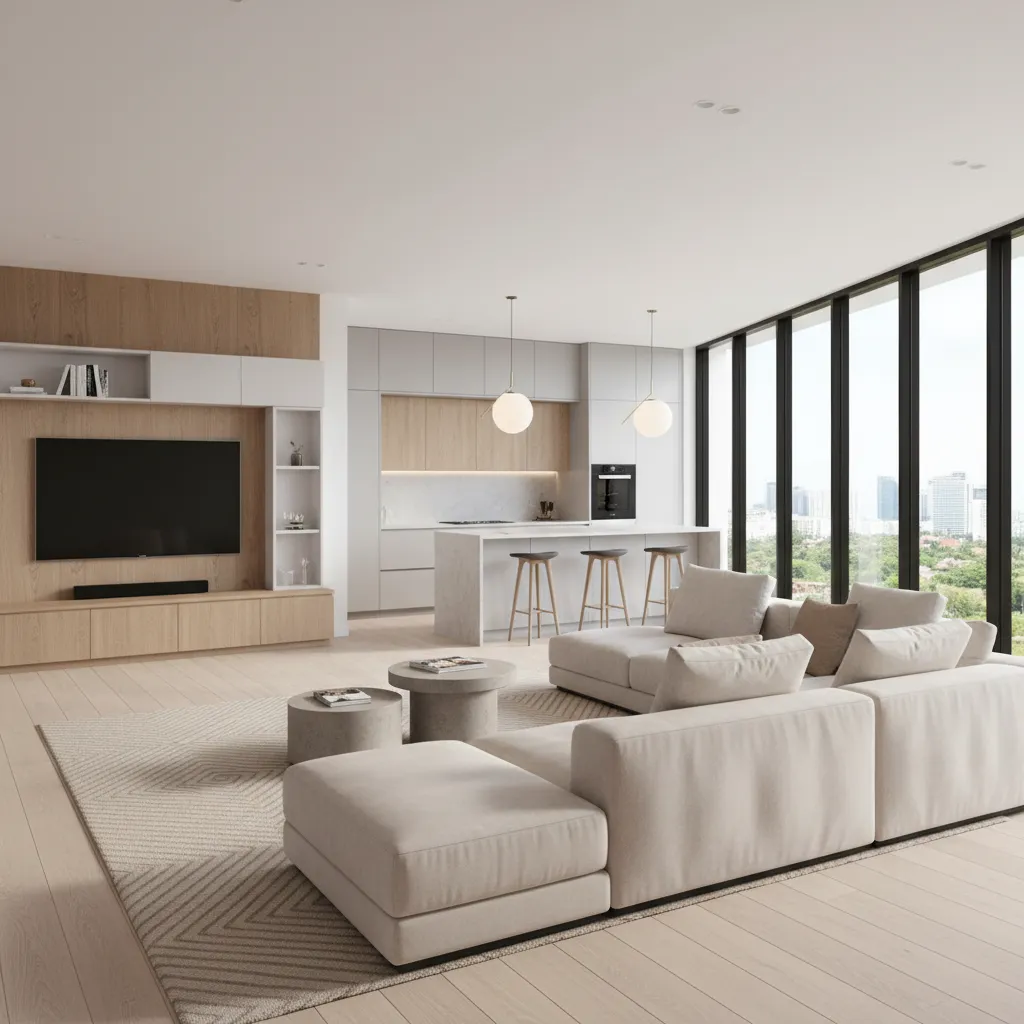

What Is the Best Furniture Layout for the Living Area?

Key Insight: The living area should face away from the kitchen, not toward it.

One mistake I see constantly is orienting the sofa toward the kitchen island. That turns the cooking area into the visual focal point of the room.

Instead, I recommend anchoring the living space with:

1. A media wall
2. A fireplace
3. Large windows

Furniture layout example:

1. Sofa facing media wall
2. Accent chairs forming a conversation area
3. Console table behind sofa to separate zones

To better experiment with arrangements, many homeowners test layouts using tools that help experiment with furniture placement in open spacesbefore committing to furniture purchases.

save pin

Hidden Design Mistakes in Open Plan Kitchen Dining Living Layouts

Key Insight: The biggest failures in open-plan homes come from circulation problems—not aesthetics.

These are the problems I encounter most often during redesign projects.

Common hidden mistakes:

1. Walkways cutting through the kitchen work triangle
2. Dining tables placed directly in traffic paths
3. Too many visual focal points competing
4. Lighting that only works for one zone

A well-designed open-plan room should allow someone to walk from entry to living room without passing through the cooking area.

When homeowners want to visualize the entire layout before construction, reviewing complete open-plan design simulations for combined kitchen living areas often reveals circulation issues early.

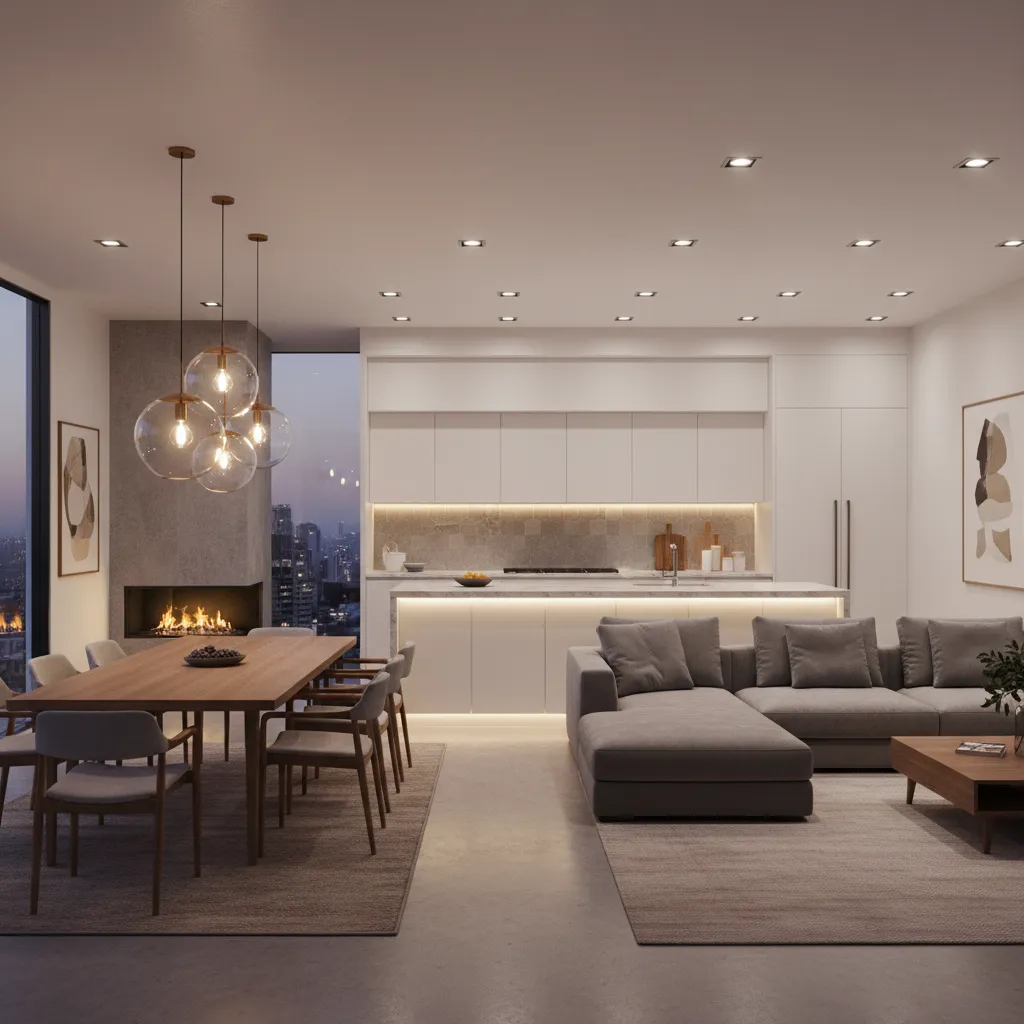

How Lighting Defines an L Shaped Open Plan Space

Key Insight: Lighting layers quietly separate zones in open-plan interiors.

In projects where everything feels "too open," lighting is usually the missing element.

I typically design three lighting layers:

1. Task lighting: under-cabinet lights in the kitchen
2. Focus lighting: pendants above dining table
3. Ambient lighting: recessed lights in living areas

This layering subtly organizes the room while keeping the open feel intact.

save pin

Answer Box

An L shaped open plan kitchen dining living layout works best when the kitchen stays compact along two walls, circulation paths avoid the cooking triangle, and furniture placement defines zones. Lighting and subtle visual cues help maintain openness while preserving functional separation.

Final Summary

1. L-shaped kitchens naturally suit open-plan living spaces.
2. Clear zoning prevents open layouts from feeling chaotic.
3. Islands require generous clearance to work properly.
4. Furniture orientation shapes the living room experience.
5. Lighting layers help visually organize large shared spaces.

FAQ

Is an L shaped kitchen good for open plan living?

An L shaped kitchen works extremely well in open-plan homes because it keeps the cooking area compact while leaving the rest of the room open for dining and living.

How big should an L shaped open plan kitchen dining living space be?

Most comfortable layouts start around 300–400 sq ft for the combined area, allowing space for kitchen circulation, a dining table, and a functional seating arrangement.

Can you put an island in an L shaped kitchen?

Yes, but only if at least 40–48 inches of clearance exists around the island. Smaller rooms often benefit more from a peninsula.

Where should the dining table go in an open plan layout?

The dining table usually works best between the kitchen and living zones, acting as a transition between cooking and relaxation areas.

What shape dining table works best in open-plan spaces?

Rectangular tables typically align best with L-shaped kitchens because they follow the room's natural geometry.

How do you separate kitchen and living areas without walls?

Use rugs, lighting, ceiling changes, and furniture placement to visually define zones while maintaining openness.

Is an L shaped open plan kitchen dining living layout good for small homes?

Yes. The L shaped open plan kitchen dining living layout is one of the most space-efficient options for apartments and smaller houses.

What is the biggest mistake in open-plan kitchens?

The most common mistake is placing walkways through the kitchen work triangle, which disrupts cooking efficiency.
