LED wall stage design: 5 smart ideas: How I turn tiny stages into bold LED moments with texture, asymmetry, and content-first thinking

The first time I used LED walls on a micro-stage, the cameras showed zebra stripes—I’d mismatched the refresh and shutter. I saved the night by testing a quick visual pass with a quick 3D mockup, then nudged content and exposure until it behaved. Ever since, I treat LEDs less like a screen and more like a living surface I can sculpt.

Small spaces really do spark big creativity. In tight venues, LED walls can feel huge if we design with depth, rhythm, and story. Here are five ideas I use over and over, battle-tested from real gigs.

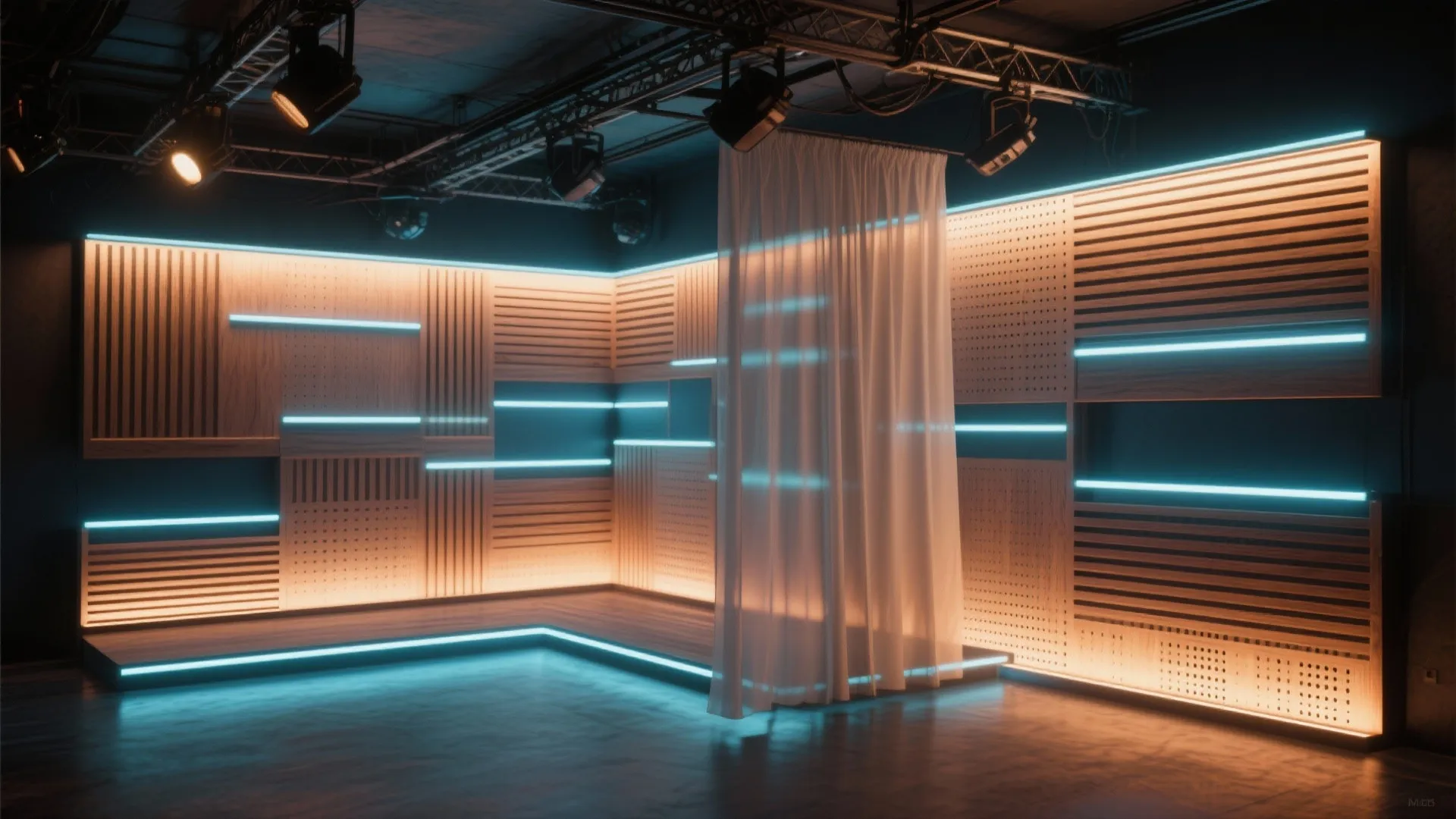

Idea 1: Layer LEDs with physical texture

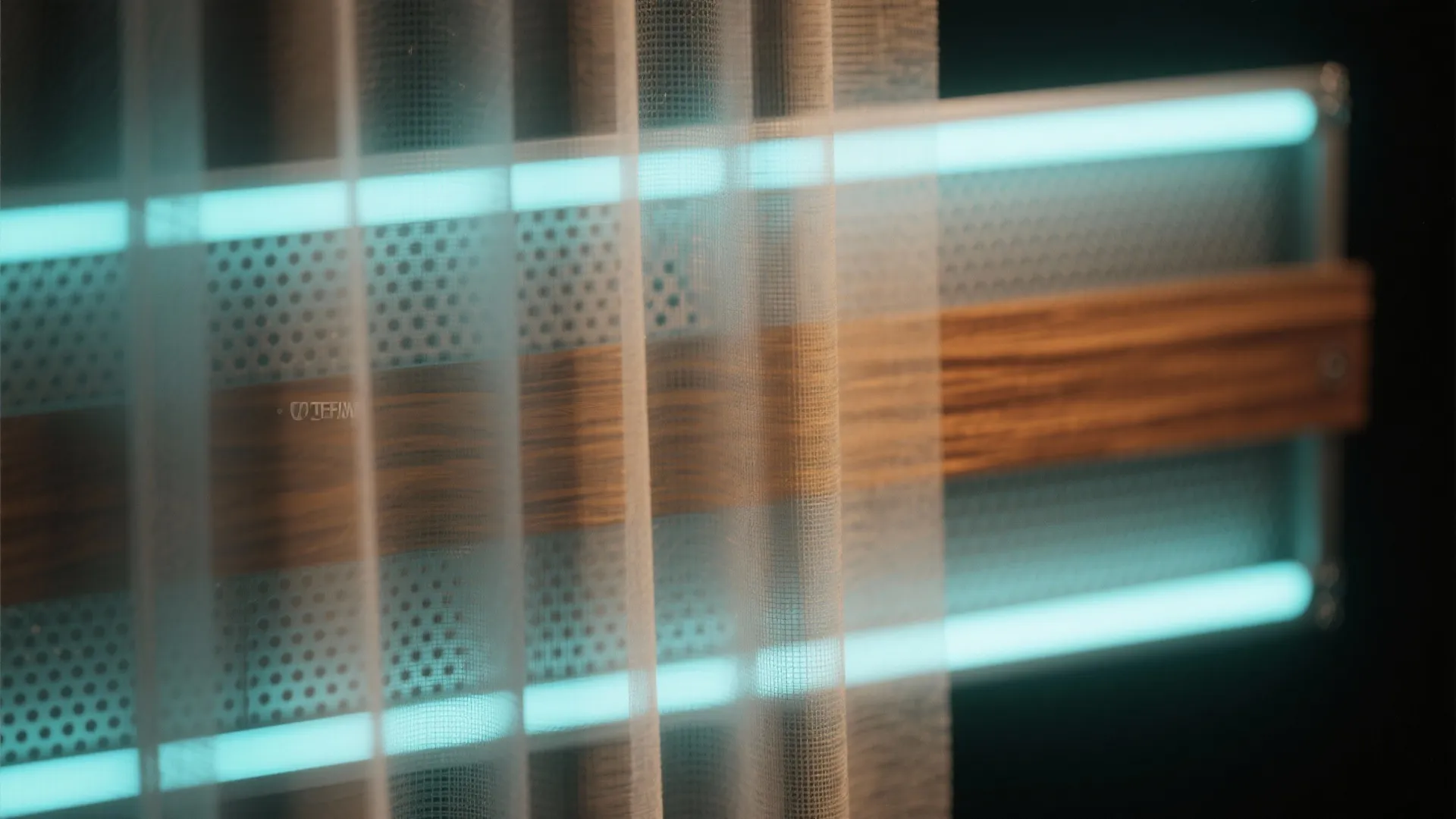

I love pairing LED panels with slatted wood, sheer fabric, or perforated metal. The LED becomes a backlight that breathes through material, adding shadows and dimension instead of a flat billboard.

The magic is in balance: too dense a fabric and content looks muddy; too open a mesh and you’ll get moiré on camera. My trick is a quick camera test at rehearsal—tweak distance and fabric density until movement reads, not flickers.

save pin

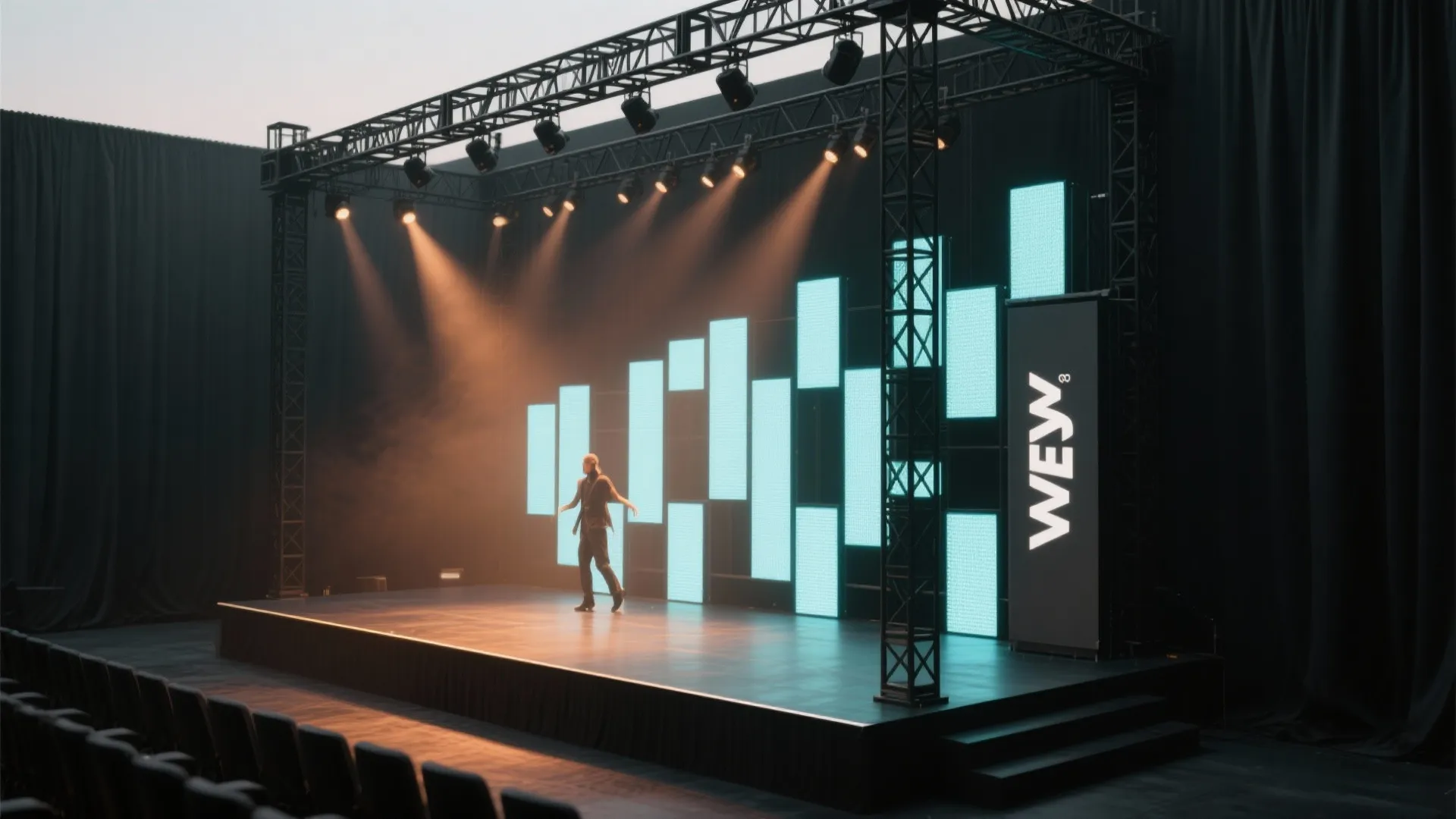

Idea 2: Asymmetry and negative space

On small stages, a single centered wall can feel static. I break the frame: offset the LED, add a slim flank on one side, and leave purposeful dark zones for light beams and performer movement.

It’s powerful and cheaper than full coverage, but sightlines matter. Map pixel pitch to viewing distance, and be honest about dead angles—what the audience can’t see shouldn’t hold critical content.

save pin

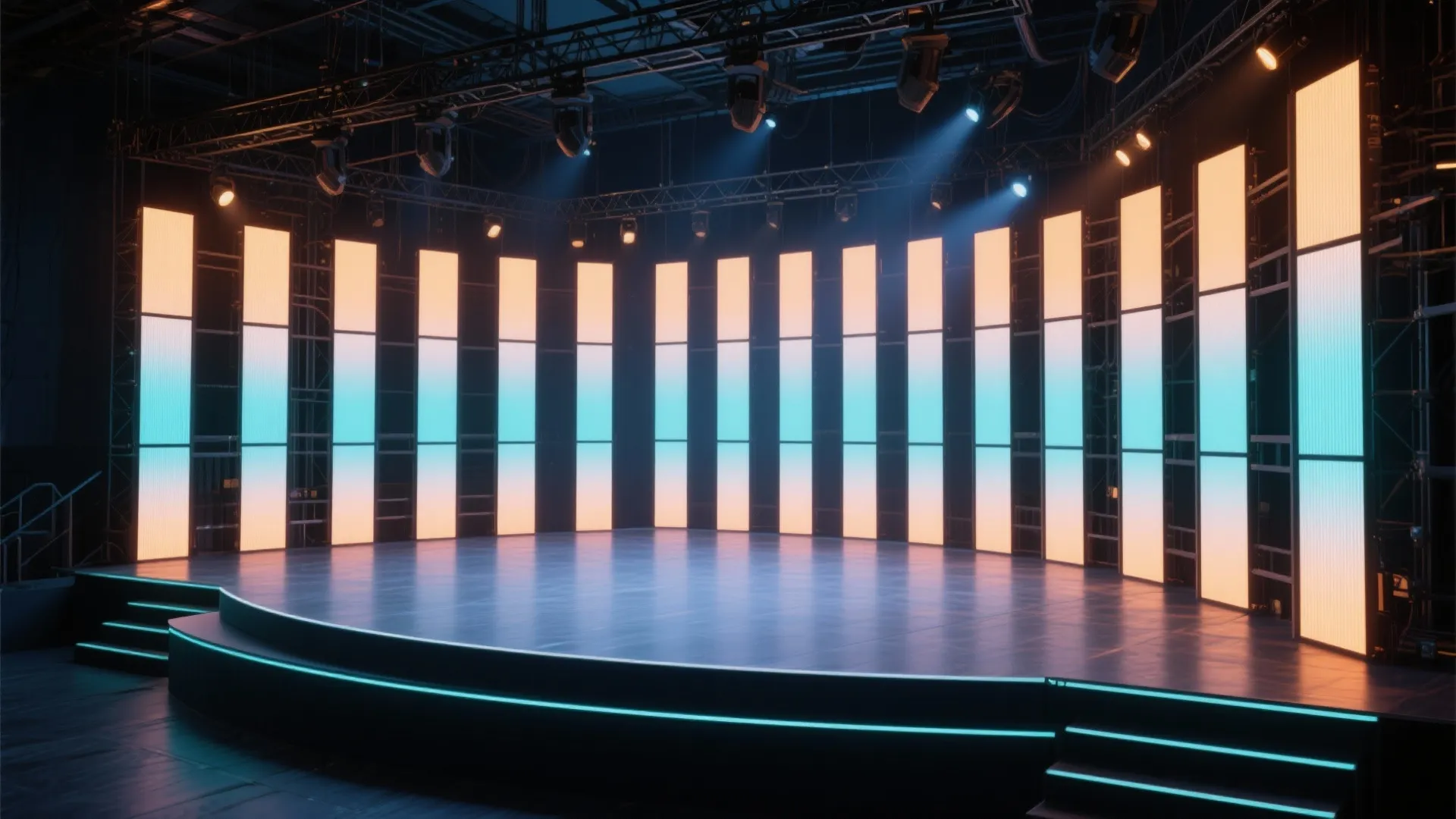

Idea 3: Modular slices and vertical totems

Instead of a monolithic wall, I build scenes from narrow LED “slices.” Rotate layouts between acts and drive different feeds to each column, so the stage shape transforms without heavy labor. I pre-plan rigging and power using a room planning workflow to keep cable runs clean and service paths clear.

It’s flexible and budget-friendly because smaller modules can be rented piecemeal. The catch: more seams mean more content alignment—use soft gradients or generative textures to hide joins.

save pin

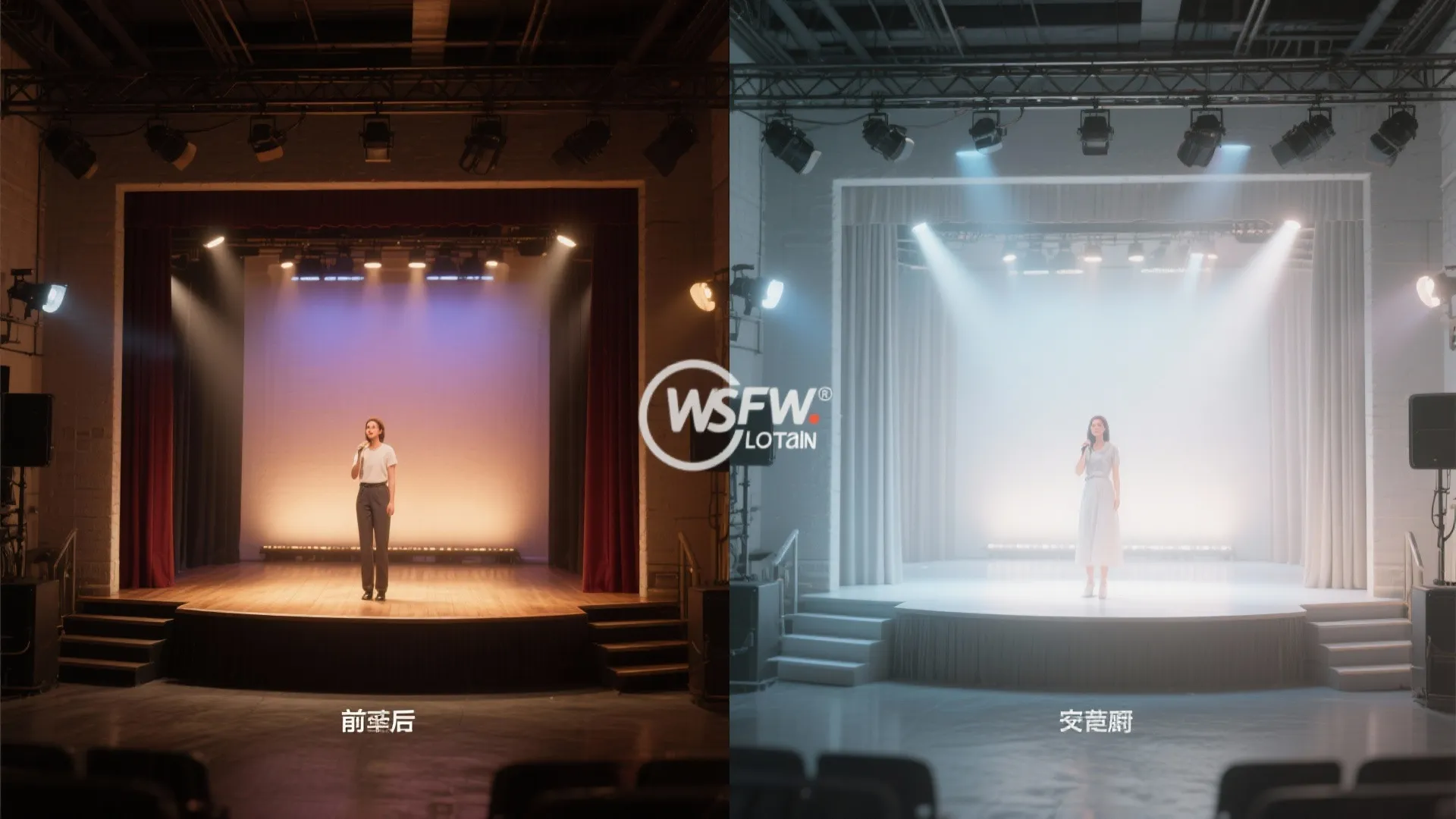

Idea 4: Color temperature and camera harmony

LED whites rarely match your key lights out of the box. I calibrate content whites to the lighting plot (say 3200K for tungsten vibes or 5600K for daylight looks) and apply a camera LUT so skin tones don’t go alien.

Watch for banding and color shifts in gradients—feed 10-bit video if possible and lock refresh rates to camera shutter. A tiny tweak in shutter angle can make a flicker vanish; it’s the fastest win on show day.

save pin

Idea 5: Design content first, hardware second

I start with the narrative: motion behaviors, transitions, and moments where the LED supports performers instead of stealing attention. Once the story is clear, choosing pixel pitch, brightness, and aspect ratio becomes easy.

Previz saves budgets and egos. I’ll run an AI-powered set preview to iterate looks quickly, then hand the best boards to the content team so everything—from typography to tempo—feels coherent.

save pin

FAQ

1) What pixel pitch should I choose for small stages?

For audiences within 5–10 meters, 2.6–3.9 mm pitch is a safe range. If cameras get close, go tighter or use diffusion to soften the grid.

2) How bright should LED walls be?

Match ambient and key light levels—often 400–800 nits for indoor shows. Keep enough headroom for highlights but avoid washing performers with LED spill.

3) How do I avoid flicker on camera?

Sync camera shutter to LED refresh, and prefer 10-bit feeds for gradients. Test with your actual cameras; tiny adjustments in shutter angle or frame rate can fix artifacts.

4) What’s the best way to map content across multiple columns?

Create a master canvas that matches total pixel dimensions, then slice outputs per column. Use soft transitions and textures to hide seams and minor misalignments.

5) Any safety standards for wiring and rigging?

Follow NFPA 70 (NEC) Article 520 for theaters and OSHA 29 CFR 1910.305 for wiring methods. These set clear requirements for cabling, overcurrent protection, and safe mounting.

6) How do I balance LEDs with stage lighting?

Tone LEDs slightly darker than performer key light to keep faces readable. Use complementary hues and avoid high-saturation backgrounds that fight with skin tones.

7) Can I use HDR content on typical rental LED walls?

Most rental walls expect SDR; HDR can clip or look odd. If you need HDR-like punch, grade for SDR and preserve contrast with careful tonemapping.

8) Any budget tips for small venues?

Mix one main wall with two narrow totems for variety. Reuse generative motion packs and a tight color system so content feels custom without custom prices.
