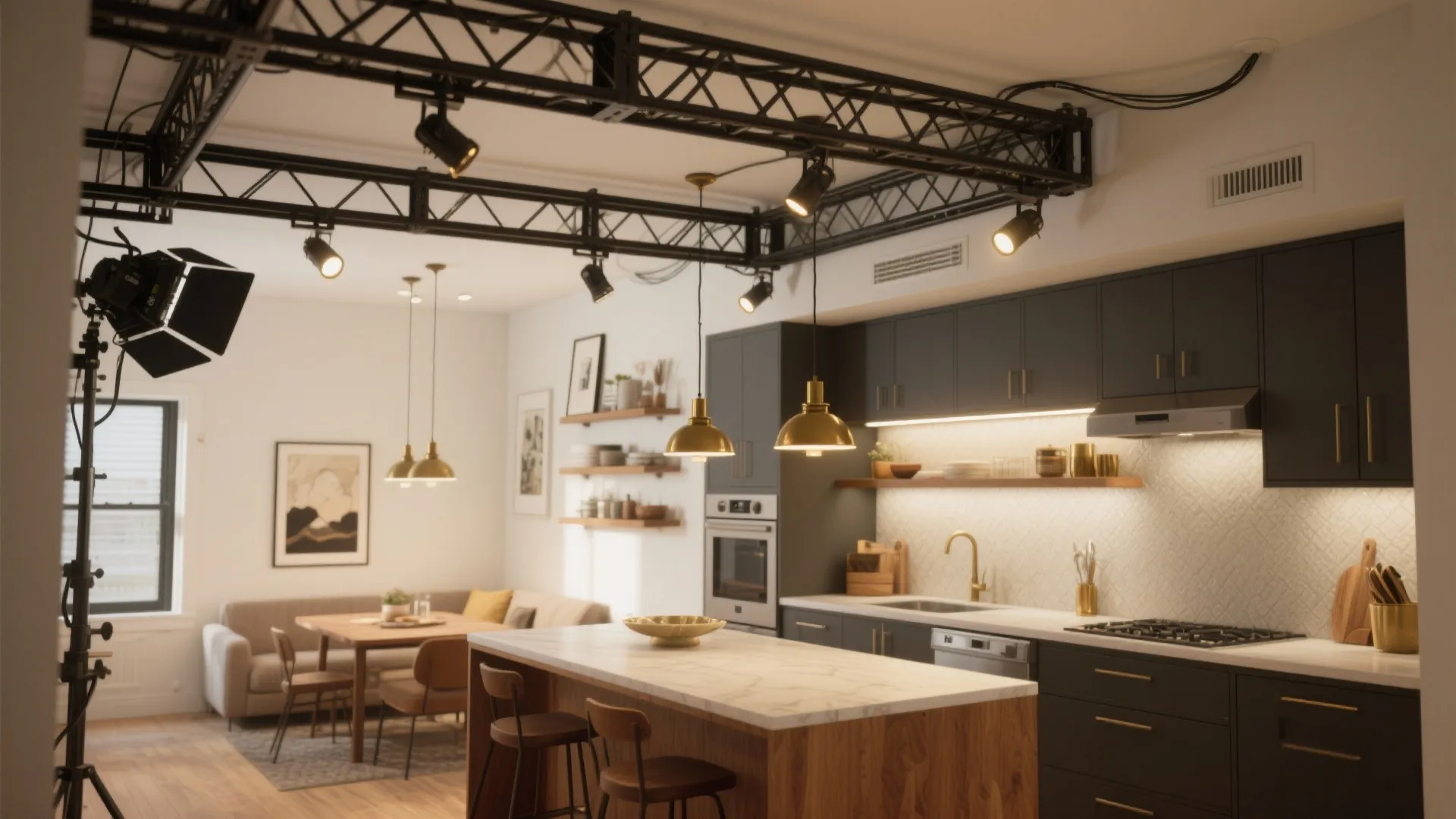

Lighting Truss Design: 5 Smart Ideas for Small Spaces: Practical, friendly advice from a senior interior designer on compact lighting truss design with data-backed insights

As a designer who’s revamped more than a dozen compact kitchens and studios, I’ve seen lighting truss design become a quiet hero in small spaces. Current interior design trends lean toward flexible, modular lighting that can shift with your routines—think layered illumination and adaptive fixtures. Small spaces genuinely spark big creativity; a well-planned truss can turn a cramped ceiling into a versatile lighting grid. In this guide, I’ll share 5 lighting truss design ideas, blending real project experience with expert data so you can plan with confidence.

On a recent micro-loft project, the client needed task lighting for cooking, warm ambient light for dining, and crisp accent light for art—all in 38 square meters. A compact truss let us mount mixed fixtures, hide cabling, and keep everything adjustable. If you’re planning your own setup, consider not just aesthetics but serviceability, cable management, and load safety from day one.

By the way, I’ve learned that pairing layout planning with clear visualization helps clients and contractors move faster. I often sketch lighting paths alongside other elements like shelving and backsplashes, and I’ll reference designs like “glass backsplash makes kitchens feel airy” to balance reflection and glare within a lighting plan. Here’s a visual example of how reflective surfaces work with focused lighting: glass backsplash makes kitchens feel airy.

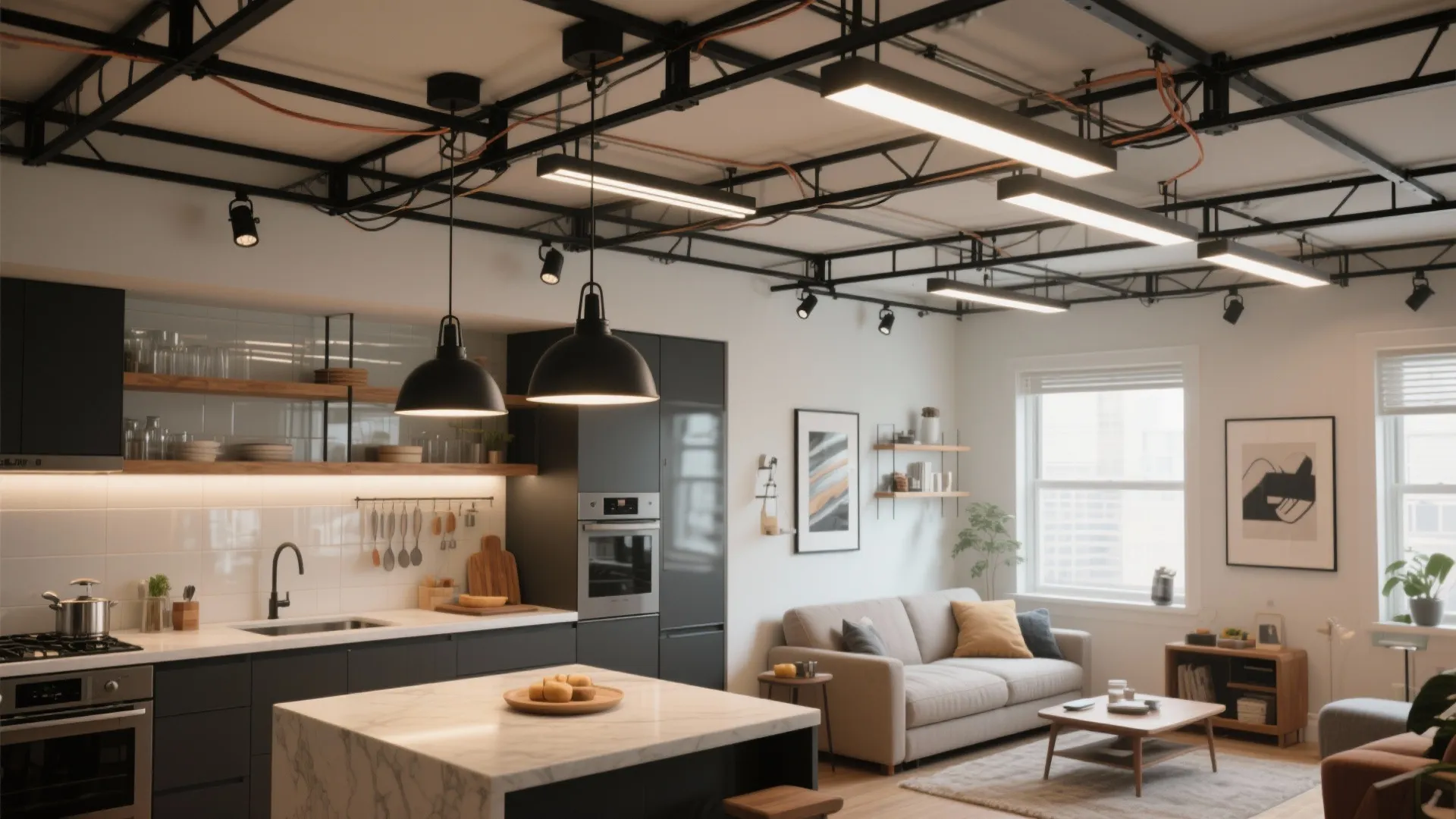

Modular truss grids for layered lighting

My Take: On small kitchens and studio living rooms, a lightweight modular truss grid lets me zone light: pendants over prep, tracks for art, and diffuse LED panels for ambient. I started doing this after a client wanted to switch between “chef mode” and “movie night” without moving furniture.

Pros: Modular grids support layered lighting for small spaces, improving task visibility and mood with adjustable zones. With compact lighting truss design, you can add track heads or swap LED panels without rewiring the entire ceiling. According to the Illuminating Engineering Society (IES) recommendations, task areas benefit from higher illuminance (often 300–500 lux), while ambient zones can be lower, making grids ideal for balancing levels across micro-zones.

Cons: A grid can visually clutter a low ceiling if fixtures are too busy or mixed in color temperatures. Over-ambition happens: I’ve packed in too many heads before, only to realize customers rarely use all of them. Also, if you don’t plan cable paths and drivers, maintenance can get fiddly.

Tips / Cost: Keep fixture color temp grouped (e.g., 3000K warm for living, 4000K neutral for prep) and choose a matte black or white truss to minimize visual noise. Budget-wise, a basic modular truss with three circuits and six fixtures might run $600–$1,500 excluding labor; swaps later stay affordable.

save pin

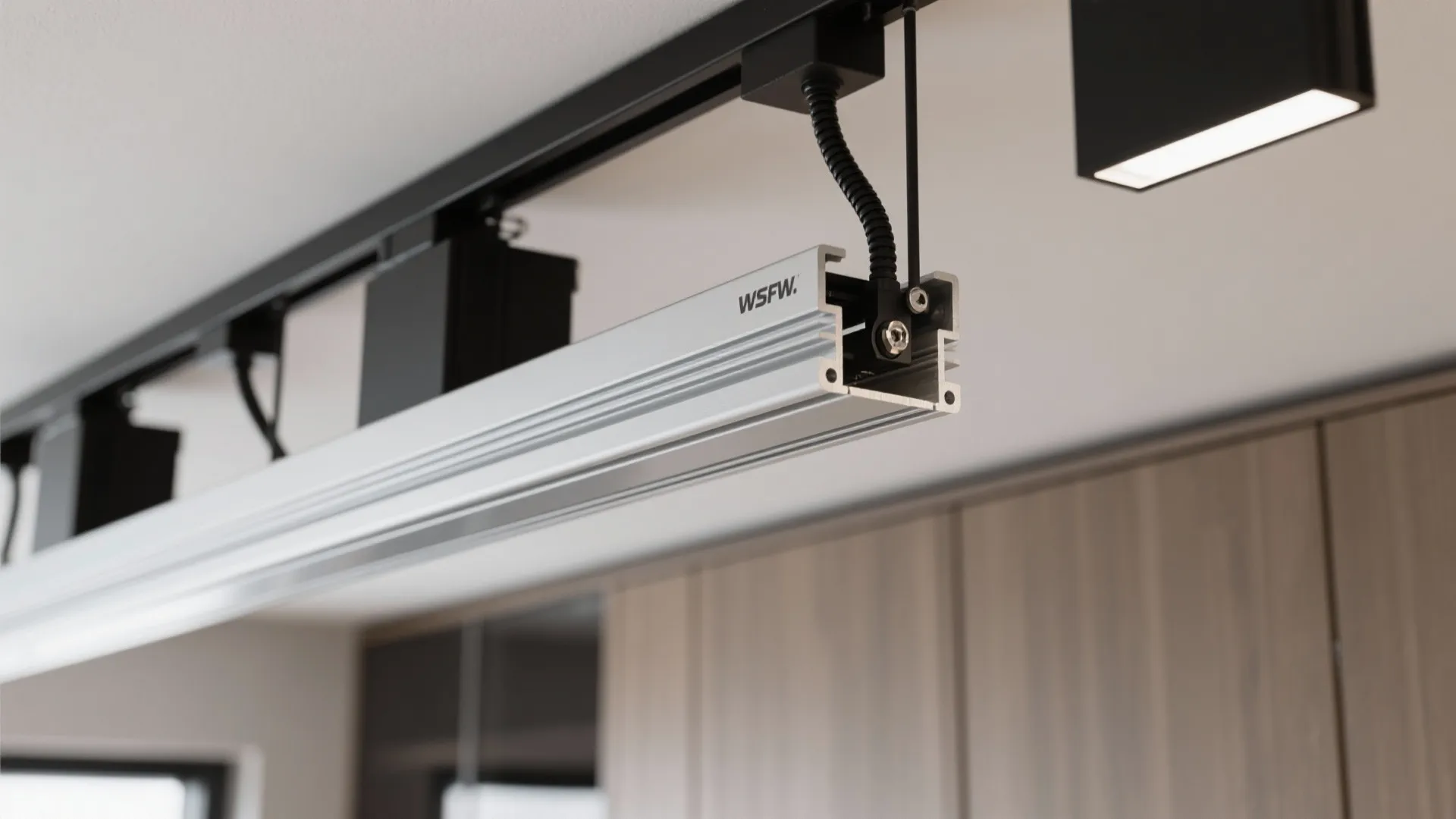

Slimline aluminum truss for low ceilings

My Take: In older apartments with 2.4–2.6 m ceilings, I rarely use bulky structures. A slimline aluminum truss (50–100 mm profile) gives me mounting points without eating headroom. I once replaced a chunky wood beam with a narrow extruded truss and gained a noticeable sense of airiness.

Pros: Compact sections reduce visual weight while still offering robust load capacity for small fixtures, perfect for a lighting truss design in tight rooms. Aluminum dissipates heat better than some composites, great for LED drivers and track adapters. A slim profile also makes cable management straightforward with clip-in channels and removable covers.

Cons: Ultra-thin trusses can limit the types of clamps and adapters you can use; you may need low-profile hardware. If your ceiling is uneven, a slim truss shows imperfections more clearly, so plan shimming carefully.

Tips / Case: Test sightlines from seated and standing positions before finalizing placement; even a 40 mm drop can feel intrusive over a dining table. For kitchens, I often pair a slim truss with reflective surfaces to bounce light—like the way a minimalist kitchen storage layout keeps visual clutter down while lighting stays efficient.

save pin

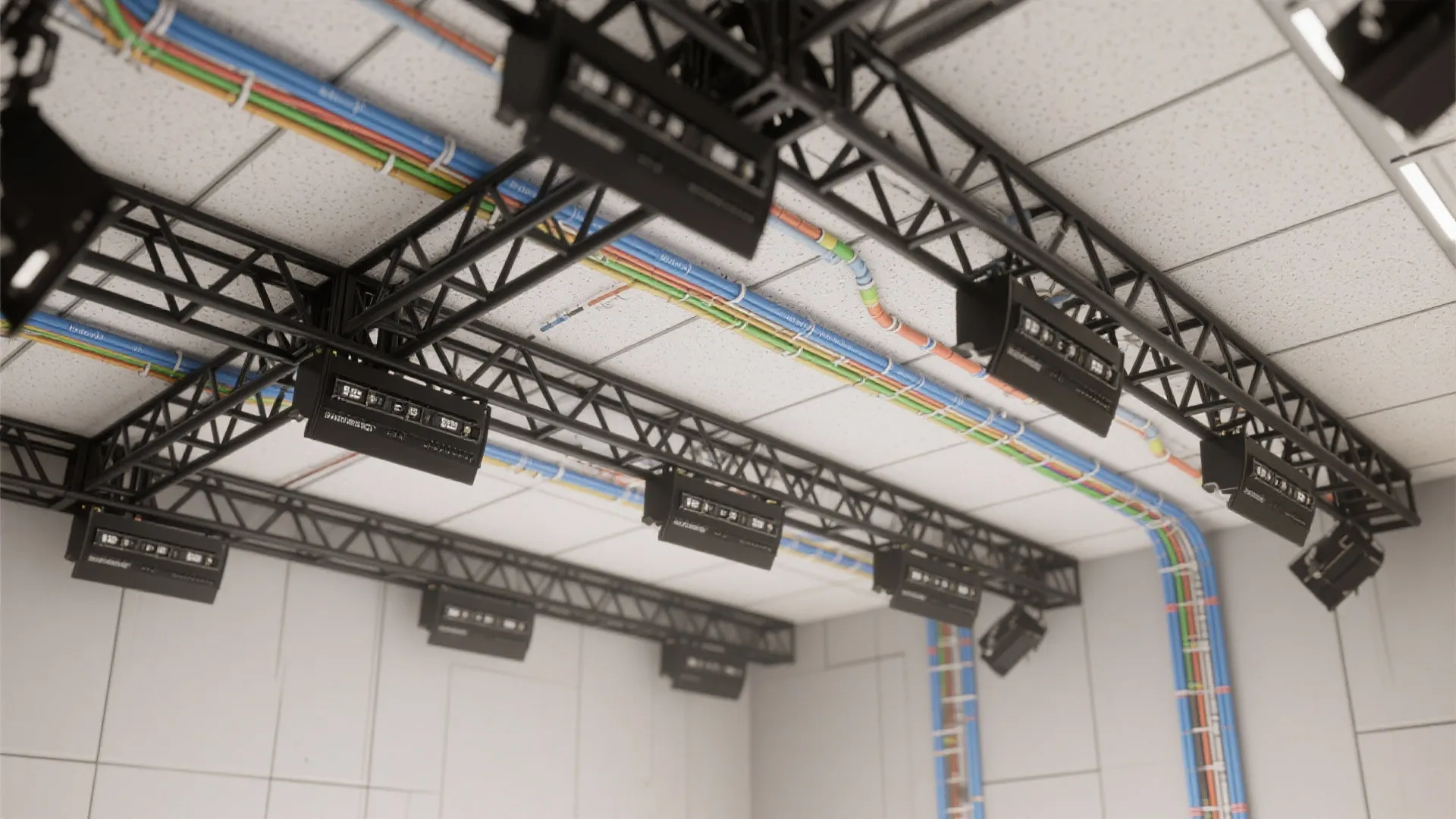

Cable management that disappears

My Take: I’ve learned the hard way that visible cables can ruin a clean ceiling line. Now I design cable paths first—drivers tucked into end-boxes, feeds aligned with joists, and drop cables hidden in slim sleeves. A small studio I did last spring looked instantly calmer once cables “vanished.”

Pros: Proper cable management supports compact lighting truss design by simplifying future adjustments and reducing failure points. With enclosed raceways and labeled circuits, you can swap fixtures without hunting for feeds. It also improves safety; fewer exposed runs mean fewer snag risks.

Cons: Pre-planning takes time, and in retrofits, fishing lines through old ceilings can be frustrating. I once spent half a day tracing a mystery junction box from a 1980s reno—fun for detectives, less fun for designers.

Tips / Cost: Use color-coded heat-shrink at connector ends and leave a short service loop. If your plan includes an L-shaped prep area, route feeds along short and long legs so future additions are easy; an approach similar to how an L-shaped layout frees countertop space helps lights stay organized. Expect $120–$300 for raceways, sleeves, and labeling in a small room.

save pin

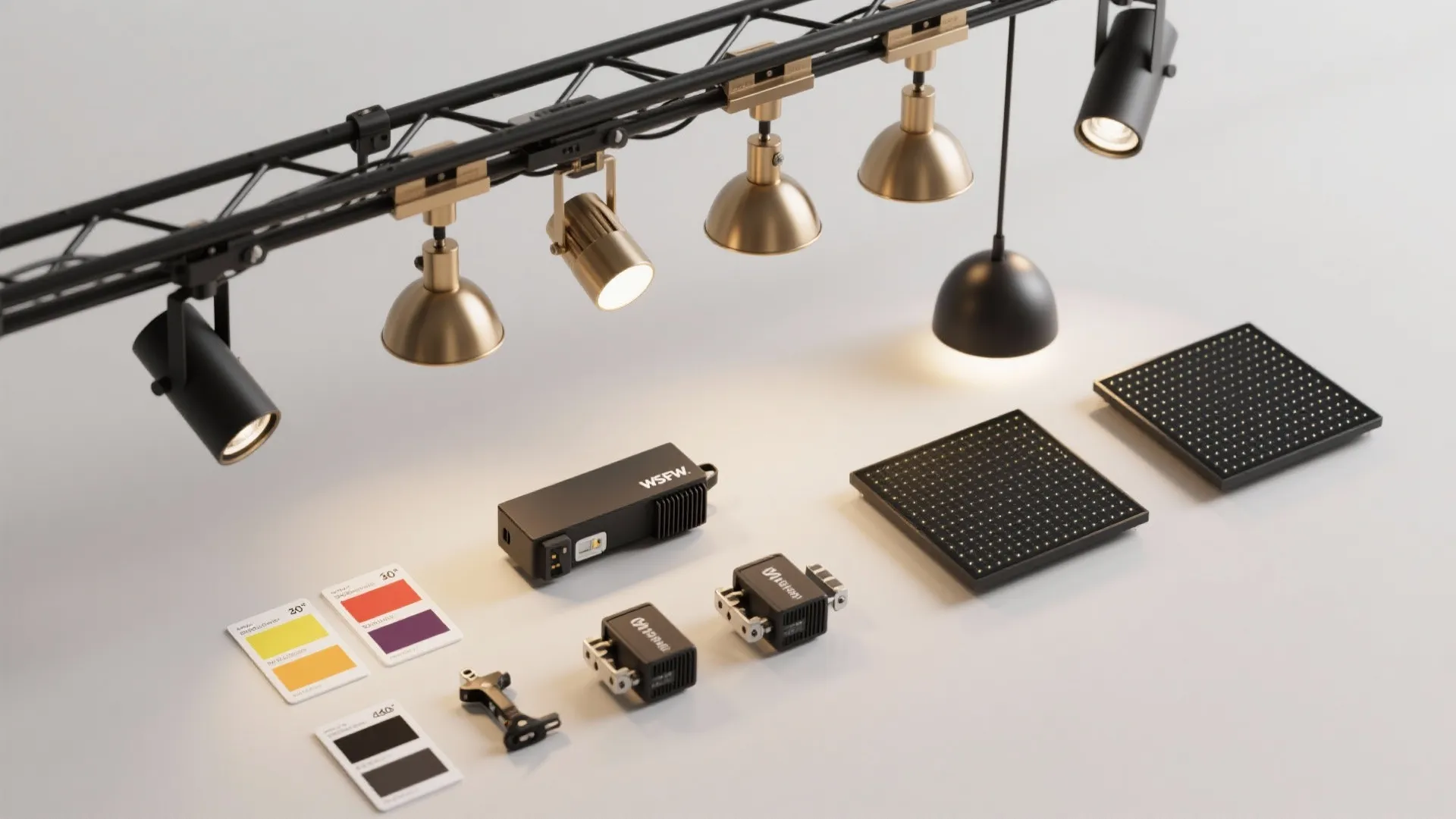

Mixed fixtures: track heads, pendants, and micro-LED panels

My Take: Mixing fixture types gives small spaces character and flexibility. I often anchor the truss with track heads for task light, hang one or two petite pendants for focal points, and add micro-LED panels for soft, shadow-free ambient lighting.

Pros: A mixed approach supports layered lighting keywords like “small studio lighting layout” and “compact ceiling grid with adjustable heads” by enabling precise beam control and cozy zones. Track heads let you highlight art or shelves; pendants add warmth; LED panels smooth out the overall brightness. The U.S. Department of Energy notes LEDs offer high efficacy and long life, which suits frequent adjustments in small spaces.

Cons: Too many fixture styles can feel mismatched. I once combined an industrial pendant with ultra-minimal panels; the vibe was confused. Also, mixing beam angles without a plan can create hot spots or patchy illumination.

Tips / Case: Pick two finishes max (e.g., matte black + brushed brass) and stick to a consistent color temperature range. For tiny kitchens, consider pendant diameters under 200 mm to avoid visual bulk. If your ceiling is uneven, use adjustable rod kits to keep pendants level.

save pin

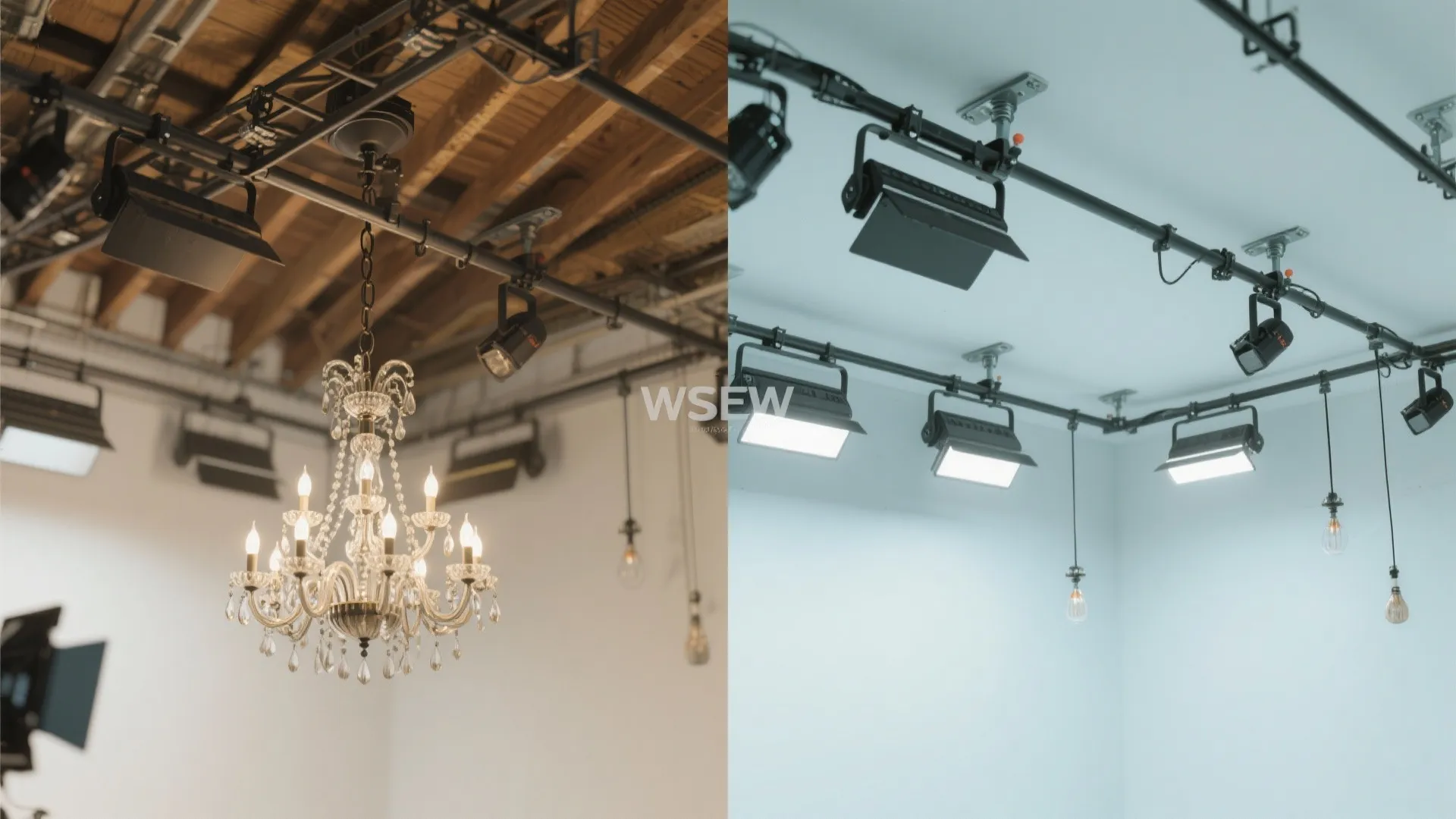

Safe loads and smart mounting

My Take: Safety is non-negotiable. I always verify the truss capacity, ceiling substrate, and anchor hardware. On one project, a client wanted a heavy chandelier off a slim truss; we re-routed the load to joists with spreader plates and kept the truss for lighter fixtures.

Pros: Following load guidelines protects your compact lighting truss design from sagging and ensures longevity. Distributing weights across mounting points reduces stress concentrations, and using rated anchors in concrete, wood, or metal studs keeps fixtures secure. Referencing IES and manufacturer data helps align beam spreads and mounting heights to recommended practices.

Cons: It’s less glamorous to spend time on fasteners and torque specs. I’ve had clients glaze over while I talk shear loads—but it’s the difference between “safe and solid” and “wobbly and worrying.”

Tips / Cost: Pre-drill and use appropriate anchors (toggle bolts for drywall with backing, sleeve anchors for masonry). Consider quick-release clamps for easy fixture changes. For those planning more than lights—say, integrating shelving or decor near the truss—visualize the whole space with examples like warm wood accents that create a cozy vibe as a reminder to balance loads and aesthetics.

save pin

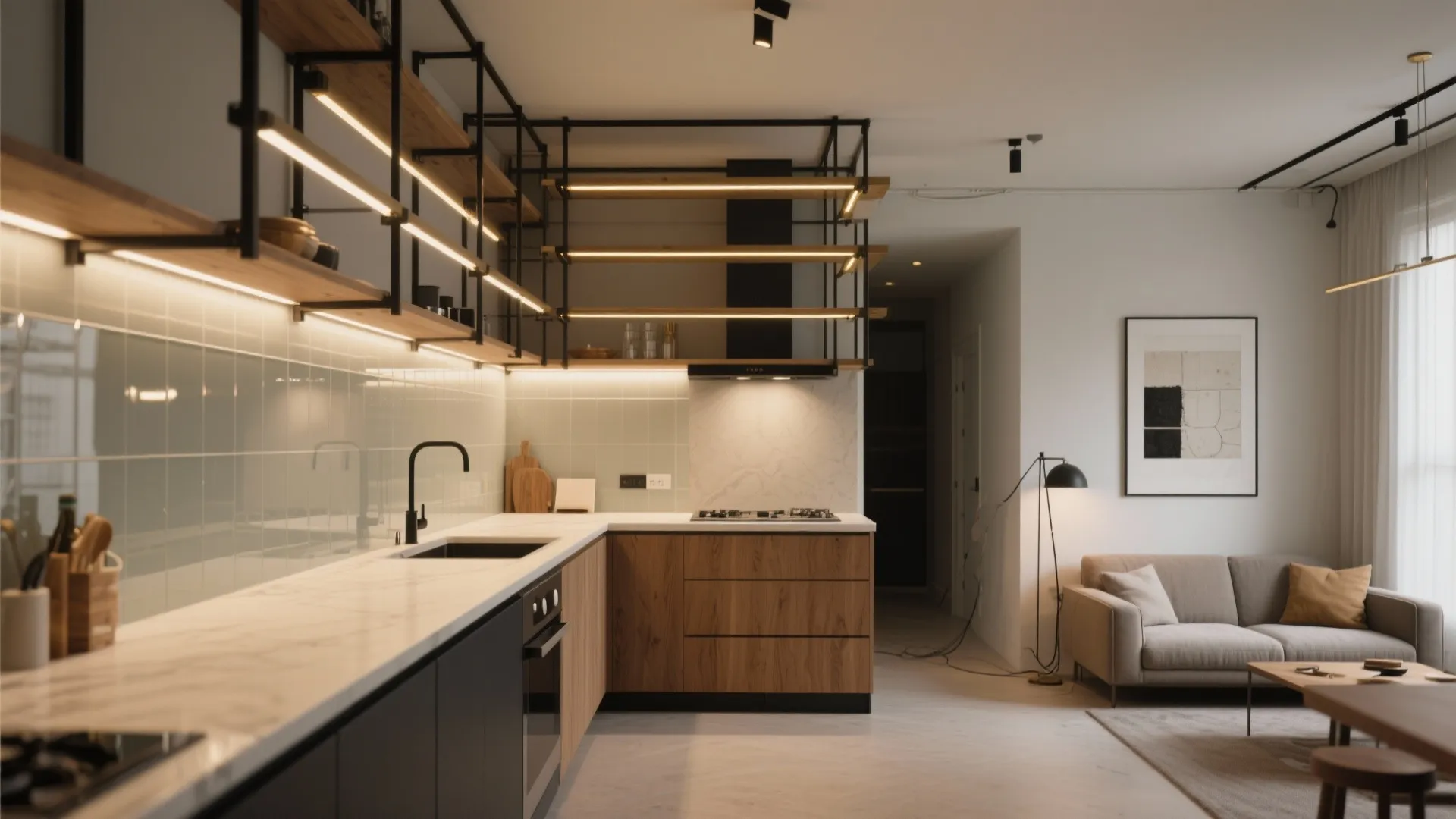

Summary

A small kitchen or studio doesn’t limit you; it invites smarter lighting truss design. When you layer light on a modular grid, keep profiles slim, hide cables, mix fixtures wisely, and honor safe loads, the result feels bigger, calmer, and more flexible. Industry recommendations from IES and energy data from the DOE back the approach—focus on illuminance where you need it, and use efficient LEDs for the rest. Which of these five ideas are you most excited to try in your space?

save pin

FAQ

1) What is the core benefit of a lighting truss design in small spaces?

A truss adds mounting flexibility without a full ceiling remodel, supporting layered task, ambient, and accent lighting. It helps you adapt the setup over time with minimal disruption, ideal for evolving routines.

2) How do I choose fixture types for a compact truss?

Combine adjustable track heads for tasks, one or two small pendants for focus, and micro-LED panels for soft fill. Keep finishes consistent and color temperature within a tight range (e.g., 3000–3500K) to avoid visual clutter.

3) What safety standards should I follow?

Check manufacturer load ratings and anchor types suitable for your ceiling substrate. For lighting levels, reference IES recommendations on illuminance for tasks and ambient; the IES Handbook is a widely cited resource in professional lighting planning.

4) How do I manage cables cleanly?

Plan raceways and driver locations first, then leave service loops at connection points. Use labeled circuits and slim sleeves so future fixture swaps are easy, especially in compact lighting truss design setups.

5) What’s a typical budget for a basic small-space truss?

For a single-room setup with a slim aluminum truss, three circuits, and six fixtures, expect roughly $800–$2,000 including basic hardware but excluding labor. Costs vary by brand, finish, and whether you need specialty clamps.

6) How do I prevent glare and hot spots?

Choose appropriate beam angles (e.g., 24–36° for accent, 60°+ for general) and dimmable drivers. Use matte surfaces and consider reflective elements thoughtfully; for layouts, tools like a compact kitchen plan mockup can help you visualize how beams interact with counters and walls.

7) Are LEDs the best choice for truss-mounted fixtures?

Yes—LEDs offer high efficacy, long lifespans, and low heat, which suits dense fixture arrays. The U.S. Department of Energy regularly reports on LED performance improvements, making them ideal for energy-conscious small spaces.

8) Can I integrate decor with the truss without visual clutter?

Absolutely. Limit the number of finishes, keep pendant sizes modest, and align fixture axes with shelving or art. Balance the composition so the truss feels intentional rather than improvised.
