Limited Space Small U Shaped Kitchen Designs That Actually Work: Smart layout strategies interior designers use to make tiny U‑shaped kitchens feel bigger, more functional, and surprisingly efficient.

Direct Answer

Limited space small U shaped kitchen designs work best when the layout prioritizes tight work triangles, shallow storage, and uninterrupted countertop flow. The goal is to keep all three walls functional without making the center aisle feel cramped. When designed well, a compact U-shaped kitchen can outperform many larger layouts in efficiency.

Quick Takeaways

1. A narrow but continuous countertop is more valuable than adding extra cabinets.
2. Keep the center aisle between 36–42 inches for comfortable movement.
3. Use shallow cabinets and vertical storage to prevent visual crowding.
4. Lighting and reflective surfaces dramatically expand perceived space.
5. Appliance placement often determines whether a small U-shaped kitchen works.

Introduction

Limited space small U shaped kitchen designs are something I deal with constantly in city apartments, older homes, and compact renovations. After more than a decade working on residential interiors, I’ve noticed something interesting: a small U-shaped kitchen can actually outperform larger layouts when it's planned correctly.

The problem is that most homeowners approach the layout the wrong way. They try to squeeze in too many cabinets, oversized appliances, or bulky islands. The result? A cramped corridor that feels more like a hallway than a kitchen.

Before committing to a layout, I often recommend visualizing the workflow using a step-by-step kitchen layout planning workflow for compact homes. Seeing the layout in advance prevents one of the most common mistakes I see in small kitchens: sacrificing movement space for storage.

In this guide, I’ll walk through the strategies I’ve seen work repeatedly in real projects—along with a few counterintuitive design decisions that make a tiny U-shaped kitchen feel dramatically bigger.

save pin

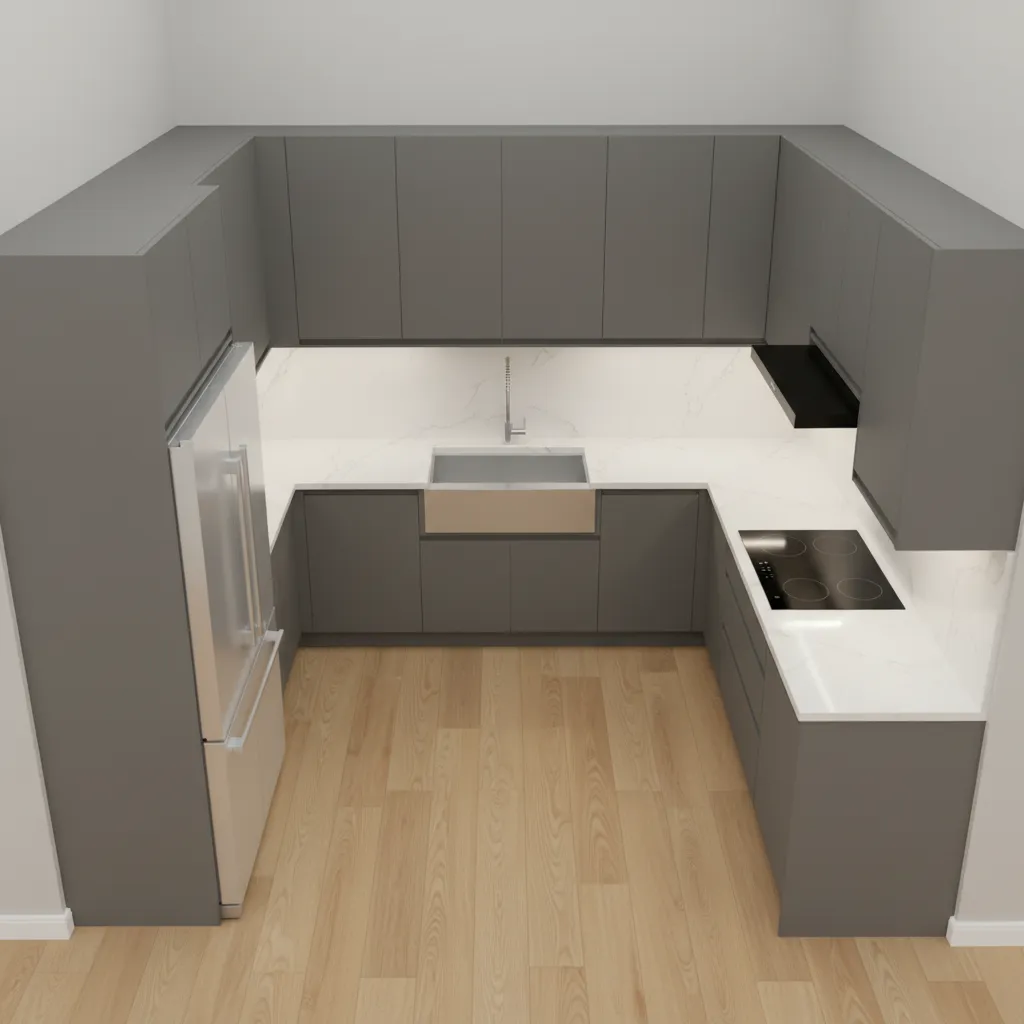

Why a U-Shaped Layout Works Surprisingly Well in Small Kitchens

Key Insight: In tight spaces, a U-shaped kitchen maximizes usable wall space while keeping all tasks within a few steps.

Many people assume U-shaped kitchens require large rooms. In reality, the opposite is often true. When space is limited, wrapping cabinetry around three walls creates a highly efficient workspace.

In several apartment remodels I've worked on in Los Angeles, switching from an L-shaped layout to a compact U-shape increased usable countertop area by nearly 40%—without expanding the room footprint.

Why it works:

1. More continuous counter space
2. Shorter walking distance between tasks
3. Better separation between prep, cooking, and cleaning

Typical layout zones:

1. Left wall: refrigerator + pantry storage
2. Center wall: sink + prep counter
3. Right wall: cooktop + oven

Design organizations like the National Kitchen & Bath Association consistently emphasize efficient work triangles, which small U-shaped layouts naturally support.

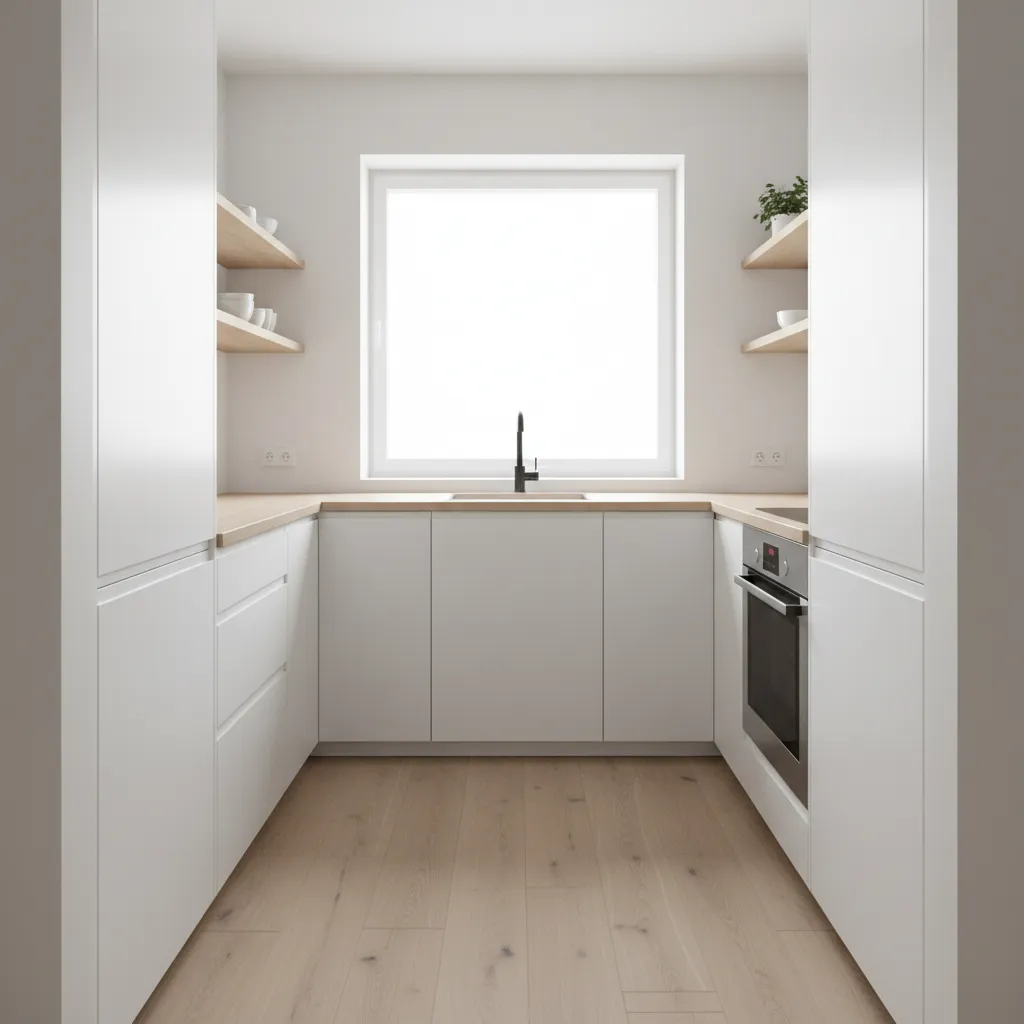

What Is the Ideal Size for a Small U Shaped Kitchen?

Key Insight: The success of a small U-shaped kitchen depends less on room size and more on aisle width.

From a design perspective, the most critical measurement is the clearance between opposing counters.

Recommended aisle widths:

1. 36 inches – minimum functional width
2. 40 inches – comfortable for single cook
3. 42 inches – ideal if appliances open into aisle

Anything below 36 inches quickly becomes frustrating. Cabinet doors collide, dishwashers block movement, and cooking becomes awkward.

Typical small U-shaped kitchen dimensions I encounter in projects:

1. Width: 6–8 feet
2. Length: 7–10 feet
3. Counter depth: 24 inches (sometimes reduced to 21 inches)

Reducing cabinet depth by even three inches can dramatically improve movement space.

save pin

How Do You Make a Small U Shaped Kitchen Feel Bigger?

Key Insight: Visual openness matters as much as physical space in compact kitchens.

Over the years, I’ve found that the biggest mistake in limited space small U shaped kitchen designs is overloading upper cabinets. Storage is important, but visual weight can make the room feel much smaller.

Strategies that consistently work:

1. Use open shelving on one wall
2. Choose lighter cabinet colors
3. Install under-cabinet lighting
4. Extend backsplash vertically
5. Use reflective materials like glass tile

One trick I frequently use is removing upper cabinets on the sink wall. This small change can instantly make the kitchen feel twice as open.

If you're experimenting with layout changes, visualizing the space using a 3D floor layout visualization before renovating a small kitchenhelps reveal where cabinets or appliances create unnecessary visual bulk.

save pin

Common Mistakes That Ruin Small U Shaped Kitchens

Key Insight: Most failed U-shaped kitchens suffer from one problem—too much storage and not enough breathing room.

Across dozens of remodels, I see the same design errors repeated.

Mistakes to avoid:

1. Corner cabinets with difficult access
2. Oversized refrigerators
3. Deep pantry cabinets in narrow rooms
4. Full-height cabinets on all three walls
5. Microwaves installed at eye level in tight aisles

A better approach:

1. Use lazy Susans or corner pull-outs
2. Choose counter-depth refrigerators
3. Integrate appliances under the counter
4. Mix closed storage with open shelving

One overlooked issue is appliance door swing. Dishwashers and ovens can easily block the entire aisle if placed poorly.

Answer Box

The most successful limited space small U shaped kitchen designs balance storage with movement space. Maintaining a 36–42 inch aisle and reducing visual clutter dramatically improves usability and perceived size.

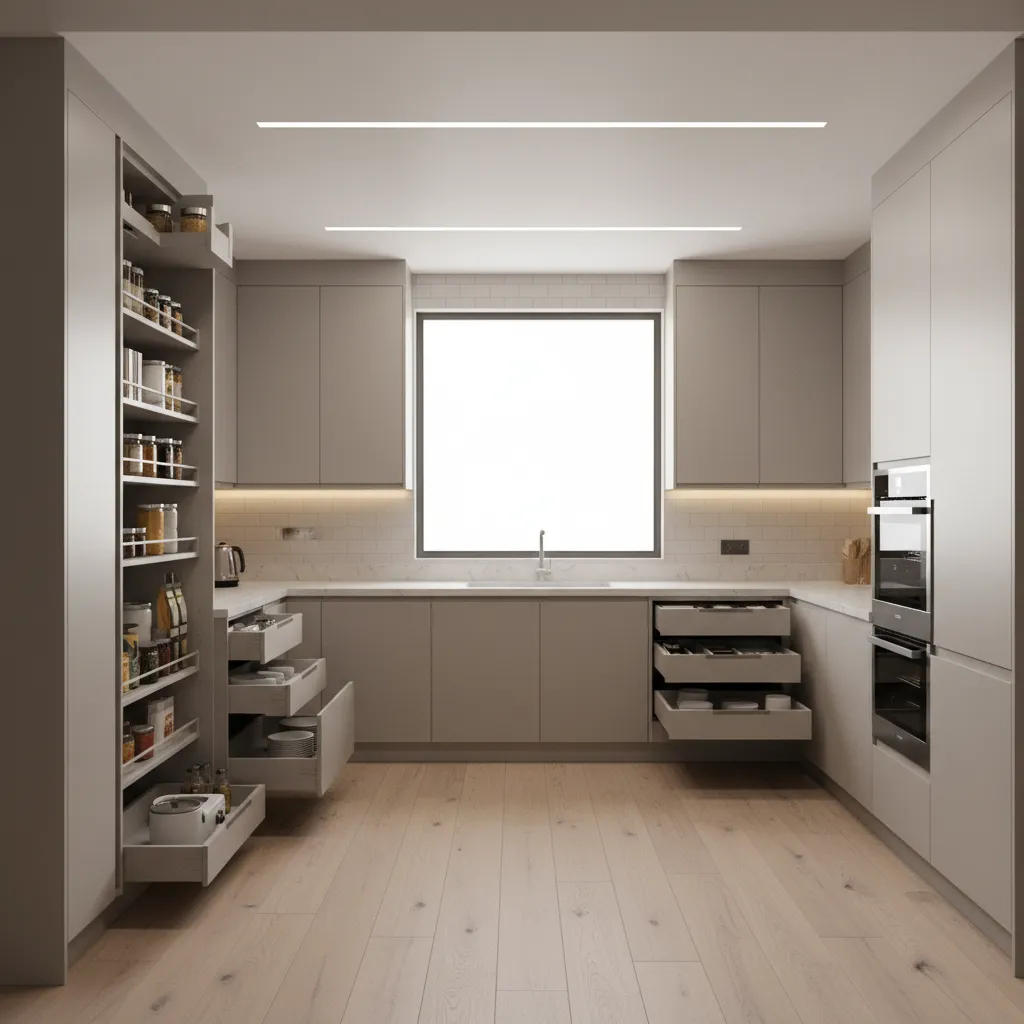

Smart Storage Ideas for Limited Space U-Shaped Kitchens

Key Insight: Vertical storage and multi-functional cabinets outperform traditional cabinet layouts in small kitchens.

When floor space is limited, upward storage becomes essential. Instead of adding more cabinets horizontally, I typically increase cabinet height or integrate hidden storage.

High-efficiency storage ideas:

1. Ceiling-height cabinets
2. Pull-out spice columns
3. Toe-kick drawers
4. Magnetic knife strips
5. Under-sink sliding organizers

In a recent condo renovation, we added toe-kick drawers beneath cabinets and gained nearly an entire cabinet worth of storage without changing the layout.

save pin

Should You Add a Peninsula to a Small U-Shaped Kitchen?

Key Insight: A peninsula can improve storage but often harms circulation in already tight kitchens.

This is one of those design decisions that sounds good on paper but rarely works in practice.

Peninsula pros:

1. Extra counter space
2. Casual seating
3. More cabinetry

Peninsula downsides:

1. Blocks natural traffic flow
2. Makes the kitchen feel enclosed
3. Creates appliance clearance problems

In small homes, I usually recommend keeping the U-shape open and instead optimizing the layout with smart planning tools like a visual kitchen redesign workflow powered by intelligent layout suggestions.

Final Summary

1. Small U-shaped kitchens maximize efficiency when the aisle remains 36–42 inches wide.
2. Reducing cabinet depth can dramatically improve movement space.
3. Open shelving helps prevent visual overcrowding.
4. Appliance size and placement determine overall usability.
5. Smart vertical storage often replaces the need for extra cabinets.

FAQ

1. What is the minimum width for a small U-shaped kitchen?

Most designers recommend at least 6 feet across to maintain a functional 36‑inch aisle.

2. Are limited space small U shaped kitchen designs good for apartments?

Yes. They maximize wall space and create efficient work triangles, making them ideal for compact apartments.

3. Can a U-shaped kitchen include an island?

Usually no. Most small U-shaped kitchens are too narrow to accommodate an island while maintaining proper clearance.

4. What appliances work best in a small U-shaped kitchen?

Counter-depth refrigerators, 24-inch dishwashers, and compact ranges help maintain movement space.

5. How do you avoid corner cabinet problems?

Use lazy Susans, pull-out corner systems, or diagonal cabinets to improve accessibility.

6. Are open shelves better in small kitchens?

Often yes. They reduce visual weight and make the kitchen feel larger.

7. What colors work best for small U-shaped kitchens?

Light neutrals, soft whites, warm wood tones, and reflective finishes help expand visual space.

8. How do professionals plan limited space small U shaped kitchen designs?

Designers typically start with workflow, appliance size, and aisle width before finalizing cabinetry placement.
