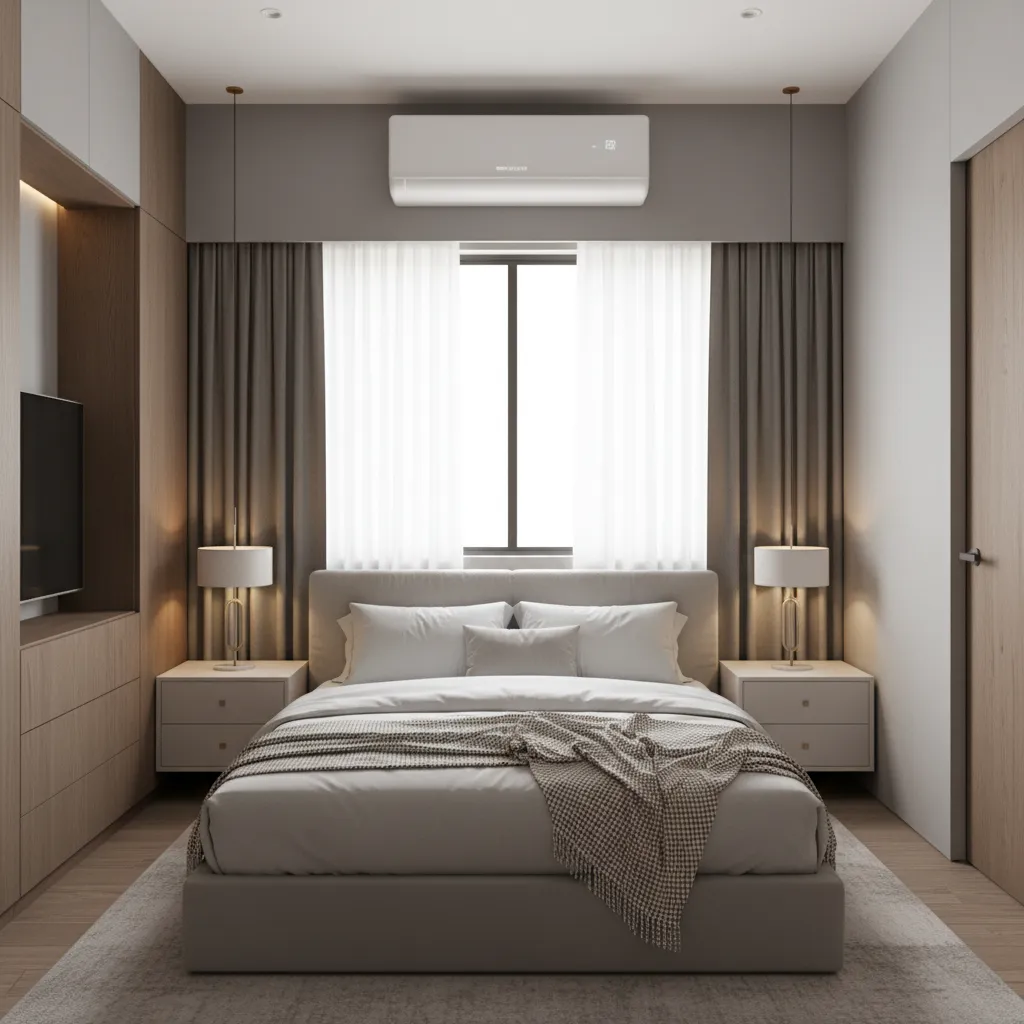

Mini Split Air Conditioner for Small Room: 5 Pro Tips: A designer’s field guide to sizing, placement, and silent comfort in tiny spaces

[Section: 引言]

I’ve been designing small homes and micro-apartments for more than a decade, and one trend I’m genuinely thrilled about is how a mini split air conditioner for small room use has become both ultra-quiet and energy smart. Small spaces spark big creativity, and the way we plan airflow, acoustics, and aesthetics can turn a tiny room into a calm, efficient haven. When I map a quiet small-room HVAC layout with clients, we align comfort with the room’s rhythm—sleep, work, and rest.

In this guide, I’ll share 5 design inspirations I lean on in real projects—backed by field notes and expert data—so you can choose, place, and live with a ductless system that truly fits your space and lifestyle. Expect practical sizing cues, placement tricks, budget hints, and maintenance moves I use in small bedrooms and studios every week.

[Section: 灵感列表]

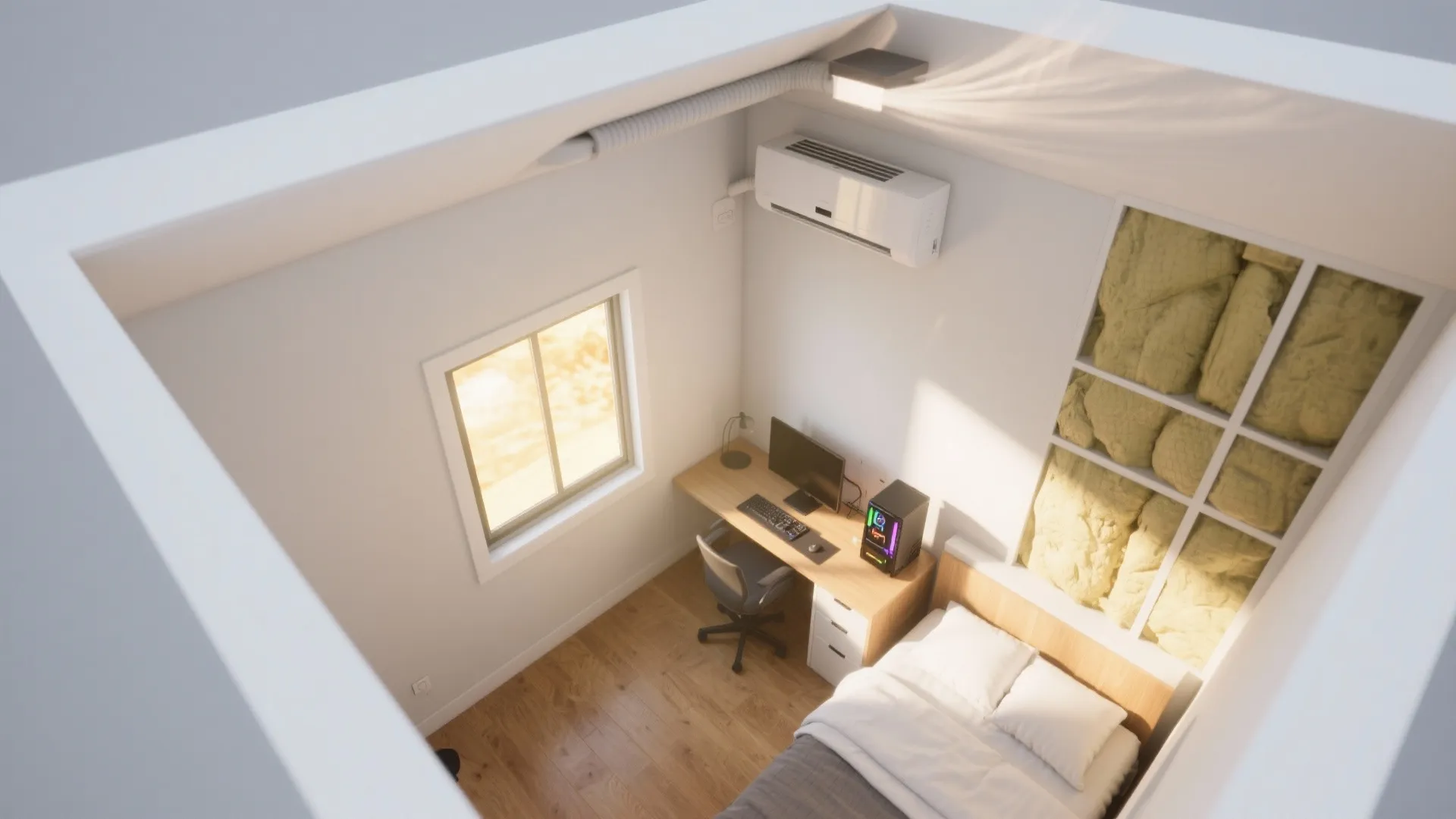

1) Sizing that actually fits: 6k–9k BTU done right

My Take

Right-sizing is where comfort begins. I once took over a 120 sq ft bedroom where a 9k BTU unit short-cycled, left the air clammy, and kept waking the owner at night; we swapped to a 6k BTU model and suddenly the room felt steady, dry, and quiet.

In small rooms, I run a quick load calc before I pick a head. I factor insulation, windows, direction of sun, and what you do in the room—gaming rigs and west sun can change everything.

Pros

Right-sized equipment avoids short-cycling, which means steadier temperature and better humidity control—key for a mini split air conditioner for small room comfort. It usually runs at low fan speeds, trimming noise and saving energy.

According to the U.S. Department of Energy and ACCA Manual J principles, a small bedroom with modest gains may land in the 6k–9k BTU range, but the exact number depends on envelope and exposure. Hitting that sweet spot boosts seasonal efficiency (SEER2) in the real world, not just in lab tests.

Cons

Ballpark BTU charts can mislead—under-sizing leaves you in the heat on peak days, over-sizing leaves you damp and uncomfortable. A quick room-by-room load calc takes time, and in older buildings you may need to measure or even open a wall to check insulation.

If you rent, you might be stuck with existing equipment; in that case I tune fan curves, vane angles, and dehumidify mode to squeeze the best comfort from what’s on the wall.

Tips / Cost

As a ballpark for conditioned spaces: 6k BTU can suit many bedrooms around 100–200 sq ft with decent insulation; 9k BTU may be safer for sunny exposures or light lofts. Expect professional load calcs and install consults to add a few hundred dollars, but they often prevent a thousand-dollar sizing mistake.

save pin

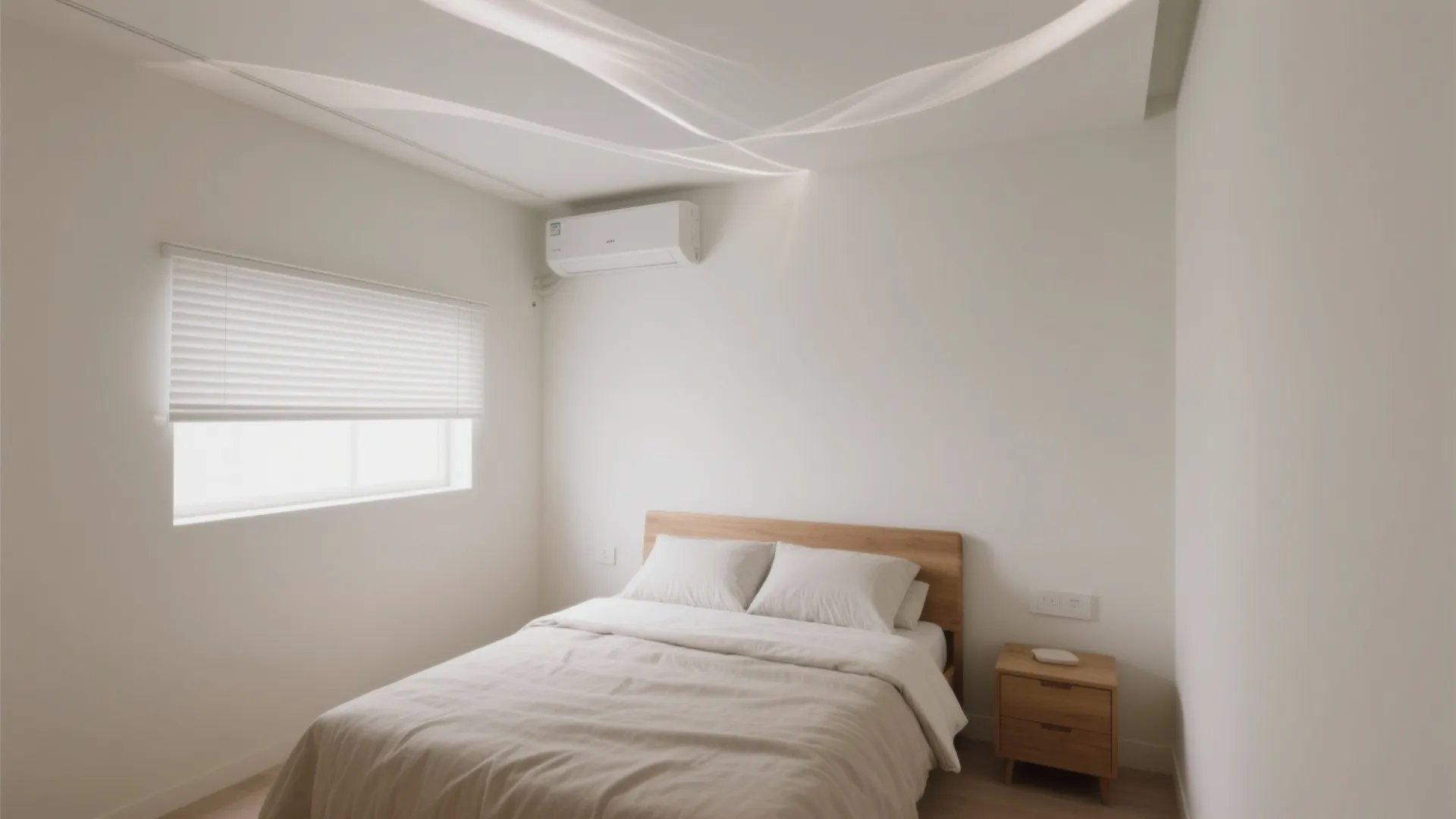

2) Placement and airflow: aim long, not at your face

My Take

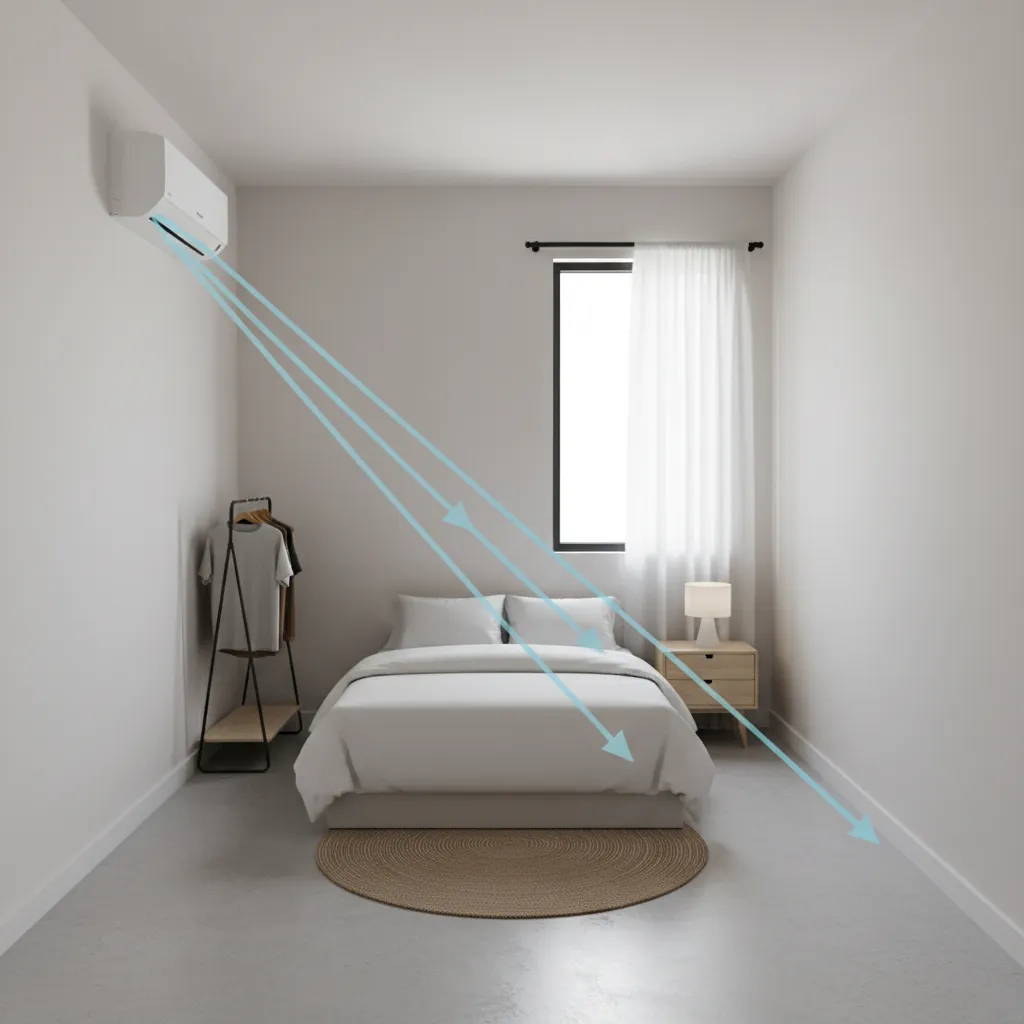

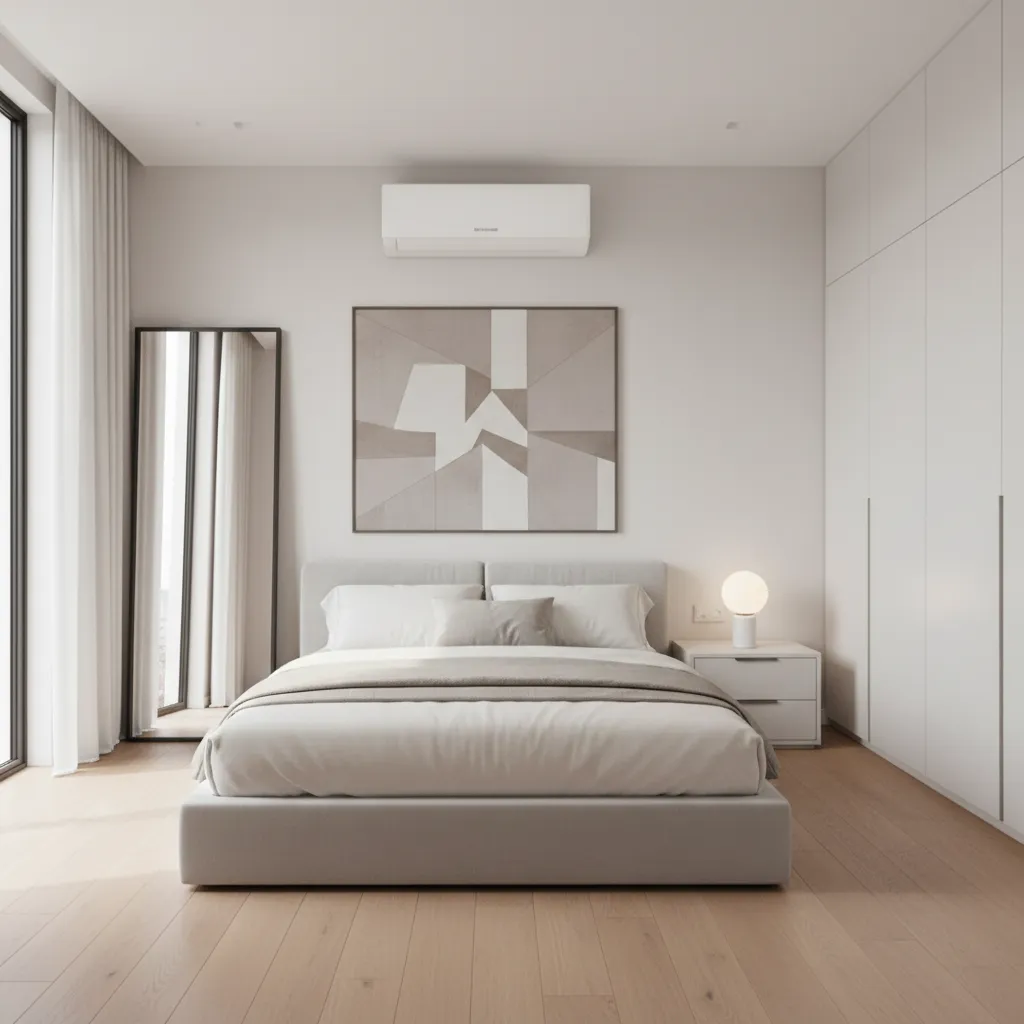

In tiny rooms, where you mount the indoor head matters as much as the brand. I prefer the long wall facing the room’s main volume, about 6–8 inches below the ceiling, so air “rides” the ceiling plane and washes the room instead of blowing straight onto your bed or desk.

I also angle the vanes for a gentle, indirect flow—especially in bedrooms where the goal is steady comfort and a quiet mind.

Pros

Strategic placement helps avoid drafts and creates an even temperature field, which is the best placement for a mini split in a small bedroom. It reduces perceived noise too: when air isn’t hitting you, you’ll keep the fan speed lower and sleep mode actually feels silent.

Keeping the head on an interior wall can shorten the line set run and improve condensate routing, which often makes installs cleaner and reduces the chance of gurgles or pump noise.

Cons

Architecture doesn’t always cooperate—built-ins, sloped ceilings, or narrow studs can force compromises. Exterior-wall mounting can be visually tidy for the line set, but sometimes it points straight at your pillow unless you plan the bed and headboard position together.

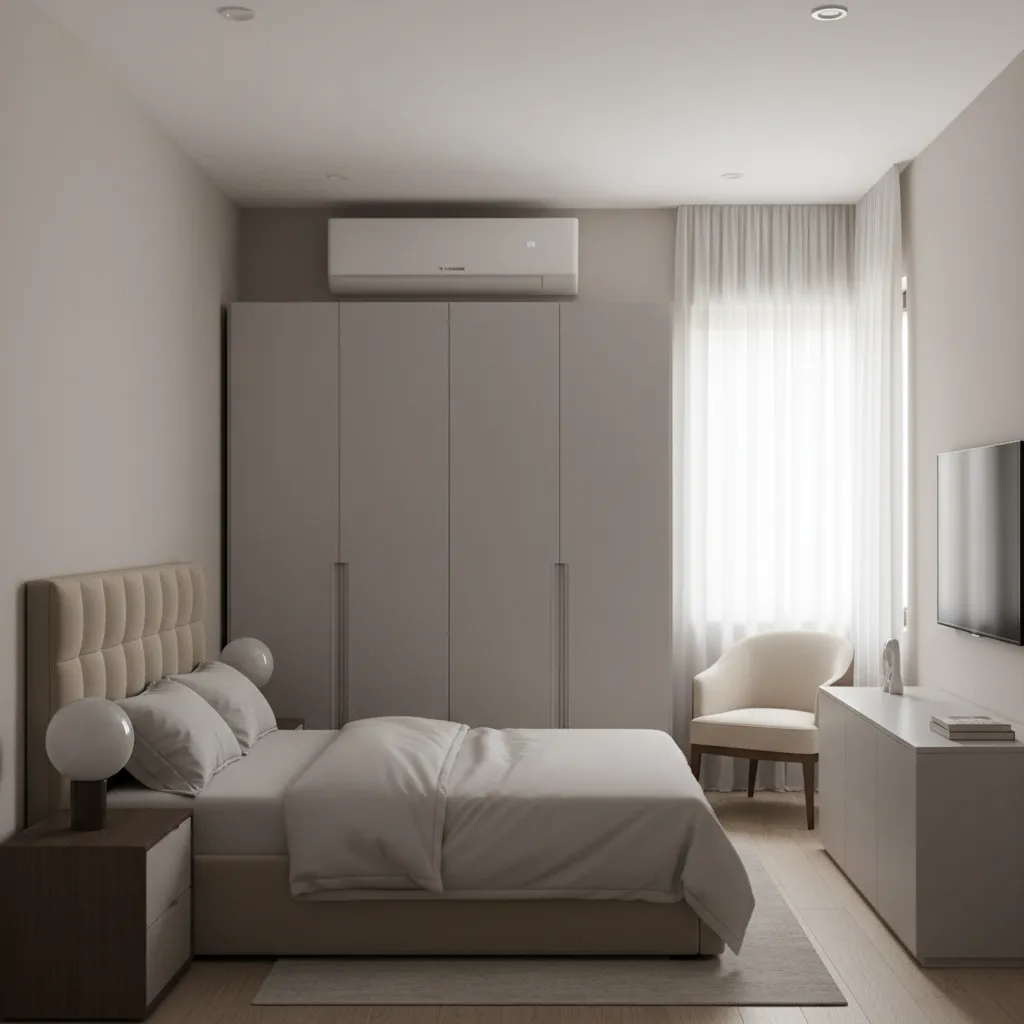

Clearances matter: most brands want 6–12 inches above and a foot or more to the sides for unrestricted intake. That can compete with shelving and window trims in micro rooms.

Tips / Case

In a 10' x 12' nursery I recently finished, we shifted the head 18 inches off-center to avoid a crib draft; with vanes pitched up and to the side, we got quiet, even coverage. If you can, mock the airflow with a portable fan first—it’s a low-tech way to see how air will move.

save pin

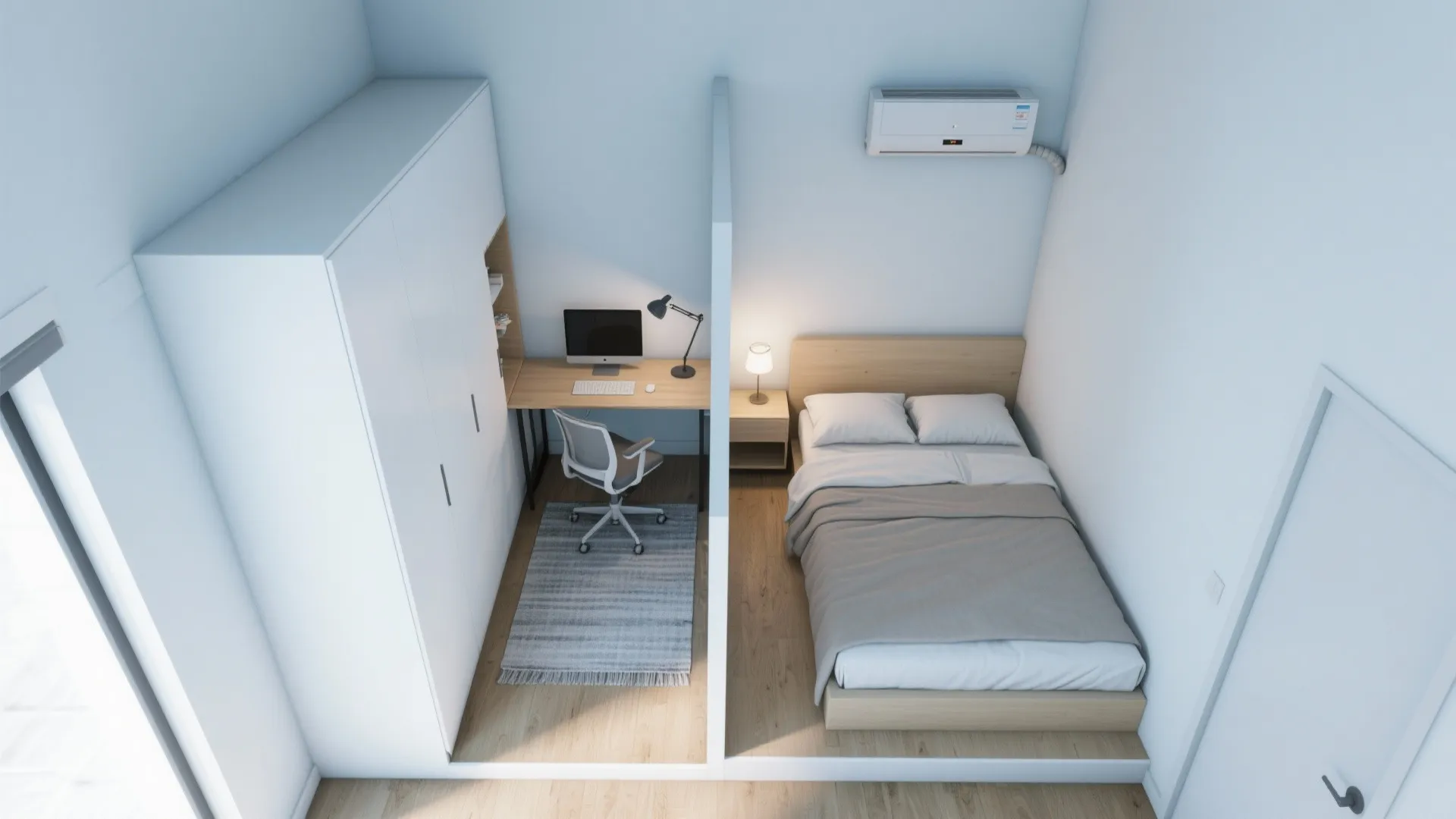

3) Smarter controls and zoning rhythms for tiny spaces

My Take

Small rooms don’t need complicated systems, but they do benefit from smart schedules, sleep mode, and humidity targets. I set bedtime temps a touch higher in cooling (or lower in heating) and lean on dehumidify mode on muggy evenings.

In studio apartments, I treat the room like two zones: “work corner” and “rest corner,” using vane direction and low fan speed to keep the desk area crisp while the bed remains draft-free.

Pros

Smart controls help a mini split air conditioner for small room stay efficient and comfortable—especially if you automate fan speed, vane position, and a modest overnight setback. It’s an easy way to stretch comfort without oversizing.

ENERGY STAR guidance suggests consistent setpoints can save energy, and in my projects a gentle schedule beats big swings every time. If you live with pets, “away” mode avoids stale air and keeps humidity in check while you’re out.

Cons

Too much automation can backfire—aggressive eco modes can let rooms creep warm or sticky before bedtime. Some app ecosystems are clunky; if you share the space, make sure everyone knows the schedule so no one overrides it daily.

Multi-zone outdoor units are tempting, but for a single small room, a 1:1 system is typically quieter and simpler to tune. Overcomplicating a tiny space is like hanging a chandelier in a closet.

Tips / Planning

For compact studios, I like to “map” airflow so the resting area stays calm while the desk or kitchenette runs a touch cooler. If you’re visual, try sketching a compact studio airflow zoning scheme before you drill; it’s surprising how clear the plan gets when you draw the air paths.

save pin

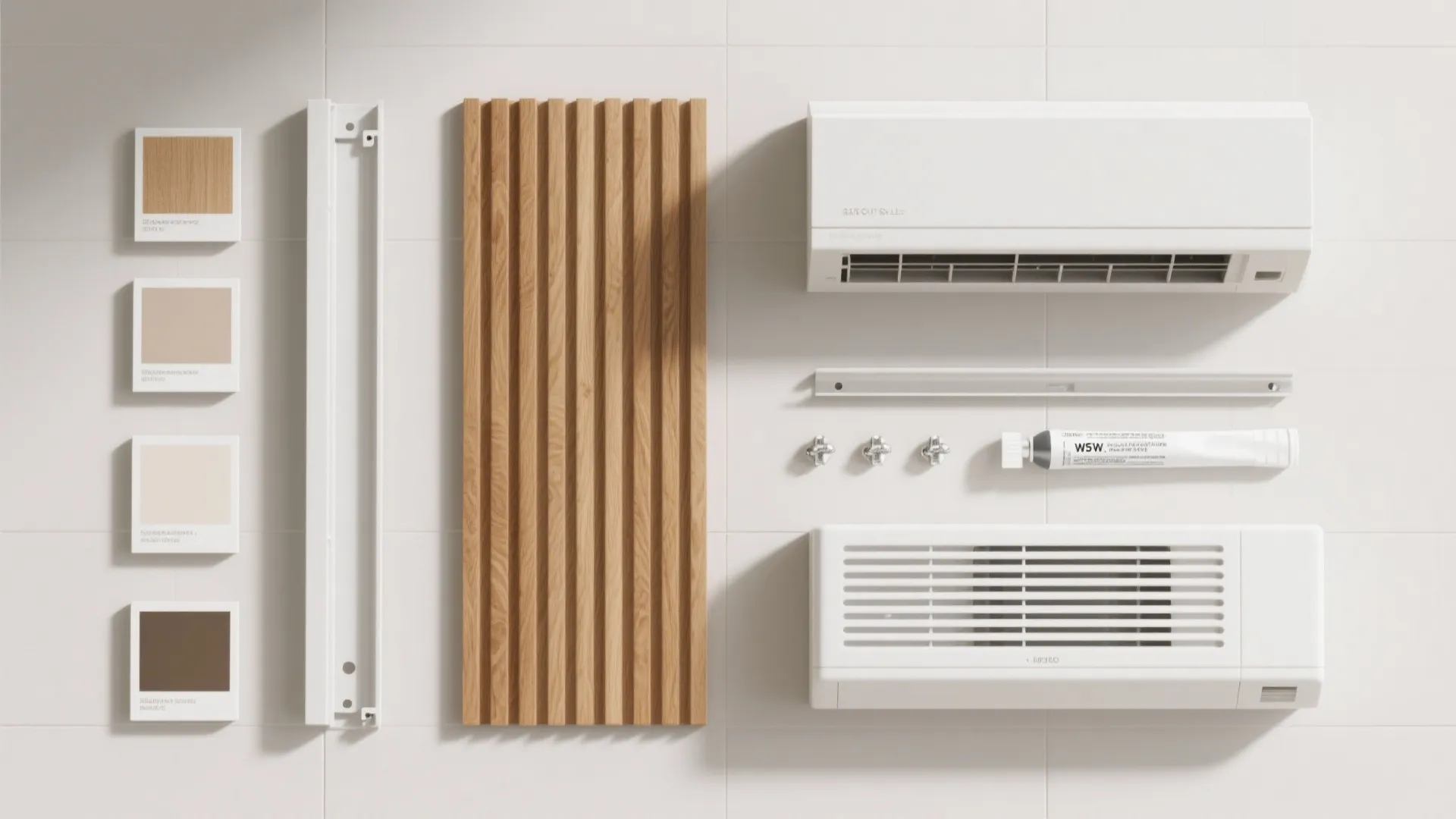

4) Quiet aesthetics: hide the line set, honor the room

My Take

I love ductless because it relieves the visual bulk of ductwork, but the line set and condensate drain can still clutter a tiny room. My trick is to treat the cover as a design element: paintable raceways, slim soffits, or a vertical slat panel that doubles as décor.

In Scandinavian and Japandi interiors, a pale wall-mounted head with matte finish blends beautifully; in mid-century rooms, a warm wood slat screen can make the unit “disappear” while still giving it breathing room.

Pros

Done well, the unit reads like a discreet appliance instead of a mechanical billboard. Your small-room interior keeps its visual calm, which makes the space feel larger—especially when you route lines along clean, vertical geometry.

Aesthetic integration encourages better maintenance too: if the cover is easy to open and filters are accessible, you’ll actually clean them monthly. That keeps noise down and air quality up.

Cons

Over-concealment can block intake or trap heat—don’t let style suffocate function. If a carpenter builds a tight box around the head, service access becomes a headache and you risk voiding clearances in the manual.

Exterior line set covers can fade or warp; pick UV-stable materials and plan for expansion gaps. On brick facades, anchors and sealants need special attention to avoid leaks.

Tips / Case

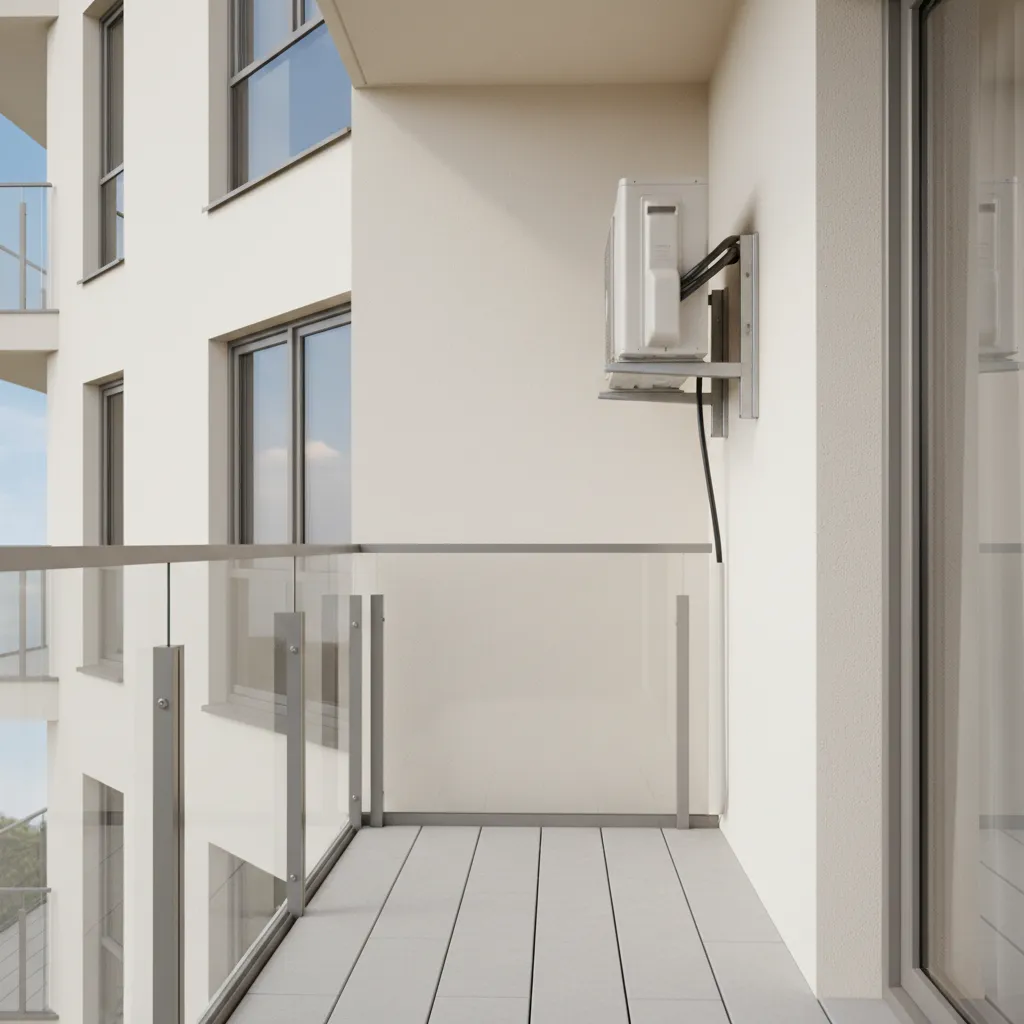

For a 9' x 11' guest room, we ran the line set straight up in a paint-matched channel, then out at the soffit line; indoors it vanished, outdoors it aligned with the downspout. Keep at least the manufacturer’s recommended side/top clearances free; think of the head as a breathing box.

save pin

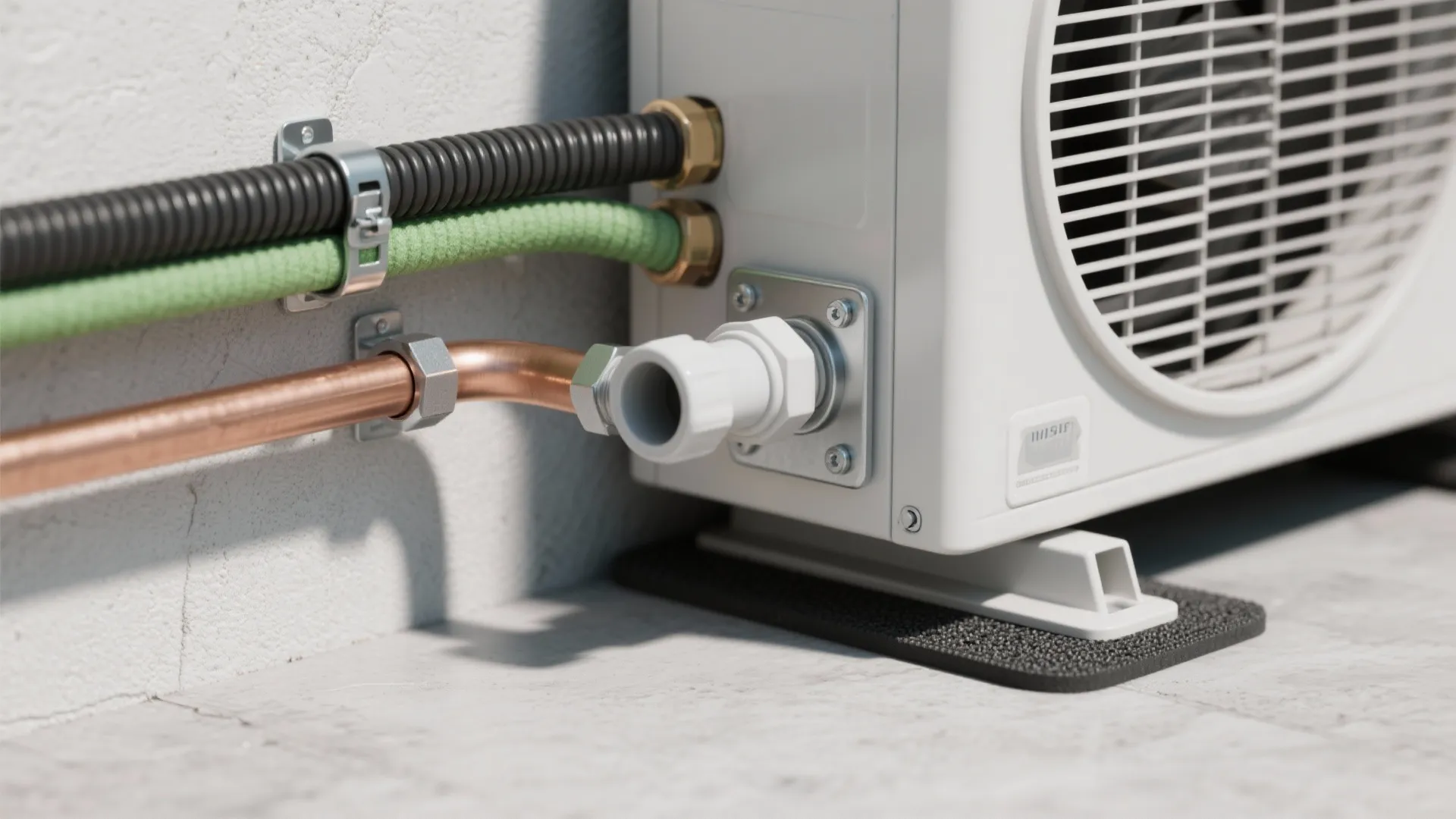

5) The unglamorous heroes: drainage, vibration, and maintenance

My Take

The comfiest small rooms I know all share three traits: silent condensate management, vibration control, and clean filters. It’s not Instagram-famous, but it’s what makes a tiny room truly livable in July and January.

When I do site checks, I listen for hum and sniff for mustiness; 95% of issues in small rooms are drainage or dirty filters.

Pros

Good condensate routing—gravity first, then a quiet pump only if needed—prevents gurgles and water damage. Anti-vibration pads and properly torqued line set fittings tame humming at night, a huge win in bedrooms.

Routine filter cleaning keeps your mini split air conditioner for small room from losing airflow and ramping fan speeds. ASHRAE and DOE both emphasize maintenance for indoor air quality and efficiency; in my projects, a monthly wipe and quarterly deep clean keep decibels low and comfort high.

Cons

Not every layout allows gravity drainage; pumps add noise and one more point of failure. Low outdoor temperatures can stress the drain if heat pump mode runs in winter without proper freeze protection.

Vibration can telegraph through shared walls in older buildings; sometimes I need to re-mount the head with isolation bushings or adjust the wall bracket to hit studs correctly.

Tips / Install & Visualizing

Follow manufacturer clearances religiously, slope the drain line continuously, and seal wall penetrations against pests and air leaks. For clients who need to “see” it before install, I often show a 3D render of line-set routing so we can fine-tune the path before we drill.

Budget a little for acoustics: rubber isolation feet for the outdoor unit, and a check on line set clamps where they pass framing. If you hear a buzz at night, it’s usually a clamp or bracket before it’s the compressor itself.

[Section: 总结]

A small room doesn’t limit comfort—it rewards smarter design. With a right-sized unit, thoughtful placement, quiet controls, and clean details, a mini split air conditioner for small room use can be nearly invisible yet deeply comfortable.

ENERGY STAR and DOE guidance consistently echo what I see on site: sizing, setpoints, and maintenance matter more than brand slogans. Which of these five ideas will you try first in your space?

[Section: FAQ 常见问题]

save pin

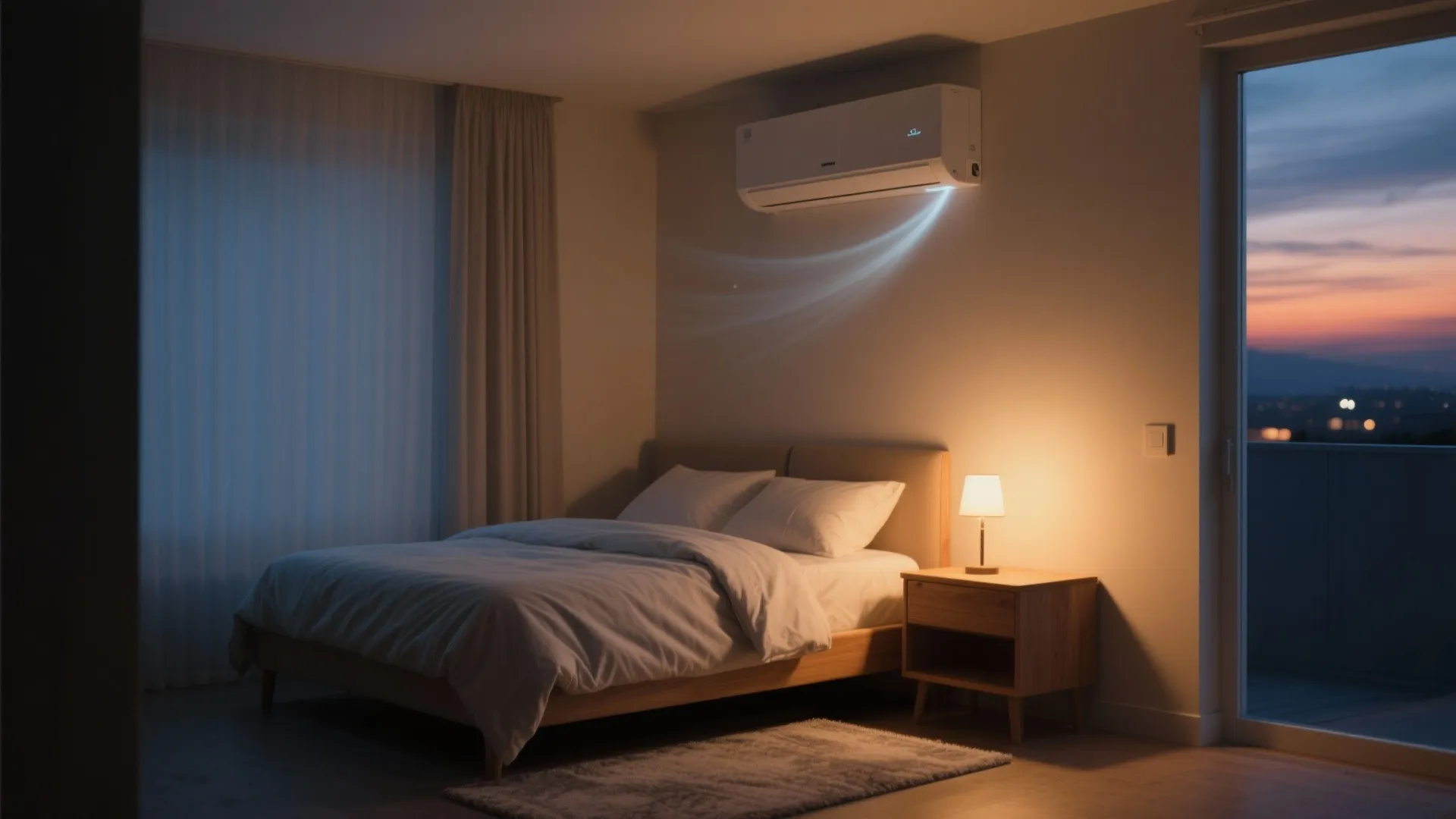

FAQ

1) What size mini split air conditioner for small room should I choose?

Most small bedrooms do well with 6k–9k BTU, but the right answer comes from a load calculation (ACCA Manual J principles). Insulation, window gains, and sun exposure can shift the target significantly.

2) Where should I place the indoor unit in a tiny bedroom?

High on a long wall, with vanes angled to wash the room rather than blow at the bed, is a reliable starting point. Maintain manufacturer clearances and avoid blocking intake with shelves or drapery.

3) Are mini splits quiet enough for light sleepers?

Yes—modern heads can run in the low 20s dB(A) at quiet fan speeds, and careful placement further reduces perceived noise. Use sleep mode and keep filters clean to prevent the fan from ramping up.

4) How do I prevent humidity from feeling high in a small room?

Right-sizing prevents short-cycling, which improves dehumidification. Use “dry” mode on muggy days and set a steady temperature rather than large on/off swings.

5) Can one outdoor unit serve multiple tiny rooms?

It can, but for a single small room I prefer a 1:1 system for simplicity, quiet, and fine control. Multi-zone systems are great for multi-room homes but may be overkill for a single compact space.

6) What maintenance keeps performance strong in small spaces?

Clean filters monthly, wipe the coil surface gently as recommended, and keep the outdoor unit clear of debris. Check the condensate line seasonally to avoid clogs and odors.

7) Do authoritative sources agree on sizing and setpoints?

Yes—DOE and ENERGY STAR emphasize proper sizing, steady setpoints, and maintenance as the big three for comfort and efficiency. Their guidance mirrors what I see in the field every week.

8) Will a mini split air conditioner for small room increase my electric bill?

It can if oversized or run at high fan speeds constantly, but right-sized inverter units often cut costs compared with window shakers. Smart schedules and good envelope sealing further reduce runtime.
