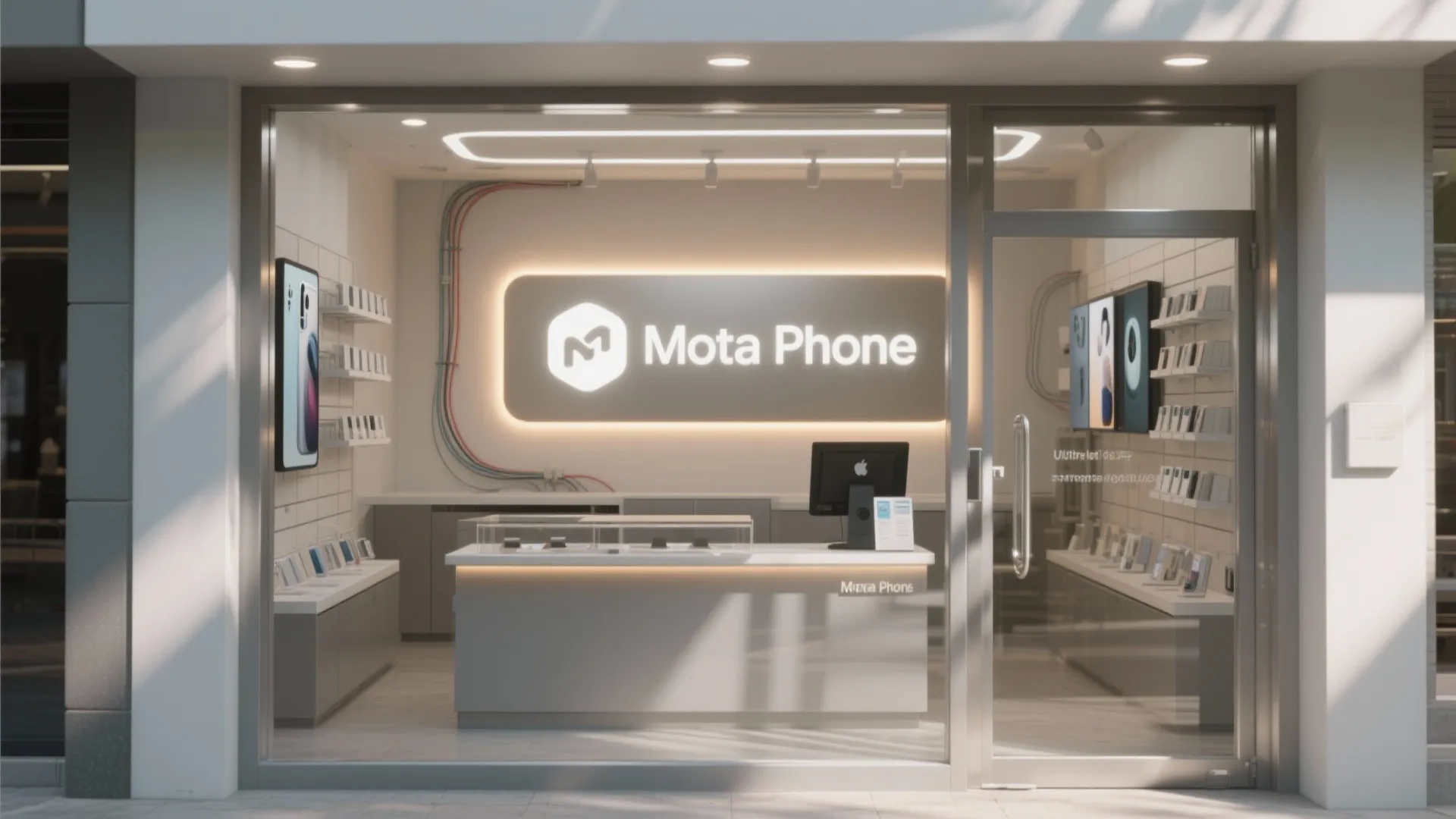

Mobile Shop Lighting Board Design: 5 Proven Ideas: My field-tested guide to brighter, smarter, and more profitable mobile shop lighting board design

[Section: Meta 信息]

Core keyword: mobile shop lighting board design

[Section: 引言]

I’ve redesigned dozens of small retail and phone shops, and one thing is consistent: mobile shop lighting board design isn’t just decoration—it’s a conversion tool. This year, the trend leans toward slimmer profiles, dynamic light temperatures, and modular displays that adapt to seasonal promos. In small spaces, constraints spark creativity, and a well-planned lighting board can create a bigger brand presence than a full wall of signage.

In this guide, I’ll share 5 design ideas I personally use, combining hands-on experience with expert data to help you plan, budget, and execute efficiently. You’ll find honest pros and cons, practical tips, and where relevant, precise sources that influenced my choices. Let’s light up more than your storefront—let’s light up sales.

[Section: 灵感列表]

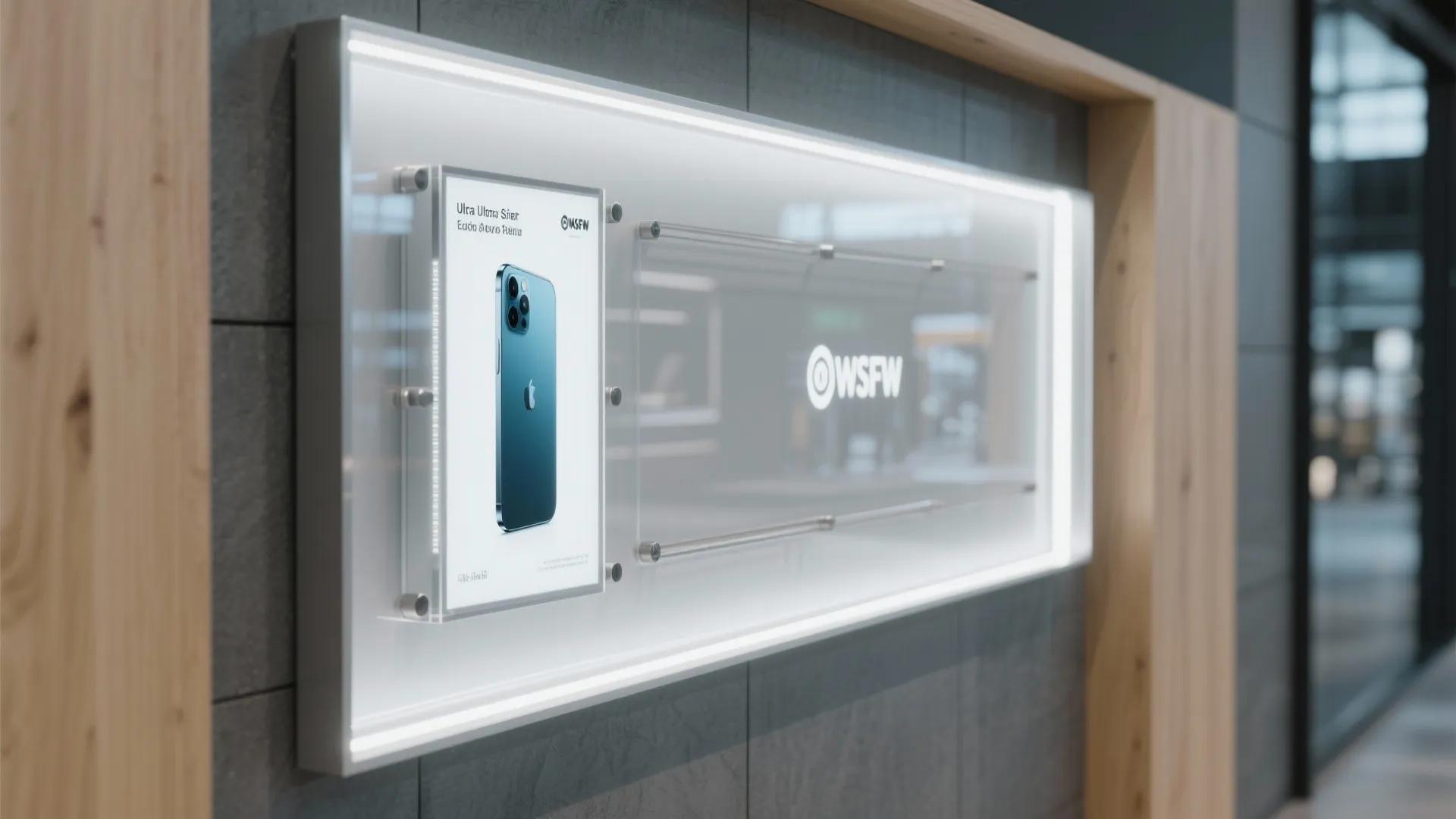

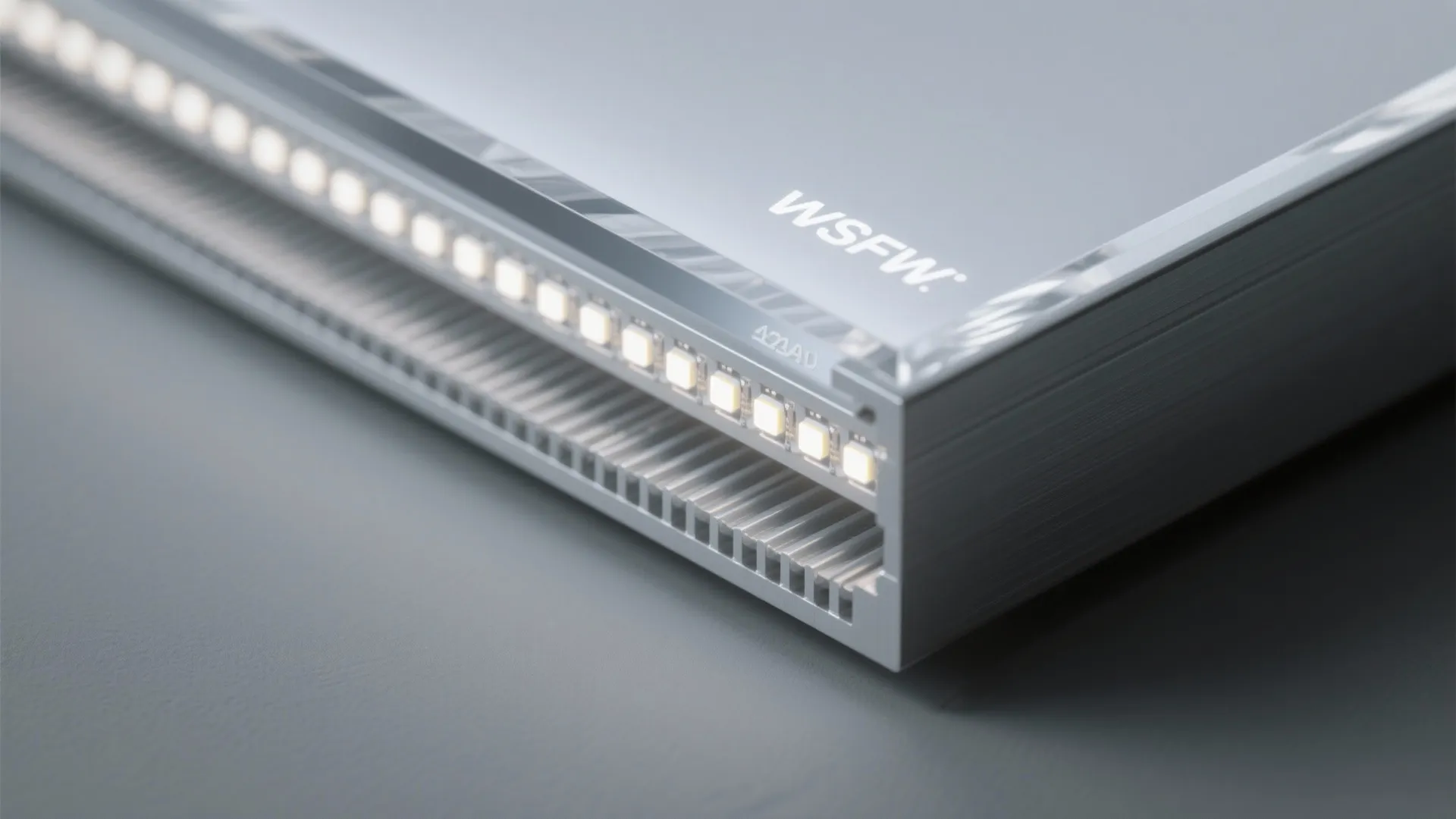

1) Ultra-thin backlit boards with edge-lit acrylic

My Take: I first switched to edge-lit acrylic for a kiosk in a crowded transit mall. The result was a razor-thin profile that looked premium without hogging aisle space. It also traveled well—no hot spots, no bulky frames, and the installer thanked me for keeping the wiring simple.

Pros: Edge-lit panels distribute light evenly, reducing glare on glossy phone posters while keeping a low profile—ideal for mobile shop lighting board design in tight storefronts. Energy use is low with LED drivers, and the uniform glow improves brand legibility from 10–15 meters. According to the IES Lighting Handbook (Illuminating Engineering Society), uniform luminance and controlled luminance ratios enhance visual comfort and readability.

Cons: Edge-lit units can be pricier upfront than basic lightboxes, especially if you spec high-CRI LEDs. If your board is very large, the edge-lit frame may need stiffeners to prevent bowing over time—learned that after a humid summer installation.

Tips/Cost: For a 1200×600 mm board, budget for 60–90 LEDs/m strips and a dimmable driver; cost typically lands around $180–$320 depending on diffuser and CRI. Request anti-scratch acrylic if your board sits near customer touch zones.

Also consider planning adjacent displays with minimalist retail wall layouts to keep sightlines clean and maximize the board’s glow.

save pin

save pin

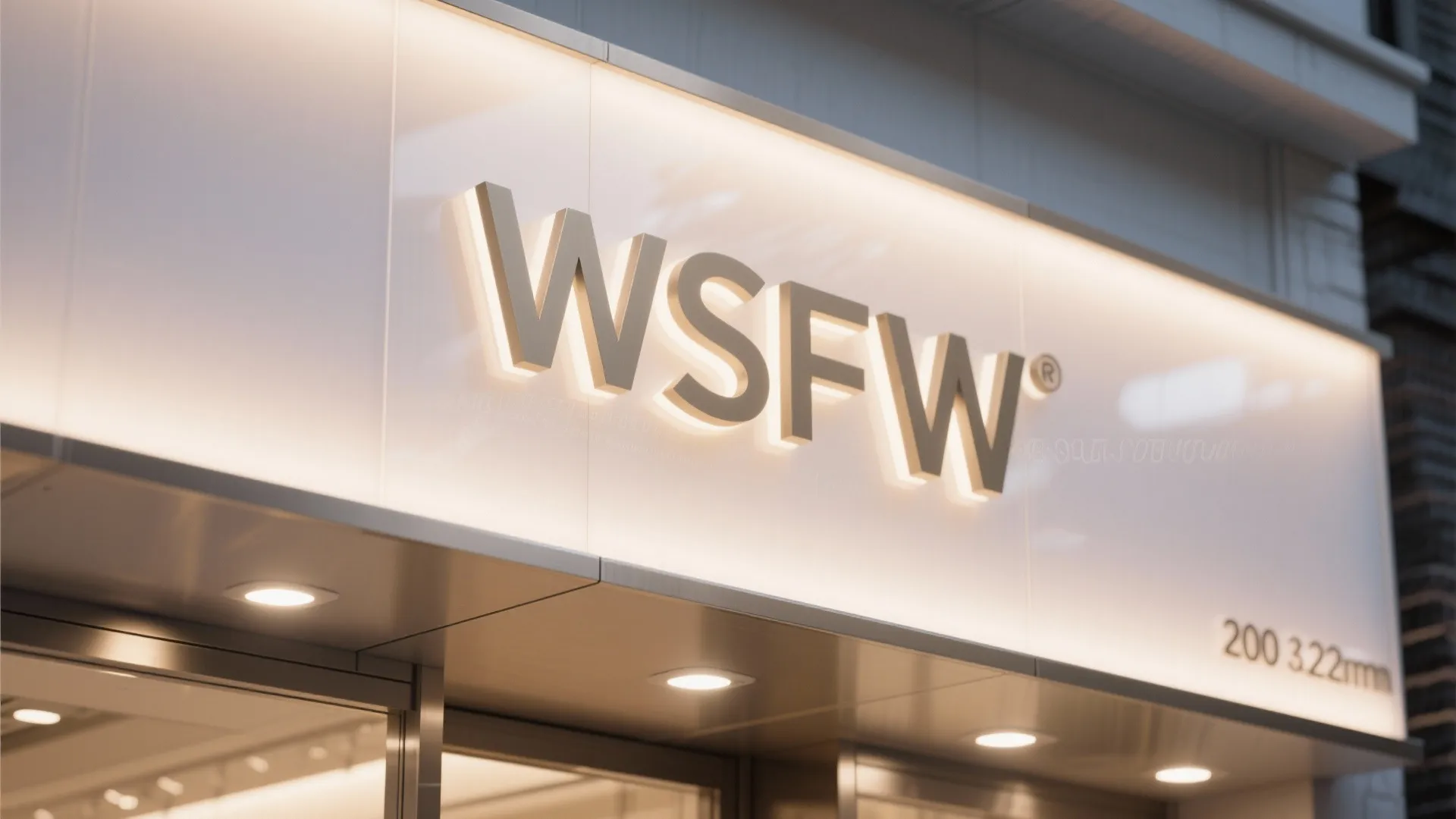

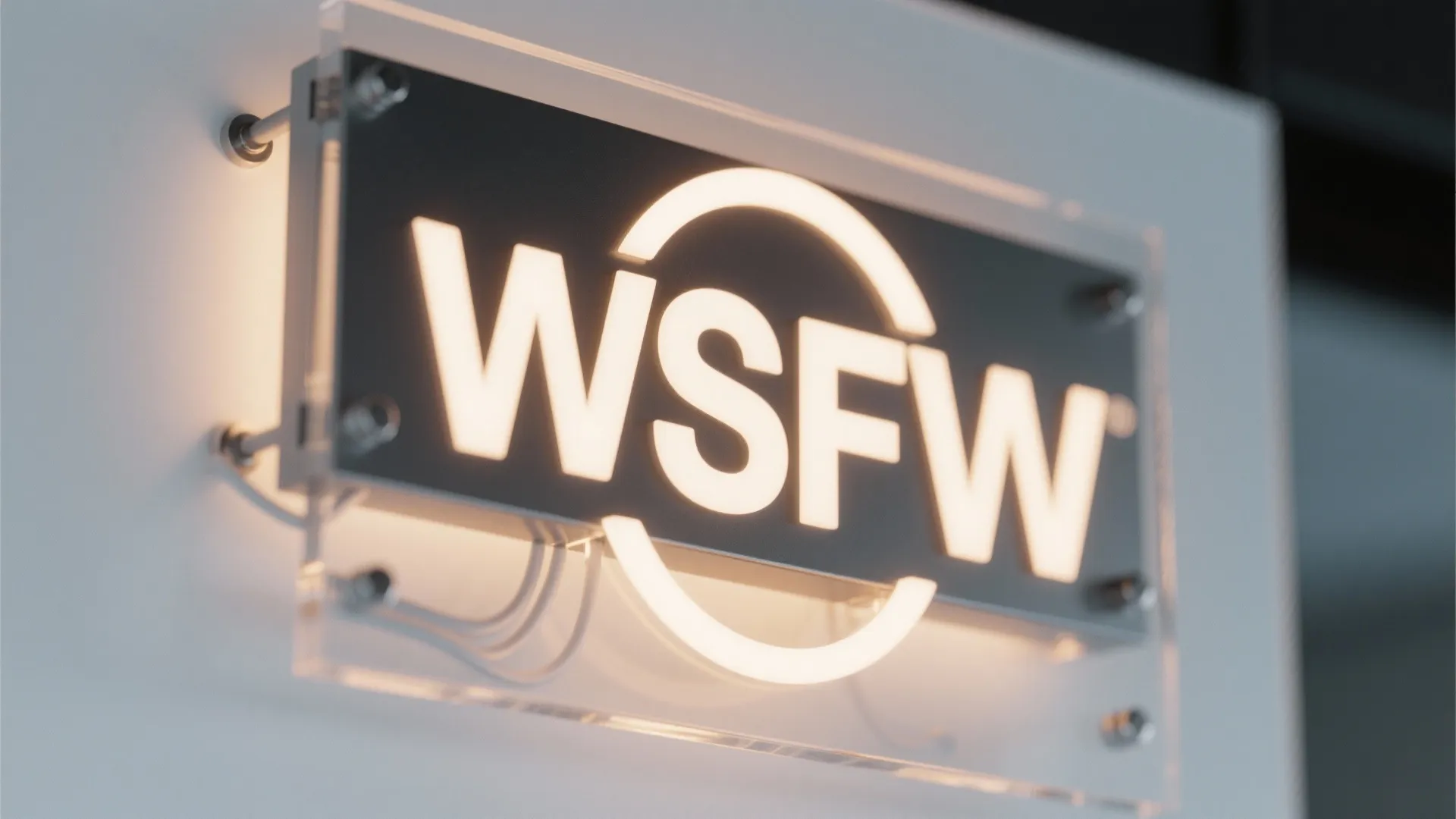

2) Layered light: combining halo-lit letters with a diffused face

My Take: For a flagship mobile boutique, we layered a milky polycarbonate face over a shallow cabinet and added halo-lit letterforms standoff-mounted from the backboard. The dual-depth effect stopped people mid-walk—customers took photos, which became free marketing.

Pros: Halo lighting creates a soft aura that separates the logo from the background, while the diffused face maintains brand color accuracy—a key long-tail tactic for consistent mobile shop signage branding. Mixed depth adds premium feel without heavy materials.

Cons: More components mean more things to coordinate—letter mounting posts, cable routing, and dimmer zones. If you rush the stencil cutting, light leaks can appear at letter edges—use black-out film behind seams.

Tips/Case: Keep letter standoffs at 15–25 mm for an even halo, and specify 3000–3500K for warm halo with 4000–5000K for the face to create subtle hierarchy. This small contrast helps wayfinding and focal pull in compact aisles.

When mapping the counter and demo table beneath, I often simulate shadow and glare in a planner to preserve the halo effect at eye-level; pairing with storefront 3D visualization helps check angles before you commit to drilling.

save pin

save pin

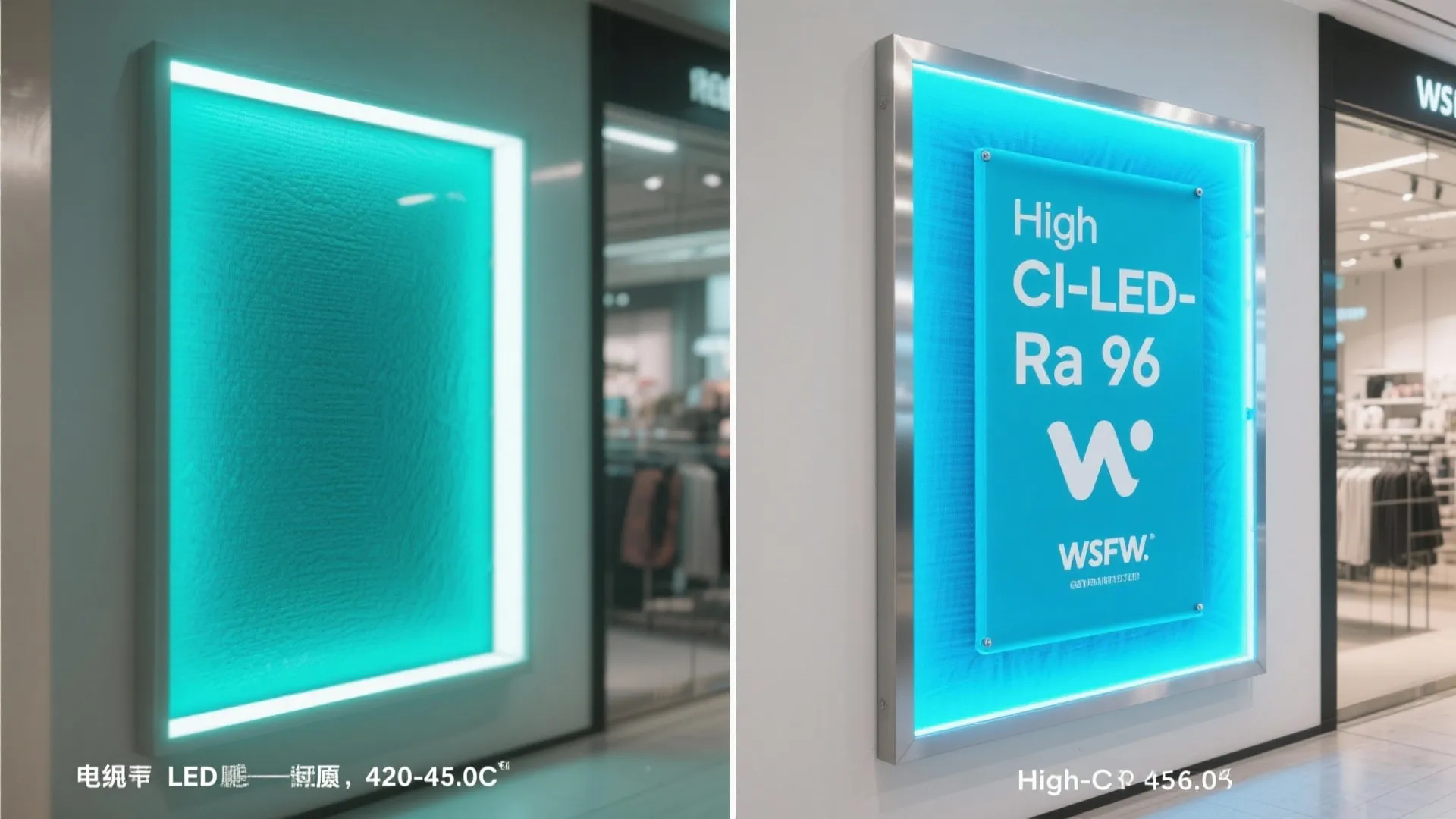

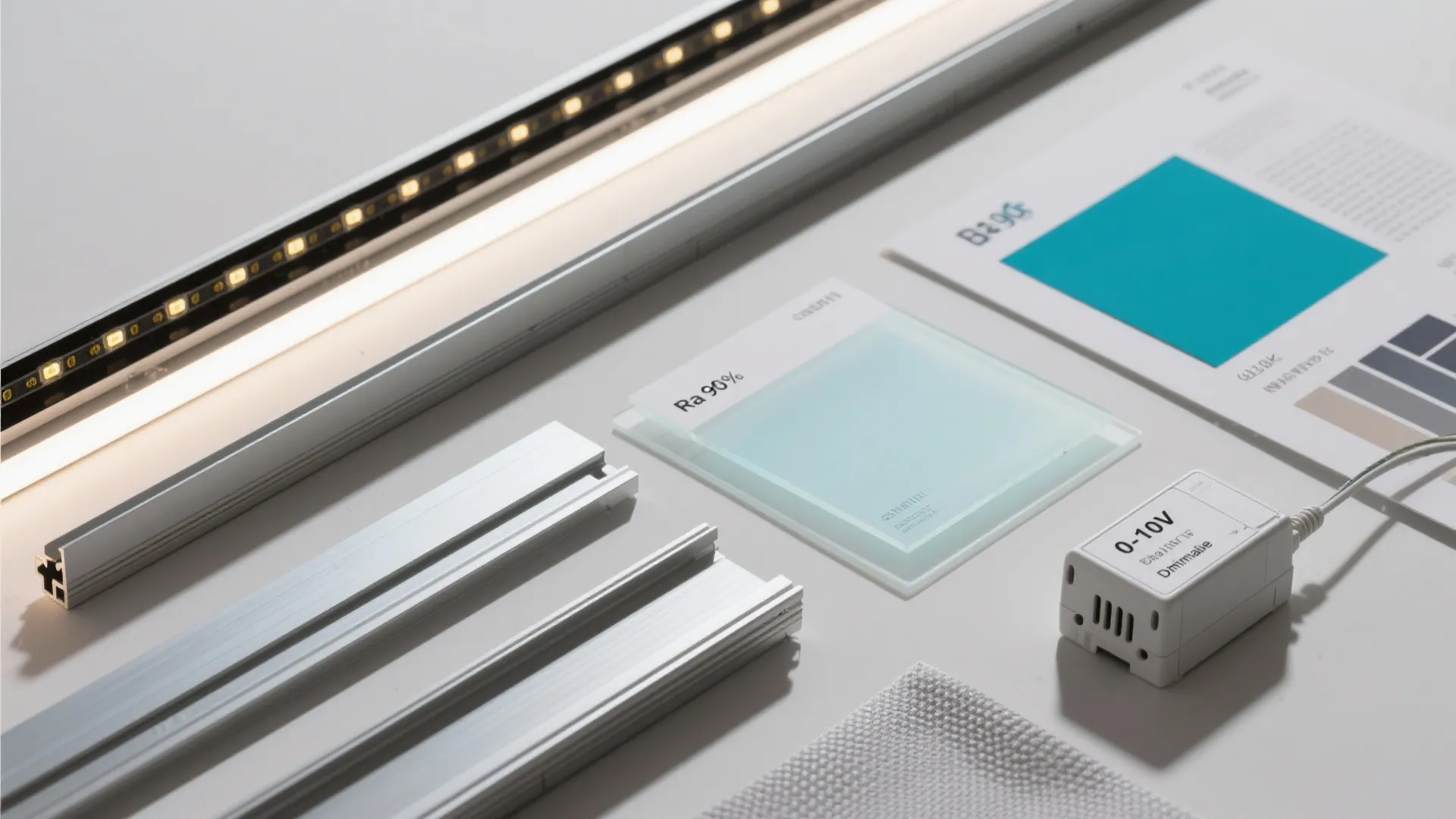

3) High-CRI LEDs for true brand colors (Ra 90+)

My Take: A big global phone brand insisted their cyan matched Pantone across all outlets. We upgraded their boards to Ra 95 strips and the cyan finally stopped “greening out” under cool-blue LEDs. Staff noticed fewer returns of color-sensitive accessories—unexpected bonus.

Pros: High-CRI LEDs present accurate logo colors and skin tones, crucial for lifestyle visuals—a core long-tail priority in mobile shop lighting board design for brand fidelity. Better CRI also makes textures on brushed aluminum or fabric-backed boards read more premium. The U.S. DOE’s SSL fact sheets highlight CRI 90+ as a driver for faithful color rendering in retail scenarios.

Cons: CRI 90+ can cost 10–25% more and may run slightly less efficient (lumens per watt). Some cheaper “CRI 95” listings exaggerate specs—buy from reputable vendors and request LM-80/IES reports.

Tips/Cost: Pair Ra 90+ with 4000K–4500K for a neutral, tech-forward look that flatters both black and white devices. If budget is tight, use high-CRI only on the main brand board and standard LED for secondary promos.

save pin

save pin

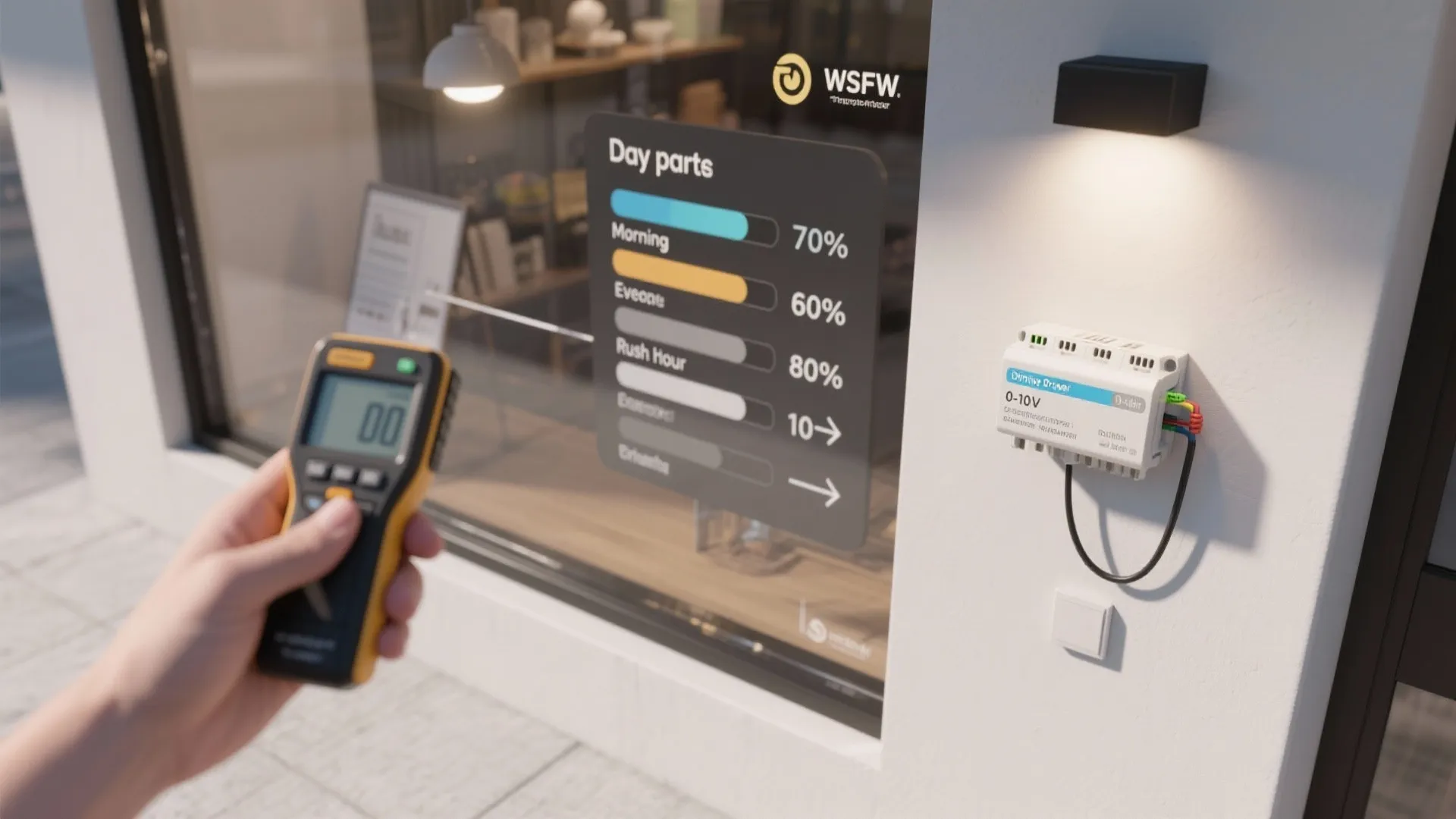

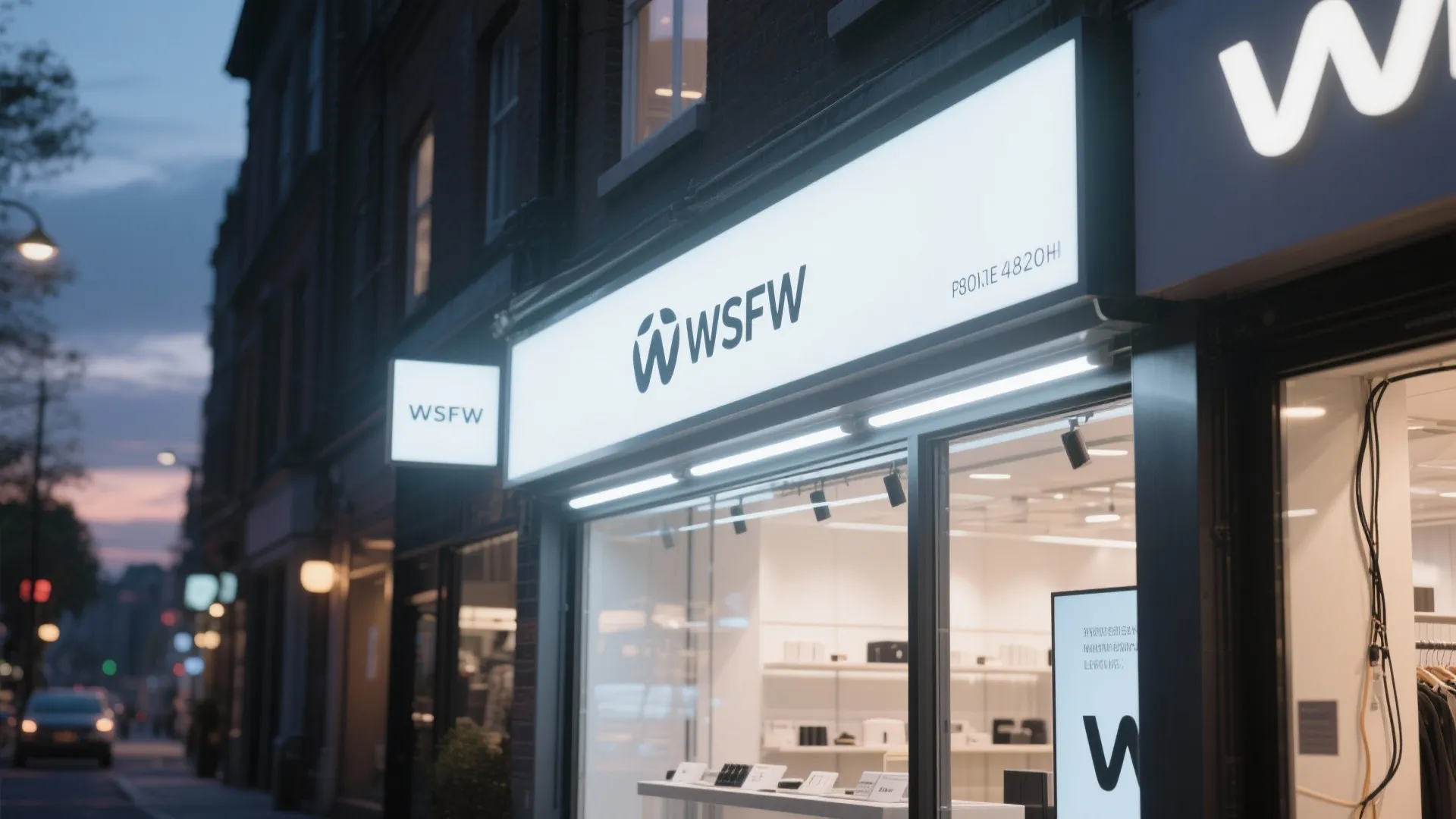

4) Dynamic dimming and daypart scenes (AM/PM presets)

My Take: In a street-facing store, we programmed morning, afternoon, and evening presets. Morning stayed gentle to avoid glare on glossy cases; evening ramped intensity to cut through competing neon. Staff loved the one-button routine—no more overexposed windows at dusk.

Pros: Scene control adapts luminance to ambient light, improving legibility and reducing eye strain—excellent for footfall-heavy corridors and malls. Smart dimming can cut energy use by 20–35% compared with static output, a valuable long-tail advantage for operating cost in small retail.

Cons: Requires drivers compatible with 0–10V, DALI, or smart hubs; coordination with electricians becomes essential. If not tuned, rapid transitions can distract—keep fades at 2–3 seconds.

Tips/Case: Start with three scenes: 60% (AM), 80% (PM), and 100% (rush hour). Use a handheld lux meter to set levels that maintain a readable contrast ratio between board and ambient. Document presets so staff don’t override them during promos.

save pin

save pin

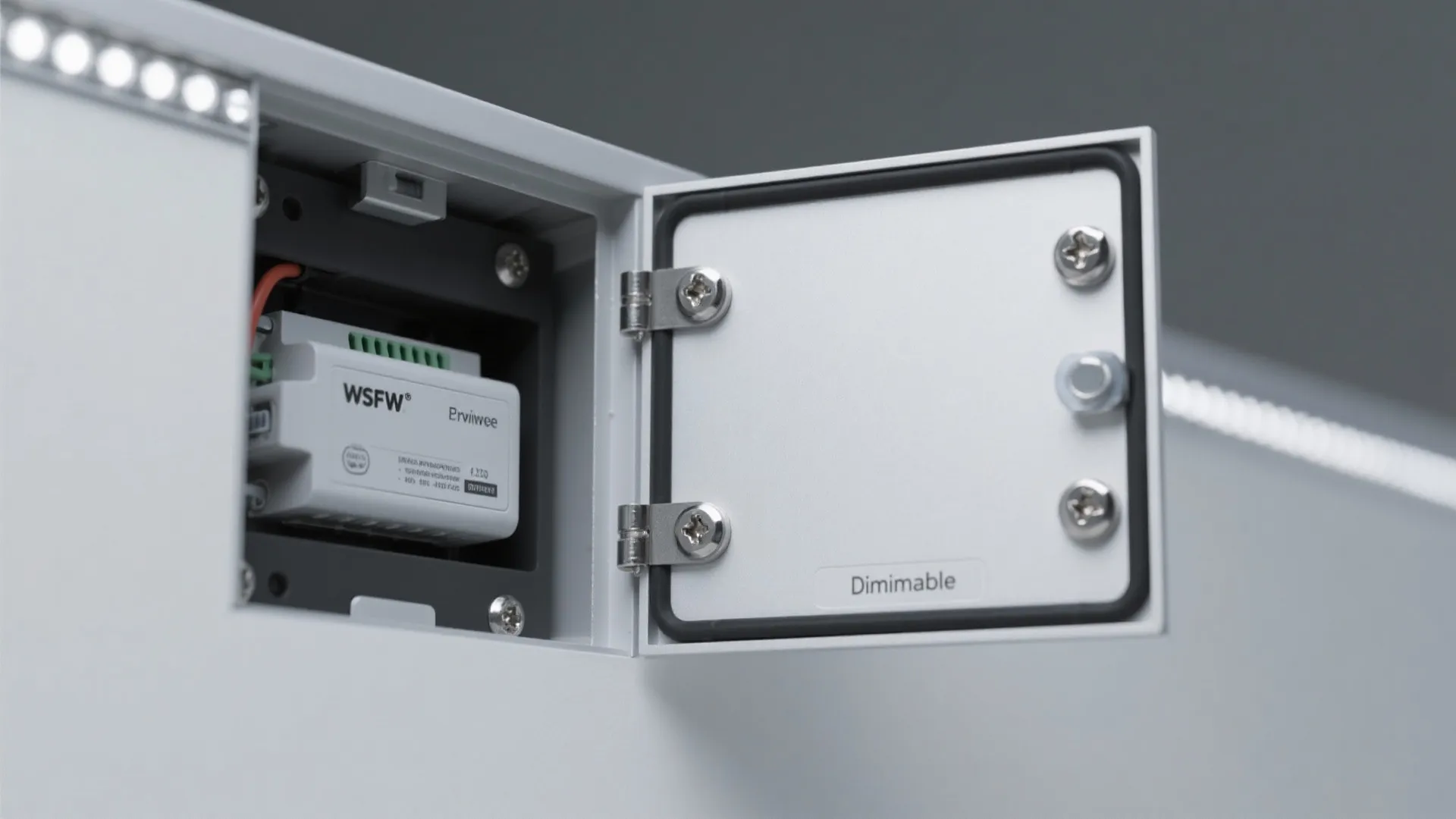

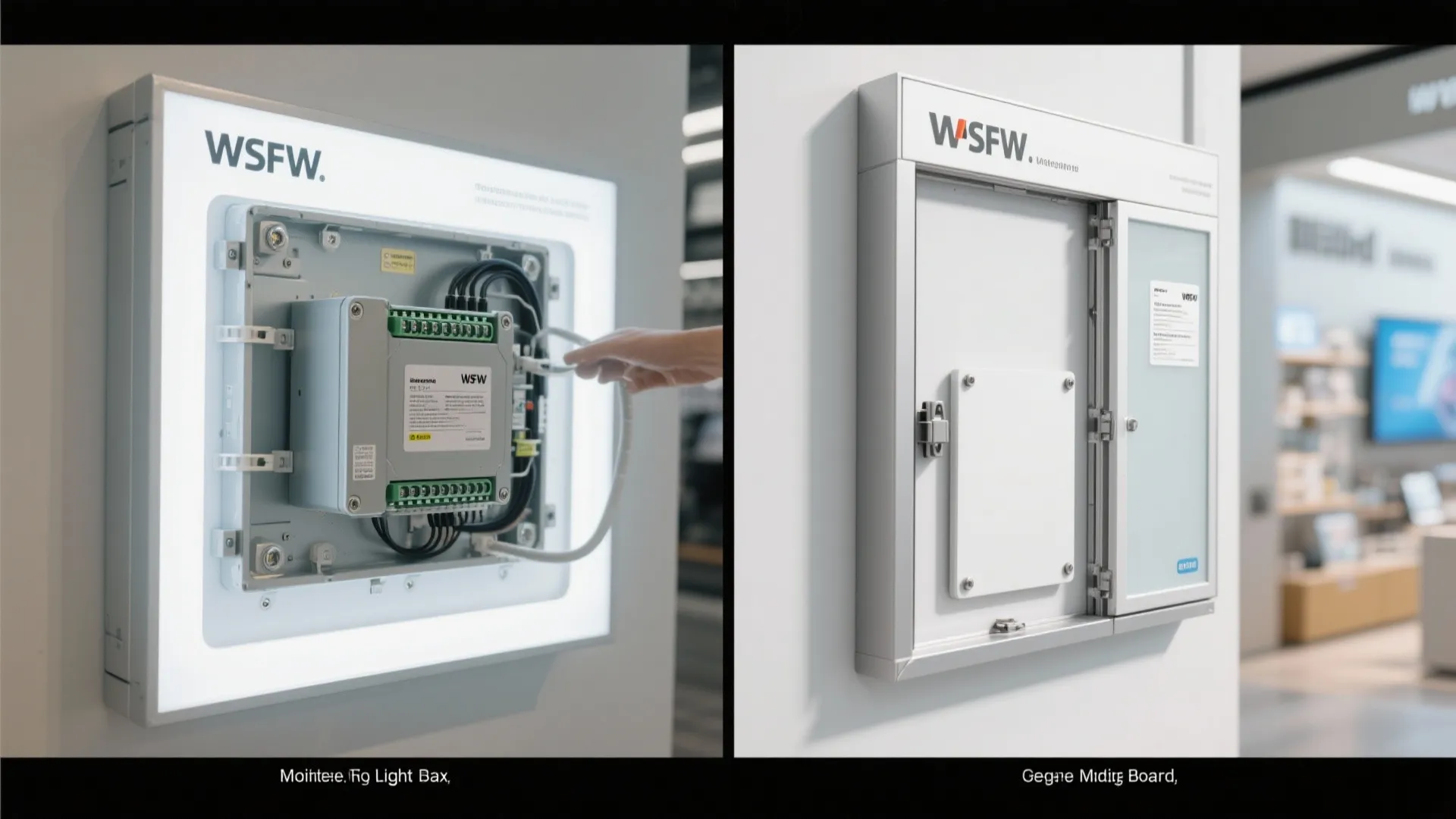

5) Sustainable, easy-maintenance boards (modular faces and service doors)

My Take: After a maintenance nightmare where we had to remove an entire fascia to replace a $20 driver, I standardized on boards with hinged service doors and magnetic face plates. Swaps now take minutes, not hours, and we avoid closing the store for repairs.

Pros: Modular design reduces downtime and waste: swap vinyl or fabric faces without reprinting the rigid core. Using aluminum extrusions with recyclable acrylic supports greener specs—a rising priority in brand tenders, and supported by circular design guidance from platforms like the Ellen MacArthur Foundation.

Cons: Hinges and magnets add a bit of thickness, so ultra-ultra-slim looks may be harder to achieve. If magnets are weak or misaligned, light leaks can appear at seams—test fit before final mounting.

Tips/Cost: Specify captive screws on service doors and label drivers; future you will thank present you. If you change promotions monthly, fabric lightbox faces with silicone edging deliver quick, clean swaps with fewer fingerprints.

For complex counters and accessory walls aligned to the board, I often prototype placement using clean sightline mockups to ensure the board isn’t blocked by tall fixtures and that wiring routes stay accessible.

[Section: 实用策略与细节扩展]

Sizing and hierarchy: On narrow storefronts, I keep the primary board height between 350–450 mm with a width matching 60–70% of the clear opening. This balances legibility and window merchandising. Secondary boards stay 30–40% smaller to preserve brand hierarchy.

Color temperature strategy: For tech retail, 4000–5000K conveys clarity and precision. If your brand leans lifestyle, blend a 3500K halo around a 4200K face for warmth without losing crispness.

Glare control: Matte laminates on printed inserts reduce specular glare; if you must use glossy prints, tilt the board 5–8 degrees downward to bounce reflections away from passersby sightlines.

Power and wiring: Hide drivers in a ventilated channel behind the board, and plan a dedicated circuit with a labeled breaker. I’ve seen too many boards tied to the ceiling fan circuit—cue awkward blackouts during summer spikes.

Durability in high-traffic zones: Use 3–5 mm acrylic with a hard coat in kiosk environments. For wall-mounted boards behind counters, 2–3 mm often suffices with a sturdy frame.

Brand file handling: Request vector logos (SVG/AI) and Pantone references. Calibrate your printer or fabric lightbox provider and run a small color proof before final production.

Regulation and safety: Confirm signage permits and low-voltage code requirements. Use UL/CE listed drivers and fire-retardant substrates where mandated.

Installation sequence: Dry-fit frame, place LEDs, test illumination, install diffuser, attach face, and only then seal edges. Photograph final wiring for your maintenance log.

[Section: 总结]

Small shops don’t limit design—they demand smarter choices. With the right mobile shop lighting board design, you can elevate legibility, preserve brand color, and control operating costs without sacrificing style. The IES guidance on luminance uniformity and color rendering supports what I’ve seen in the field: clarity plus consistency equals better retail impact. Which of these five ideas are you most excited to try in your space?

[Section: FAQ 常见问题]

save pin

save pin

FAQ

1) What size works best for mobile shop lighting board design?

For narrow storefronts, keep the main board 350–450 mm tall and 60–70% of the opening width. Ensure clear sightlines from 10–15 meters and avoid blocking with tall fixtures.

2) What color temperature should I choose?

Tech-forward looks suit 4000–5000K; lifestyle branding benefits from a 3500K halo and a 4200K face. Test on-site at dusk and midday to verify contrast.

3) Is high-CRI worth it for small budgets?

Yes for the main brand board: CRI 90+ preserves logo accuracy and skin tones. The U.S. DOE’s SSL fact sheets note improved color fidelity with higher CRI in retail contexts.

4) Can I dim lighting boards without complex systems?

Use 0–10V or TRIAC dimmable drivers with a simple wall control. Pre-set morning/evening levels and label them so staff can’t accidentally max out during bright afternoons.

5) How do I avoid glare on glossy posters?

Use a diffused acrylic face and position LEDs to minimize hotspots. A slight downward tilt and matte laminate on prints help reduce mirror-like reflections.

6) What materials are most durable?

Aluminum frames with hard-coated acrylic or polycarbonate faces handle high-traffic areas. Magnetic faces and hinged service doors speed maintenance and reduce downtime.

7) How much does a typical board cost?

For a 1200×600 mm edge-lit board with CRI 90, expect $180–$320 including a dimmable driver. Layered halo letters add 20–40% depending on finish and labor.

8) Can I plan placement digitally first?

Yes. I often validate angles, glare, and fixture heights in a 3D check. For example, testing storefront visual concepts can help ensure the board reads clearly from the aisle and street.
