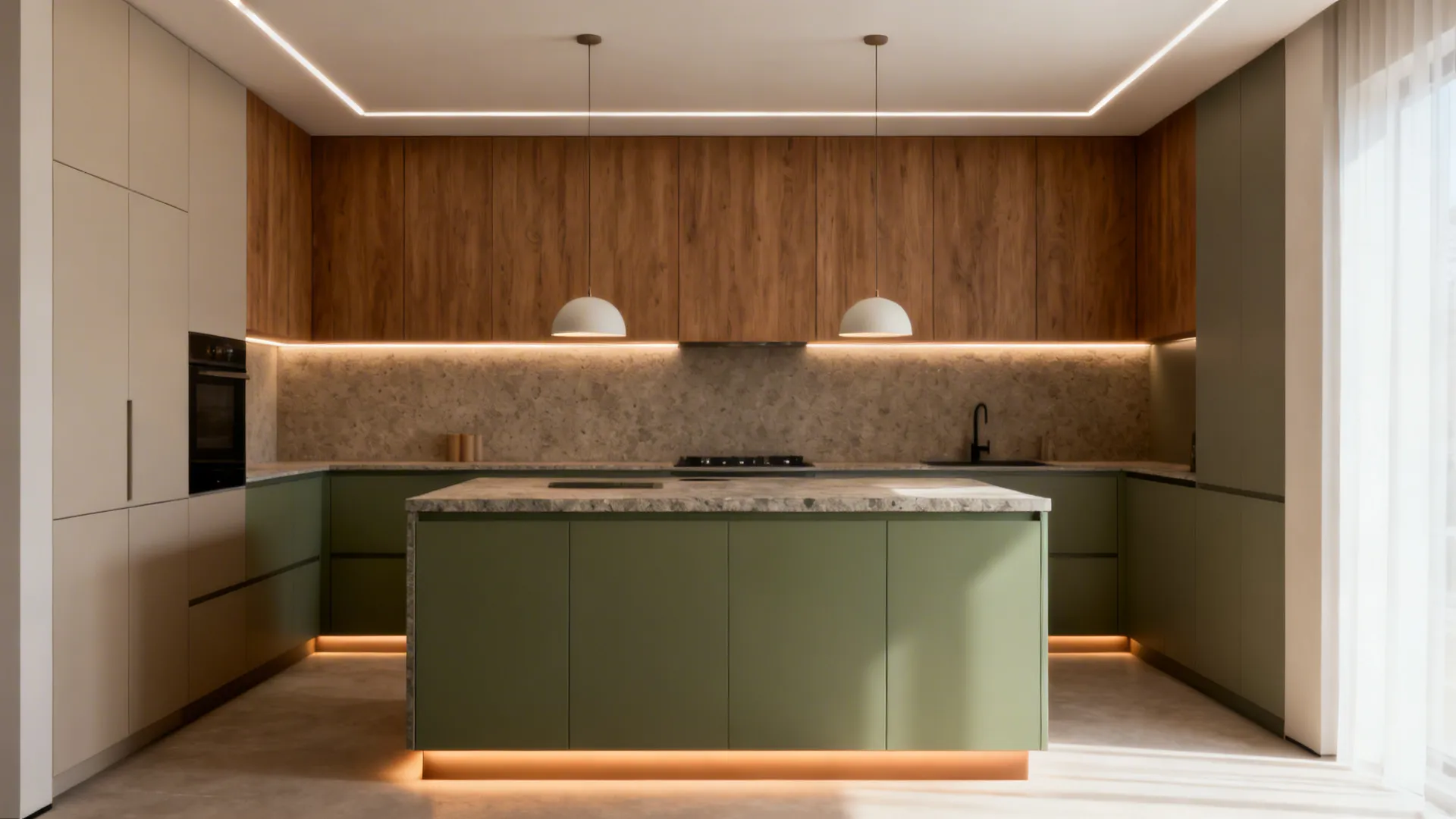

Modular Kitchen Lighting: 5 Ideas That Truly Work: Small spaces, smart light: my field‑tested ways to layer, brighten, and beautify your modular kitchen

I’ve redesigned dozens of compact homes, and the design of lighting in a modular kitchen is where small spaces spark the biggest creativity. Trends like layered lighting, matte finishes, and human‑centric LEDs are reshaping how we cook and live. In this guide, I’ll share 5 modular kitchen lighting ideas I’ve tested in real projects—why they work, the trade‑offs, and how to budget—with expert data sprinkled in. First up, if you love how a minimalist kitchen glows with balanced illumination, this real case on minimalist kitchen storage design perfectly shows how lighting elevates clean lines.

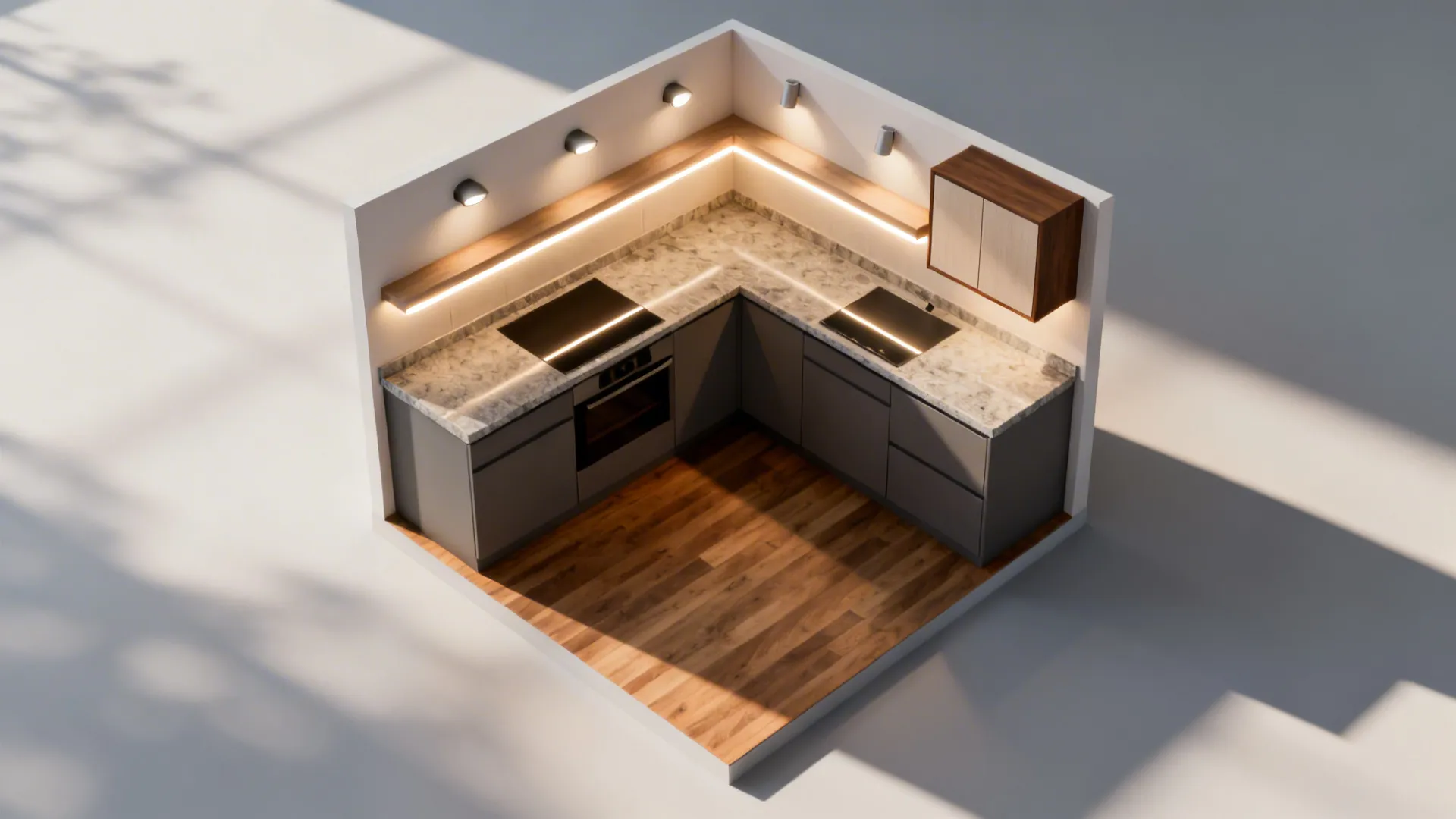

Layered Lighting That Makes Every Task Easy

My Take

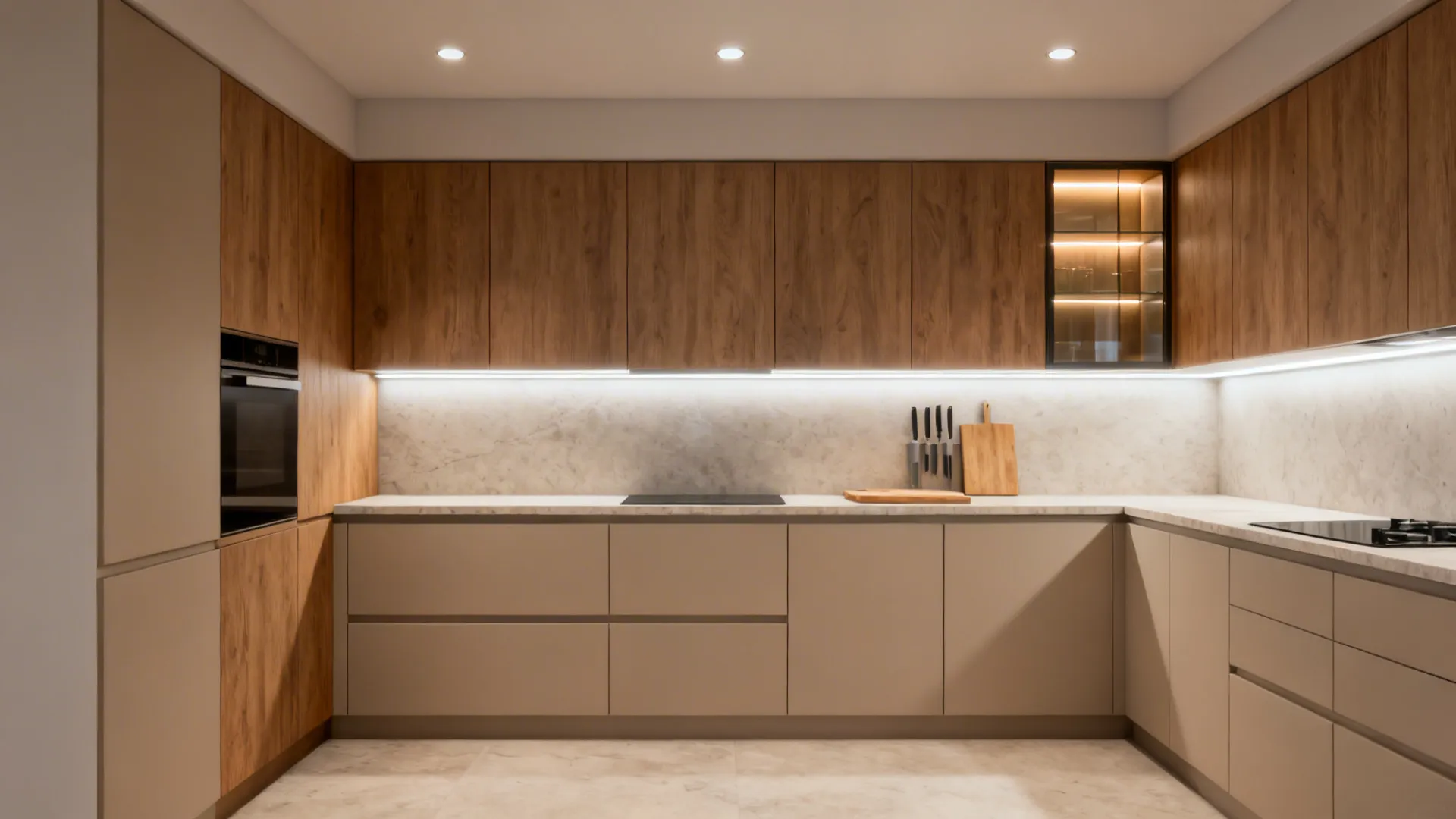

I learned early that a single ceiling light leaves counters in shadow—especially under wall cabinets. My best‑performing modular kitchens combine ambient, task, and accent layers so the room feels bright without glare.

Pros

- Layered lighting distributes brightness evenly, enhancing contrast on the worktop, and supports task accuracy—ideal for knife work and reading labels. Using a flexible modular kitchen lighting plan (ceiling + under‑cabinet + accent) lets you tune light for cooking or dining.

- Dim-to-warm LEDs (e.g., 3000K at dinner, 4000K for prep) align with human-centric lighting ideas; the Illuminating Engineering Society (IES) recommends task lighting that minimizes glare while providing adequate illuminance for kitchens.

- Long-tail benefit: layered task lighting for modular kitchens reduces shadows under cabinets and improves color rendering for food prep.

Cons

- More fixtures mean more switching zones; without a smart plan, you’ll be playing “which switch is which?” daily. I label mine discreetly or use grouped controls.

- Layering can nudge the budget up—drivers, dimmers, channels—so it’s pricier than a single flush light. But it pays back in usability and ambiance.

Tips / Cost

- Budget guideline I use: 50–60% of the lighting budget for ambient and task, 20–30% for under‑cabinet, 10–20% for accent. Add 10% for quality dimmers.

- Start with a lux target: ambient 150–300 lux, task 500–750 lux at the countertop. CRI ≥ 90 for accurate food colors.

save pin

save pin

Under‑Cabinet LEDs: Shadow‑Free Countertops

My Take

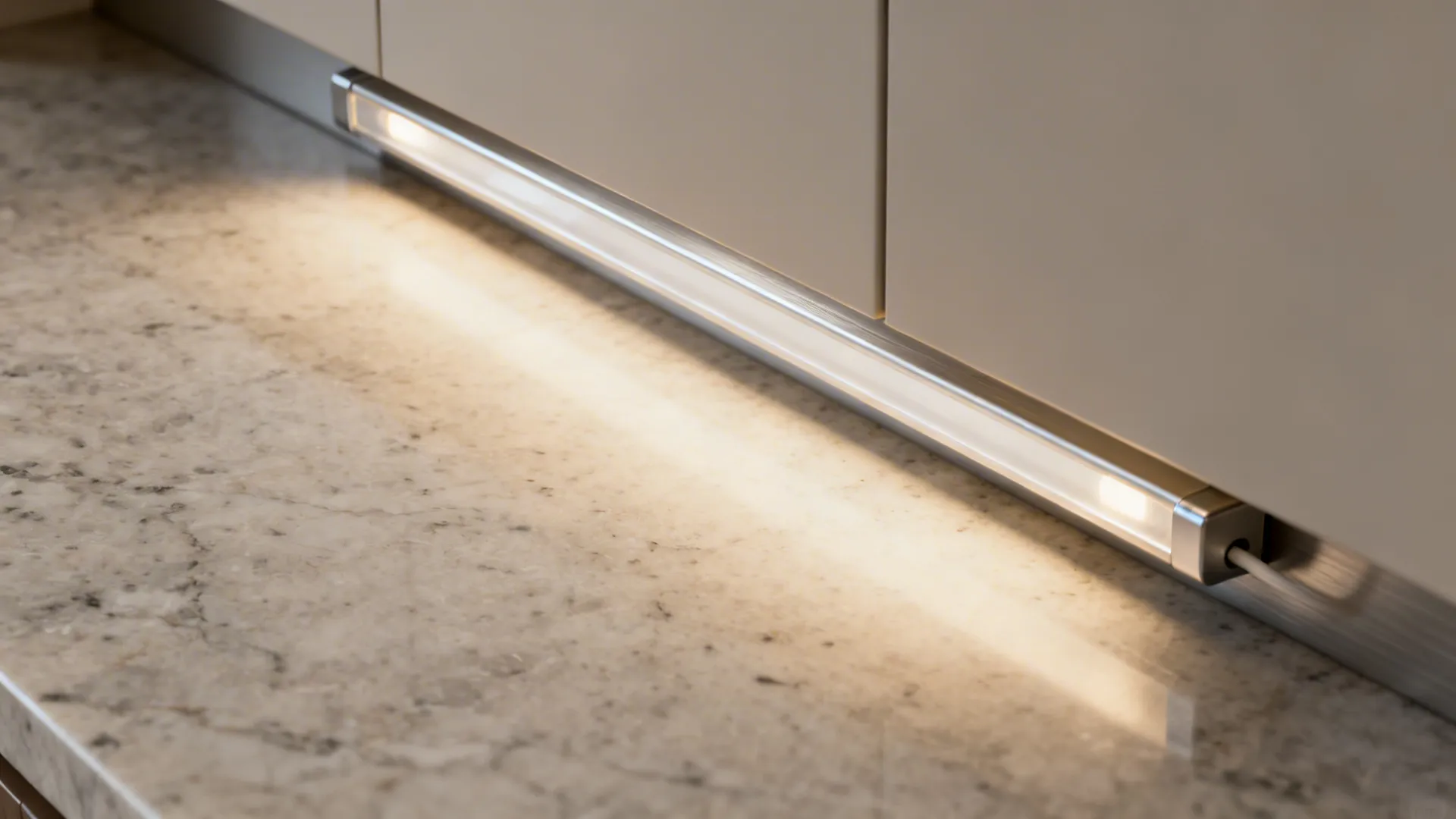

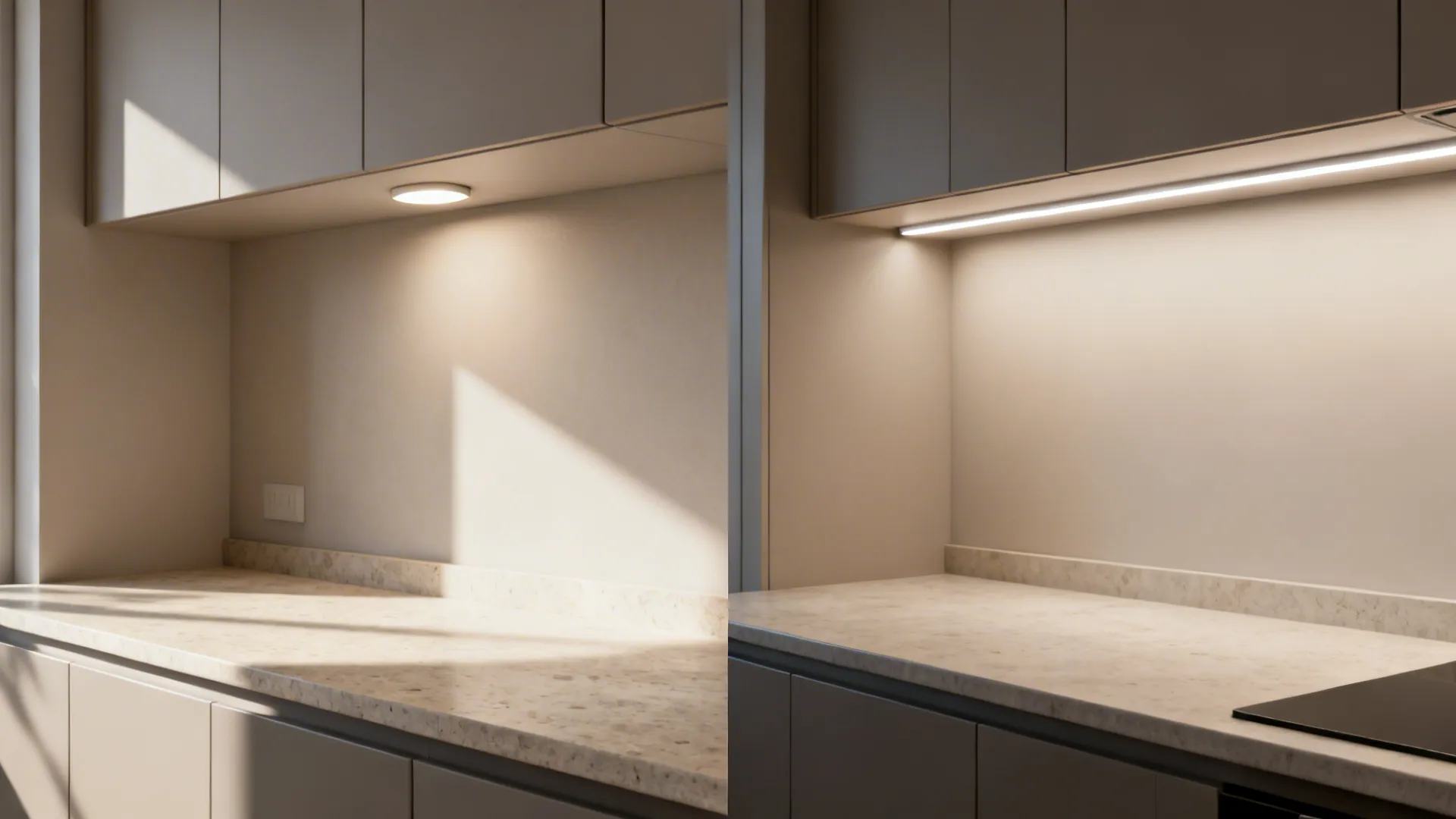

My “aha” moment came in a tiny L‑shaped modular kitchen where the chef kept blocking the ceiling light. A slim LED tape tucked under the cabinets gave razor‑sharp, shadow‑free illumination right where the knife hits the board.

Pros

- Under-cabinet LED strips for modular kitchens deliver high‑contrast task light without glare on glossy backsplashes. Choose 3000–3500K to keep food looking appetizing.

- Continuous diffused channels eliminate scalloping and create a clean line—great for modern, frameless cabinets. Long-tail perk: adhesive aluminum channels improve heat dissipation and LED lifespan.

- According to IES and manufacturers’ data, placing strips 2–3 inches from the cabinet front with a 120° diffuser best washes the counter without hotspots.

Cons

- Surface wires ruin the magic; plan a switched feed inside the wall cabinet during modular installation. Retrofits can be fiddly and may need a slim raceway.

- Cheap LED tape can shift color over time. I learned the hard way: always buy from one batch and vendor for color consistency.

Tips / Case

- For stone tops with glossy finishes, try a matte or frosted diffuser to tame reflections.

- Aim for 500–750 lux on the counter; if you love seeing how smart layouts free the worktop, browse how an L-shaped layout creates more counter space in real-world remodels.

save pin

save pin

Accent & Toe‑Kick Glow: Depth Without Clutter

My Take

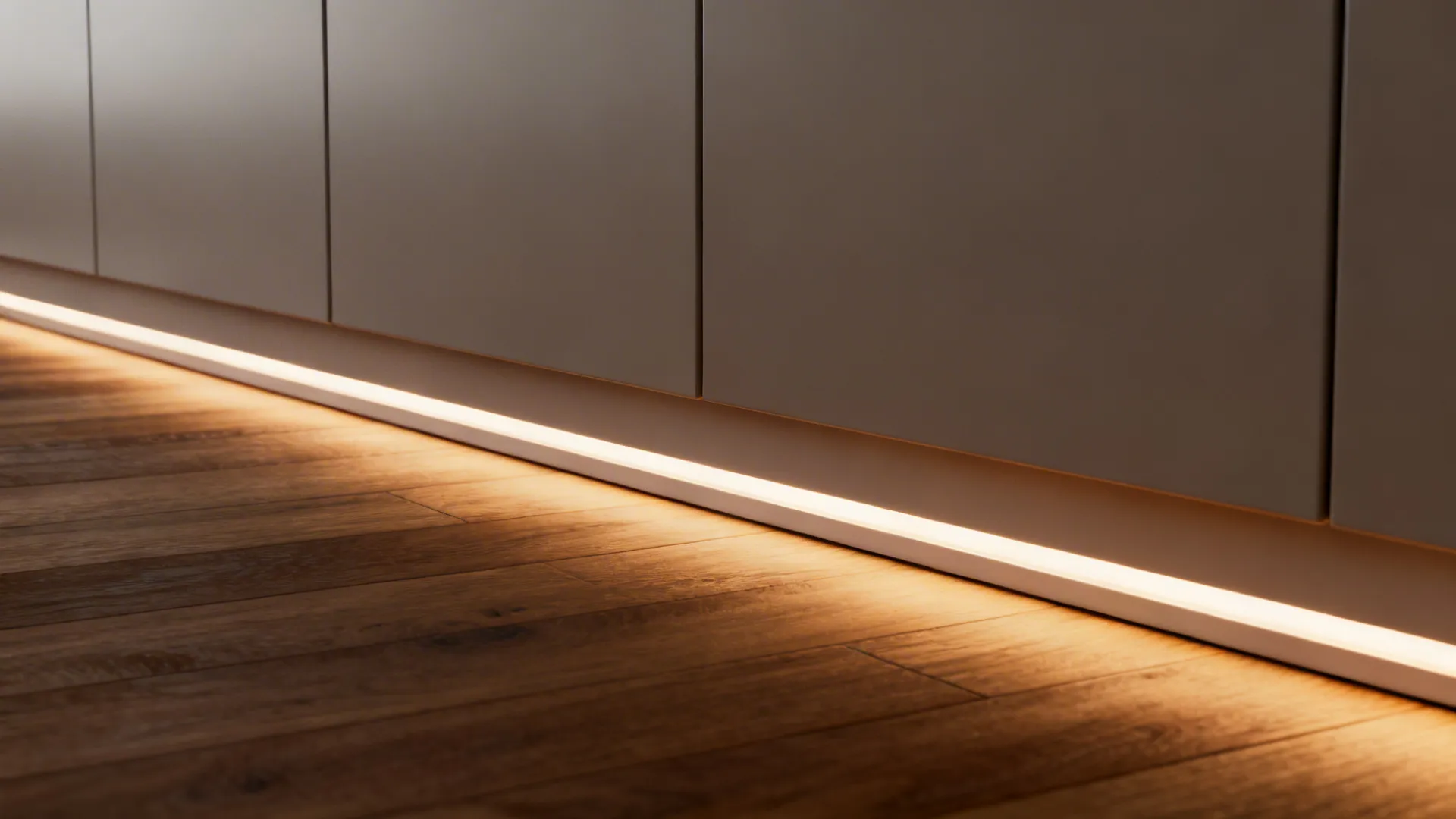

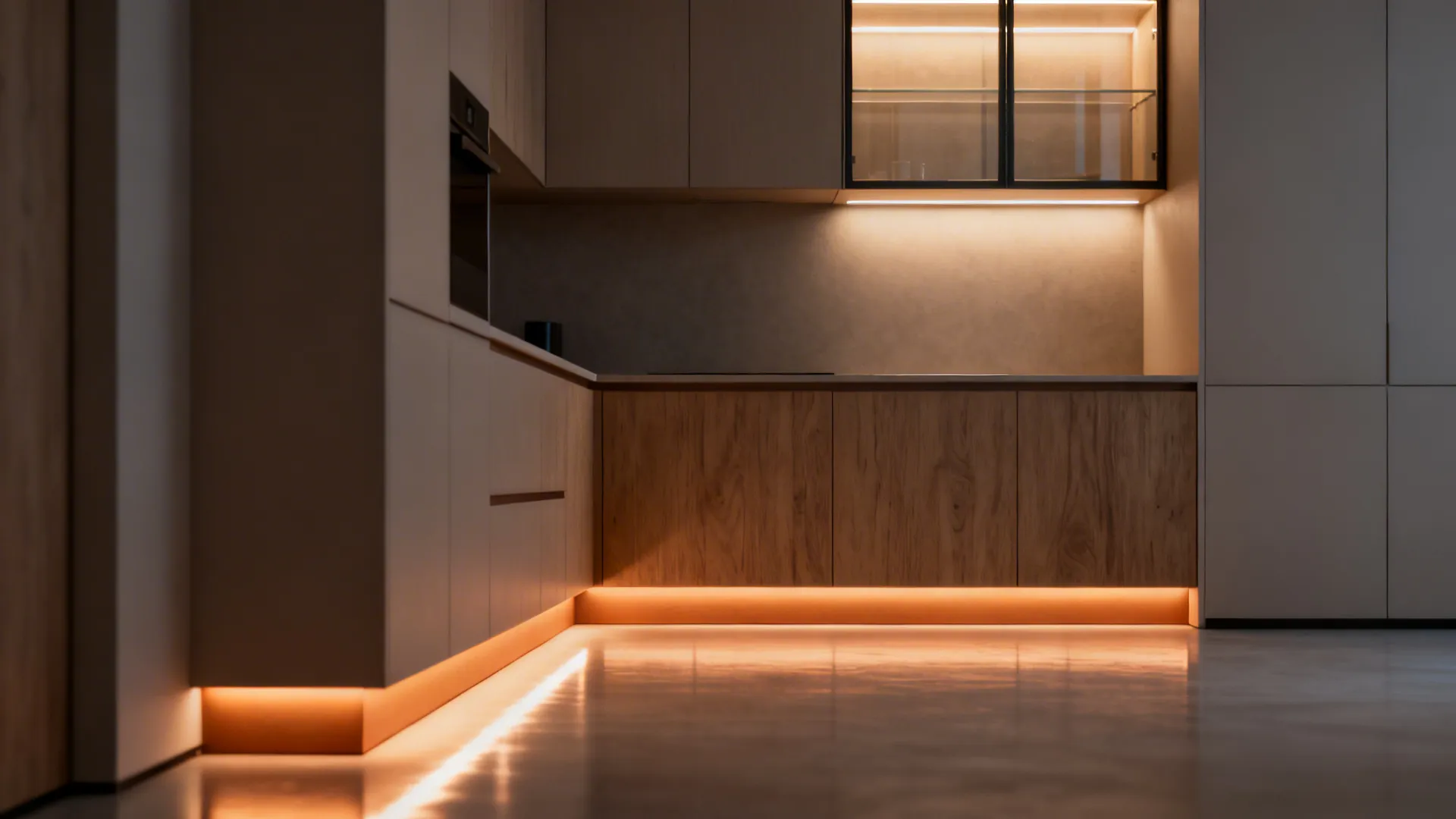

In compact modular kitchens, accent light is my secret sauce. A soft toe‑kick glow visually floats the base cabinets and makes tight corridors feel wider. Clients always think I’ve “made space” out of thin air.

Pros

- LED toe‑kick lighting for modular kitchens adds depth and nighttime wayfinding with minimal power. It’s an elegant, low‑glare accent that flatters textured cabinet fronts.

- Inside glass upper cabinets, micro puck lights or short LED bars showcase ceramics and break up a wall of doors—great when you want living‑room polish in an open kitchen.

- Research on perceived brightness shows that vertical and peripheral illumination increases the sense of spaciousness even at modest light levels.

Cons

- Overdoing accent lines can make the kitchen look like a runway. I cap it at one continuous line (toe‑kick) and one focal cabinet.

- Dust and crumbs highlight underlighted toe‑kicks—keep that vacuum handy. I set a weekly reminder in shared spaces.

Tips / Cost

- Use 2700–3000K for toe‑kicks to keep a cozy, evening vibe. Motion sensors are great for midnight snack runs.

- Keep accent output low (50–100 lux). Diffused channels avoid dotting on reflective flooring.

save pin

save pin

Pendant Strategy Over Islands and Peninsulas

My Take

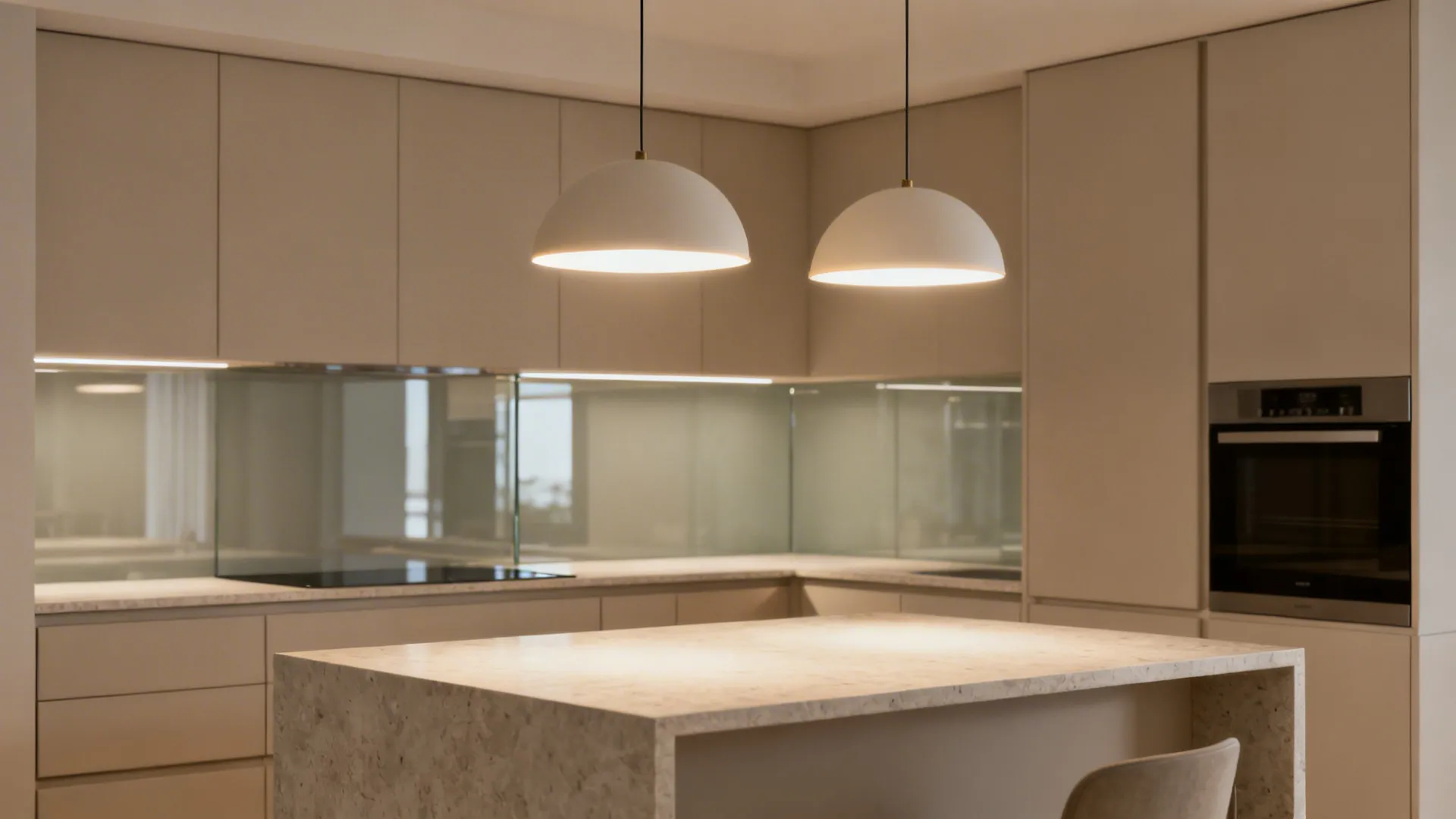

Pendants do more than look pretty—they balance ambient and task light. In a recent peninsula kitchen, I used two small domes instead of one big drum to avoid sightline clutter and hot spots.

Pros

- Properly scaled pendants for modular kitchens add focused task light and a visual anchor without blocking views. Hang bottoms 28–34 inches above the counter; use dimmable 3000–3500K lamps.

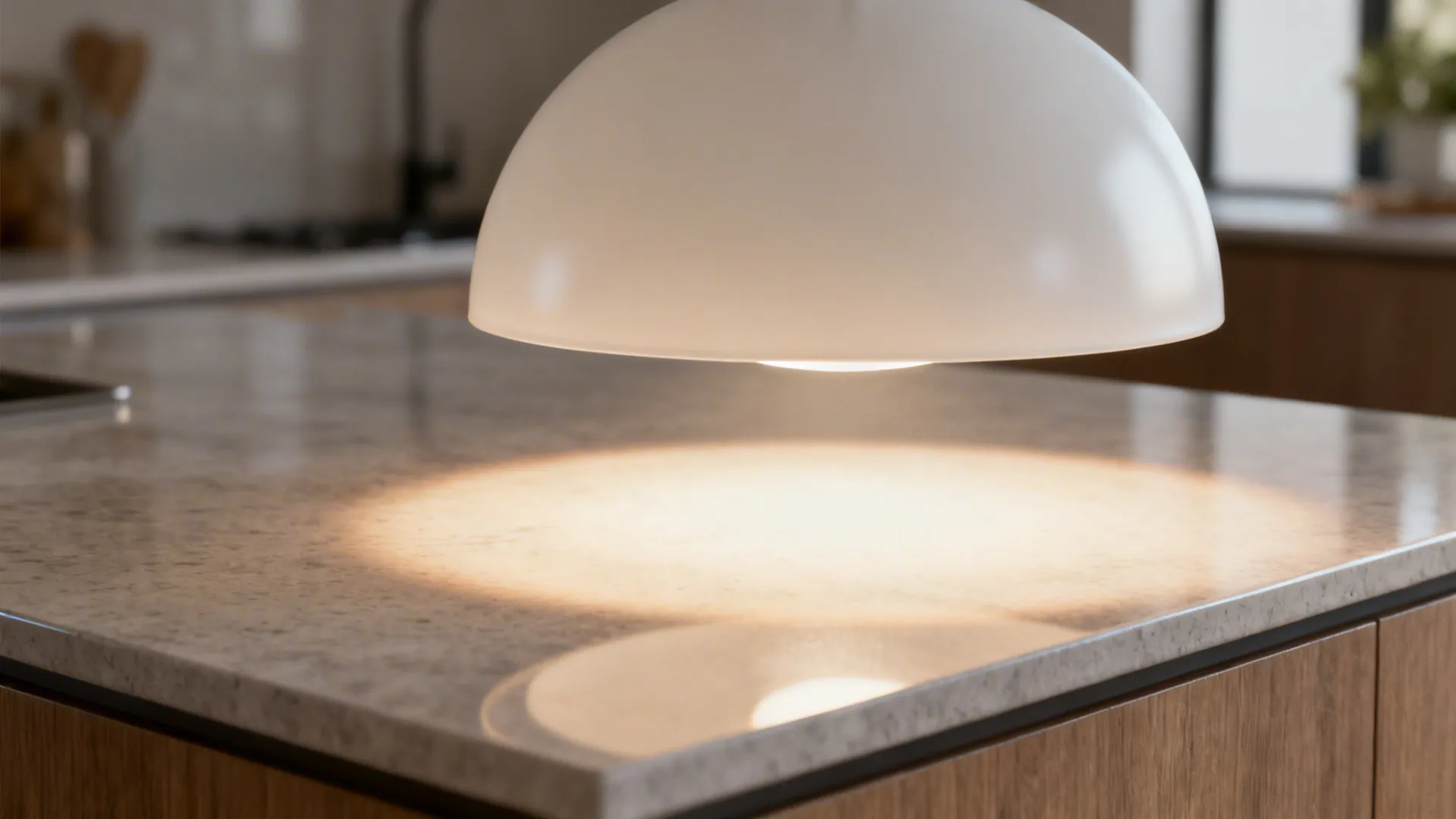

- With semi‑opaque shades, you get downlight for chopping and a soft halo for dining. Long‑tail edge: layered pendant lighting for small kitchens doubles as decorative focal points without new millwork.

- The American Lighting Association suggests spacing pendants roughly one pendant diameter apart; it keeps light even and the composition calm.

Cons

- Oversized pendants shrink a small kitchen visually. Measure thrice, buy once—I’ve returned more than a few on clients’ behalf.

- Cleaning is real. Open shades gather grease; consider closed tops or washable finishes if you cook often.

Tips / Case

- For narrow peninsulas, two 8–10 inch shades beat a single 16–18 inch piece. Use high‑CRI bulbs for food and skin tones.

- If you’re exploring how glass backsplashes boost a kitchen’s openness, test pendant reflections in a 3D preview to avoid mirror‑ball glare.

save pin

save pin

Smart Controls, Color, and CRI: The Finishing Touch

My Take

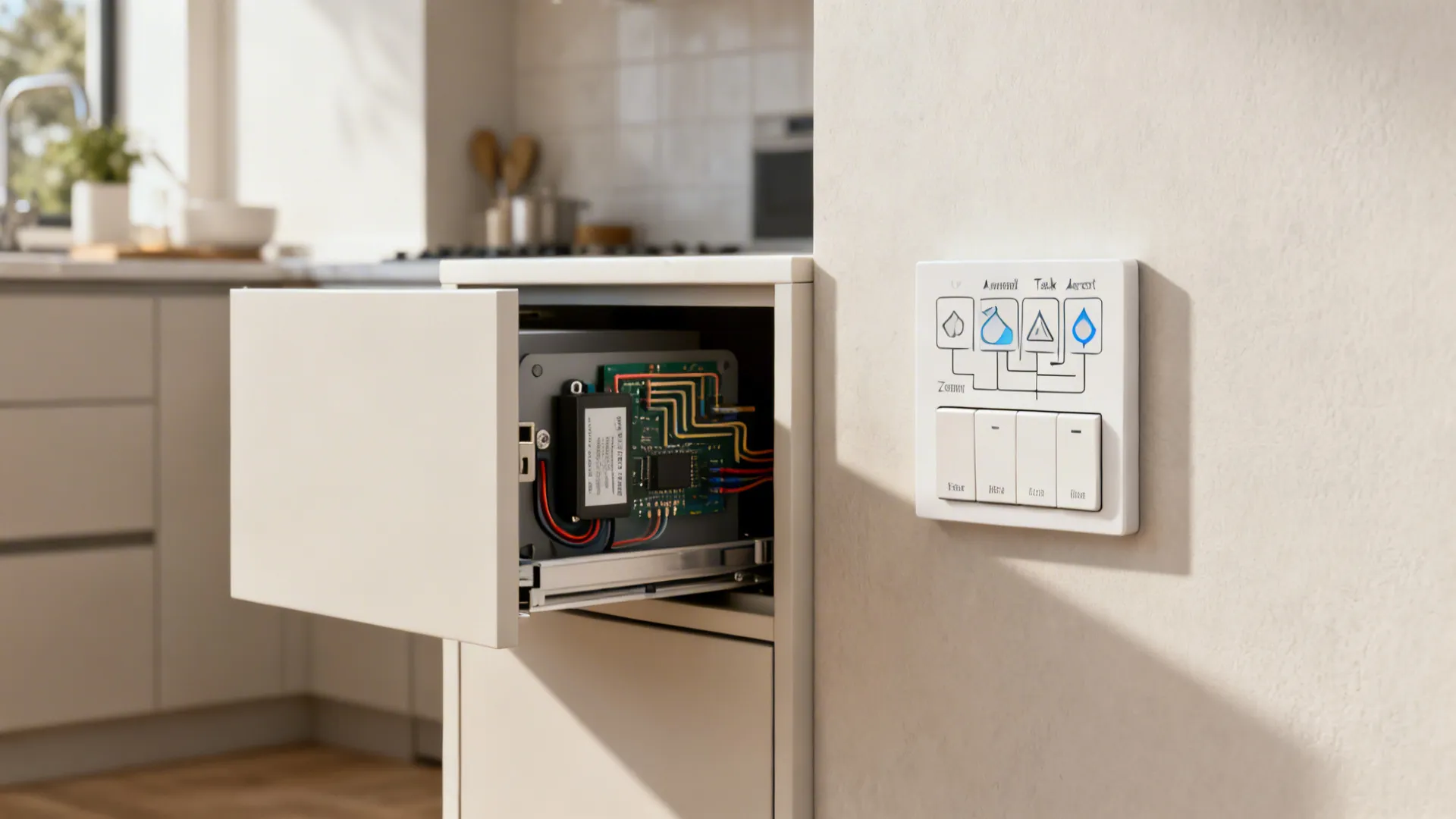

Great fixtures can still feel wrong without smart control. In my own micro‑kitchen, scene presets—Prep, Dine, Night—made the space calmer and kept energy use down.

Pros

- Tunable white lighting for modular kitchens (2700–4000K) adapts to time of day: cooler for prep, warmer for meals. High CRI (≥90) reveals natural food colors and wood tones.

- Smart dimmers and grouped zones turn a complex layered plan into two taps. Long‑tail benefit: human‑centric settings maintain circadian comfort, especially in window‑poor kitchens. The WELL Building Standard and IES both emphasize appropriate spectrum and glare control for wellbeing.

- Occupancy sensors on toe‑kicks or pantry lights cut wasted watts and add safety.

Cons

- Too many apps spoil the broth. Stick to one ecosystem or a physical keypad—my rule after a client juggled three phone apps to make coffee.

- Color tuning can add 15–30% to cost versus static LEDs. If budget is tight, prioritize CRI and dimming first.

Tips / Cost

- Sequence install: rough wiring, drivers in accessible cabinets, label zones, then program scenes. Screenshot settings for future reference.

- Aim for 8–12 W/m for under‑cabinet strips, 3–5 W/m for toe‑kicks, 8–15 W/fixture for pendants with high efficacy lamps.

save pin

save pin

Summary

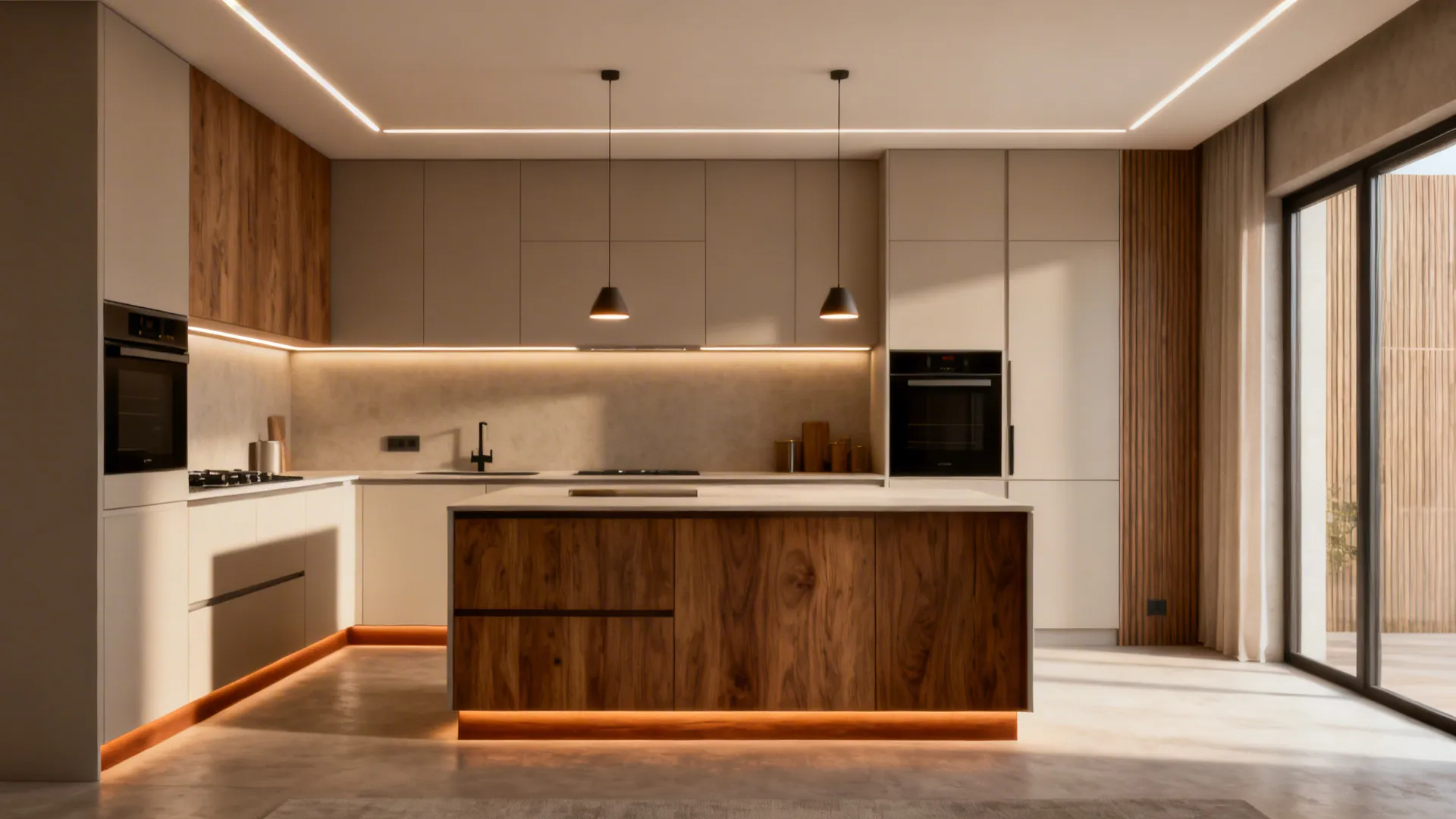

Small kitchens don’t limit design—they demand smarter choices. The design of lighting in a modular kitchen thrives on layers: ambient for comfort, task for safety, accent for soul, finished with simple controls and high CRI. Authorities like the IES remind us to balance illuminance and glare; I’ll add that mood matters just as much. Which lighting idea are you most excited to try in your own modular kitchen?

save pin

FAQ

1) What is the best color temperature for a modular kitchen?

For prep, 3500–4000K keeps contrast crisp; for dining, 2700–3000K adds warmth. If you can, use tunable white to shift by activity.

2) How many lighting layers should a small modular kitchen have?

At least three: ambient (ceiling), task (under‑cabinet), and accent (toe‑kick or cabinet). This layered lighting approach minimizes shadows and adds depth.

3) How bright should the countertop be?

Target 500–750 lux on work surfaces. According to the Illuminating Engineering Society (IES), adequate task illuminance and low glare improve safety and accuracy.

4) Do I need high CRI LEDs?

Yes—CRI ≥ 90 keeps produce, meat, and wood tones natural. It’s especially important in compact kitchens where surfaces are close and colors interact.

5) Are pendants practical in a small kitchen?

Absolutely—keep shades 8–12 inches wide, hung 28–34 inches above the counter. Choose dimmable, high‑CRI bulbs and avoid overly reflective finishes.

6) Can I add under‑cabinet lights without rewiring?

Yes—plug‑in LED bars with cable management can work, but a switched hardwire is cleaner. Use diffused channels to avoid hotspots on glossy backsplashes.

7) How do I avoid glare on glossy tiles or stone?

Use frosted diffusers, lower output, and aim lights obliquely. Matte finishes and micro‑texture tiles reduce specular reflections.

8) What’s a reasonable budget for modular kitchen lighting?

For compact spaces, plan $300–$900 for quality LEDs and controls, more if you add smart tunable systems. If you want layout‑plus‑lighting simulations, explore examples like how wood accents create a warm kitchen mood to test finishes and light interaction.
