Opening a Load Bearing Wall Between Kitchen and Living Room: What homeowners must know before removing a structural wall to create an open kitchen–living layout

Direct Answer

Opening a load bearing wall between a kitchen and living room is possible, but the wall cannot simply be removed. A structural beam and proper load transfer system must replace it to support the weight above. The project always requires structural calculations, permits, and professional installation.

Quick Takeaways

1. Load bearing walls support structural weight and must be replaced with a beam when opened.
2. Engineering approval and building permits are required in most regions.
3. Steel or LVL beams are commonly used to carry the load safely.
4. Costs are often driven more by structural work than by finishing.
5. Proper layout planning is essential before removing the wall.

Introduction

Opening a load bearing wall between kitchen and living room areas is one of the most common renovation requests I see from homeowners. After working on residential interiors for more than a decade, I can tell you the motivation is almost always the same: people want an open, social layout where cooking, dining, and relaxing happen in one connected space.

But here’s the part most renovation shows gloss over. The moment that wall is structural, you’re not just changing a layout—you’re modifying the building’s load path. That means engineering, beams, temporary supports, inspections, and sometimes surprisingly complex design decisions.

Before any demolition begins, I always recommend mapping the new space visually. Many homeowners find it helpful to experiment with visualizing an open kitchen and living room layout in 3D before construction. Seeing the circulation paths and furniture placement early can prevent expensive mistakes.

In this guide, I’ll walk through what actually happens when you open a load bearing wall, the structural options available, the hidden costs most articles skip, and how to design the new space so it truly works—not just visually, but functionally.

save pin

How Do You Know If the Kitchen Wall Is Load Bearing?

Key Insight: Most walls between kitchens and living rooms in older homes are load bearing because they run perpendicular to floor joists.

In practice, identifying a load bearing wall usually starts with the structure above it. During remodel consultations, I typically check the basement framing or attic structure first.

Common indicators a wall may be load bearing:

1. The wall runs perpendicular to floor joists
2. There is another wall or beam directly above it
3. It sits near the center of the house
4. It supports a second floor or roof structure

However, these are only clues. Final confirmation usually comes from a structural engineer or the original construction drawings.

Real-world example: In a Los Angeles bungalow project I worked on, a small wall between the kitchen and living room looked harmless. But once we opened the ceiling, we discovered it supported both the roof ridge and a second-floor bathroom. Removing it required a concealed steel beam spanning 18 feet.

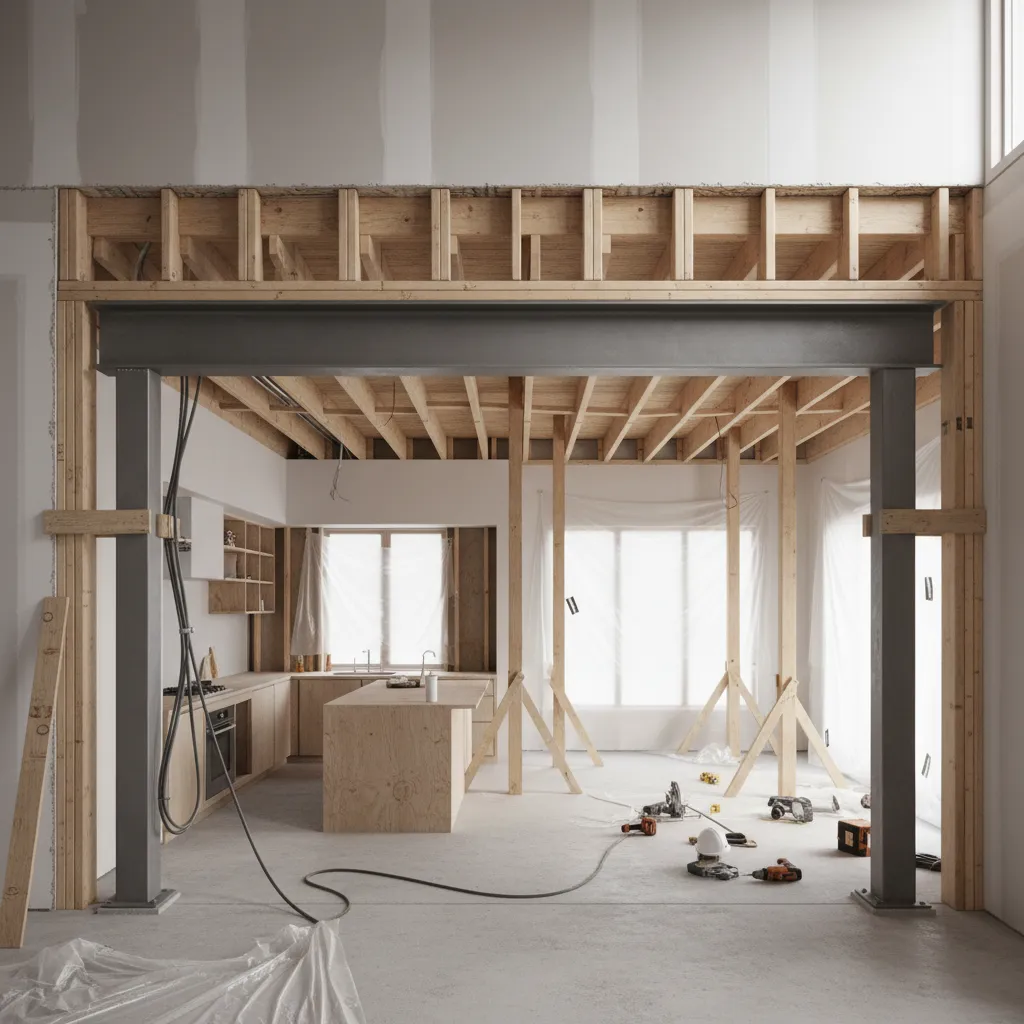

What Happens Structurally When You Remove a Load Bearing Wall?

Key Insight: The wall is replaced with a structural beam that transfers weight to posts and foundations.

Think of the wall as a vertical column that spreads weight across the floor. When you remove it, that load must be redirected somewhere else.

The typical structural replacement includes:

1. Temporary support walls during construction
2. A structural beam (steel or LVL)
3. Vertical posts at beam ends
4. Load transfer down to foundation or footings

save pin

Common beam choices:

1. Steel I-beams – slimmer profile but heavier installation
2. LVL (laminated veneer lumber) – easier installation but thicker
3. Flitch beams – combination of steel and wood

According to guidance from the American Wood Council and most structural engineers, beam sizing depends on span length, load above, and local building codes.

Hidden Design Mistakes When Opening a Kitchen Wall

Key Insight: The biggest problems after removing a wall are usually layout and circulation issues—not structural ones.

Once the wall disappears, the space changes dramatically. But many remodels fail because homeowners never rethink the kitchen layout.

Mistakes I see repeatedly:

1. Kitchen islands blocking natural walking paths
2. No visual boundary between cooking and living areas
3. Poor lighting distribution after wall removal
4. Appliances suddenly facing the living room

Before construction begins, I strongly recommend planning furniture flow and kitchen zones. Tools that help homeowners experiment with

save pin

testing different kitchen island and circulation layouts can reveal conflicts early.

How Much Does It Cost to Open a Load Bearing Wall?

Key Insight: Structural work—not demolition—is the biggest cost factor.

Based on projects I’ve worked on in California and other U.S. markets, the cost breakdown typically looks like this:

1. Structural engineer: $500–$1,500
2. Permits and inspections: $300–$1,200
3. Beam materials: $800–$5,000
4. Labor and installation: $2,000–$8,000
5. Drywall, paint, finishing: $1,000–$3,000

Total typical range: $5,000–$20,000+

The hidden cost many homeowners miss is foundation reinforcement. If the new beam load concentrates on a weak floor area, contractors may need new footings.

Should You Remove the Entire Wall or Leave a Partial Opening?

Key Insight: Full wall removal isn’t always the best design choice.

Open concept layouts are popular, but they’re not universally better. In many homes, a partial opening creates better balance.

Three common design approaches:

1. Full beam opening (completely open space)
2. Half wall with island connection
3. Framed opening or large pass-through

Interestingly, partial openings often solve two common complaints about open layouts: noise travel and lack of storage walls.

save pin

Answer Box

Opening a load bearing wall between kitchen and living room spaces requires replacing the wall with a structural beam and support posts. The project involves engineering calculations, permits, and careful layout planning to maintain both structural safety and functional design.

How to Plan the New Open Layout Before Construction

Key Insight: The success of an open kitchen–living room depends more on layout planning than demolition.

Before any structural work begins, I always map three critical things:

1. Circulation paths between rooms
2. Sightlines from seating areas
3. Kitchen work triangle efficiency

Homeowners exploring ideas often start by experimenting with furniture placement across a combined living and kitchen space. Seeing how the sofa, island, and dining table interact can reveal whether the opening should be 8 feet or 16 feet wide.

From experience, the best open layouts still maintain subtle zoning through lighting, flooring transitions, or ceiling treatments.

Final Summary

1. Load bearing walls cannot be removed without structural replacement.
2. Beam installation redistributes weight safely.
3. Layout planning is critical before demolition.
4. Costs are driven mainly by engineering and structural work.
5. Partial openings sometimes work better than full removal.

FAQ

Can you remove a load bearing wall between kitchen and living room?

Yes. But the wall must be replaced with a structural beam and posts to carry the load safely.

How much does opening a load bearing wall between kitchen and living room cost?

Most projects range from $5,000 to $20,000 depending on beam size, permits, and structural complexity.

Do you need a structural engineer for this project?

In most regions, yes. Engineers determine beam size and ensure the structure remains safe.

How long does the project usually take?

Structural installation typically takes 2–5 days, but permitting and finishing can extend the project to several weeks.

Is it cheaper to leave part of the wall?

Often yes. Partial openings require smaller beams and fewer structural modifications.

Can a beam be hidden in the ceiling?

Sometimes. If ceiling joists allow space, the beam can be recessed. Otherwise it may remain visible.

Does removing a wall increase home value?

Open kitchen–living layouts are highly desirable in many markets and can improve resale appeal.

Will removing the wall affect flooring?

Yes. Flooring patches are common where the old wall sat and may require refinishing.
