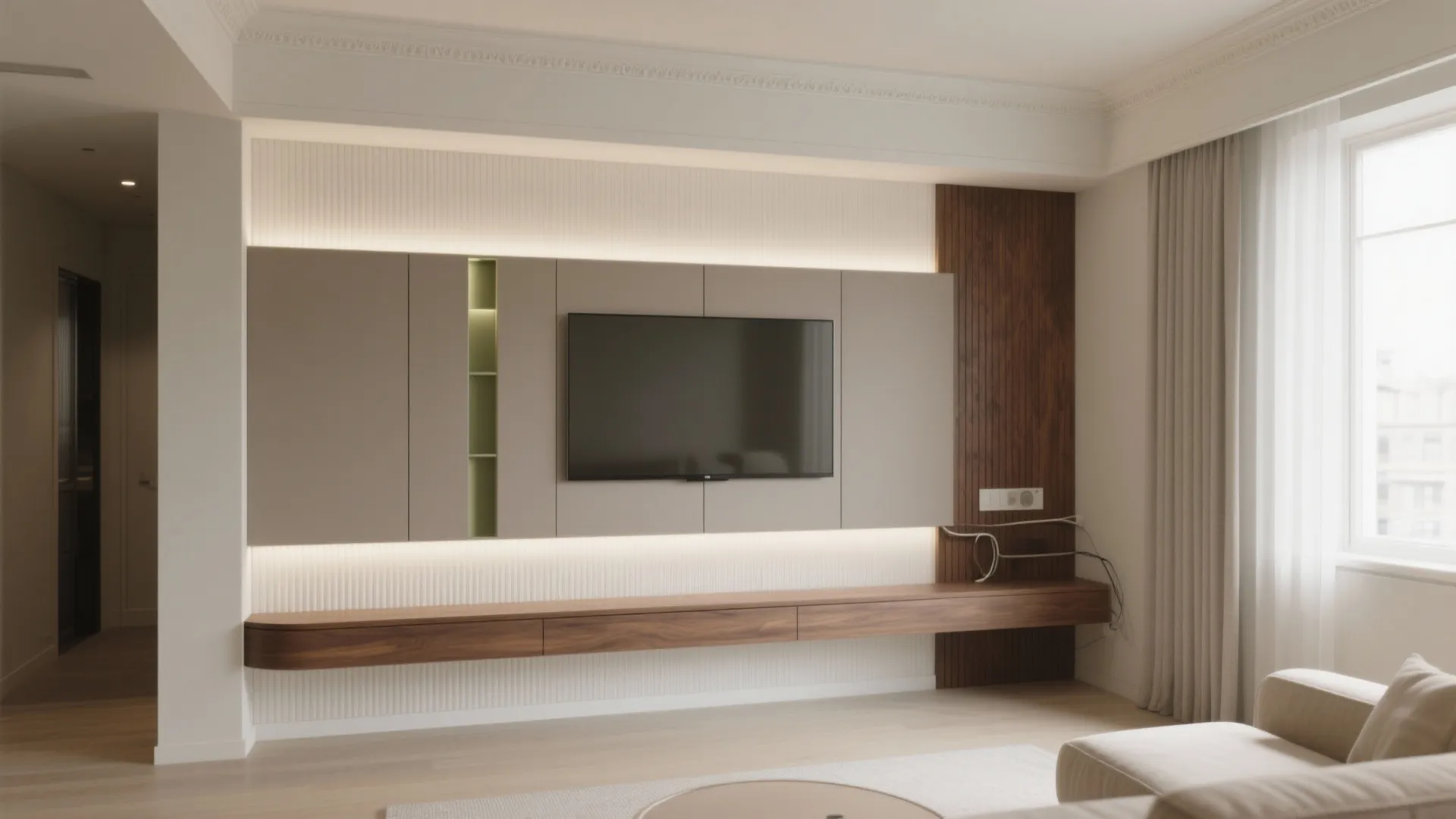

POP Design for LCD TV Wall Unit: 5 Smart Ideas: How I craft show-stopping—and practical—POP TV walls for compact living rooms

Once, a client asked me to “make the TV look like it’s floating in a hotel lobby, but on a chai budget.” I laughed, then remembered I’d once mis-measured a TV niche by 8 mm—had to rip and redo the POP skin. These days I always mock up and visualize the room flow first, because small spaces punish guesswork and reward smart planning.

And honestly, tiny living rooms are my favorite—constraints spark big creativity. Here are five POP design ideas for an LCD TV wall unit that I’ve honed over a decade, with what works brilliantly and what to watch out for.

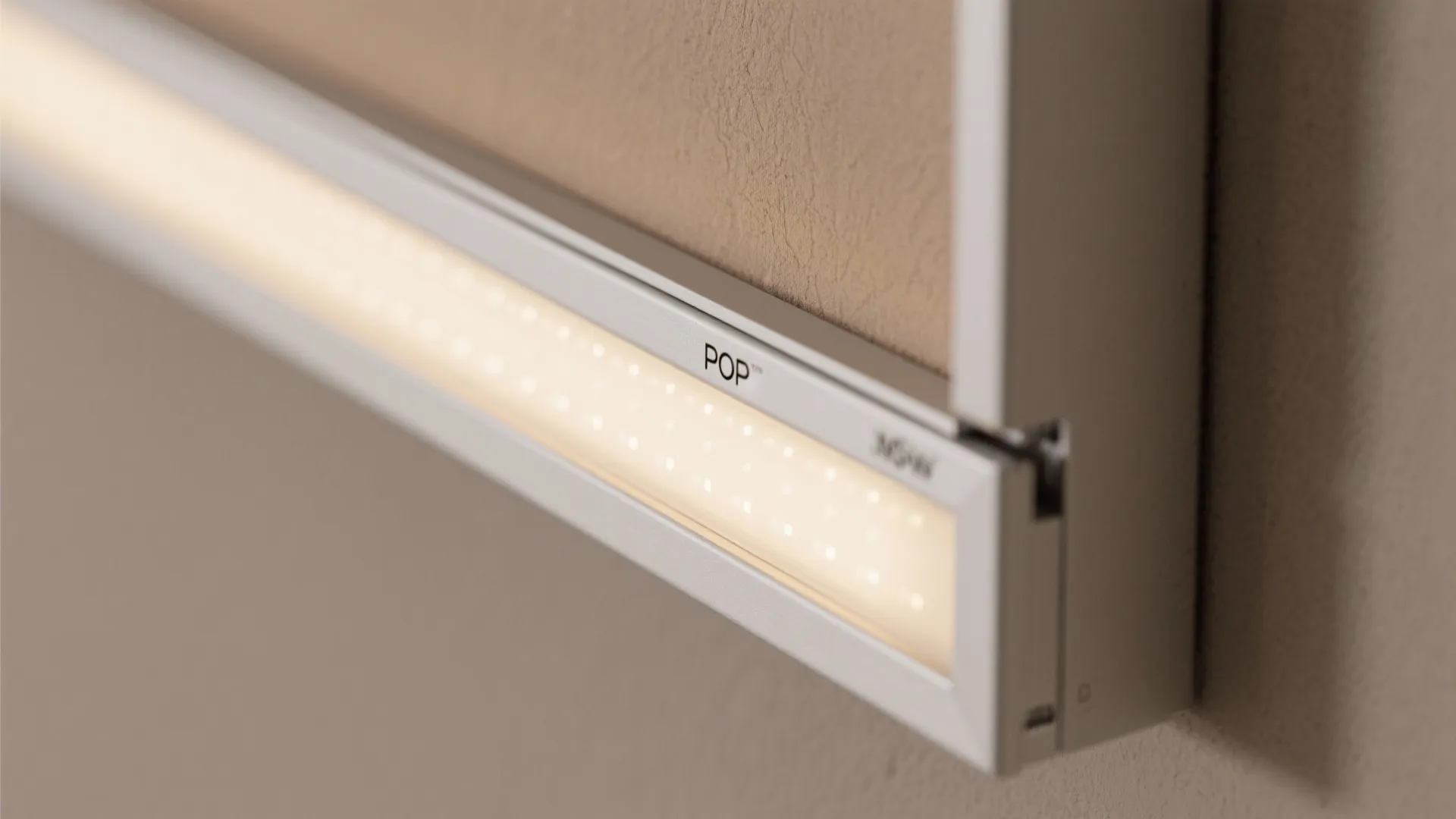

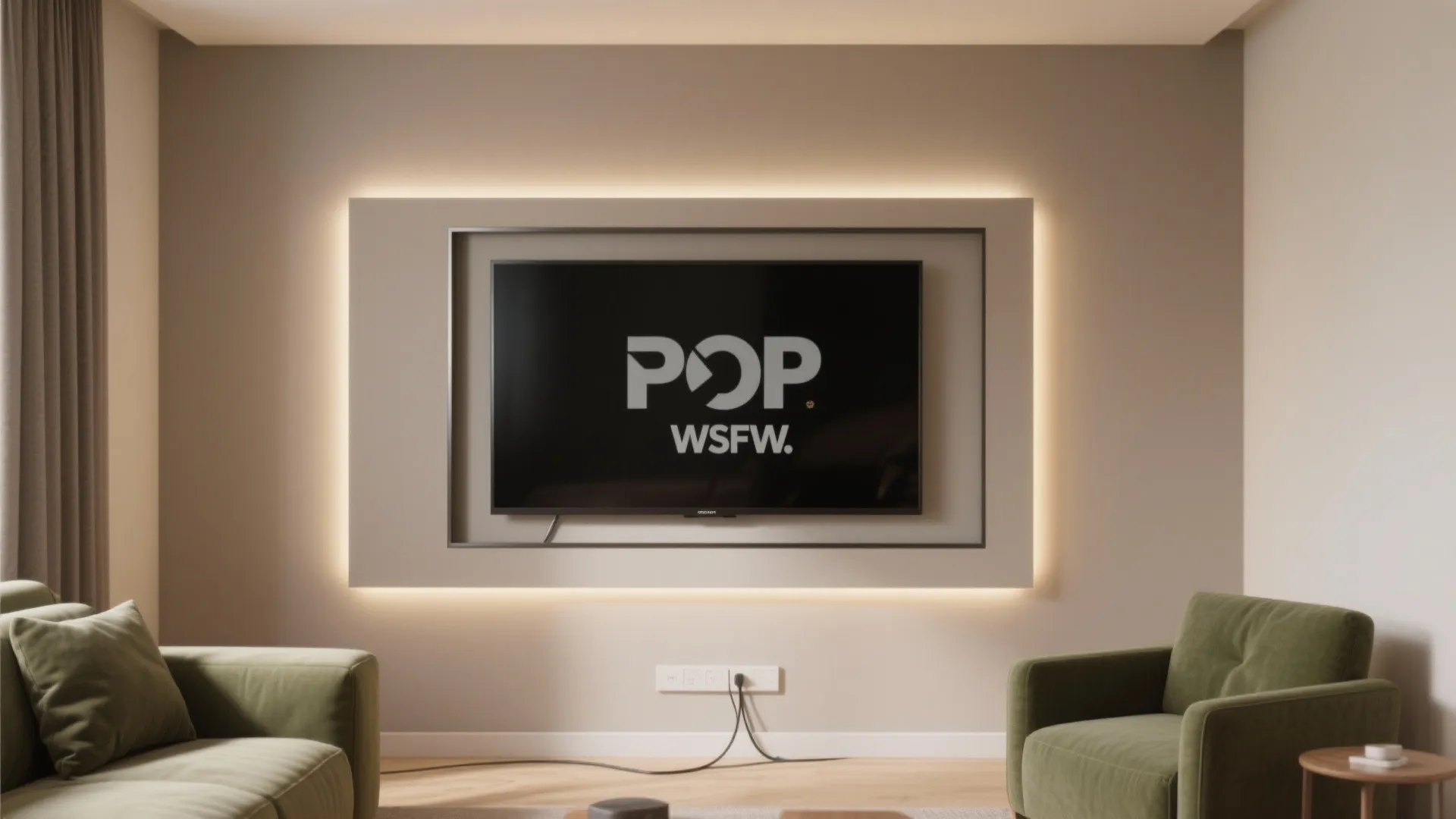

1) Backlit POP frame with shadow lines

I love building a slim POP frame around the TV, then carving 6–10 mm shadow gaps with concealed LED strips. It gives that soft “floating panel” glow and hides minor alignment quirks.

Just keep the LEDs 3000–4000K for cozy viewing, and specify CRI 90+ so skin tones don’t look odd. The challenge? Uniform diffusion—use an aluminum profile with a deep channel so you don’t see diode dots on white walls.

save pin

save pin

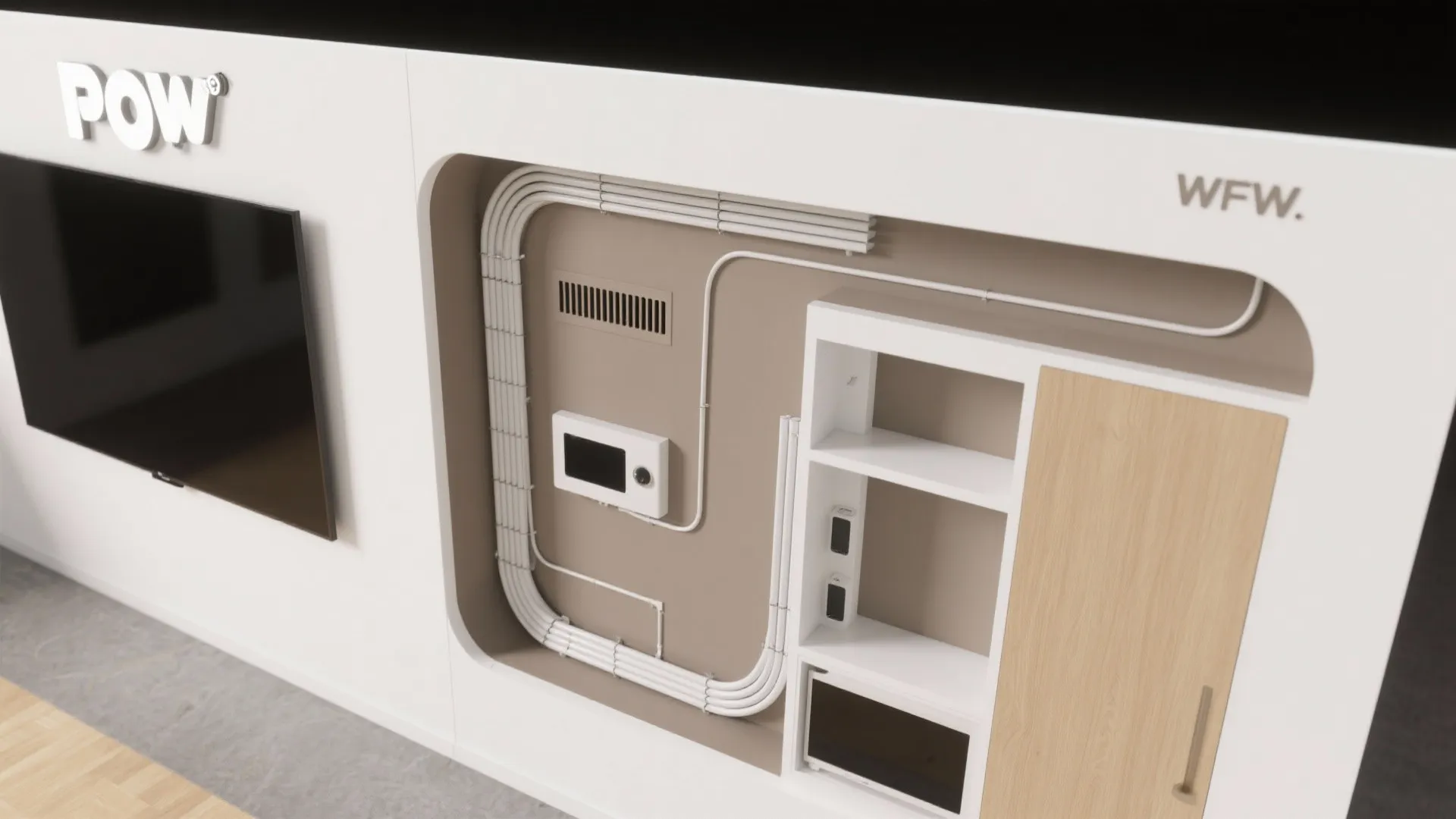

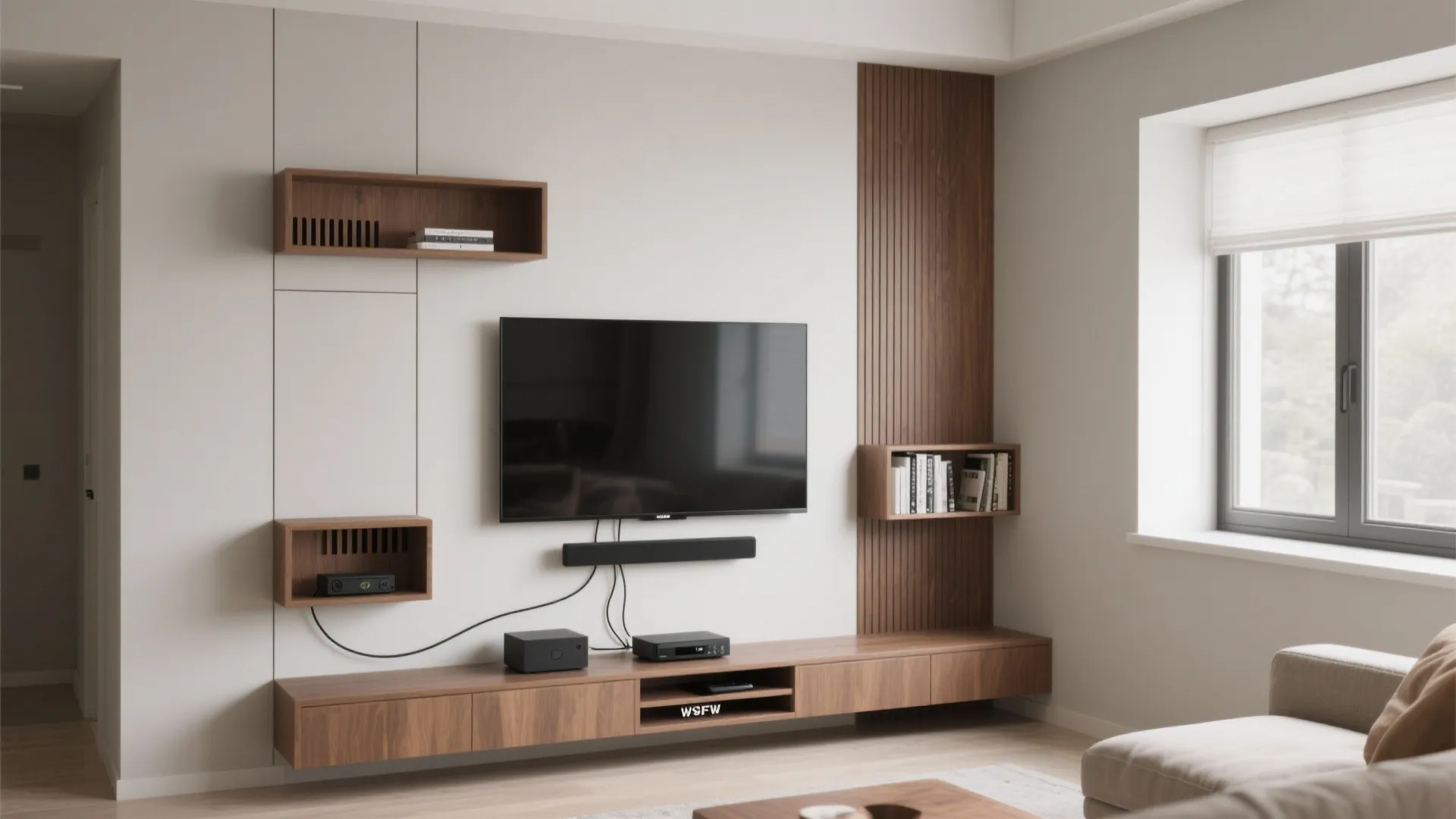

2) Asymmetric niches that double as storage

POP is great for sculpting niches around the TV for soundbar, set-top box, or a small book ledge. Asymmetry feels modern and lets you balance a door swing or a window on the opposite side.

Do add hidden ventilation slots if you enclose electronics. I often run a vertical raceway behind the POP and finish access with a painted MDF panel—clean outside, practical inside.

save pin

save pin

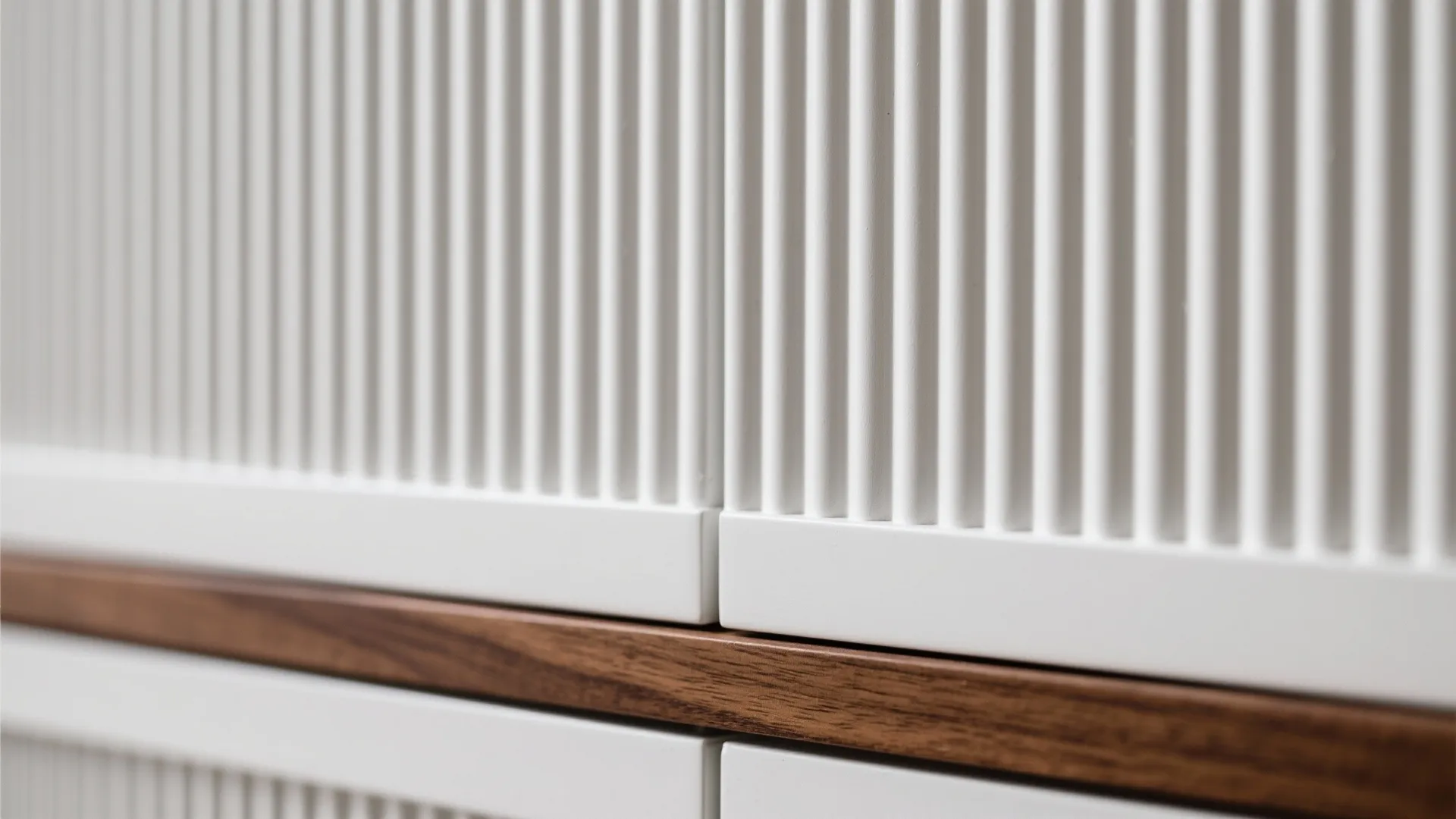

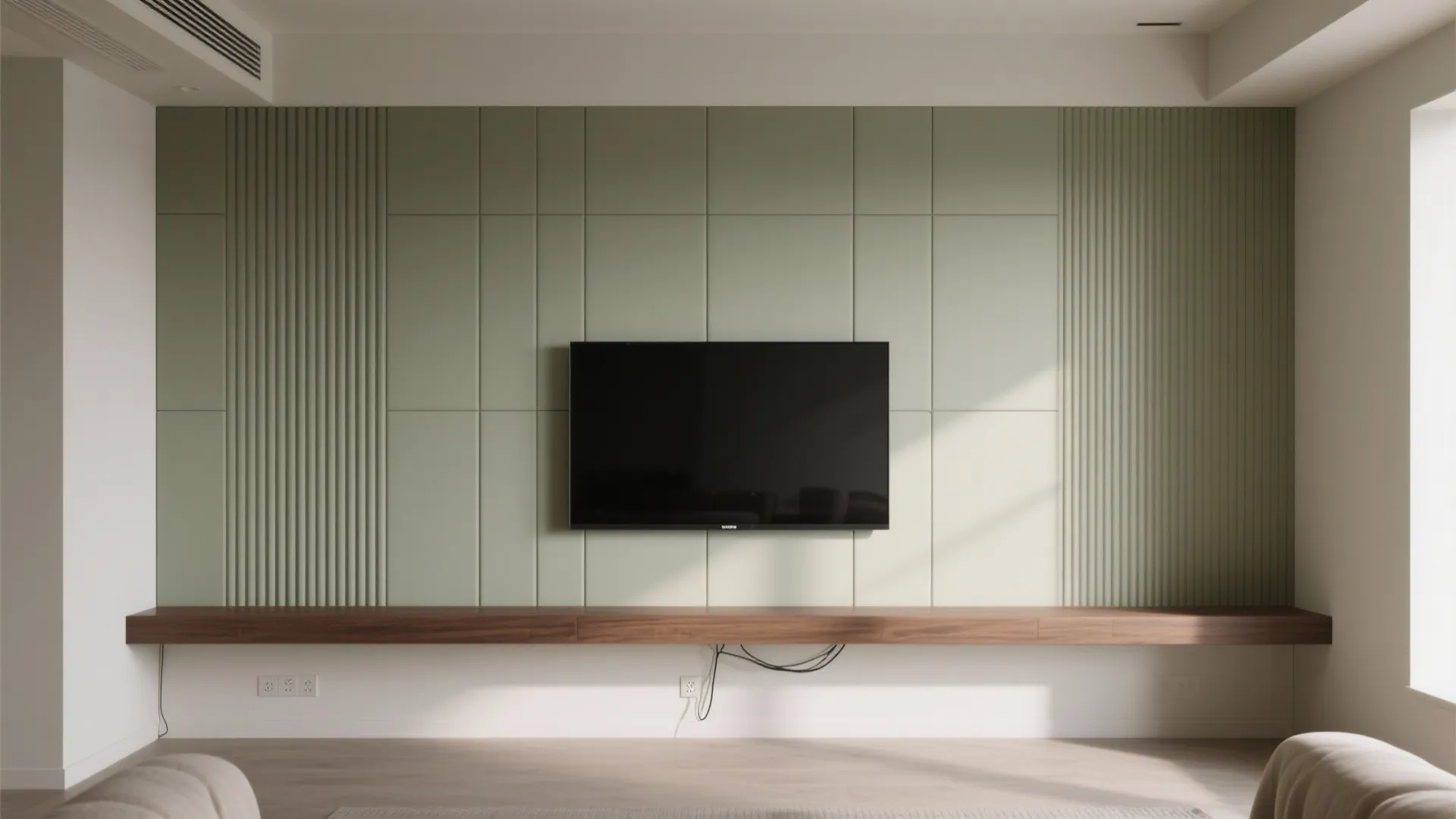

3) Fluted POP panels with warm wood accents

Fluted textures add depth without bulk, especially in small rooms. I pair painted POP flutes with a slim walnut ledge to warm the composition and ground the TV visually.

Spacing the flutes at 20–30 mm keeps dusting reasonable. If you’re unsure about scale, sketch and play with a precise 3D layout to test how the grooves read from your actual sofa distance.

save pin

save pin

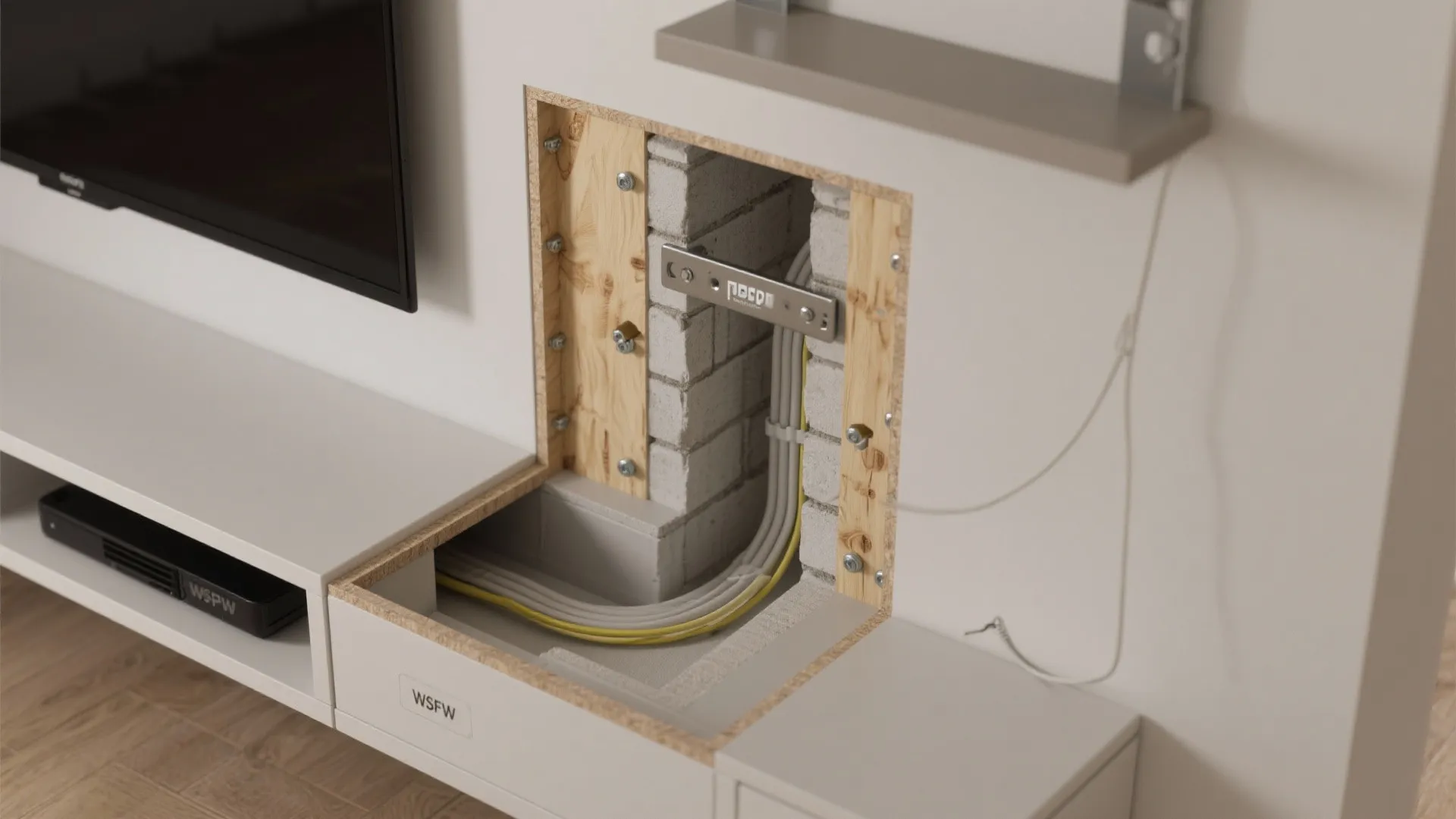

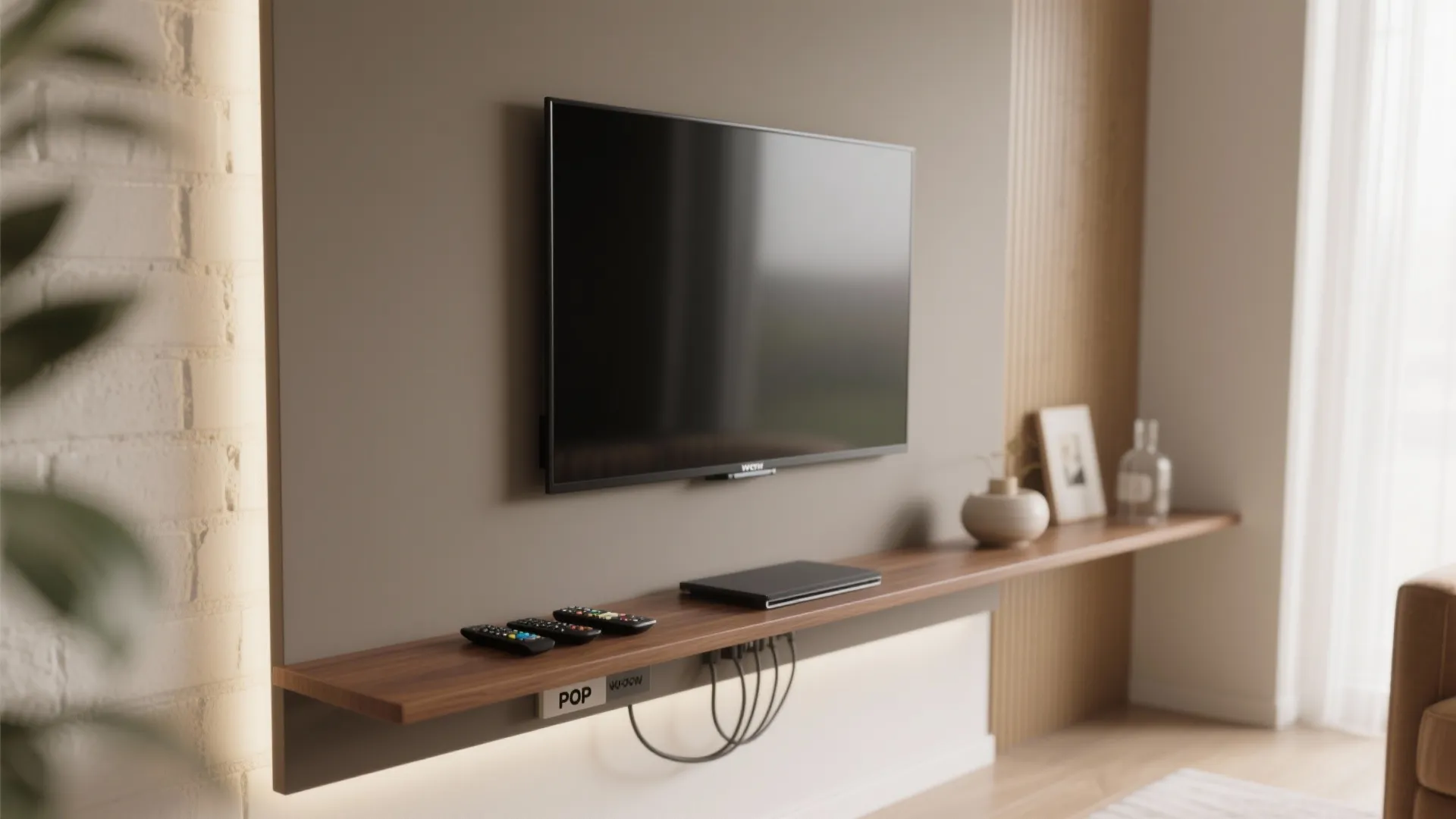

4) Ultra-slim floating shelf + concealed cable chase

When clients say “no bulky console,” I float a 40–60 mm shelf beneath the TV and carve a POP chase up to the mount. All the cables disappear, and the shelf handles remotes and décor.

Mount the TV bracket into solid masonry or plywood blocking behind the POP—never into POP alone. I like to leave a removable corner cap so I can fish new cables later without breaking plaster.

save pin

save pin

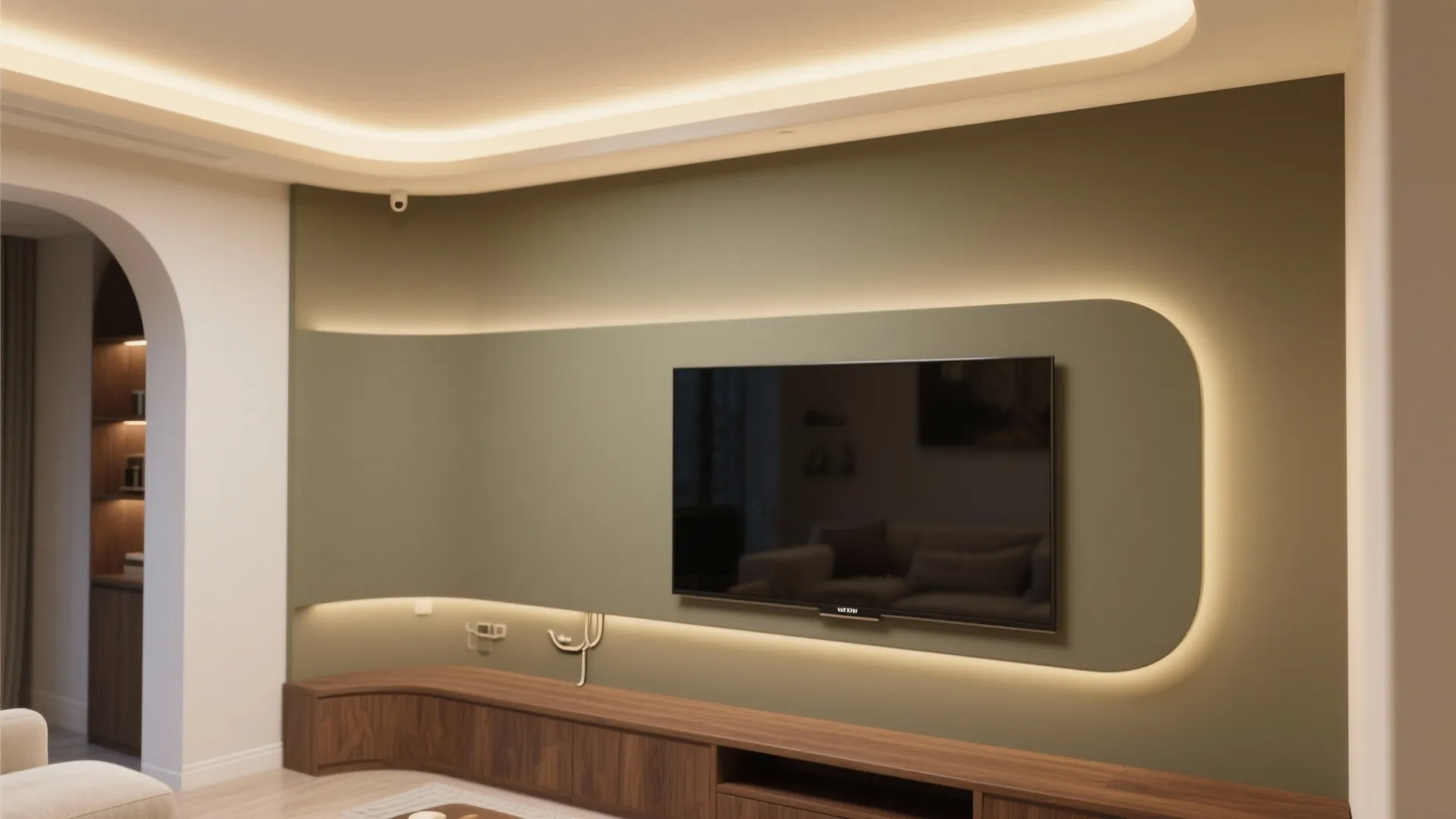

5) Soft curves with cove lighting and a color wash

Curved POP corners soften hard rectangles and make compact rooms feel calmer. A shallow cove above the TV wall, dimmed for movie nights, is the “aaah” moment.

Paint the TV plane a mid-tone (think taupe or muted olive) to cut glare on glossy LCD screens. If you’re juggling finishes, I’ll often generate quick style variations to compare color and light before committing.

save pin

save pin

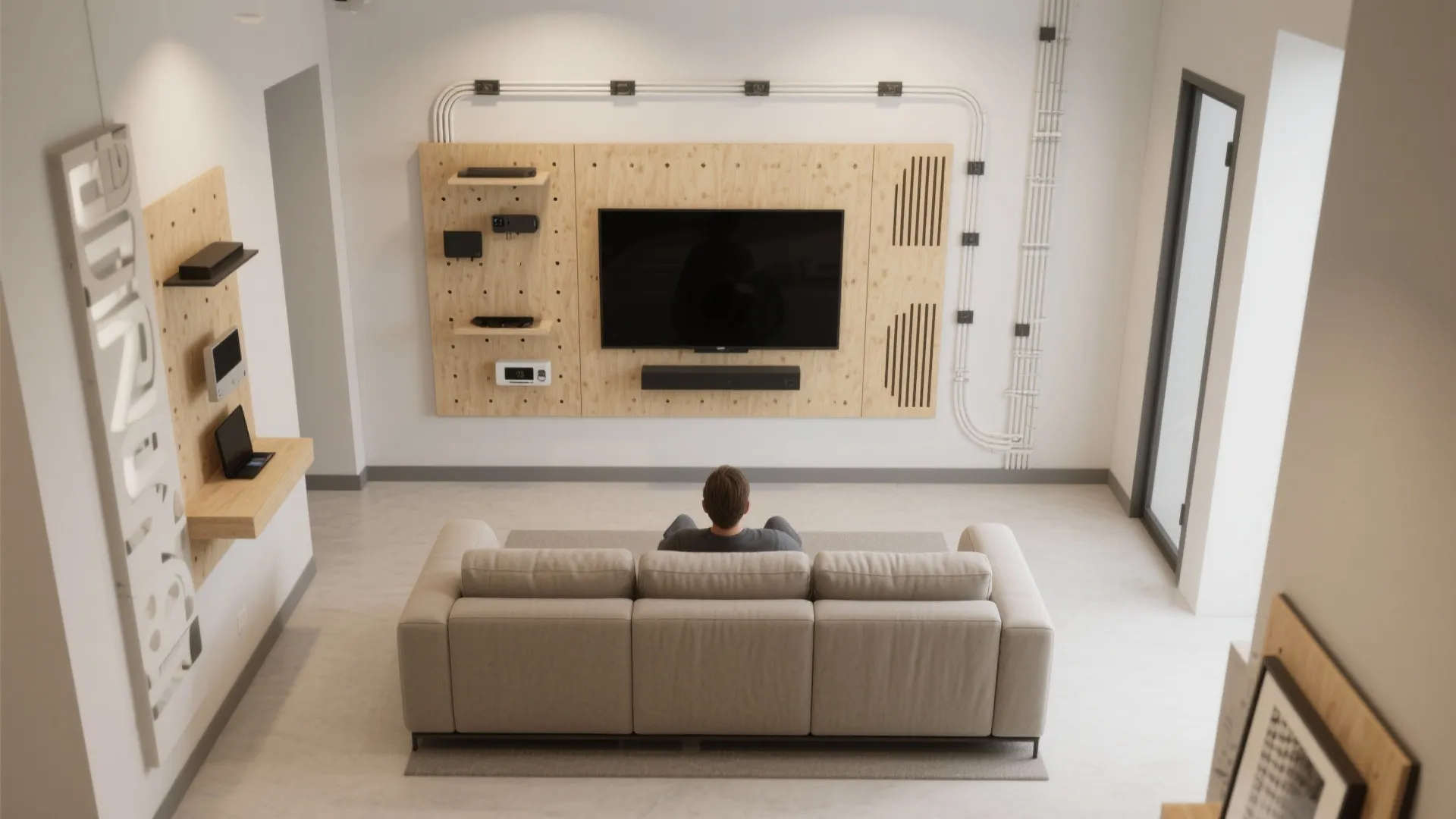

FAQ

1) What is POP and is it good for a TV wall unit?

POP (Plaster of Paris) is lightweight, smooth, and great for crisp details like niches and shadow lines. It’s ideal for aesthetic cladding, not for structural loads—mount the TV into solid backing, not POP itself.

2) How high should I mount an LCD TV on a POP wall?

Aim for the center of the screen near seated eye level (usually 40–44 inches/100–112 cm from floor). Also consider viewing angle: SMPTE suggests about a 30° field of view, THX about 40° for immersion (see THX viewing guidelines at thx.com).

3) Can POP support the weight of a wall-mounted TV?

No. POP is a finish. Use anchors into masonry or plywood blocking installed behind the POP skin. I plan blocking during framing so the bracket hits solid structure.

4) How do I manage heat and ventilation for devices?

Include small vents or hidden slots in niches and keep a few centimeters of clearance around gear. LED strips run cool, but receivers and set-top boxes need airflow.

5) What lighting works best with a POP TV wall?

Warm-white LED strips (3000–4000K) with dimmers are my go-to for backlighting and coves. Choose CRI 90+ so colors look natural on faces and artwork.

6) What thickness should POP cladding be around the TV?

For most walls, a 25–40 mm POP build-up handles niches and a cable chase. If you’re creating deep shelves or heavy-looking features, use a light framework under POP to keep weight down.

7) How do I hide cables cleanly?

Plan a vertical raceway behind the POP from the console/shelf to the TV bracket. Add a serviceable access panel so you can add HDMI or fiber later without demolition.

8) What’s a rough budget range for a POP TV wall unit?

Costs vary by country and finish, but simple backlit frames are budget-friendly, while fluting and curved coves add labor. Materials are modest; craftsmanship and lighting quality drive the difference.
