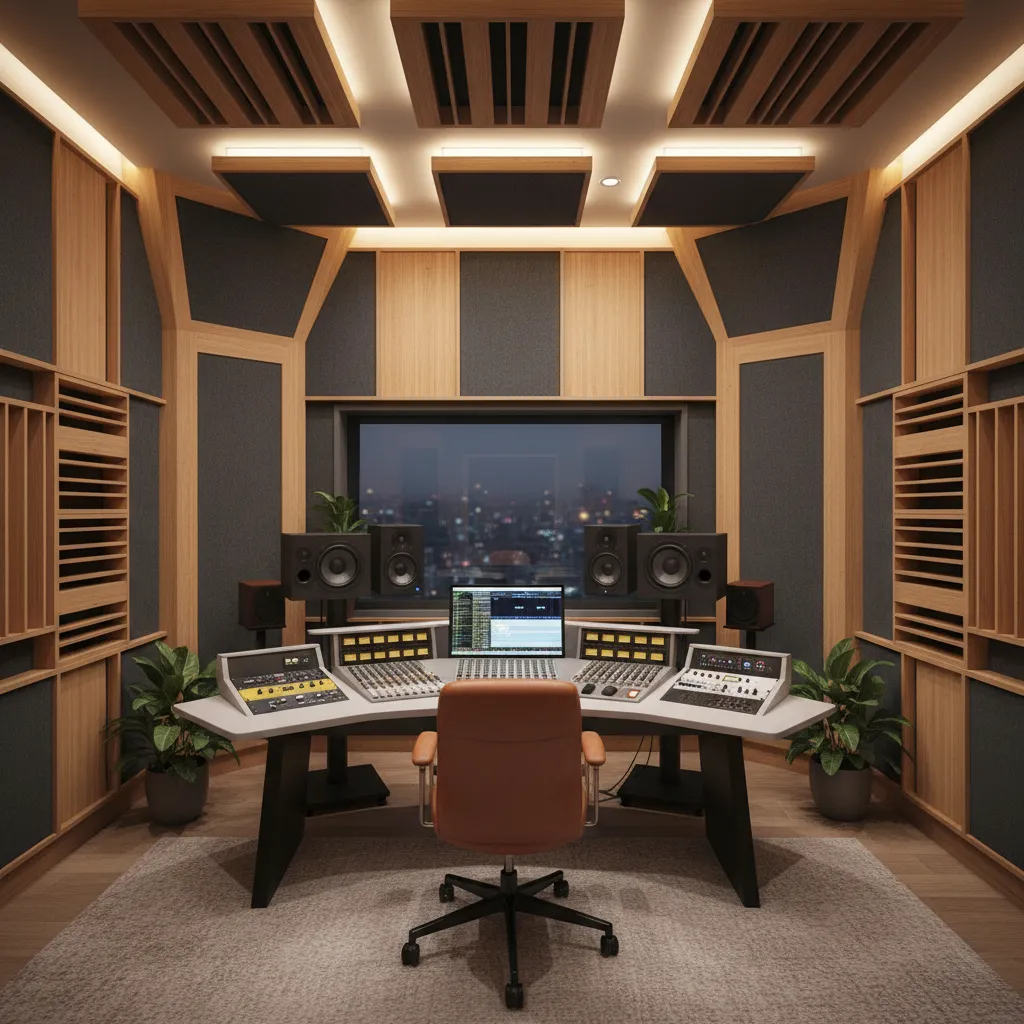

Recording Studio Wall Design Ideas That Improve Sound Quality: Five practical wall design strategies that reduce reflections, control bass, and create a more accurate recording environment.

Direct Answer

The most effective recording studio wall design combines absorption, diffusion, and structural isolation to control reflections and improve sound accuracy. Strategic placement of acoustic panels, diffusers, bass traps, and air‑gap wall systems dramatically reduces unwanted echo and frequency buildup.

In professional studios, the wall system is not decoration—it is part of the acoustic instrument of the room.

Quick Takeaways

1. Flat drywall walls create reflections that distort recordings and monitoring accuracy.
2. Acoustic panels at reflection points improve clarity for vocals and instruments.
3. Bass traps in corners prevent low‑frequency buildup common in small studios.
4. Diffusers preserve natural room energy without creating harsh echoes.
5. Air‑gap or double wall construction dramatically improves sound isolation.

Introduction

After working on dozens of home and professional studio projects, one pattern shows up every time: most recording problems start with the walls. People invest thousands in microphones and monitors, yet the room itself sabotages the sound.

A thoughtful recording studio wall design shapes how sound moves, reflects, and dissipates. Without that control, even expensive gear produces muddy mixes and inaccurate monitoring.

In this guide, I’ll walk through five proven wall design approaches I’ve used in real studios—from compact bedroom setups to commercial tracking rooms. Some of these ideas are simple upgrades, while others involve structural planning, but each one dramatically improves sound quality when done correctly.

save pin

Why Recording Studio Wall Design Matters More Than Most Equipment

Key Insight: The room contributes more to recording quality than most individual pieces of gear.

Sound waves bounce off hard surfaces. In untreated rooms those reflections arrive milliseconds later than the original signal, creating comb filtering, phase issues, and harsh resonance.

Common problems I see in untreated studio rooms:

1. Flutter echo between parallel walls
2. Low‑frequency buildup in corners
3. Unclear vocal recordings
4. Inconsistent monitoring across the room

Acoustic engineers often follow the 60/40 concept in smaller studios: roughly sixty percent absorption and forty percent diffusion. This balance keeps the room controlled but still natural sounding.

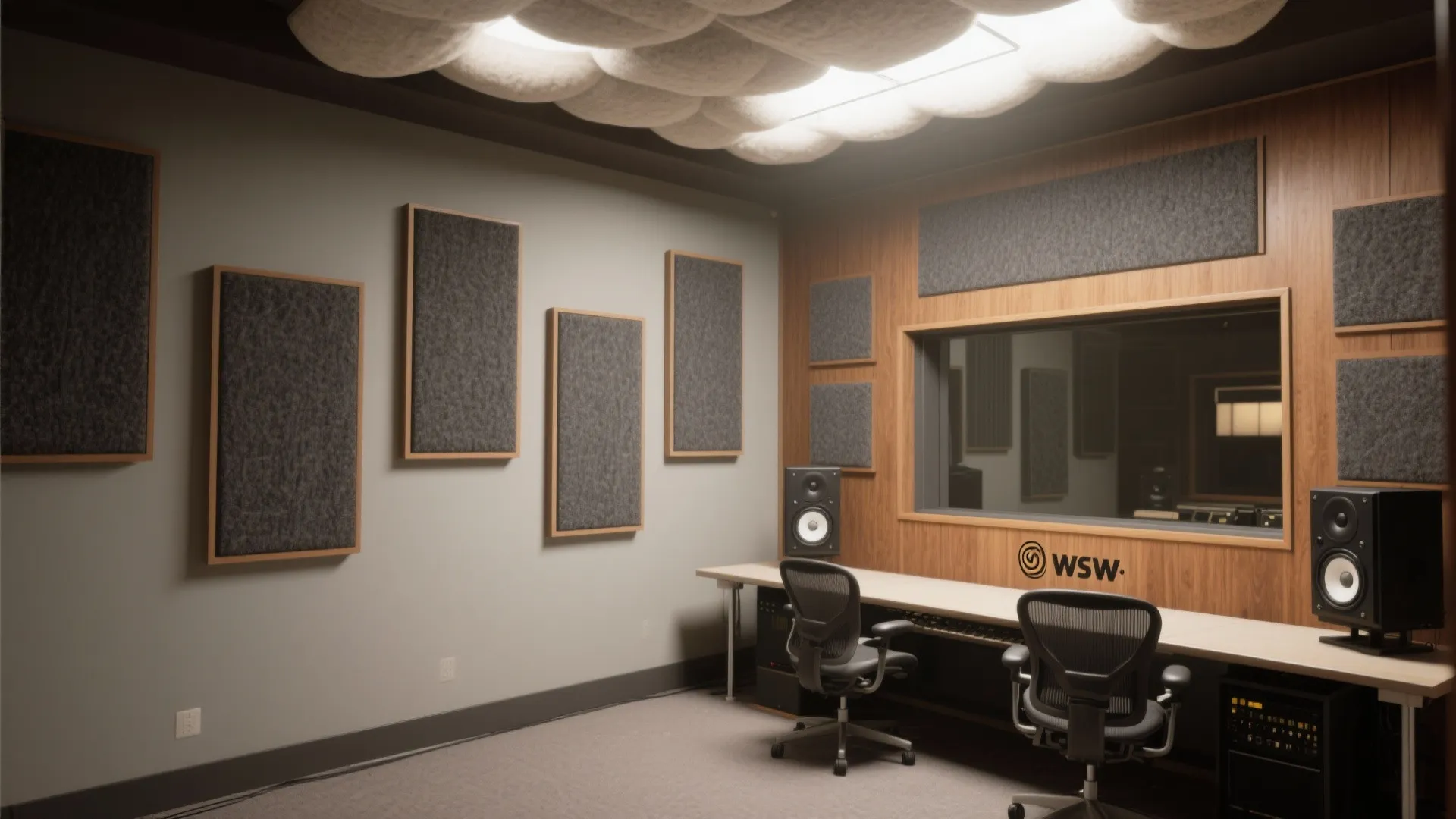

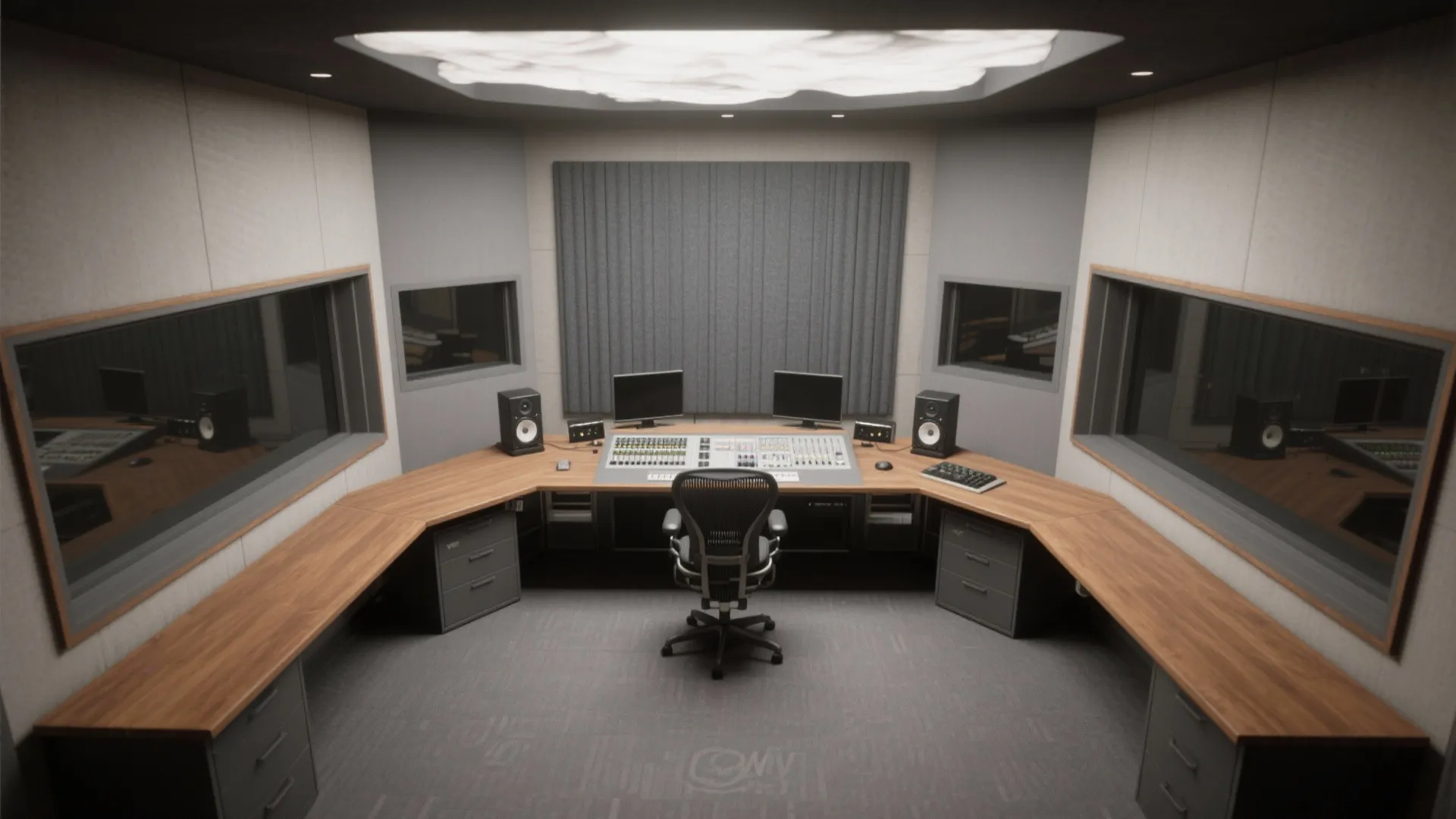

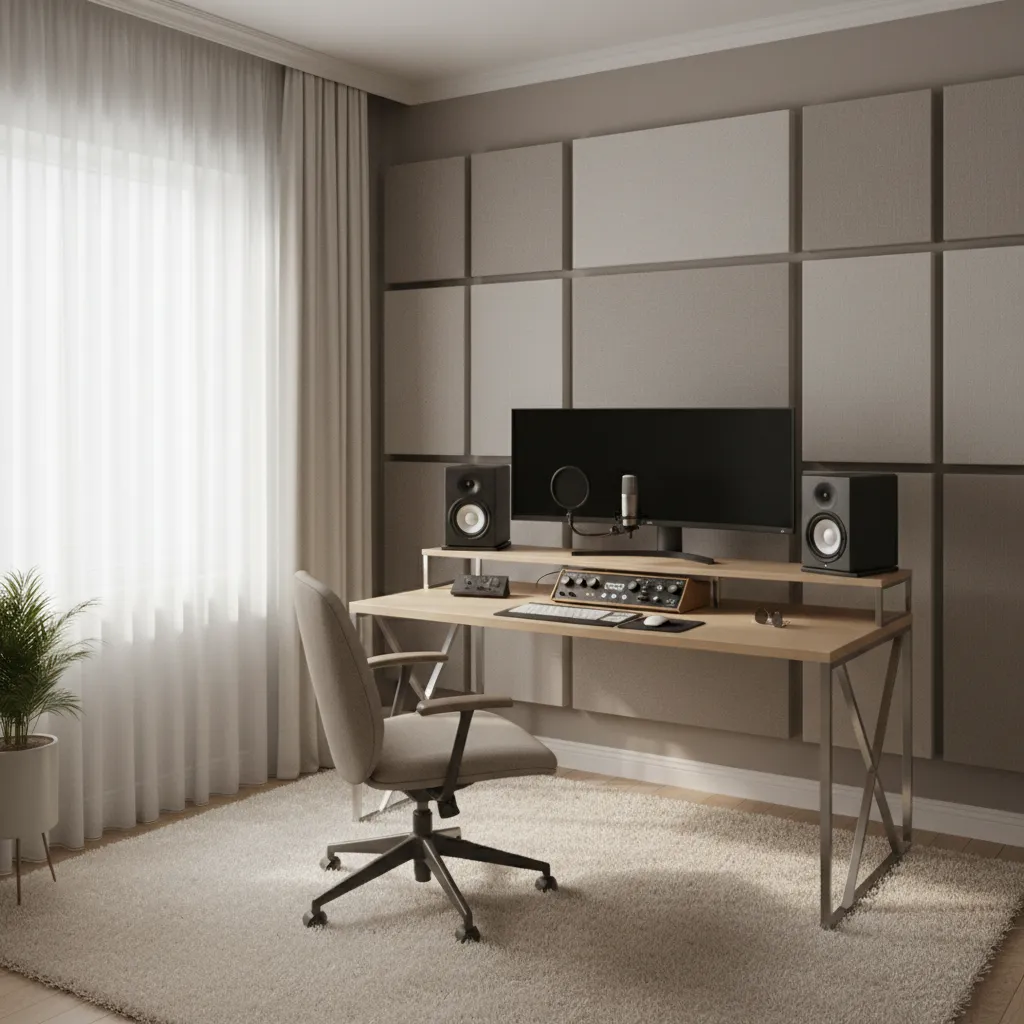

How Acoustic Wall Panels Improve Recording Clarity

Key Insight: Absorptive wall panels eliminate early reflections that interfere with microphones and studio monitors.

Acoustic panels are usually the first upgrade I recommend because they deliver immediate improvement without structural renovation.

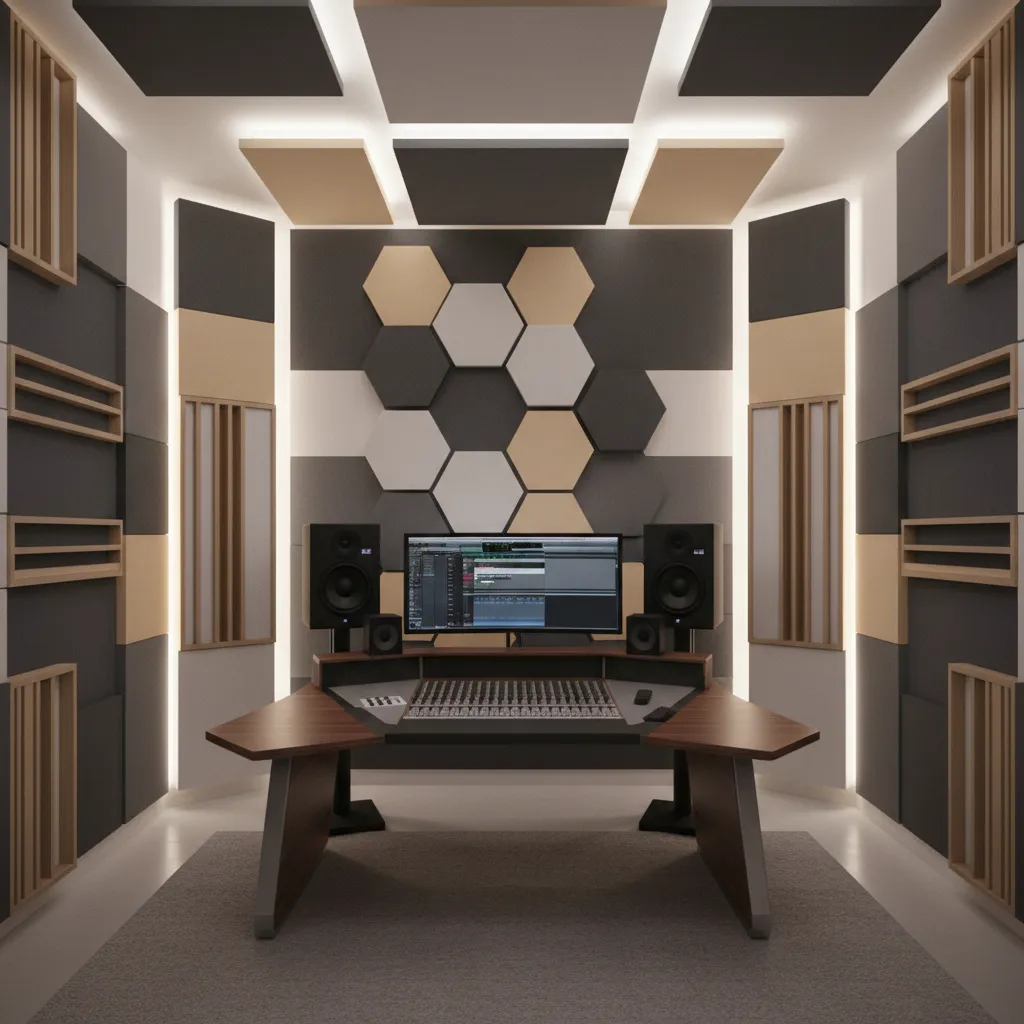

Best panel placement zones:

1. Side wall first‑reflection points
2. Behind studio monitors
3. Behind the vocalist or instrument
4. Ceiling reflection point above the mixing position

Materials commonly used in professional panels:

1. Rigid fiberglass (Owens Corning 703)
2. Mineral wool
3. High‑density acoustic foam

Thickness matters more than many people realize. Panels under two inches mostly absorb high frequencies. Four‑inch panels control mids much more effectively.

save pin

What Are Diffuser Walls and When Should You Use Them

Key Insight: Diffusers scatter sound energy instead of absorbing it, maintaining liveliness while preventing echo buildup.

A completely dead room actually creates unnatural recordings. That’s where diffusers come in.

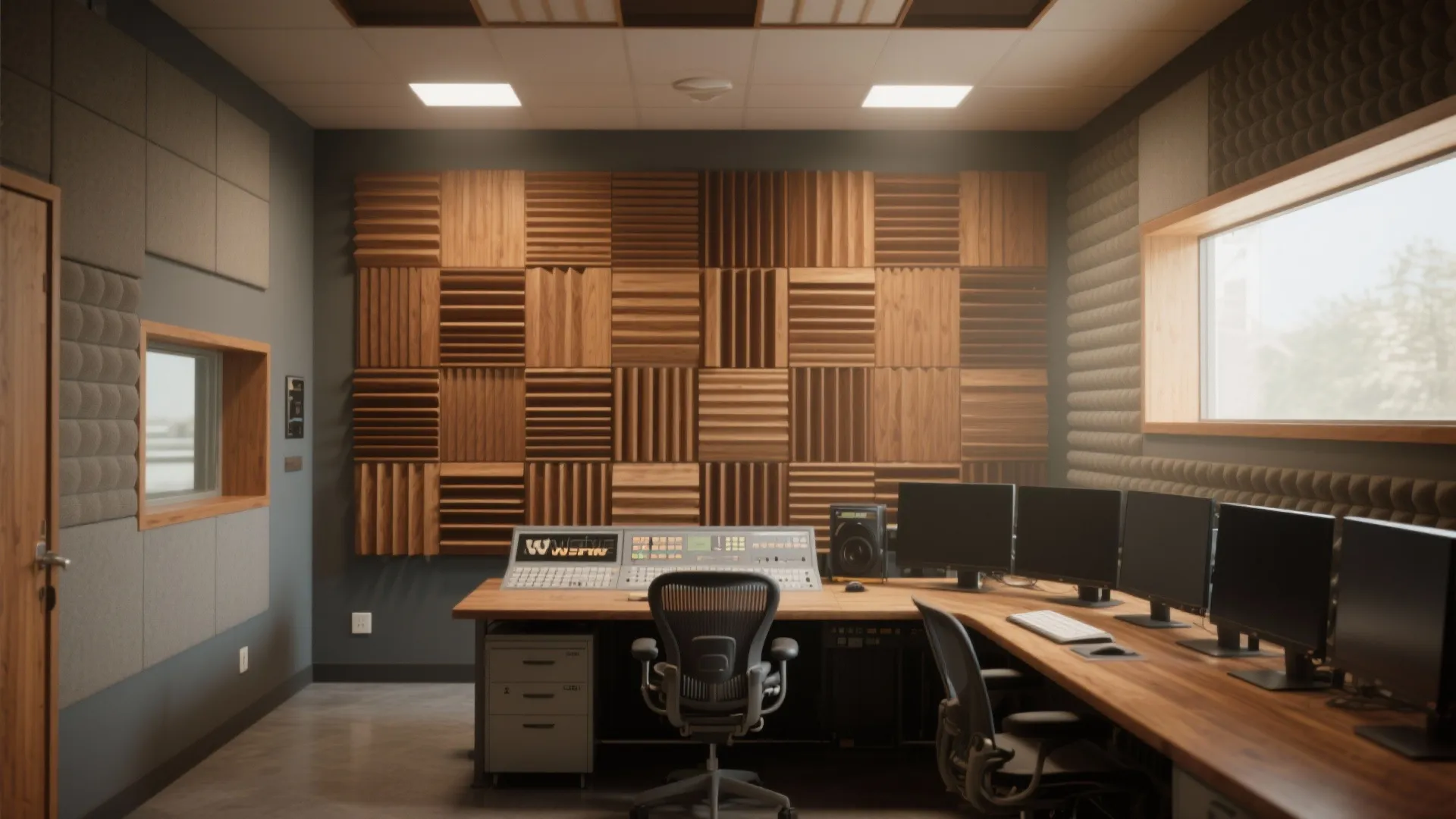

In several studio builds I’ve worked on, we install diffusion on the rear wall behind the listening position. Instead of reflecting sound directly back to the listener, the diffuser spreads the energy across multiple directions.

Common diffuser types:

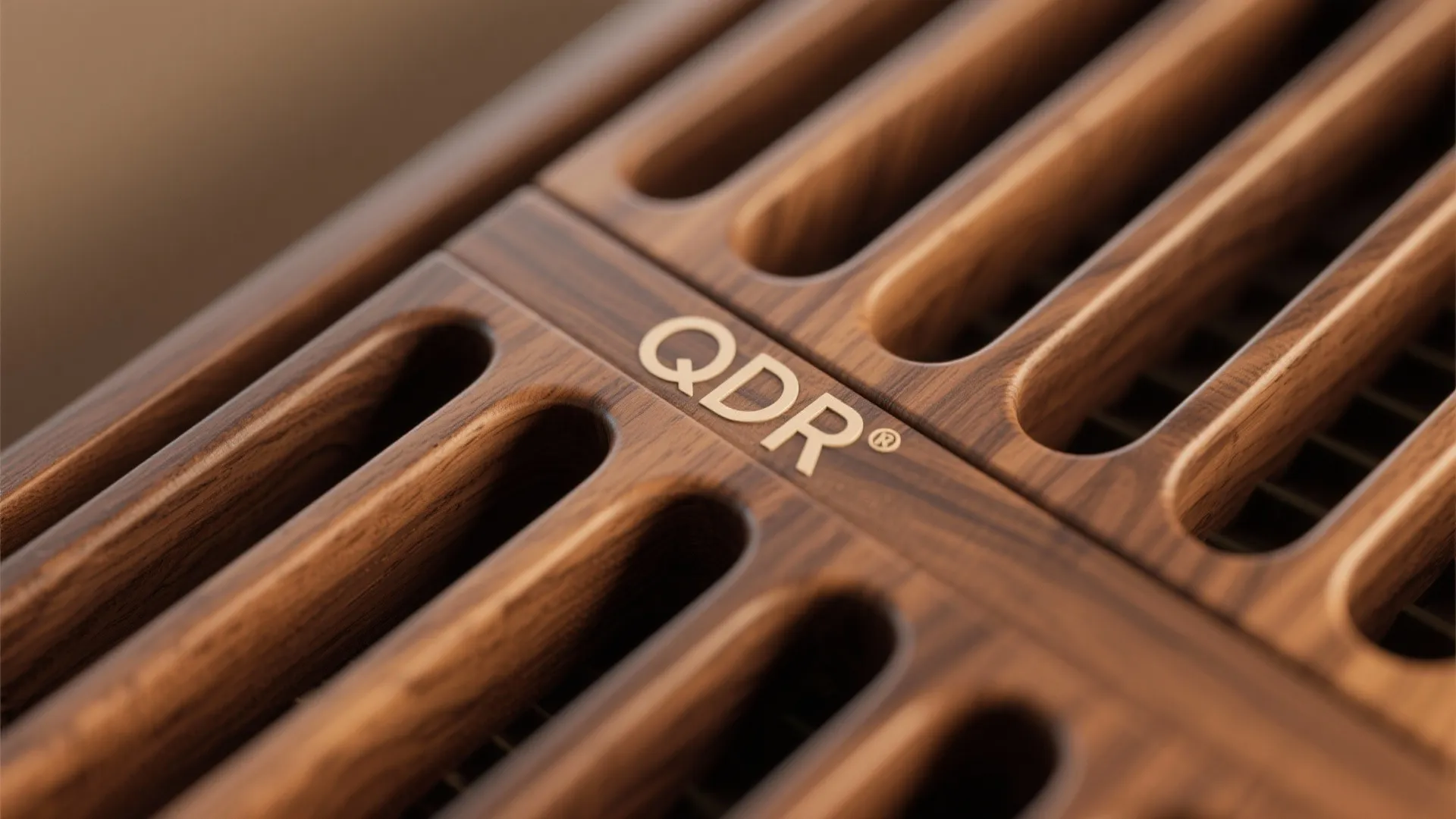

1. QRD (Quadratic Residue Diffuser)
2. Skyline diffuser blocks
3. Slat wood diffusers

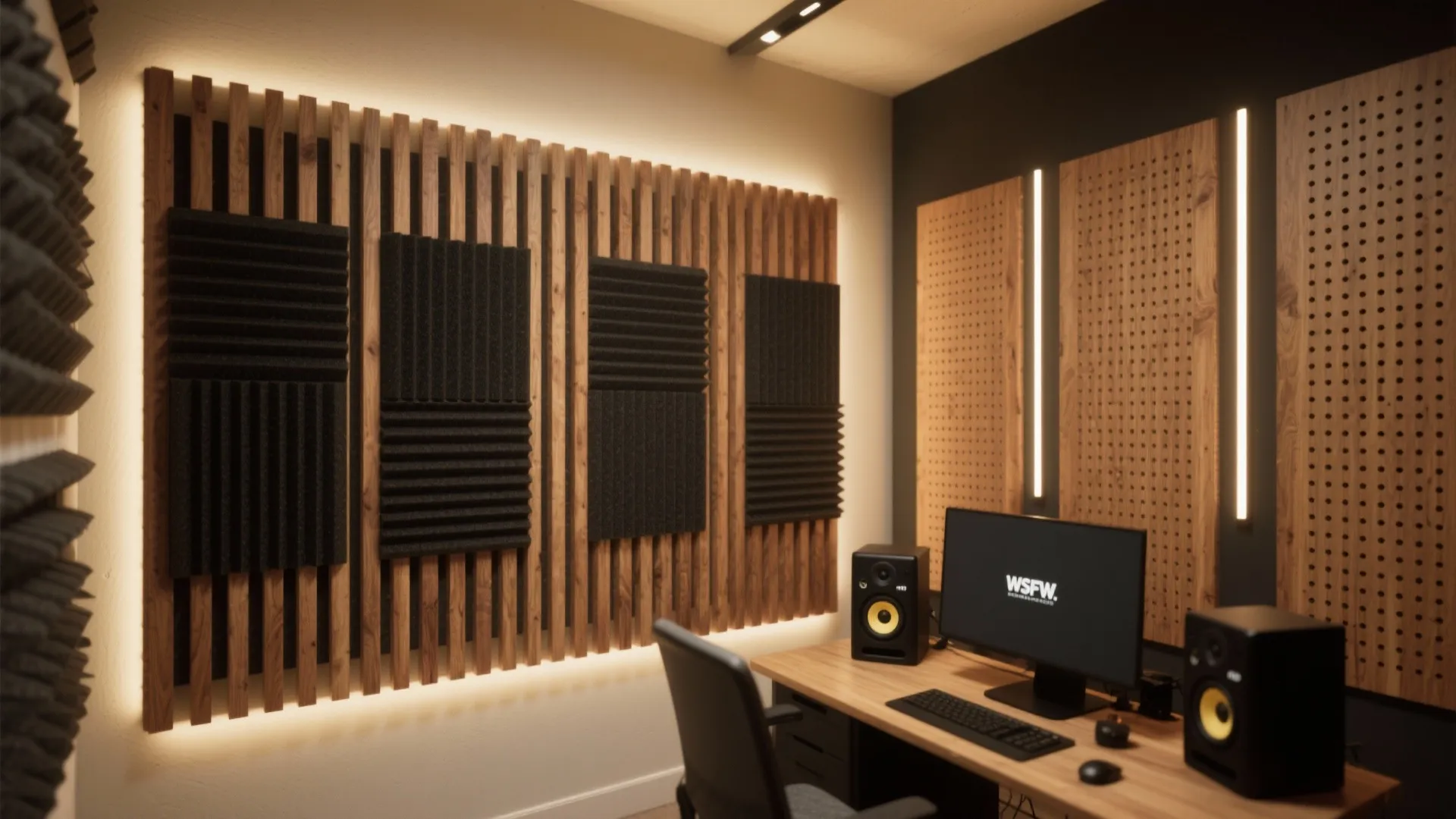

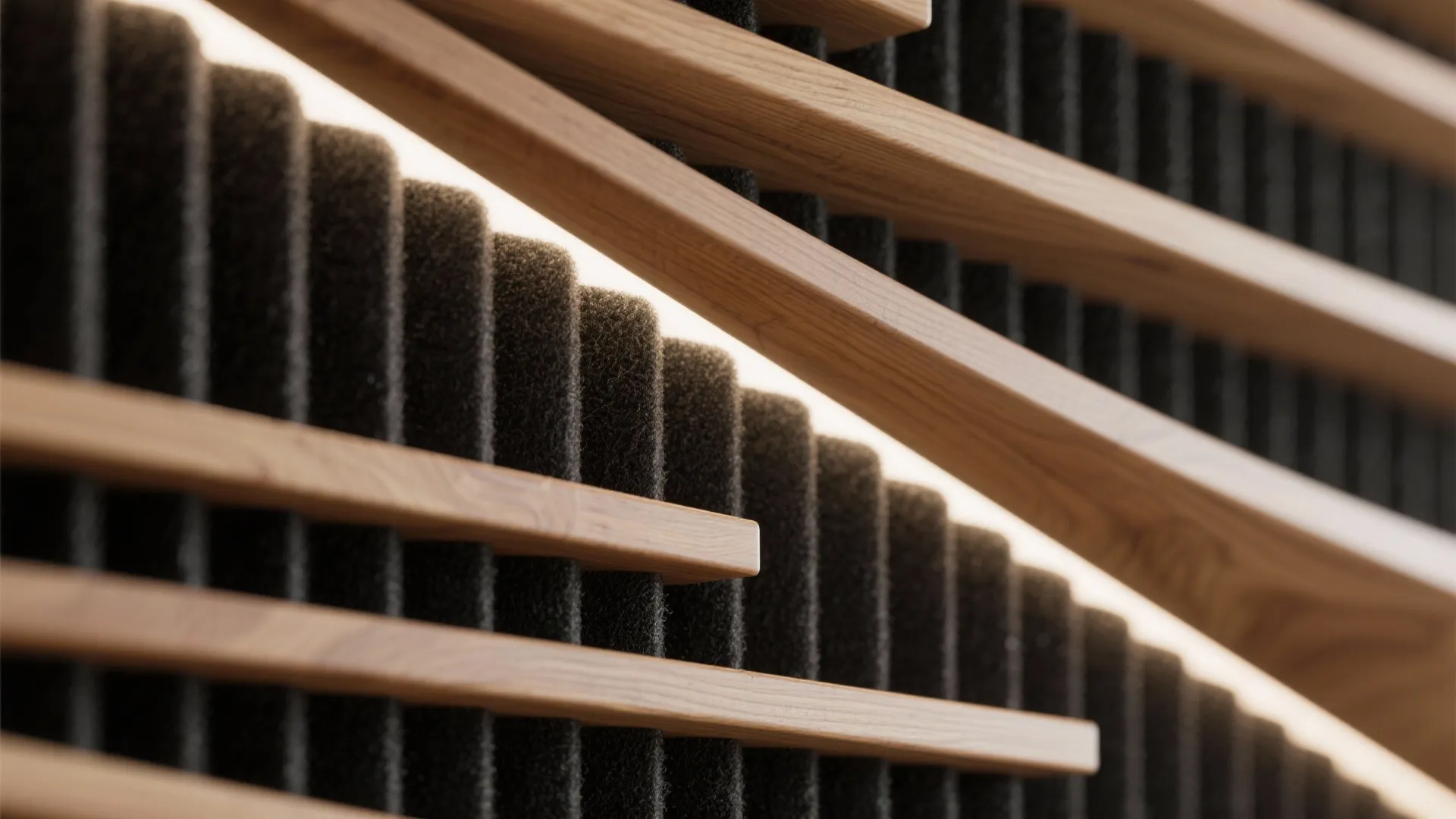

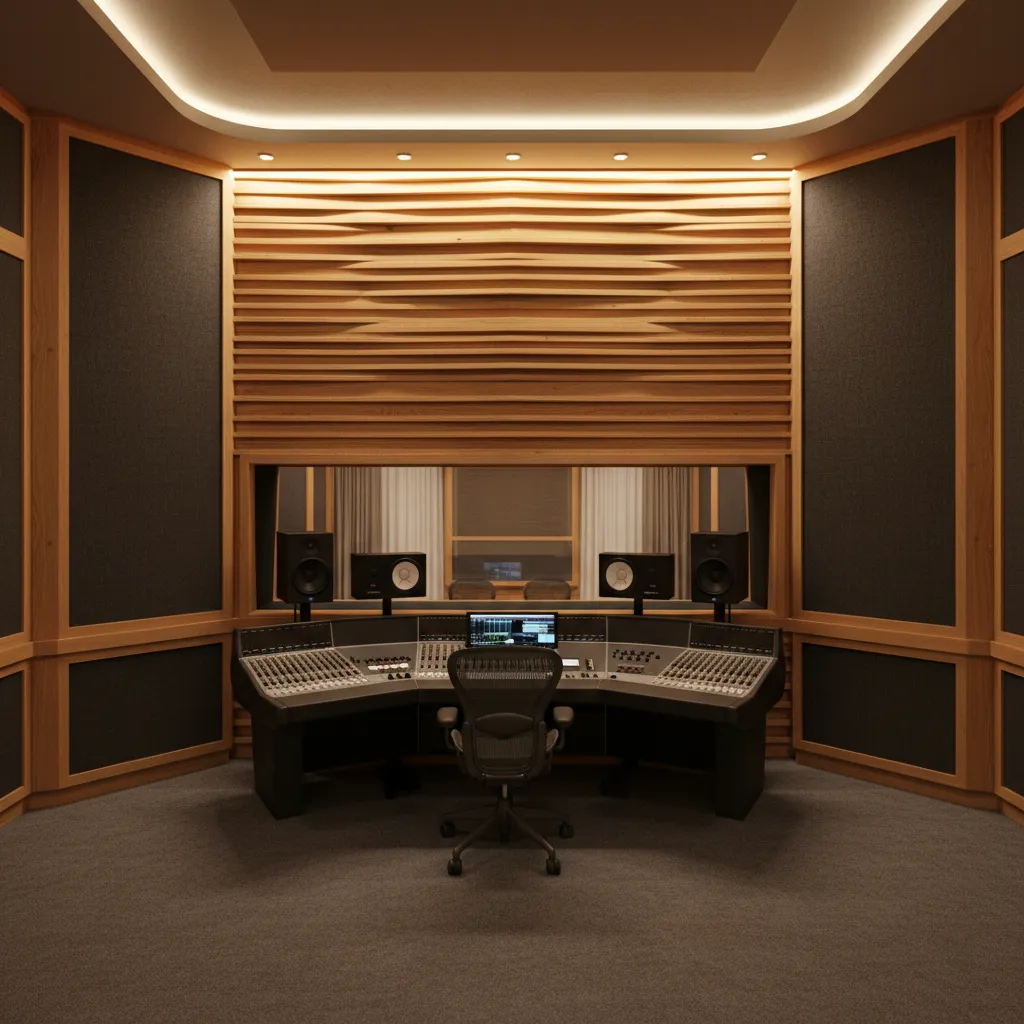

Wood slat diffusers have become particularly popular because they combine acoustic performance with visual warmth—something many modern studios want.

save pin

Should Studio Walls Include Built In Bass Traps

Key Insight: Low frequencies accumulate in corners, making bass traps one of the most important wall design elements.

Bass issues are the number one mixing problem in small studios.

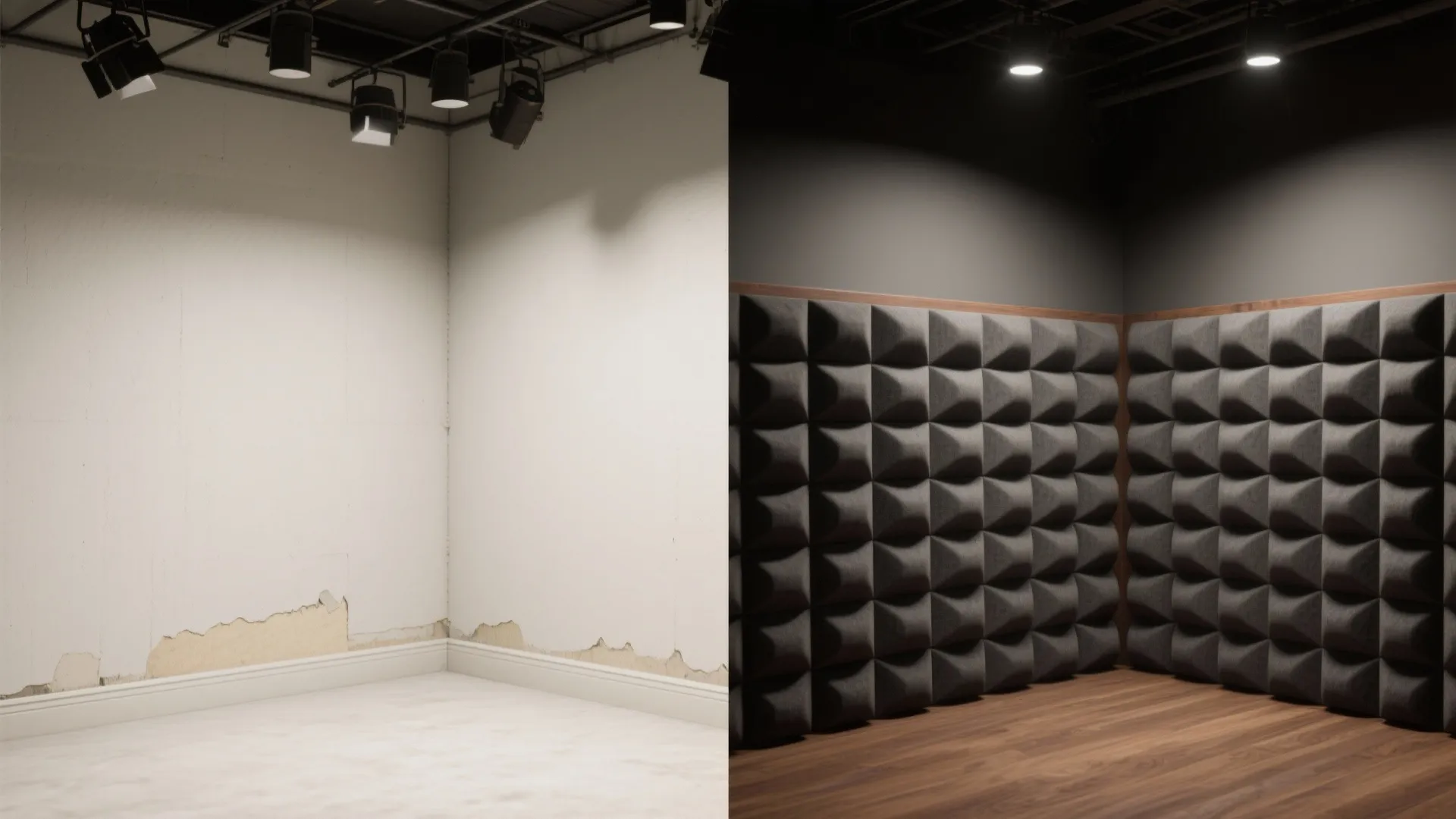

Low frequencies have long wavelengths and tend to collect in corners where multiple surfaces meet. Without treatment, this creates boomy bass and misleading mixes.

Effective bass control strategies include:

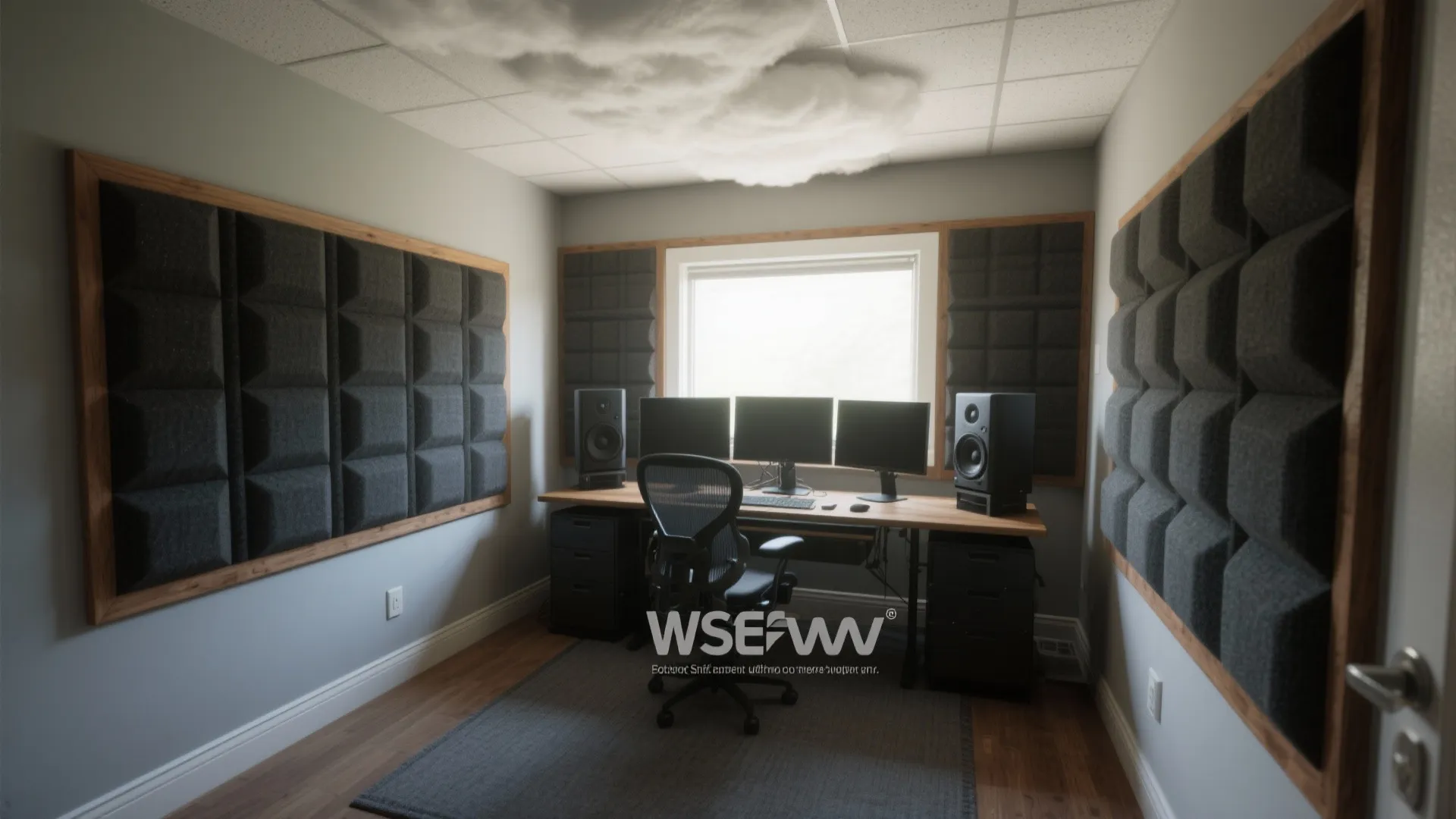

1. Floor‑to‑ceiling corner bass traps
2. Superchunk mineral wool traps
3. Membrane bass absorbers inside walls
4. Deep broadband panels across corners

One overlooked detail: bass traps must be thick. Anything under six inches rarely controls frequencies below 100 Hz effectively.

Answer Box

The best recording studio wall design combines three elements: absorption at reflection points, bass traps in corners, and diffusion on rear walls. This balanced approach improves recording clarity while preserving natural room energy.

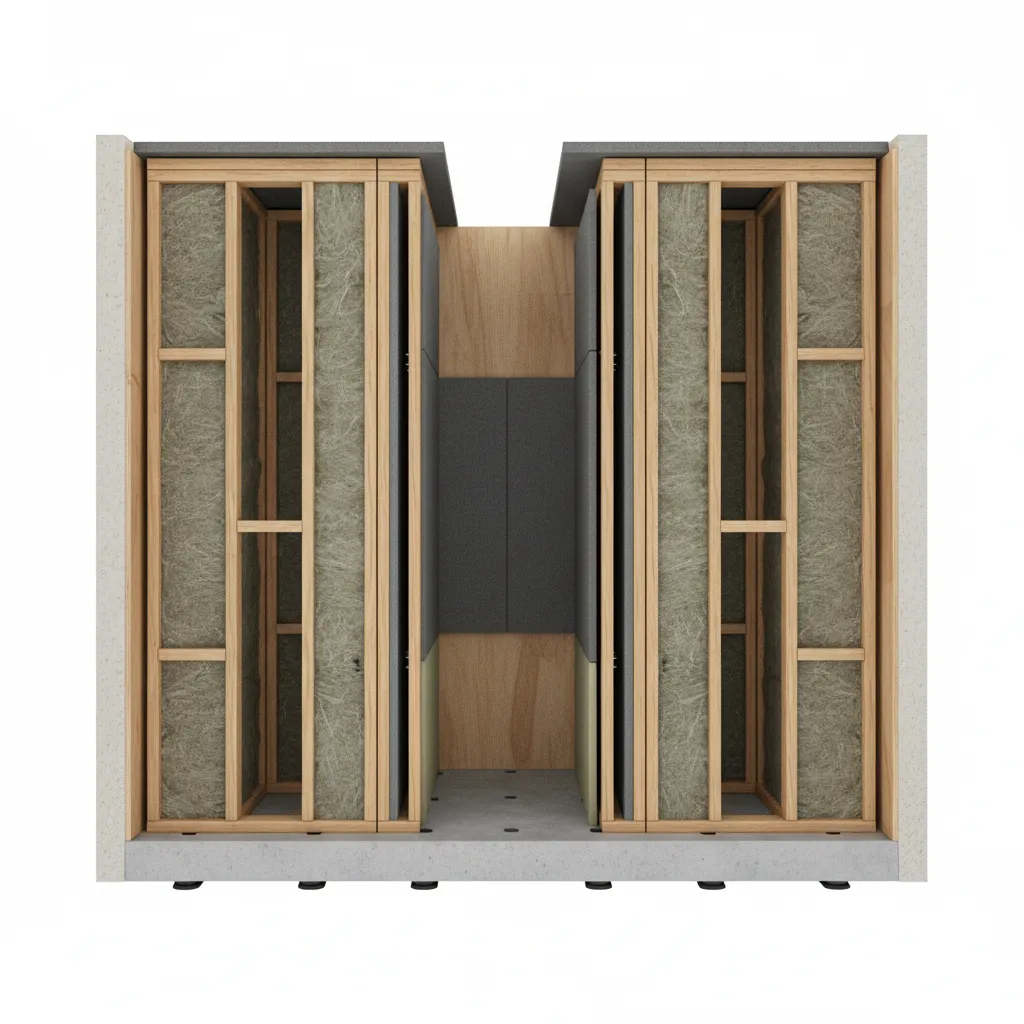

Can Double Wall Construction Improve Sound Isolation

Key Insight: Structural wall separation is the most effective method for preventing sound leakage.

Acoustic treatment controls reflections inside the room. Isolation walls stop sound from escaping.

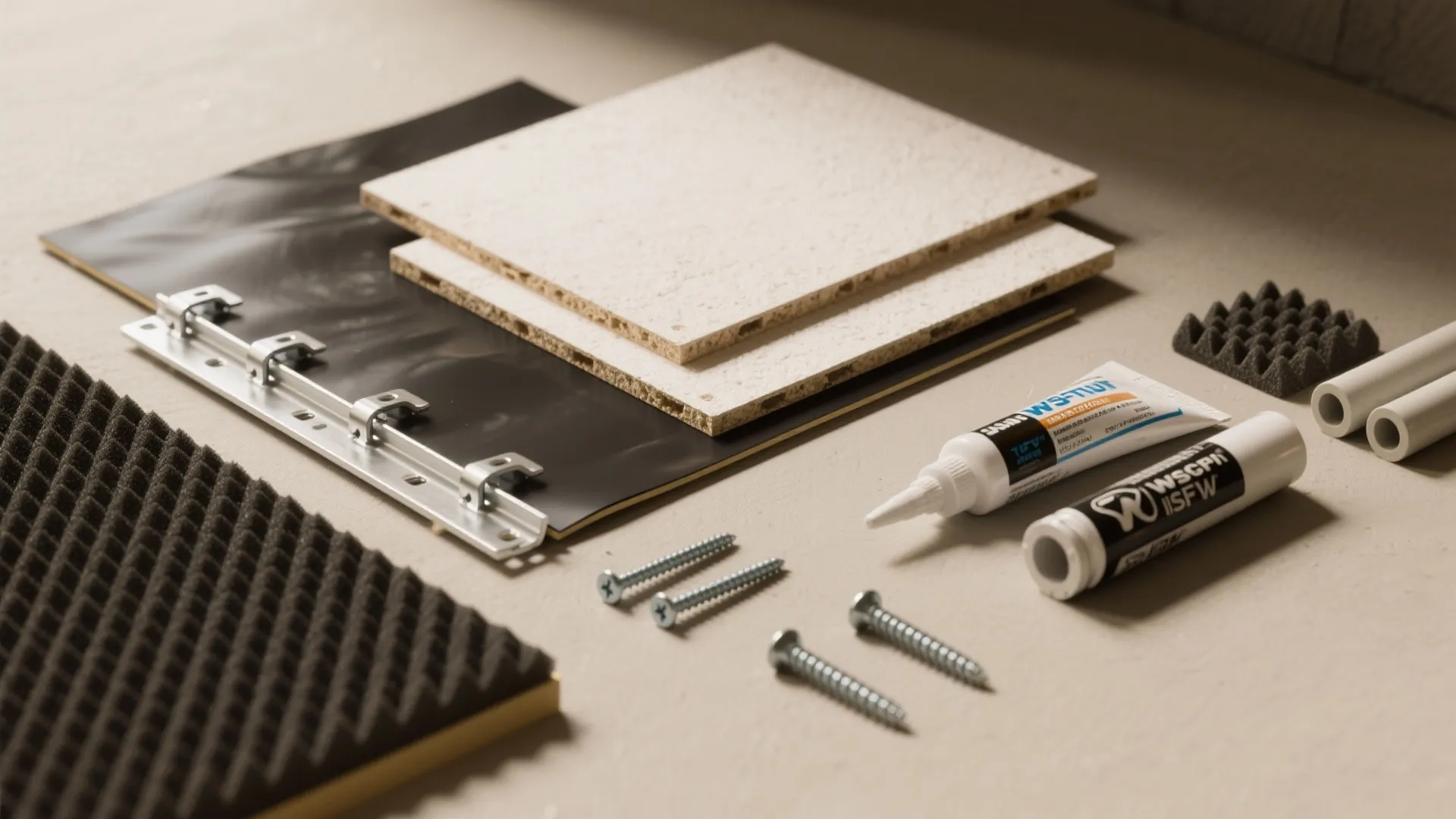

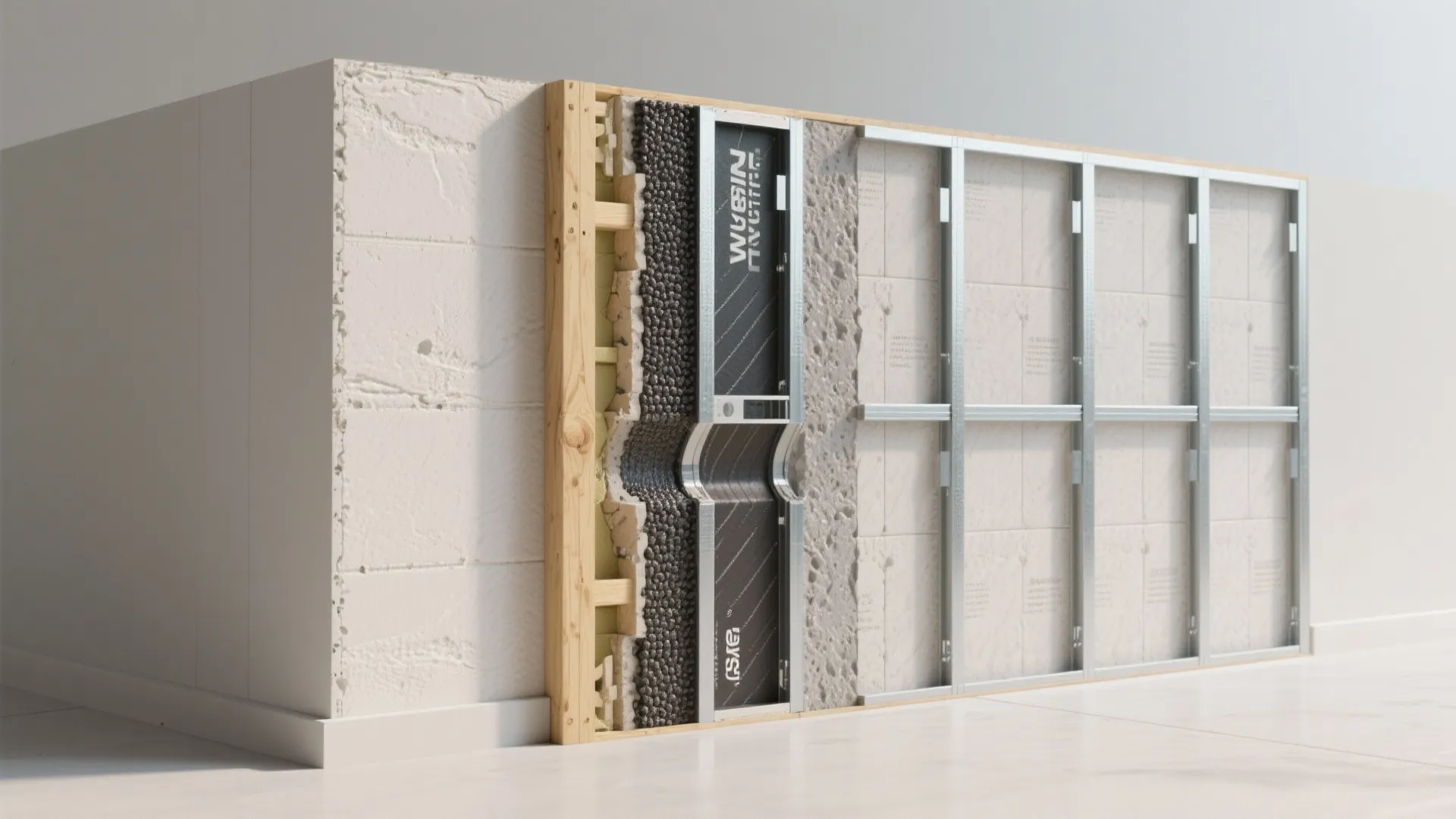

In professional studios we often use:

1. Double‑stud walls
2. Staggered stud construction
3. Resilient channel systems
4. Mass loaded vinyl layers

The hidden mistake many people make is thinking foam panels provide soundproofing. They do not. Isolation requires mass and structural separation.

save pin

Common Recording Studio Wall Design Mistakes

Key Insight: Many studio walls fail because they rely on foam instead of proper acoustic structure.

The most frequent design issues I encounter during studio consultations include:

1. Thin foam tiles covering entire walls
2. No bass treatment in corners
3. Perfectly parallel reflective surfaces
4. Decorative wood panels without acoustic backing
5. Ignoring ceiling reflections

One surprising observation: a partially treated room can perform worse than an untreated room if panels are placed randomly. Strategic placement always beats quantity.

Final Summary

1. Recording studio wall design shapes sound accuracy more than most gear.
2. Absorption panels control reflections and improve vocal clarity.
3. Bass traps are essential for managing low‑frequency buildup.
4. Diffusers maintain natural room energy while reducing echo.
5. Structural wall isolation prevents sound leakage between rooms.

FAQ

What is the best wall material for a recording studio?

Layered drywall with insulation, acoustic panels, and bass traps typically provides the best balance of isolation and acoustic control.

How thick should recording studio wall panels be?

Four inches is generally recommended for broadband absorption. Thicker panels control mid frequencies more effectively.

Do recording studios need diffusers?

Yes. Diffusers prevent rooms from becoming overly dead while scattering reflections to maintain natural sound.

Where should acoustic panels be placed in a recording studio?

Place panels at first reflection points on side walls, behind monitors, behind performers, and on the ceiling reflection point.

Can foam panels replace proper recording studio wall design?

No. Foam only treats high frequencies. Effective recording studio wall design requires thicker absorbers and bass traps.

How do you stop bass buildup in a studio room?

Install corner bass traps or thick broadband panels across corners to absorb low‑frequency energy.

Is soundproofing the same as acoustic treatment?

No. Soundproofing blocks sound from leaving a room, while acoustic treatment controls reflections inside the room.

How much wall coverage should a small studio have?

Most small studios perform well when about 50–70% of reflective surfaces include absorption or diffusion treatment.
