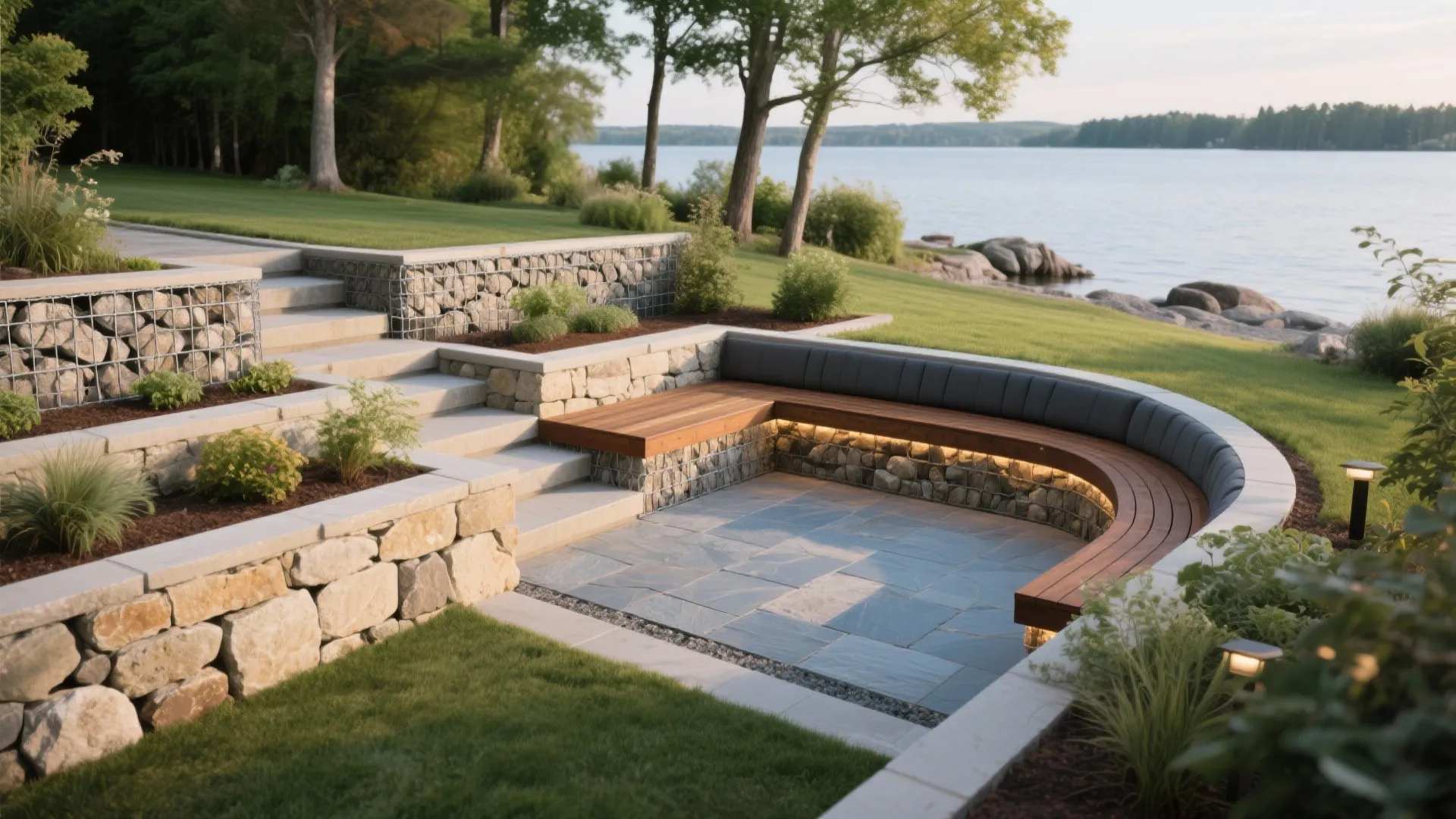

Retaining Wall Designs Kingston: 5 Smart, Local Ideas: From limestone terraces to night-lit bench walls, here are five build-smart retaining wall designs for Kingston yards—grounded in code-savvy details, real costs, and my on-site lessons.

As an interior designer who often crosses into outdoor living, I’ve noticed a clear trend: homeowners in Kingston want retaining walls that look refined and work hard—managing slopes, adding seating, and creating garden structure. In small yards especially, the right wall turns a problem grade into a feature. Small spaces spark big creativity, and that’s where retaining wall designs Kingston homeowners choose can shine with multi-function and texture.

In this guide, I’ll share 5 design inspirations I’ve built or specified around Lake Ontario’s climate, mixing personal wins (and a few stumbles) with expert standards and practical costs. Whether your backyard is a tight urban slope or a wide suburban drop, these ideas balance beauty with drainage, frost-resilience, and code awareness.

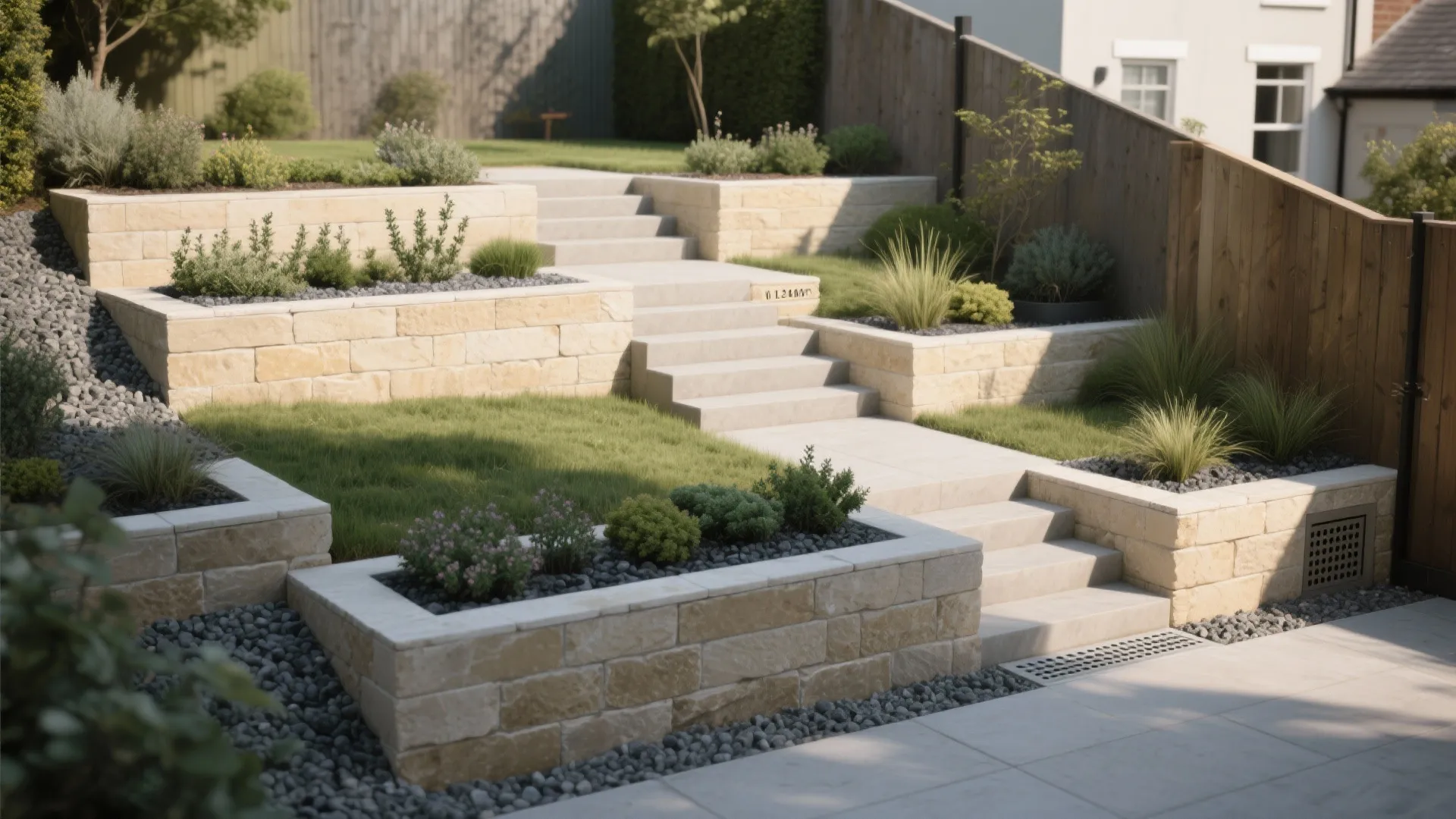

Terraced Limestone Steps and Planters

My Take: The first Kingston project that stole my heart was a narrow yard with a 1.2 m drop over 8 m. We carved the grade into shallow terraces, each doubling as planters, and stitched in stair treads that felt like part of the land. I previewed the composition with textured limestone terraces to make sure the steps, planters, and sightlines flowed before breaking ground.

Pros: Limestone is classic Kingston—locally resonant and visually warm. When paired with proper base prep, permeable backfill, and a 4–6 inch perforated drain, it holds up to freeze–thaw cycles common near the lake; that frost-resistant retaining wall detail matters. Segmental limestone or engineered block systems with geogrid can handle taller walls; National Concrete Masonry Association (NCMA) Best Practices notes geogrid reinforcement and drainage are mission-critical for stability.

Cons: Natural stone is heavy and slow to set, especially on tight sites with tricky access. If you want crisp steps, you’ll pay more for consistent cuts; rustic splits are more forgiving but less uniform. You’ll likely need an engineer and a permit for anything above about 1.0–1.2 m in height or near property lines, which adds time and soft costs.

Tips/Case/Cost: I keep each terrace under 600 mm high to simplify permitting and reduce lateral loads, then stack multiple tiers if needed. Include a non-woven geotextile behind the wall to separate soil and gravel, and compact backfill in 6–8 inch lifts. Budget roughly $65–$120 per square foot visible face for natural stone terracing with steps (engineered block is often lower), depending on access and cuts.

save pin

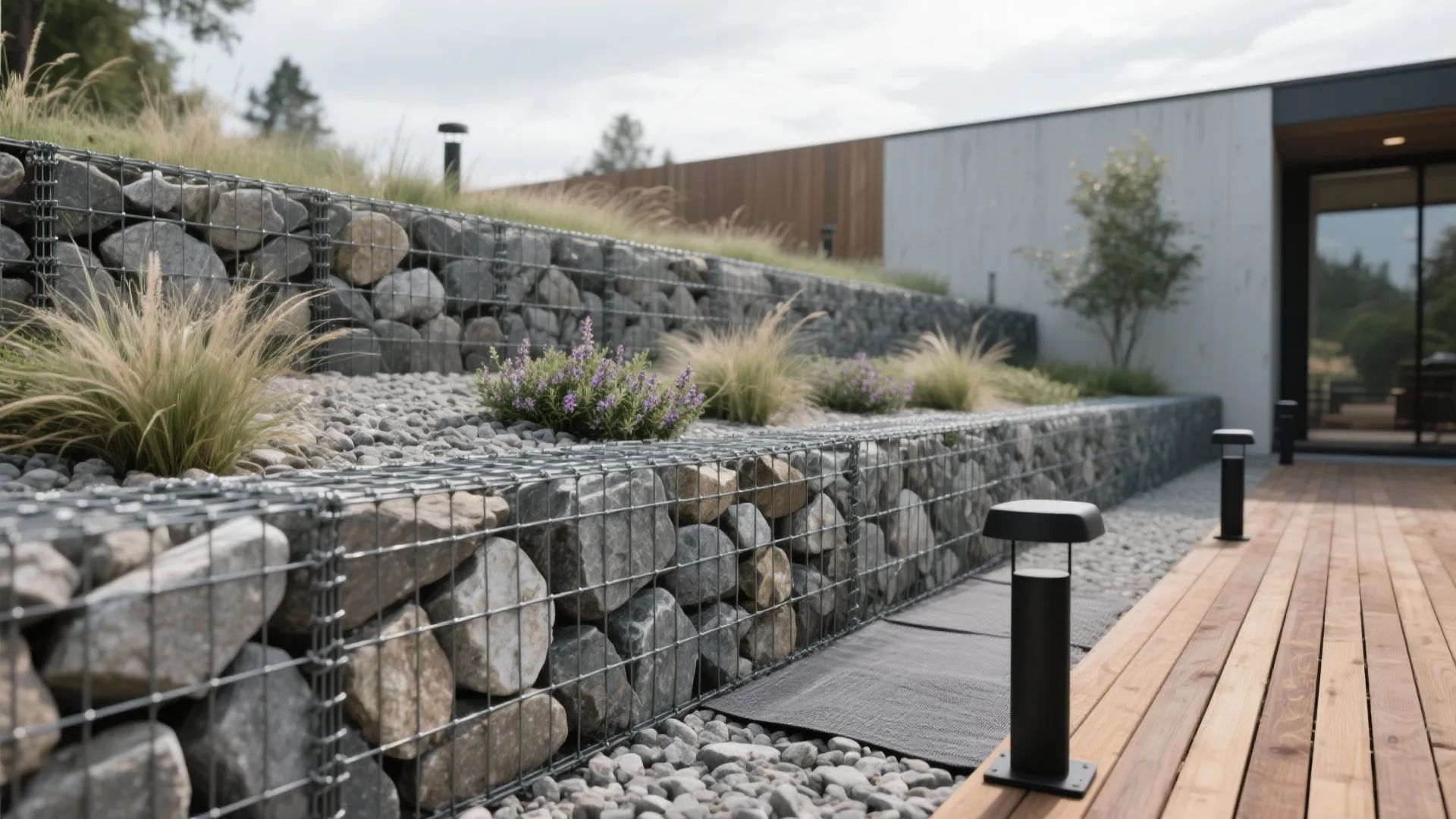

Modern Gabion Retaining Bands

My Take: For a rental property near Queen’s, speed and durability came first. We set low, staggered gabion bands filled with local river rock and dolostone, then softened them with grasses and thyme. The industrial edge paired surprisingly well with a simple cedar deck and black fixtures.

Pros: Gabions are forgiving on drainage because water flows through the baskets naturally—ideal for Kingston’s spring thaws and heavy rains. They’re quick to assemble on compacted gravel with a geotextile underlay, and stone fill is often locally available, keeping costs stable. For small gradients, this is a very DIY-friendly retaining wall design in Kingston, especially for under 900 mm heights.

Cons: If you’re close to winter road spray, cheap galvanizing can corrode; opt for heavy zinc-aluminum coatings or weathering steel baskets. The look leans modern/industrial; if you prefer classic heritage vibes, plan to integrate wood caps or thick planting to soften the lines. Precision at corners takes patience—you’ll be retying lacing wire as you square things up.

Tips/Case/Cost: Use 3–4 mm wire baskets with a 50 x 50 mm mesh and spiral binders for a clean, repeatable assembly. I specify a 6–8 inch crushed-stone base and a filter fabric against the soil. Expect $40–$85 per square foot of visible face depending on stone choice and basket quality.

save pin

Curved Seat-Wall Garden Border

My Take: On a small east-end Kingston lot, a low retaining wall did double duty as a continuous bench, curving around a bluestone patio. That one move saved us from buying extra chairs and made the space feel generous despite the tight footprint.

Pros: A radius wall softens the geometry of boxy yards and improves circulation. At 17–19 inches high with a smooth coping, a bench-height retaining wall turns a grade change into multifunction seating—perfect for small-yard retaining wall designs Kingston homeowners love. Curves also play nicely with kids, reducing sharp corners around play zones.

Cons: Curves can be material- and labor-intensive—more cuts, more waste, and more time. Copings need careful mitering to keep joints tight along the arc, and LED strip lighting under a curved cap requires precise channel routing. If you need future irrigation or wiring, plan conduits before backfilling or you’ll regret it.

Tips/Case/Cost: I like bullnose or chamfered coping stones for sitting comfort. Keep the seat depth at 12–16 inches and add occasional back cushions if the wall backs a fence. For costs, plan $55–$110 per square foot of visible face; integrated seating details and lighting push it higher. For layout, I mocked a quick concept with a curved bench-height wall to test radius, furniture clearance, and planting pockets in 3D before finalizing.

save pin

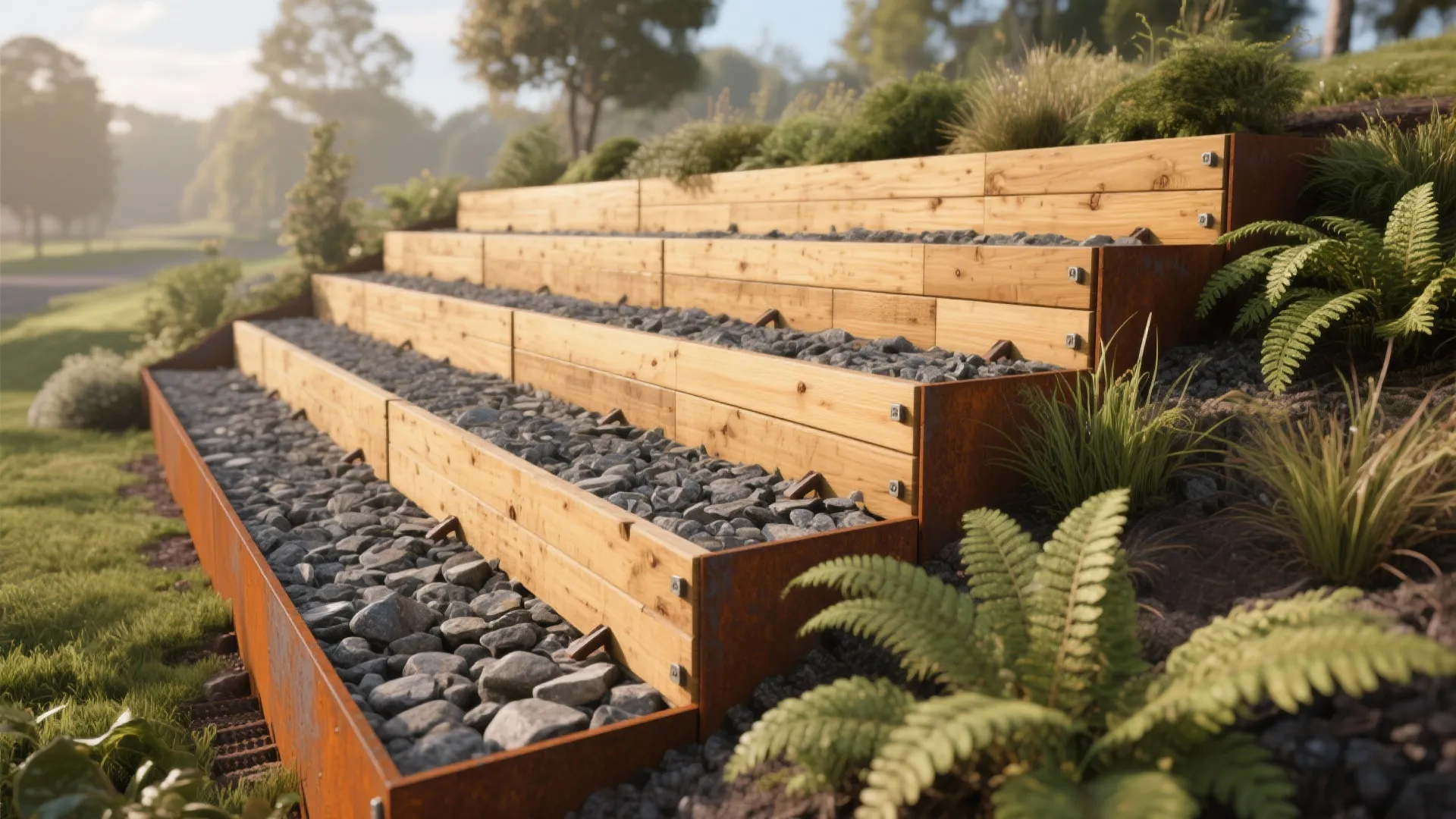

Timber–Corten Hybrid for Warmth and Edge

My Take: A client wanted warmth without the mass of stone, so we blended 6x6 pressure-treated timber tiers with thin Corten steel edging. The wood gave cozy texture; the steel read like a crisp underline and held back mulch on the front edge.

Pros: Timber is budget-friendly and quick to install with deadmen or helical tie-backs for added resistance on taller sections. A pressure-treated timber retaining wall in Kingston, set on a compacted gravel base with continuous drainage, can last years while keeping a natural vibe. The Corten edge keeps lawns tidy and adds a modern highlight against greenery.

Cons: Timber won’t outlast stone or block; expect eventual checking and UV patina. Without meticulous drainage (weep holes, drains, and breathable backfill), wood will fail faster—especially with freeze–thaw. For walls above roughly 1.0 m or near public ways, you’ll likely need an engineer, and some neighborhoods prefer masonry for longevity.

Tips/Case/Cost: Isolate soil from timber with a heavy-duty membrane, but never block drainage; I use a non-woven fabric plus 19 mm clear stone and perforated pipe. Avoid ground contact for the top course and cap with a sacrificial board you can replace in a decade. Costs range from $35–$75 per square foot visible face; Corten edging adds style without a huge premium.

save pin

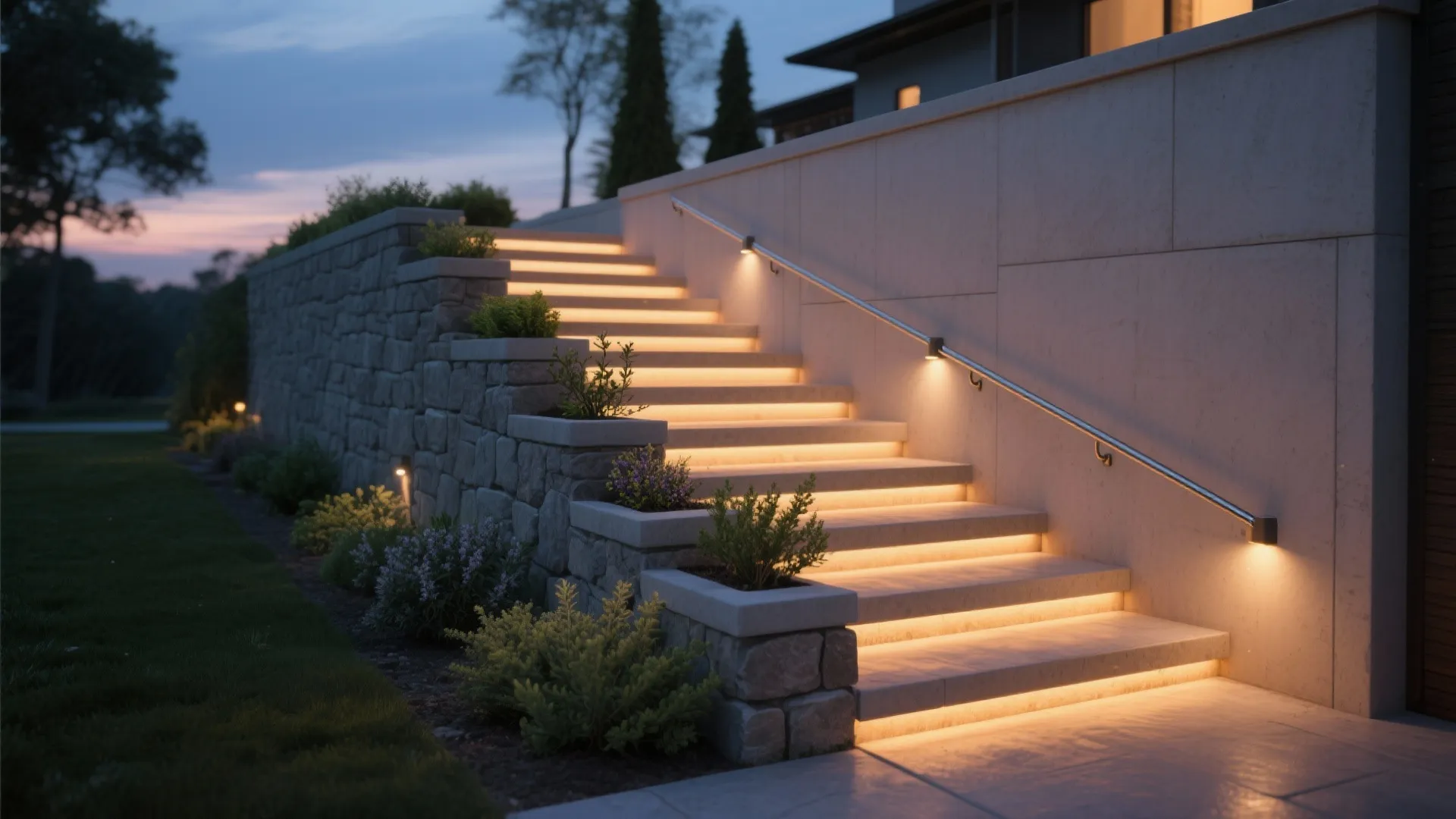

Night Lighting and Planting-Integrated Walls

My Take: The magic move many clients underestimate is integrated low-voltage lighting and plantable pockets. On a west-end slope, we tucked LED tape under the coping, added recessed step lights, and carved out herb pockets—suddenly the wall was architecture, not just structure.

Pros: Warm 2700K lighting extends outdoor hours and makes stairs safer in icy shoulder seasons. Low-voltage retaining wall lighting is efficient, and integrated planting softens hardscape while boosting biodiversity. For performance, proper drainage behind retaining wall courses keeps the light channels dry and reduces freeze damage.

Cons: You’ll need a transformer location, GFCI, and accessible conduits; retrofits cost more than preplanned installs. Plants require irrigation or at least deep mulch and drought-tolerant selections—the pockets can dry out on sunny slopes. Maintenance means checking sealants and lens gaskets annually after winter.

Tips/Case/Cost: I favor micro-pavers or caps with a prefabricated light groove, plus stainless fasteners and marine-grade wire. Choose thyme, sedum, or dwarf grasses for shallow pockets and keep soil light with compost and perlite. As a finishing touch, I often visualize shadow-lit retaining steps to test glare, spacing, and the rhythm of light before installing a single fixture.

Authority Notes: Two fundamentals drive success across all five ideas. First, drainage: NCMA’s Segmental Retaining Wall Best Practices emphasizes graded backfill, filter fabric, and continuous drains to prevent hydrostatic pressure and 90% of failures. Second, structure/permits: walls over about 1.0–1.2 m or near property lines typically require engineering per provincial codes and municipal bylaws; always verify with the City of Kingston’s current rules.

Cost Snapshot (Very General): Material and access drive price more than anything. Low walls (under ~600 mm) without complex curves or steps run on the low end of ranges; stairs, lighting, and tight access increase costs. If your site needs excavation spoils hauled away or a custom engineered design with geogrid, build in a 15–25% contingency.

Maintenance: Each spring, I suggest a quick reset—clear weep holes, check for edge heave, top up polymeric sand at joints, and inspect lighting. After heavy storms, peek behind the top course to ensure no silt is blocking the drain. Small, regular care protects the investment.

Why These Designs Fit Kingston: Freeze–thaw, lake winds, and clay-to-limestone soil transitions mean details matter more than trends. These five solutions live comfortably with our climate, giving you structure in summer and resilience in shoulder seasons. Think like a builder and a gardener—your walls will thank you.

save pin

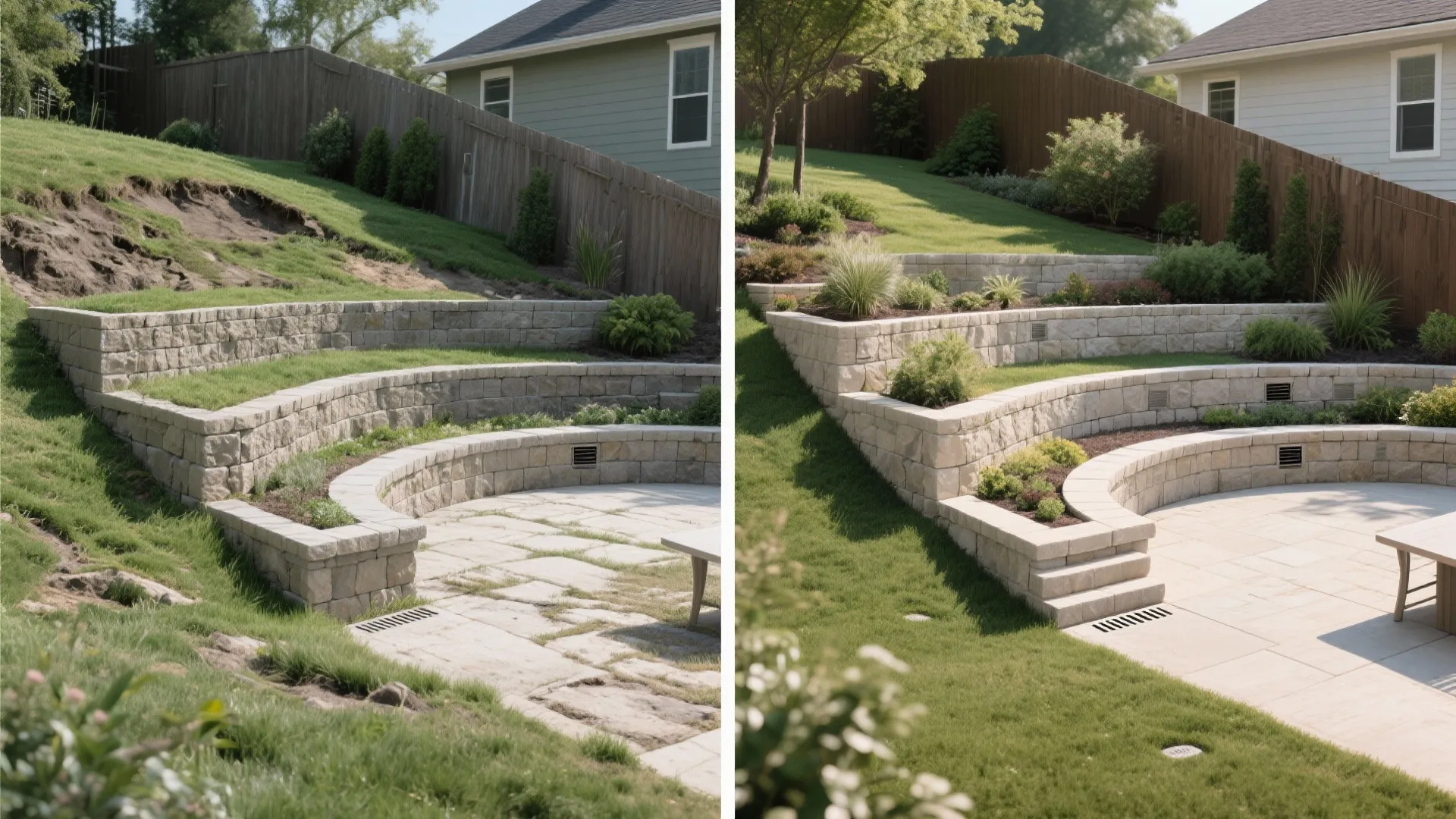

Summary

In short, small yards aren’t a limit—they’re a prompt to design smarter. The best retaining wall designs Kingston homeowners can choose blend drainage, proportion, and multifunction: terraces that invite planting, seat-walls that host friends, and lighting that guides winter steps. As NCMA guidance reinforces, get the base, backfill, and drains right, and your wall becomes a long-term asset—not a recurring repair.

Which idea are you most tempted to try first—the classic limestone terraces, the modern gabions, the curved bench wall, the timber–Corten warmth, or the night-lit planting pockets?

save pin

FAQ

1) What’s the best material for retaining walls in Kingston?

For heritage homes and durability, limestone block and engineered segmental retaining wall systems excel. For budget-friendly builds, timber with proper drainage works well, while gabions fit modern styles and handle water elegantly.

2) Do I need a permit for a retaining wall in Kingston?

Generally, walls over about 1.0–1.2 m or near property lines/public ways require engineering and a permit; confirm with the City of Kingston before starting. Requirements can change by location and context, so check current municipal bylaws.

3) How deep should the base be for freeze–thaw conditions?

A typical small wall uses a 150–200 mm compacted crushed-stone base, extended wider than the block and below topsoil depth. Deeper bases or additional measures may be needed on clay or for taller walls—your engineer will specify.

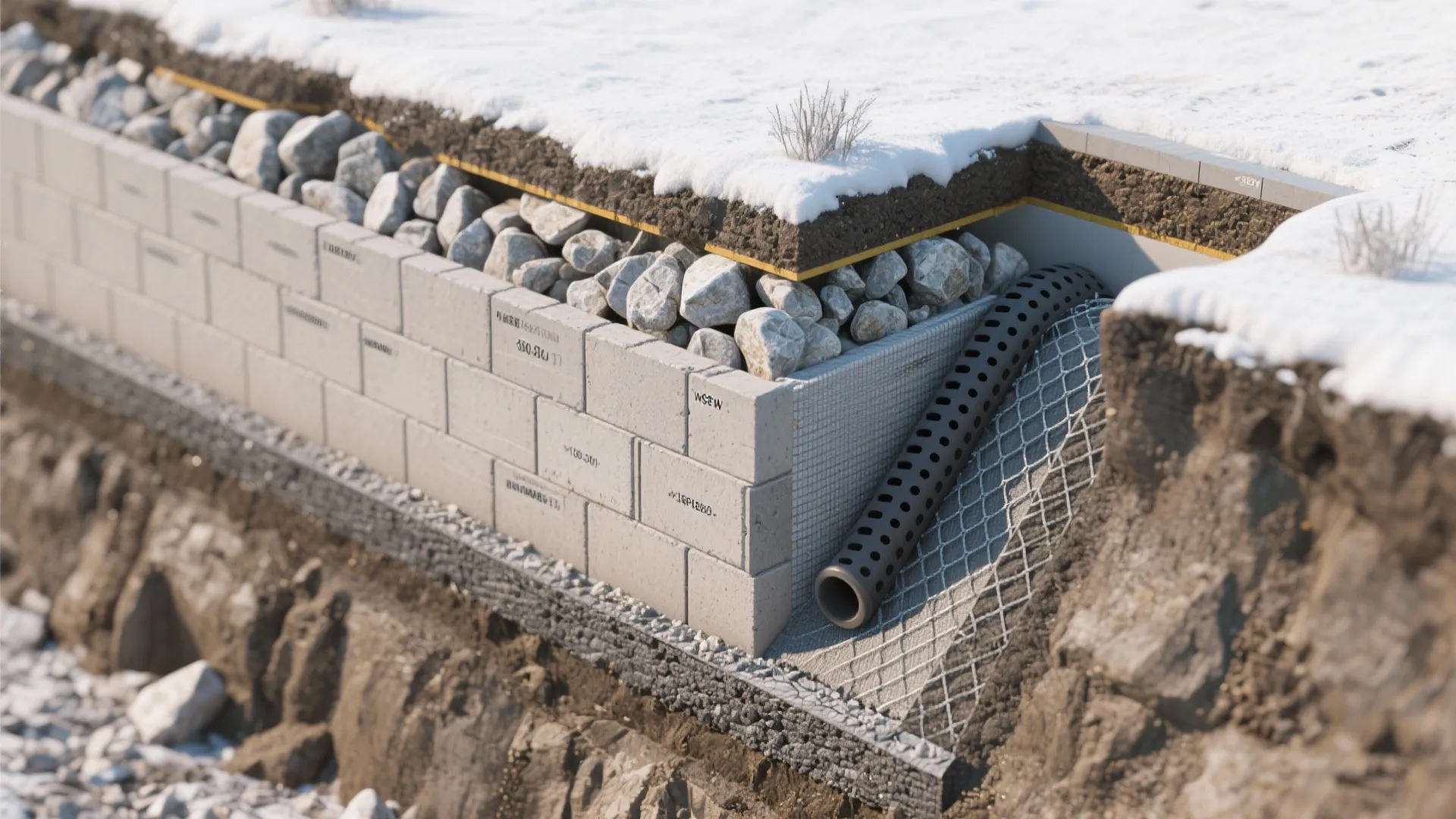

4) How do I manage drainage behind a retaining wall?

Use a non-woven geotextile against native soil, 300–450 mm of clear stone backfill, and a 4–6 inch perforated drain sloped to daylight. NCMA Best Practices stresses that proper drainage relieves hydrostatic pressure and prevents most wall failures.

5) What’s a typical cost range in Kingston?

Expect roughly $35–$120 per square foot of visible face depending on material, access, curves, steps, and lighting. Engineering, permits, and challenging excavation can add 15–25% to the budget.

6) Can I build a retaining wall right on the property line?

Sometimes, but it’s often simpler to keep it inside your boundary for maintenance access. If you must go on the line, expect permits, neighbor coordination, and likely an engineered design to satisfy municipal rules.

7) How high can I build without an engineer?

Low walls under roughly 1.0 m are often allowed without engineering, but local bylaws may vary—especially near driveways or public sidewalks. When in doubt, consult a structural engineer; it’s a small fee compared with the cost of a failure.

8) Are gabion walls good for Kingston’s climate?

Yes—gabions handle water well and settle into freeze–thaw cycles without cracking. Choose high-quality corrosion-resistant baskets and consider wood caps or planting to warm up the industrial aesthetic.
