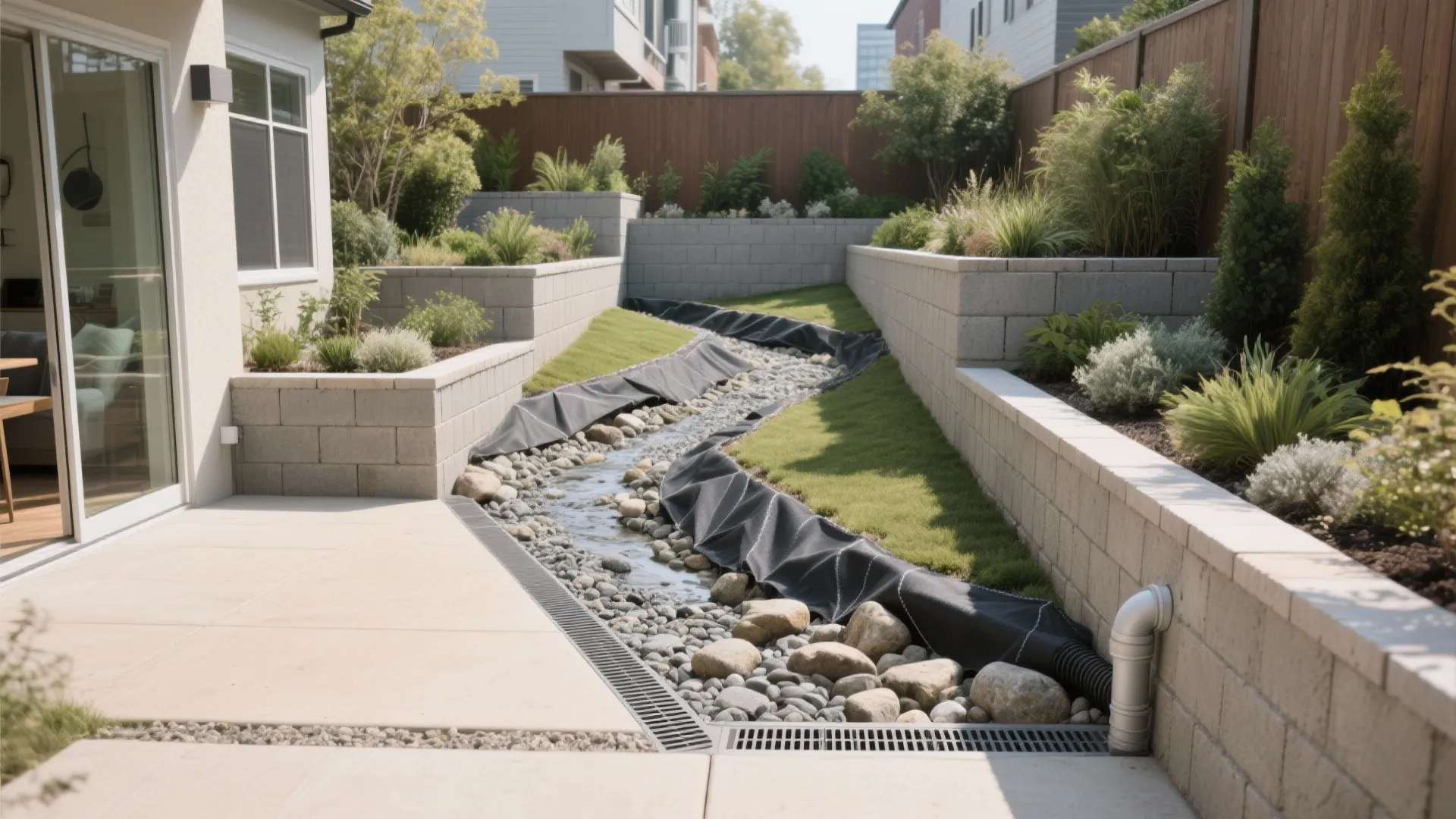

Retaining Wall Drainage System Design: 5 Proven Ideas: Field-tested strategies I use to keep walls dry, stable, and low-maintenance

[Section: Introduction]

As more homeowners blend indoor-outdoor living with climate-smart landscapes, retaining wall drainage system design has become a quiet hero of long-lasting yards. On tight urban lots, I've learned that small spaces spark big creativity—and precision matters. I often start with a quick 3D grading study to visualize how water wants to move before I draw a single drain line.

In this guide, I’ll share 5 design ideas I rely on, backed by jobsite lessons and expert standards. If you’re tackling a terraced garden or a modest courtyard slope, these tips will help you avoid soggy soils, hydrostatic pressure, and costly callbacks. I’ll also share budget cues and when to call in an engineer.

[Section: Inspiration List]

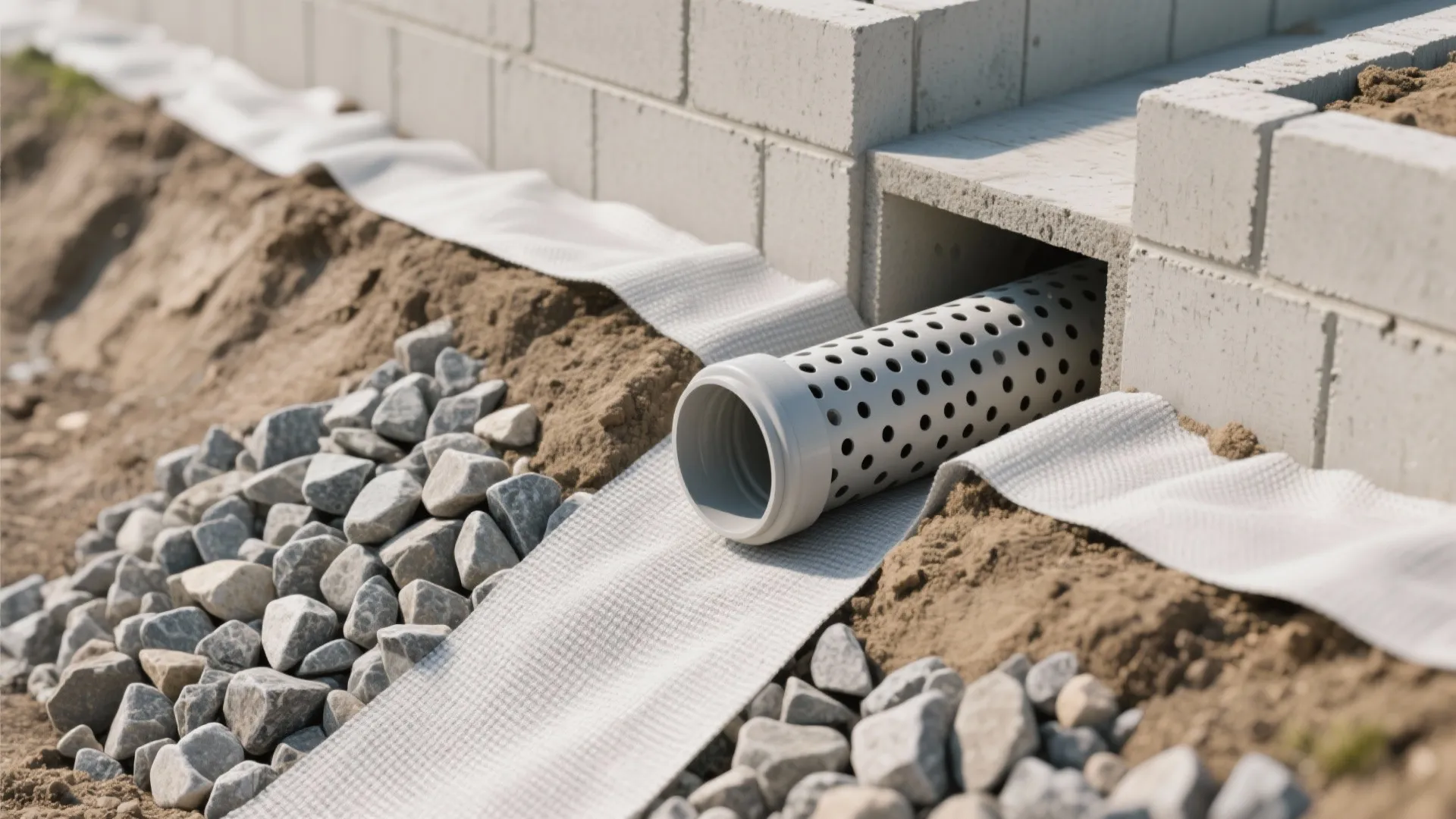

Gravel Backfill + Perforated Pipe: The Workhorse Drain

My Take

On a hillside townhouse project in San Francisco, a simple combo—free-draining gravel backfill, a perforated pipe at the heel, and filter fabric—transformed a wet, bowing wall into a dry, steady backdrop for herbs. I’ve repeated this detail across soil types, and consistency is what saves the day. When the basic path for water is unblocked, most walls behave.

Pros

It’s the backbone of retaining wall drainage system design because it directly relieves hydrostatic pressure. A continuous 4 in (100 mm) perforated pipe behind the wall, set at or slightly below footing level with free-draining aggregate (often 3/4 in angular) gives water a low-resistance escape—an essential segmental retaining wall drainage detail. The National Concrete Masonry Association’s SRW Best Practices (2022) reinforces the use of graded aggregate and filter fabric to limit fines migration, which keeps the drain performing for years.

Cons

If the fabric is wrapped like a tight “burrito,” it can clog faster at seams; I prefer a fabric liner against the soil and an open top for service access. Perforated pipes crush if heavy equipment rides over them during backfill—ask me how I know. Also, on clay sites, even “free-draining” aggregate can slow under long winter saturations, so outlet design is everything.

Tips / Case / Cost

Use a nonwoven geotextile (typical 4–8 oz/sy) as a soil separator; it filters without plugging as quickly as woven types in silty soils. Pitch the pipe 1% if you can; if not, frequent weeps or cleanouts compensate. Budget: materials are modest, but labor spikes if trenching is tight—expect 10–20% more time in small courtyards.

save pin

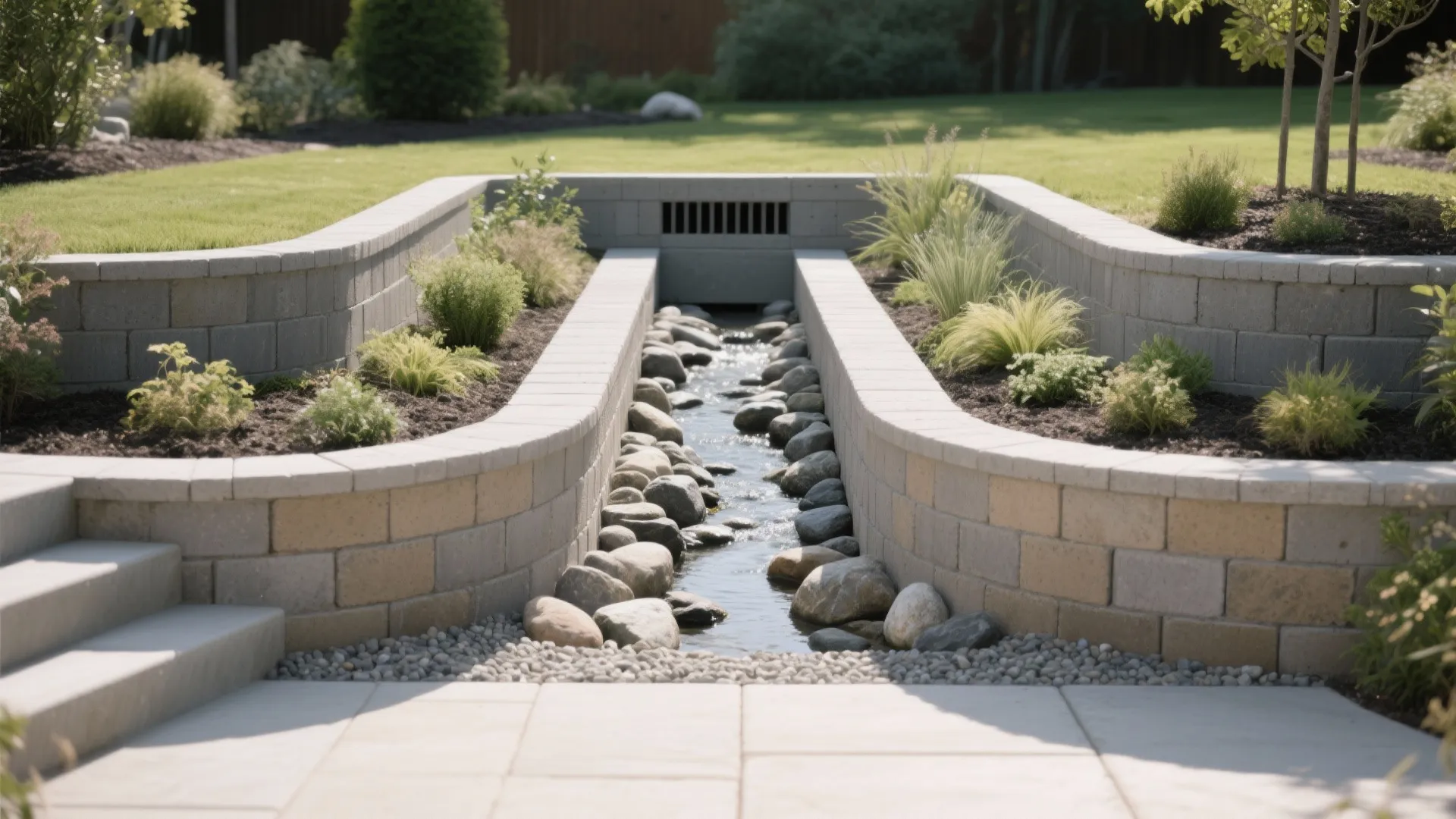

Stepped Terraces + Swales to Split the Load

My Take

When a client asked for a single 6-foot wall to “save plantable area,” I suggested two 3-foot terraces with a shallow swale between. The garden looked bigger, and the drainage became simpler. Breaking elevation into smaller bites reduced pressure and gave us an easy place to intercept runoff.

Pros

Terraces lower retained height, which cuts earth pressure and makes drainage simpler—your swale can direct flow to an outlet without overworking the lower wall. Weep holes and granular zones at each level double as relief points, improving segmental retaining wall drainage detail performance. FHWA guidance on MSE walls (NHI-10-024) supports managing surface and subsurface water separately to prevent buildup behind facing units.

Cons

Terraces take more horizontal space, which not every yard has. The irrigation layout needs careful zoning, or you risk overwatering the upper bed and flooding the lower wall. Stepped caps create small trip points—make the planting lush or add a low rail where kids play.

Tips / Case / Cost

Keep the mid-slope swale shallow and lined with river rock so it stays attractive dry or wet. If you need weep holes, align them above the drain stone level and slot them through sacrificial PVC sleeves for clean edges. Terracing costs a bit more in materials but often balances out with easier drainage work.

save pin

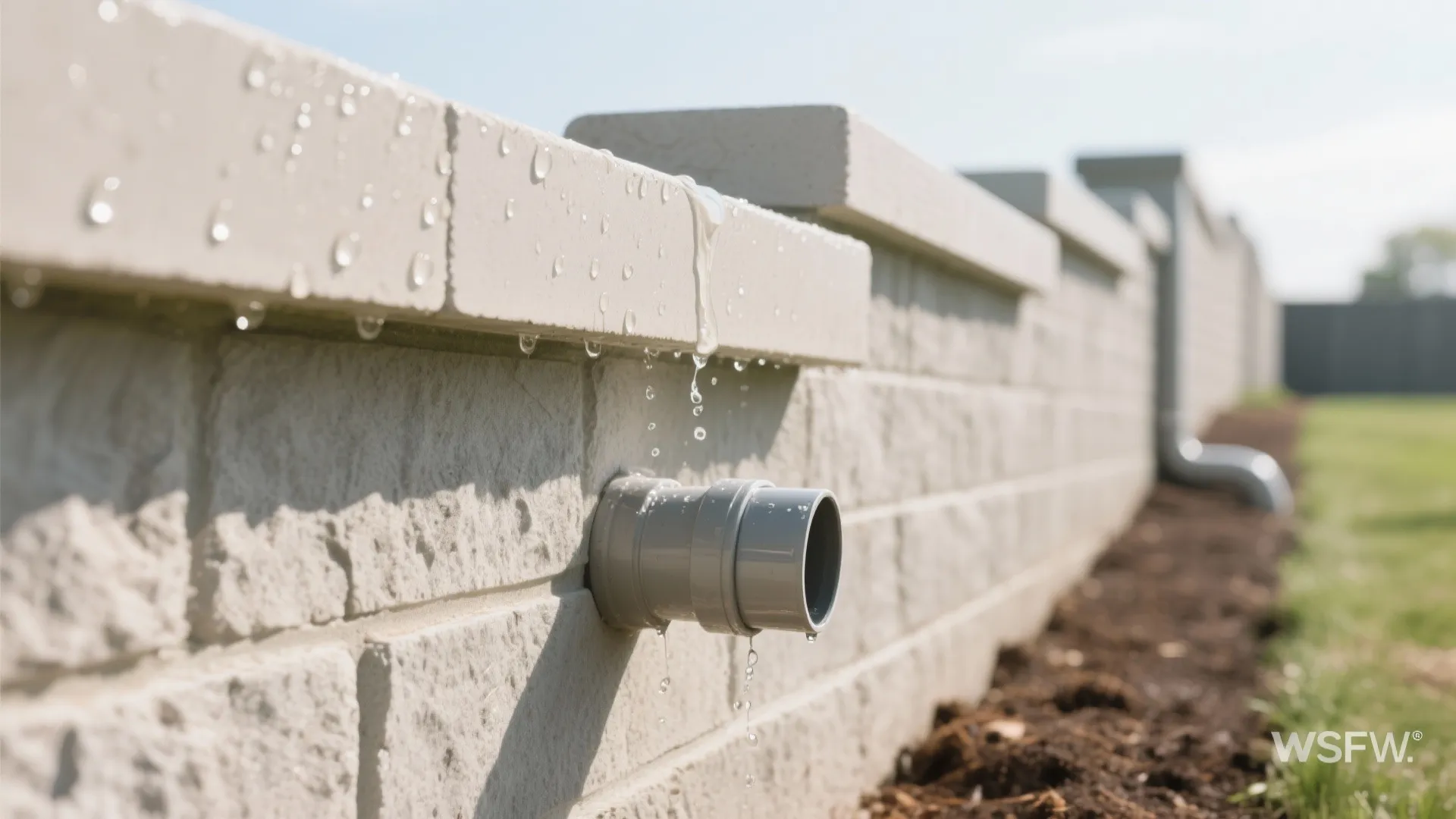

Control Surface Water at the Top: Caps, Drip Edges, and Downspouts

My Take

Half the drainage “battle” is keeping roof and patio water from ever reaching the backfill. I once traced a damp wall to a gutter elbow splashing right at the cap—rerouting that downspout dried the wall in a week. Now I always design the top like a little roof with slope, cap, and a defined edge.

Pros

A sloped, impermeable cap with a slight drip edge keeps surface water from percolating behind the wall—a small detail with outsized impact on retaining wall drainage system design. Redirecting downspouts and patio runoff toward yard drains or bioswales cuts the load on the subdrain, which means fewer clogs and less freeze-thaw stress. I also use shallow grade breaks (1–2%) behind the wall to steer sheet flow away before it finds trouble.

Cons

Caps that are dead-flat pool water and stain quickly; homeowners sometimes think it’s a defect. Hard caps can reflect heat onto plants, so choose light colors near delicate foliage. And running new downspout pipes under paving is not glamorous—but future you will be grateful.

Tips / Case / Cost

Mock up grades early—even cardboard shims under caps help visualize water runs. I’ll sketch quick site drainage mockups to show clients how a tiny 1% top slope changes the whole flow path. Set downspout discharges well away from the wall or capture them with a separate tightline to daylight.

save pin

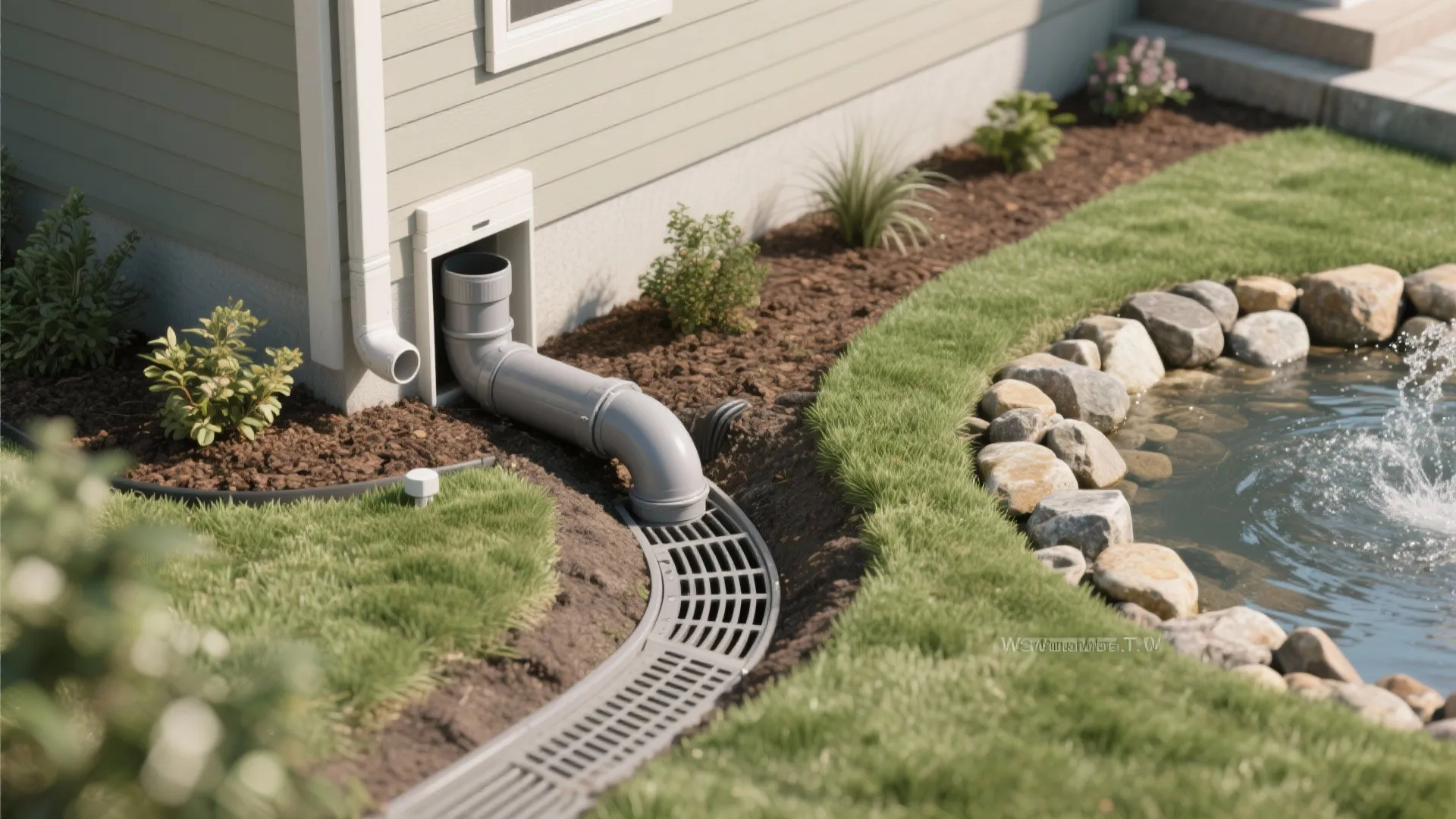

French Drain to Daylight, With Cleanouts and Rodent Guards

My Take

In most compact yards, my favorite move is a French drain that daylights on the low side of the property. It’s straightforward and easy to maintain. The magic is in the little add-ons: a cleanout T, a critter guard, and a splash pad.

Pros

Daylighting gives water a gravity-fed exit, which is more reliable than relying on a soakaway in heavy clay. Cleanouts let you flush sediment after storms, extending the life of the French drain behind retaining wall systems. Rodent guards prevent visitors from nesting in the outlet and clogging the line just when you need it most.

Cons

In frost-prone zones, shallow outlets can ice over—give yourself sun exposure and a slight drop if possible. On lots that don’t allow a daylight point, you’ll need a dry well or sump, which adds cost and maintenance. And yes, the splash pad needs a little grooming after big events.

Tips / Case / Cost

Use schedule 40 or SDR-35 for outlet sections where mowers or foot traffic might stress the pipe. Include a removable grate at the outlet so you can snake the line seasonally. Budget a few hours each year for a quick flush and inspection—it’s cheaper than a dig-up.

save pin

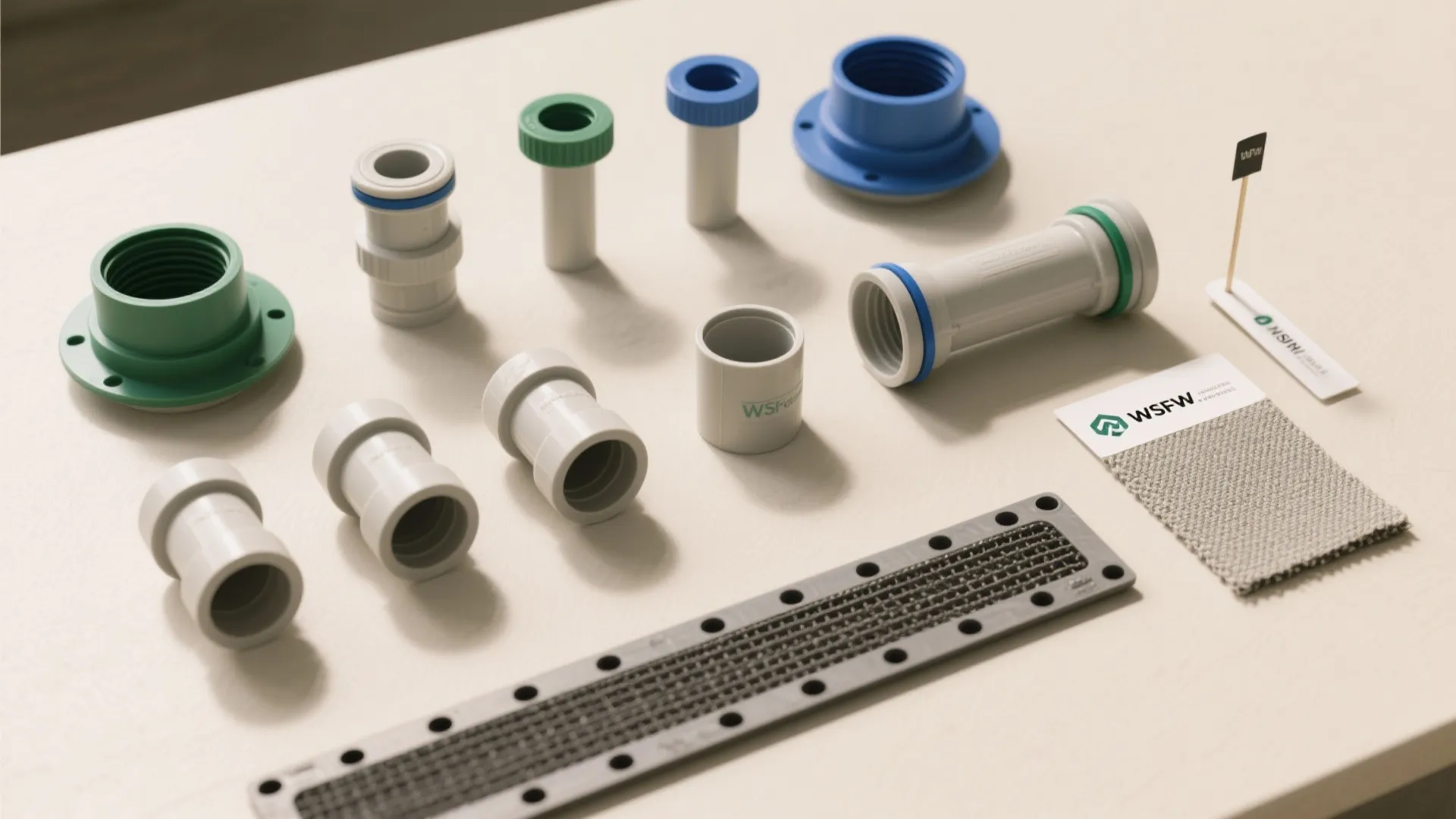

Redundancy and Maintenance: Weep Paths, Inspection Ports, and Monitoring

My Take

Every great design I’ve inherited and loved had one thing in common: it was easy to check and easy to fix. I now build redundancy into my retaining wall drainage systems like a pilot packs a backup parachute. A second weep path or a discreet inspection port is a small insurance premium.

Pros

Adding an inspection riser at the low point helps you verify flow, measure sediment, and flush lines—small features that make a big difference in long-term retaining wall drainage system design. Secondary weeps or a narrow drainage mat against the wall face provide a pressure relief lane if the main line slows. Referencing NCMA and local codes keeps details consistent with segmental retaining wall drainage detail expectations and inspection norms.

Cons

Risers and cleanouts aren’t pretty, so I hide them in planting or use low-profile boxes. More components mean more chances for poor workmanship if the crew is rushed. And yes, you’ll need to teach the next owner what the mysterious cap in the rosemary bed is for.

Tips / Case / Cost

Color-code cleanout caps and log their locations on a simple plan for the homeowner. If the wall is near the property line, a small surface channel at the toe prevents neighbor runoff from backfilling your trench with silt. When detailing drawings, I include a labeled drainage detail section so builders and owners know exactly where to probe or flush later.

[Section: Summary]

In the end, small yards and short walls don’t limit you—they push you to design smarter. A thoughtful retaining wall drainage system design combines reliable basics (gravel, pipe, fabric) with surface water discipline and simple maintenance access. If you’re unsure about soils or heights, cross-check with NCMA best practices and your local code authority, and bring in an engineer when loads are complex.

Which of these five ideas are you most excited to try on your site?

save pin

FAQ

[Section: FAQ]

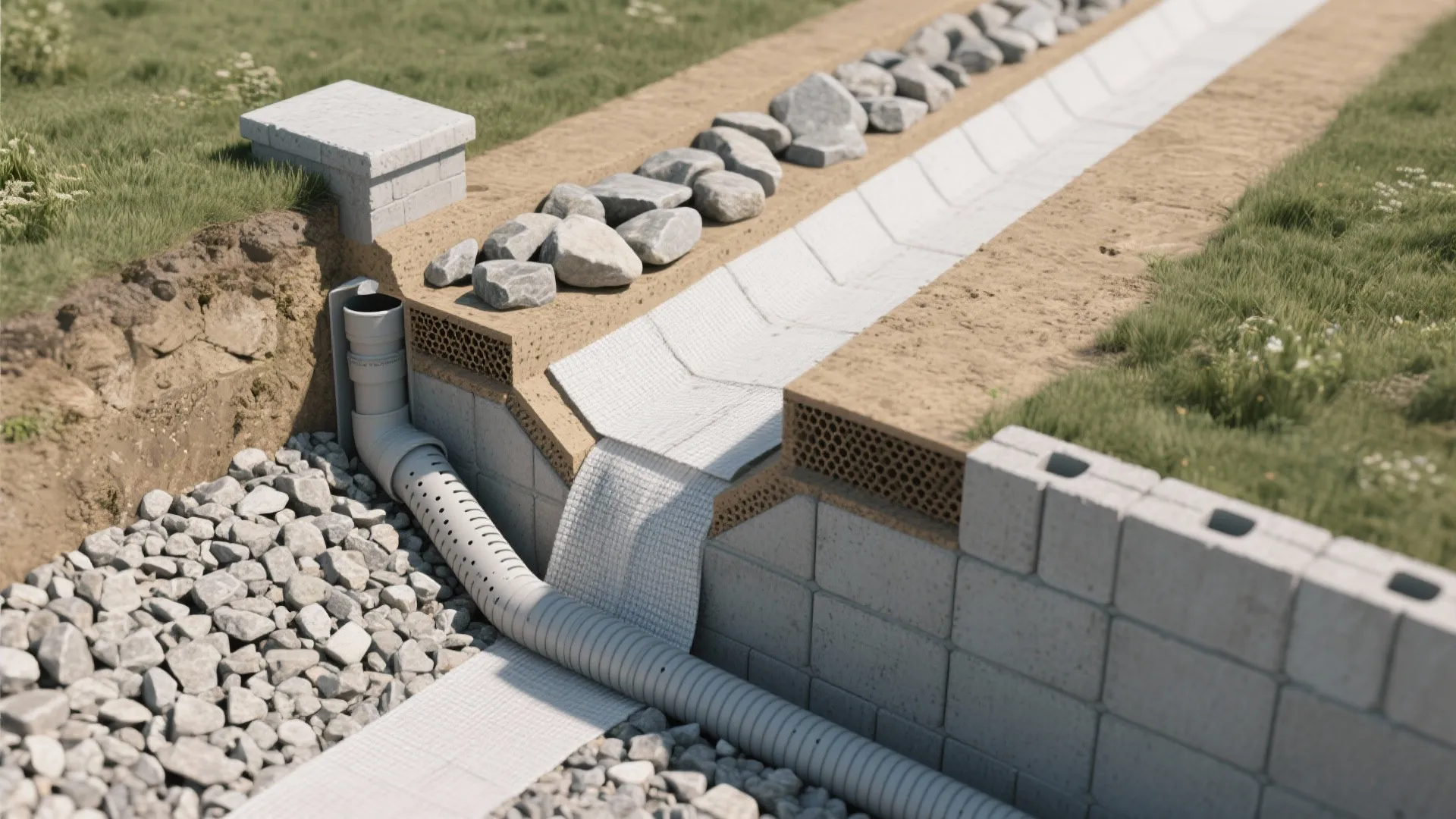

1) What is the basic retaining wall drainage system design?

Typically: free-draining gravel backfill, a perforated pipe at the base pitched to an outlet, filter fabric separating soil and stone, and either weep holes or a daylighted line. Surface water is managed with cap slope and grade away from the wall.

2) Do all retaining walls need drains?

Most do. Any wall that retains soil can build hydrostatic pressure without drainage, regardless of height. Small planter walls sometimes rely on weeps, but a subdrain is the safer bet in most climates.

3) How deep should the perforated pipe be?

Set the pipe at or slightly below the bottom of the retained backfill zone, usually near footing level, and pitch it about 1% to an outlet when possible. Maintain continuity—no high spots that trap water.

4) What gravel should I use behind the wall?

Angular, clean stone (often 3/4 in) with minimal fines is standard for segmental retaining wall drainage detail performance. A nonwoven geotextile separates native soil from the aggregate to limit clogging.

5) How far apart should weep holes be?

Spacing depends on wall type and backfill, but many projects aim for roughly 3–6 ft (1–2 m) on center, aligned above the drain stone. Always verify with your wall system guidelines and local code.

6) Can I route roof water behind my wall drain?

No—keep roof water on its own tightline to a lawful discharge point. Mixing downspouts with your French drain risks overload and silt, shortening the life of your retaining wall drainage system design.

7) What do authorities recommend for drainage behind segmental walls?

The NCMA SRW Best Practices Guide (2022) recommends free-draining aggregate, proper filter fabric separation, and positive drainage to an outlet or weeps. FHWA’s MSE wall manuals (e.g., NHI-10-024) stress controlling both surface and subsurface water.

8) When should I involve an engineer?

If your wall exceeds local height thresholds (often 3–4 ft), carries surcharge loads (cars, structures), or soil reports show expansive clay, bring in a licensed engineer. They’ll confirm drainage capacity, loads, and code compliance.
