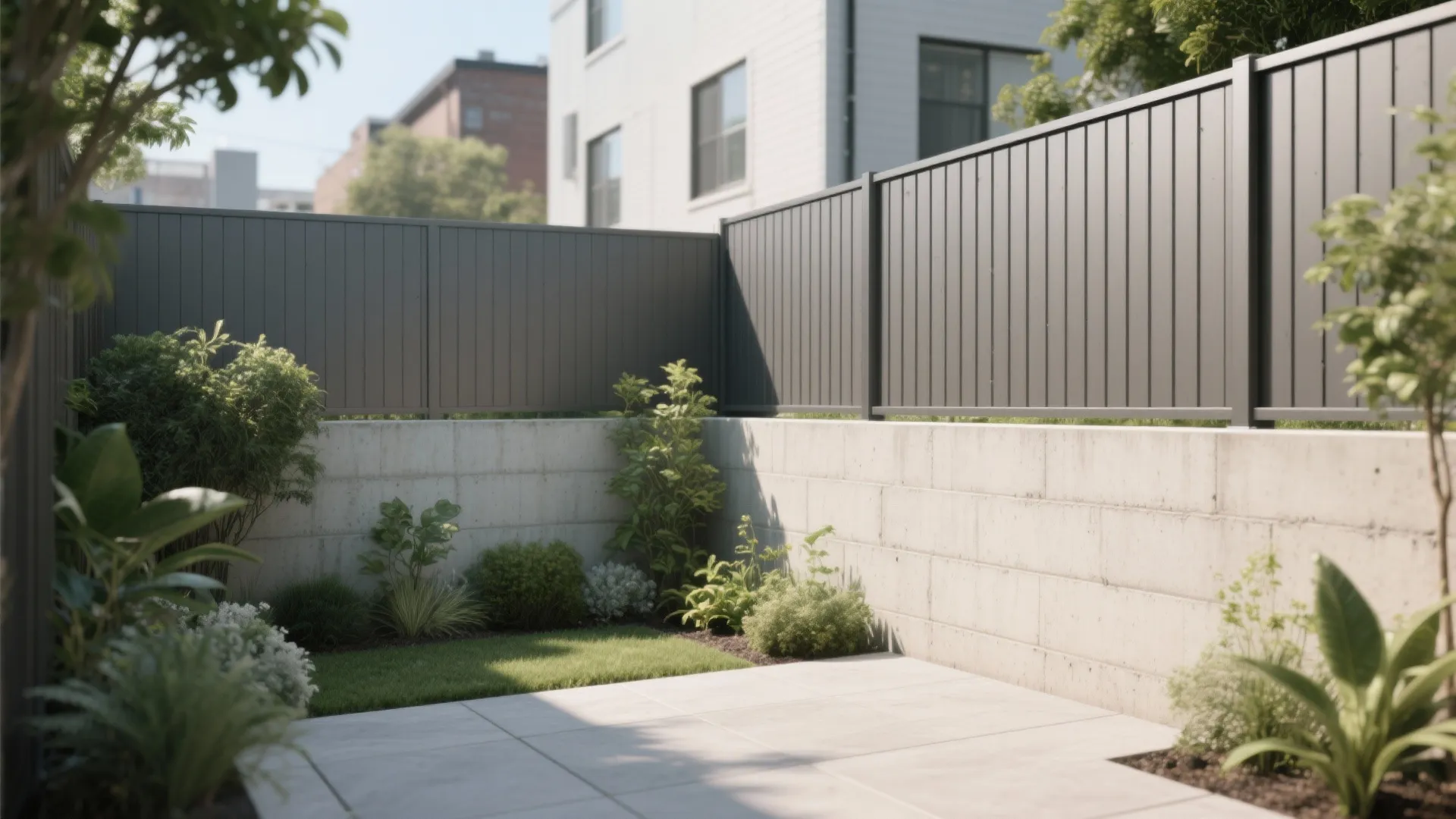

5 Fence on Retaining Wall Design Ideas That Work: Practical, code-aware, and good-looking ways to add safety and privacy over a retaining wall—straight from my job site notes

[Section: 引言]

I’ve been seeing a clear shift toward slimmer profiles, mixed materials, and lighter-looking boundaries—especially in tight urban yards. When it comes to fence on retaining wall design, small spaces really do spark big creativity because every inch of height, post location, and material choice carries visual and structural weight. In this guide, I’ll share 5 design ideas I’ve actually built, blending personal experience with expert references and practicality.

We’ll talk about where to mount posts, what materials age well, what codes to check, and how to keep the whole composition feeling open. You’ll get pros, cons, and a few cost/time notes so you can budget smarter. And yes—I’ll weave in data points from respected sources where it truly matters.

[Section: 灵感列表]

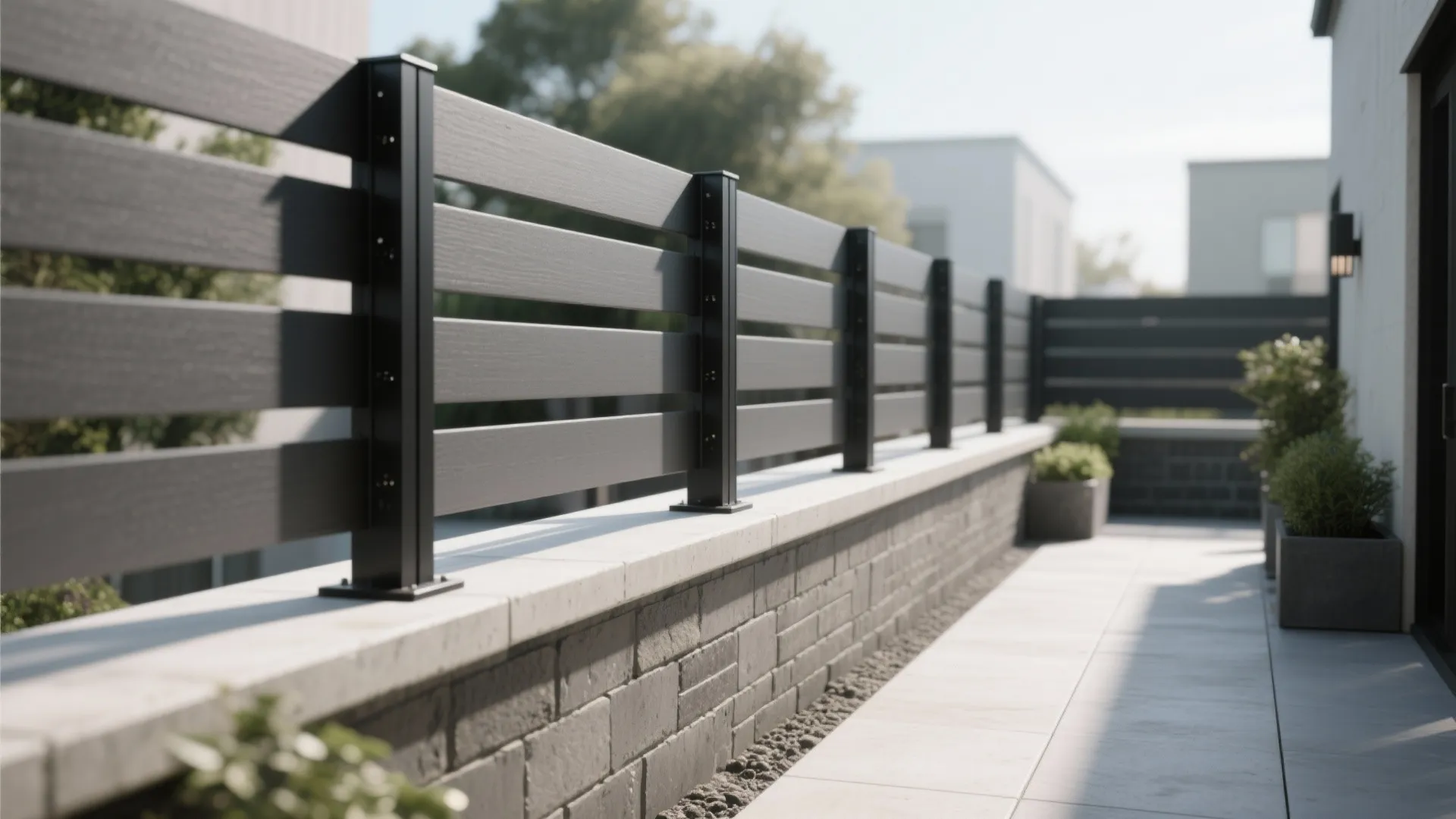

Sleek steel posts with composite or metal slats

My Take: Clean lines calm a busy small yard. When I pair powder‑coated steel posts with composite or aluminum slats on top of a wall cap, I get clean, minimalist boundary lines clean, minimalist boundary lines without visual clutter. I’ve used this on narrow terraces where the fence needed to read as shadow lines rather than a solid mass.

Pros: This fence on retaining wall design minimizes bulk while delivering privacy and durability. Surface‑mount base plates with epoxy anchors or core‑drilled posts give you flexible attachment paths; it’s especially helpful if the wall is concrete or masonry with a robust cap. For segmental retaining walls (SRW), I coordinate early because attachment often requires specialized sleeves or separate footings; NCMA TEK 18‑10 offers guidance on post integration near SRWs (National Concrete Masonry Association, TEK 18‑10).

Cons: Steel heats up and can radiate warmth on hot afternoons, and very tight slat spacing can whistle in coastal winds. Composite slats reduce maintenance but can look flat if you don’t break up the rhythm; I usually vary the slat pitch near corners to avoid a “venetian blind” vibe. Costs can be mid‑to‑high due to steel posts, hot‑dip galvanizing, and powder coat before installation.

Tips / Cost: If you’re deciding between base‑plate and core‑drilled posts, I favor core drilling for cleaner looks and less exposed hardware—but you’ll need a good plan for waterproofing the penetrations. Budget roughly 2–4 days for a 20–24 ft run with two installers, depending on access and whether anchors are adhesive or expansion. Where wind is a factor, I verify post spacing against expected loads per ASCE 7 wind guidelines with the structural engineer.

save pin

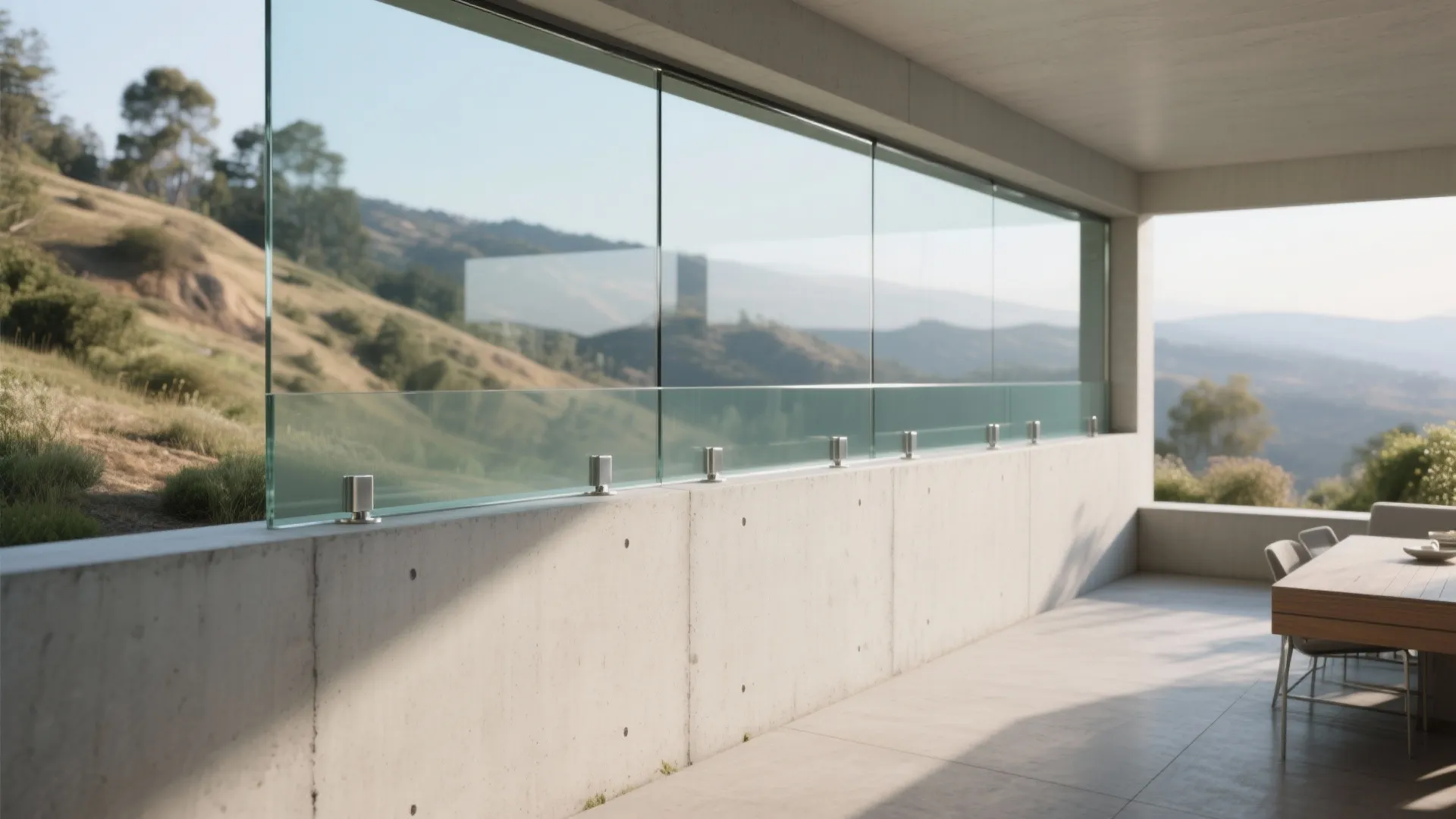

Glass infill above a concrete retaining wall

My Take: In small gardens, views are your luxury. I like a low‑iron glass panel fence (with standoffs or slim shoe channels) atop a concrete wall when clients want privacy from seated views but don’t want to lose sightlines to trees or city lights.

Pros: Glass lets the landscape breathe while giving a protective edge, and you can mix frosted lower bands with clear upper panels to control privacy at eye level. If the drop from the yard side to the lower grade exceeds 30 inches, guard requirements typically kick in; IRC R312 establishes guard provisions, while local amendments dictate height (commonly 36–42 inches). As a long‑tail note, this fence on retaining wall design works beautifully as a “guard‑plus‑screen” solution without making the yard feel boxed in.

Cons: You’ll clean fingerprints and water spots more often, and glass at night can become a reflective mirror unless you integrate soft lighting. Be mindful of bird safety; decals or frit patterns help reduce strikes. Hardware can add up—quality standoffs, shoes, or point‑supported systems elevate cost and lead time.

Tips / Case: On a hillside patio, I used a 12 mm tempered, laminated build with a frosted 14-inch band at the bottom, clear above. We left a 1/2-inch continuous weep gap at the wall cap edge so water wouldn’t pool behind the shoe channel. Coordinate early with the engineer on anchor spacing and edge distances in the cap; you want robust concrete and no hidden rebar conflicts.

save pin

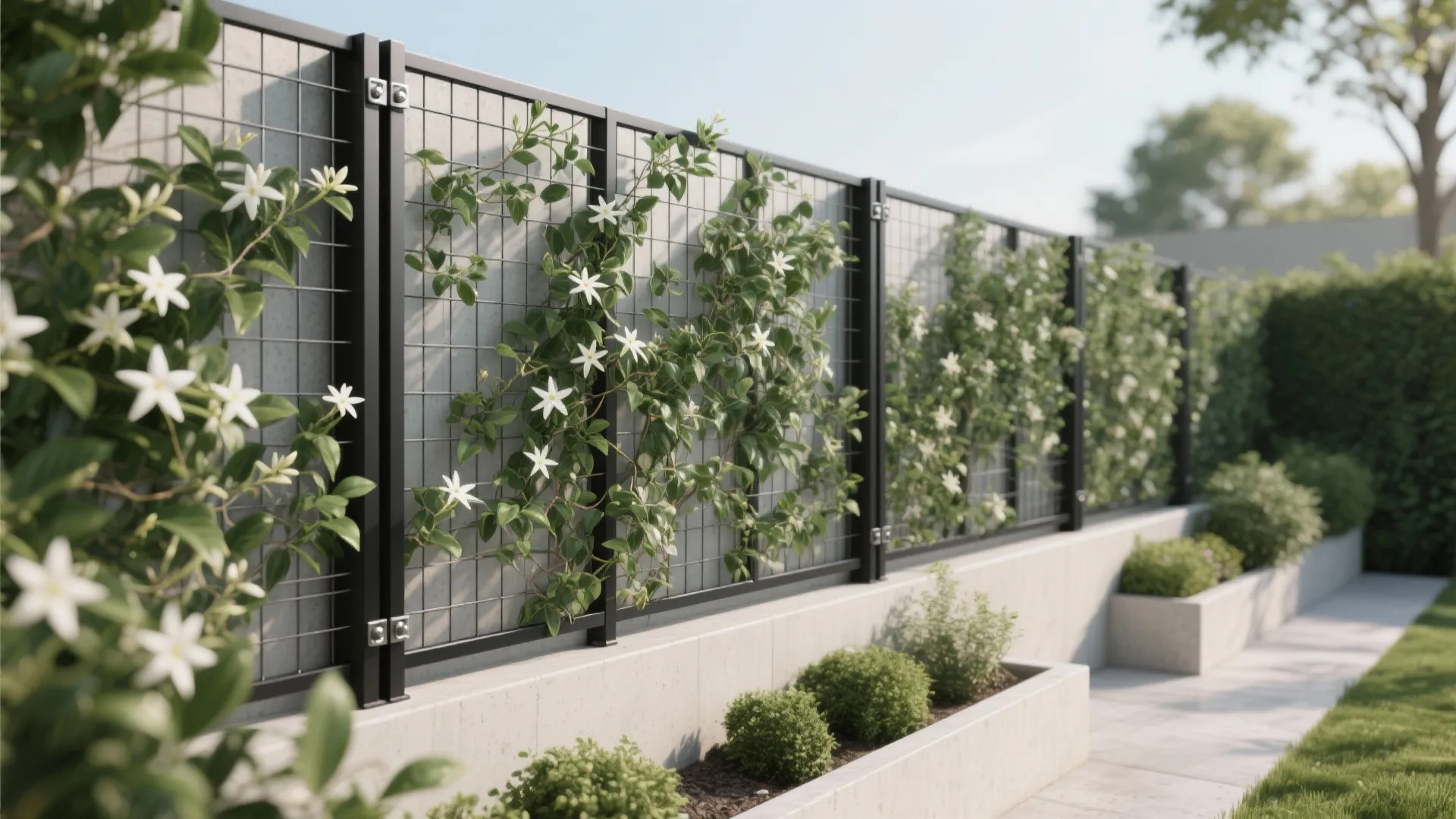

Green screen trellis for a soft privacy layer

My Take: When clients say “We want privacy but not a fortress,” I reach for steel mesh or cable trellis panels set slightly back from the wall face. The architecture stays crisp while plants do the softening, and the air flow around a green screen makes small spaces feel fresher.

Pros: A living screen reduces apparent mass and filters wind better than a solid fence, which is useful for wind load management above retaining walls. It’s a forgiving fence on retaining wall design because you can keep posts independent from the wall: either behind the wall with separate footings or mounted to a robust cap with engineered anchors. If you like a warmer touch, layer timber accents for a warmer façade timber accents for a warmer façade along the posts or handrail for contrast.

Cons: Plants need time to fill in; plan a year to reach full coverage, depending on species. Maintenance is real—pruning, irrigation, and pest checks—so it’s not “set and forget.” Aggressive climbers can push into cracks; I specify planters or soil spaces that keep root pressure off the wall and use trellis standoffs to maintain air gaps.

Tips / Cost: I like powder‑coated wire mesh with 1–2 inch standoff brackets and stainless fasteners to avoid staining. For drought‑tolerant coverage, star jasmine or evergreen clematis are manageable in many climates; in colder zones, look at hardy honeysuckle or Boston ivy (be mindful of wall finishes). Budget for irrigation lines and a slow‑release fertilizer; the hardscape is a one‑time cost, the green layer is the subscription.

save pin

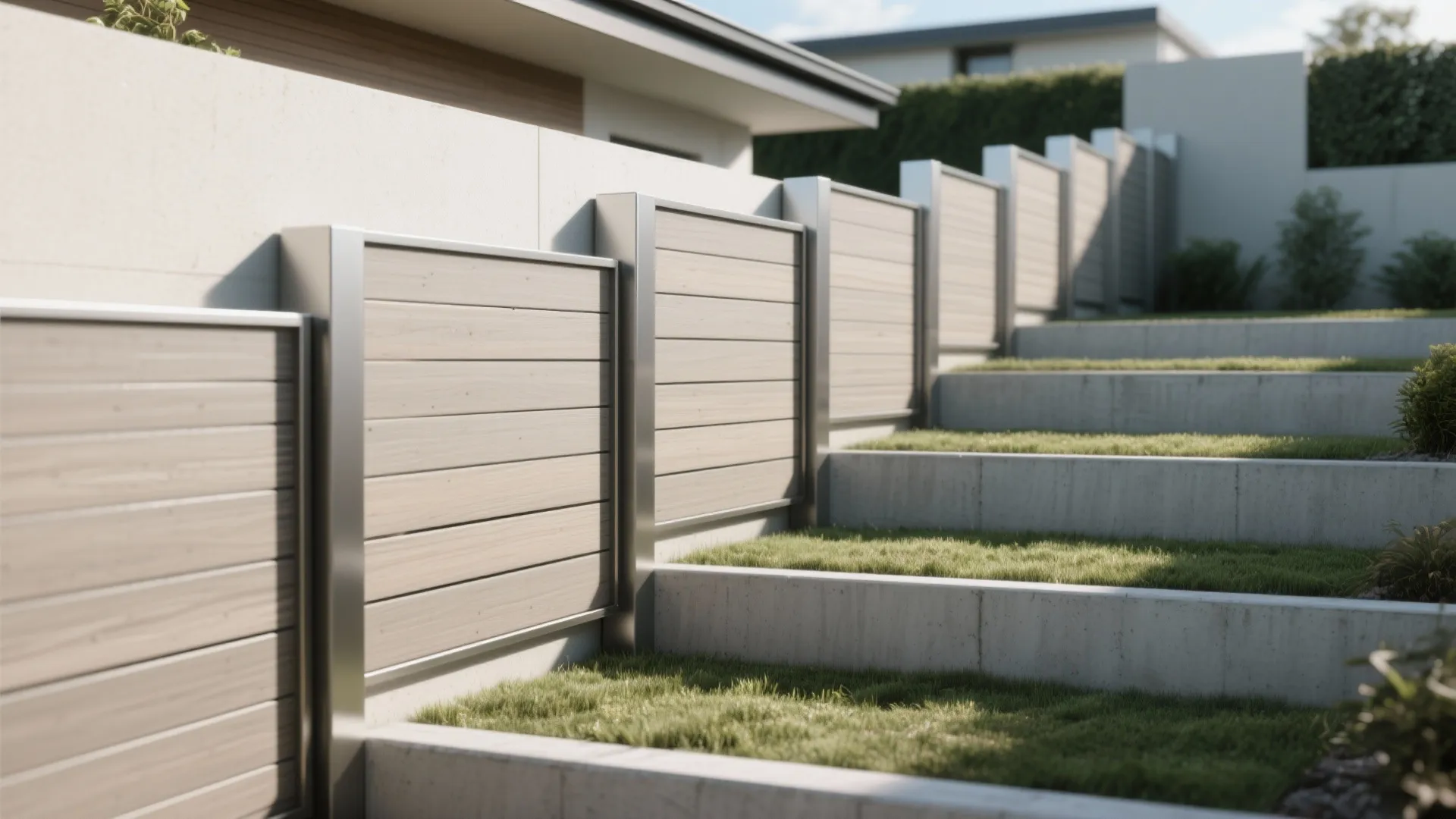

Stepped privacy panels that follow the grade

My Take: A stepped fence rhythm can feel like architecture—intentional and tailored—especially when a yard terraces down. I use modules that “reset” at each step so sightlines and code heights stay clean.

Pros: Stepping helps you comply with fence height rules that are often measured from the lower grade, not the upper yard side, helping avoid over‑height sections at drop‑offs. With this fence on retaining wall design, I’ll design panel widths to align with wall joints or piers so each step feels intentional. When wind exposure is an issue, breaking the span into shorter modules reduces perceived scale and, with the engineer, allows tighter post spacing for capacity.

Cons: If the steps are too frequent, the fence can look choppy, especially in a compact yard. Custom caps and trim for each level add fabrication time. Shadow lines change along the run, so I mock up one module onsite before ordering all panels.

Tips / Case: I often mix a 60–70% solid privacy ratio (slats or boards) with narrow gaps to balance airflow and screening. A small stainless reveal between the wall cap and the first fence member creates a crisp shadow line, and a color‑matched cap flashing protects the wall from drip lines. On SRW walls, I avoid loading the wall directly; separate post footings behind the wall keep structural roles clear (NCMA guidance supports isolating fence loads from SRWs whenever possible).

save pin

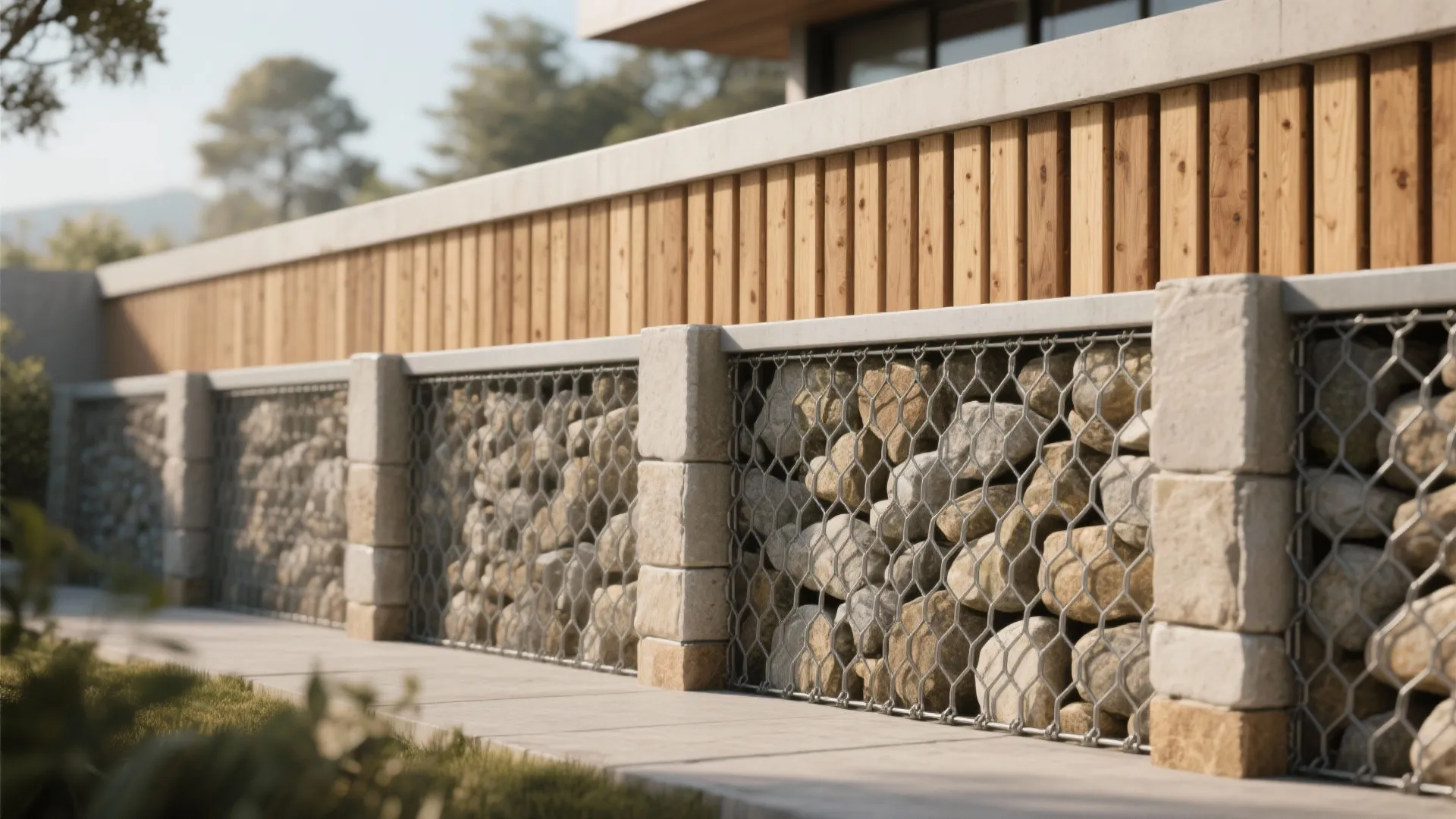

Mixed materials: wood with gabion or masonry piers

My Take: When a small yard needs warmth, wood infill between stone‑heavy piers anchors the composition without overwhelming it. I’ve paired cedar slats with slim gabion columns filled in a local stone blend for a natural, layered look.

Pros: The mass of gabion or masonry piers visually grounds the fence on retaining wall design and can help diffuse street noise. The wood softens it, adding human scale and touch; sealed thermally modified ash or cedar ages beautifully. Blending materials also lets you tune costs—use stone where you need punctuation and wood where you want warmth and flexibility.

Cons: Added weight means you must keep fence loads and foundations structurally separate from the retaining wall unless engineered otherwise. Wood maintenance is real—UV, moisture, and color shift—so plan on a clear sealer or a pigmented oil every 12–24 months, depending on exposure. Gabion cages need quality wire and proper base prep to avoid bulging or rust stains.

Tips / Cost: I typically place piers on independent pads behind the wall and bridge over with steel lintels that carry wood slats—nothing bears down on the wall cap. If you want the layered look without extra width, you can achieve contrasting textures for a layered boundary contrasting textures for a layered boundary by alternating slat sizes or adding a single band of charred wood for a subtle contrast. Expect mid‑to‑high budgets here; stone or gabion work and carpentry both add labor hours.

[Section: 总结]

Small kitchens taught me years ago that constraints breed great solutions; the same truth applies outside. A thoughtful fence on retaining wall design isn’t a limitation—it’s an invitation to design smarter with structure, wind, drainage, and views in mind. When drops exceed 30 inches, remember guard rules (IRC R312) and lean on engineering for anchors and wind; it’s the difference between pretty and permanent. Which of these five ideas would you try in your own yard?

save pin

FAQ

[Section: FAQ 常见问题]

1) How tall can a fence be on top of a retaining wall?

Most municipalities measure fence height from the lower grade, and guard heights for drops over 30 inches are commonly 36–42 inches. Always check local zoning and building amendments, as they override generics.

2) Do I need a permit or engineering for a fence on a retaining wall?

Often yes. Many jurisdictions require permits for fences above certain heights and for walls over 4 feet; structural anchorage may need an engineer’s stamp. The IRC (R105) outlines permit requirements, but your local authority having jurisdiction (AHJ) is the final word.

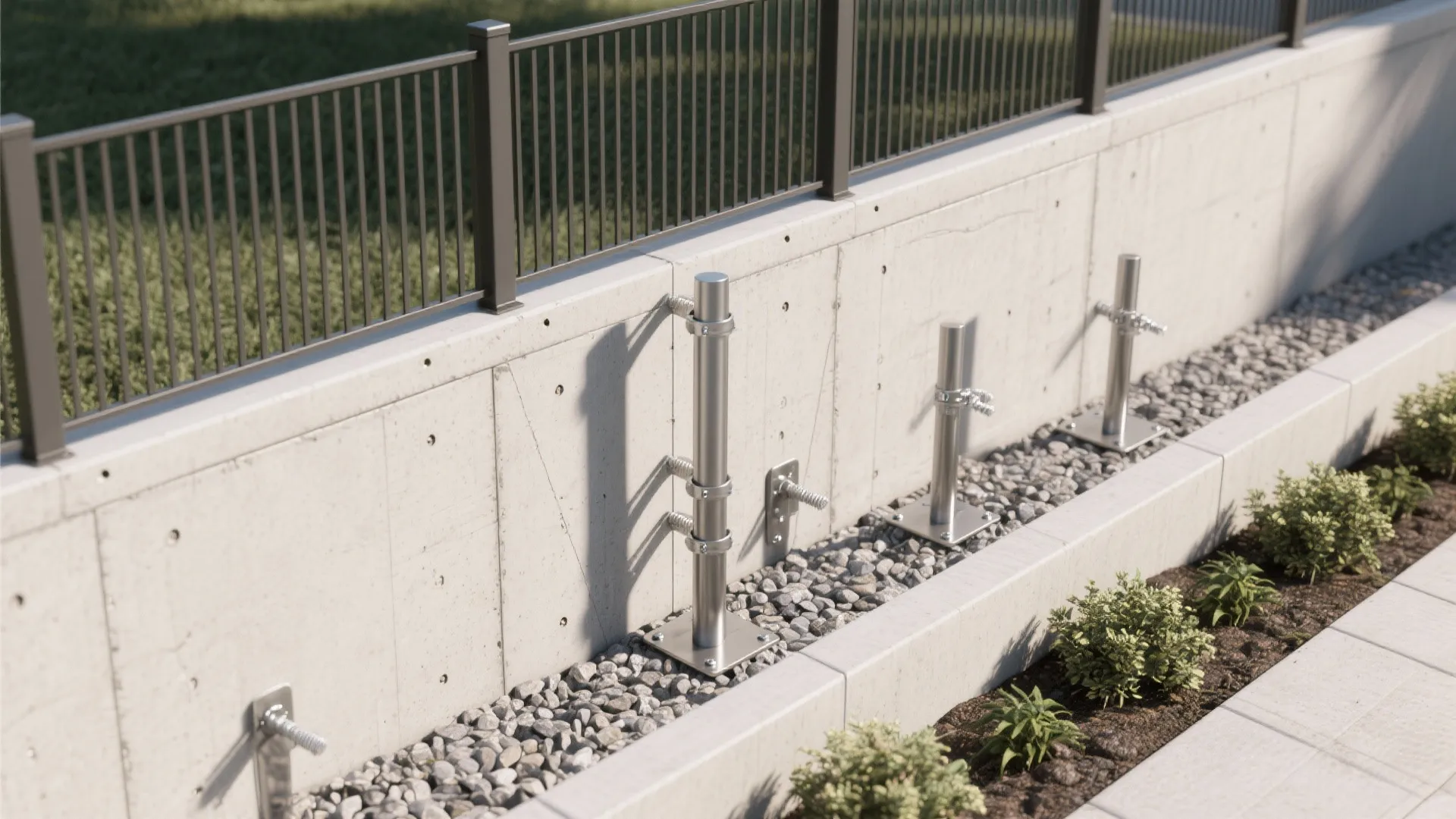

3) Should I surface‑mount or core‑drill fence posts?

Both work when designed correctly. Surface‑mounted base plates are easier to service; core‑drilled posts look cleaner and can reduce exposed hardware, but penetrations must be waterproofed and engineered for edge distances and concrete strength.

4) Can I attach a fence to a segmental retaining wall (SRW)?

Proceed carefully. Many SRW systems aren’t designed for top‑mounted fence loads; separate footings behind the wall are common. NCMA TEK guidance recommends isolating fence loads from SRWs or using tested sleeves/engineered solutions (NCMA TEK 18‑10).

5) What about wind loads on a fence over a retaining wall?

Wind pressure increases with height and exposure; slatted designs and closer post spacing help. Engineers typically reference ASCE 7 for wind load values, then size anchors, posts, and spacing accordingly.

6) How do I protect the retaining wall from water when adding a fence?

Maintain proper drainage behind the wall and preserve weep outlets. Avoid trapping water with continuous channels; leave weep gaps and flash penetrations, and keep irrigation emitters off wall faces.

7) What materials last longest with the least maintenance?

Powder‑coated aluminum or steel posts with composite slats are low‑maintenance; stainless hardware is a must. For warmth, choose durable woods (cedar, thermally modified ash) with a scheduled finish plan.

8) What does a fence on a retaining wall typically cost?

Ballpark ranges vary widely by locale and engineering: simple metal slats can be moderate, while glass or mixed piers trend higher. Access, anchor type, wind requirements, and custom fabrication often drive the final number more than material alone.
