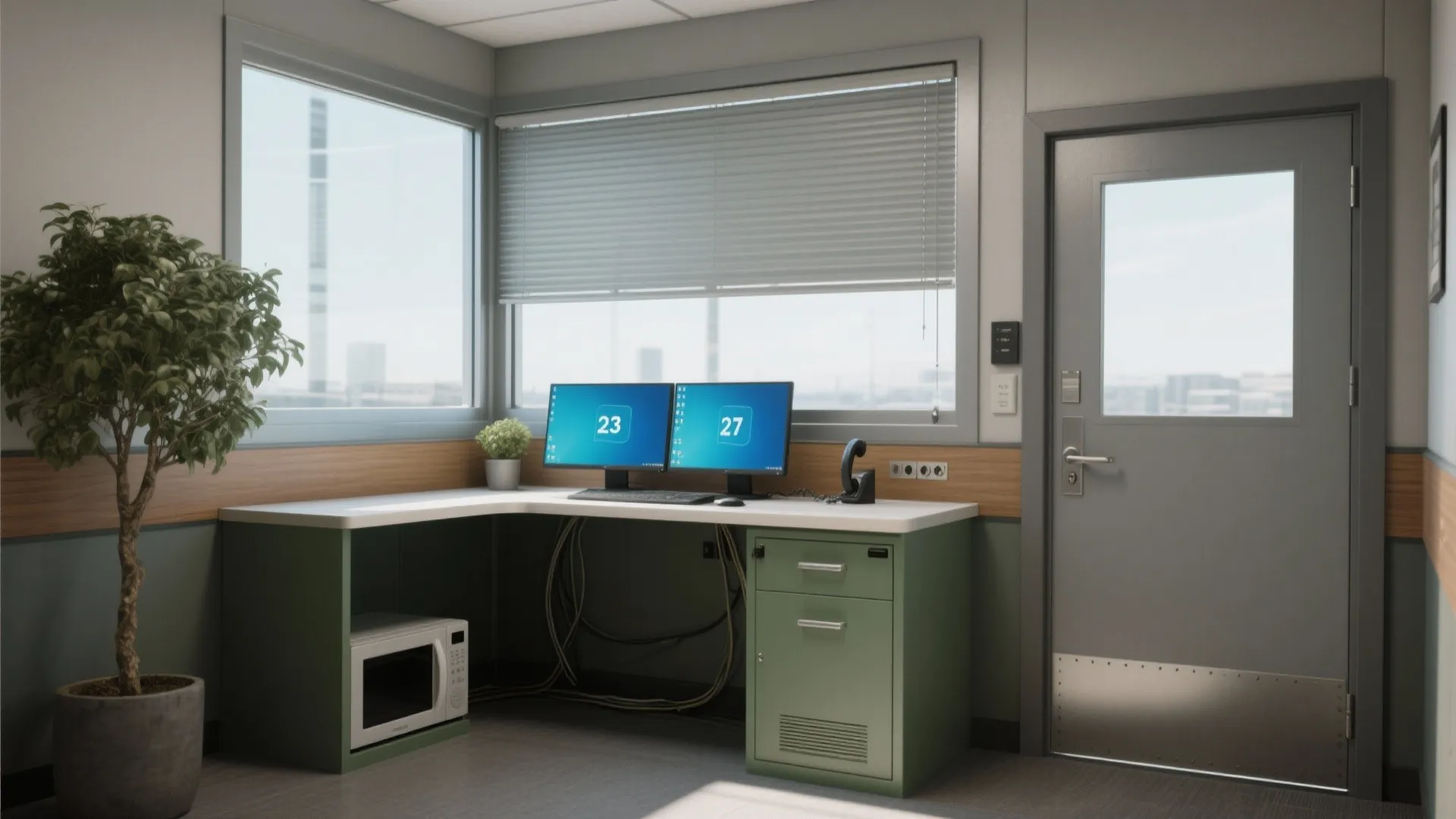

Security Guard Room Design: 5 Smart Ideas: A senior interior designer’s playbook for compact, comfortable, and vigilant guard rooms that work hard 24/7.

Once a client asked me to fit bullet-resistant glass, two 27-inch monitors, a microwave, and a potted ficus into a booth the size of a phone box. I laughed, sketched, and then built a quick spatial prototype to prove we could make it functional—and yes, even keep the ficus. Small spaces force big creativity, especially in security guard rooms where visibility, comfort, and durability all collide.

Today I’m sharing five design ideas I rely on when a guard station has to do everything without feeling like a cramped cockpit. These come from years of on-site problem-solving, learning from night-shift feedback, and a few “never again” mistakes I now treat as gospel.

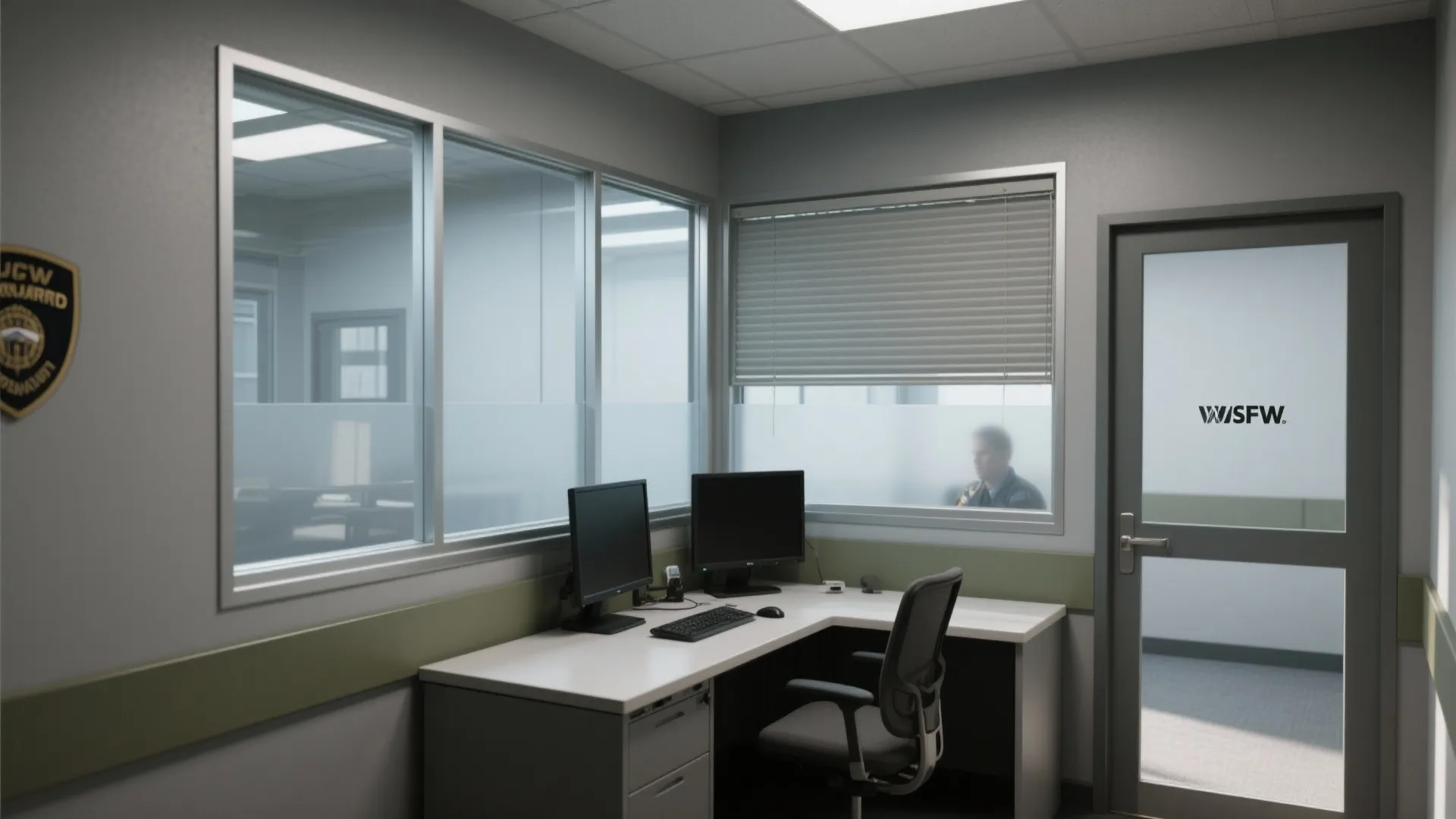

1) Clear sightlines without the fishbowl effect

For a guard room, sightlines are mission-critical. I start with strategic glazing: corner windows, low sills, and a slight desk angle that keeps monitors out of sightline zones. A slim mullion profile (think 20–30 mm) lets guards scan people and vehicles without head-bobbing.

But no one wants to feel like a goldfish. I’ll add a modesty band of frosted film at desk height and use roller shades with 1–3% openness so guards can manage glare at noon and stay discreet at night. If heat gain is a concern, a low-E laminate helps—just pair it with ventilation or you’ll trade glare for greenhouse.

save pin

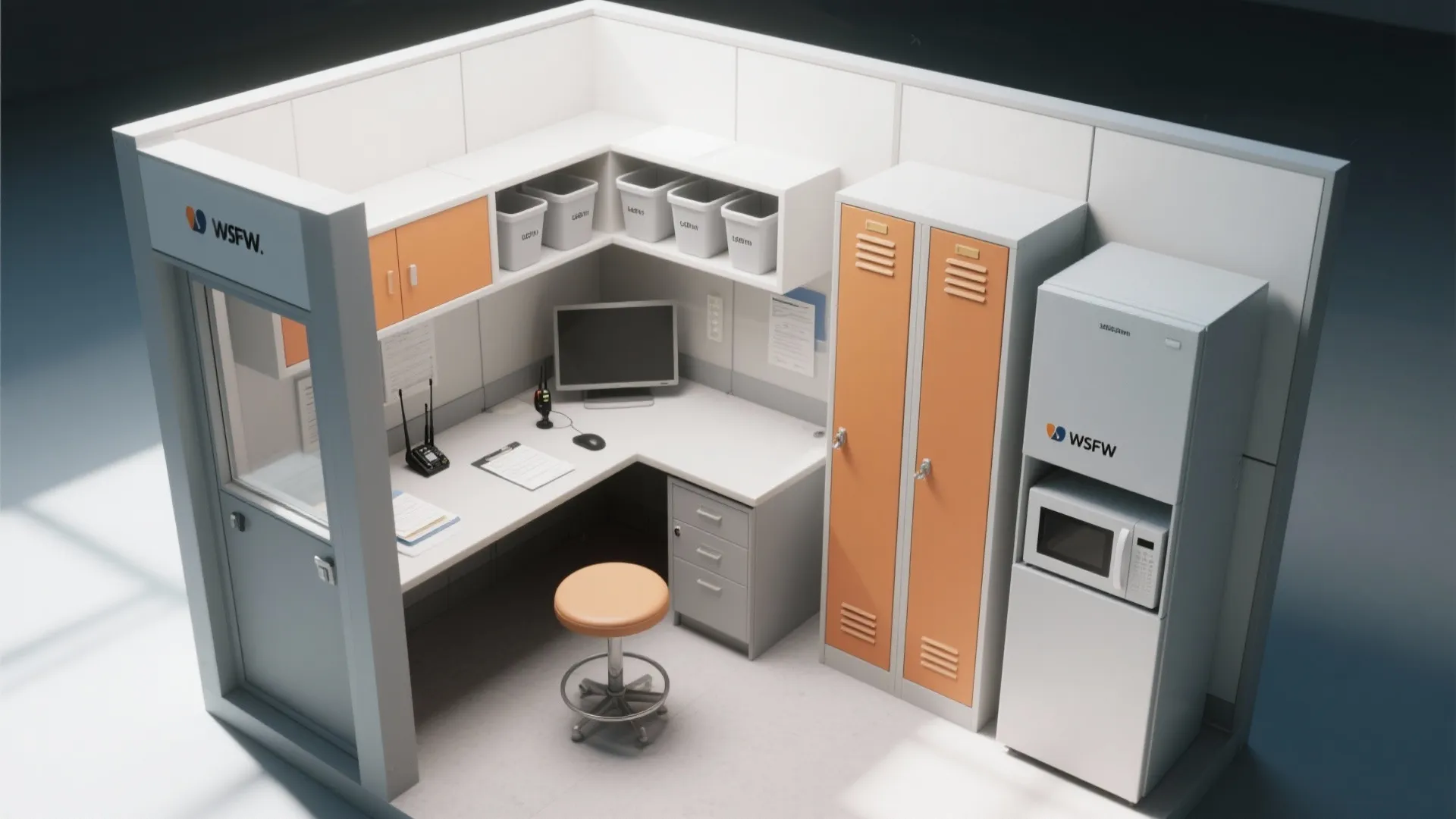

2) Micro-zones: work, pause, and stow

Even in 3–5 m², I carve three zones: a primary task desk, a micro “pause” spot, and vertical storage. The desk gets a return for paperwork and radios; a fold-down perch stool gives quick relief without inviting naps on duty. Wall-mounted cubbies and a shallow tall locker keep jackets, logbooks, and PPE off the desk and out of sight.

Hidden but vital: a 300–400 mm-deep base cabinet for a compact fridge and a closed cubby for the microwave to reduce visual clutter. The trade-off is ventilation—so I vent those niches or slot a quiet mini-hood. Pro tip: if operators share the booth, assign labeled bins; harmony is cheaper than redesign.

save pin

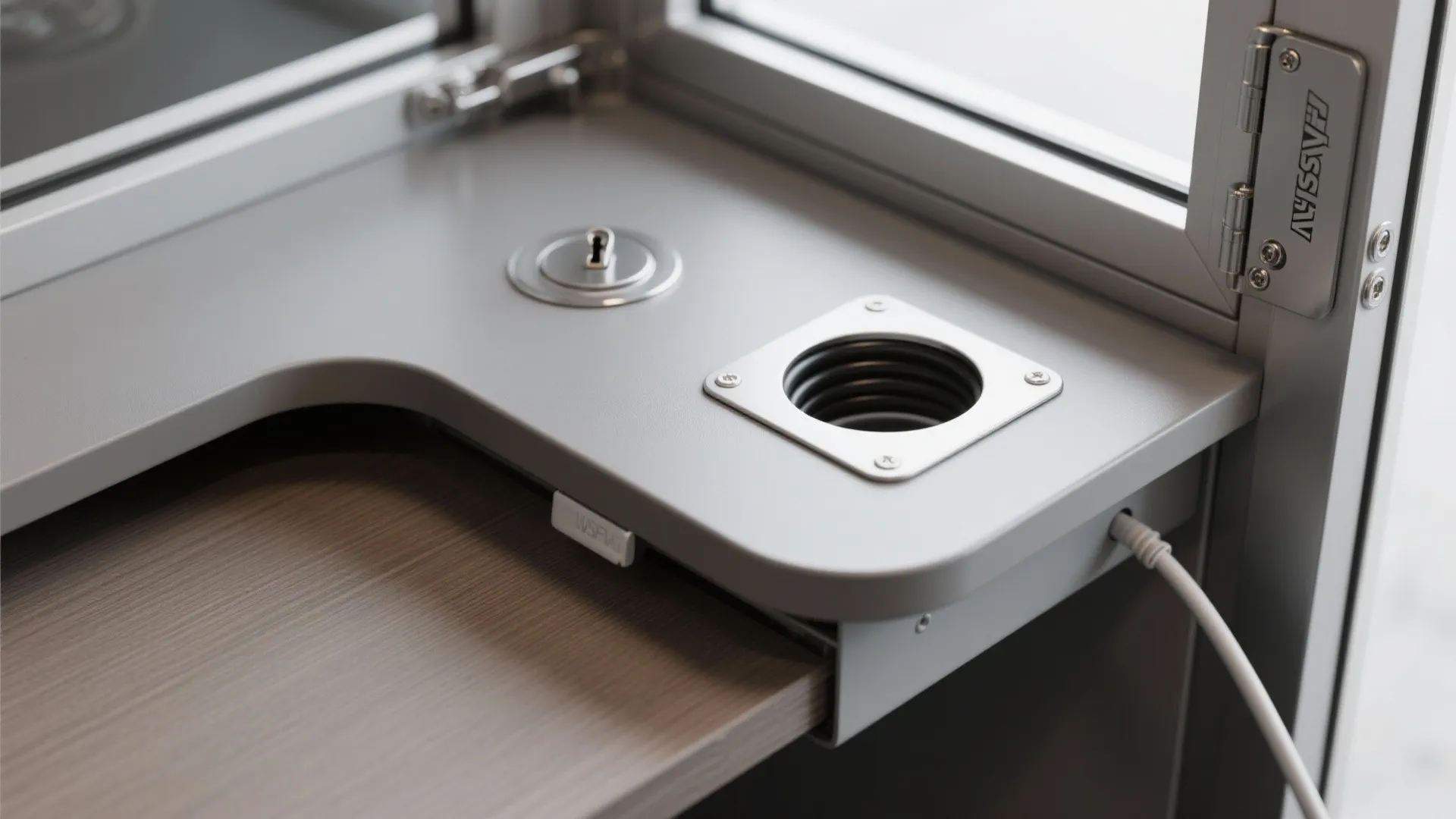

3) Tamper-resistant, tough, and easy to clean

Security rooms take a beating. I specify compact laminate or high-pressure laminate with PVC edges (no sharp corners), metal grommets with lockable cable covers, and recessed pulls. Hinges and hardware should be commercial-grade and quiet—creaks at 2 a.m. are morale killers.

For higher-risk sites, I’ll step up to UL 752-rated glazing and solid core doors with vision panels. Cable management is non-negotiable: surface raceways, labeled ports, and a dedicated low-voltage bay. I always draft true-to-scale layouts before ordering casework—millimeters matter when radios, DVRs, and key safes multiply overnight.

save pin

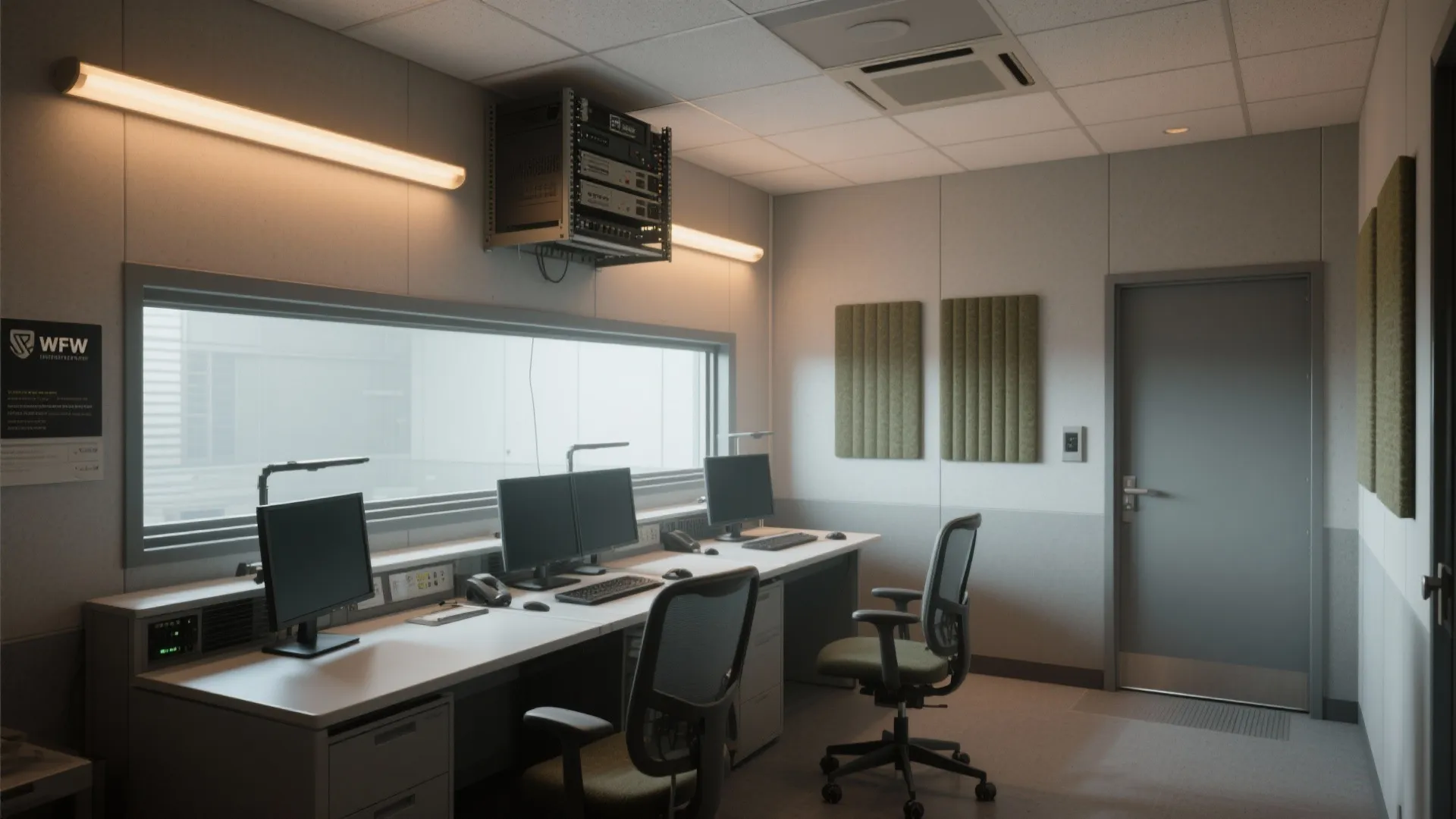

4) Lighting and acoustics that support alertness

Most guard rooms are over-bright by day and eye-searing at night. I layer light: 300–500 lux task lighting on the desk, indirect ambient lighting for the room, and low-level night mode with warmer tones so pupils don’t shock-dilate when guards step outside. Monitors should sit perpendicular to glazing to cut reflections.

Noise is a stealth stressor. I use a few Class A acoustic panels (or felt slats) on the ceiling or upper walls, rubber feet under equipment racks, and door seals that don’t fight egress code. The benefit is calmer comms and less operator fatigue; the caution is to avoid over-softening a room that still needs crisp voice clarity.

save pin

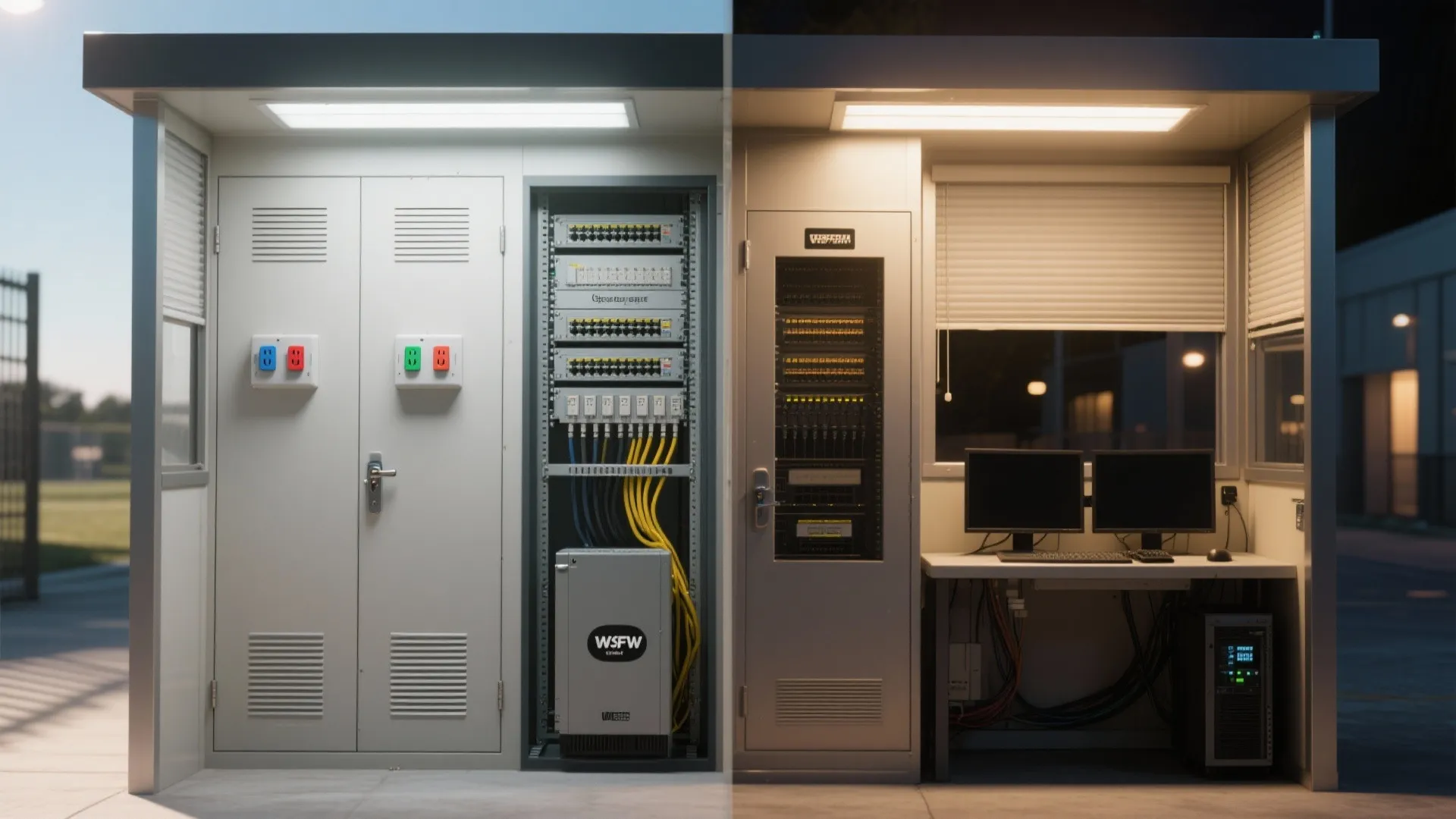

5) Power, tech, and redundancy—design it like a mini control room

If you think you have enough outlets, add four more. I spec two dedicated 20A circuits, a UPS for cameras and access control, and color-coded receptacles for critical vs. non-critical gear. Network gear gets an accessible, ventilated cabinet with lockable doors and labeled patch panels; it’s unglamorous, yet it’s the reason phones still ring when storms hit.

I also present clients with day-and-night render comparisons so we can fine-tune glare, monitor heights, and shade positions before any drilling starts. Last bit: keep finishes matte, corners rounded, and cleaning straightforward—anything that slows wipe-downs will look tired in months, not years.

save pin

FAQ

1) What’s the ideal size for a security guard room?

For a single operator, 3–6 m² can work if you plan vertical storage and a slim desk return. If you add multiple monitors, a small fridge, and storage, push toward 6–8 m² for comfort and code clearances.

2) How high should the desk be for guards who stand and sit?

Fixed desks at 730–760 mm suit seated work; add a 1,050–1,100 mm rail for perch seating. If budget allows, a sit-stand surface (650–1,250 mm range) preserves posture over long shifts.

3) What lighting levels are best?

Target 300–500 lux on the task surface with glare control, and provide dimmable ambient lighting for night shifts. According to the IES Lighting Handbook (10th ed.), balanced, uniform illumination supports visual performance in control-style spaces.

4) How do I maintain privacy without blocking views?

Use partial frosted bands at desk height and low-sill glazing for sightlines. Perforated or 1–3% openness roller shades let you modulate visibility and cut glare without turning the booth into a cave.

5) What materials hold up best in a guard booth?

Compact laminate or high-pressure laminate with PVC edging, solid-core doors, and commercial hardware are my go-tos. Choose matte finishes to hide smudges and make cleaning faster.

6) Do I need bullet-resistant glass?

It depends on risk assessment. If required, look for UL 752-rated assemblies matched to the threat level (e.g., Level 1–8) and ensure the frame, door, and pass-throughs meet the same rating.

7) How many outlets and circuits should I plan?

For a single-operator booth with CCTV, access control, radios, and a small appliance, I plan two dedicated 20A circuits plus a UPS. Place outlets every 600–900 mm along the desk wall and separate low-voltage from power to curb interference.

8) Any quick wins for comfort on long shifts?

Give guards a perch stool, a small personal storage locker, and a quiet mini-fridge in a ventilated niche. Layer lighting, add basic acoustic treatment, and keep an operable window or balanced HVAC to prevent drowsiness.
