Small Bathroom Ventilation Design: 5 Proven Ideas: Practical, data-backed ventilation upgrades for tiny bathrooms that actually work

As a designer who’s remodeled more small apartments than I can count, I’ve learned one truth: small bathroom ventilation design is where comfort, durability, and health all meet. Trends today lean toward quiet, energy-smart systems and layered airflow—mechanical exhaust paired with passive strategies. And yes, small spaces spark big creativity. In this guide, I’ll share 5 ventilation ideas I use in real projects, blending my hands-on experience with expert data.

Right from the first consultation, I set the expectation that good ventilation prevents fogged mirrors, mold, peeling paint, and that lingering damp smell. Small bathrooms amplify moisture problems fast, so we need well-sized fans, smarter airflow paths, and materials that handle humidity. I’ll break down five design inspirations, with pros and cons, plus quick tips you can start applying today.

For reference, I’ve designed compact bathrooms in city studios and old walk-ups where duct runs are tight and window placement is tricky. That’s where planning and visualizing layouts matters—how the exhaust path, ceiling height, and clearances work together. Visualizing options like “L-shaped nook exhaust” or “offset shower intake” can be easier when you look at examples such as L-shaped layout releasing more wall space, and then apply the same airflow logic to your bath.

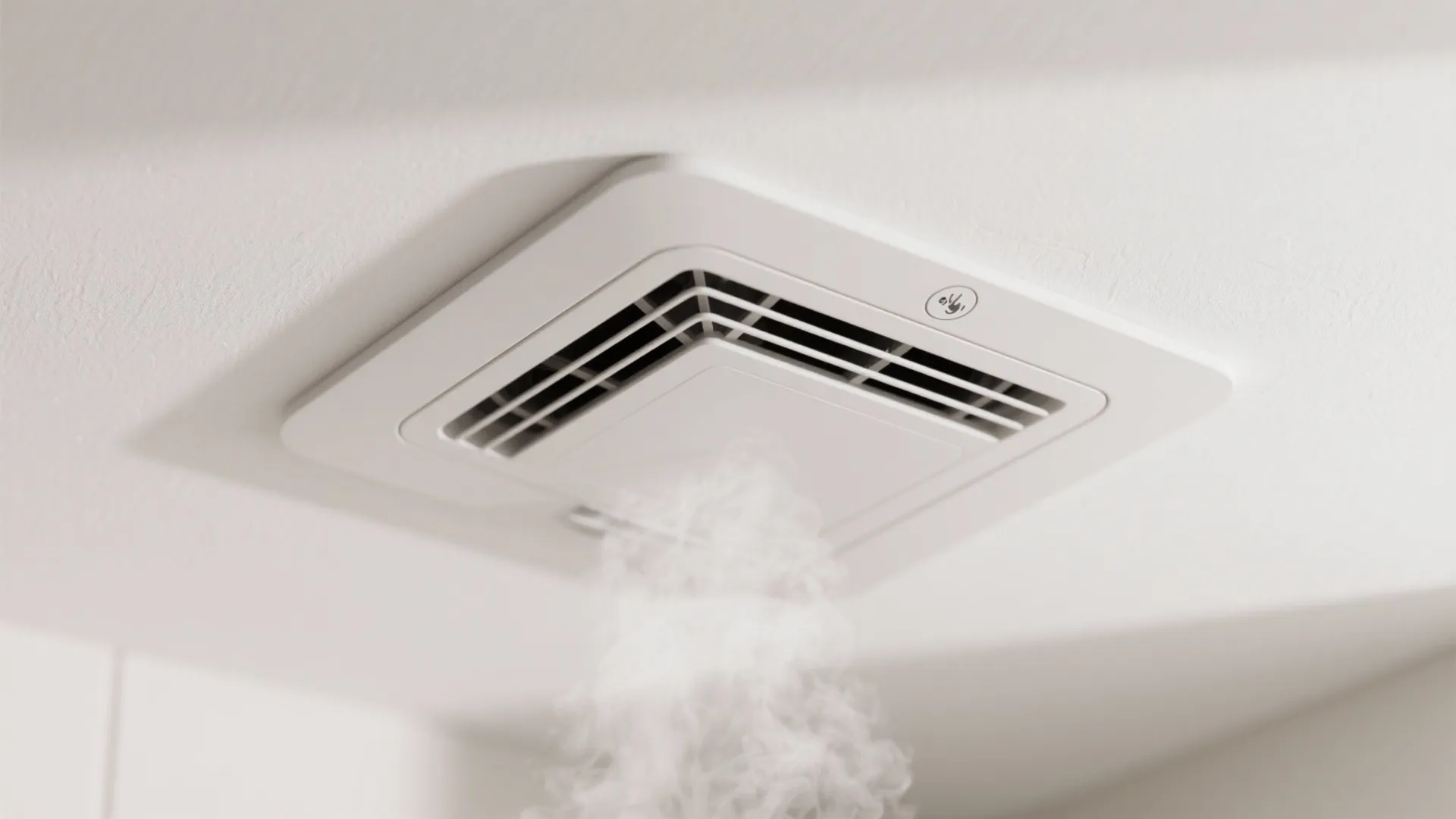

1) Quiet, Right-Sized Exhaust Fan With Boost Mode

My Take: When I retrofit small bathrooms, my first move is replacing underpowered, noisy fans. A quiet, right-sized unit (measured in CFM) with a boost or humidity-sensing mode keeps the room dry without constant humming. In older apartments, this alone often cuts mirror fog by half.

Pros: A properly sized fan meets the long-tail need for “small bathroom exhaust fan CFM” and improves indoor air quality with minimal energy use. ASHRAE recommends 50 CFM intermittent or 20 CFM continuous exhaust for bathrooms; selecting a fan at 1.0–1.5x the required CFM helps overcome duct losses. Humidity sensors automate drying after showers, reducing user error.

Cons: In tight ceilings, ducting a new fan to an exterior vent can be tricky—especially in concrete slab buildings. Boost-mode fans cost more, and a poor install (kinked duct, no backdraft damper) cancels the benefits. I’ve seen gorgeous baths with bargain fans that sounded like a drone and barely moved air.

Tips / Cost: Target 0.3–1.0 sones for quiet operation. Use smooth, rigid duct wherever possible; if flex duct is unavoidable, keep it short and stretched. Add a timer switch (10–20 minutes post-shower). In my projects, quality fans typically run $120–$300 plus install.

save pin

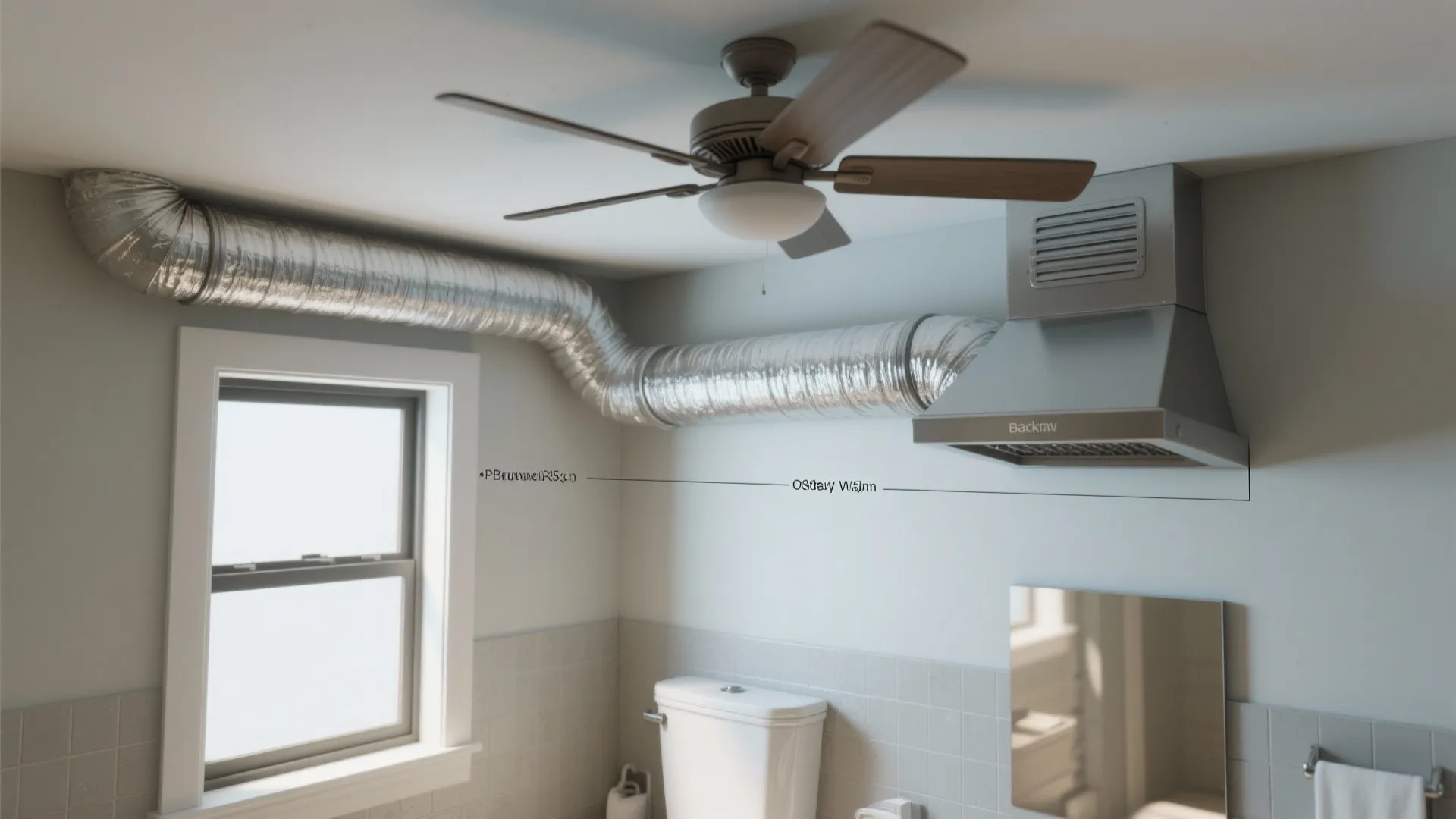

2) Short, Smooth Duct Runs and Exterior Termination

My Take: I once worked on a prewar condo where the fan was fine, but the duct had three sharp turns and a sag—airflow was awful. We re-routed to a straighter, shorter path and added an exterior hood with a backdraft damper. The difference was immediate: faster defogging and less condensation on grout.

Pros: Optimizing duct length and fittings is a classic “bathroom ventilation duct design” win: fewer elbows and smoother walls reduce static pressure and preserve fan CFM. Exterior termination with a damper blocks wind-driven backflow and pests. Your mirror and paint last longer, and you can run a lower-CFM (quieter) fan effectively.

Cons: Not every unit can vent outside, especially interior baths in multifamily buildings. Roof penetrations need permits and proper flashing—otherwise leaks can cost more than the fan. And planning duct paths can force compromises in ceiling heights.

Tips / Case: Keep total equivalent length within the manufacturer’s spec; each elbow may add 10–15 ft of equivalent length. If you must go longer, step up duct size and fan CFM. Around mid-project, I often reevaluate the overall layout—similar to how I’d test different alignments in a floor plan; browsing examples like glass backsplash creating a more open feel reminds me that small spatial tweaks can unlock a cleaner duct path in a bath.

save pin

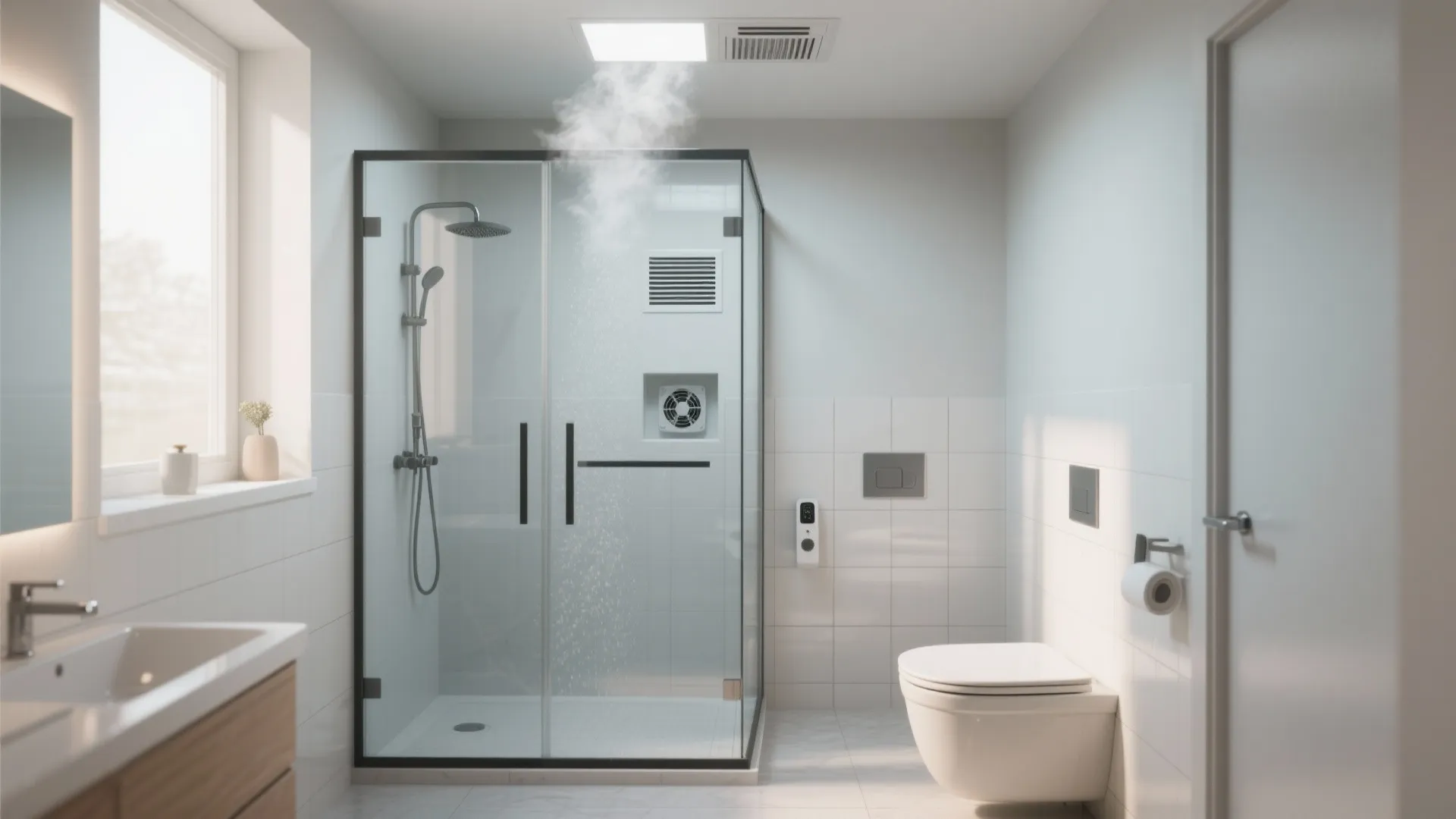

3) Zonal Extraction: Put the Intake Where Steam Starts

My Take: In tiny shower rooms, placing the fan intake near the steam source is a game changer. I favor a ceiling intake centered over or just outside the shower enclosure. In narrow rooms, an inline fan with multiple grilles lets me pull air from the shower and the toilet zone with one quiet motor.

Pros: This “targeted shower exhaust” approach cuts fog faster and reduces moisture load on the rest of the room—great for small bathroom ventilation design where every cubic foot counts. Inline fans in a remote location keep noise low while maintaining strong pull at the grille. Studies on moisture migration show localized extraction reduces condensation on cold surfaces by removing warm, moist air before it spreads.

Cons: Cutting into tile ceilings or adding a second grille can bump costs. Balancing two intake points requires careful sizing; otherwise one grille steals all the airflow. And maintenance matters—grilles over showers accumulate lint and soap film.

Tips / Cost: For stalls with glass doors, leave a 10–15 mm undercut for makeup air. Inline systems (fan + two grilles + duct) often land between $350–$700 in parts before labor. I schedule filter and grille cleaning on the same cycle as changing toothbrush heads—quarterly keeps it simple.

save pin

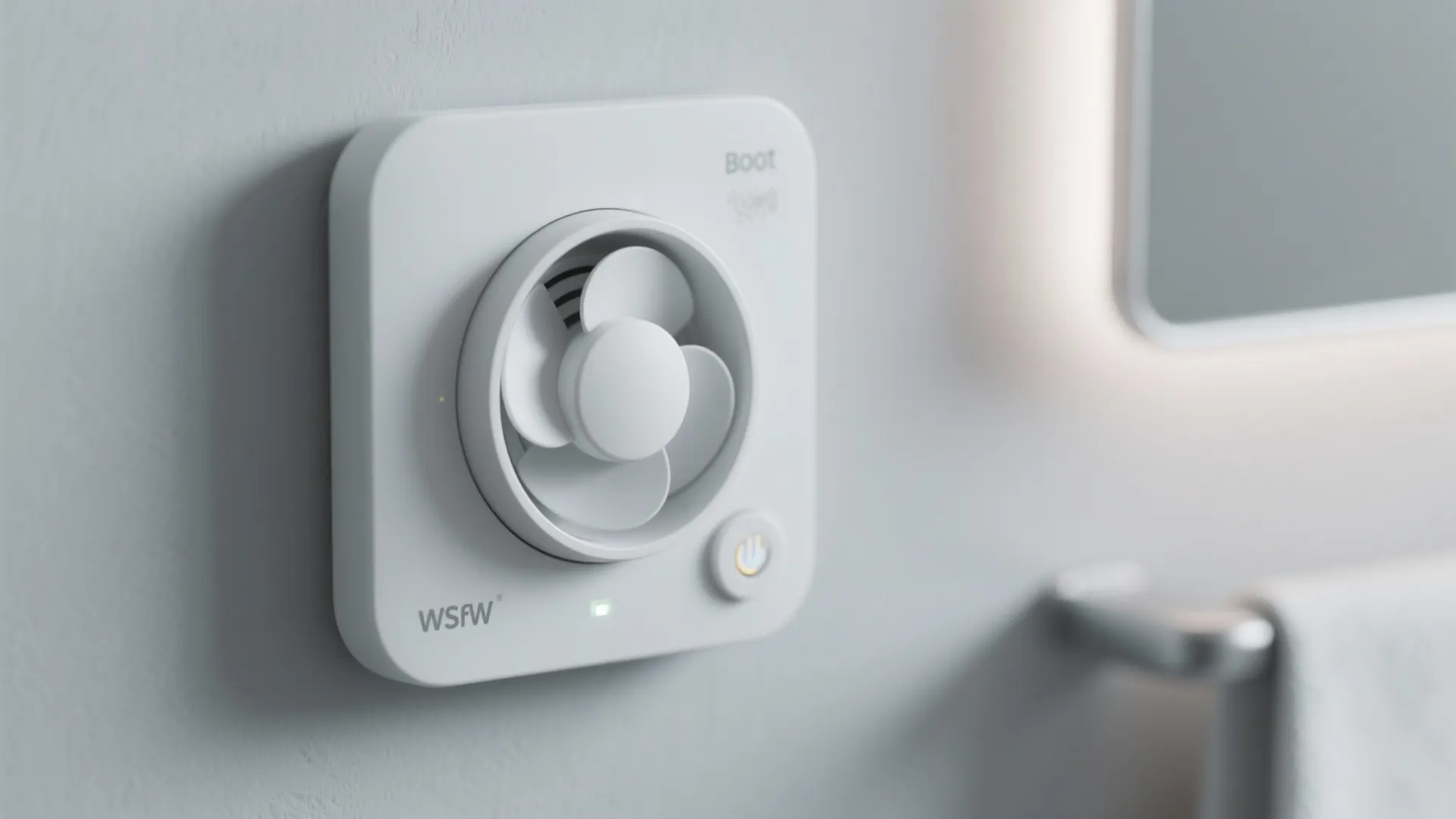

4) Continuous Low-Speed Ventilation With Smart Controls

My Take: In rentals and family homes, I like continuous low-speed ventilation paired with a boost switch. It quietly handles daily humidity from quick showers and hand-washing, then ramps up after a steamy bath. Clients tell me the bathroom just “feels drier,” even in winter.

Pros: Aligns with “continuous bathroom ventilation for small spaces,” stabilizing indoor humidity and reducing mold risk. Smart humidity or VOC sensors provide demand-controlled ventilation, saving energy and noise hours. According to ASHRAE 62.2 guidance, continuous 20 CFM exhaust (with boost for events) is an effective strategy for bathrooms.

Cons: Some occupants dislike any fan sound at night; choosing ultra-low sone fans is critical. Continuous running can slightly depressurize very tight homes if makeup air is neglected. I’ve seen powder rooms that felt drafty because the door undercut was too large.

Tips / Case: Pair with sealed, insulated ducts to prevent condensation in cold climates. Program a delayed-off timer for 15 minutes after boost. If you’re rethinking the entire bath layout—fixture spacing, door swing, and where the intake goes—browsing plan options like wood accents adding warmth to compact spaces can inspire a configuration that naturally supports good airflow paths.

save pin

5) Passive Helpers: Trickle Vents, Door Undercuts, and Moisture-Resistant Finishes

My Take: Vent fans do the heavy lifting, but passive details make or break the experience. I always ensure a 10–15 mm door undercut or a dedicated transfer grille, and I like adding trickle vents on exterior windows when allowed. Finishes matter too—moisture-resistant paint and grout keep the room fresher longer.

Pros: “Bathroom makeup air strategies” ensure your fan has a supply path, boosting real-world CFM and reducing fan strain. Moisture-resistant paints (e.g., satin/eggshell with mildewcides) and epoxy or high-performance grout slow mold growth and staining. The CDC and EPA emphasize controlling moisture as the first line of defense against mold.

Cons: Trickle vents aren’t feasible on all window types, and they can introduce exterior noise on busy streets. Transfer grilles need privacy consideration—use baffles or install high on the wall. And premium finishes cost a bit more up front.

Tips / Cost: Aim for 1/2–3/4 inch (about 12–18 mm) door undercut if the bath is the only return path; test with tissue to confirm airflow. Upgrade to washable, mold-resistant paint ($40–$80/gal) and choose light-colored tiles to make condensation easier to notice and wipe.

save pin

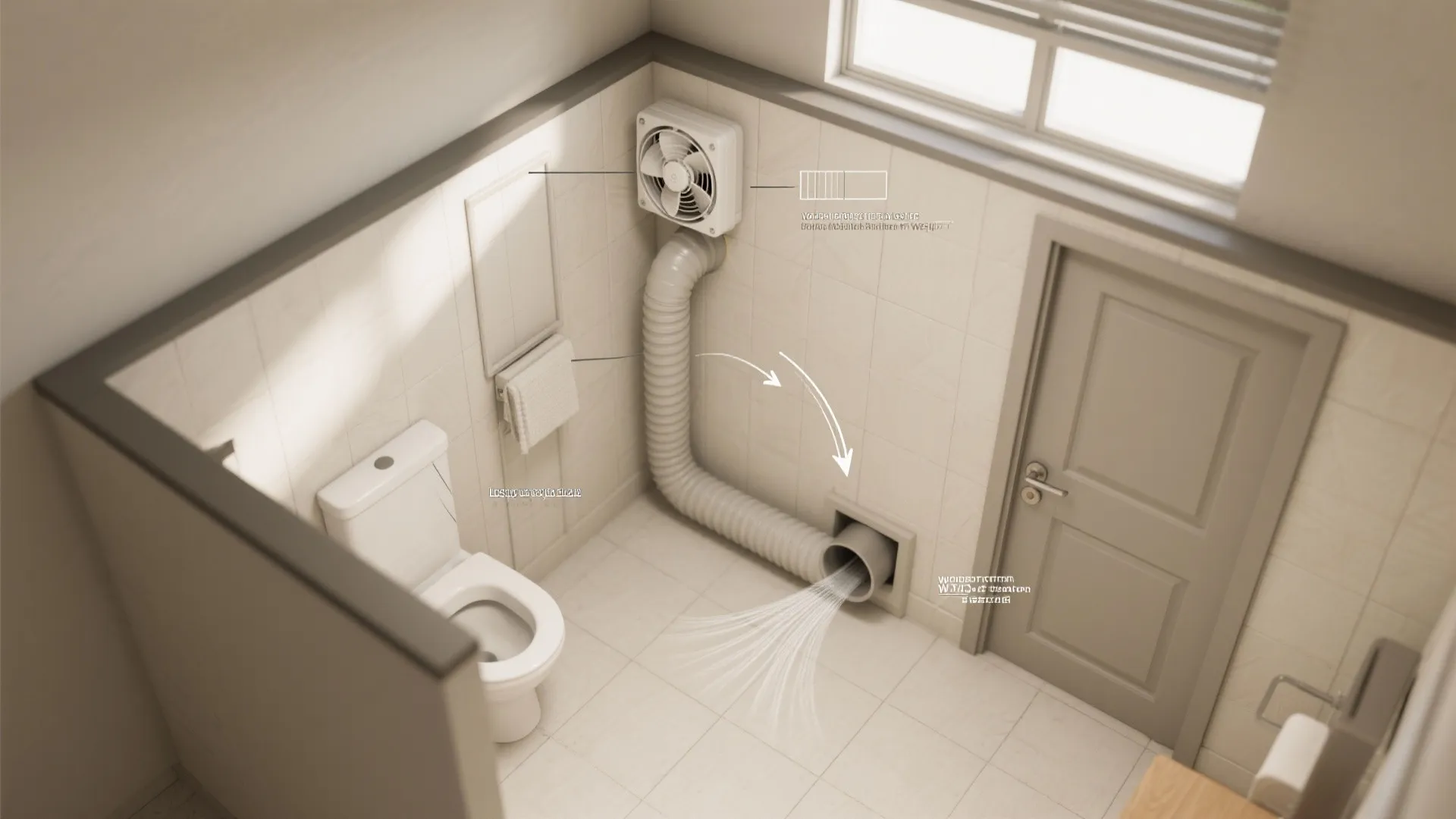

Installation and Sizing Basics

Fan Sizing: For small bathrooms up to 100 sq ft (9.3 m²), a common rule is 1 CFM per sq ft with a 50 CFM minimum; add 50 CFM for an enclosed shower or jetted tub. If using long or complex ducts, upsize by 25–50% to compensate for pressure losses.

Duct and Termination: Use 4–6 inch ducts as recommended by the fan spec; avoid reducing sizes. Insulate ducts in unconditioned spaces. Terminate outdoors with a hooded, dampered outlet; avoid venting into attics or soffits where moisture can accumulate.

Noise and Comfort: Keep sones low to encourage usage. A quiet, always-on 20 CFM background fan can feel almost silent, with a boost to 80–110 CFM for showers. Add a humidistat or motion sensor to automate and reduce “forgetting to turn it on.”

save pin

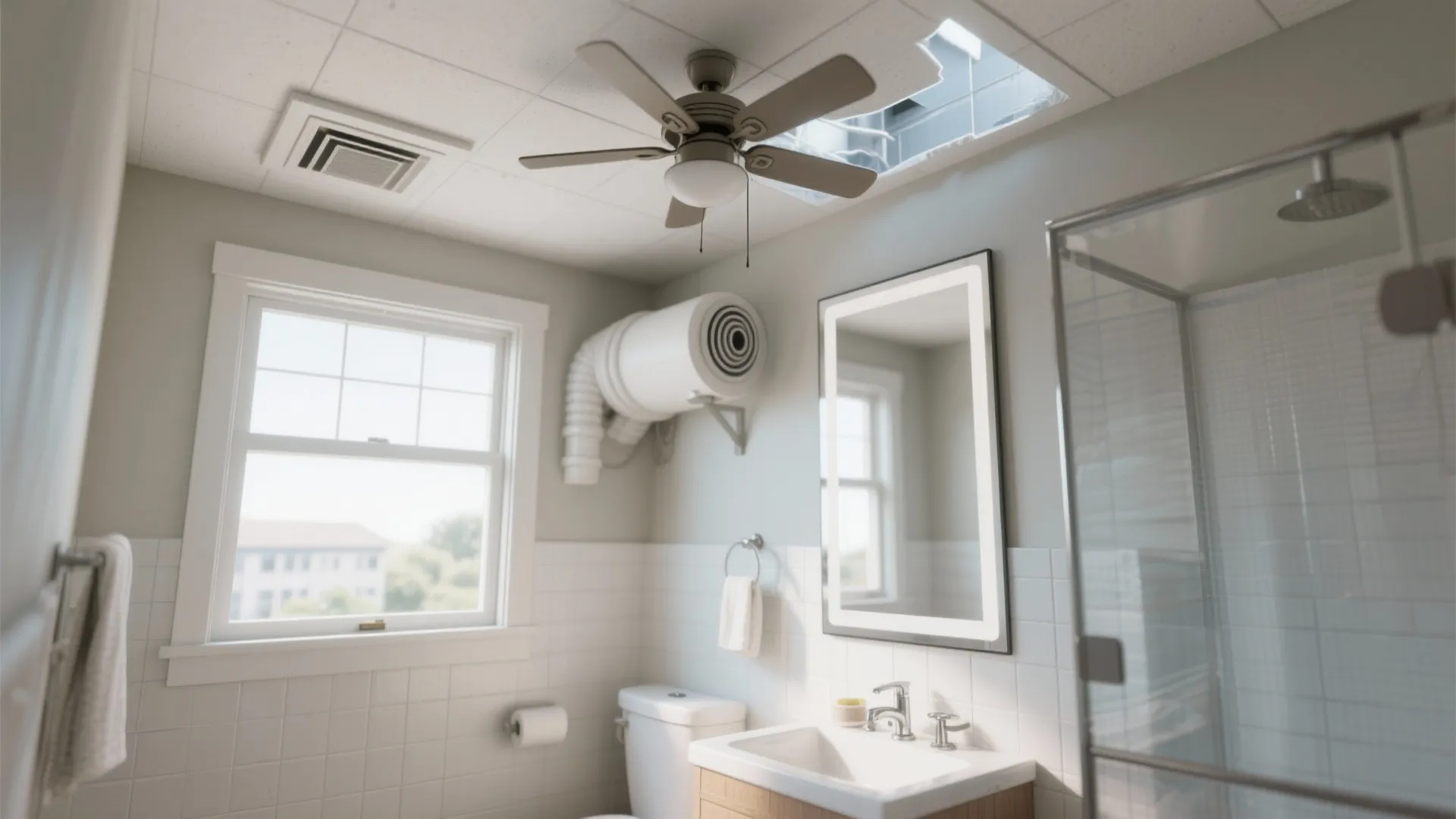

Compliance and Health Notes

Local code often follows ASHRAE 62.2; check if your jurisdiction requires a 50 CFM intermittent exhaust with a timer or 20 CFM continuous. For multifamily, verify if you’re tapping into a common shaft and whether backdraft dampers are mandatory. On the health side, the EPA notes that controlling indoor moisture helps prevent mold and improves indoor air quality; good ventilation is a core strategy alongside fixing leaks and managing surface condensation.

save pin

Real-World Mini Case: 28 sq ft Shower Room

In a 28 sq ft (2.6 m²) bath with an alcove shower, we selected a 110 CFM humidity-sensing fan, ran a rigid 5-inch duct with one long-radius elbow, and added a 3/4-inch door undercut. The client reported mirror clarity within 3–4 minutes post-shower and no mildew odor after two weeks. We paired this with mildew-resistant paint and epoxy grout for a belt-and-suspenders approach.

save pin

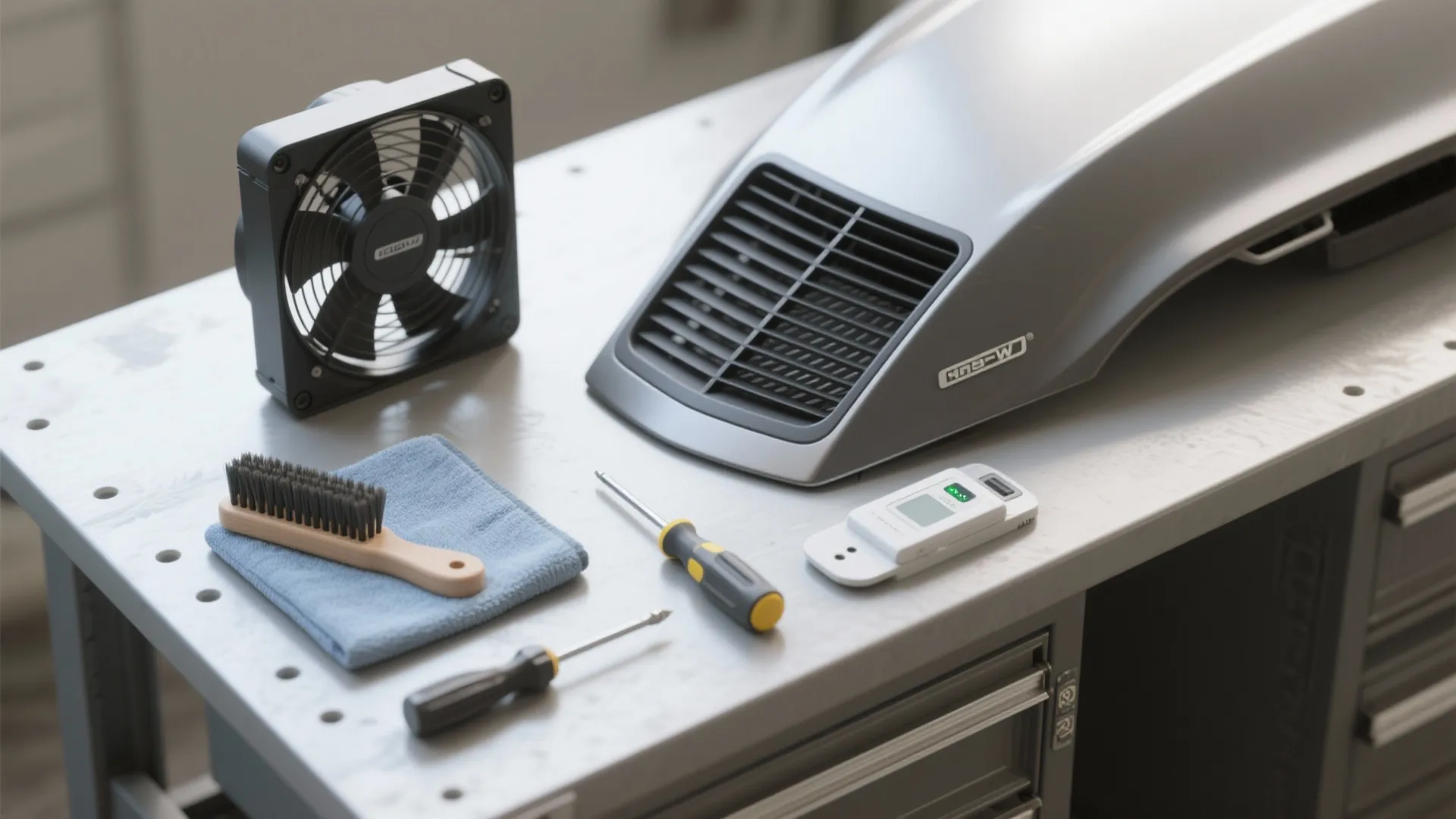

Maintenance Schedule

- Quarterly: Clean grilles, wipe fan housing edges, inspect for dust buildup.

- Biannually: Check damper operation and duct connections, verify exterior hood is clear.

- Annually: Confirm humidity sensor calibration, re-caulk shower joints if needed.

save pin

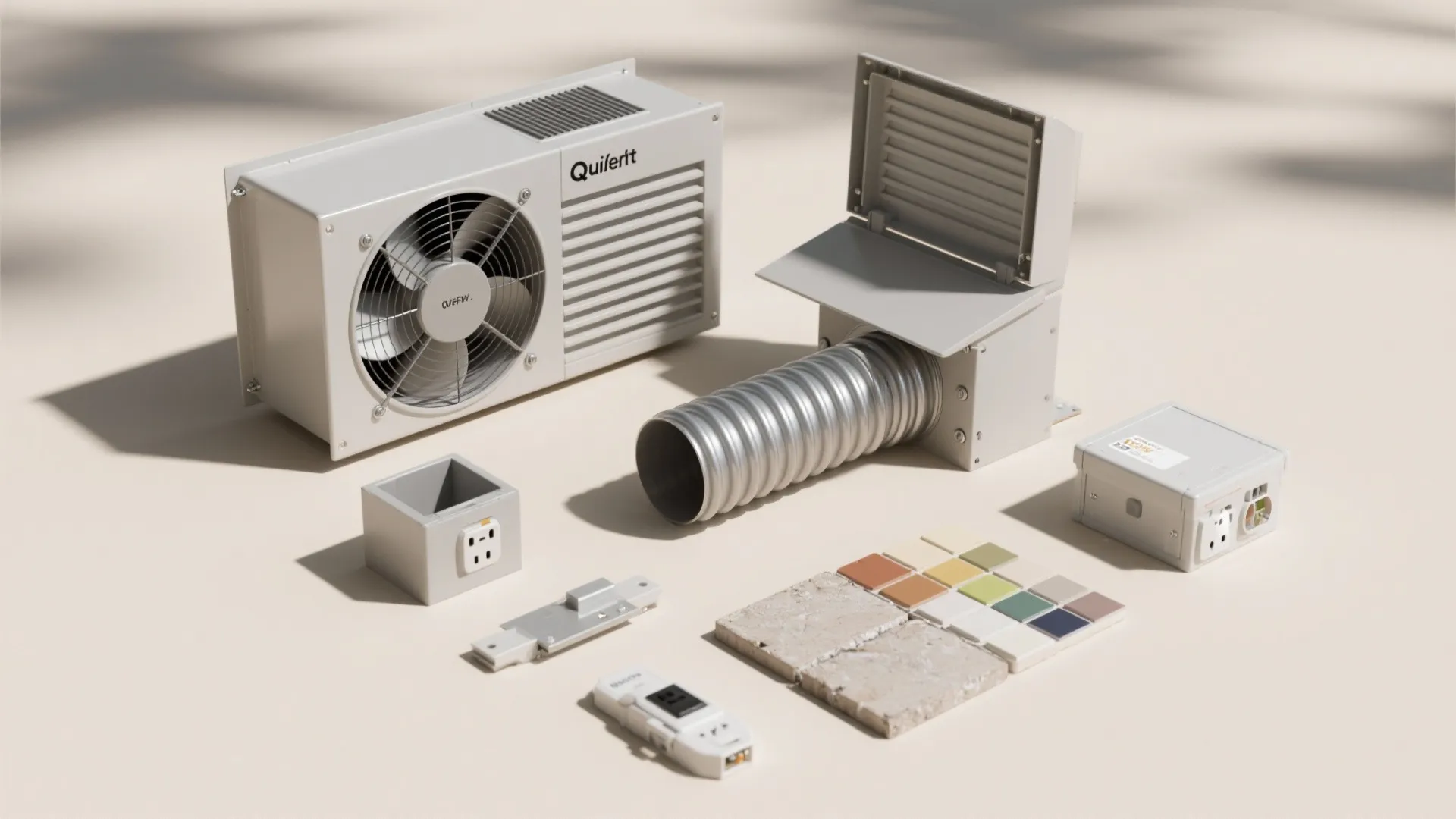

Budget Snapshot

- Fan: $120–$300 (quiet, humidity-sensing). Inline multi-port: $250–$600.

- Duct + exterior hood: $80–$200 materials.

- Electrical + install: $300–$900, varies by access and permits.

- Finishes (paint/grout upgrades): $100–$300 incremental.

save pin

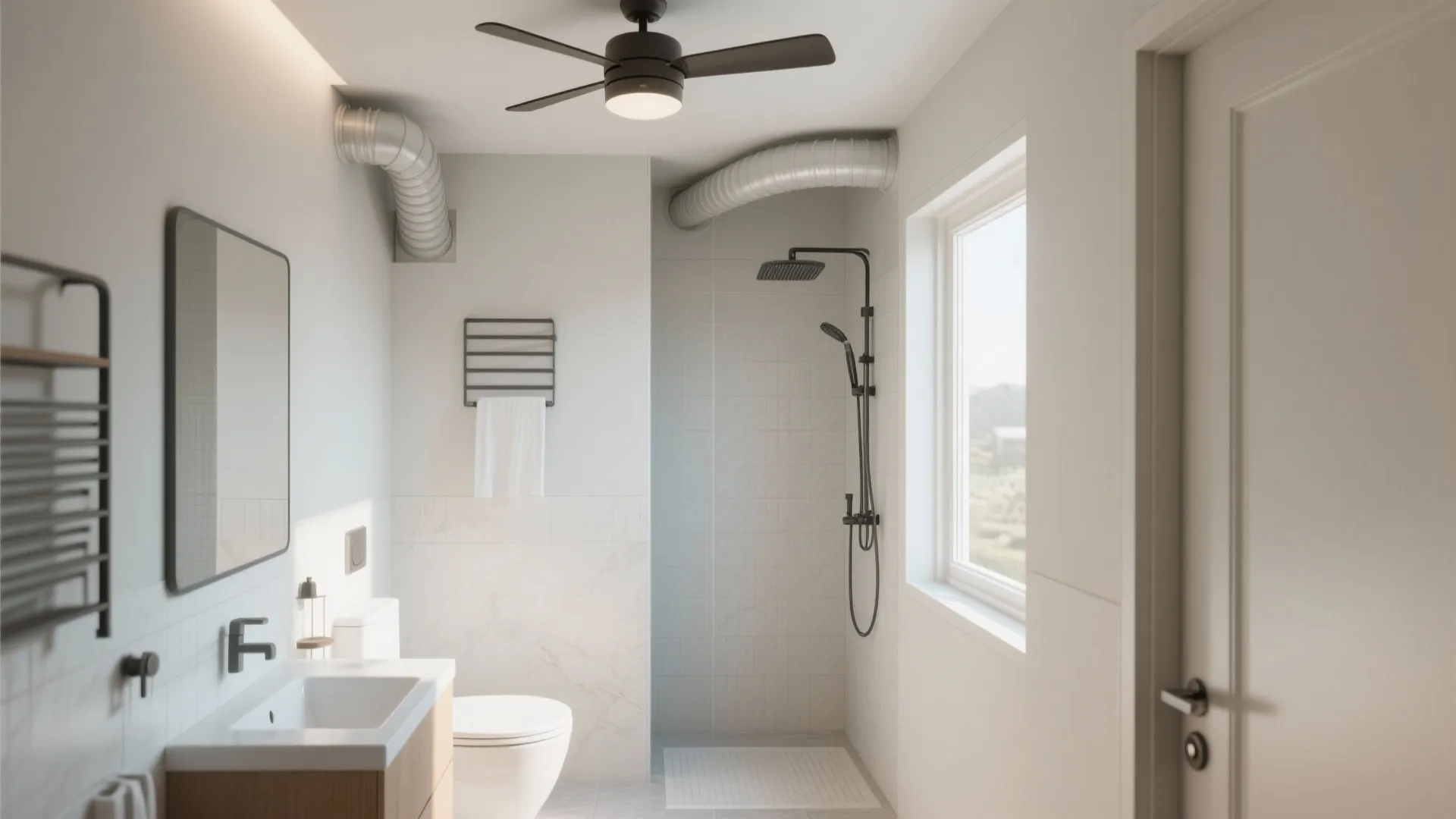

Summary

Small bathroom ventilation design isn’t a limitation—it’s an invitation to design smarter. When you combine a quiet, right-sized fan with short ducts, targeted extraction, continuous low-airflow, and passive helpers, you create a dry, comfortable space that lasts. ASHRAE 62.2 remains a reliable benchmark for airflow, and in practice, small details like door undercuts and dampers make the difference. Which of these five ventilation ideas are you most eager to try in your own bathroom?

save pin

FAQ

1) What CFM do I need for a small bathroom?

For up to 100 sq ft, a common guide is 1 CFM per sq ft with a minimum of 50 CFM. If you have an enclosed shower, consider 80–110 CFM or an inline solution to capture steam effectively.

2) Is continuous ventilation better than a timer?

In tiny baths with frequent use, continuous 20 CFM with a boost timer works well. It maintains baseline dryness and avoids spikes in humidity that lead to condensation and mold.

3) Can I vent into the attic or a soffit?

No—always vent outdoors. Dumping moist air into attics or soffits risks mold and structural damage. Use a hooded exterior termination with a backdraft damper.

4) How quiet should the fan be?

Look for 0.3–1.0 sones for quiet operation. Quieter fans encourage regular use, especially at night, which is crucial in small bathroom ventilation design.

5) Where should I place the intake?

Near the steam source—over or just outside the shower. In long, narrow rooms, consider two grilles on a single inline fan to balance extraction across zones.

6) What if my bathroom has no exterior wall?

Inline fans with roof termination or connection to an approved shaft can work. Keep duct runs short and smooth; tools that help plan compact layouts—like examples of L-shaped layouts freeing up more counter space—can inspire similar airflow-friendly alignments in baths.

7) Are humidity-sensing fans worth it?

Yes. They automatically boost when RH rises and run longer after showers, reducing user error. They’re especially helpful in rentals and kids’ bathrooms.

8) What standards should I follow?

Refer to ASHRAE Standard 62.2 for residential ventilation rates and controls. The U.S. EPA also recommends controlling indoor moisture to prevent mold; following these reduces health risks.
