Small Bedroom with Attached Bathroom Layout: 5 Smart Ideas: How I carve calm, storage, and privacy into tiny ensuite bedrooms without losing comfort or style

[Section: Meta Info]

Core topic: small bedroom with attached bathroom layout. Author perspective: senior interior designer with 10+ years in small-space residential design. Goal: five actionable, expert-backed design ideas with real-world trade-offs and SEO-friendly clarity.

[Section: Introduction]

Ensuite bedrooms aren’t just for sprawling homes anymore—micro-apartments and compact condos have made the small bedroom with attached bathroom layout a mainstream brief. Over the last decade, I’ve learned that small spaces unlock big creativity, especially when sleep, storage, and shower steam have to coexist.

In this guide, I’m sharing five design inspirations I use in real projects, blending personal wins (and mistakes) with expert data. You’ll get layout logic, clearance numbers, and the sort of “I wish I’d known that” tips that save budget and stress.

Whether you’re renovating a studio or carving an ensuite out of a box room, these ideas will help the space feel brighter, drier, and more restful without adding square footage. Let’s make that tiny ensuite feel twice its size.

[Section: Inspiration List]

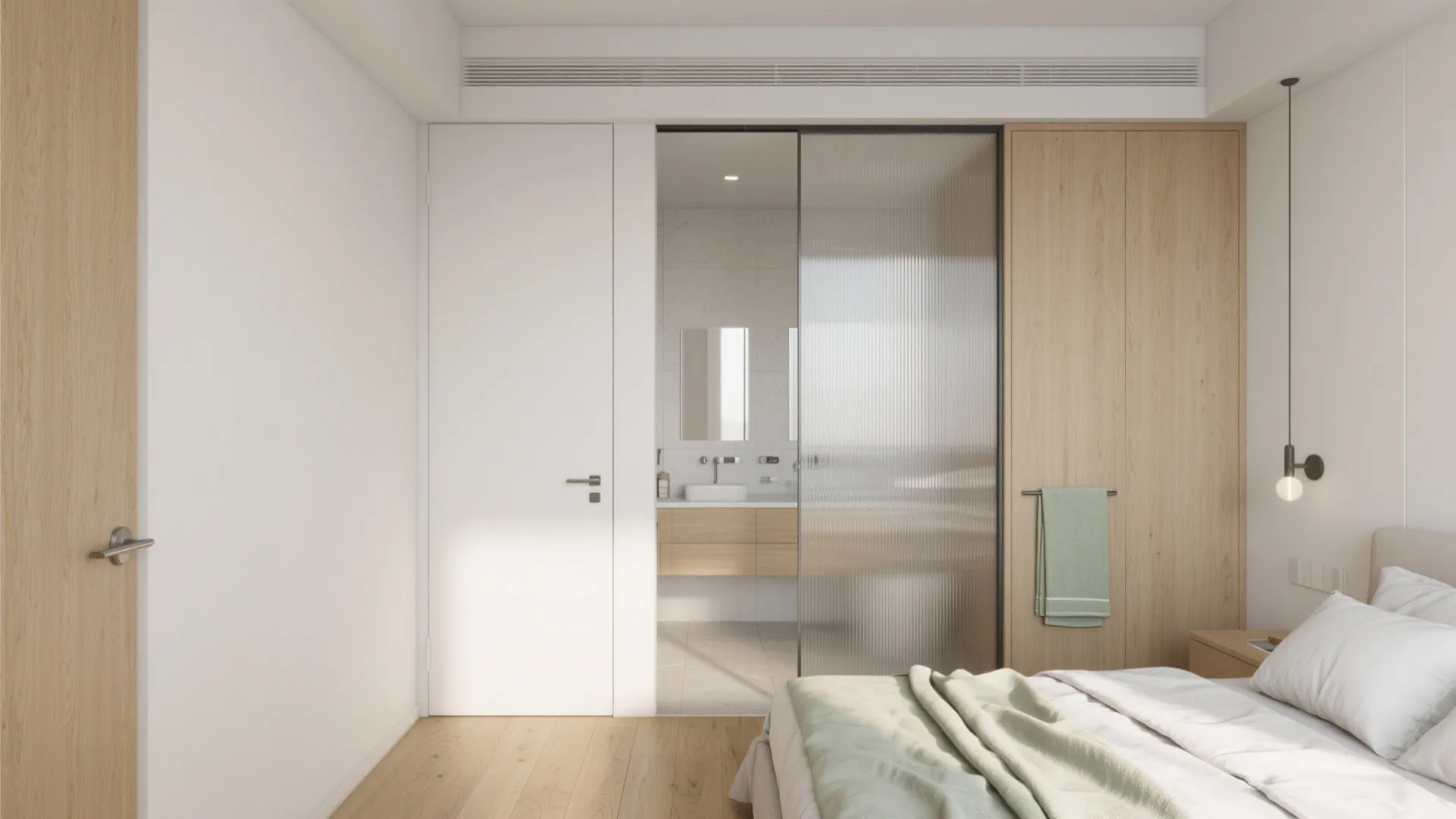

Sliding or Pocket Door + Clear Glass Panel

My Take

When I convert a tight alcove into an ensuite, I almost always trade a swinging door for a pocket or sliding door, then borrow light with a glazed panel. In one 8 m² bedroom, a pocket door and a frosted glass sidelight turned a dark corner bath into a bright, calm nook. A small bedroom with attached bathroom layout instantly feels more open when sightlines extend and door swings vanish.

For visualization, a glass partition makes the ensuite feel larger than a full-height stud wall, yet still gives privacy if you choose satin or reeded glass. It’s one of those small moves that look designer-grade but solve very practical problems.

Pros

Pocket or barn doors eliminate swing clearance, which is gold in a narrow room, and a glazed panel borrows daylight to reduce the cave effect. This combo keeps a small bedroom with attached bathroom layout legible and calm because your eye reads depth instead of a wall. With satin or fluted glass, you get the light without a silhouette show, and hardware can be whisper-quiet.

Cons

Acoustic isolation is weaker than a solid, gasketed door, so late-night showers can travel; I mitigate with soft-close hardware and thresholds. Pocket doors need careful framing, and retrofitting into masonry or structural walls raises cost and complexity. Glass collects water spots and needs regular squeegee discipline to stay crisp.

Tips / Case / Cost

Use laminated, tempered glass for safety and sound; reeded or satin finishes diffuse shadows. Specify a high-quality pocket kit with soft-close and a finished jamb—cheap kits rattle. If you prefer a surface slider, choose a track with concealed rollers and an overlap jamb to reduce light bleed at night.

save pin

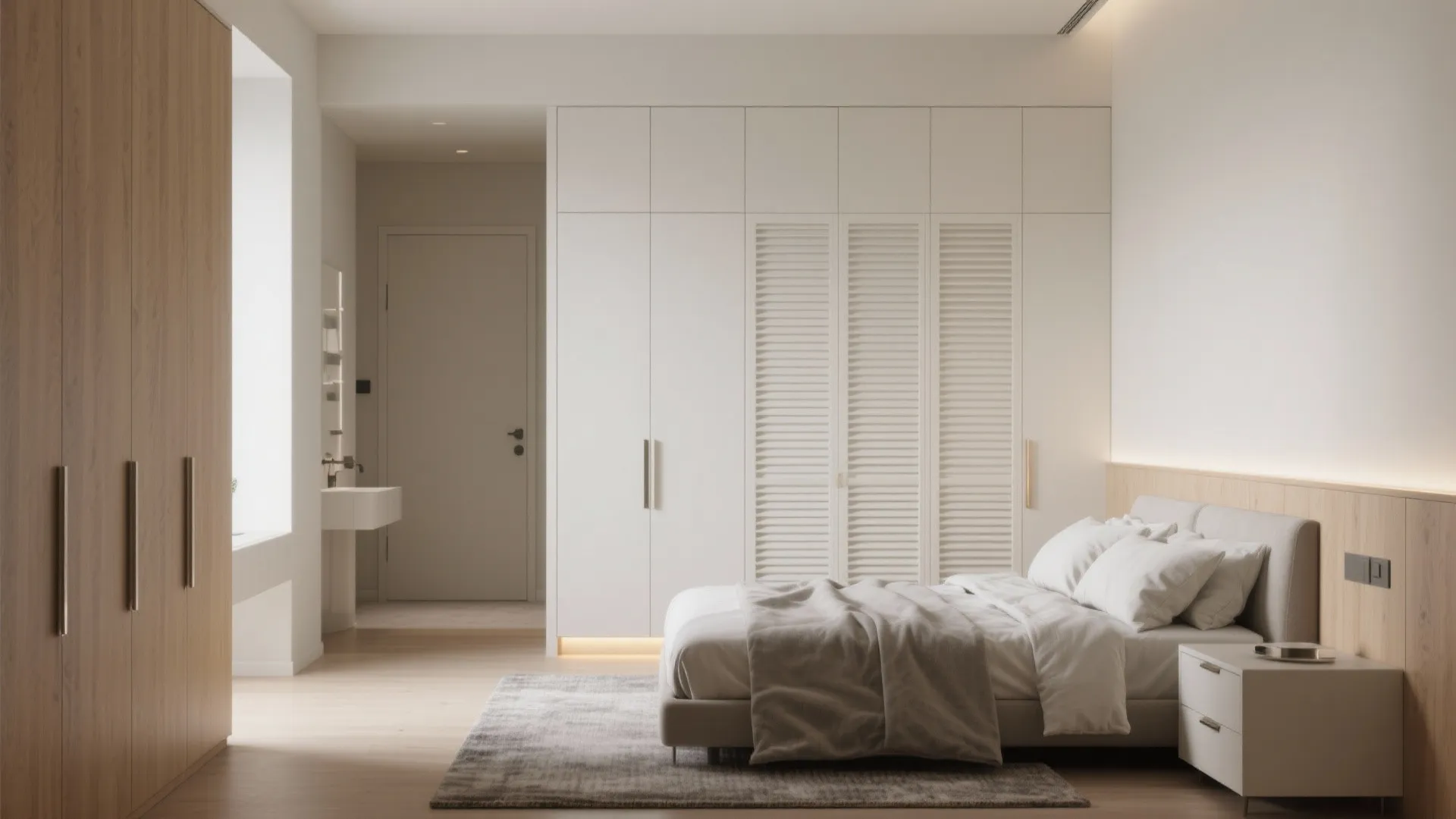

Wardrobe Buffer: Closet Corridor to the Bath

My Take

My favorite trick for privacy is turning the closet into a buffer between bed and bath. The bed faces calm millwork, while a short “closet corridor” leads to the bathroom door hidden inside the wardrobe run. Clients love that they gain storage and a quieter sleep zone in one move.

In a recent retrofit, a 24-inch-deep wardrobe wall absorbed noise and glare from the ensuite, so the bedroom stayed cozy even when someone showered. It’s a smooth way to elevate a small bedroom with attached bathroom layout without moving plumbing stacks.

Pros

A wardrobe buffer reduces direct sound and light spill, protecting sleep quality. It also organizes circulation: bed zone here, hygiene zone there, and a tidy place for towels in between. For a compact home, this “two birds, one stone” move is space-optimizing and elegant.

World Health Organization night-noise guidance suggests keeping nighttime sound levels below 40 dB outside the building envelope to protect sleep; a soft, closet-lined passage helps inside, too (WHO Night Noise Guidelines, 2009). Add felt-lined doors and soft-close hinges to dampen noise further.

Cons

You’ll need to preserve a clear pathway of at least 28–30 inches, so ultra-tight rooms may feel pinched. Ventilation matters; if damp air gets trapped in the closet corridor, fabrics can smell musty. Lighting and switches need thoughtful placement so you don’t wake a partner at 6 a.m. hunting socks.

Tips / Case / Cost

Use a continuous toe-kick light on a motion sensor in the corridor for night navigation. Louvered doors or discreet grilles at the top of millwork can help air flow, especially if your bath fan is effective. Consider a concealed pocket or flush swing door at the end of the closet run to keep the ensuite visually quiet from the bed.

save pin

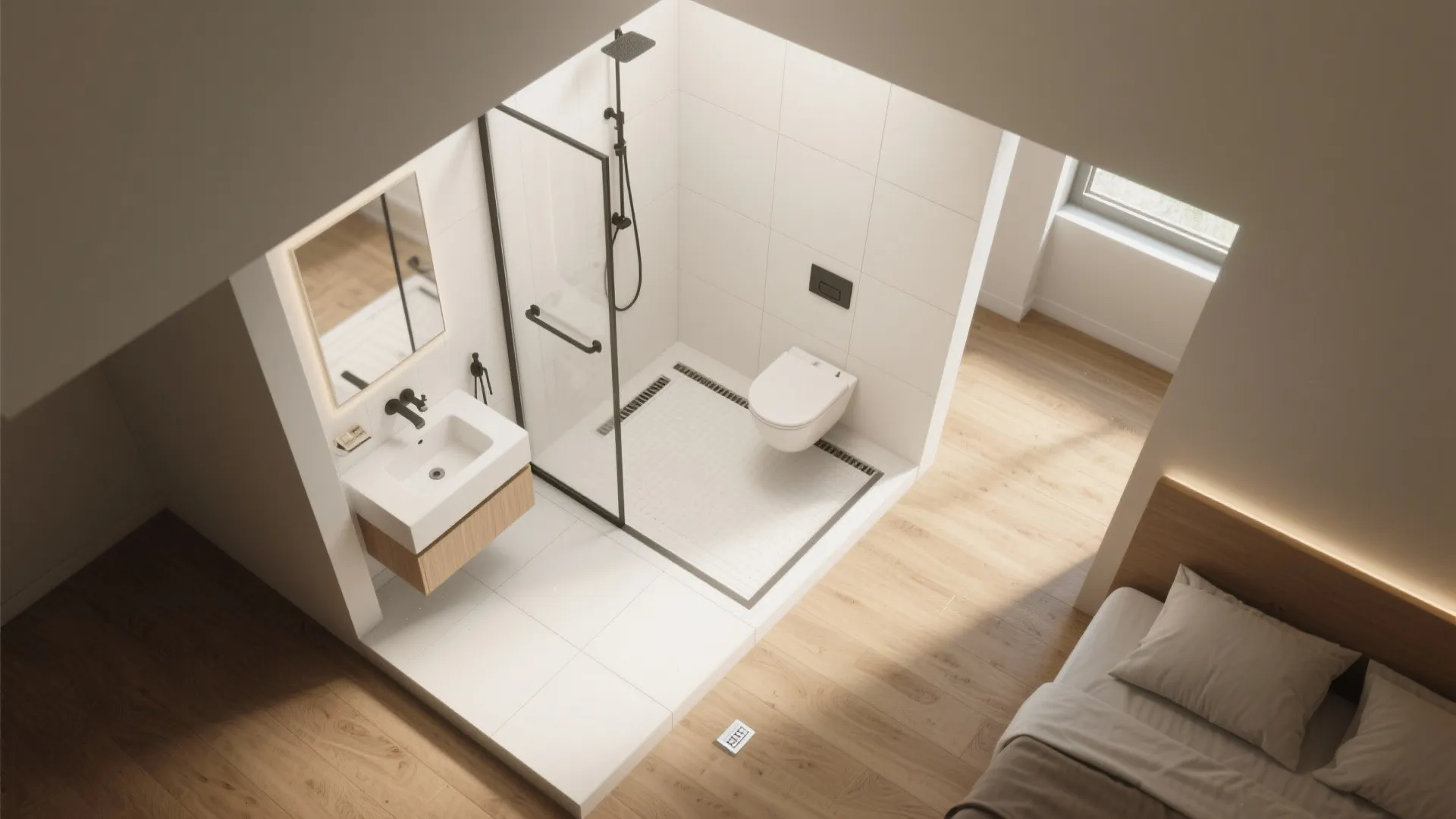

Wet Room Shower with Linear Drain

My Take

In truly tiny ensuites, curbless wet rooms with a linear drain deliver the biggest perceived space. I’ve done several 1.5 m x 2 m bathrooms where ditching the curb and running one tile floor visually “doubles” the width. A simple glass screen keeps spray in check without boxing you in.

Pros

A wet room layout frees up inches that a curb and door would consume, ideal for a small bedroom with attached bathroom layout. The continuous floor tile simplifies cleaning and makes accessibility easier for future-proofing. With a linear drain, you can pitch the floor in one direction at a gentle 1/4 inch per foot (≈2%) and keep large-format tiles.

NKBA bathroom planning guidelines recommend at least 30 inches clear in front of fixtures and a minimum shower size of 36 x 36 inches for comfort, even if code allows smaller; hitting those targets in a wet room is often easier because the floor is one plane (NKBA Bathroom Planning Guidelines, 2023).

Try mapping a wet room layout with a linear drain to test doorless options, screen widths, and splash zones before you commit. Seeing tile scale and slope lines up front prevents onsite surprises.

Cons

Waterproofing must be meticulous; I specify membrane systems and flood tests to avoid costly leaks. Humidity builds fast in small volumes, so your fan selection and ducting cannot be an afterthought. Without a curb, you also need careful threshold detailing at the bedroom transition to protect wood floors.

Tips / Case / Cost

Use a factory-sloped shower pan or bonded membrane system with a pre-sloped mortar bed, and wrap waterproofing at least 6 inches up the walls. A minimal fixed panel—about 28–34 inches wide—catches most spray without feeling claustrophobic. Keep the linear drain near the wall opposite the entry to simplify pitch.

save pin

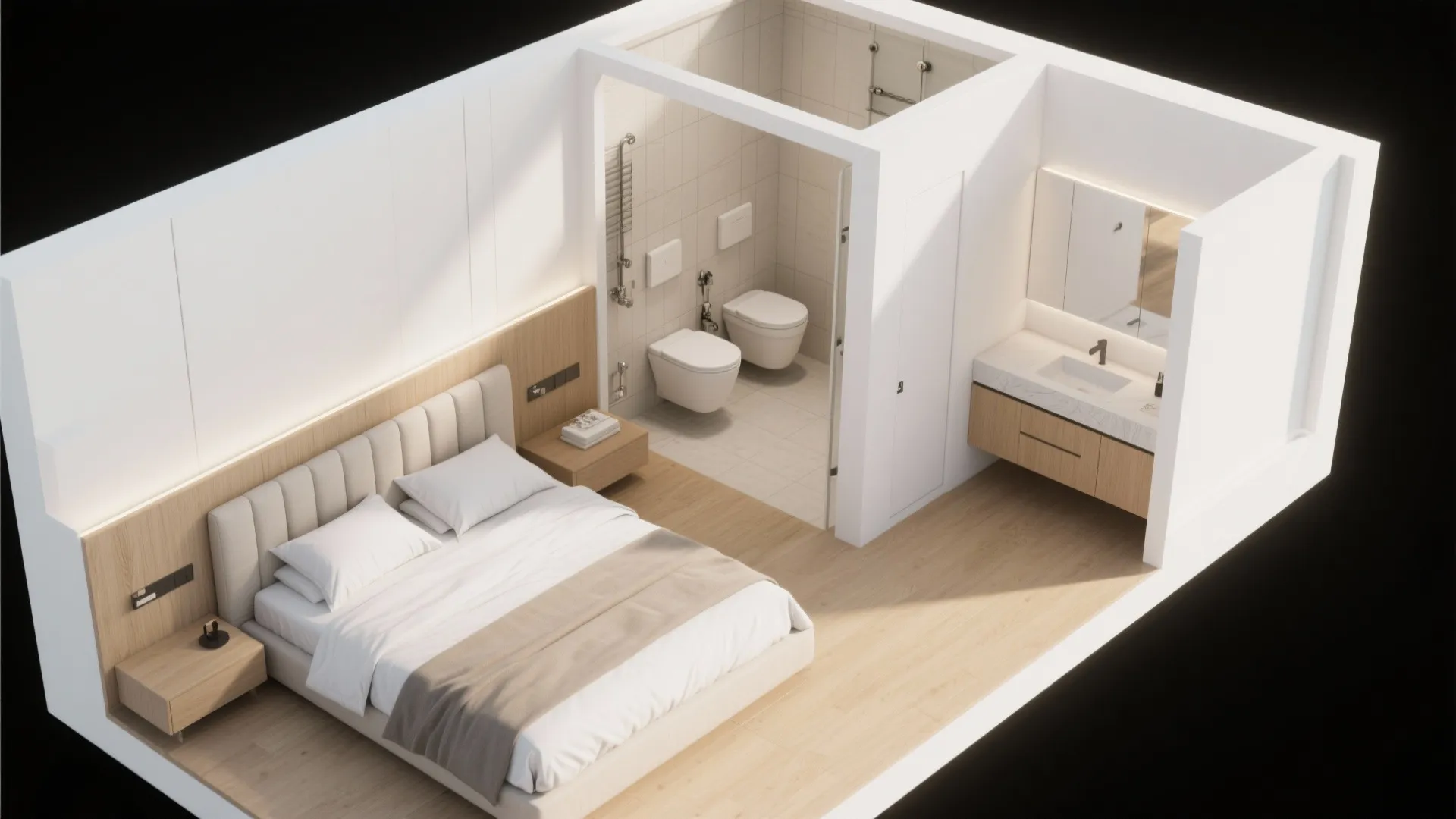

Back-to-Back Plumbing Behind the Headboard

My Take

When stacks are fixed, I’ve tucked the bath directly behind the headboard wall and run fixtures back-to-back. It shortens pipe runs, consolidates noise, and saves budget on long chases. In a 10 m² primary, this trick funded better finishes because we didn’t move the main stack.

Pros

Back-to-back plumbing centralizes maintenance and keeps the bedroom tidy with a single service wall. Combine it with a thicker insulated stud cavity, and you reduce pipe and flush noise right at the bed. It’s a classic cost-smart move for a small bedroom with attached bathroom layout.

For moisture and odor control, pair the plan with solid ventilation. ASHRAE 62.2 recommends at least 50 cfm intermittent or 20 cfm continuous for residential bathrooms, which is crucial for small volumes where steam concentrates (ASHRAE Standard 62.2, Residential Ventilation).

Cons

If you like to reconfigure furniture often, the bed’s headboard location becomes more fixed. You’ll lose a few inches of bedroom length to a thicker service wall with insulation and in-wall carriers. Plumbing noise can still transmit unless you specify sound-rated pipe wrap and resilient channel.

Tips / Case / Cost

Use mineral wool in the service wall and resilient channels on the bedroom side drywall to cut airborne noise. Choose quiet-close wall-hung toilets and in-wall carriers with rubber isolation grommets for less structure-borne sound. Keep shutoff valves accessible via a neat access panel inside the bath vanity.

For layout optics, align the vanity centerline with the bed’s midline, and use a tall mirror to create balance. If you’re debating fixture sizes, finishes, and sightlines, you can compare tile heights and vanity sizes in realistic renders to pick the most harmonious composition before ordering.

save pin

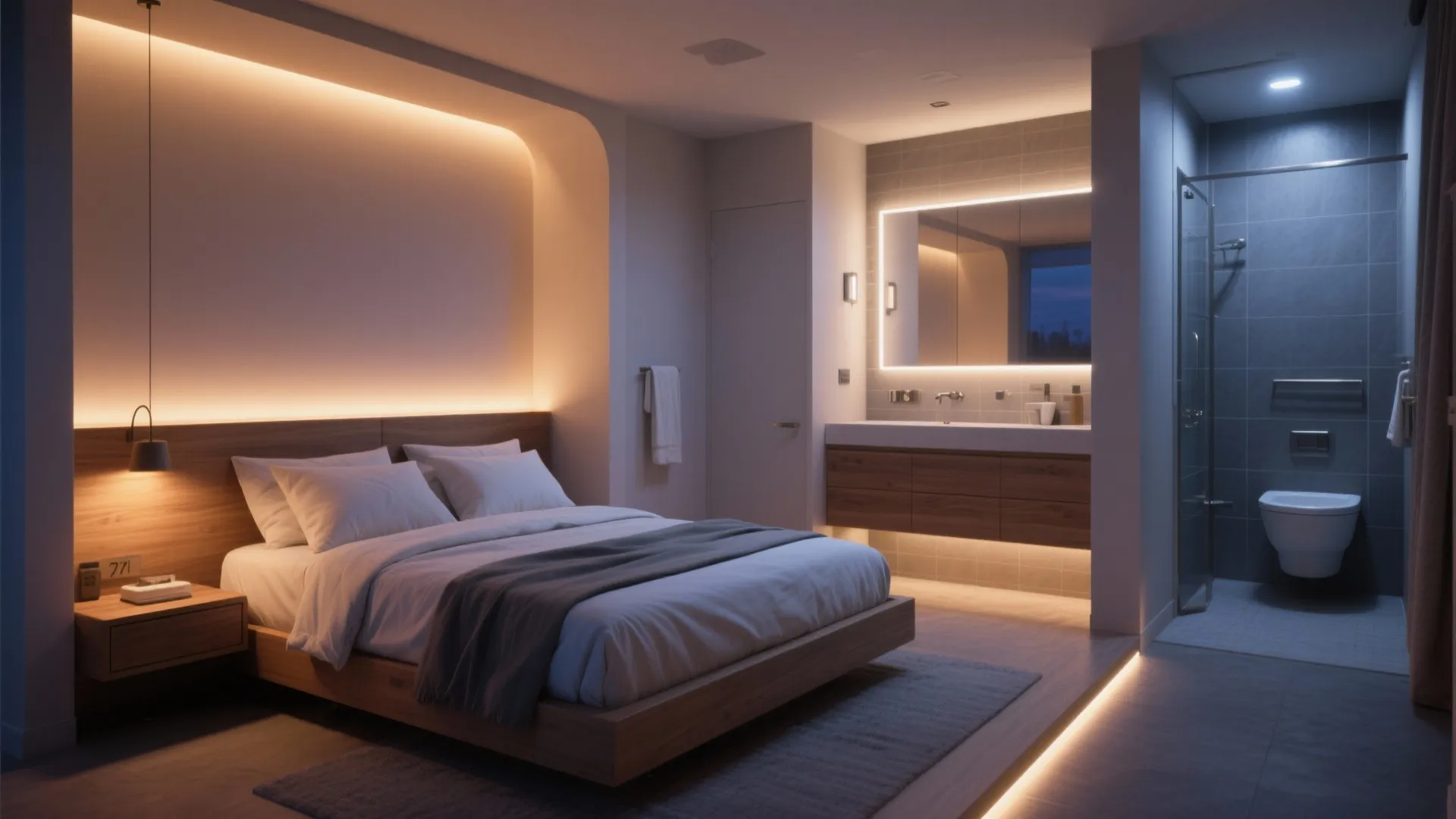

Calm vs. Bright: Layered Lighting and Zoning

My Take

In tiny ensuites, light control can make or break sleep. I split lighting into “calm bedroom, bright bathroom,” and then add a low-glare night path so no one stubs a toe at 3 a.m. Dimmers, warm color temps, and indirect fixtures keep the bedroom serene while the bath gets precise task light.

Pros

Layered lighting preserves circadian rhythm and relationship harmony: warm 2700K in the sleep zone, 3000–3500K CRI 90+ at the mirror for grooming. A toe-kick strip or indirect cove on motion sensor guides nighttime trips without blasting the room. This zoning supports the daily rhythm of a small bedroom with attached bathroom layout.

Cons

Controls can get fussy if you overcomplicate scenes; keep it simple with two or three zones and clear labeling. Retrofitting dimmable, low-glare fixtures into shallow ceilings requires careful spec selection. Smart switches add cost, though the comfort upgrade is significant.

Tips / Case / Cost

Use a backlit mirror plus a narrow-beam ceiling spot aimed at the sink; let the mirror do most of the face lighting to avoid raccoon shadows. In the bedroom, hide LED strips in a headboard niche or crown cove for soft bounce light, and add a very low-output night mode on a motion sensor.

If you’re unsure about fixture placement or color temperature, simulate a layered lighting plan before you buy to see how the mood shifts. Tie lighting logic to ventilation: when bath lights turn on at night, have the fan step to a quiet low speed to keep steam at bay without waking anyone.

[Section: Summary]

A small bedroom with attached bathroom layout isn’t a compromise; it’s an invitation to design smarter. With sliding doors, wardrobe buffers, wet rooms, consolidated plumbing, and layered lighting, you can protect sleep, manage moisture, and gain storage in the same footprint.

If you take one thing away, let it be this: tiny ensuites live or die by details—clearances, slopes, sound, and light. Build those into the plan early, lean on credible guidelines like ASHRAE 62.2 for ventilation and NKBA for clearances, and you’ll get big-room comfort in a small-room package. Which idea are you most excited to try first?

[Section: FAQ]

save pin

FAQ

1) What is the minimum size for a small bedroom with attached bathroom layout?

It depends on your local codes and what you include. I’ve delivered comfortable setups with a bedroom around 8–10 m² and an ensuite of 1.6–2.2 m² by using a pocket door and a wet room shower.

2) How do I maximize privacy in a tiny ensuite?

Create a visual and acoustic buffer: put the closet between bed and bath, use a pocket door, and add felt seals where possible. Choose frosted or reeded glass and indirect corridor lighting to reduce light spill at night.

3) Are pocket doors a good idea for attached bathrooms?

Yes, if you specify quality hardware and plan the framing early. They save crucial swing space and, with soft-close, operate quietly—ideal for small bedroom with attached bathroom layout scenarios.

4) What ventilation rate should I target?

ASHRAE 62.2 calls for 50 cfm intermittent or 20 cfm continuous ventilation in residential bathrooms; meeting that keeps humidity and odors under control. Pick quiet fans (≤1.5 sones) so they’ll actually get used, and duct them outside (ASHRAE Standard 62.2).

5) What clearances do I need around fixtures in a tiny ensuite?

NKBA recommends 30 inches clear in front of sinks and toilets and at least a 36 x 36 inch shower for comfort, even if your local code allows smaller. For toilets, aim for 15 inches from centerline to side wall minimum (more is better for comfort) (NKBA Bathroom Planning Guidelines).

6) How can I reduce bathroom noise in the bedroom?

Use a wardrobe buffer, insulate the service wall with mineral wool, and choose quiet-close, wall-hung fixtures. A solid-core pocket door with brush seals also helps tame sound.

7) Can I include laundry in an attached bathroom?

Sometimes, if your plumbing, electrical, and ventilation can support it; stackable units are compact, but moisture management is key. Keep laundry behind doors with a floor drain or pan and ensure the fan is sized for the added humidity load.

8) How much does adding an ensuite usually cost and how long does it take?

Costs vary by region and scope, but light-partition, no-stack-move projects often range from modest to mid budgets, while moving plumbing stacks raises costs significantly. Expect four to eight weeks from demolition to completion in most urban apartments, depending on lead times and inspections.
