Small Living Room Fireplace TV: 5 Smart Layout Ideas: As a senior interior designer, here are my five proven ways to pair a fireplace and TV in a small living room—without sacrificing comfort, style, or safety.

Design is cyclical, but right now the media wall is having a moment: slim linear fireplaces, low-profile mantels, and near-bezel-less TVs are defining clean, cozy living rooms. In my projects, the challenge gets exciting when a client asks how to handle a small living room fireplace TV without making the room feel cramped. Small spaces spark big ideas—always. In this guide, I’ll share five practical design inspirations based on real projects and trustworthy standards, and I’ll show you how I test options with balanced TV-and-fireplace mockups before we ever drill a hole.

You’ll find my take, honest pros and cons, and quick tips for each layout. I’ll weave in expert-backed guidance where it matters—mounting height, heat safety, and comfortable viewing distances. By the end, you’ll have a clear plan to make your small living room feel intentional and inviting, with both the flames and your favorite shows sharing center stage.

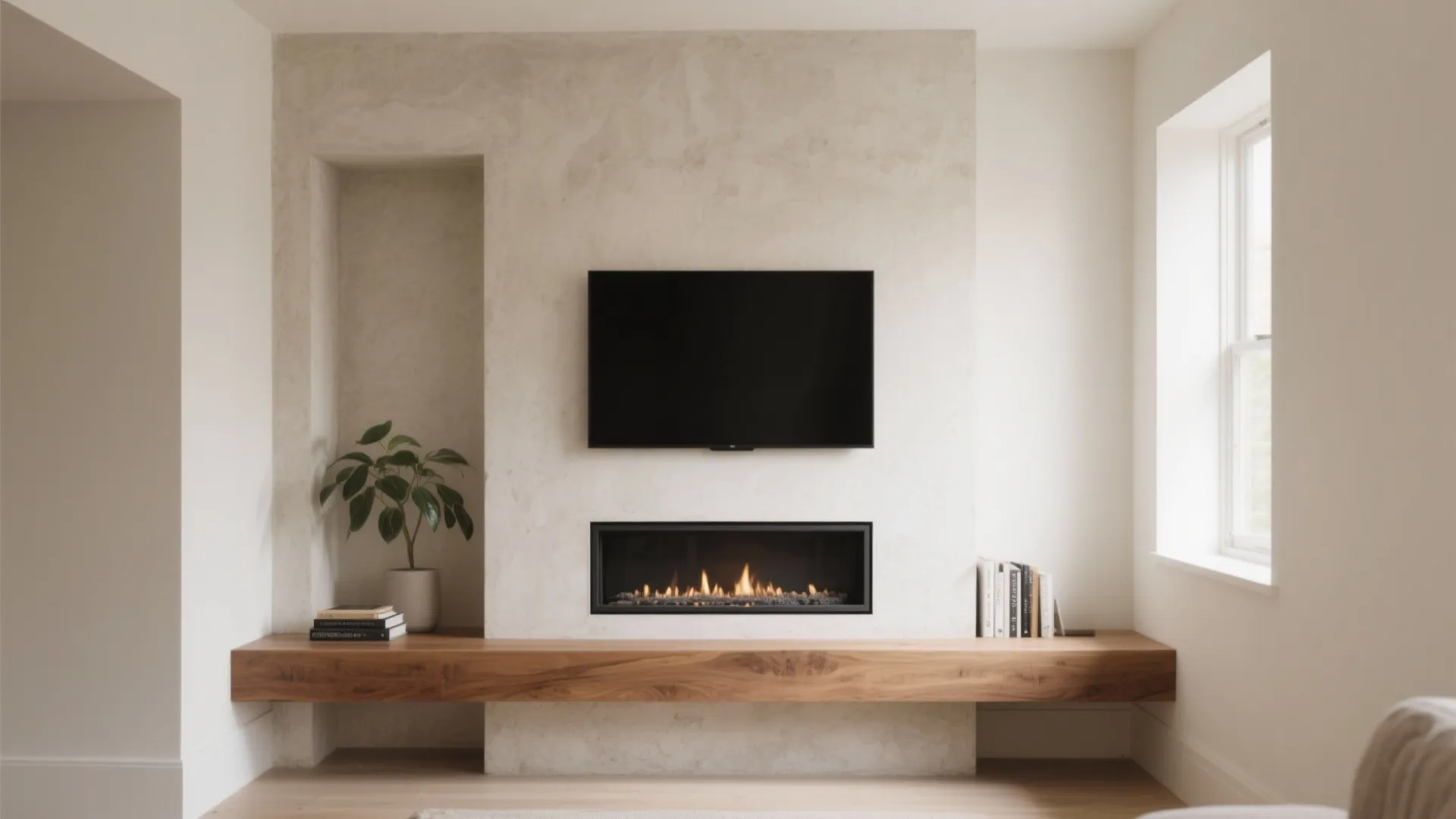

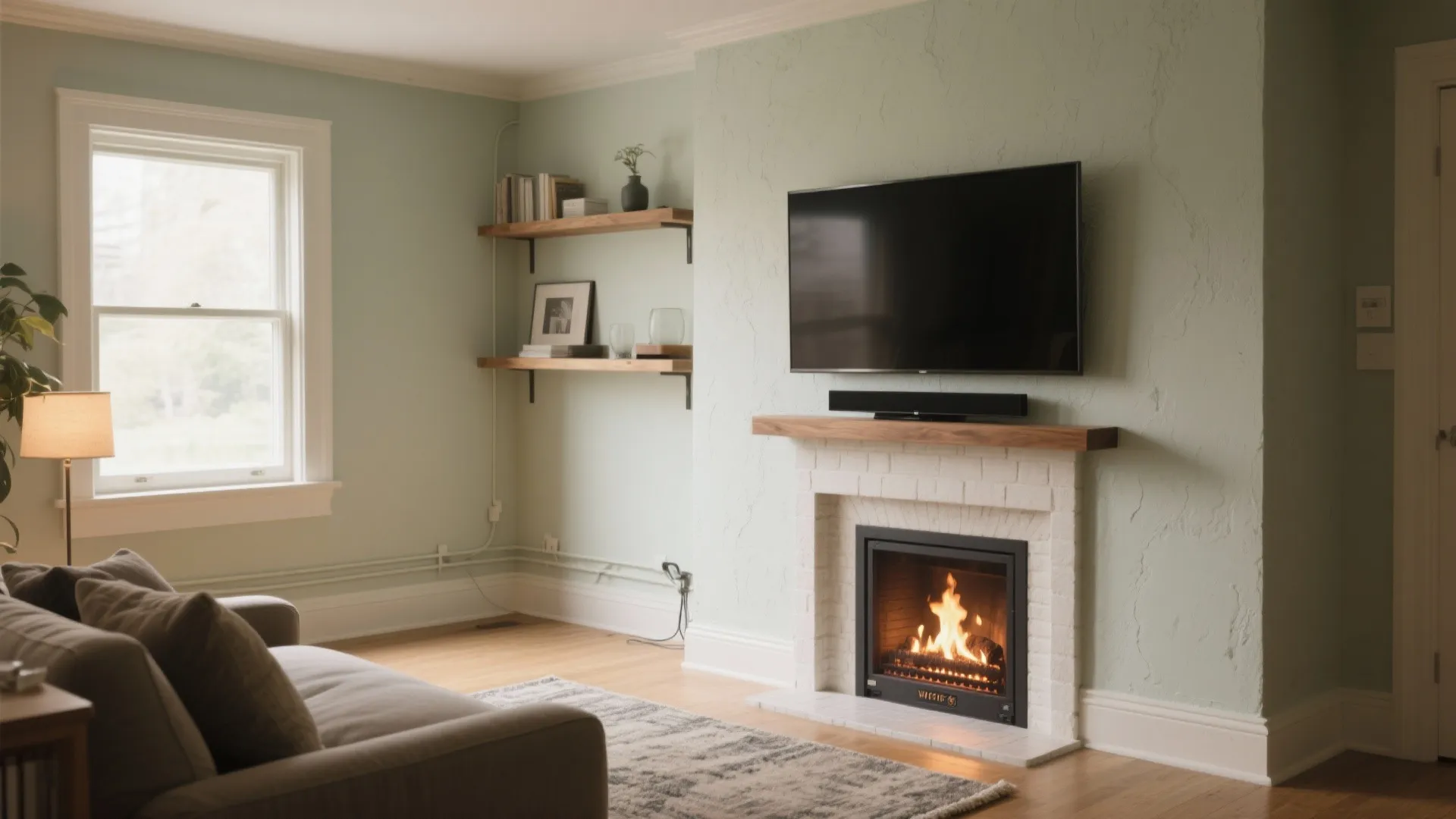

1) TV Above the Fireplace, Done the Right Way

My Take

I’ve pulled this off in apartments as tight as 12 square meters by choosing a low-heat electric fireplace, recessing the TV slightly, and using a shelf-like mantel to deflect heat. In one city project, the client swore they’d never mount a TV high again—until we dialed in the height, angle, and a soft swivel mount. Comfort became the headline.

Pros

When mounting a TV above a fireplace in a small living room, you free up sidewalls for storage and keep circulation clean. A vertical, single focal point can visually stretch the room and make a narrow space feel taller. With a heat-deflecting mantel and a low-heat electric insert, you can maintain safe clearances and still enjoy the stacked look.

Authoritative note: NFPA 211 outlines clearance rules for combustible mantels and surrounds—following certified fireplace specs and clearances is non-negotiable for safety. For viewing comfort, THX recommends keeping the screen center near eye level and limiting vertical viewing angles; if you must go higher, a slight tilt helps reduce neck strain.

Cons

If the TV ends up too high, your neck will tell you within an episode or two. Some gas units can radiate a surprising amount of heat; without the right mantel geometry or a recess, that can be risky for electronics. Also, reflective stone or glass around the fireplace can add glare, which is a buzzkill during daytime viewing.

Tips / Case / Cost

I aim for the TV’s bottom edge roughly 42–48 inches off the floor in small rooms, then adjust to seated eye level with a gentle tilt. Use a mantel with a pronounced lip as a heat “eyebrow,” and confirm fireplace exhaust patterns before committing. Budget-wise, expect $500–$1,500 for an electric insert, $150–$300 for a quality tilt mount, and $300–$1,000 for wiring and finishing, depending on wall type and recess depth.

save pin

2) Off-Center Pairing: Side-by-Side, Asymmetrical Balance

My Take

On a 10-foot wall in a compact condo, I placed a minimalist fireplace on the left and a TV in a shallow built-in on the right. The homeowner loved that the flames could dominate during gatherings while the TV tucked into the background. The asymmetry felt curated, not compromised.

Pros

This offset TV and fireplace layout keeps the TV closer to eye level and makes heat management easier. You also gain flexible styling: art or a slab backsplash above the fire, and ventilated storage beneath the TV for consoles. In a small living room, pushing the TV off-center can reduce glare and align perfectly with a corner sofa.

Cons

Some people struggle with two focal points; it helps to define a primary one for everyday use. A short wall can feel crowded if both units are oversized. If your seating is dead-center, you might end up angling the TV slightly, which requires careful cord management to look neat.

Tips / Case / Cost

Keep the TV niche shallow—10 to 12 inches with a micro-vented back panel works well. Add dimmable LED strips below TV shelves to match the fireplace’s glow. Expect built-ins to run $1,800–$5,000 depending on finish and doors; a flat wall treatment (like microcement or limewash) can be a more budget-friendly way to give the fireplace side some visual weight.

save pin

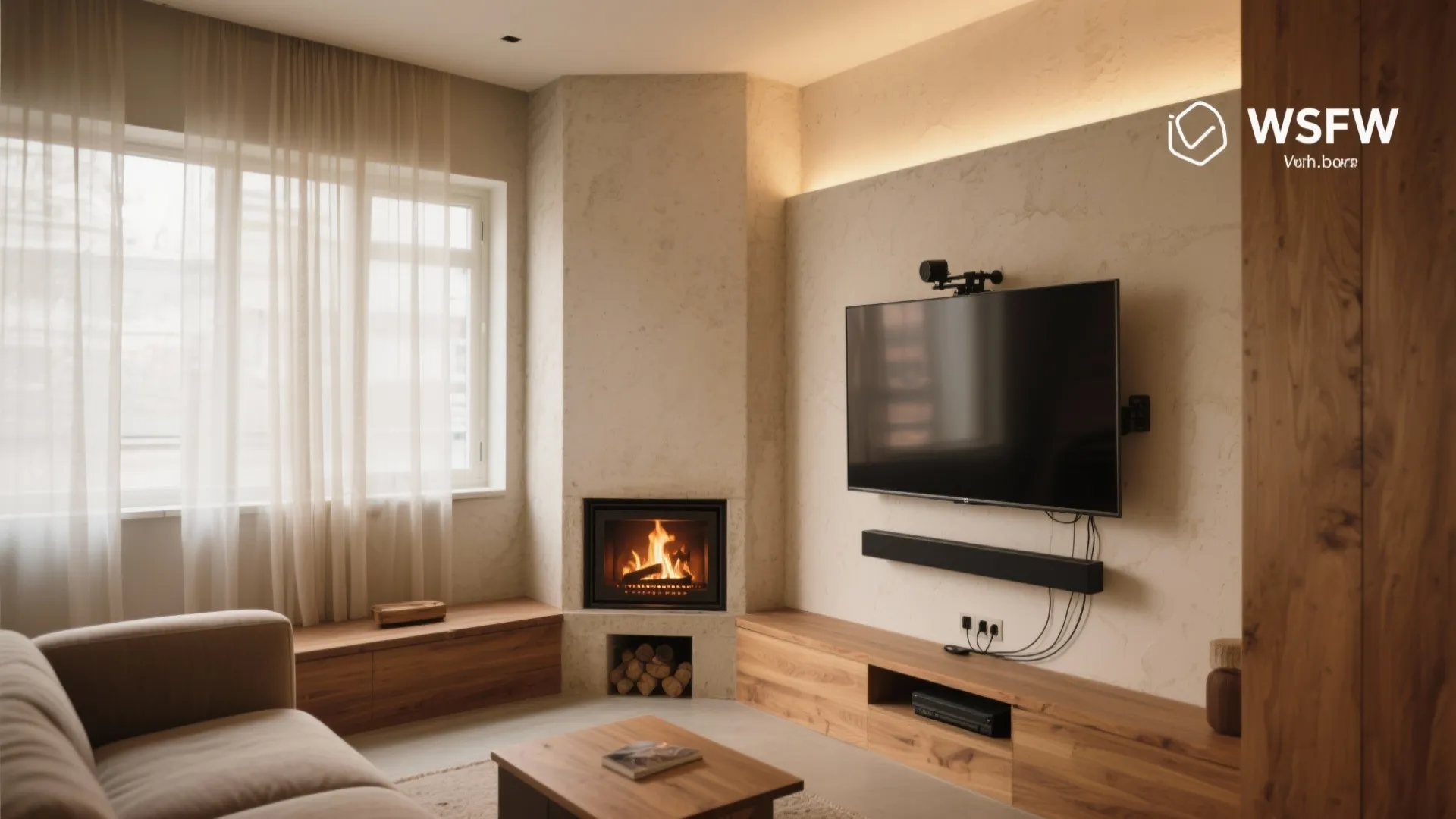

3) Corner Strategy: Diagonal Comfort Without Dead Space

My Take

In a micro-loft with a corner stove, we placed the TV on an adjacent wall with a full-motion mount. The swivel let the screen face the sofa for movie nights and pivot away during gatherings. It turned a chopped-up corner into the coziest spot in the home.

Pros

A corner fireplace TV arrangement can open up circulation, especially when doorways pinch the main wall. With a swivel mount, you can “aim” the TV to avoid window glare, and a corner hearth feels intimate even in a small room. This approach is highly forgiving if the space is quirky or asymmetrical.

Cons

Cables can look messy unless you plan conduits and floor outlets early. Corner arrangements sometimes compress the rug area; you’ll need to size the coffee table carefully. Also, speakers can get awkward—satellites or a slim soundbar with wireless rears can save the day.

Authority Note

THX recommends a comfortable viewing angle in the 36–40° range; for many 55-inch TVs, that lands roughly 6–7 feet away, depending on screen and seating height. Use this as a sanity check when you swing a TV on a full-motion arm so that your “movie position” still hits the sweet spot.

Tips / Case / Cost

Use a 180° swivel mount with cable clips, and hide power/data in a paintable corner channel. For a tiny room, a 48–55 inch TV is often the ergonomic sweet spot; bigger screens can overwhelm tight seating distances. Budget $100–$300 for a quality mount and $150–$600 for cord management and electrical, depending on wall access and whether you add a floor outlet near the corner.

Before finalizing any of the first three layouts, I generate quick 3D visualizations of sight lines to verify heights and glare. It’s the easiest way to get buy-in from the whole household—everyone “sees” the trade-offs before we commit to cabinetry or stone.

save pin

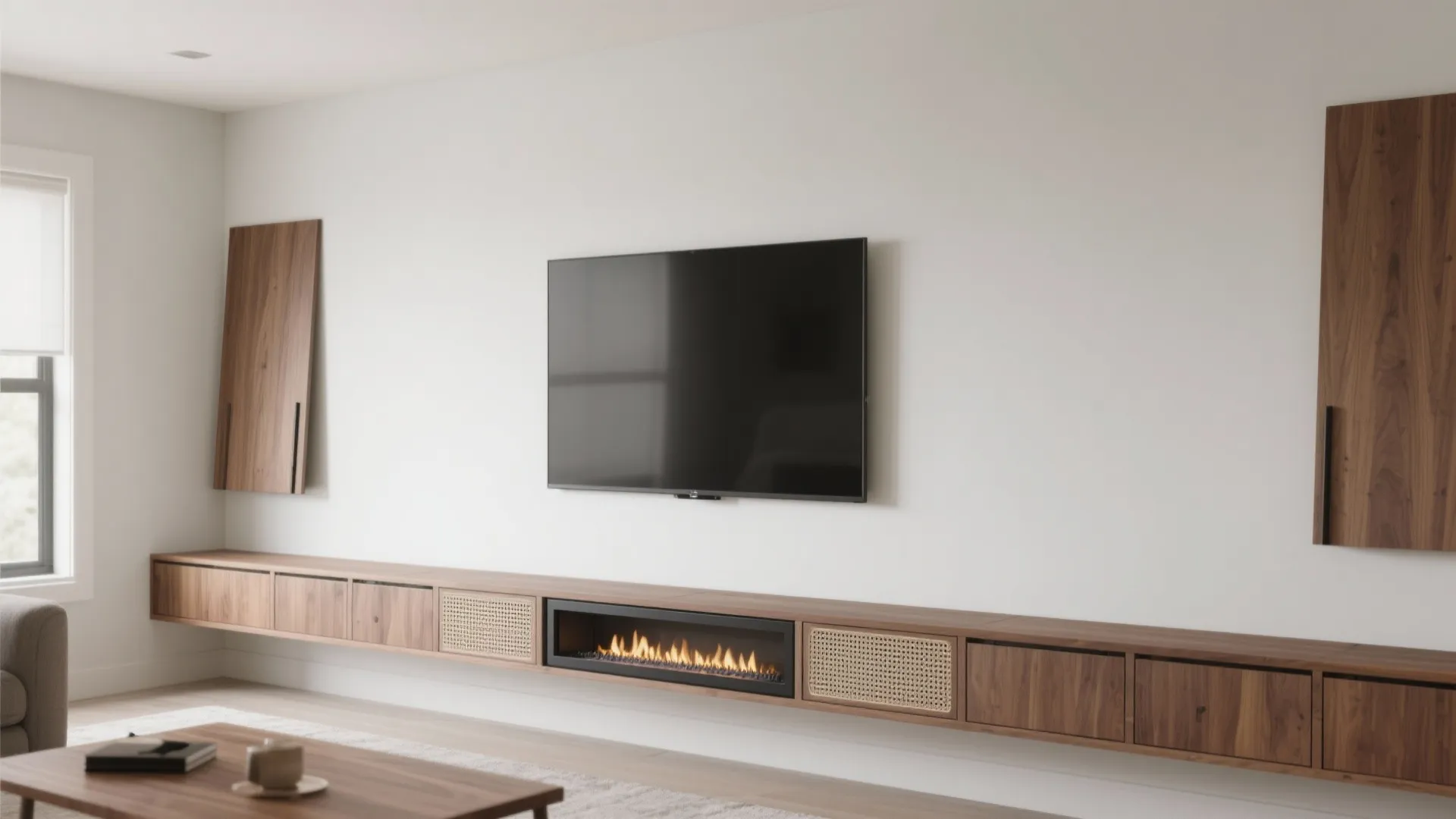

4) Low Media Ledge + Linear Electric: Eye-Level TV, Calm Lines

My Take

This is my go-to when clients want contemporary serenity. I run a low, continuous media ledge across the main wall, integrate a linear electric fireplace at one end, and place the TV at true eye level a safe distance above the ledge. It keeps your sightline flat and your storage generous.

Pros

A built-in media wall with fireplace turns the entire wall into useful storage without heavy cabinets. Because many linear electric models have front heat discharge and lower BTUs than gas, you can dial in safe spacing for an electric fireplace under TV in a small living room more easily. The consistent horizontal line of the ledge also visually widens the room.

Cons

If you’re a “feet up” person, a 14-inch-deep ledge can compete with the coffee table. Electric flames aren’t for everyone; if you crave a real flame with gas, you’ll need to check venting paths and likely bump costs. The long, clean look requires tidy cable routing; any clutter will stand out.

Authority Note

For any fireplace—gas, electric, or wood—follow the specific manufacturer’s clearances and general NFPA 211 guidance for combustibles and mantels. When in doubt, add a couple of inches of margin; heat, finishes, and electronics vary widely.

Tips / Case / Cost

I size the ledge at 12–14 inches deep and 16–18 inches high; flip-down doors and media mesh keep gear hidden and cool. A quality linear electric fireplace runs $800–$2,500; the ledge and wall paneling span $2,000–$6,000 depending on finish (veneer, paint-grade MDF, or stone). Choose a matte screen TV or add an anti-glare film if the room is bright.

save pin

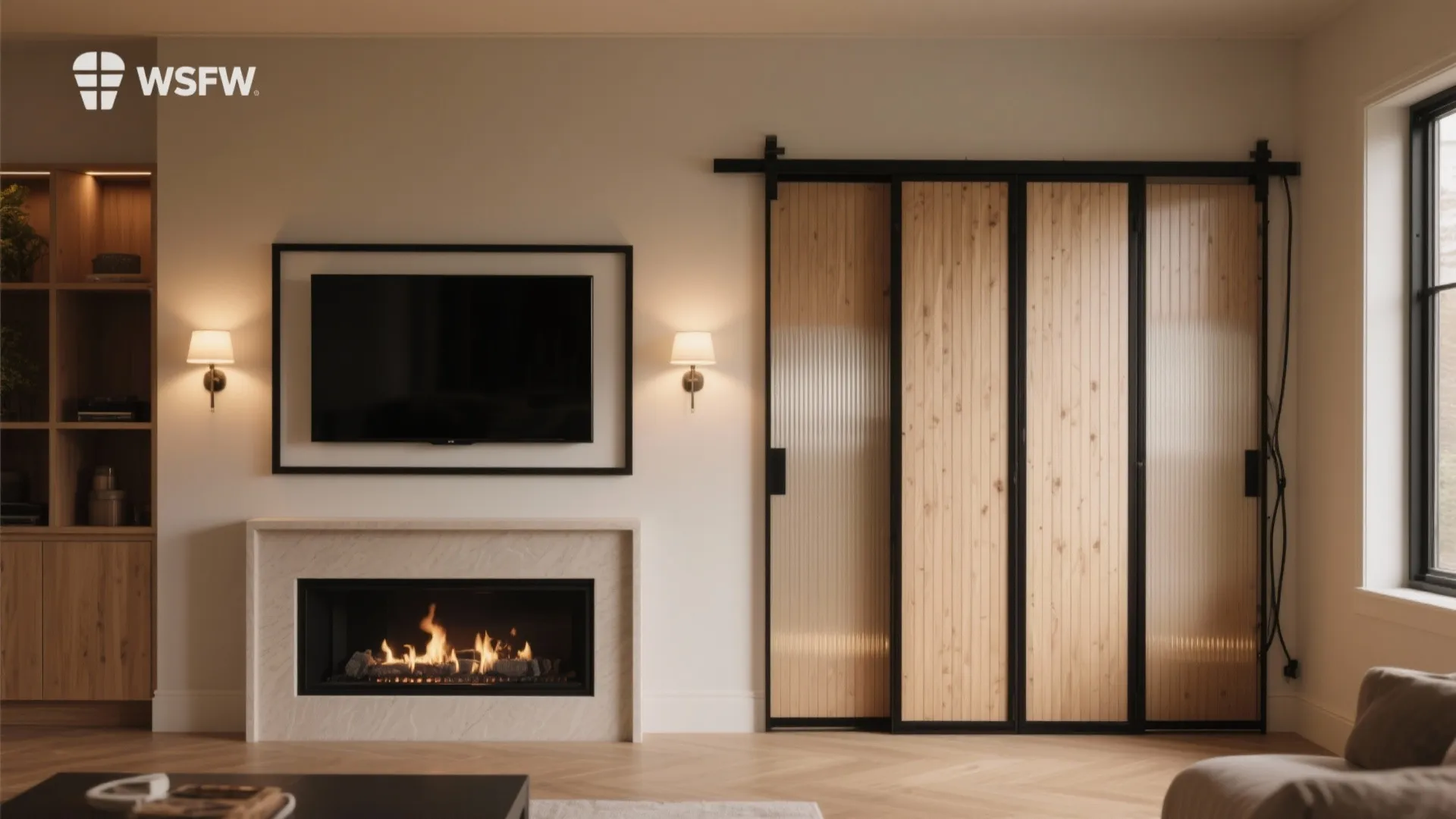

5) The Disappearing Act: Art TVs, Panels, and Clever Covers

My Take

In my own compact living room, I used a frame-style TV above a shallow mantel, then layered art mode with dimmable sconces. On a client project, we hid the TV behind lightweight fluted panels that slide away for movie night. Both rooms feel like designed living spaces first, media rooms second.

Pros

A frame TV over fireplace in a small living room keeps the fireplace visually dominant while softening the presence of the screen. Sliding or bifold panels let you center the TV and fireplace without the “black rectangle” look. For ultra-small rooms, a roll-down projection screen above the mantel can be a wow moment without permanent visual weight.

Cons

Moving panels need careful tracks; dust and paint buildup can drag over time. Art TVs cost more than standard models for the same panel quality. If you go the projector route, ambient light control and speaker placement become trickier, and it’s not ideal for daytime sports.

Tips / Case / Cost

Keep panel materials light—foam-core backed fluted slats or fabric-wrapped frames glide better than solid hardwood. If you’re using motorized components, plan a service channel for maintenance and a dedicated outlet on a switched circuit. For budget, expect $1,000–$3,000 for a frame TV look (TV plus trim kit), $600–$2,500 for custom panels, and $1,500–$4,000 for a compact projector/screen combo.

When layouts are tight or asymmetrical, I sketch scaled space diagrams for seating flow to ensure traffic, coffee table reach, and viewing angles all work together. The drawing step saves more money than anything else—fewer surprises behind the drywall.

save pin

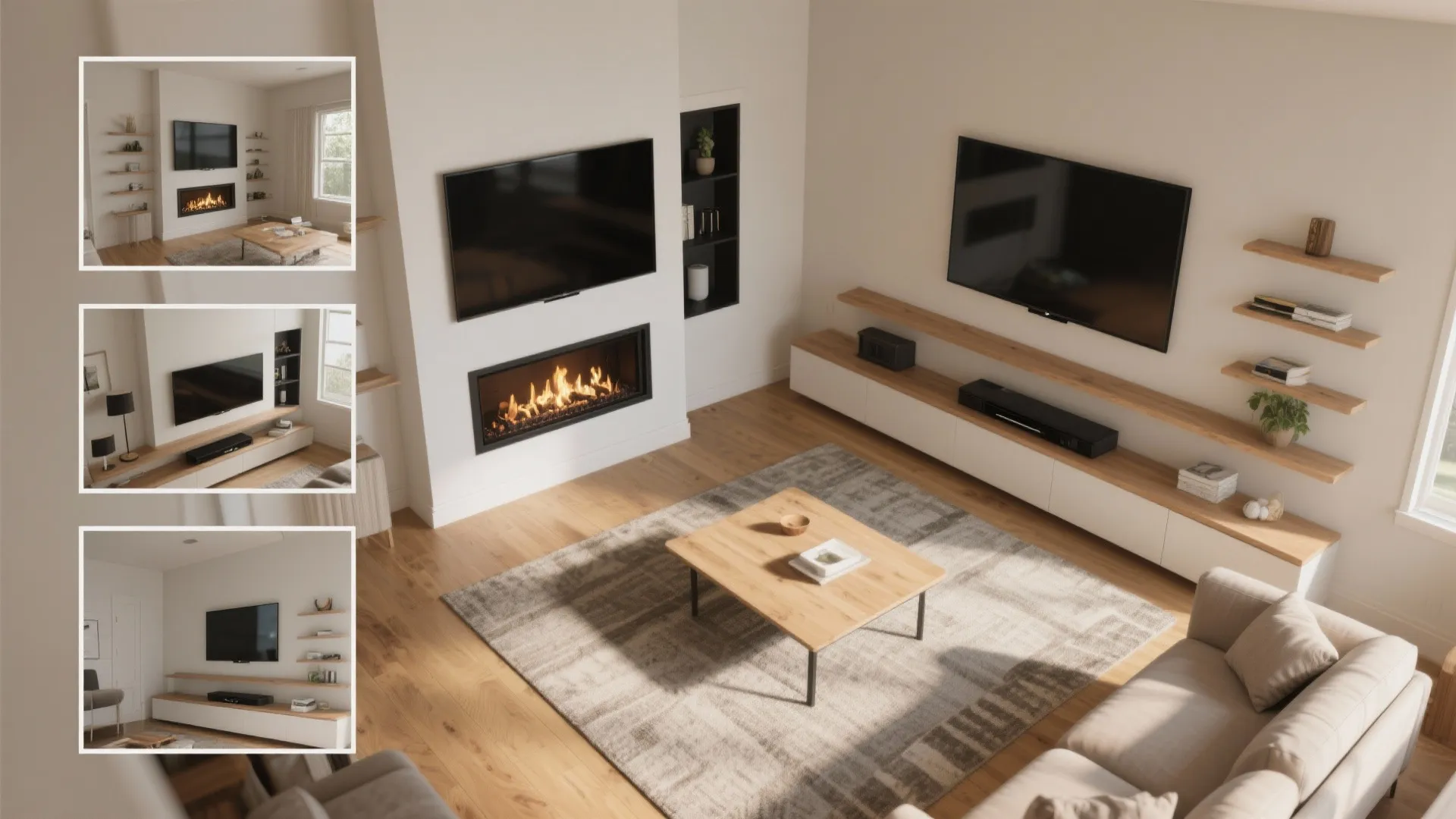

Summary

A small living room fireplace TV is not a limitation—it’s an invitation to design smarter. Whether you stack, offset, corner, or conceal, the winning move is respecting heat clearances, eye-level comfort, and your actual daily habits. I lean on NFPA 211 clearances for safety and THX-inspired viewing angles for comfort, then tailor the look to how you live. Which of these five ideas will you try first?

save pin

FAQ

1) What’s the safest way to mount a TV over a fireplace in a small living room?

Choose a low-heat insert (often electric), add a heat-deflecting mantel, and follow both the fireplace manufacturer’s instructions and NFPA 211 guidance for combustibles. A slight tilt mount helps maintain a comfortable viewing angle when the TV sits a bit higher.

2) How high should a TV be above a fireplace?

In small rooms, I try to keep the screen center near seated eye level. If the fireplace forces a higher mount, tilt the TV downward and sit slightly farther back to reduce neck strain. THX suggests limiting vertical viewing angles so you’re not craning.

3) Can I place an electric fireplace under a wall-mounted TV?

Yes—this is common in compact spaces. Confirm the unit’s heat discharge (front vs. top), respect the manufacturer’s minimum clearance to electronics, and consider a shallow mantel lip to deflect warmth. Electric units typically make heat management simpler than gas.

4) Is side-by-side better than stacking the TV above the fireplace?

Side-by-side is often more ergonomic because the TV can be at true eye level. Stacking saves wall space and creates a single focal point. In a small living room fireplace TV setup, I prototype both and choose the one with the least glare and best seating alignment.

5) What size TV is best for a small living room with a fireplace?

For many small rooms, 48–55 inches balances immersion and comfort. THX-inspired distances put a 55-inch screen around 6–7 feet from the main seat, depending on your angle and mount. Use your actual seating measurements before buying.

6) How do I avoid glare from windows when the TV and fireplace share a wall?

Angle the TV slightly or use a swivel mount, choose a matte-finish screen, and layer soft window treatments to diffuse light. If possible, offset the TV from the brightest window or add a low-contrast wall finish around the screen to reduce reflections.

7) Are there code requirements I should know about for fireplaces and TVs?

Fireplace installations should follow local code, the manufacturer’s manual, and NFPA 211 guidelines for clearances around combustibles and mantels. When adding outlets or running cables in walls, use proper-rated boxes and, if needed, consult a licensed electrician.

8) What’s a quick way to test layouts before building?

Blue-tape the outline of the TV and fireplace on the wall, sit in your usual seat, and check eye level and glare at different times of day. I also rely on simple 3D mockups to confirm heights and lines before committing to cabinetry or stone.
