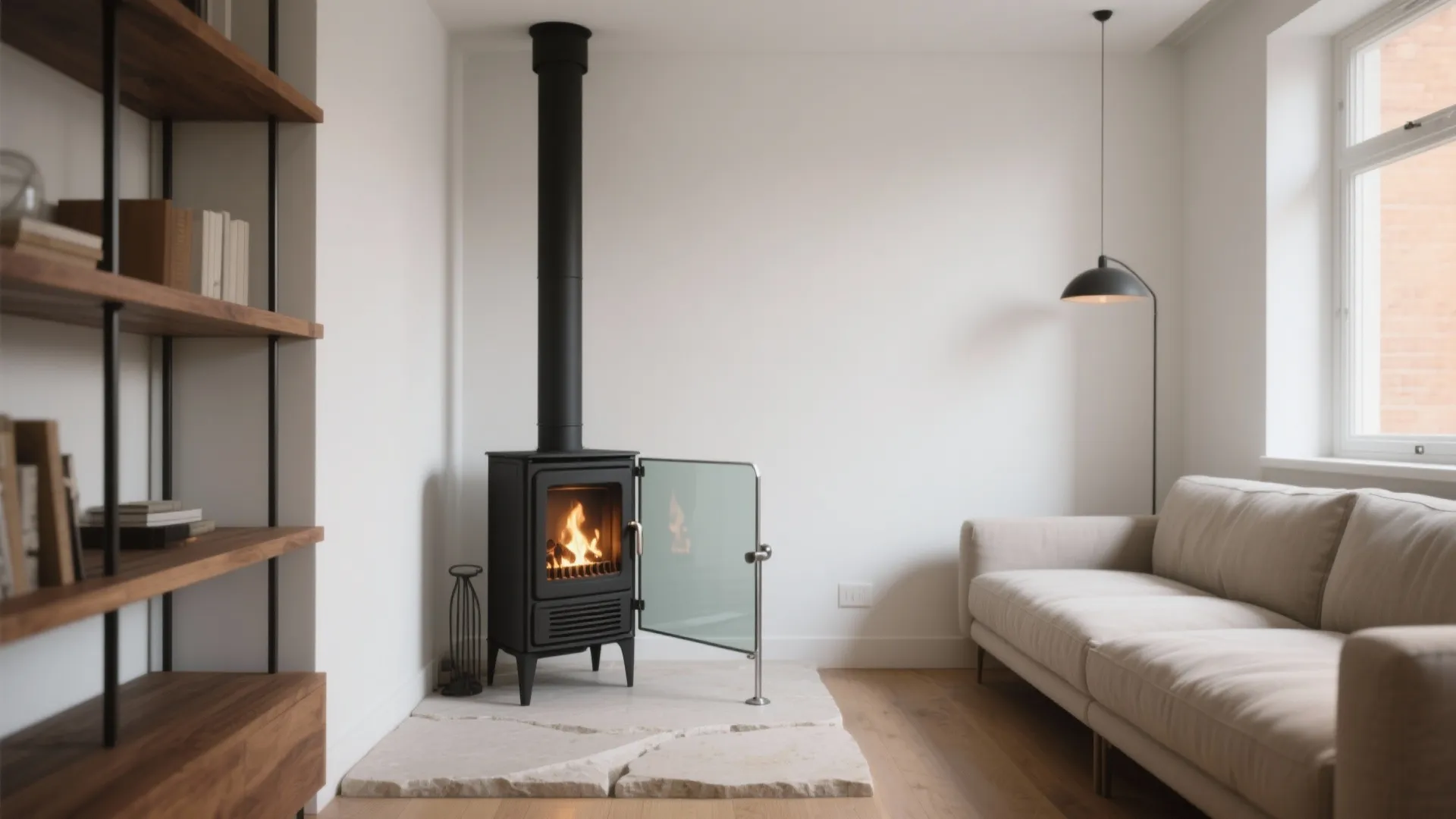

Small Room Pellet Stove: 5 Smart, Cozy Design Ideas: How I fit real heat into tight footprints—clearances, venting, heat flow, and style without the clutter

I’ve redesigned dozens of tight homes over the past decade, and lately one request keeps popping up: a small room pellet stove that looks good, heats fast, and still lets you move around. The trend toward compact, energy-efficient living is real, and small spaces often spark the biggest design breakthroughs.

Today I’m sharing five design ideas that I use in real projects. Each tip blends my hands-on experience with expert guidance, because safety, clearances, and ventilation are non‑negotiable when you put a heat source in a small space. Let’s turn constraints into comfort.

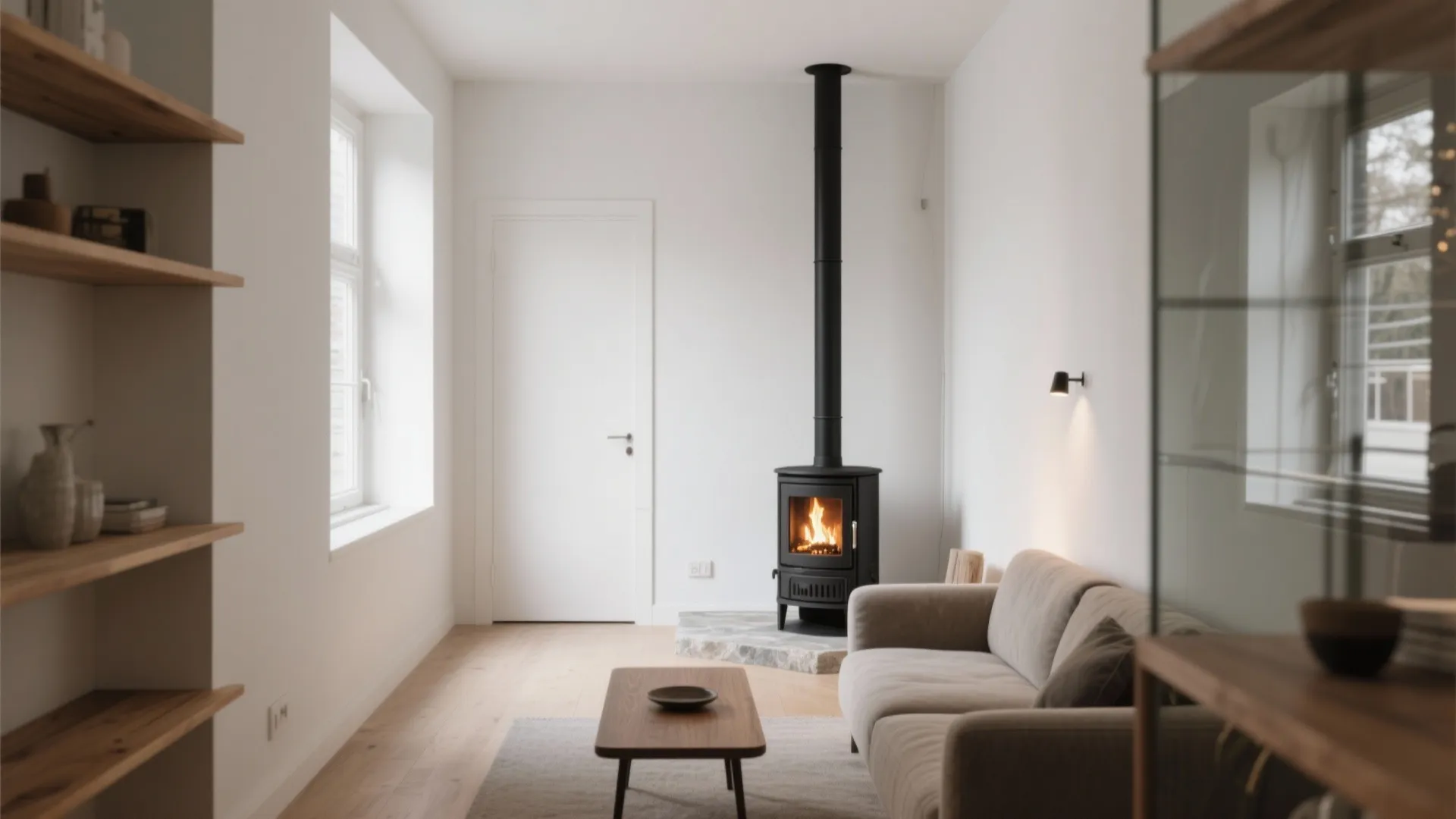

Corner-Friendly Slim Pellet Stove Setup

My Take: In a 38 m² studio, I tucked a slim pellet stove into a back corner and preserved the main walkway. That one decision opened up the room visually and made daily living feel effortless—no bumping knees on the hearth. I mocked up a compact hearth layout before we drilled a single hole, and it saved us both time and money.

Pros: A corner pellet stove layout pulls the appliance out of the circulation path while keeping radiant comfort where you sit. With a slim profile and right-sized BTU output (think 8,000–18,000 BTU for small rooms, depending on insulation), you hit that sweet spot of steady heat without overheating. The angled placement also makes it easier to meet pellet stove clearance requirements to combustible trim along the front edge.

Cons: Corner placement can complicate vent geometry if you need to dodge framing, and you must still respect side and rear clearance to combustibles. If you over-size the unit “just to be safe,” you’ll cycle on and off more, which can heighten fan noise in a tight room. Ash bin access may be awkward if the corner is too tight—leave yourself room to swing the door.

Tips / Cost: When sizing a small room pellet stove, start with an honest heat loss estimate (climate, insulation, air sealing). Expect $1,500–$3,500 for the stove, and $500–$1,500 for hearth pad, venting, and install in a straightforward corner setup. Pick a model with adjustable feed rates to keep low-output operation steady on mild days.

save pin

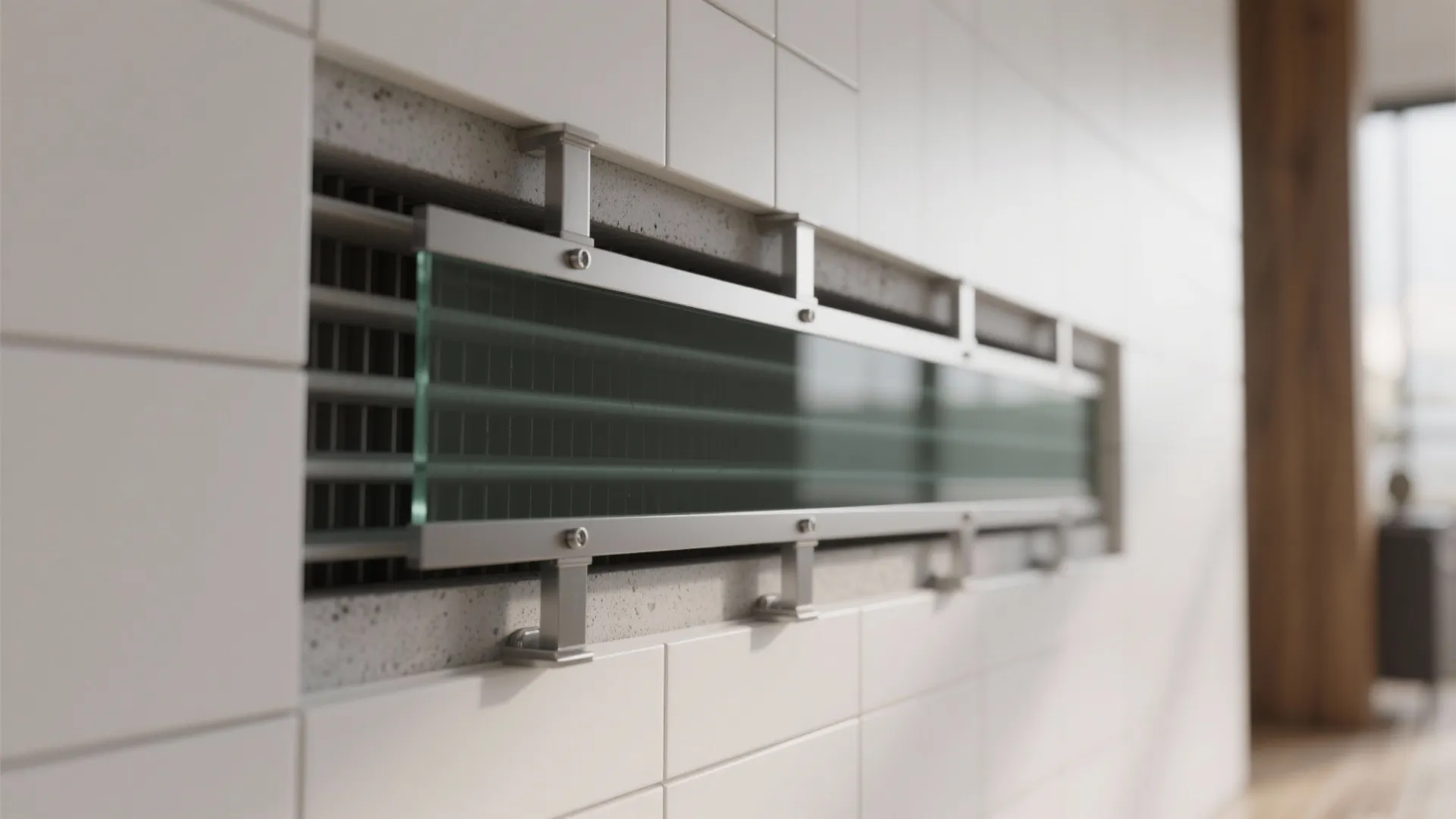

Heat Shields That Reduce Clearances (and Keep Style)

My Take: I’ve saved multiple small-room projects by adding a ventilated, noncombustible heat shield behind and beside the stove—tile, steel, or even tempered glass over cement board. It turns a “no-go” wall into a safe zone, and it can look intentionally modern instead of improvised.

Pros: With a properly ventilated heat shield, many manufacturers allow reduced pellet stove clearance to combustibles—often a big deal in tight rooms. NFPA 211 (the standard for solid-fuel appliances) specifies how an air‑spaced shield can cut clearances when built to spec—air gap, noncombustible materials, and top/bottom ventilation paths. That extra few inches can be the difference between code compliance and “back to the drawing board.”

Cons: A heat shield only helps if it’s designed by the book; a decorative panel without an air gap won’t earn you reduced clearances. You’ll also have to detail the edges so they don’t look crude—especially with glass or steel, where fingerprints and glare show every mistake. And yes, you’ll be dusting the small gap at the bottom more often.

Tips / Cost: My go-to stack: 12 mm cement board, 1" standoffs for a continuous air space, and a finish skin—porcelain tile or a single tempered glass panel. Budget $250–$800 depending on material. Always verify manufacturer instructions plus local code; if the manual says “no reduction,” the heat shield becomes style-only.

save pin

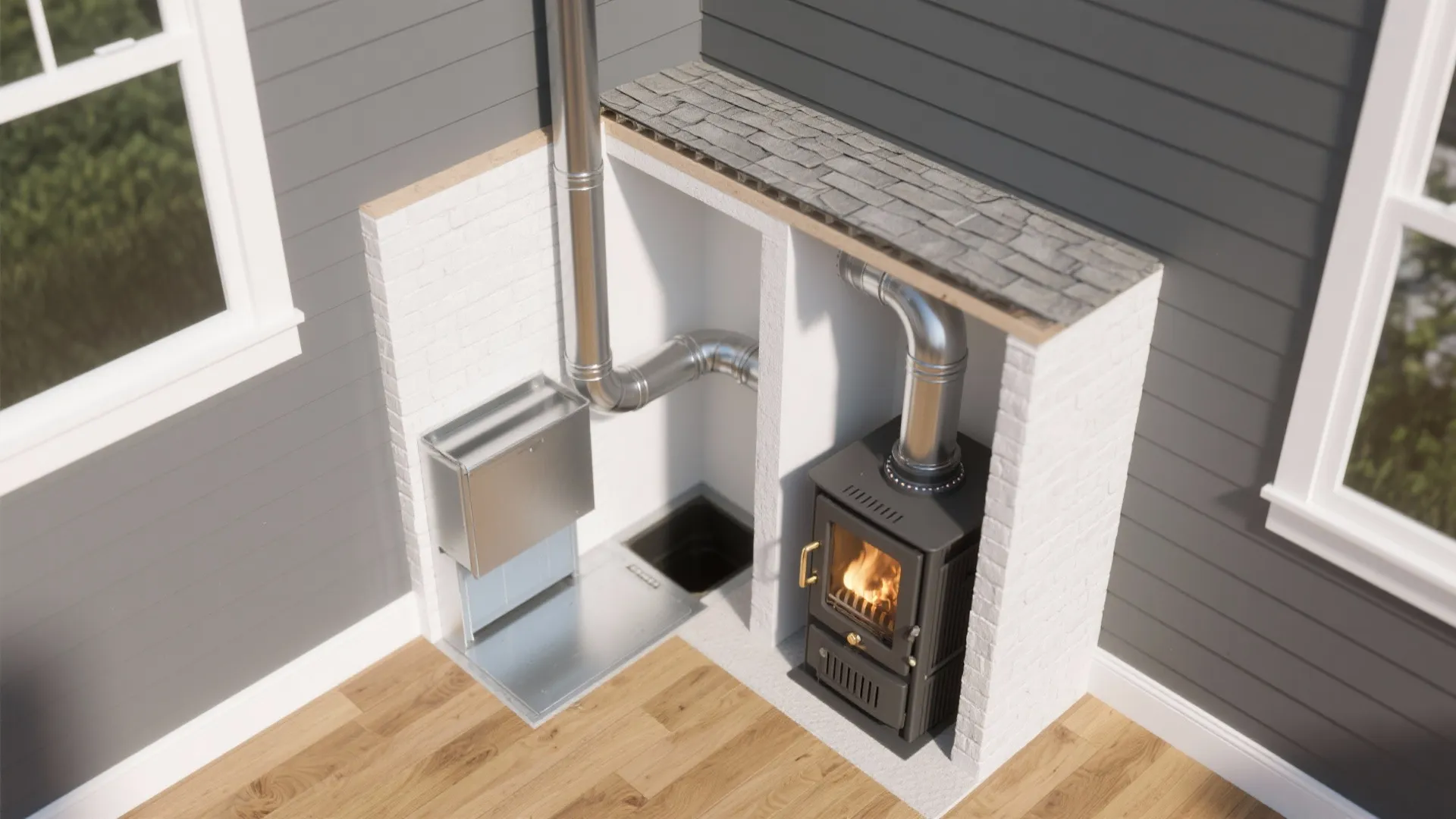

Outside Air Kit + Through‑Wall Venting for Tiny Rooms

My Take: The best small room pellet stove installs I’ve done use an outside air kit (OAK) and a short, direct vent. It keeps the stove from pulling air from the room, improves combustion, and helps prevent pressure imbalances in very tight envelopes.

Pros: An OAK minimizes drafts and helps maintain indoor air quality by supplying the burn with dedicated combustion air. A short, properly sloped through‑wall vent simplifies maintenance and reduces elbows that can accumulate soot. The EPA notes that certified pellet stoves have lower particulate emissions than typical wood stoves when properly installed and maintained, which is a win for small spaces and dense neighborhoods (see U.S. EPA Burn Wise).

Cons: If your exterior wall is crowded with utilities, routing the OAK and exhaust can feel like Tetris. In multi‑story buildings, permissions and fire‑stop details add time and cost. And while pellet stoves are cleaner than many alternatives, you’ll still have fan noise—pick a model with low decibel ratings and adjustable fan curves.

Tips / Cost: Plan the vent route before you pick the stove; sometimes moving 20 cm left avoids a framing member and a costly offset. Use listed vent components, seal joints meticulously, and add a cleanout tee outside. If you’re sketching options, consider how a corner pellet stove layout can shorten the vent run and open better furniture placement.

Authority notes: See the U.S. EPA Burn Wise program for appliance selection and maintenance guidance: https://www.epa.gov/burnwise. For clearance and venting fundamentals, refer to NFPA 211: Standard for Chimneys, Fireplaces, Vents, and Solid-Fuel-Burning Appliances (consult your local code official for adopted editions).

save pin

Quiet Heat Distribution When Space Is Tight

My Take: The most comfortable small rooms don’t blast heat; they even it out. I like to pair a right‑sized pellet stove with subtle helpers—an ultra‑quiet desk fan on low, a doorway grille, or a trickle setting on a ceiling fan to keep stratification in check.

Pros: Gentle air movement makes a small room pellet stove feel bigger by smoothing temperature swings and reducing hot‑corner/cold‑corner complaints. A doorway grille or transom can let heat drift to an adjacent bath or hall without adding ductwork. Using low‑speed circulation supports steady-state comfort, which also helps the stove run in its efficient range.

Cons: Add too many gadgets, and you’ll turn your sanctuary into a wind tunnel—or a cable management headache. Cheap fans can hum; choose brushless, low‑RPM models or hardwire a quiet inline fan if needed. Doorway grilles reduce privacy and slightly lower sound isolation; weigh that before you cut.

Tips / Cost: Try a 6–9" fan on low speed placed on the floor opposite the stove, pointing back toward it—counterintuitive, but it pulls warm air across the room. A paintable 8"x8" transfer grille runs $25–$60. If you have lofted ceilings, set the ceiling fan to winter mode (clockwise) on its lowest speed to push warm air down gently.

save pin

Material Palette: Light Stone, Glass, and Warm Wood

My Take: In small rooms, the stove becomes a visual anchor—so make it worthy. I love a pale stone hearth pad that bounces light, a slender black surround that frames the firebox, and gentle wood tones that echo the pellets themselves. A glass shield can vanish visually, creating a low-profile heat shield aesthetic that’s crisp without feeling cold.

Pros: A light, reflective hearth pad makes the space feel larger while meeting hearth protection requirements. Simple contrast—charcoal stove, soft oak shelves, and satin brass pulls—keeps the eye moving and reduces visual bulk. Glass or porcelain finishes are easy to wipe, which matters when you’re managing pellet dust in a tight footprint.

Cons: High‑gloss materials show ash and fingerprints; if you’re a neat freak, you’ll be cleaning more often. Pale stone can etch if hot embers slip out during maintenance—choose a surface with a suitable heat rating and a forgiving finish. Too many warm woods can yellow the space; pair with cool neutrals for balance.

Tips / Cost: Hearth pads can be custom or prefab. Prefab sizes start around 30"–36" and cost $200–$600; custom porcelain or stone overlays with a beveled edge run $400–$1,200. Keep trims and shelves outside the manufacturer’s specified pellet stove clearance to combustibles; use metal brackets or hidden supports to keep lines clean without creeping too close.

save pin

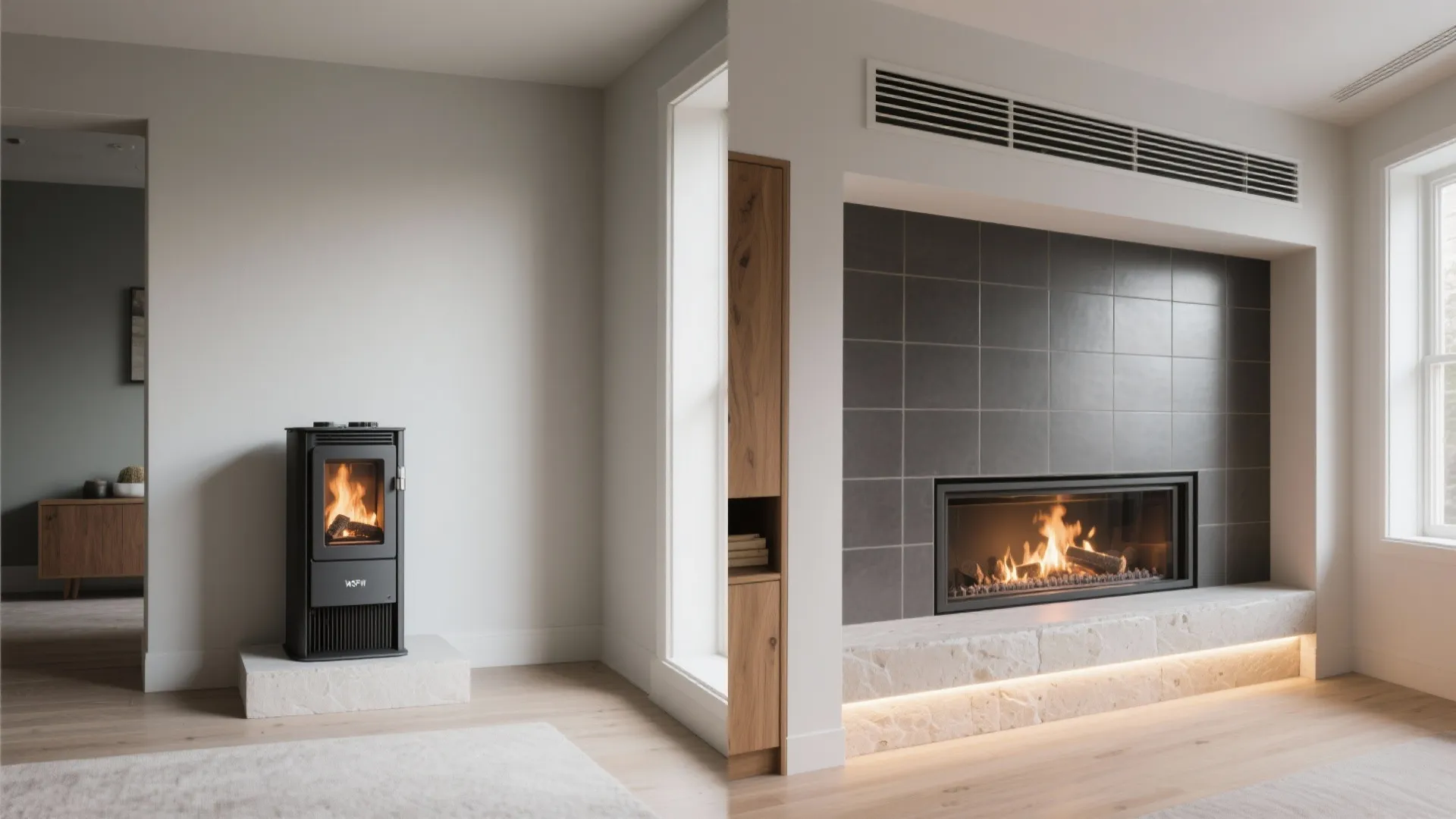

Alcove Niche Done Right (Safety First, Then Style)

My Take: When a client begs for an inset look, I design a shallow, code‑compliant alcove with noncombustible walls and a ventilated top. Done right, it feels tailored, like the stove belongs there—not like it was squeezed in as an afterthought.

Pros: A purpose‑built alcove controls clearances with noncombustible surfaces, gives you crisp edges, and creates a natural spot for a tool set and pellet bin. With a listed, insulated vent, you can route through the alcove ceiling cleanly. Many manufacturers provide specific alcove dimension tables—follow those, and you’ll stay on the right side of safety and warranty terms.

Cons: An alcove can trap heat if you ignore ventilation; you’ll need top and bottom openings so warm air washes out. Framing and finishing add cost and time, and you must plan for service clearances so techs can access components. If you improvise with drywall and paint alone, you’ll fail both aesthetics and safety—don’t.

Tips / Cost: Build with cement board on metal studs, leave an air gap behind the shield surfaces if the manual allows, and cap the niche with a perforated metal trim to vent heat. Add LED strip lighting with a high-temperature-rated channel to dramatize the firebox. Expect $800–$2,000 for a modest alcove depending on finishes and labor rates.

Authority notes: For clearances, venting, and shield construction, coordinate the stove’s installation manual with NFPA 211 and your local code. The EPA’s Burn Wise resources offer maintenance basics to keep emissions low and efficiency high: https://www.epa.gov/burnwise.

save pin

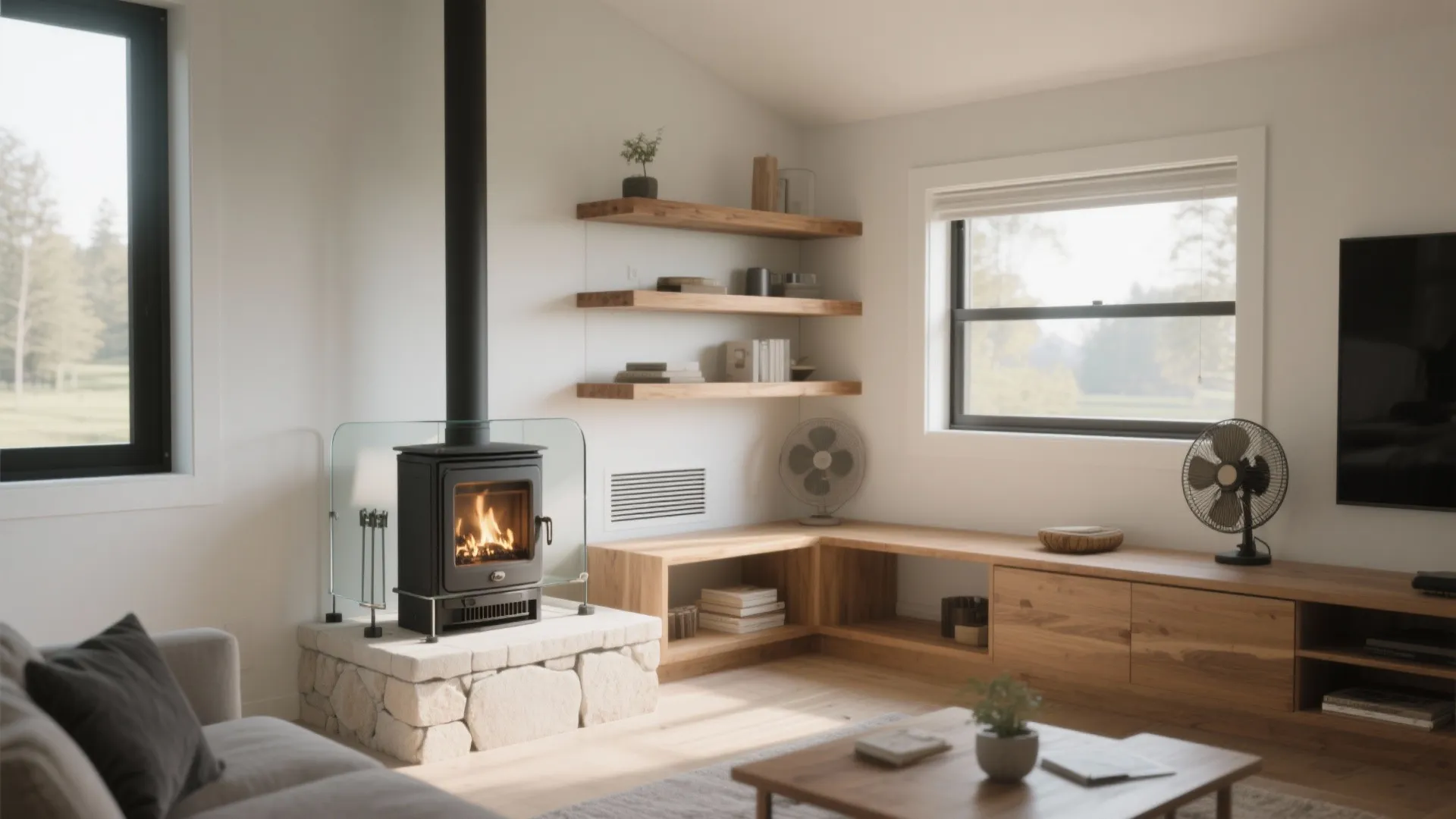

Summary

A small room pellet stove doesn’t limit you—it nudges you into smarter design. With careful clearances, a right-sized unit, clean venting, and a thoughtful palette, you get comfort without clutter. As the EPA reminds us, certified pellet stoves can deliver efficient, lower‑emission heating when installed and maintained correctly. Which of these five ideas are you most excited to try?

save pin

FAQ

1) What size BTU is best for a small room pellet stove?

For most small rooms, I start around 8,000–18,000 BTU depending on climate, insulation, and air leakage. Oversizing leads to short cycling and more fan noise; a right‑sized unit runs steady and quiet.

2) Are pellet stoves safe for tiny rooms?

Yes—when you meet pellet stove clearance requirements, use listed venting, and follow the manual. A ventilated heat shield and an outside air kit can improve safety margins and comfort in tight spaces.

3) Do I really need an outside air kit (OAK)?

In very tight homes, an OAK prevents the stove from stealing room air and creating drafts. It often stabilizes combustion and can help indoor air quality feel better day to day.

4) What are typical clearances for a small room pellet stove?

Clearances vary by model; check the manual first. NFPA 211 provides the framework for clearances and how ventilated heat shields can reduce them when allowed—always verify with your inspector and local code.

5) How do I vent without a chimney?

Most pellet stoves use a listed, through‑wall direct‑vent system. Keep runs short, slope properly, include a cleanout tee, and protect terminations from wind and snow per the manufacturer’s specs.

6) How loud are pellet stoves in small rooms?

You’ll hear the auger and fans, but quality models advertise low decibel ratings and adjustable fan speeds. Right‑sizing the stove reduces cycling and helps keep sound to a soft background hum.

7) Are pellet stoves efficient and low emission?

EPA‑certified pellet stoves are designed for cleaner combustion and lower particulate emissions than many traditional wood stoves when properly operated. See the U.S. EPA Burn Wise resources for details: https://www.epa.gov/burnwise.

8) What does a full small-room install cost?

Typical ranges I see: $1,500–$3,500 for the stove, $500–$1,500 for venting/hearth, and $500–$2,000 for labor and finish carpentry. Alcoves, glass shields, and premium finishes push the budget upward.
