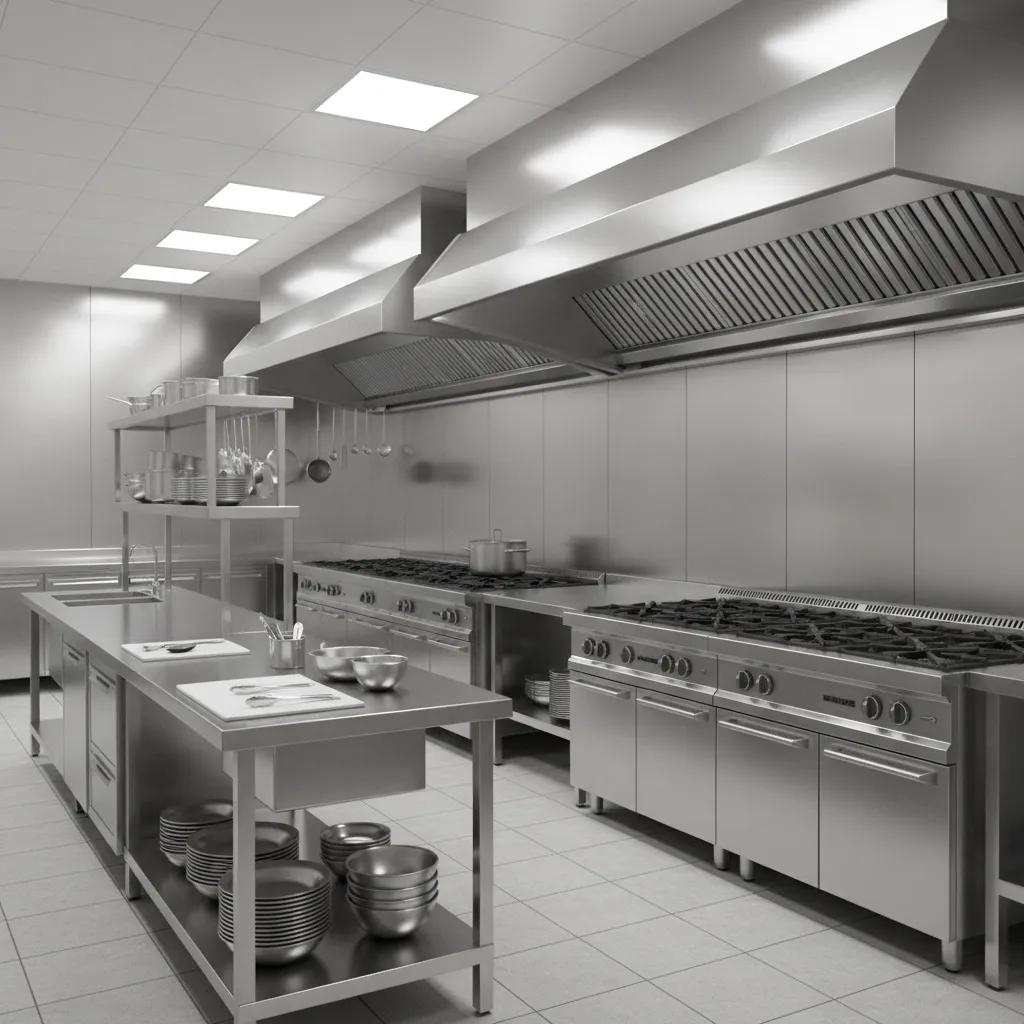

Stainless Steel Sheet for Commercial Kitchen Wall: Practical Design Guide: Why stainless steel wall panels remain the most durable and hygienic solution for modern commercial kitchens

Direct Answer

A stainless steel sheet for a commercial kitchen wall is the most durable and hygienic wall protection available for professional food environments. It resists heat, moisture, grease, and bacteria while making cleaning dramatically easier. In most commercial kitchens, 304-grade stainless steel sheets between 18 and 20 gauge are the industry standard for wall cladding.

Quick Takeaways

1. 304 stainless steel sheets are the most common wall material used in commercial kitchens.
2. Smooth stainless surfaces reduce bacteria buildup and simplify sanitation.
3. 18–20 gauge sheets balance durability with installation cost.
4. Full-height wall coverage prevents grease damage behind cooking lines.
5. Proper installation matters more than sheet thickness for long-term durability.

Introduction

After working on dozens of restaurant and commercial kitchen projects over the past decade, one detail consistently separates a kitchen that stays clean from one that slowly becomes a maintenance nightmare: the wall surface behind cooking areas.

This is exactly where a stainless steel sheet for commercial kitchen wall installation becomes essential. In high-volume kitchens, drywall, tile grout, and painted surfaces simply can't survive constant heat, grease, and chemical cleaning.

I’ve seen kitchens only two years old where painted walls were permanently stained, while stainless-clad walls still looked nearly new after five years of service.

When planning layouts, I usually recommend mapping wall protection zones early in the design process. If you're still shaping the cooking line layout, it helps to first visualize an efficient commercial cooking line layoutso you know exactly where grease, steam, and heat exposure will occur.

In this guide, I’ll walk through how stainless steel wall sheets work, what thickness actually matters, the mistakes I see most often, and how to install them correctly so they last for decades.

save pin

Why Stainless Steel Sheets Work Better Than Most Wall Materials

Key Insight: Stainless steel performs better than tile, paint, or FRP panels because it eliminates seams, resists corrosion, and tolerates aggressive cleaning chemicals.

In commercial kitchens, sanitation and durability always override aesthetics. Stainless steel sheets solve both problems simultaneously.

The biggest advantage is the non-porous surface. Grease and food particles cannot penetrate the metal, which dramatically reduces bacterial growth compared to grout lines or textured materials.

Here’s how stainless steel compares with common alternatives:

1. Stainless Steel Sheets – seamless, heat resistant, easy to sanitize
2. Ceramic Tile – durable but grout lines trap grease
3. FRP Panels – cheaper but prone to scratching and staining
4. Painted Drywall – lowest cost but fails quickly in hot zones

According to FDA food facility guidelines, smooth and easily cleanable surfaces are preferred in food preparation areas. Stainless steel naturally meets these sanitation requirements.

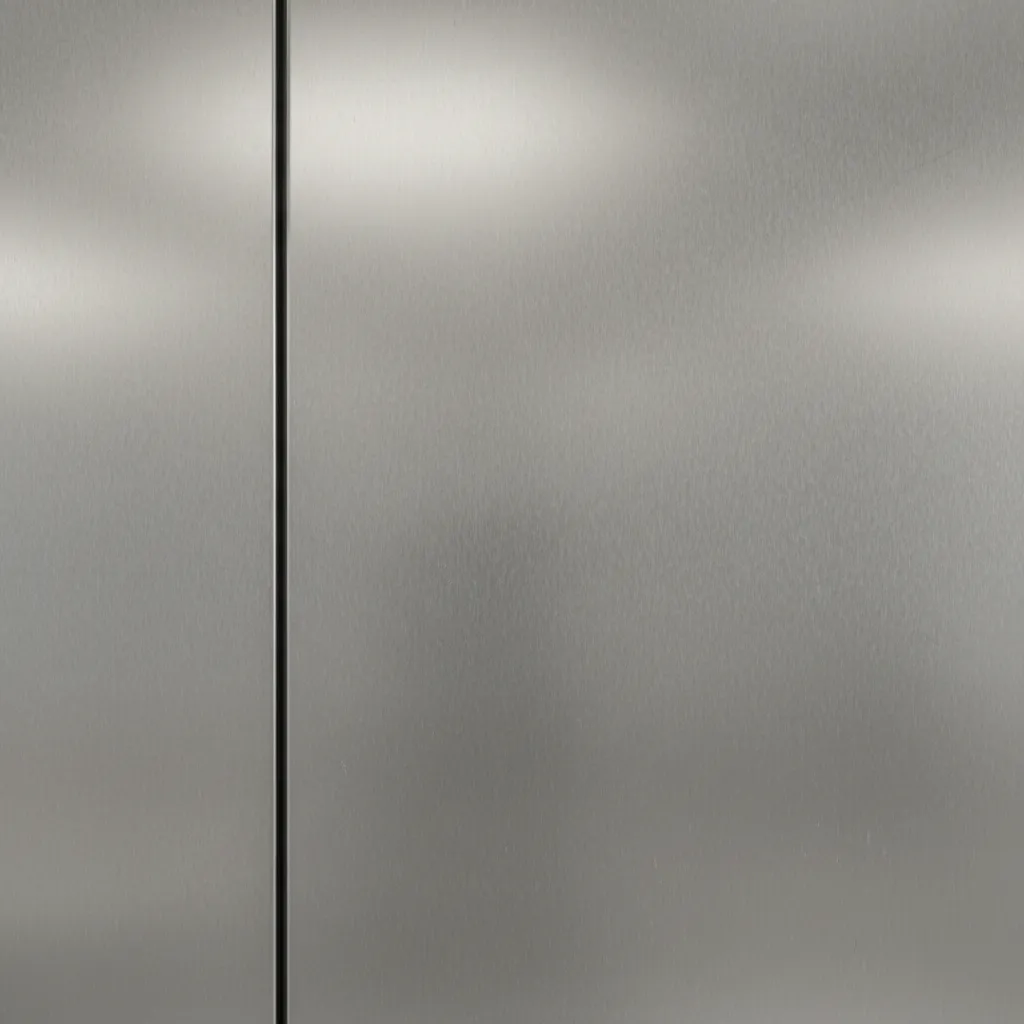

What Thickness Stainless Steel Sheet Should You Use?

Key Insight: Most commercial kitchens use 18–20 gauge stainless steel sheets because they provide enough rigidity without excessive cost.

One misconception I often hear is that thicker steel automatically means better performance. In reality, wall durability usually depends more on installation backing than metal thickness.

Typical gauge options include:

1. 16 Gauge – extremely durable but expensive; used for heavy-duty equipment zones
2. 18 Gauge – common in busy restaurant kitchens
3. 20 Gauge – widely used for general wall protection
4. 22 Gauge – budget installations, less impact resistant

In my projects, 20 gauge with proper plywood backing performs just as well as thicker sheets in most wall applications.

save pin

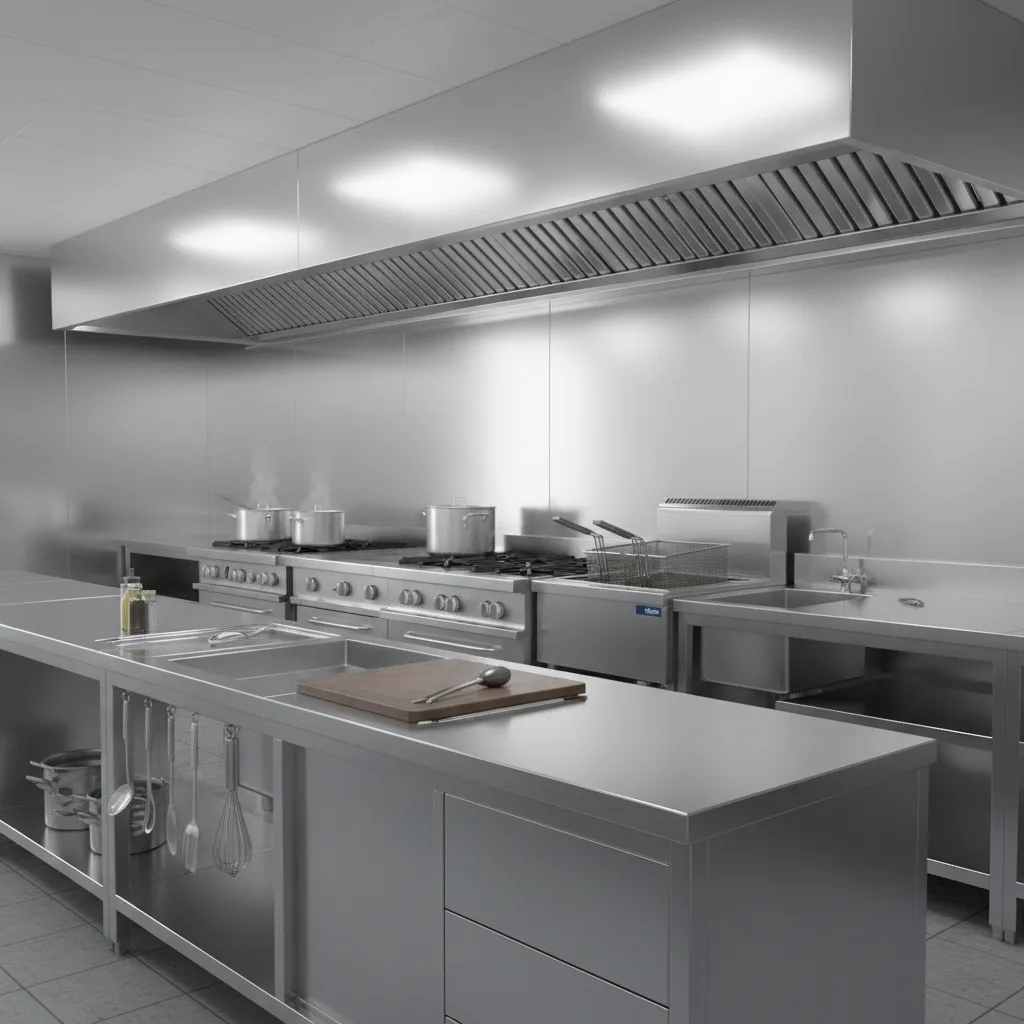

Where Should Stainless Steel Wall Panels Be Installed?

Key Insight: Stainless steel sheets should cover any wall exposed to grease, steam, or high heat—not just behind cooking equipment.

A common design mistake is only installing stainless panels behind the stove. But grease particles travel much farther than most people expect.

Areas that should almost always be protected include:

1. Behind ranges and fryers
2. Dishwashing areas with steam exposure
3. Prep counters with heavy food handling
4. Walls near commercial ovens
5. Backsplash zones behind stainless worktables

When planning these zones, I often recommend creating a full 3D layout first so equipment spacing and wall coverage are accurate. Many designers start by mapping the full kitchen workflow and equipment spacing before specifying materials.

Hidden Installation Mistakes Most Kitchens Make

Key Insight: Poor installation—not material quality—is the main reason stainless steel wall panels fail.

I've inspected several kitchens where stainless panels warped within a year. The issue wasn't the metal—it was the substrate and adhesive.

The most common mistakes include:

1. No plywood backing behind thin steel sheets
2. Using construction adhesive that cannot handle heat
3. Leaving exposed seams where grease accumulates
4. Skipping corner trim and edge protection
5. Improper expansion gaps for large panels

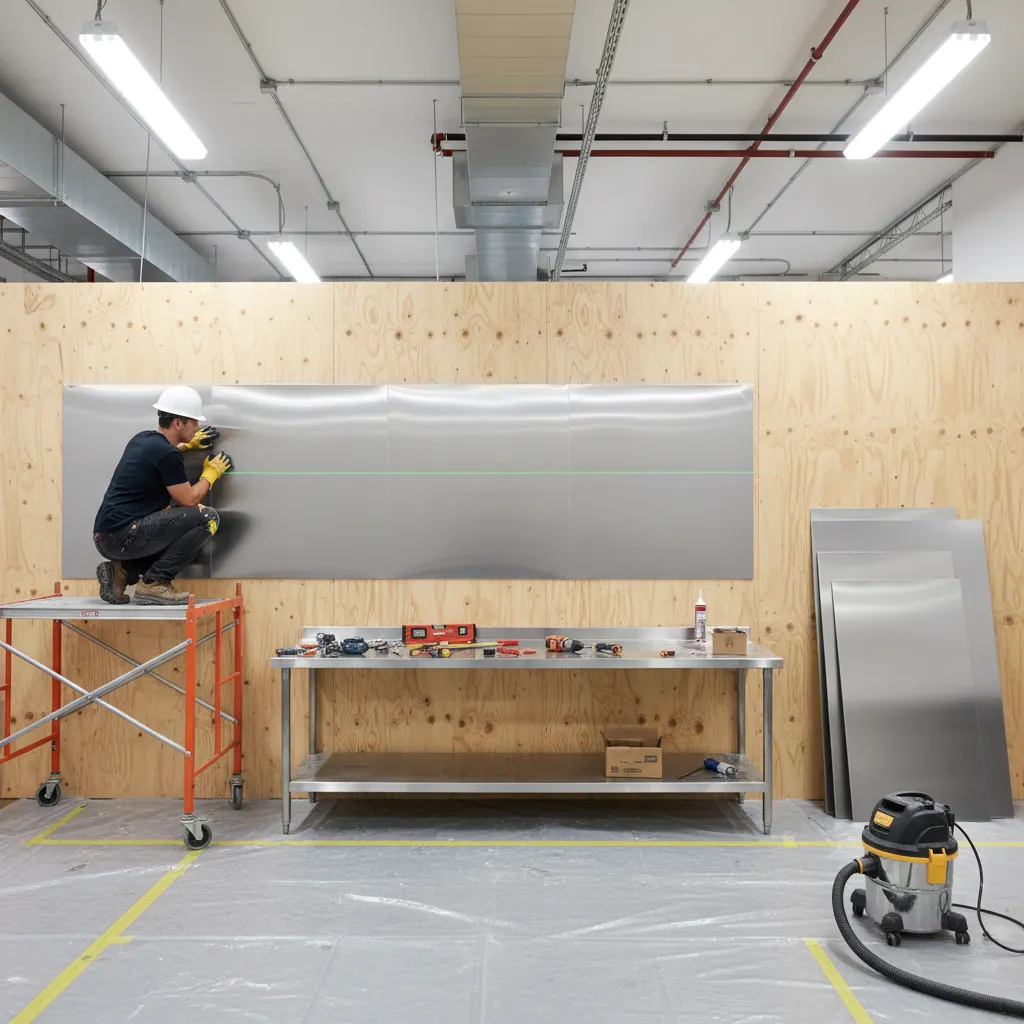

Professional installations usually mount stainless sheets on marine-grade plywood or cement board. This prevents vibration and panel flex.

save pin

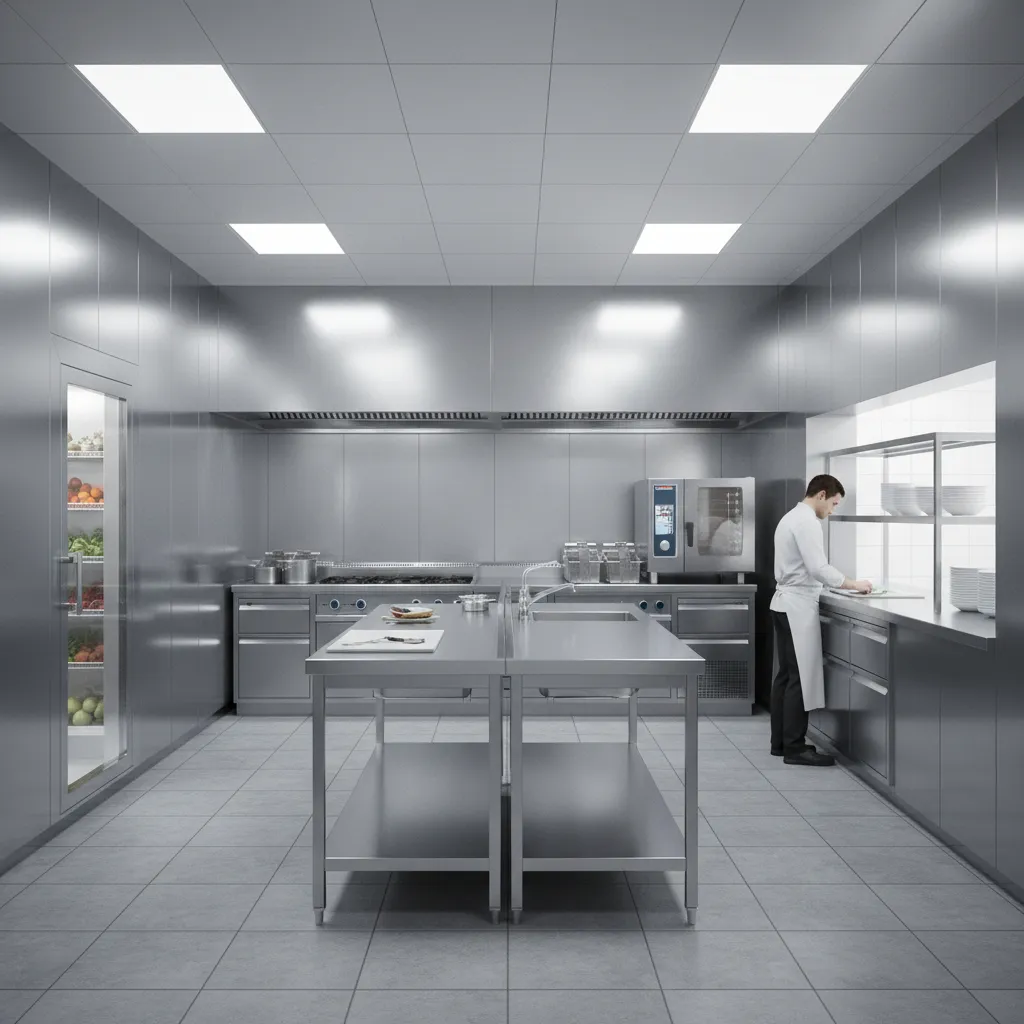

Should Stainless Steel Cover the Entire Wall?

Key Insight: Full-wall stainless coverage often reduces long-term maintenance costs even though the upfront price is higher.

Many restaurant owners initially try to limit stainless steel to backsplash height (about 24–36 inches). But over time, grease and steam stain the upper painted sections.

Full-height stainless walls offer several advantages:

1. No repainting required
2. Easier pressure washing during deep cleaning
3. Better fire safety behind cooking lines
4. Longer lifespan for the wall assembly

In large kitchens, visualizing how reflective surfaces affect lighting and workflow can help avoid overly industrial aesthetics. Some designers preview this by creating a realistic kitchen rendering before construction begins.

Answer Box

The best stainless steel sheet for a commercial kitchen wall is typically 304-grade stainless steel in 18–20 gauge thickness. Proper backing, sealed seams, and full coverage behind heat and grease zones ensure maximum durability and hygiene.

How Much Do Stainless Steel Kitchen Wall Sheets Cost?

Key Insight: Installation cost varies more based on labor and wall preparation than the price of the steel itself.

Typical cost factors include:

1. Steel grade (304 vs 430)
2. Sheet thickness
3. Wall preparation requirements
4. Custom cutting around equipment
5. Installation labor

Average price ranges in the U.S. market:

1. Material: $8–$25 per square foot
2. Installed: $25–$65 per square foot

Restaurants with heavy frying operations typically recover this investment through reduced repainting and cleaning labor.

save pin

Final Summary

1. 304 stainless steel sheets are the industry standard for commercial kitchen walls.
2. 18–20 gauge thickness offers the best balance of durability and cost.
3. Proper backing and seam sealing determine long-term performance.
4. Full-wall coverage reduces cleaning and maintenance costs.
5. Planning wall protection early improves kitchen layout efficiency.

FAQ

What grade stainless steel is best for commercial kitchen walls?

304 stainless steel is most common because it resists corrosion, heat, and cleaning chemicals used in foodservice kitchens.

How thick should a stainless steel sheet for commercial kitchen wall be?

Most restaurants use 18–20 gauge stainless steel sheets. Thicker panels are rarely necessary when installed with proper backing.

Can stainless steel sheets be installed over drywall?

Yes, but professionals usually install plywood or cement board backing first to prevent panel flex and warping.

Are stainless steel walls required in commercial kitchens?

Health codes don’t always require stainless steel specifically, but they require smooth, non-porous, easily cleanable surfaces.

How do you clean stainless steel kitchen walls?

Use degreasing detergent and a microfiber cloth. Avoid steel wool to prevent scratching.

Is stainless steel better than tile for kitchen walls?

In high-volume kitchens, stainless steel is easier to sanitize because it has no grout lines.

How long does a stainless steel kitchen wall last?

A properly installed stainless steel sheet for commercial kitchen wall applications can last 20+ years with minimal maintenance.

Can stainless steel walls improve kitchen hygiene?

Yes. The non-porous surface reduces bacteria buildup and allows faster sanitation during daily cleaning routines.
