Top 5 3 storey house plans with balcony ideas: A senior interior designer’s field-tested playbook for light, airflow, privacy, and joy across three levels

[Section: 引言]

I’ve designed more than a dozen narrow-lot, three-level homes over the past decade, and one truth keeps showing up: 3 storey house plans with balcony live bigger than their square footage suggests. With urban lots getting slimmer and families needing more flexible space, vertical living is very much the moment. Balconies are the pressure valves that bring light, air, and a little pocket of outdoors to each level.

Small space sparks big creativity. The best three-level layouts don’t fight the footprint—they choreograph it, stacking functions smartly and letting balconies do the heavy lifting for daylight, ventilation, and mental reset. In this guide, I’ll share 5 design inspirations I’ve road-tested, blending my own stories with code-conscious details and data from trusted standards.

You’ll get what works, what to watch out for, and lightweight cost cues so you can plan confidently. Let’s walk through five ideas that make 3 storey house plans with balcony both beautiful and brilliantly livable.

[Section: 灵感列表]

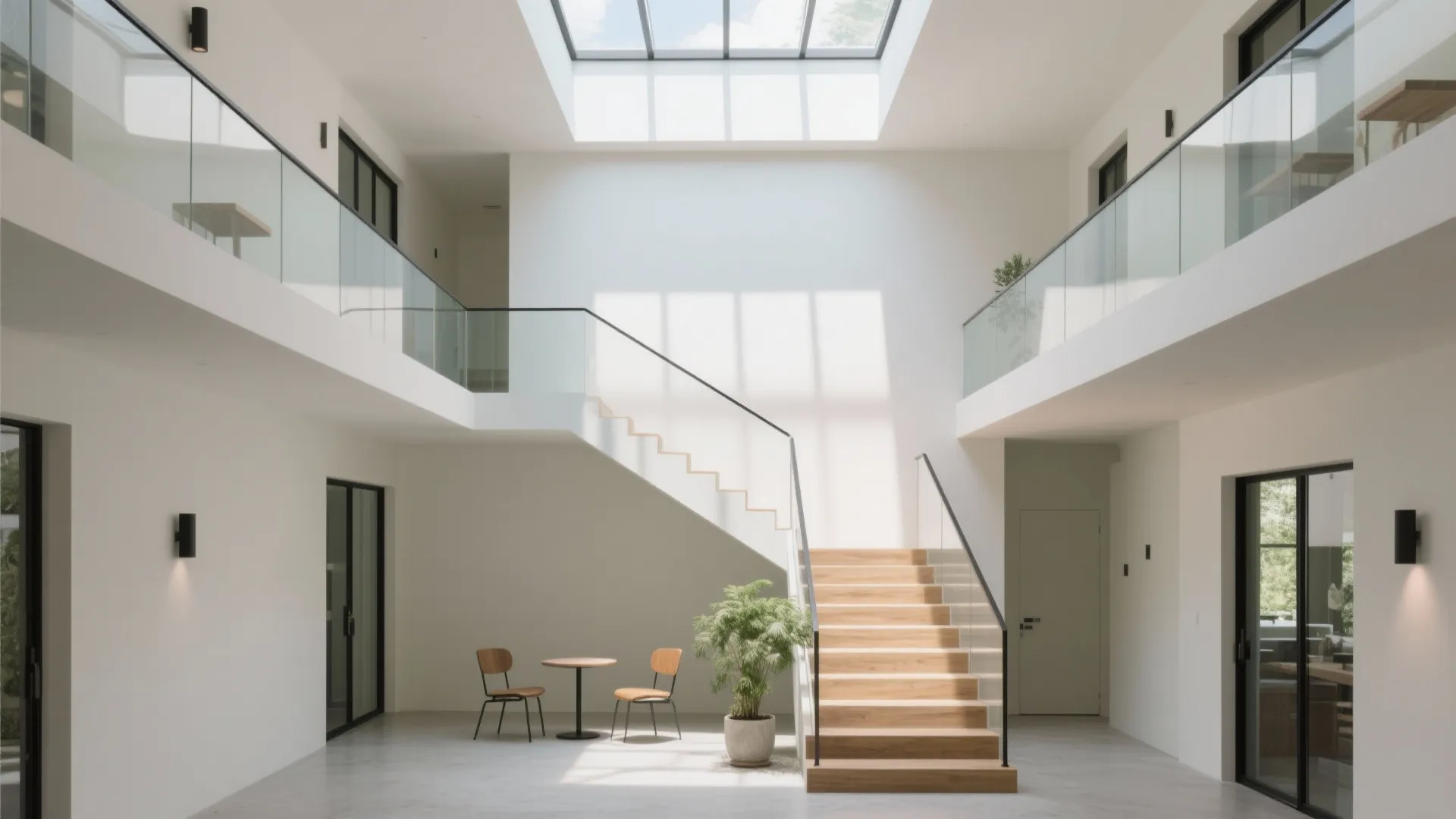

Daylight Core with Balcony Landings

My Take — A few years ago, I opened a 4-meter-wide townhouse with a skylit stair and slim balcony landings front and back. Suddenly, the darkest middle level felt alive from breakfast to bedtime. The stair became a lightwell, and each balcony acted like a mini lung for cross-breezes.

Pros — A daylight core evens illumination across all three levels and cuts reliance on artificial lighting, especially in narrow lots. It also organizes movement vertically, creating vertical circulation that improves room planning and gives every floor a clear anchor point—great for resale. In three-storey house plan with balcony layouts, a skylit stair plus operable balcony doors drives stack ventilation; WELL Building Standard (Light, L03; Air, A03) encourages maximizing daylight and natural airflow for occupant comfort.

Cons — Skylights can overheat the stair if unshaded, and noise can bounce if finishes are too hard. You’ll also need to be religious about waterproofing at balcony thresholds—think of water like a toddler: it finds a way. On tight lots, guardrail privacy may be tricky without screening.

Tips/Cost — I aim for a 900–1000 mm stair width and a 1200–1500 mm balcony depth for a two-chair landing. Use low-g solar glazing or an operable vent at the skylight’s apex. Budget: $8k–$15k for a well-detailed skylight and $6k–$12k per compact balcony in temperate climates (materials and labor vary by region).

save pin

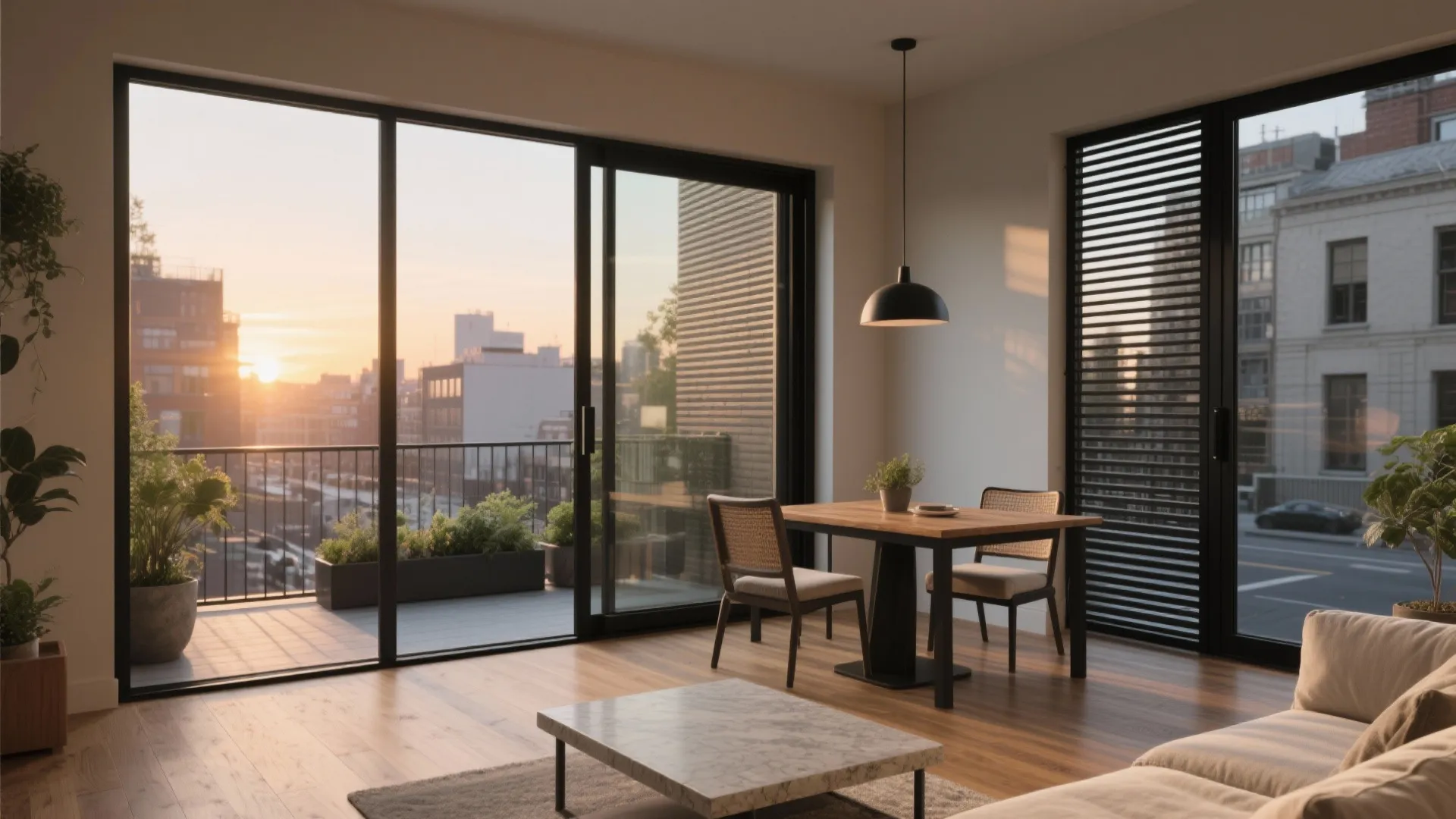

L-Shaped Living Floor with Wraparound Balcony

My Take — On the main living level, I love an L-shaped plan that wraps the corner balcony, so dining and lounge each get a slice of sky. I did this on my own project, and summers now feel like we own an extra room. Breakfast slides outdoors; evenings pivot to the corner for sunset.

Pros — The L-shape naturally zones social spaces while creating two exposures for cross-ventilation—gold for a three-storey house with balcony and open-plan living. It also frames views selectively, protecting privacy from the street. Long-tail win: a narrow lot 3 storey house plan with wraparound balcony squeezes in outdoor dining without stealing interior square meters.

Cons — Corner balconies ask more from structure—extra steel or careful framing—and the corner can catch wind. Expect additional flashing details at the inside corner, or you’ll chase leaks later. In noisy neighborhoods, the corner can become an acoustic bullhorn if not screened thoughtfully.

Tips/Cost — Plan at least 1500 mm of balcony depth if you expect a table and two chairs; 1800 mm feels generous. Introduce a 900–1200 mm privacy return wall or slatted screen on the neighbor side. Budget: $12k–$25k for a wraparound balcony depending on length and structural spans; perforated metal screens help with wind and privacy in one move.

save pin

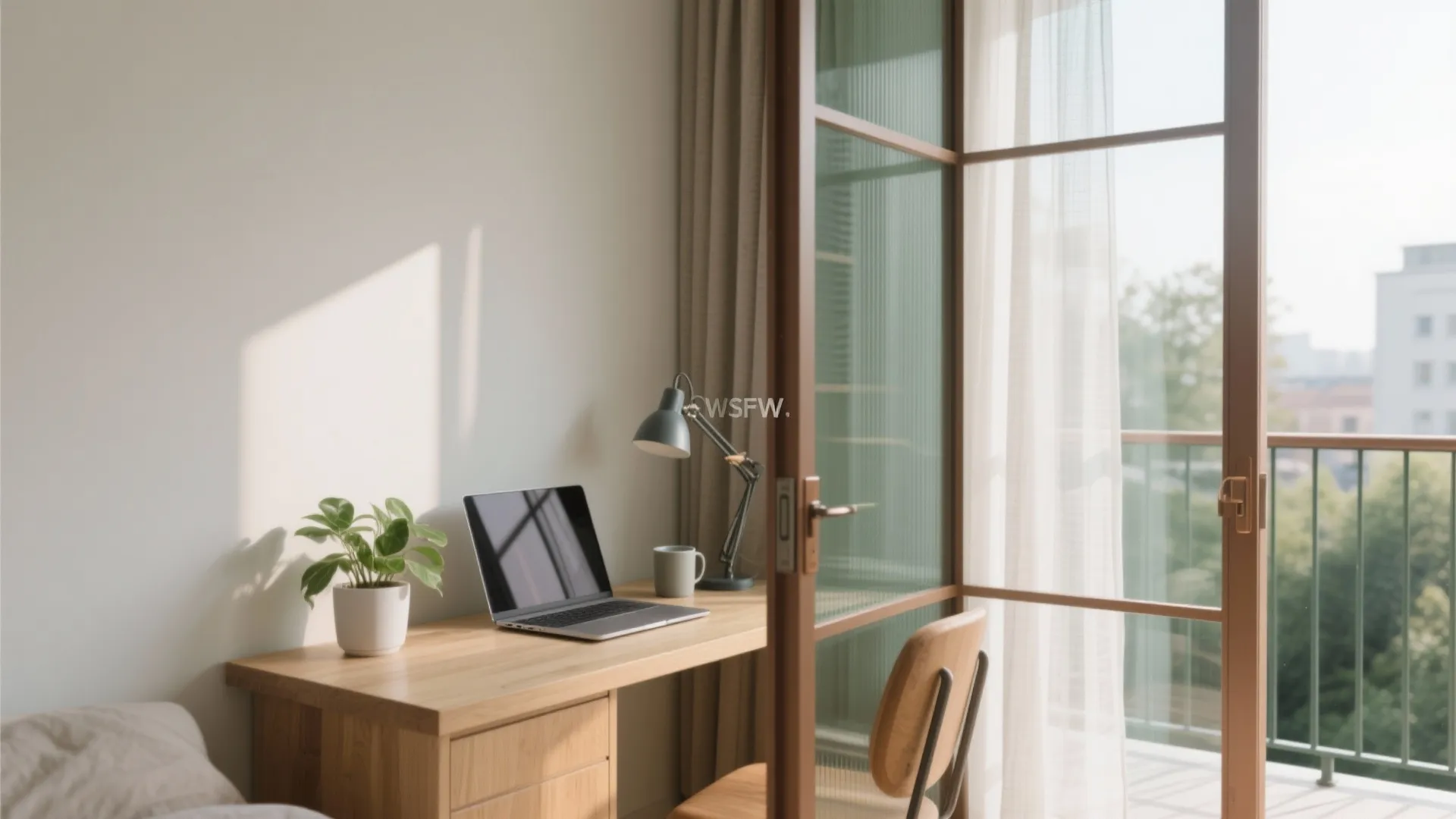

Micro Study Nook + Juliet or Slim Balcony

My Take — Many three-level homes put the small bedroom or study mid-stack, where light struggles. I like adding a Juliet or 900–1200 mm deep “micro” balcony for a desk zone. A client told me, “I finally enjoy morning emails,” which might be the best metric in design.

Pros — A micro balcony makes compact rooms feel twice as breathable—especially in 3 storey house plans with balcony that must flex for WFH. Daylight access correlates with better sleep and productivity; the WELL Building Standard (L03 Daylight) and Harvard’s Healthy Buildings research highlight links between daylight, cognition, and circadian health. Visually, a clear or lightly tinted glass balustrade that makes the facade feel lighter keeps small elevations from looking heavy.

Cons — A Juliet gives no floor area, so it’s about light and air, not lounging. In louder streets, you’ll juggle acoustics; laminated acoustic glazing helps but costs more. If this room doubles as a nursery later, you’ll want robust child-safe hardware and guards.

Tips/Cost — For usability, I prefer 1000–1200 mm depth; a true Juliet (0 depth) can still transform a room with operable doors. Use bronze or grey interlayers in the glass for glare control. Budget: $2k–$4k for a Juliet; $5k–$10k for a slim balcony with minimal steel; add $1k–$2k for acoustic glass.

save pin

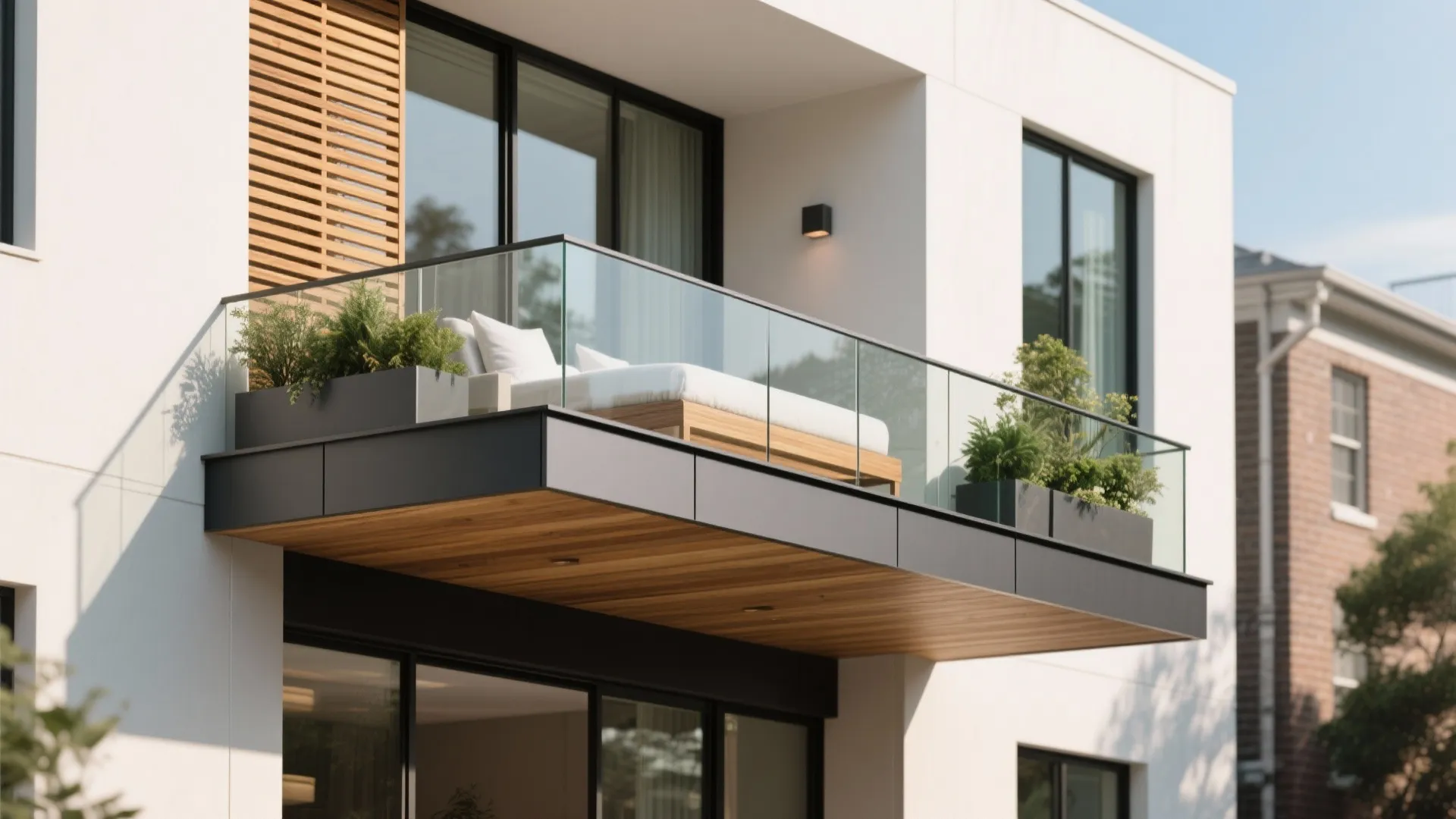

Cantilevered Primary Suite Retreat

My Take — When ground setbacks or driveways rule out posts, I cantilever a 1000–1200 mm balcony off the primary suite. One recent build used a slatted screen and planter bar; mornings feel like a boutique hotel without leaving home. The cantilever doubles as shading for the facade below—bonus points for energy performance.

Pros — A cantilever avoids columns and keeps the ground floor clear—a lifesaver on narrow lots. Exterior shading can dramatically reduce solar heat gains on the glazing below; studies and simulations regularly show 30–60% reductions depending on climate and glass (see LBNL guidance on shading and solar heat gain). In triple-storey house design with cantilevered balcony setups, the shade line also controls glare in the living floor under.

Cons — Structure becomes surgical: you need the right beam depth, thermal breaks, and rock-solid waterproofing at the door threshold. Expect a higher line item for engineering and insulation detailing. Wind can make a shallow cantilever feel bouncy if spans are pushed too far.

Tips/Cost — Keep cantilevers modest (1000–1200 mm) unless you’re prepared for deeper steel or engineered timber and a bigger bill. Consider thermally broken balcony connectors to prevent condensation—worth the upfront cost. Tie the screen to the architecture; I often specify wood accents that bring a warmer atmosphere and soften street presence. Budget: $10k–$22k depending on spans/finishes; thermal breaks add $1k–$3k but save future headaches.

save pin

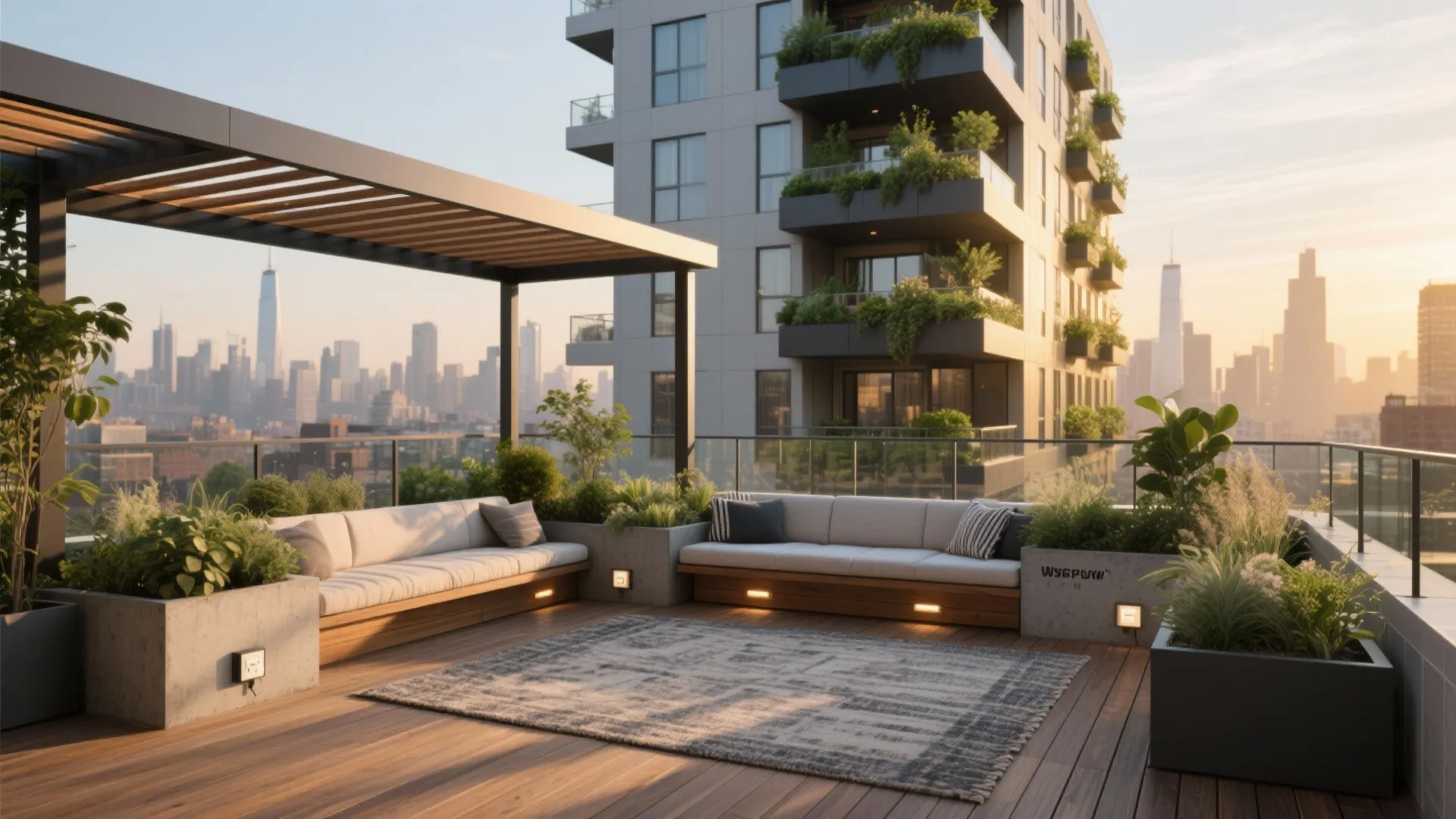

Roof Deck as “Fourth Room” + Balcony Garden Stack

My Take — The roof is the secret weapon in 3 storey house plans with balcony. Treat it like a proper room—shade, power, water, and built-in benches—and you’ll turn parties, workouts, and starry nights into rituals. Stack small planters down the facade to visually tie all balconies into one green column.

Pros — A roof deck multiplies usable area without expanding the footprint and gives a panoramic “big sky” moment for compact homes. Greenery helps with microclimate and can soften privacy concerns; even lightweight planters reduce reflected heat and buffer sound. The U.S. EPA notes that vegetated roof systems can reduce stormwater runoff and urban heat island effects—wins that align with resilient, triple-storey home design.

Cons — Loads matter: your engineer will check live loads, wind uplift, and guard stability. Access stairs can bite into interior area on the top floor, so plan storage creatively beneath the stair. Ongoing maintenance (sealants, planters, decks) is real; factor an annual check-up into your routine.

Tips/Cost — Aim for 40–60 psf (1.9–2.9 kPa) live loads depending on local code for roofs/decks; add where hot tubs or heavy planters are planned. Pre-plumb irrigation; drought-tolerant plants reward low-maintenance owners. Budget: $18k–$50k for a fully detailed roof deck with pergola, lighting, and planters; start lean and phase in features to spread cost.

[Section: 总结]

If there’s one takeaway, it’s this: a small footprint doesn’t limit you—3 storey house plans with balcony ask you to design smarter. Stack light, air, and mini outdoor moments where they work hardest, and a vertical home becomes a calm, generous place to live. For safety, remember residential guards are typically 36 inches minimum under the IRC (R312), and many multifamily or commercial contexts require 42 inches per IBC—always confirm locally.

Which of these five ideas would you try first—daylight core, L-shaped living, micro balcony, cantilevered suite, or the roof-as-room?

[Section: FAQ 常见问题]

save pin

FAQ

1) What’s the ideal balcony depth for 3 storey house plans with balcony?

For lounging, 1500–1800 mm feels comfortable with two chairs and a small table. A slim 1000–1200 mm works for standing, planters, or a micro workspace; a Juliet (0 depth) still boosts light and air.

2) Do I need special permits for balconies on a three-storey home?

Yes—balconies affect setbacks, site coverage, and safety. Guards and handrails must meet local code; for reference, IRC R312 calls for 36-inch minimum guard height for one- and two-family dwellings, while many jurisdictions following IBC require 42 inches.

3) How much do balconies add to project cost?

As a rule of thumb, a compact balcony can add $6k–$12k; cantilevers or wraparounds run $12k–$25k+. On whole projects, balconies often add roughly 3–8% depending on structure, finishes, and waterproofing complexity.

4) What structure do I need for a cantilevered balcony?

Shorter cantilevers (1000–1200 mm) are far easier to engineer and insulate. Expect steel or engineered timber with thermally broken connectors; your engineer will size members for deflection and vibration comfort.

5) How do I keep a balcony private on a narrow lot?

Use L-shaped layouts, partial return walls, or slatted screens to block sightlines while keeping breezes. Layer planting—tall grasses or slim trees in planters—to soften views without adding weight.

6) What codes or standards should I know?

Look up your local building code first. As a reference point, IBC Table 1607.1 rates balconies/decks at 60 psf live load, and IRC R312 addresses guards; the WELL Building Standard (L03) supports better daylight access, which balconies help deliver.

7) How do I avoid leaks at balcony doors?

Use sloped sills, continuous flashing, and a raised threshold (or a well-detailed low-profile drain). Waterproof membranes should turn up at edges, and penetrations (posts, lights) must be sealed and inspected annually.

8) Which rooms benefit most from a balcony in a three-level home?

Living/dining on the main floor, a study or kids’ room mid-level, and the primary suite at the top are my go-tos. In 3 storey house plans with balcony, spreading them vertically gives each floor its own mood and microclimate.
