U-Shape Kitchen Layout: 5 Smart Ideas Backed by Real Projects: My 10+ years of small-space design learnings plus pro-backed tips for your U-shaped kitchen

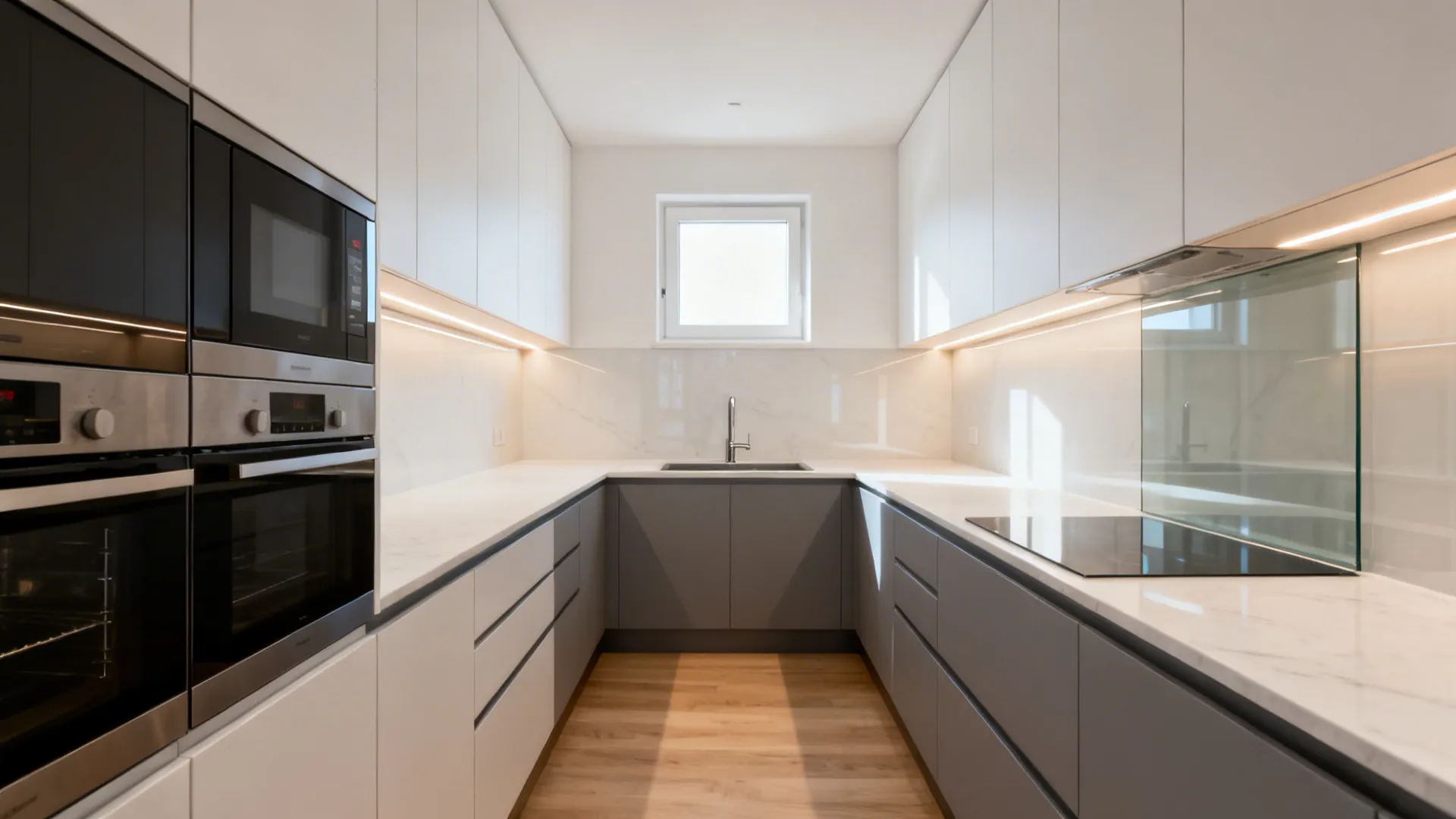

When clients ask me about a U-shape kitchen layout drawing, I light up—this layout is a small-space powerhouse in today’s interior design trends. Over the past decade, I’ve remodeled dozens of compact apartments where the U-shape became the hero, offering seamless workflow and generous storage. Small spaces spark big creativity, and in this guide I’ll share 5 design inspirations—rooted in my own projects and expert data—to help you plan a functional, beautiful U-shaped kitchen.

In my first city apartment, I drew a U-shape kitchen layout on graph paper, then refined it with a digital planner to squeeze out every inch. That plan saved me a fortune in rework. If you’re starting with sketches, don’t skip a quick digital test using something like L shaped layout frees more counter space—seeing clear dimensions early can prevent costly surprises.

Minimalist Storage That Breathes

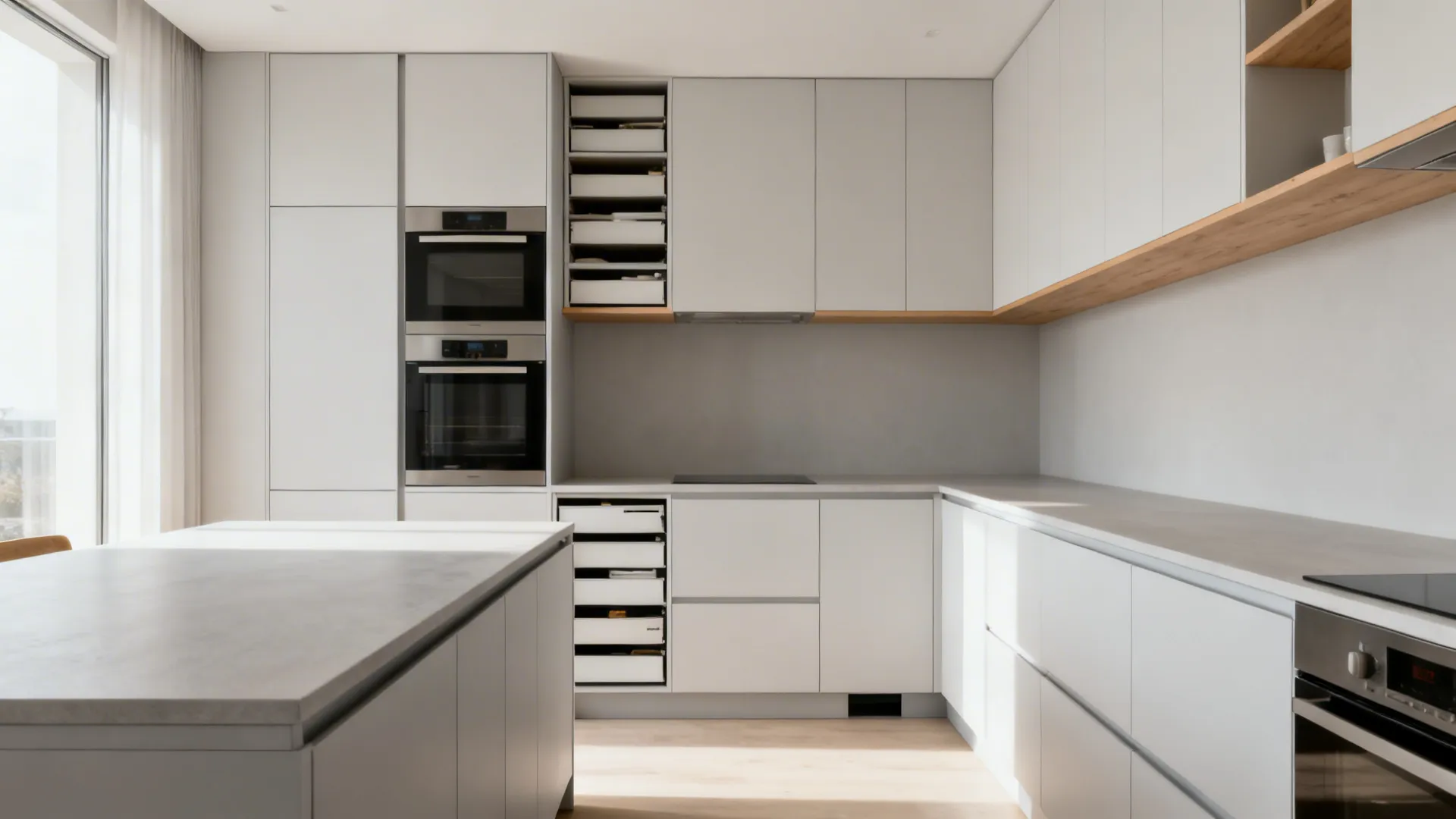

My Take: I used to overfill cabinets in small kitchens until I learned that minimalist storage planning makes the U-shape feel larger. In a recent studio, I specified slim framed uppers, full-height pantry pull-outs, and hidden toe-kick drawers; the space felt light but handled everything from rice cookers to wine glasses.

Pros: Reduced visual clutter improves navigation and cleaning, especially in a U-shape kitchen layout drawing with tight clearances. Minimal profiles and handleless fronts pair well with long-tail choices like “flush-panel base cabinets” and “integrated appliance fronts,” maintaining a continuous line around the U for a calm, cohesive look. According to the NKBA, consistent sightlines and adequate landing areas improve perceived spaciousness and task efficiency.

Cons: Ultra-minimal means fewer visible cues—guests may open three drawers before finding cutlery. Push-to-open hardware also needs precise alignment; if your building settles, doors can misalign and squeak (ask me about the night a cabinet click kept me up until I fixed a hinge).

Tips/Cost: Plan storage by zones: prep, cook, clean. Keep rarely used appliances in toe-kick drawers; they cost a bit more in hardware but free up prime eye-level space. If budget is tight, prioritize soft-close hinges and one full-height pantry to get 80% of the function without a full custom order.

save pin

save pin

Glass Backsplash for Light and Depth

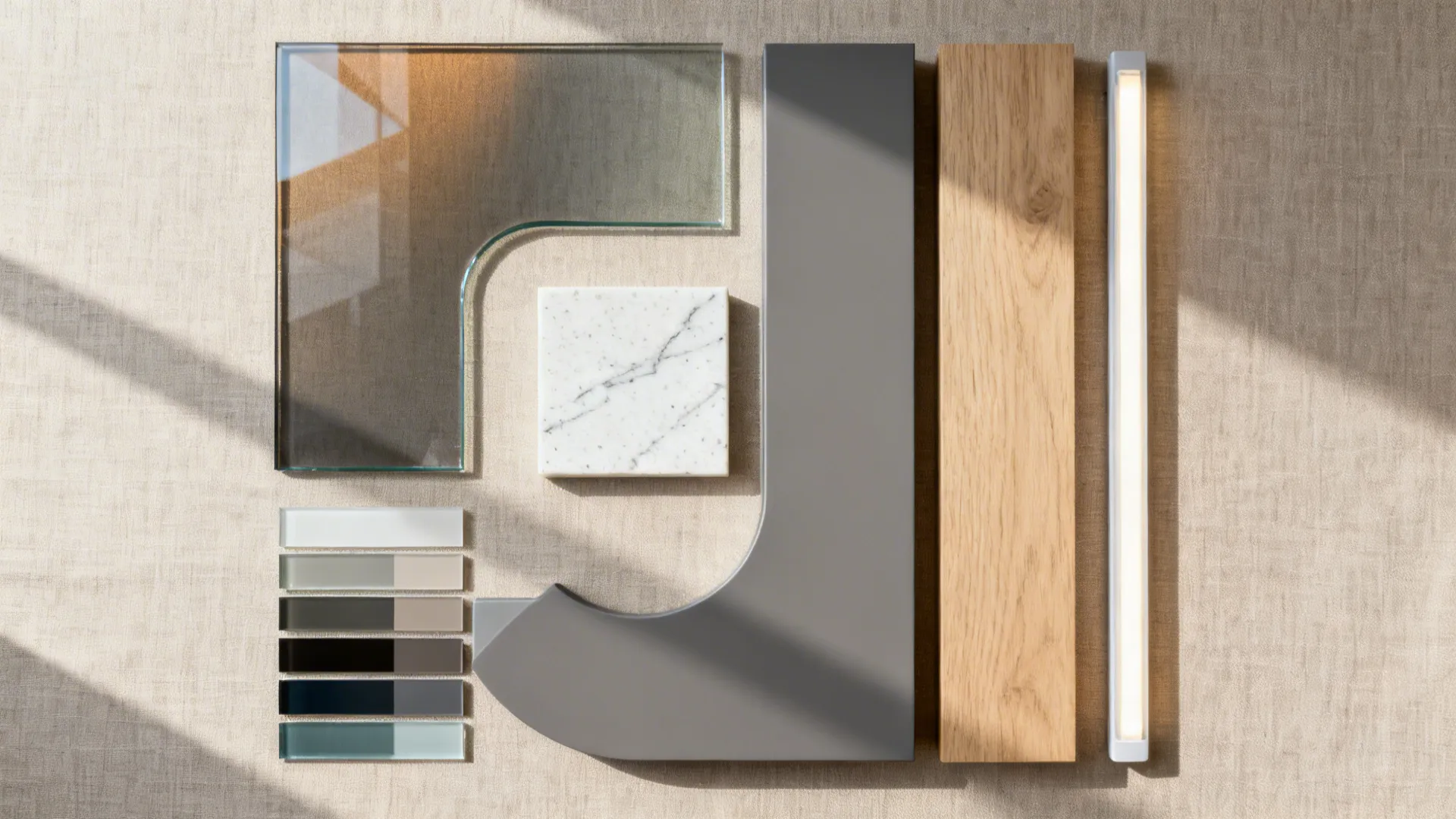

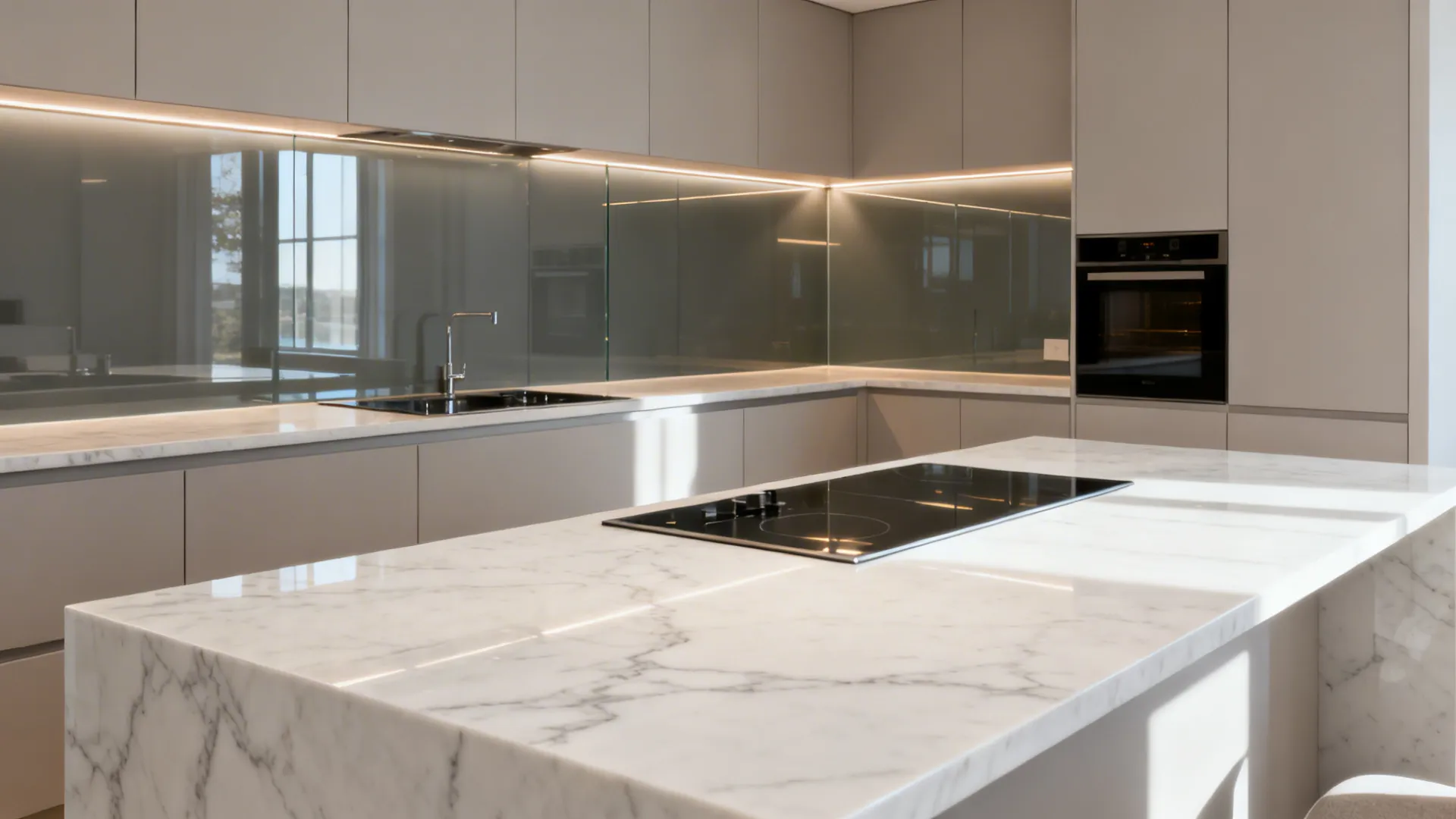

My Take: In a narrow U-shaped galley, I installed a glossy, low-iron glass backsplash with a warm gray tint. The effect was instant: more bounce light, cleaner shadows, and a subtle mirror that doubled perceived depth without the harshness of a real mirror.

Pros: Glass reflects task lighting across the U, helping meet the recommended 300–500 lux at the counter for safe prep—see CIBSE LG7 guidelines. It’s also easy to sanitize, which is great behind ranges; long-tail upgrades like “tempered low-iron glass backsplash” and “color-backed glass panels” help retain true paint colors without green cast.

Cons: You’ll see smudges faster than on matte tile, so keep a microfiber towel handy. Glass needs perfect substrate prep—every wall bump telegraphs through; I’ve reskimmed more than one wall to avoid a wavy reflection.

Tips/Case: In rental-friendly projects, I’ve used color-backed acrylic panels near sinks (budget option) and saved tempered glass for the cooktop zone. Coordinate the glass tone with countertop veining so the U reads as a single ribbon.

save pin

save pin

Ergonomic U-Shape Work Triangle

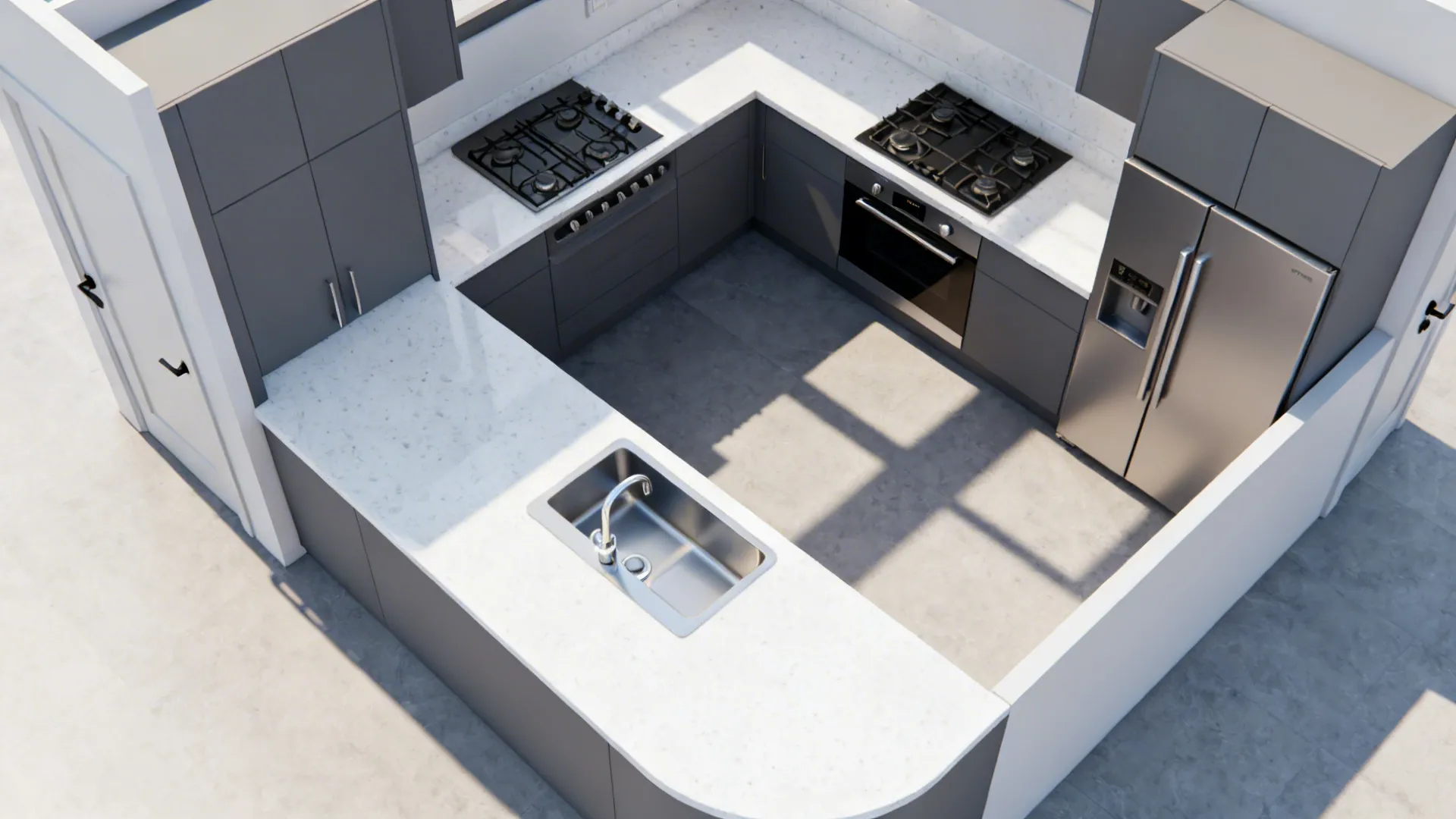

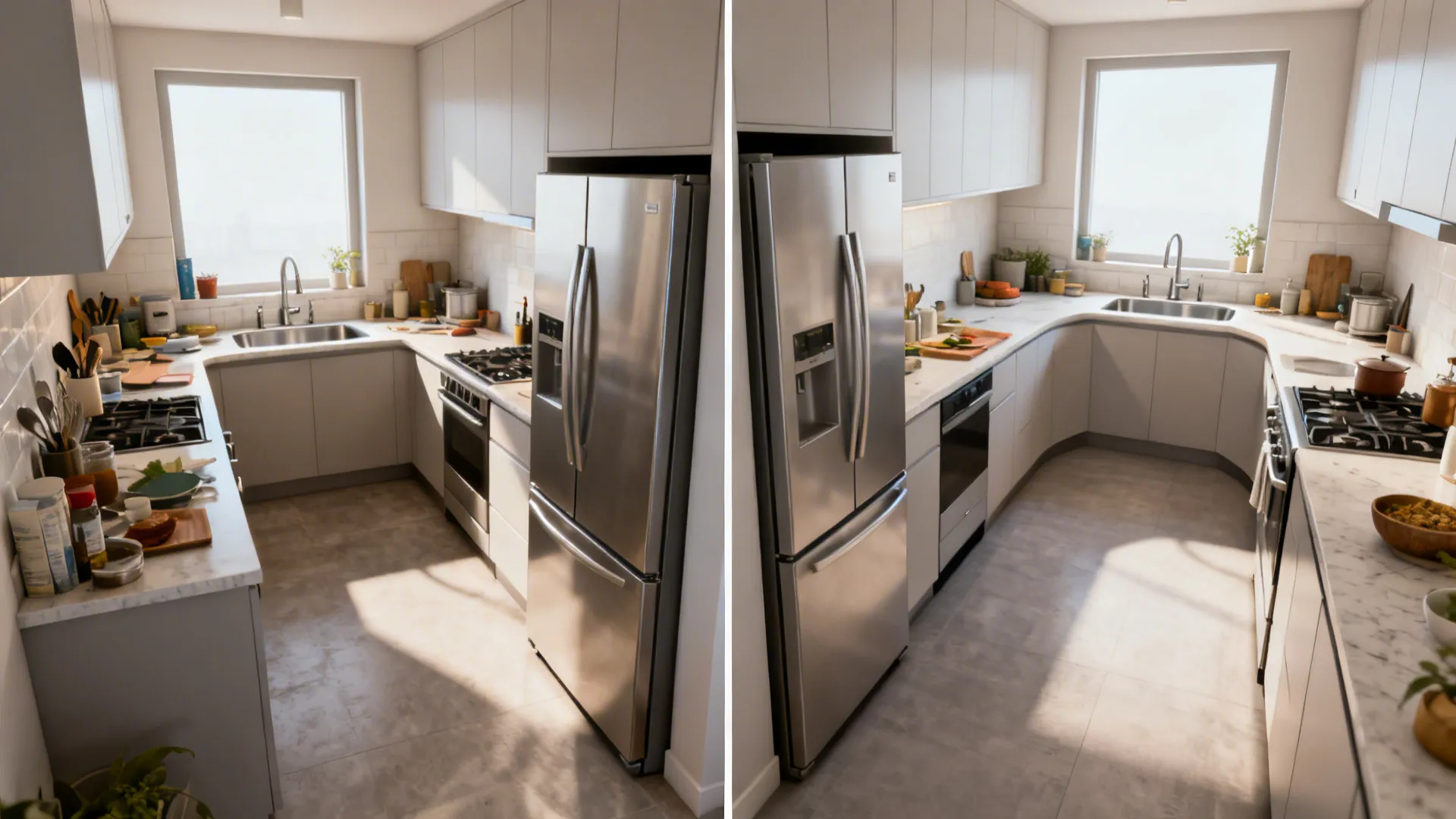

My Take: The first time I nailed a true U-shape work triangle—sink, cooktop, fridge—it felt like a dance. In compact kitchens, even a 4-inch shift of the sink centerline can change everything. I now measure toe-kicks, door swings, and appliance handles at drawing stage to preserve easy flow.

Pros: A tight, clear work triangle reduces steps, which matters when your U is only 6–7 feet across. Long-tail planning like “30–48 inch aisle width in U kitchens” and “18-inch landing space beside the fridge” keeps tasks streamlined. The NKBA recommends 40–60 inches between opposing runs for comfort; in tiny apartments, 36–40 inches can still work with compact appliances and careful handle choices.

Cons: If your fridge door is extra thick or the oven drops into a walkway, the triangle can collapse fast. I’ve had to swap swing directions or choose a counter-depth fridge last minute—a reminder to verify appliance specs early.

Tips/Cost: If walls lock your U at 78–84 inches across, consider a 24-inch counter-depth fridge and a 25–27-inch sink; the savings in aisle width are huge. Midrange appliance swaps here often cost less than moving plumbing, which can spiral in older buildings.

At roughly the halfway mark of a renovation, I validate clearances with a new digital mock-up and a quick sun study. If you’re iterating layouts, this kind of check is much easier with a tool tuned for interiors—try previewing “glass backsplash makes the kitchen airier” in a 3D scene to see how light actually plays on surfaces.

save pin

save pin

Layered Lighting in Tight Aisles

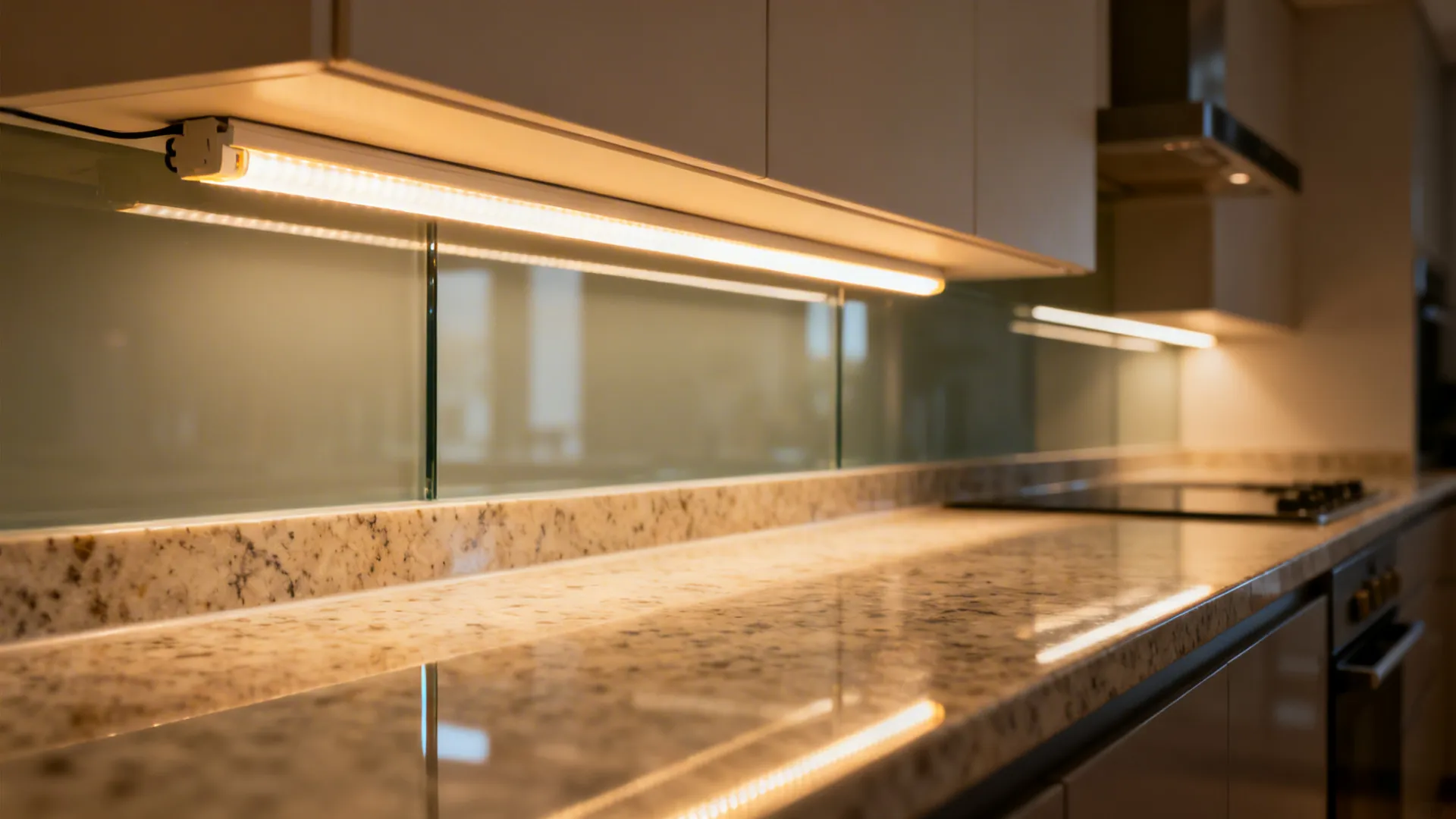

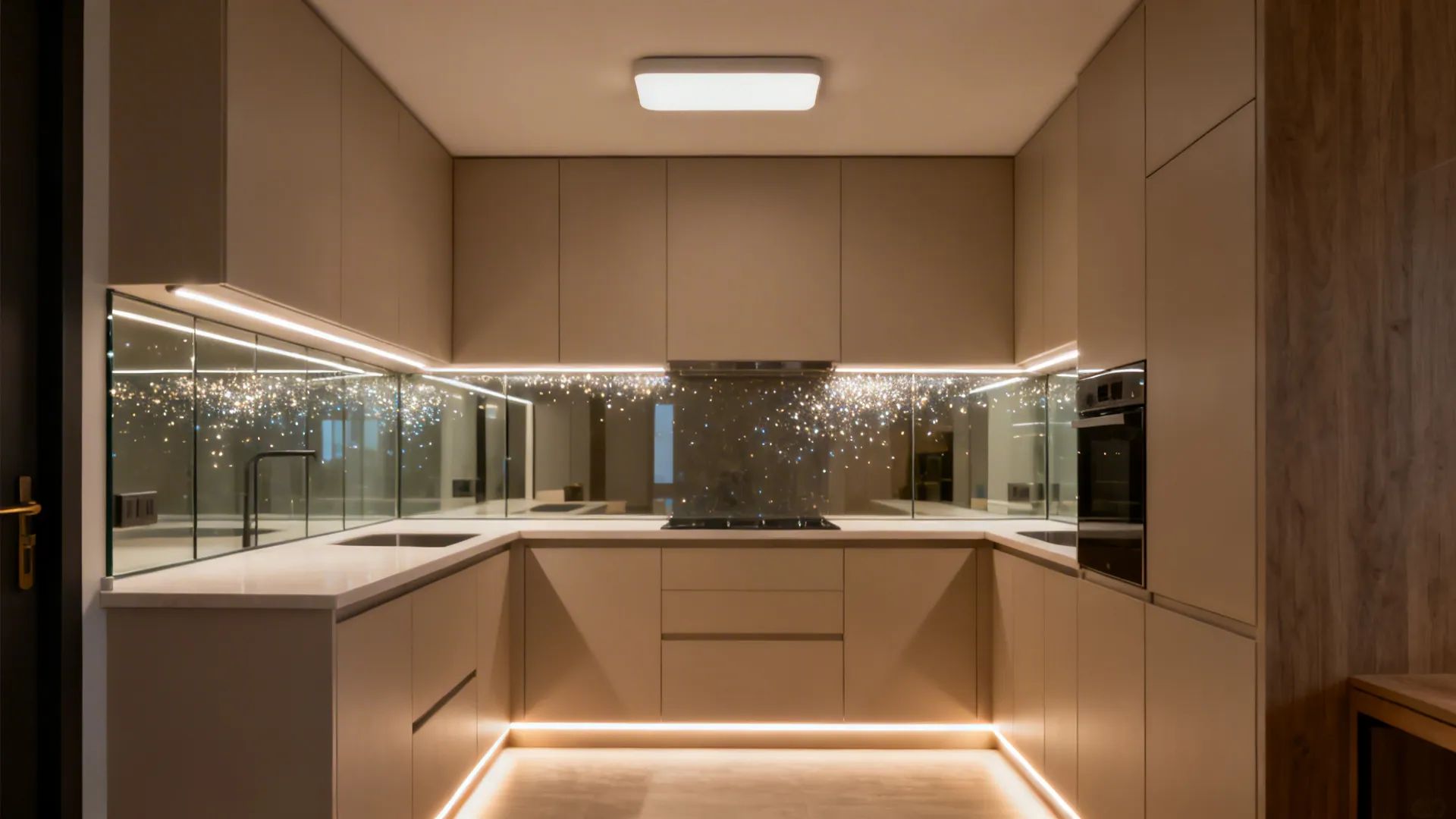

My Take: My favorite U-shaped kitchenette had only one tiny window; we layered linear under-cabinet strips, a shallow semi-flush ceiling light, and toe-kick LED tape for soft night lighting. The counters glowed, but the aisles stayed glare-free.

Pros: Layering ambient, task, and accent lighting prevents shadows in the U’s corners. Long-tail specs like “3000K warm white under-cabinet LEDs” and “CRI 90+ task lighting” make food look appetizing and improve color judgment for finishes. IES recommendations align with task lighting between 500–1000 lux in high-precision zones like chopping areas, which is easier to achieve when each run of the U has its own strip lights.

Cons: More drivers and dimmers can mean more points of failure—label your junction boxes (your future self will thank you). Reflective backsplashes may create sparkle; a quick sample test under your actual lights avoids surprises.

Tips/Case: Use a single dimming protocol where possible (e.g., all 0–10V or all phase-cut) to keep scenes consistent. In rentals, battery-powered under-cabinet bars can be a stopgap until hardwiring is feasible.

save pin

save pin

Warm Wood Accents with Durable Surfaces

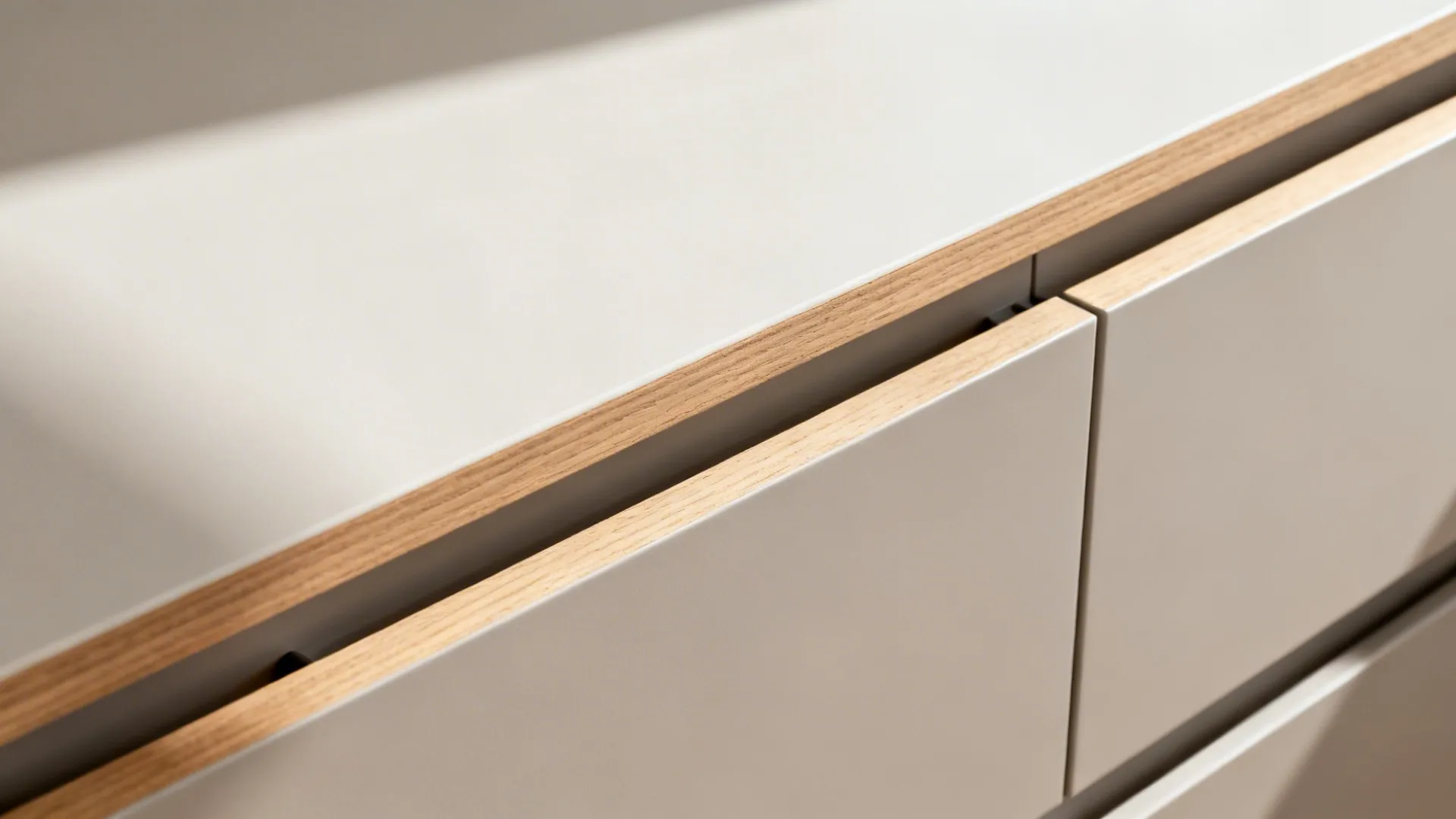

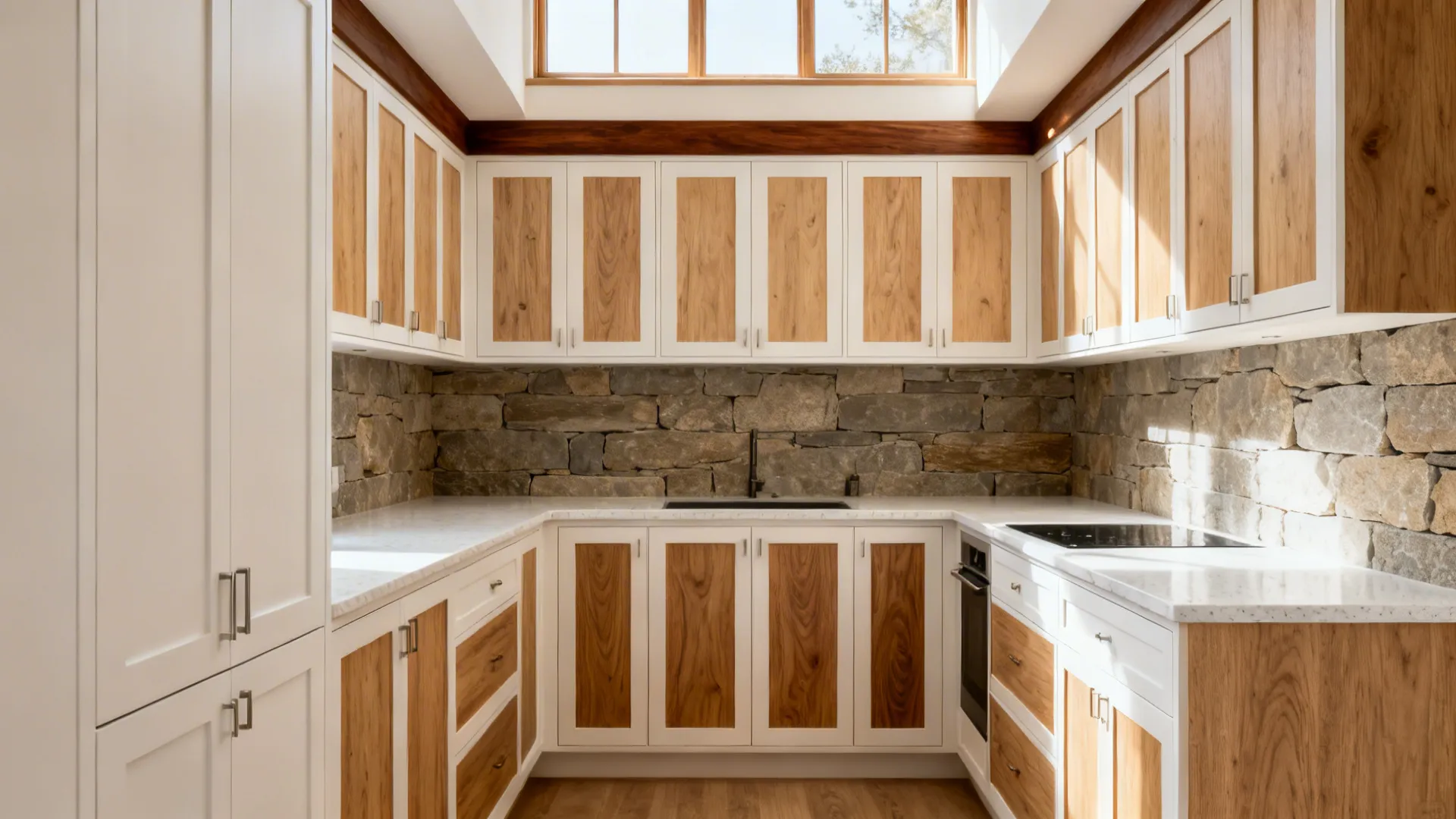

My Take: I love the calm of wood in a U-shaped kitchen—white oak rails on shaker doors, or a walnut trim cap above a stone splash. It softens all the right angles and makes cleanup feel less sterile.

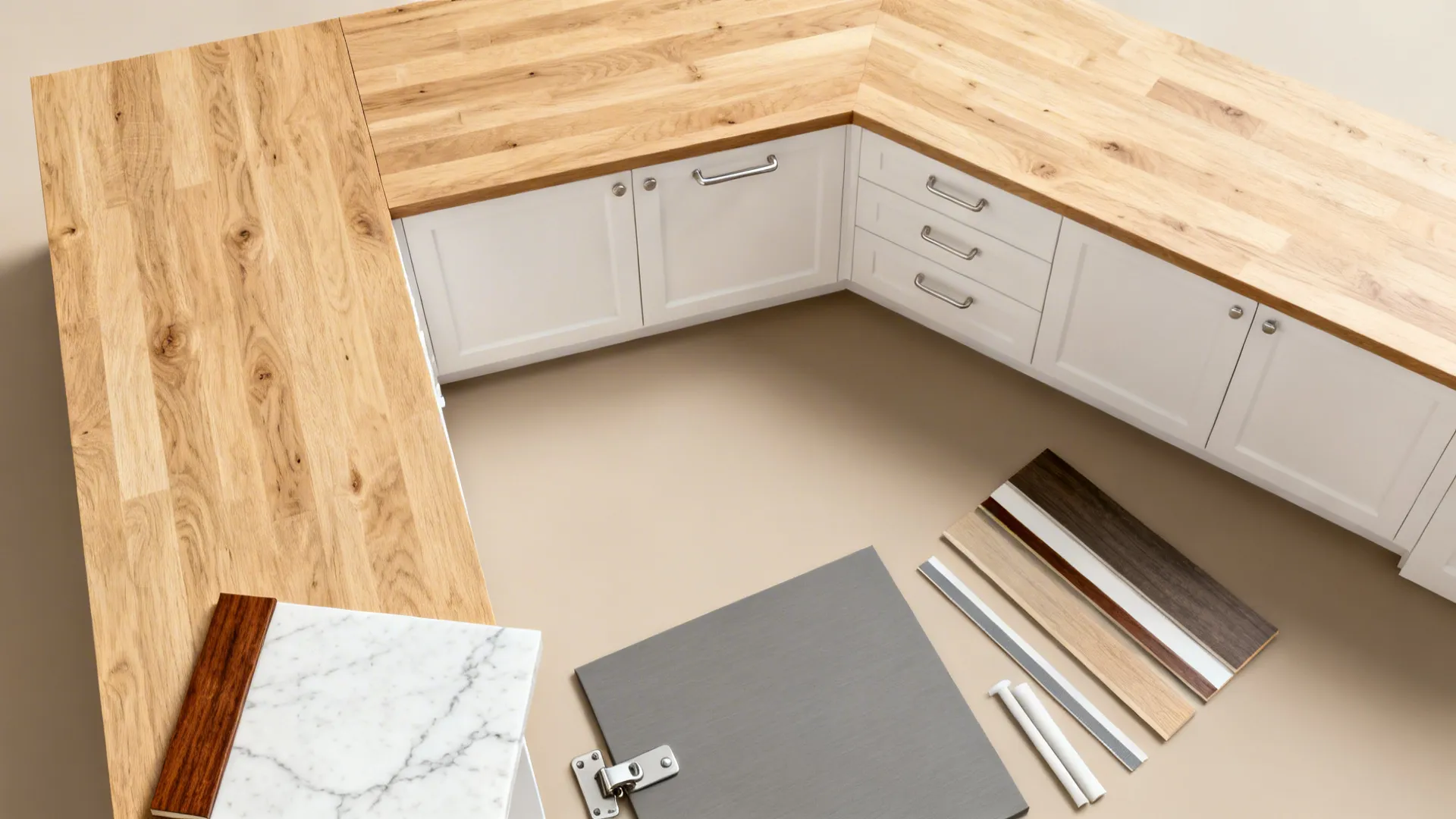

Pros: Wood tones add perceived warmth, especially with neutral counters. Long-tail choices like “UV-cured wood veneer doors” and “finger-jointed oak edge banding” balance durability with aesthetics. Pairing wood with high-performance quartz or sintered stone gives you resilience around the sink leg of the U, where splashes are constant.

Cons: Real wood near dishwashers needs attention—steam can lift edges if edge-banding or sealant is weak. Matching veneer grain across the U’s three runs is a puzzle; I’ve spent whole afternoons swapping doors to align patterns.

Tips/Cost: If budget is tight, mix wood accents with laminate slab panels; you’ll still get warmth where the eye lands. Oil-wax finishes look great but reapply yearly in sink zones; two-component polyurethane lasts longer with a slight trade in feel.

Before final sign-off, I like to produce a refined U-shape kitchen layout drawing with elevations, clear dimensions, and a quick light simulation. If you need a clean handoff for contractors or want to test alternate materials, render a draft and annotate clearances—tools that export 2D plans and 3D views simplify this phase. For example, preview how “wood accents bring a warmer mood” against quartz in a scene to decide between oak and walnut without buying full slabs.

save pin

save pin

Summary

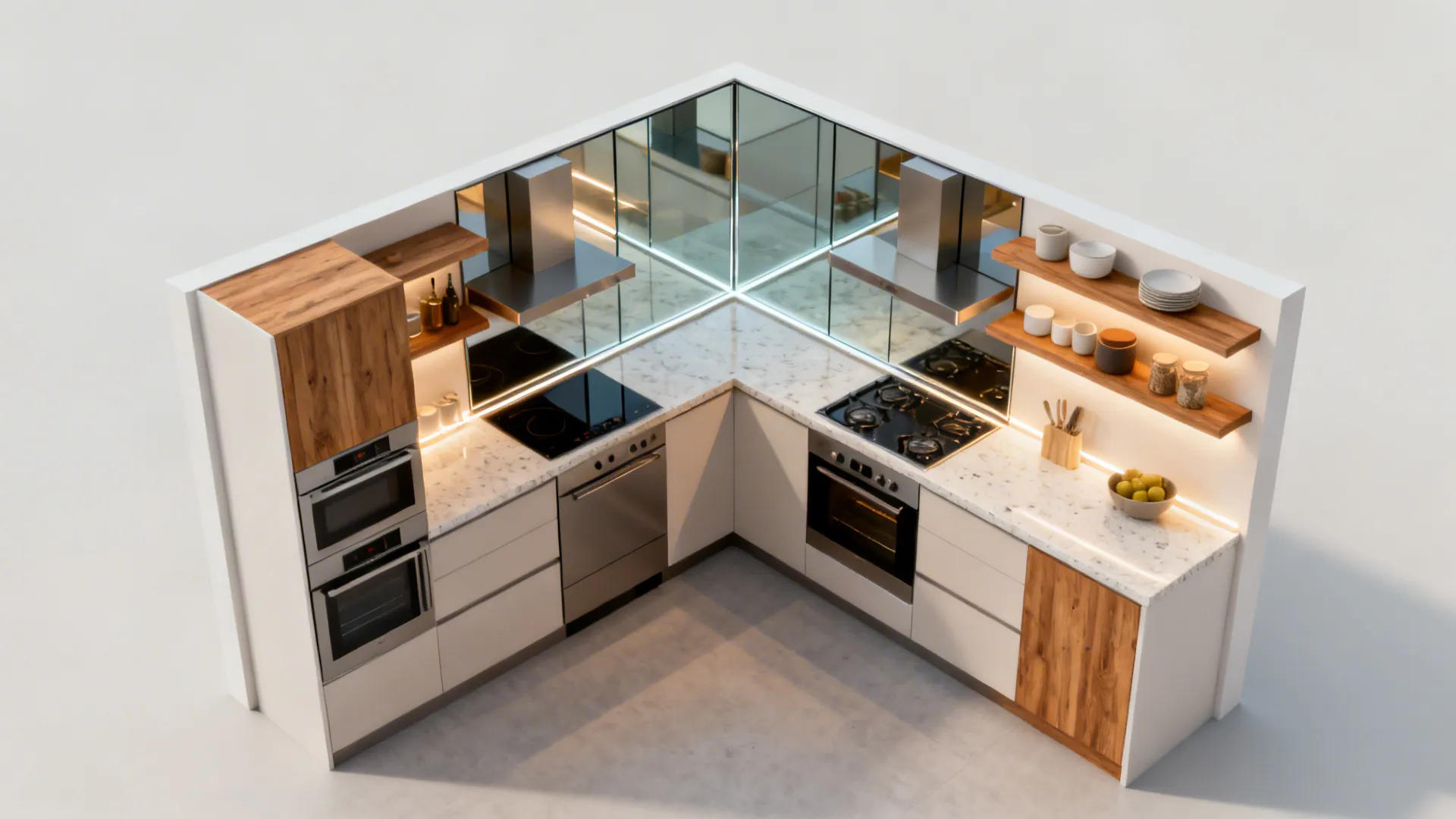

A small U-shape kitchen isn’t a limitation—it’s a blueprint for smarter design. With minimalist storage, reflective materials, a disciplined work triangle, layered lighting, and warm finishes, you’ll unlock more function per square foot than you thought possible. The NKBA’s space and landing recommendations remain a solid benchmark, but your lifestyle should lead every decision. Which of these five ideas will you try first in your U-shape kitchen layout drawing?

save pin

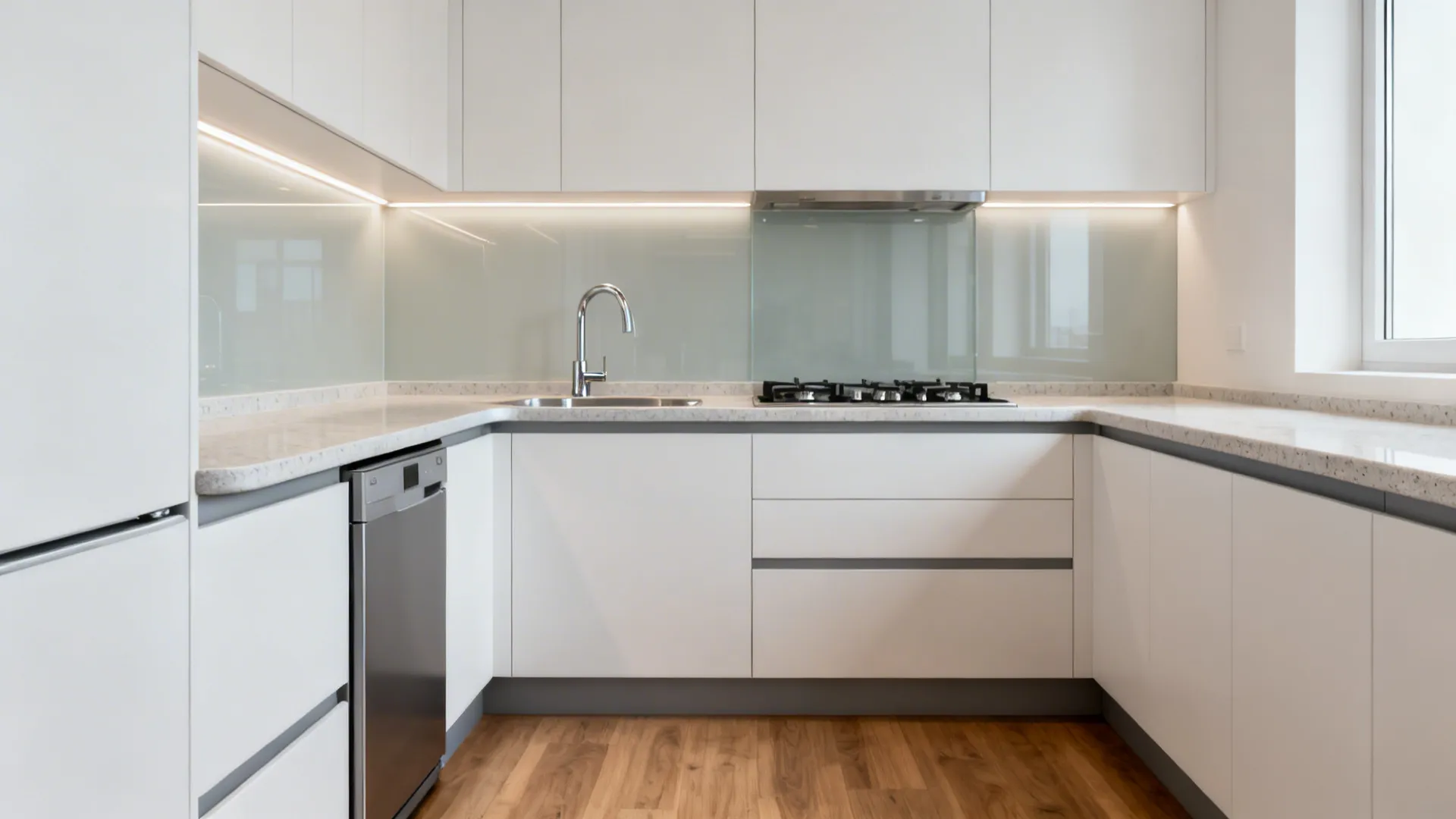

FAQ

1) What is the ideal aisle width for a U-shape kitchen layout drawing?

For comfort, 40–60 inches between opposing runs is common; in small apartments, 36–40 inches can work with compact appliances. Follow clearances for door swings and handles to keep the triangle flowing.

2) How do I place the sink, cooktop, and fridge in a small U?

Keep the sink centered on the base of the U when possible, with the cooktop and fridge on opposite legs. Maintain short, unobstructed paths; NKBA guidelines recommend adequate landing space (typically 15–18 inches) beside each.

3) Are glass backsplashes safe behind ranges?

Yes, tempered low-iron glass is commonly used behind cooktops and is easy to clean. Verify local code and manufacturer heat ratings, especially for gas ranges with high BTU output.

4) What countertop depth works best in a narrow U?

Standard 25–25.5 inches is fine, but consider counter-depth appliances to preserve aisle width. Waterfall edges look great yet can tighten entry points—measure your doorway and turning radius first.

5) How can I add more storage without crowding the U-shape?

Use full-height pantries, corner pull-outs, and toe-kick drawers. Handleless or low-profile pulls keep sightlines clean and reduce snag points in tight aisles.

6) What lighting do I need in a compact U-shape kitchen?

Layer ambient (ceiling), task (under-cabinet), and accent (toe-kick or shelf) lights. Aim for 300–500 lux on counters; IES guidance supports higher lux for precision tasks like chopping.

7) Which materials are most durable for busy U-shaped kitchens?

Quartz or sintered stone counters resist stains and heat, while UV-cured wood veneers and high-pressure laminate fronts endure daily wear. Seal edges near dishwashers to prevent steam damage.

8) Can I visualize my U-shape kitchen layout before building?

Absolutely—3D previews help catch clearance and lighting issues early. If you want to test reflectivity and finishes, you can mock up scenes and iterate, for instance with a quick view of “minimalist storage in a compact kitchen.”
