U Shaped Kitchen Floor Plans With Dimensions: Real layout sizes, spacing rules, and designer insights for building an efficient U shaped kitchen

Direct Answer

U shaped kitchen floor plans with dimensions typically require a minimum room width of 10–12 feet to maintain comfortable movement and proper appliance spacing. The ideal distance between opposing counters ranges from 42–48 inches, allowing efficient workflow while preventing cramped circulation.

When properly planned, a U shaped kitchen creates one of the most efficient cooking zones by surrounding the user with continuous counter space and clear work triangles.

Quick Takeaways

1. Ideal aisle width in a U shaped kitchen is 42–48 inches.
2. Most functional U shaped kitchens need at least 10 feet of room width.
3. Each leg of the U typically measures 8–10 feet for balanced workflow.
4. Too many cabinets can make U shaped kitchens feel visually cramped.
5. One open side or peninsula often improves small U shaped layouts.

Introduction

In more than a decade designing residential kitchens, I've used u shaped kitchen floor plans with dimensions in everything from compact apartments to large custom homes. When they’re done right, they’re incredibly efficient. When they’re done wrong, they feel tight, dark, and frustrating to cook in.

The biggest mistake I see homeowners make is focusing on cabinet count instead of movement space. A kitchen can look perfect on paper but fail in real life if the aisle spacing is off by even a few inches.

Before building or remodeling, it helps to visualize how the layout works in practice. Many homeowners start by exploring realistic layouts such as this interactive example of planning a kitchen layout in 3Dso they can understand spacing before construction begins.

In this guide, I’ll walk through the actual dimensions, spacing rules, and design decisions that make U shaped kitchens work beautifully.

save pin

What Are the Standard Dimensions for a U Shaped Kitchen?

Key Insight: A functional U shaped kitchen balances three counter runs with an aisle width between 42 and 48 inches.

Through hundreds of kitchen layouts I've reviewed, the biggest factor that determines whether a U shaped layout works is aisle spacing. Too narrow and two people cannot cook comfortably. Too wide and the work triangle becomes inefficient.

Typical dimensional guidelines designers follow:

1. Minimum room width: 10 feet
2. Ideal room width: 12–16 feet
3. Counter depth: 24 inches
4. Walkway width: 42 inches (single cook)
5. Walkway width: 48 inches (multiple cooks)
6. Typical counter run length: 8–10 feet per wall

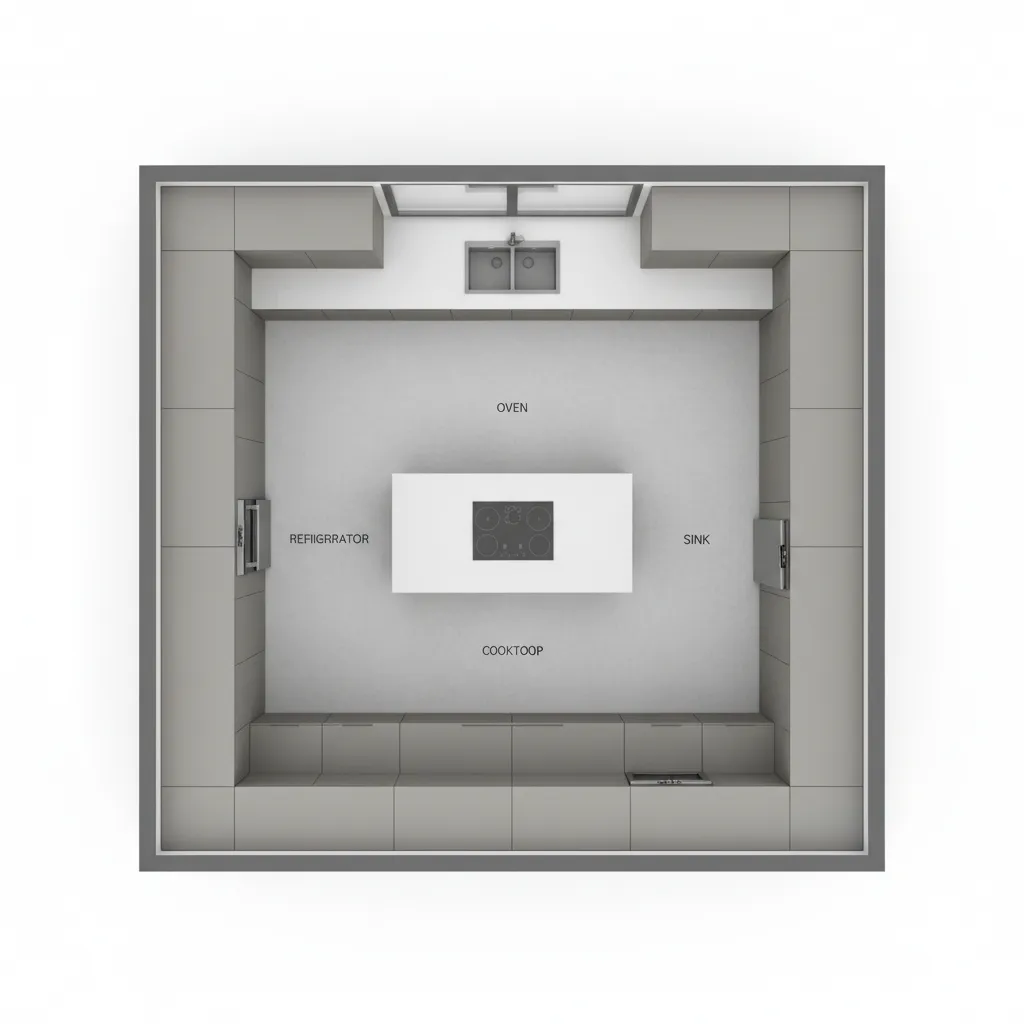

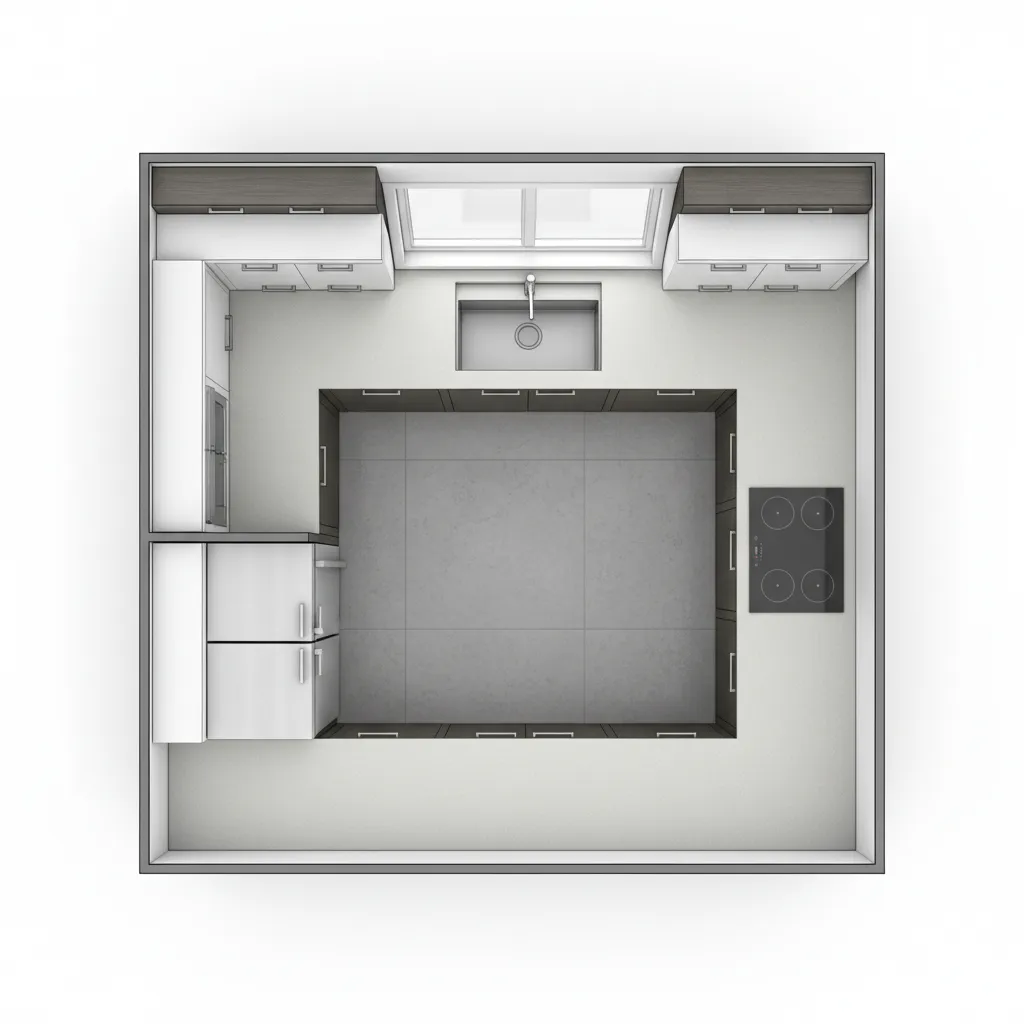

According to guidelines from the National Kitchen & Bath Association (NKBA), the work triangle—the distance between sink, refrigerator, and stove—should total between 13 and 26 feet.

Why Is the U Shape One of the Most Efficient Kitchen Layouts?

Key Insight: The U shape maximizes counter space while keeping the cook within a compact working radius.

When I evaluate kitchen productivity during design reviews, U shaped layouts consistently outperform L shaped kitchens in terms of usable work surface.

Here’s why the layout works so well:

1. Three continuous counter runs create abundant prep space
2. Appliances naturally form an efficient triangle
3. Storage capacity increases dramatically
4. Traffic stays outside the cooking zone

However, there is a tradeoff most online guides ignore: too many upper cabinets can make U shaped kitchens visually heavy. In modern projects, I often remove cabinets on one wall or replace them with open shelving.

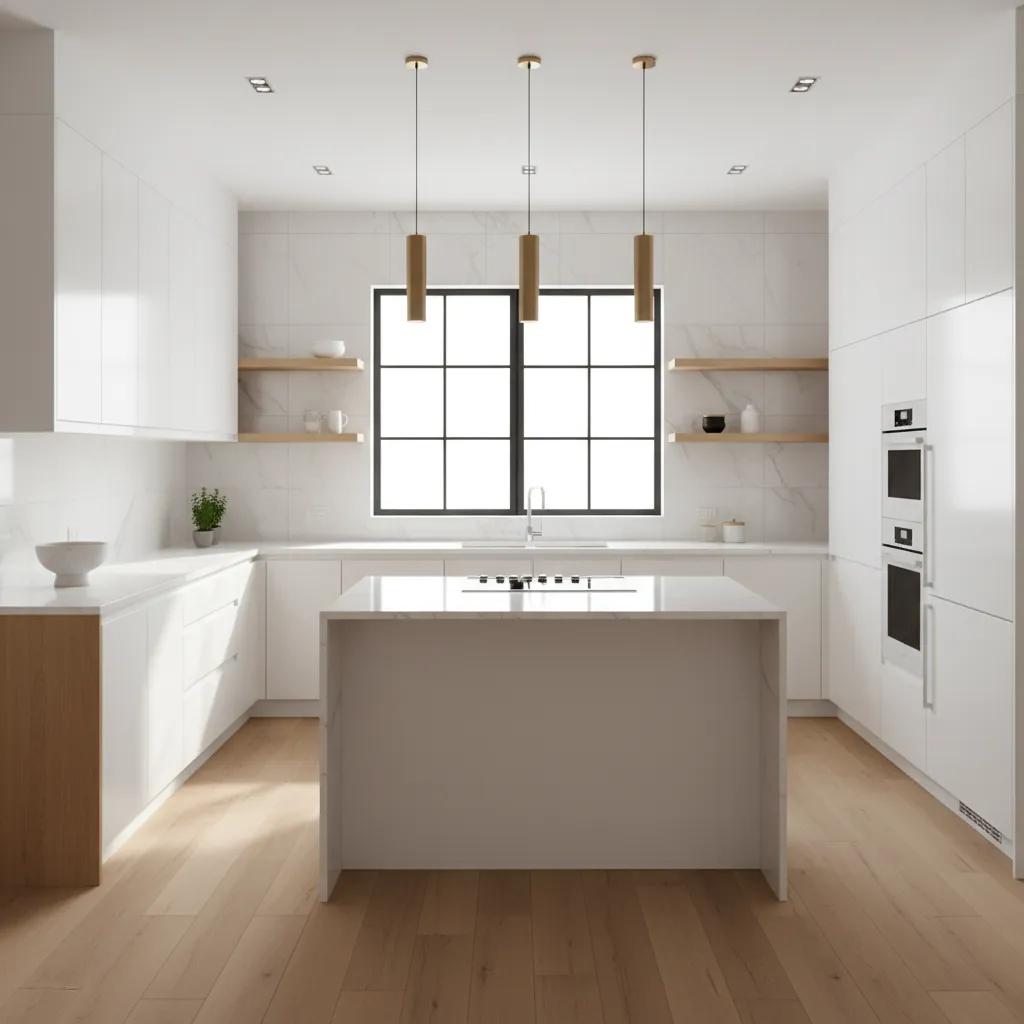

save pin

Common U Shaped Kitchen Layout Dimensions (Real Examples)

Key Insight: Most successful U shaped kitchens follow predictable dimensional patterns depending on home size.

These are layouts I frequently recommend to clients.

1. Small apartment kitchen
2. Room size: 10 × 10 ft
3. Counter runs: 8 ft each
4. Aisle width: 42 inches
5. Standard suburban kitchen
6. Room size: 12 × 14 ft
7. Counter runs: 9–10 ft
8. Aisle width: 44 inches
9. Large open kitchen
10. Room size: 16 × 18 ft
11. Counter runs: 10–12 ft
12. Aisle width: 48 inches

When clients want to experiment with these dimensions, I often recommend testing layouts with a free kitchen floor plan layout creator so they can quickly visualize cabinet spacing before committing to a renovation.

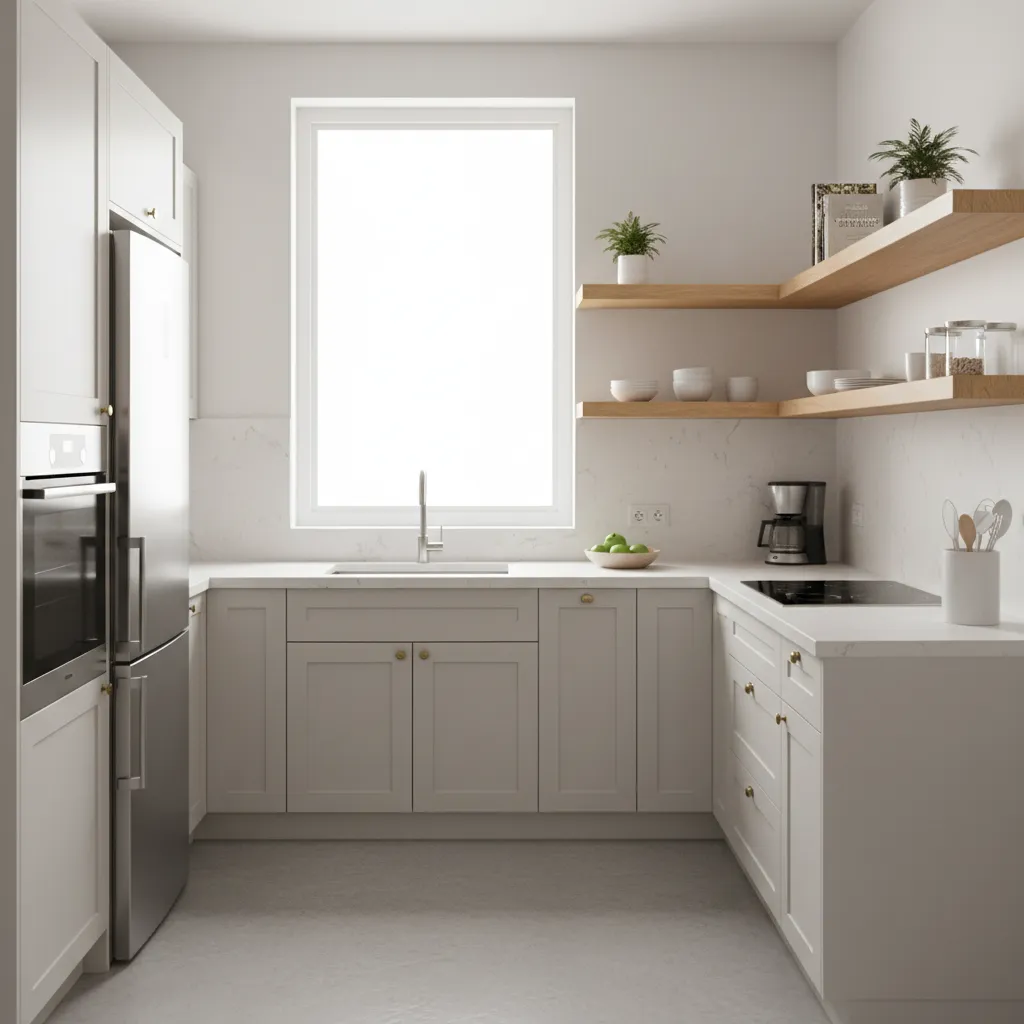

Can a Small Kitchen Use a U Shaped Layout?

Key Insight: Yes—but the layout must be simplified to avoid feeling boxed in.

Small U shaped kitchens are incredibly common in condos and older homes, but they require smarter planning.

Strategies that work well in tight kitchens:

1. Use open shelving on one wall
2. Install shallow cabinets (12–15 inches)
3. Use light reflective materials
4. Keep one side partially open to a dining area

A trick I use in compact kitchens is turning one leg into a peninsula instead of a full wall. This maintains the U shaped workflow but opens the room visually.

save pin

Hidden Design Mistakes in U Shaped Kitchen Plans

Key Insight: The most common design mistake is overcrowding the layout with storage.

On paper, homeowners often try to maximize cabinets on all three sides. In reality, this can create three problems:

1. Upper cabinets block natural light
2. Corner cabinets become difficult to access
3. The kitchen feels smaller than it actually is

Instead, experienced designers usually balance cabinetry across two main walls and keep the third visually lighter.

If you're exploring layouts, studying real kitchen layout experiments such as practical kitchen layout planning examples can help reveal how professionals balance storage and space.

Answer Box

The ideal U shaped kitchen requires at least 10–12 feet of room width and 42–48 inches between opposing counters. Balanced counter runs of 8–10 feet create efficient workflow while maintaining comfortable movement.

How to Plan a U Shaped Kitchen Step by Step

Key Insight: Start with appliance placement before designing cabinets.

My design workflow usually follows this order:

1. Place sink, stove, and refrigerator first
2. Ensure work triangle stays within 13–26 feet
3. Maintain proper aisle width
4. Add prep counter space near the sink
5. Finish with upper cabinet planning

This sequence prevents the most common remodeling mistake: forcing appliances into a cabinet-first layout.

save pin

Final Summary

1. U shaped kitchens need at least 10 feet of room width.
2. Ideal aisle spacing is 42–48 inches.
3. Each counter run typically measures 8–10 feet.
4. Reducing upper cabinets improves visual openness.
5. Testing layouts in a floor planner prevents costly mistakes.

FAQ

What is the minimum size for a U shaped kitchen?

A minimum space of about 10 × 10 feet allows three counters and a 42‑inch aisle.

What is the ideal aisle width in U shaped kitchen floor plans with dimensions?

Most designers recommend 42 inches for one cook and 48 inches for two cooks.

Is a U shaped kitchen better than an L shaped kitchen?

For storage and counter space, yes. But L shaped kitchens often feel more open in smaller homes.

Can you add an island to a U shaped kitchen?

Only if the room is at least 16 feet wide; otherwise circulation becomes cramped.

Where should the sink go in a U shaped kitchen?

Most layouts place the sink in the center wall with the refrigerator and stove on the side walls.

Are U shaped kitchens outdated?

Not at all. Modern designs simply use fewer upper cabinets and lighter finishes.

Do U shaped kitchens work for open floor plans?

Yes, especially when one side becomes a peninsula that opens to the living area.

How long should each counter run be?

Most U shaped kitchen floor plans with dimensions use 8–10 foot counter runs for balanced workflow.
