U Shaped Kitchen Floor Plans With Dimensions: Layout Guide: Real kitchen measurements, layout rules, and design tips professionals use to plan an efficient U shaped kitchen.

Direct Answer

U shaped kitchen floor plans with dimensions typically require a minimum width of 10–12 feet to function comfortably. Most professional layouts use three runs of cabinetry between 8–12 feet each, with 42–48 inches of clearance between opposing counters for safe movement and appliance access.

When designed correctly, a U shaped kitchen creates one of the most efficient cooking work triangles, maximizing storage, counter space, and workflow.

Quick Takeaways

1. Ideal clearance between opposite counters in a U shaped kitchen is 42–48 inches.
2. Most functional U shaped kitchens need at least 10 feet of room width.
3. Each cabinet run usually ranges between 8 and 12 feet.
4. Small U shaped kitchens work best when one wall is partially open.
5. Proper appliance spacing prevents traffic bottlenecks.

Introduction

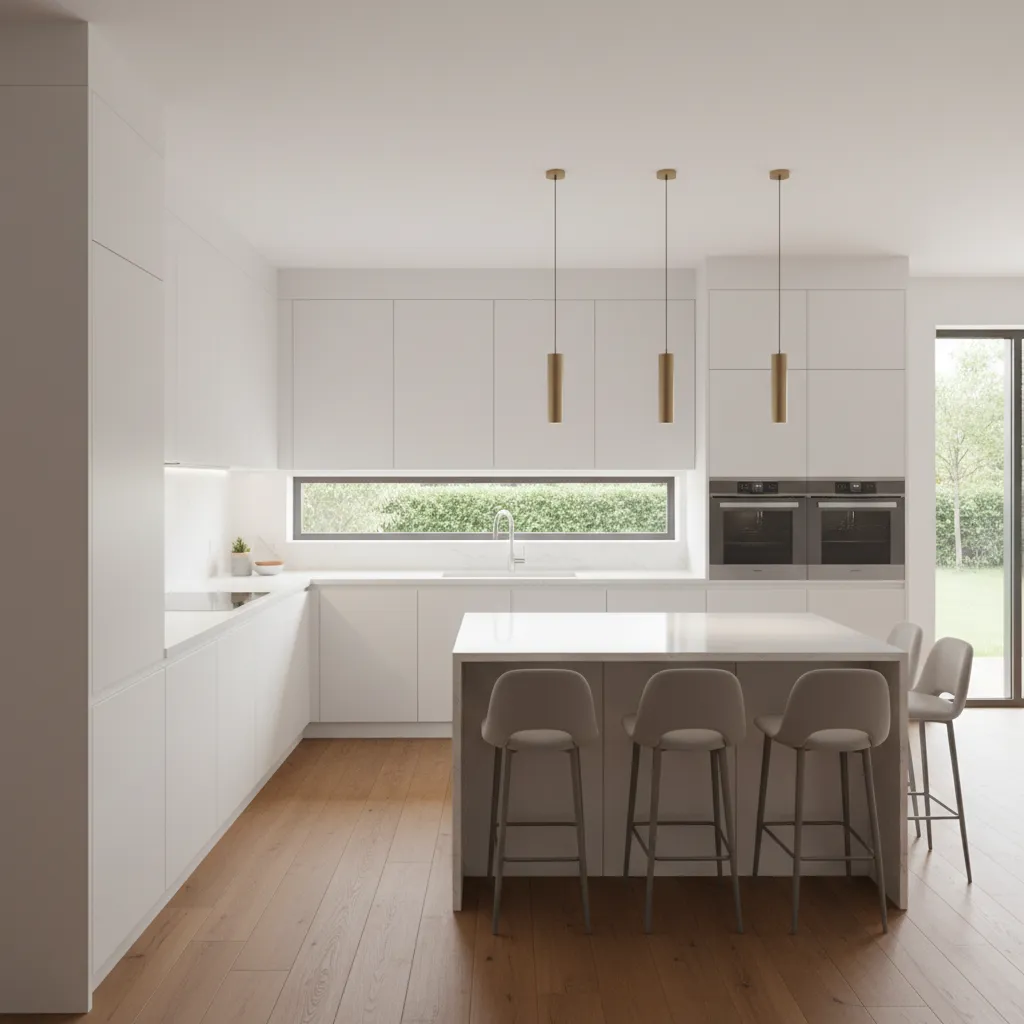

U shaped kitchen floor plans with dimensions are one of the most searched layouts I see homeowners struggling with. After designing kitchens for more than a decade, I've learned that the biggest mistakes rarely come from style choices—they come from bad spacing.

On paper, the U shape looks simple: three walls of cabinets forming a horseshoe. But in real homes, small dimensional mistakes can turn a great layout into a cramped workspace.

I’ve redesigned dozens of kitchens where the counters were just 3–4 inches too close or an appliance blocked the workflow. Those tiny measurement errors completely changed how the kitchen functioned.

If you're planning your own layout, I strongly recommend starting with a clear visual planning process like this guide on visualizing a kitchen layout before construction. Seeing the dimensions in a spatial plan helps avoid expensive rebuilds.

In this guide, I'll break down the real dimensions designers use, when the U shape works best, common mistakes most articles ignore, and how to adapt the layout for small or large kitchens.

save pin

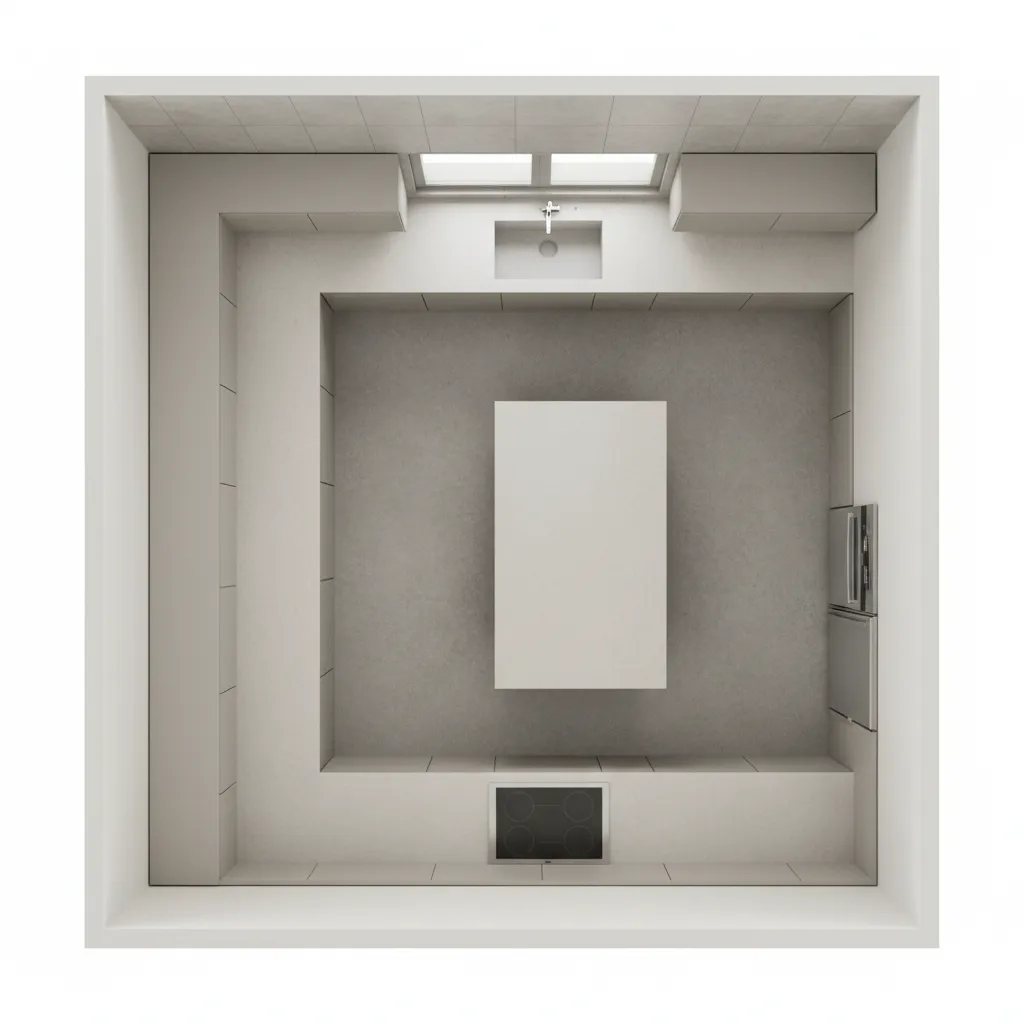

What Are the Standard Dimensions for a U Shaped Kitchen?

Key Insight: The success of a U shaped kitchen depends more on aisle width than cabinet length.

Many homeowners focus on cabinet size, but the critical dimension is the space between the counters. Too narrow and the kitchen becomes claustrophobic. Too wide and the work triangle becomes inefficient.

Here are the dimensions I typically recommend in real projects:

1. Minimum room width: 10 feet
2. Comfortable room width: 12–16 feet
3. Counter depth: 24 inches
4. Ideal aisle clearance: 42–48 inches
5. Walkway with multiple cooks: 48–60 inches

Professional design guidelines from the National Kitchen and Bath Association (NKBA) also recommend at least 42 inches between opposing counters for a single cook kitchen.

Typical cabinet run dimensions:

1. Wall A: 8–12 ft
2. Wall B: 6–10 ft
3. Wall C: 8–12 ft

This range allows flexibility for appliances, sink placement, and corner storage systems.

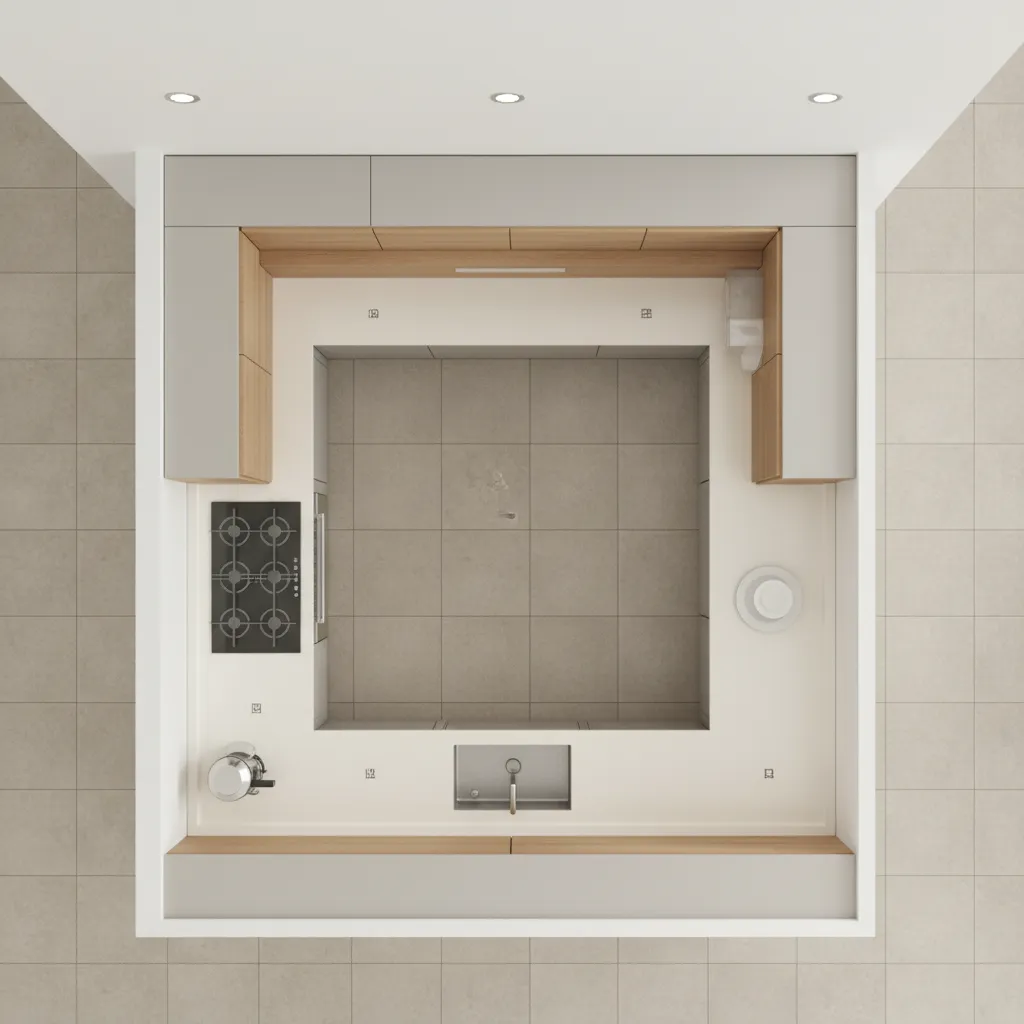

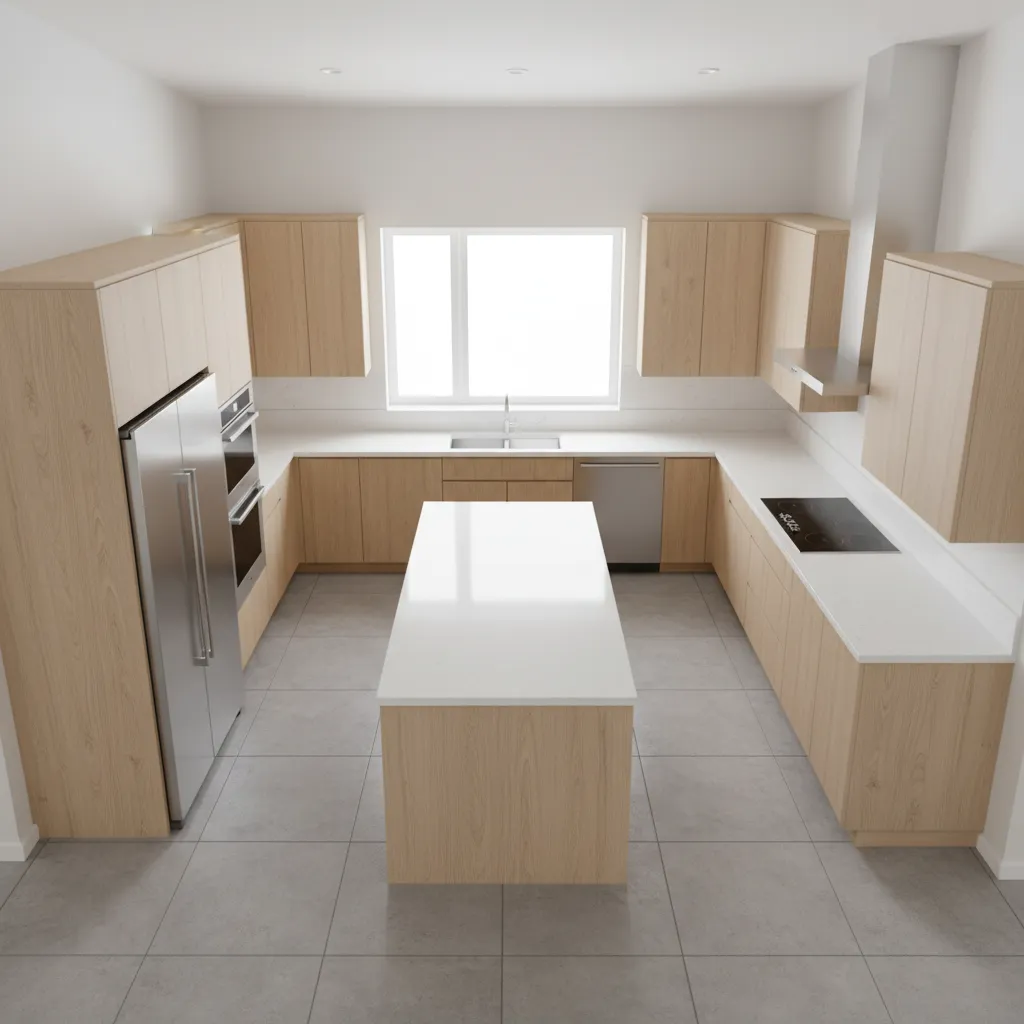

Why U Shaped Kitchens Are One of the Most Efficient Layouts

Key Insight: A well-designed U shape naturally supports the most efficient cooking triangle.

The classic kitchen work triangle connects three core areas:

1. Sink
2. Cooktop
3. Refrigerator

In a U shaped kitchen, each wall can host one of these zones. This reduces walking distance and creates a compact workflow.

Typical triangle distances used by designers:

1. Total triangle distance: 13–26 feet
2. Each leg of triangle: 4–9 feet

When the layout is balanced, cooking becomes smoother because prep, cooking, and storage areas are naturally separated.

save pin

Common Dimension Mistakes Most U Shaped Kitchen Guides Ignore

Key Insight: Many U shaped kitchens fail not because of space limitations, but because of overlooked appliance clearance.

Over the years, I’ve noticed several mistakes repeated in renovation projects.

1. Refrigerator door conflicts

If the fridge is placed too close to a corner, the door cannot open fully, which limits drawer access.

Recommended clearance: 15 inches minimum from corner.

2. Dishwasher blocking the walkway

Dishwasher doors open about 21–24 inches. In narrow kitchens this blocks movement.

3. Corner cabinet dead zones

Without lazy Susans or pull-out corner systems, the inside corner becomes wasted space.

Solutions designers often use:

1. LeMans corner units
2. Magic corner pull-outs
3. Diagonal corner cabinets

These solutions dramatically improve storage usability.

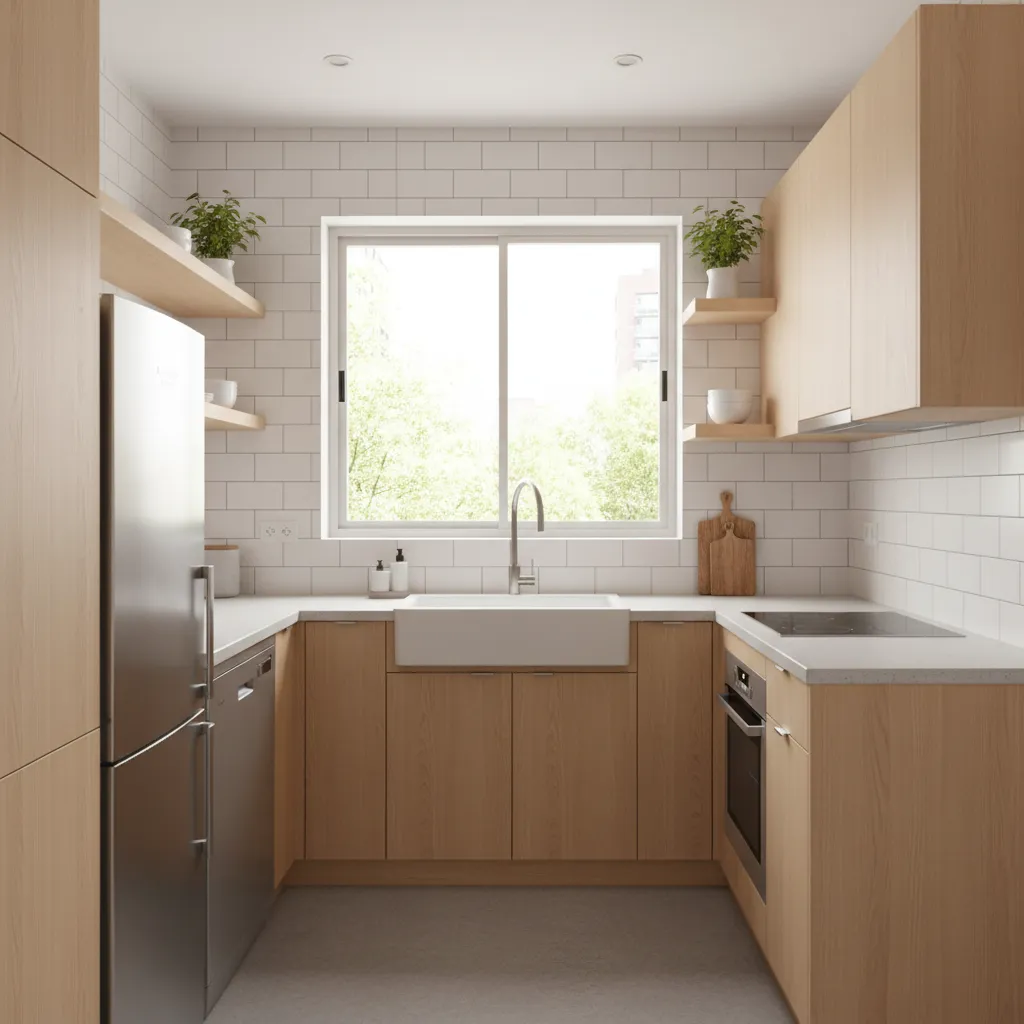

How Small Can a U Shaped Kitchen Be?

Key Insight: A U shaped kitchen can work in surprisingly small spaces if one side is partially open.

Small homes and apartments often adapt the U shape by opening one wall to a dining or living area.

Typical compact layout dimensions:

1. Room width: 9–10 feet
2. Aisle clearance: 40–42 inches
3. Short cabinet runs: 6–8 feet

One trick I frequently use is replacing one wall of upper cabinets with open shelving or windows. This prevents the space from feeling boxed in.

save pin

How Do Designers Plan U Shaped Kitchens Accurately?

Key Insight: The most reliable way to avoid spacing errors is building a scaled floor plan before choosing cabinets.

Many homeowners start by browsing cabinet styles. Professionals do the opposite—we start with circulation and appliance spacing.

A typical planning process looks like this:

1. Measure the room structure
2. Place appliances first
3. Define aisle width
4. Add base cabinets
5. Plan corner storage
6. Check door swing clearances

Using a visual planning workflow like this guide to building a scaled 3D kitchen layout before renovation helps homeowners test multiple layout options before committing to cabinetry.

Answer Box

The most functional U shaped kitchen floor plans maintain 42–48 inches of aisle clearance and place sink, stove, and refrigerator on separate walls. Rooms between 12–16 feet wide typically produce the most comfortable layouts.

What Is the Best Way to Visualize U Shaped Kitchen Dimensions?

Key Insight: Seeing the layout in a scaled floor plan prevents the majority of kitchen renovation mistakes.

After working on many remodels, I’ve learned that homeowners struggle to imagine dimensions from numbers alone.

That's why visual planning tools have become a standard step in modern kitchen design.

If you're experimenting with different cabinet lengths or appliance placements, it's helpful to explore a process for testing kitchen dimensions inside a scaled floor plan before construction begins.

This allows you to check:

1. Walking clearance
2. Door swing conflicts
3. Cabinet spacing
4. Traffic flow
5. Island feasibility

save pin

Final Summary

1. U shaped kitchens typically require at least 10–12 feet of room width.
2. Maintain 42–48 inches between opposite counters.
3. Appliance placement determines workflow efficiency.
4. Corner cabinet solutions prevent wasted storage space.
5. Scaled floor plans help eliminate costly layout mistakes.

FAQ

What is the minimum size for a U shaped kitchen?

A functional U shaped kitchen typically needs a room width of about 10 feet. This allows two 24‑inch counters and about 42 inches of walking space.

How wide should a U shaped kitchen aisle be?

The recommended aisle width is 42 inches for one cook and up to 48 inches for two cooks working together.

Are U shaped kitchens outdated?

No. U shaped kitchen floor plans remain one of the most efficient layouts because they support a strong work triangle and maximize storage.

Can a U shaped kitchen include an island?

Yes, but the room usually needs at least 16 feet of width to maintain safe walking clearance around the island.

Where should the sink go in a U shaped kitchen?

Most designers place the sink on the center wall, often under a window, with the cooktop and refrigerator on opposite sides.

Do U shaped kitchens feel too closed?

They can if all three walls have upper cabinets. Opening one side with shelving or a window keeps the space lighter.

Is a U shaped kitchen better than an L shape?

U shaped kitchens offer more storage and counter space, but L shaped kitchens often provide better openness for entertaining.

What cabinets work best in U shaped kitchen corners?

Lazy Susans, pull-out corner systems, and diagonal cabinets make corner spaces easier to access and more functional.
