U Shaped Kitchen With Island Floor Plan: Layout Guide: How to design a functional U-shaped kitchen with an island without blocking workflow or wasting space

Direct Answer

A U shaped kitchen with island floor plan works best in rooms at least 12–14 feet wide, allowing proper clearance around the island while maintaining the classic three-wall work triangle. When planned correctly, the island adds prep space, storage, and social seating without interrupting kitchen workflow.

The key is maintaining 42–48 inches of walking space between the island and surrounding cabinets while aligning the island with the primary cooking and prep zones.

Quick Takeaways

1. A U-shaped kitchen with an island needs at least 12 feet of room width to function comfortably.
2. Maintain 42–48 inches clearance around the island for safe movement.
3. The island should support prep or seating, not block the work triangle.
4. Many kitchens fail because the island is oversized for the room.
5. Smart layout planning prevents traffic from crossing cooking zones.

Introduction

In more than a decade designing kitchens, the u shaped kitchen with island floor plan is one layout homeowners ask for constantly. On paper it sounds perfect: three walls of storage plus a central island for prep, seating, and social space.

But here’s the reality I’ve seen across dozens of renovation projects: many of these kitchens end up feeling cramped rather than luxurious. The island blocks cabinet doors, the fridge interrupts movement, and suddenly the kitchen that looked amazing on Pinterest becomes frustrating to use every day.

The difference almost always comes down to layout planning. Before cabinets are ordered or walls moved, the floor plan must balance three elements: workflow, clearance space, and functional zones. When I work with clients exploring a layout like this, I often start by sketching configurations using tools similar to a step-by-step kitchen layout planning workspaceso we can test circulation and appliance placement before construction begins.

In this guide, I’ll walk through what actually makes a U-shaped kitchen with an island work, the dimensions professionals rely on, and a few hidden mistakes that most design articles never mention.

save pin

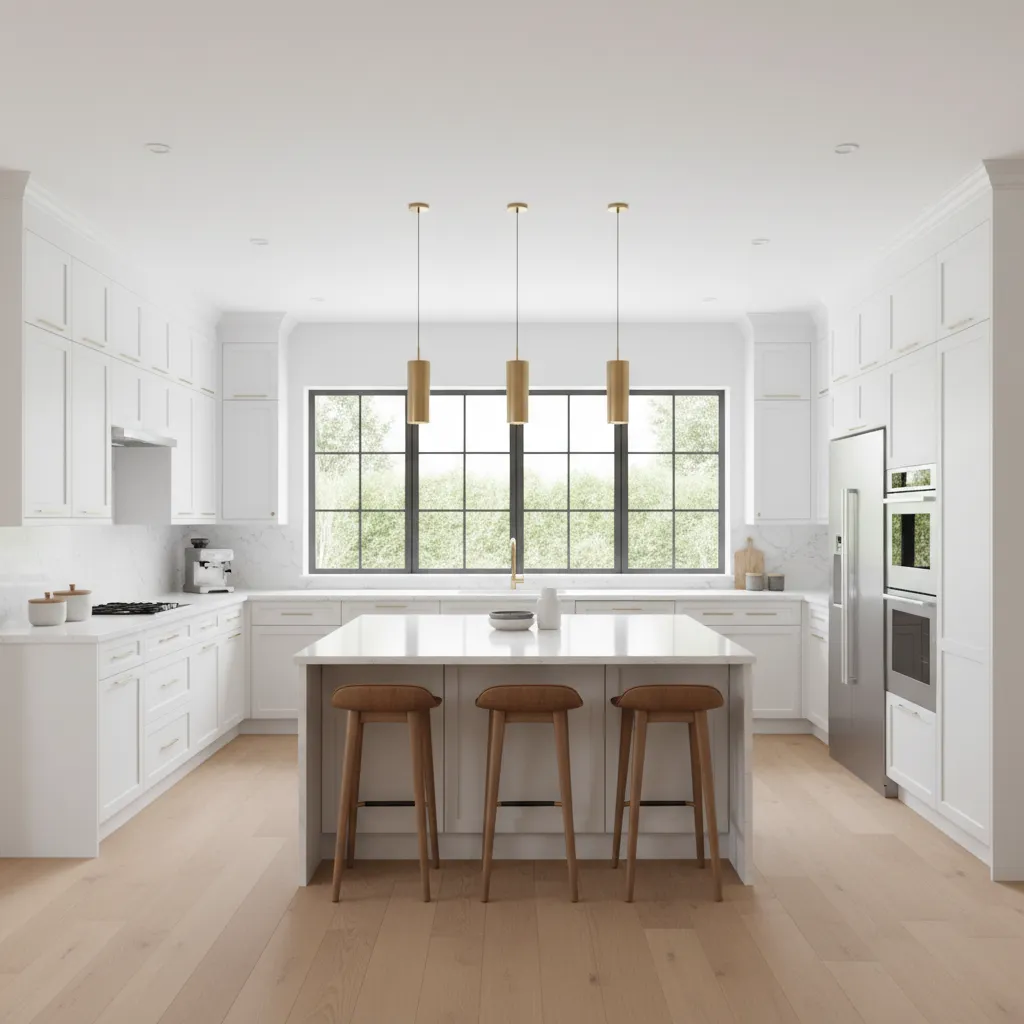

Why Do Homeowners Choose a U Shaped Kitchen With an Island?

Key Insight: This layout combines maximum cabinet storage with a social centerpiece, which is why it has become a favorite in modern open kitchens.

The traditional U-shaped kitchen already offers one of the most efficient work triangles. By adding an island, the kitchen gains extra preparation space and an informal dining area without sacrificing storage along the perimeter walls.

In my projects, homeowners usually want this layout for three reasons:

1. More counter space for cooking
2. A casual seating area for family interaction
3. Improved storage compared to L-shaped layouts

Industry design guidelines from the National Kitchen & Bath Association emphasize maintaining strong workflow between sink, stove, and refrigerator. A properly placed island can support that triangle instead of interrupting it.

But the layout only works if the island complements the workflow rather than becoming an obstacle.

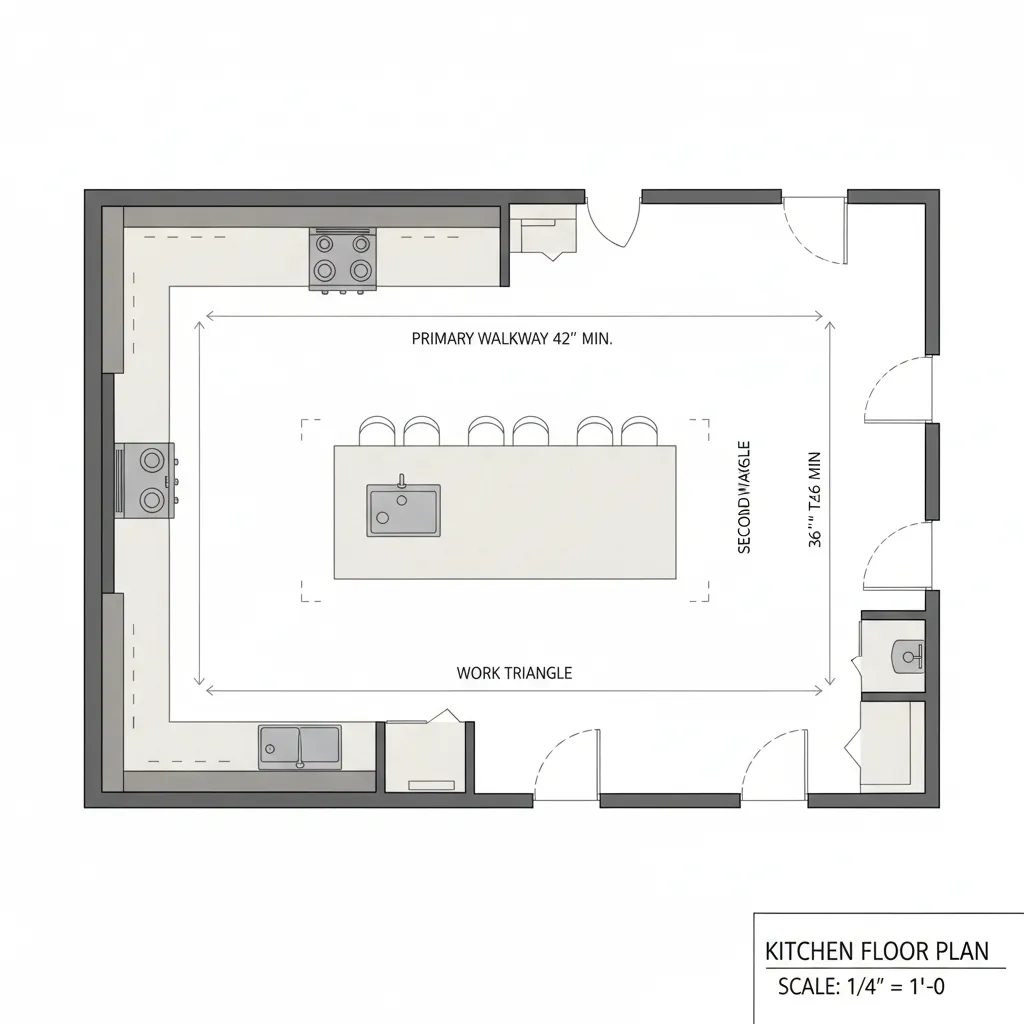

How Much Space Do You Need for This Layout?

Key Insight: The most common design failure is trying to fit an island into a room that simply isn’t wide enough.

For a U-shaped kitchen with an island to function comfortably, clearance space matters more than island size.

1. Minimum kitchen width: 12 feet
2. Ideal kitchen width: 14–16 feet
3. Clearance between cabinets and island: 42–48 inches
4. Island depth: typically 24–36 inches

When space drops below these measurements, cabinet doors collide with people moving through the kitchen. I’ve seen homeowners spend thousands adding a beautiful island that ultimately gets removed because the walkway feels tight.

save pin

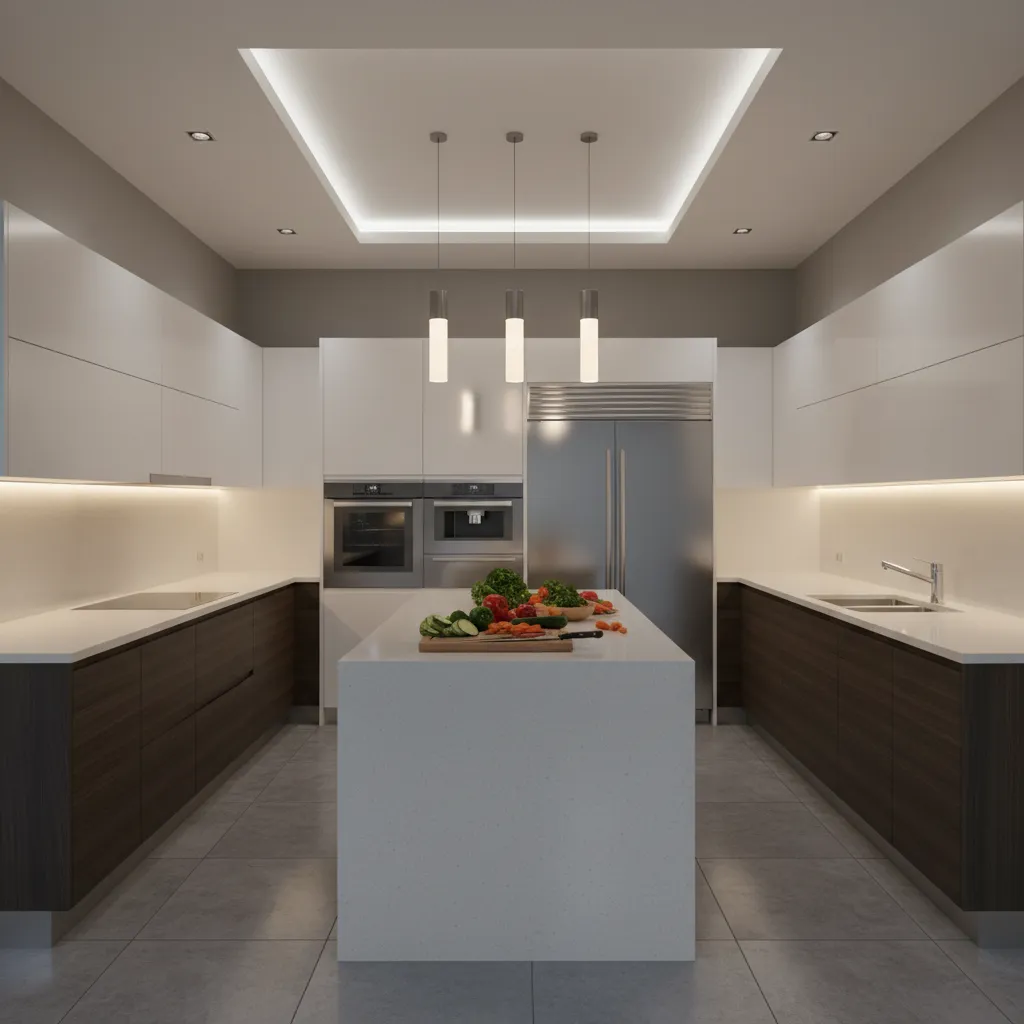

Where Should the Island Sit Inside the U Layout?

Key Insight: The island should align with the main prep zone rather than sitting perfectly centered.

A mistake I see constantly is placing the island exactly in the middle of the room. That might look symmetrical, but it often disrupts how people actually cook.

A better approach is aligning the island with the primary work zone—usually between the sink and cooktop.

Typical island roles include:

1. Prep surface with extra counter depth
2. Secondary sink for food preparation
3. Casual seating facing the living area
4. Storage for cookware or small appliances

Design visualization helps avoid layout mistakes early. Many designers preview these layouts using tools similar to a visual 3D kitchen floor planning environment, which allows you to test walking paths and cabinet openings before construction begins.

Common Design Mistakes Most Articles Don’t Mention

Key Insight: The biggest problems with U-shaped kitchens aren’t visual—they’re workflow issues that appear only after the kitchen is used daily.

After working on dozens of remodels, a few mistakes show up repeatedly.

1. Oversized islands — Large islands look impressive but can choke circulation space.
2. Appliance traffic conflicts — The refrigerator door often blocks walkways.
3. Dead corner cabinets — U layouts create storage corners that require special hardware.
4. Too many seating stools — Seating often reduces prep workspace.

One project in Pasadena perfectly illustrated this. The homeowners insisted on seating for five around the island. After construction, nobody could walk through the kitchen while someone was sitting there. We eventually reduced the seating to three and the entire room started working again.

save pin

Should the Island Include Appliances or Stay Simple?

Key Insight: In most U-shaped kitchens, the island works best as a prep and social space rather than housing major appliances.

While some designs include cooktops or sinks in the island, doing so introduces plumbing, ventilation, and safety considerations.

Here’s a quick comparison:

1. Prep-only island: simpler installation, cleaner workflow
2. Island with sink: great for prep stations but increases plumbing cost
3. Island with cooktop: dramatic but often disrupts social seating

From experience, most families prefer a clean prep island with storage underneath and seating on one side.

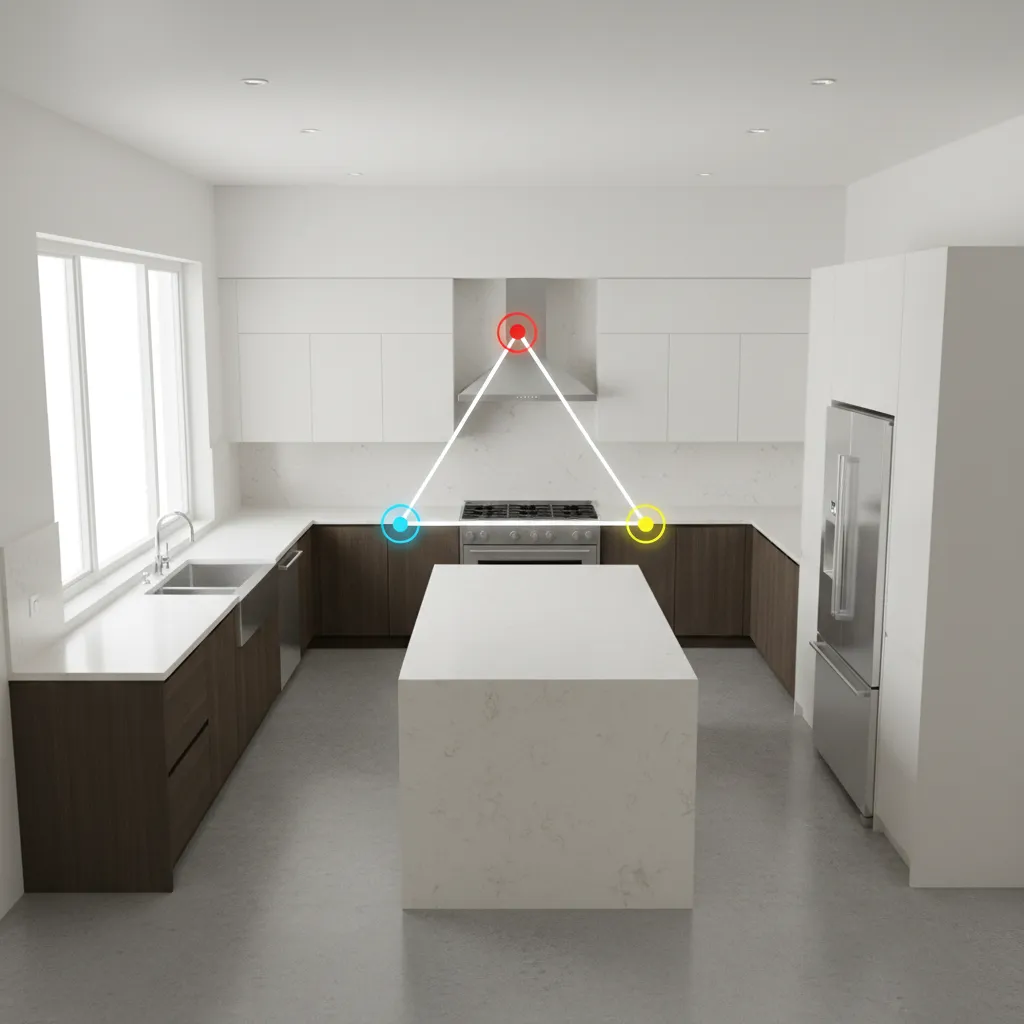

How Designers Plan the Workflow in This Layout

Key Insight: The island should strengthen the work triangle rather than creating a fourth competing zone.

Professional kitchen planning typically follows these steps:

1. Place sink and dishwasher first
2. Position cooktop along one wall of the U
3. Locate refrigerator near kitchen entry
4. Add island aligned with prep area
5. Check all clearances and walking paths

Visualization helps avoid costly mistakes before cabinets are installed. Many homeowners now experiment with layout ideas using an interactive interior layout design visualizerto test furniture scale, cabinet placement, and traffic flow.

save pin

Answer Box

A successful U shaped kitchen with island floor plan depends on clearance space and workflow alignment. When the room is at least 12–14 feet wide and the island supports the prep zone, the layout becomes both efficient and social without blocking movement.

Final Summary

1. A U-shaped kitchen with island needs at least 12 feet of width.
2. Maintain 42–48 inches of clearance around the island.
3. The island should support prep zones, not interrupt them.
4. Oversized islands are the most common layout mistake.
5. Visual planning tools prevent costly remodeling errors.

FAQ

1. What size room is needed for a U shaped kitchen with island floor plan?

A minimum width of about 12 feet is recommended. Larger kitchens around 14–16 feet wide allow comfortable circulation and seating.

2. Can a small kitchen have a U-shaped layout with an island?

Usually not. Small kitchens often work better with a peninsula instead of an island because clearance space becomes too tight.

3. How big should the island be in a U-shaped kitchen?

Most islands work well between 24–36 inches deep and 4–6 feet long depending on the room size.

4. Is a U shaped kitchen with island floor plan efficient for cooking?

Yes, when the island supports the work triangle between sink, stove, and refrigerator.

5. Should the sink be on the island or the wall?

Many designers prefer keeping the main sink on the wall and using the island for prep and seating.

6. How many seats can an island realistically support?

Three to four stools work best in most kitchens without crowding circulation space.

7. Does a U-shaped kitchen increase home value?

Well-designed kitchens with islands are highly attractive to buyers, especially in open-plan homes.

8. What is the biggest mistake in U-shaped kitchens?

Adding an island without enough clearance space, which blocks cabinet doors and walkways.
