Wall Cut Out Between Kitchen and Living Room: Design Guide: When a kitchen pass-through improves layout, lighting, and social flow—and when it creates hidden problems.

Direct Answer

A wall cut out between kitchen and living room—often called a pass-through or kitchen wall opening—creates visual connection, improves natural light, and makes small homes feel larger. However, the size, height, and structural limits of the opening determine whether it enhances the layout or causes noise, clutter visibility, and lost storage.

Quick Takeaways

1. A kitchen wall cut out improves sightlines and natural light in closed floor plans.
2. Structural walls require engineering review before cutting an opening.
3. Incorrect opening height is the most common design mistake.
4. A pass-through works best when it aligns with kitchen work zones.
5. Adding a ledge or counter turns the opening into usable space.

Introduction

In many renovation projects, a wall cut out between kitchen and living room becomes the compromise between a fully open concept and a traditional closed layout. I’ve recommended it in dozens of remodels—especially in older homes built in the 70s, 80s, and early 90s where kitchens were boxed in.

Homeowners usually come in with the same concern: they want the kitchen to feel connected to the living space without tearing down the entire wall. Sometimes the wall is structural. Sometimes removing it would eliminate upper cabinets or mechanical lines. In those situations, a carefully designed opening can completely change how the home feels.

Before committing to construction, I often suggest testing layout options with a visual kitchen layout planning tool that shows traffic flow and counter placement. Seeing how the opening aligns with cabinets, appliances, and seating often prevents expensive mistakes.

What most articles don’t explain is that pass‑through openings are surprisingly easy to get wrong. I’ve seen beautiful renovations ruined by openings placed too high, too small, or directly behind messy prep zones. Let’s break down how to design one properly.

save pin

Why Do Homeowners Add a Wall Cut Out Between Kitchen and Living Room?

Key Insight: The biggest benefit of a kitchen wall opening is spatial perception—your home instantly feels larger without changing the footprint.

In smaller homes or older layouts, kitchens were designed as isolated workspaces. Today, cooking is social. Families talk, entertain, and supervise kids from the kitchen.

A wall opening solves several layout problems at once:

1. Allows conversation between rooms
2. Brings natural light into enclosed kitchens
3. Makes small homes feel visually larger
4. Creates serving access during gatherings
5. Maintains partial wall structure for cabinets

According to remodeling trends reported by the National Association of Home Builders, partial wall openings are increasingly used in renovations where full open-concept conversions aren't practical.

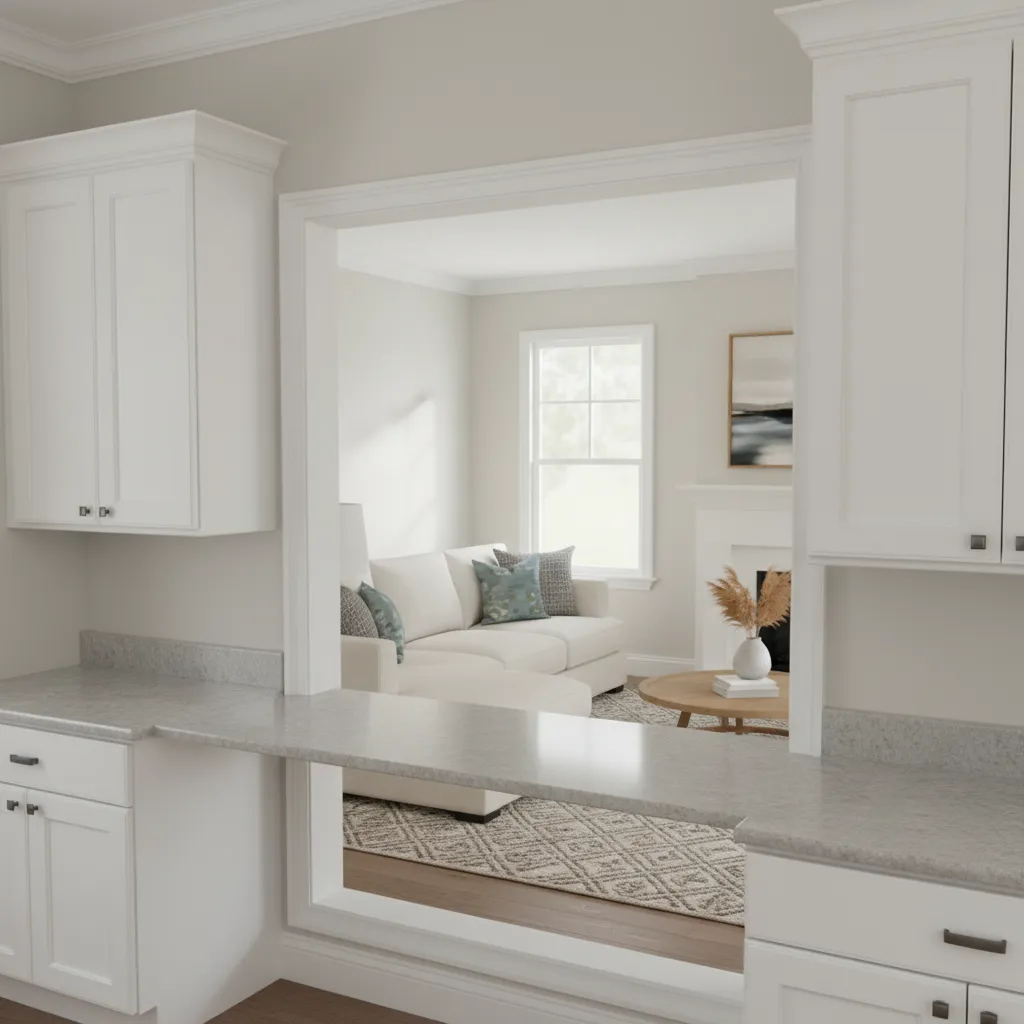

What Is the Ideal Size for a Kitchen Pass-Through Opening?

Key Insight: Most well-designed pass-through openings are between 36–60 inches wide and positioned 42–48 inches above the floor.

Proportion is everything. An opening that is too small looks accidental. Too large, and the remaining wall loses structural and visual balance.

Typical dimensions I recommend in residential projects:

1. Width: 36–60 inches
2. Height from floor: 42–48 inches
3. Opening height: 18–24 inches
4. Counter ledge depth: 8–12 inches

Why these numbers matter: they align the opening with standard kitchen counter height and typical living room sightlines.

save pin

Is the Wall Structural? Why This Changes Everything

Key Insight: Cutting into a load‑bearing wall is possible, but it requires a header beam and structural review.

This is the point where many DIY projects go sideways. About half the kitchen-to-living-room walls I evaluate turn out to be load-bearing.

When that happens, contractors must install a structural header beam above the opening to redistribute weight.

Typical process:

1. Structural assessment
2. Temporary wall support
3. Cutting the opening
4. Installing header beam
5. Drywall finishing

Costs vary widely depending on span length and structure, but this step is non‑negotiable for safety.

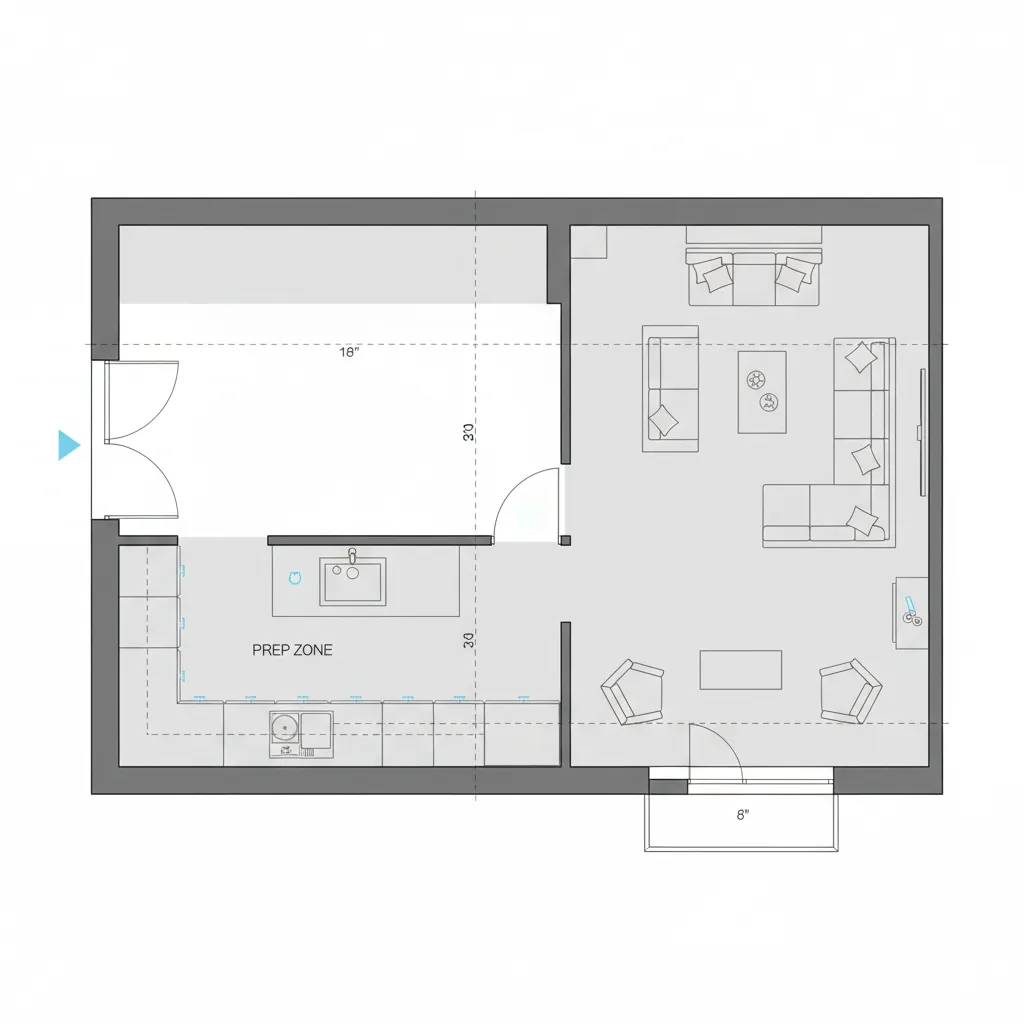

Where Should the Opening Be Placed in the Kitchen Wall?

Key Insight: The opening should align with prep or serving zones—not the sink or cooking area.

This is a mistake I see constantly. Homeowners center the opening on the wall, but kitchens rarely function symmetrically.

The best placements usually fall into one of these categories:

1. Above a peninsula or counter extension
2. Near the dining transition
3. At the end of a cabinet run
4. Aligned with a beverage station

If the opening sits directly above the sink or cooktop, it often exposes clutter, grease splatter, or ventilation equipment.

Many designers model the layout first using tools like a 3D floor planning tool for visualizing wall openings and furniture placement. This makes it easy to test viewing angles from the living room before construction begins.

save pin

Hidden Downsides Most Renovation Guides Ignore

Key Insight: A poorly planned kitchen wall cut out can remove valuable cabinet space and increase visual clutter.

Most renovation blogs only talk about the benefits, but after years of projects I’ve seen several drawbacks.

Common issues include:

1. Loss of upper cabinet storage
2. Cooking noise traveling into living areas
3. Visible kitchen mess during entertaining
4. Reduced wall space for appliances
5. Lighting imbalance between rooms

In smaller kitchens especially, losing just one cabinet section can remove 10–15% of total storage.

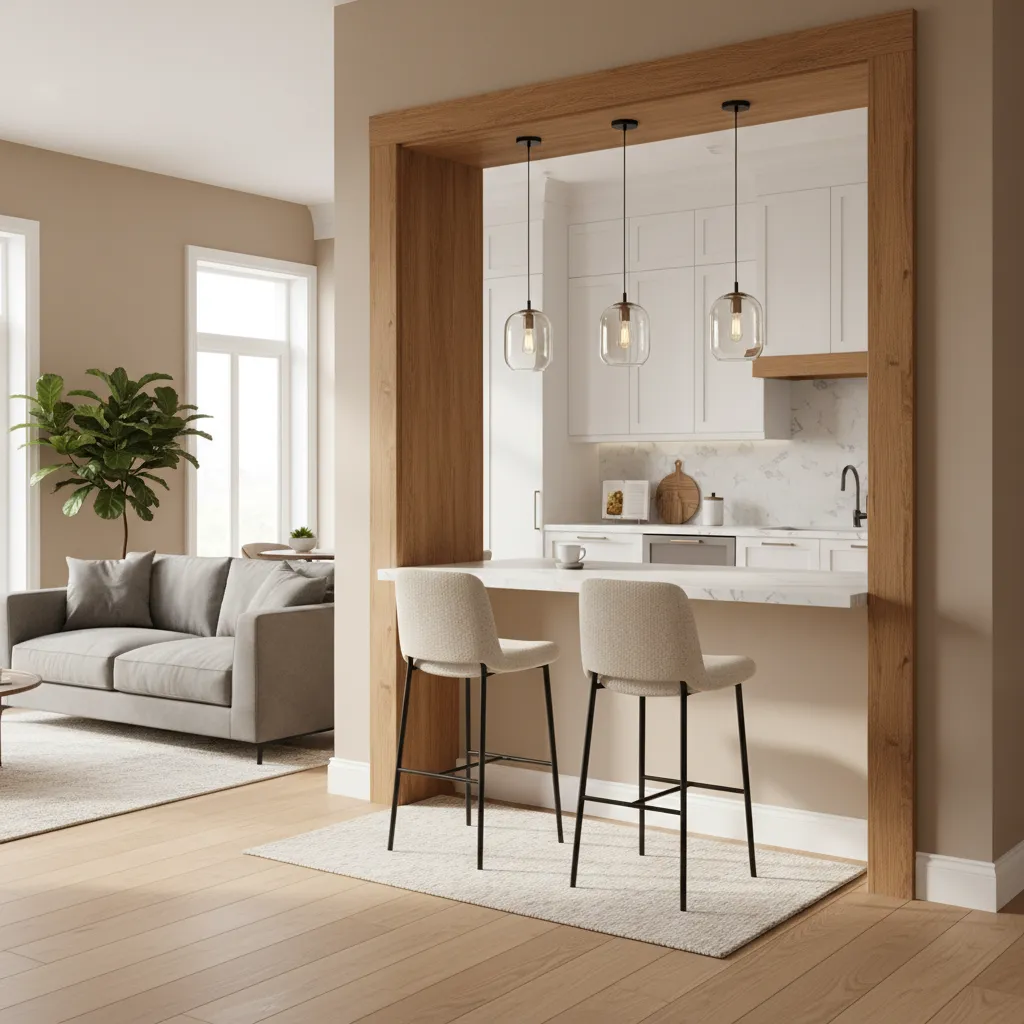

Design Ideas That Make a Pass-Through Look Intentional

Key Insight: The most successful pass-through openings look like architectural features, not holes cut in drywall.

Several design treatments consistently elevate the look:

1. Framed trim or casing around the opening
2. Stone or quartz ledge extension
3. Arched or curved openings
4. Floating wood shelf across the bottom
5. Integrated bar seating

I’ve also seen homeowners experiment with AI visualization tools to preview these styles before renovation using interactive AI interior design simulations for kitchen renovations.

save pin

Answer Box

A wall cut out between kitchen and living room works best when it aligns with counter height, avoids structural conflicts, and functions as a serving or social connection point. The biggest design mistake is placing the opening purely for symmetry instead of kitchen workflow.

Final Summary

1. A wall cut out creates connection without fully removing walls.
2. Proper height and width determine whether it looks intentional.
3. Structural walls require engineered headers.
4. Placement should support kitchen workflow.
5. Design finishes turn the opening into an architectural feature.

FAQ

What is a wall cut out between kitchen and living room called?

It is commonly called a kitchen pass-through, wall opening, or serving hatch.

Is a wall cut out between kitchen and living room a good idea?

Yes, it can improve lighting and connection between spaces while keeping some wall structure for cabinets.

Can you cut an opening in a load-bearing wall?

Yes, but a structural header beam must be installed to support the load above.

How big should a kitchen pass-through be?

Most are 36–60 inches wide with the bottom aligned near standard counter height.

Does a kitchen wall opening increase home value?

It can improve perceived space and buyer appeal, especially in older closed-floor-plan homes.

What is the best height for a wall cut out between kitchen and living room?

Typically 42–48 inches from the floor, aligning with counter height.

Can you add seating to a pass-through opening?

Yes. Adding a counter ledge creates a breakfast bar or casual dining spot.

Do kitchen pass-throughs look outdated?

Older styles can feel dated, but modern framed openings or counter extensions make them look contemporary.
