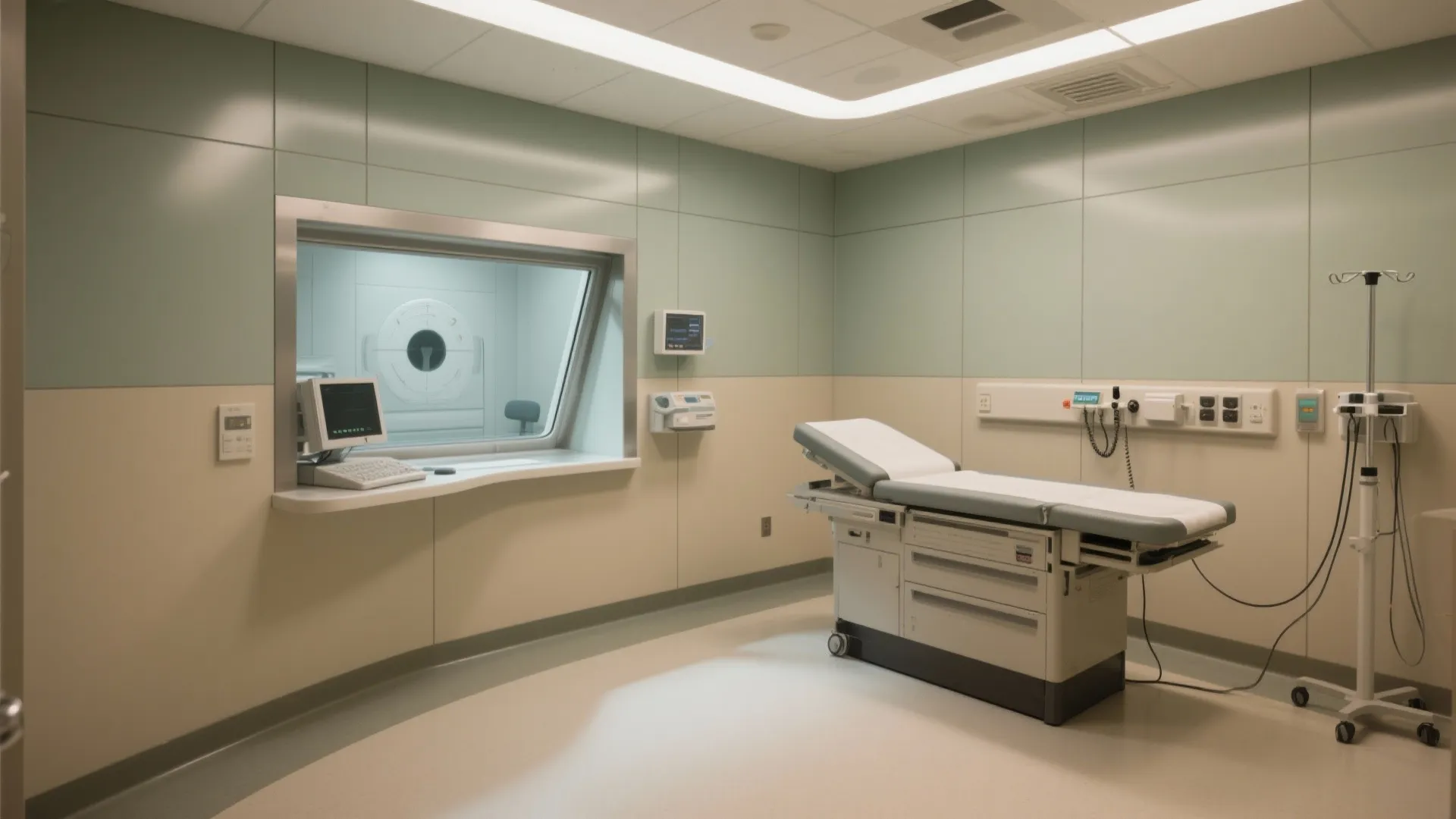

X-ray Room Design: 5 Small-Space Ideas: How I blend safety, workflow, and calm in compact imaging rooms without blowing the budget

A dentist once asked me if we could add a neon “Smile!” sign inside their X-ray room. Cute idea—until I remembered neon tubes, reflections, and lead glass don’t vibe well. I mocked up a scaled room mockup that showed the glare disaster waiting to happen, and we moved the sign to the hallway. That day reminded me that small spaces demand big creativity—and in x ray room design, tiny missteps can ripple into safety and workflow.

So, let me share five ideas I lean on when designing compact X-ray rooms. These come from real projects, a couple of near-misses, and a lot of collaboration with medical physicists and techs.

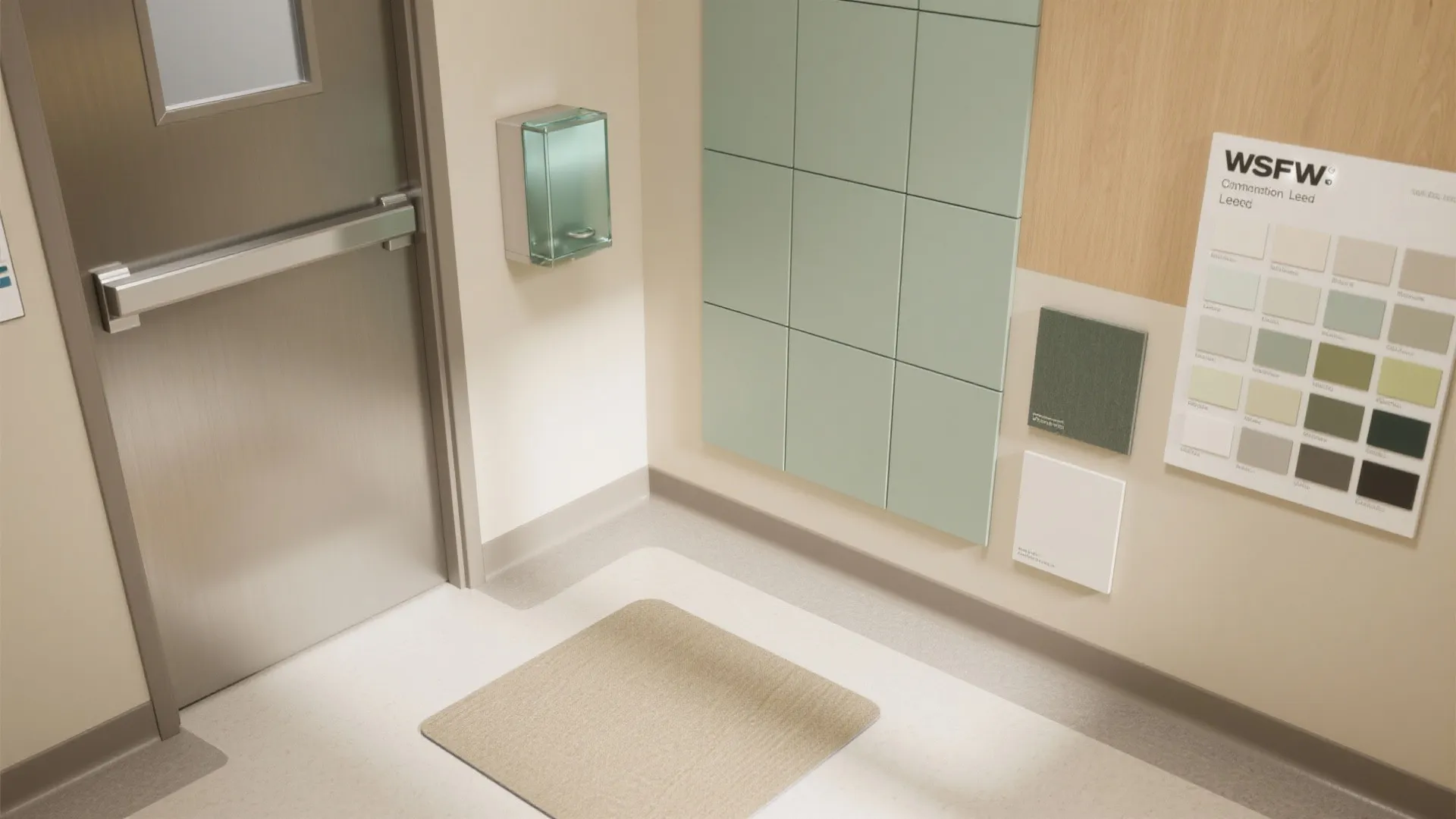

Idea 1: Shielding-smart finishes that still feel human

Lead-lined drywall, doors, and proper overlap details are non-negotiable, but the space doesn’t have to feel like a bunker. I pair compliant barriers with warm, wipeable wall panels, matte surfaces to reduce reflections, and a gentle palette that keeps anxiety down.

The trick is coordinating materials early with the physicist’s shielding report. Lead glass windows, door hardware, and frame details add cost and weight, so budget for structural support and longer lead times.

save pin

Idea 2: Flow-first layout for patients and staff

I start with a simple path: entry, quick gowning, positioning, exposure, and exit—no awkward backtracking. Clear zones reduce stress for first-time patients and keep techs from bumping elbows with the generator cart.

In small rooms, every inch matters—ADA turning radii, cassette/DR panel storage, and emergency egress need to be mapped precisely. When the equipment footprint grows, I’ll recess storage or use built-ins to reclaim circulation without crowding.

save pin

Idea 3: Control booth sightlines without visual chaos

Place the operator’s booth so you get a direct, unobstructed view of the patient, ideally with an angled lead glass window to cut reflections. I love a compact L-shaped barrier that keeps the monitor shielded while preserving the tech’s eye contact.

Before committing, I run an operator's sightline simulation to test monitor positions, glare, and cable reach. The only headache is routing power/data under shielding layers—plan conduit paths early to avoid patchwork fixes.

save pin

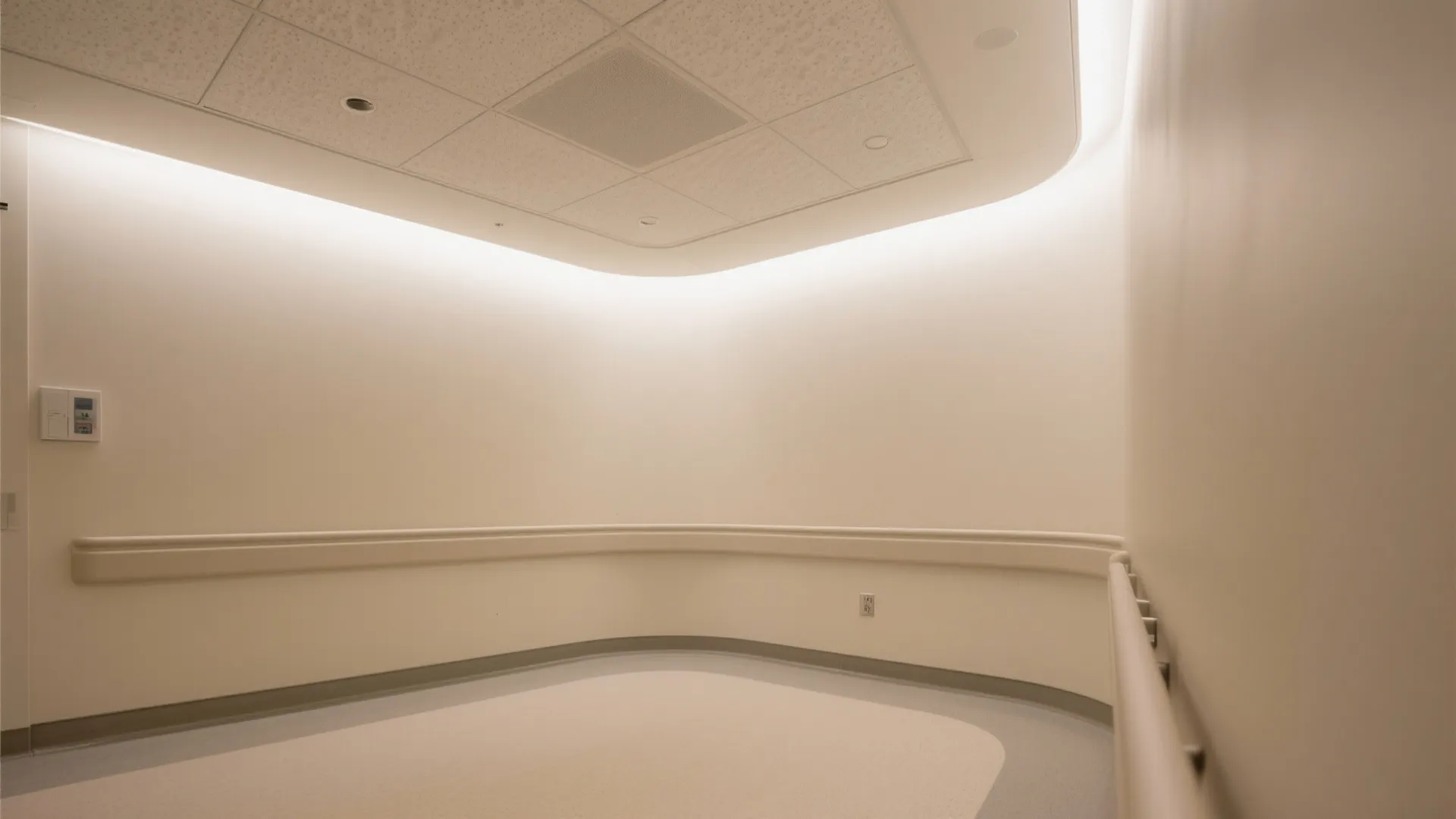

Idea 4: Lighting and acoustics to calm nerves

Flicker-free, dimmable lighting (no strobing near imaging) is essential. I use indirect cove or wall-wash lighting with a warm-neutral color temperature and a quiet task light at the console—comfort without hot spots on shiny surfaces.

For acoustics, high-NRC panels and soft flooring reduce the “clinical echo” that spikes anxiety. Just keep porous finishes away from splash zones and ensure everything is cleanable to healthcare standards.

save pin

Idea 5: Future-proof power, cable paths, and maintenance access

X-ray rooms evolve—DR upgrades, new generators, and different brackets happen. I specify spare conduits, oversized backboxes, and a small service chase so changes don’t mean opening shielded walls every time.

We’ll mock up AI-assisted layout variations to pressure-test cable routing and service clearances. It saves headaches later, though you’ll still need your vendor’s exact specs before drywall closes.

save pin

FAQ

Q1: What size should an X-ray room be?

A: It depends on the equipment, but many general-purpose rooms start around 12–14 ft by 12–16 ft. Dental rooms can be smaller; always verify with vendor cut sheets and local codes.

Q2: How much lead shielding do I need?

A: Shielding thickness is determined by a certified medical physicist using your machine output, workload, and adjacent occupancy. NCRP Report No. 147 is a widely cited basis for these calculations.

Q3: Do I need a medical physicist for x ray room design?

A: Yes—engage one early. They provide the shielding design, verify barriers, and help with compliance documentation before you close up walls.

Q4: Where should the control booth go?

A: Place it where the operator has a clear view of the patient with compliant shielding and convenient access to controls. Angled lead glass can reduce reflections while maintaining sightlines.

Q5: Can I use glass inside the room?

A: Use lead glass where shielding is required; regular glazing won’t protect. Choose matte finishes nearby to minimize glare and ensure frames are detailed with appropriate lead overlap.

Q6: What type of flooring works best?

A: Seamless, healthcare-grade resilient flooring is durable and easy to clean. Avoid high-gloss finishes that reflect light; coved bases help with infection control.

Q7: How should I plan HVAC for X-ray rooms?

A: Provide comfortable, stable temperature and ventilation without drafts at the patient position. Coordinate diffuser placement to avoid blowing directly onto imaging surfaces or kicking up dust.

Q8: What budget items are often overlooked?

A: Lead-lined doors/frames, lead glass, specialized hardware, physicist fees, and equipment-specific electrical/data can add up. Include schedule buffers for material lead times and inspections.
