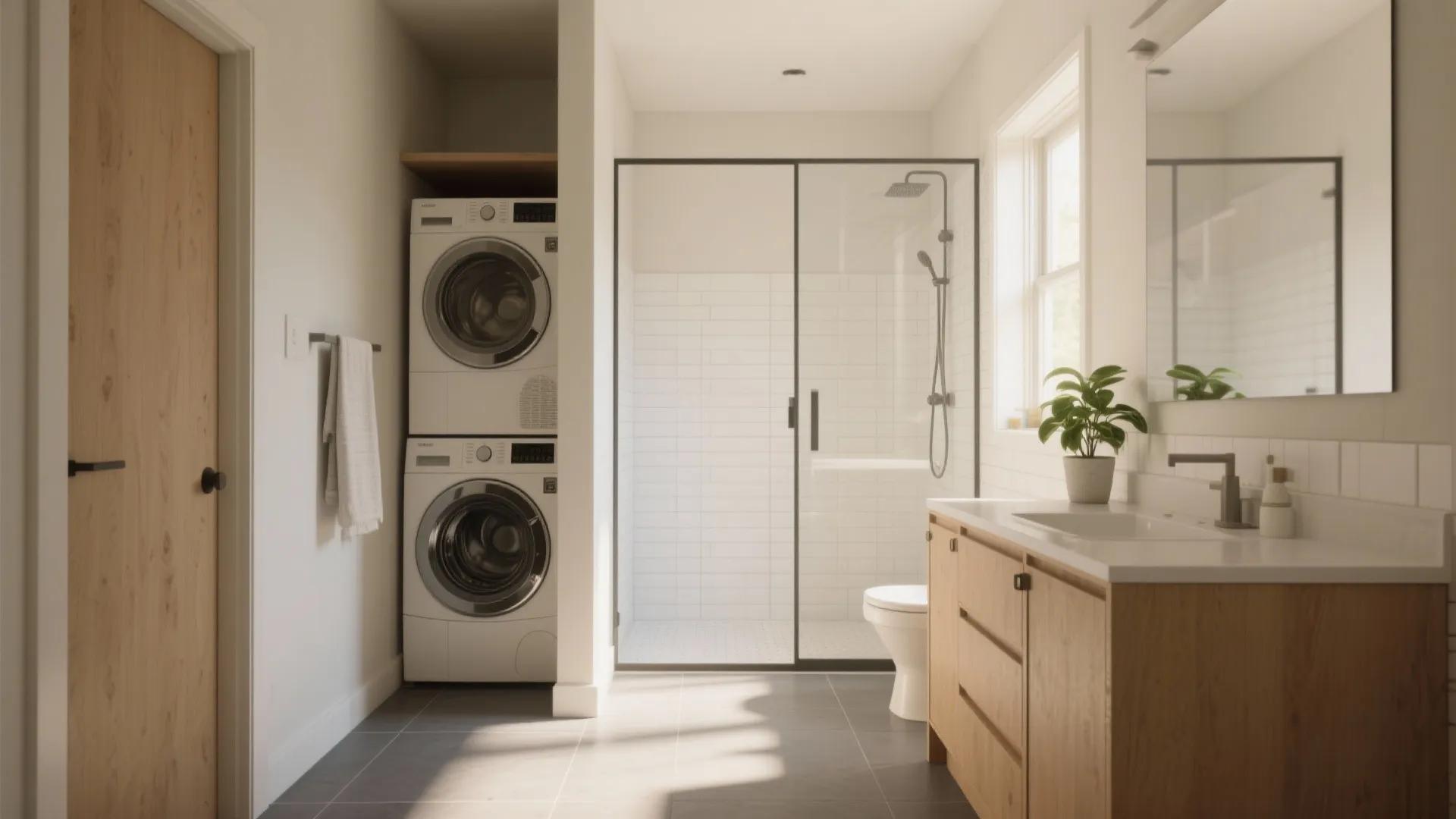

10x8 Bathroom & Laundry Plans — 5 Layout Ideas: Compact 10 x 8 foot bathroom and laundry combos: five practical layouts, storage hacks, and budget tips from a veteran designer

I once had a client who insisted the washing machine had to face the shower “for feng shui.” I almost designed a revolving wall to make it work — don’t ask. That little disaster taught me a better lesson: a 10 x 8 foot bathroom and laundry space forces you to be creative, not cramped. If you want a quick look at a realistic example I turn to my favorite bathroom layout when I sketch ideas.

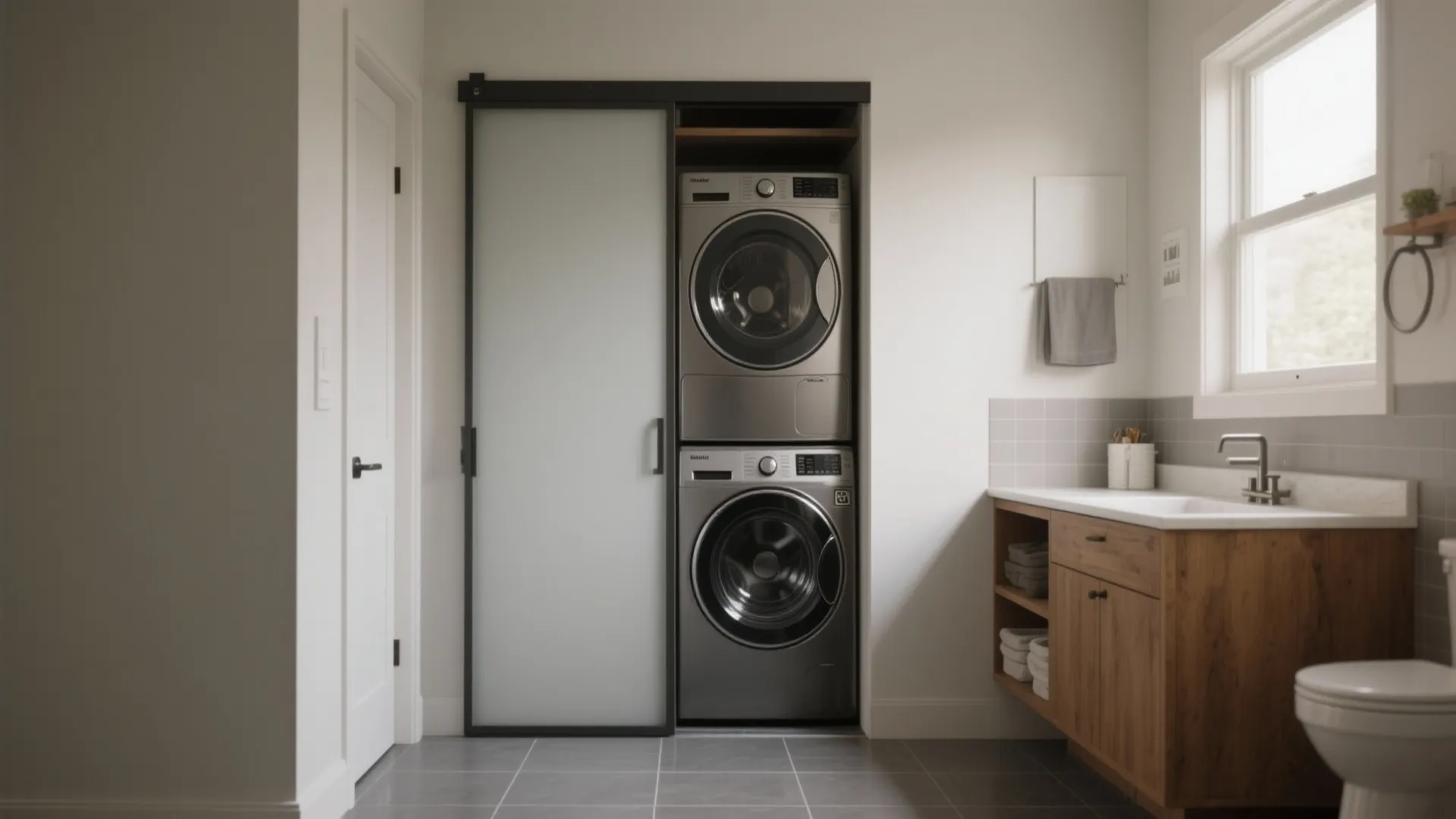

1. Stack-and-slide: Vertical laundry tower with sliding vanity

I love stacking the washer and dryer in a closet opposite a slim sliding-vanity. It frees up floor space and keeps plumbing runs short. The upside is a clear circulation path and easy access to plumbing; the downside is noise if you don’t isolate the machines — add a sound-damping partition or quiet appliance models.

save pin

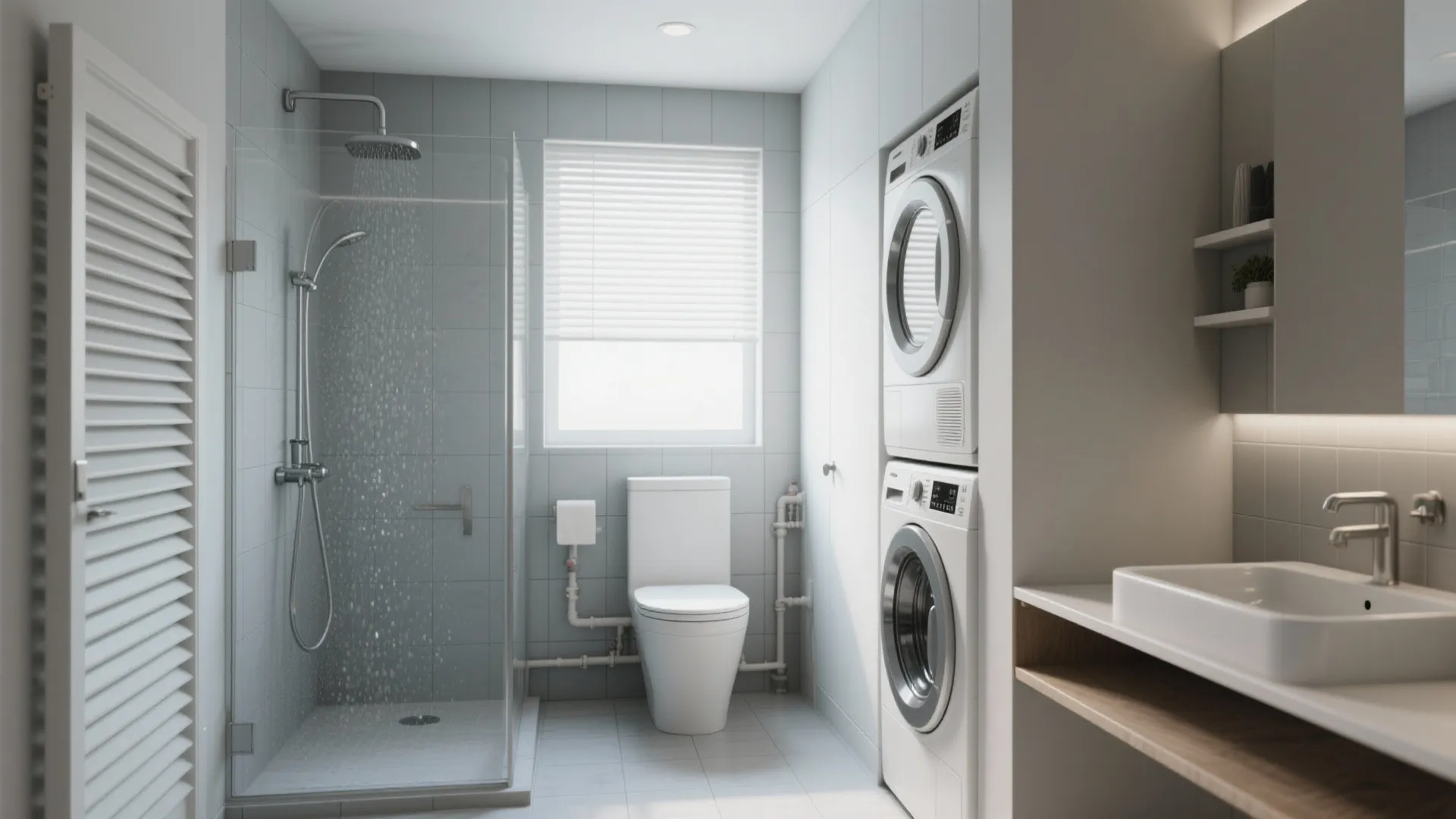

2. Wet-zone on one side: Shower, toilet, and laundry in a row

Put all the wet fixtures along the same wall to simplify plumbing and create a dry zone for storage. I used this layout in a rental remodel: we placed the shower and toilet against the back wall, then tucked the laundry stack in a closet with a shallow louvered door. It costs less in plumbing and cuts renovation time, though you must manage moisture with good ventilation.

save pin

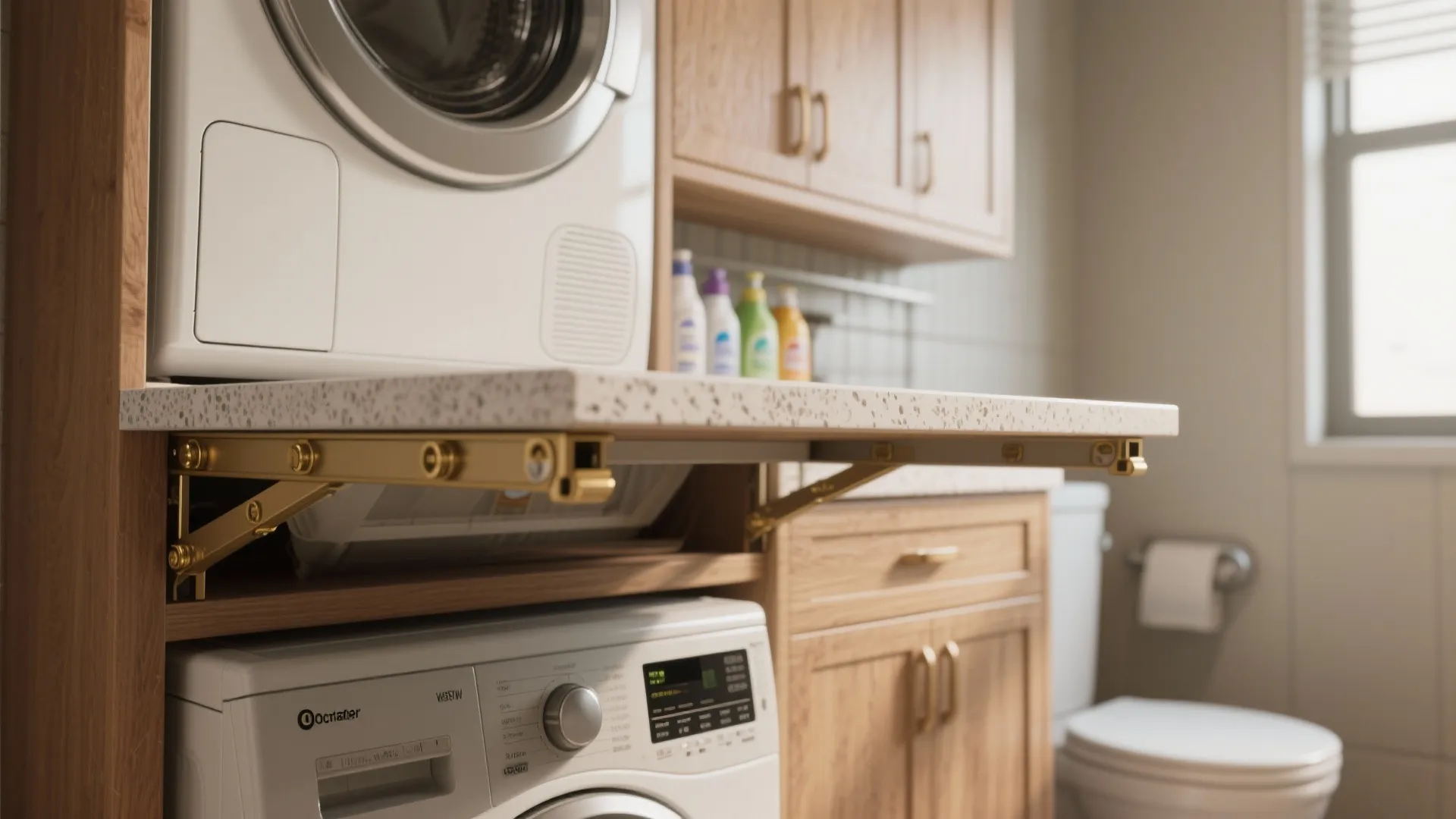

3. Fold-down table + recessed cabinetry: Multi-use efficiency

My favorite small projects always include a fold-down folding table over the dryer and recessed cabinets above the toilet. It’s an instant utility surface and keeps detergents hidden. This tested space-saving plan worked well when a client needed both counter space and towel storage in a tight layout — it feels luxurious without a big budget.

save pin

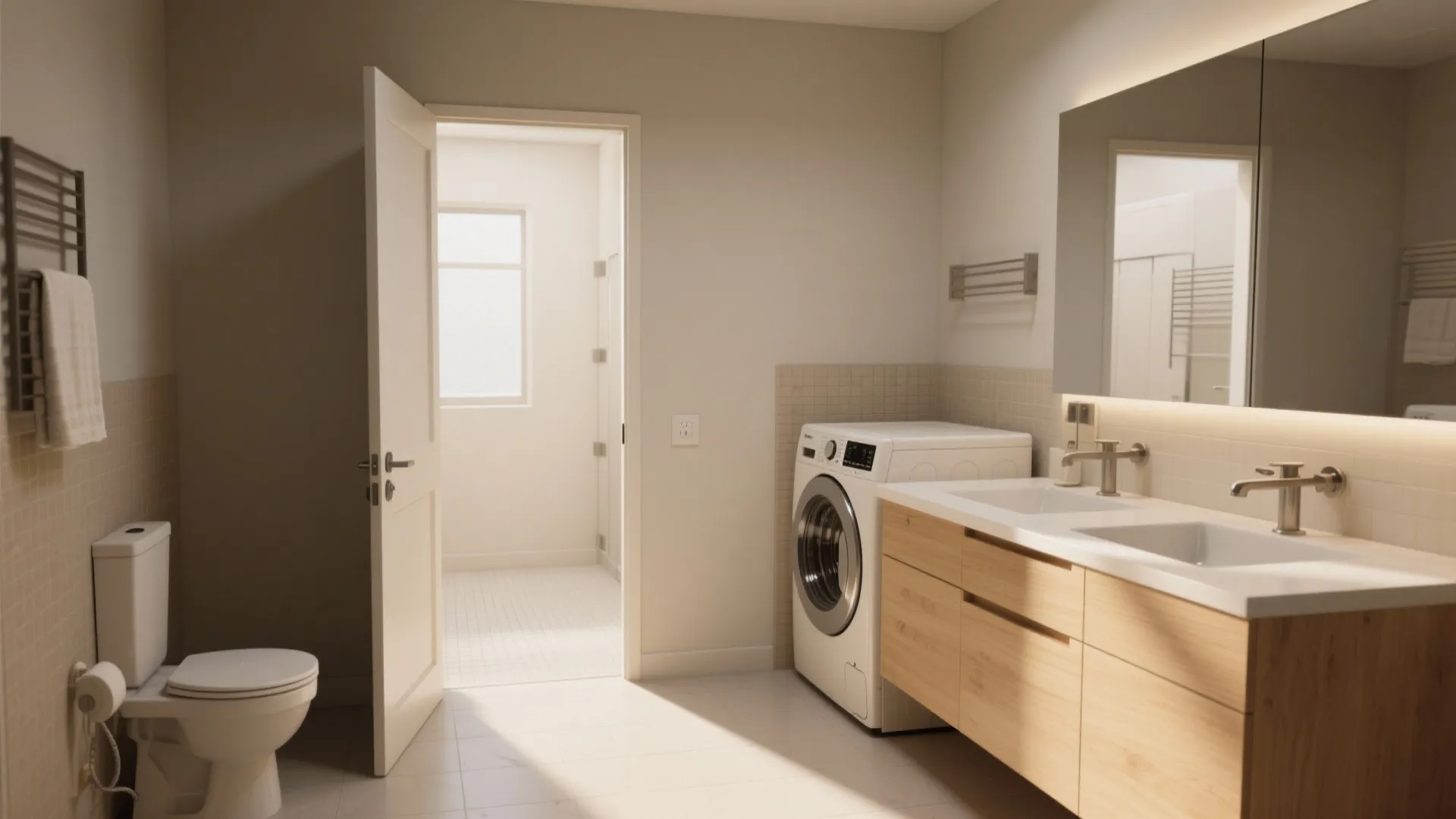

4. Pocket door and L-shaped circulation: Keep the footprint flexible

A pocket door saves swing space and an L-shaped arrangement (sink on one wall, washer/dryer on the adjacent) gives a comfortable path. I once replaced a hinged door with a pocket door and the whole room felt larger overnight. The trade-off is the slightly higher cost for pocket hardware and planning a clear jamb space.

save pin

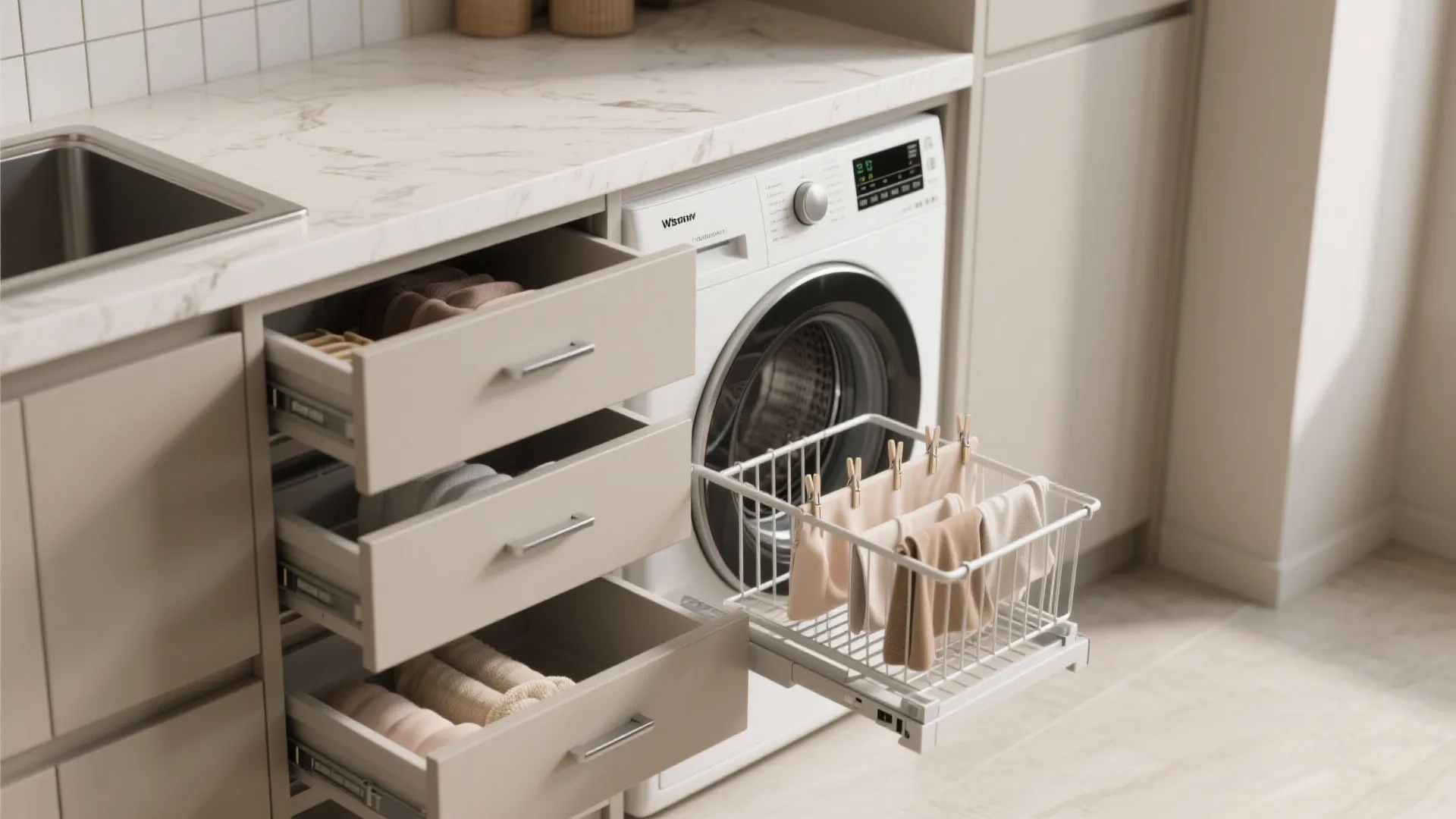

5. Under-counter washer + pull-out drying rack: Compact utility strip

Place a front-loading washer under the counter with shallow drawers beside it and a pull-out drying rack overhead — perfect for delicate items. For visualization and quick plan checks I like to simulate the layout before ordering fixtures; try visualizing the plan in 3D to confirm clearances and sightlines. This approach keeps the room tidy and multi-functional, though circulation can feel tight if you overdo cabinet depth.

save pin

Practical tips and budget reminders

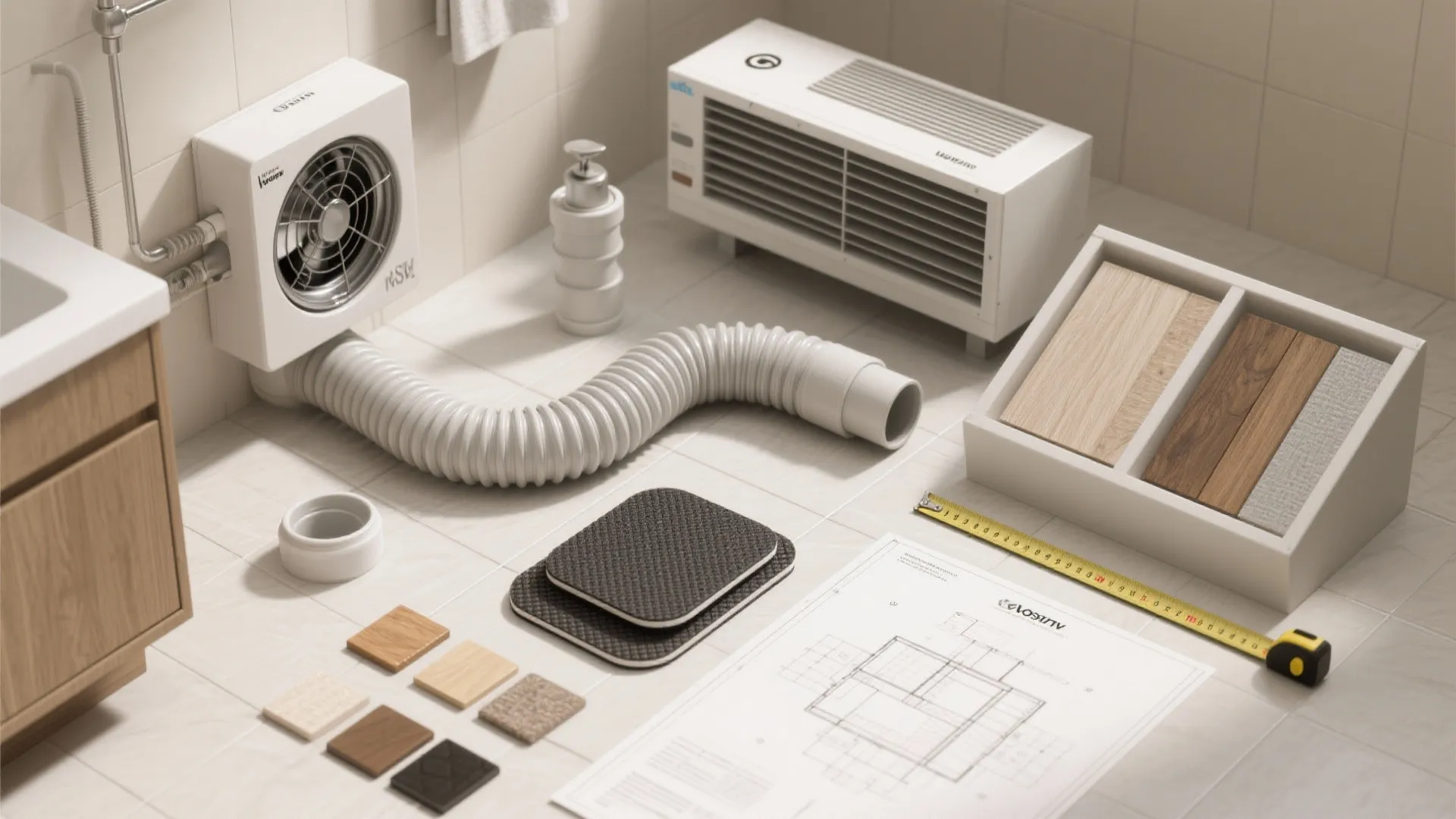

Always plan plumbing first: aligning fixtures reduces both material and labor costs. If you’re on a tight budget, prioritize a good ventilation fan and a reliable washer; these two items raise daily comfort the most. I also suggest buying modular cabinetry — you can adapt pieces later if needs change.

save pin

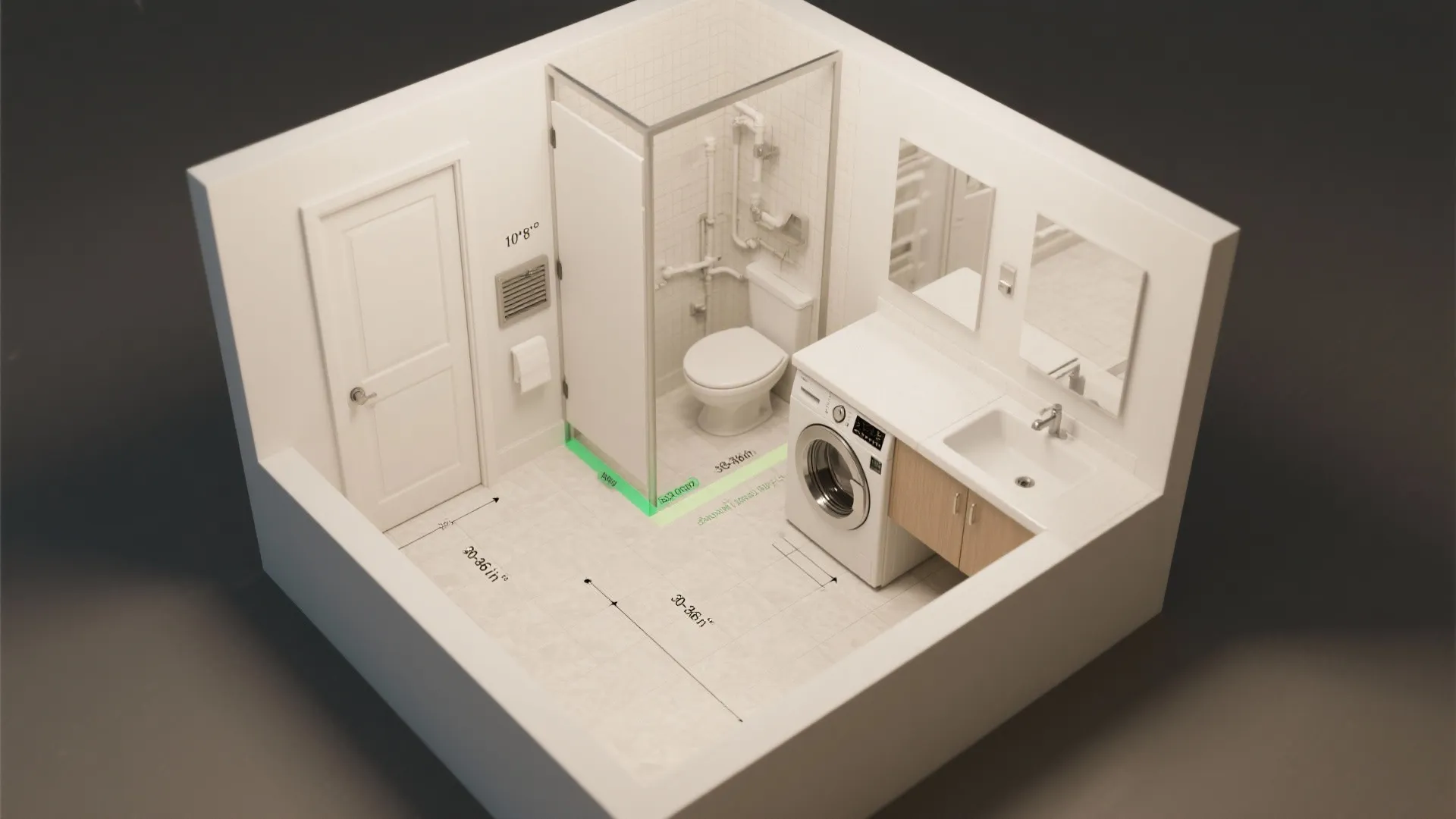

Quick checklist before you start

Measure door swings, confirm venting routes, and decide if the washer will be stacked or under-counter. If you want to tinker with arrangements at home, a free plan tool saved my team hours when exploring options — use a tested space-saving plan online to mock up layouts before committing.

save pin

FAQ

Q1: Can a washer and dryer fit comfortably in a 10 x 8 foot bathroom?

A: Yes. With a stacked washer/dryer or under-counter models you can keep circulation space. Plan clearances for doors and a comfortable working aisle of at least 30–36 inches where possible.

Q2: Should the laundry be stacked or side-by-side in this footprint?

A: Stacked saves floor space and frees room for storage or a vanity. Side-by-side gives counter space and easier access but requires more floor width.

Q3: How important is ventilation?

A: Extremely. A good exhaust fan prevents mold and keeps fabrics fresh. For combined laundry/bath spaces, choose a fan rated for both continuous and boost modes.

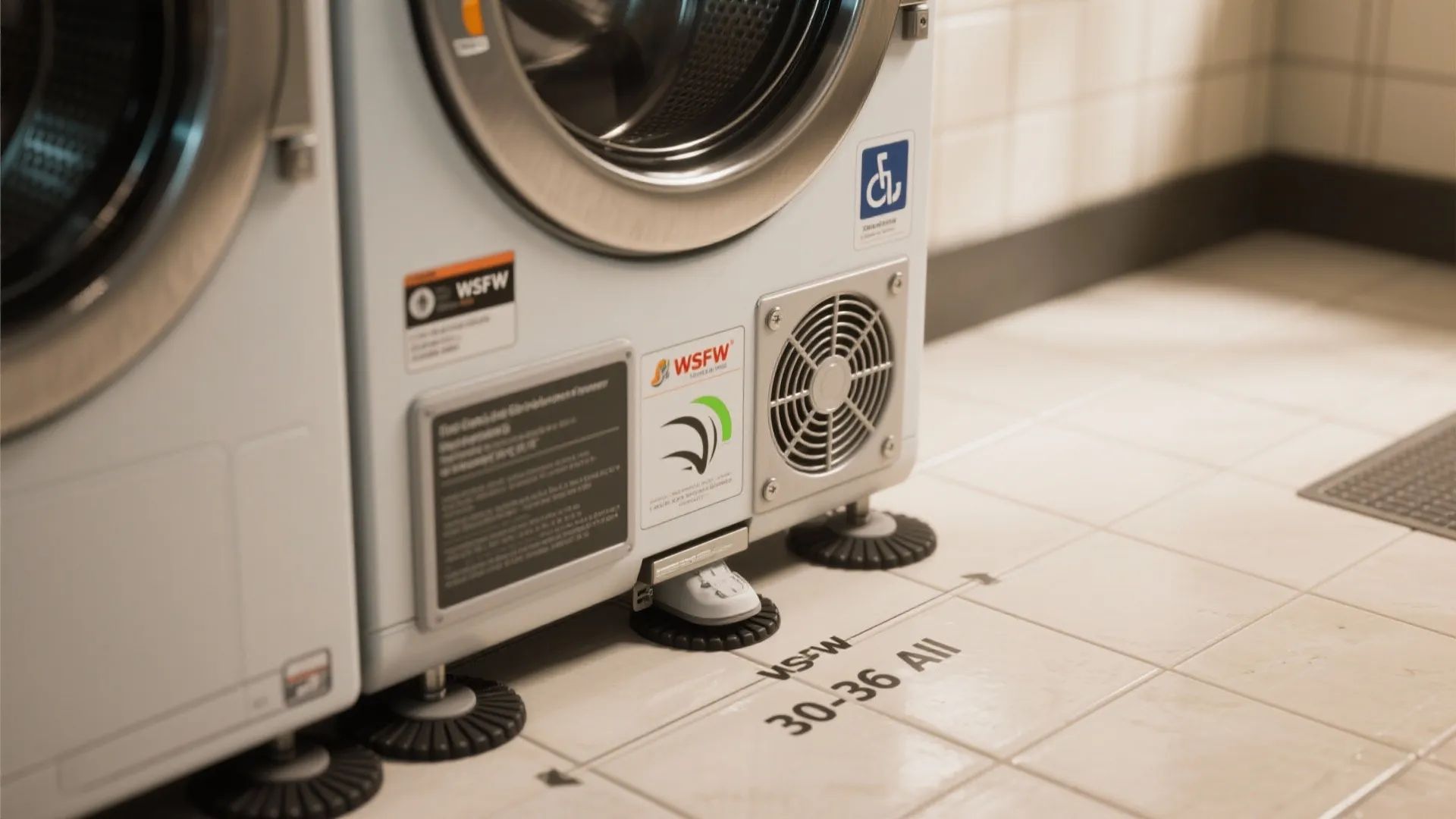

Q4: Any tips for noise control?

A: Use vibration-isolating pads, select quiet appliances, and consider a thin sound-insulating partition around the laundry closet to reduce disturbance in adjacent rooms.

Q5: What clearance do I need for an accessible route?

A: For accessible turn spaces and door clearances, follow ADA standards; see the ADA Standards for Accessible Design (2010) for specifics: https://www.ada.gov/2010ADAstandards_index.htm.

Q6: Can I combine the sink plumbing with the washer to save cost?

A: Yes. Grouping the sink, toilet, and washer on the same wall reduces new drain runs and is often the most budget-friendly approach.

Q7: What flooring works best?

A: Waterproof, slip-resistant tile or vinyl is ideal. Choose materials that tolerate occasional water exposure and are easy to maintain.

Q8: How do I decide between a hinged door and a pocket door?

A: Pocket doors save swing space and make the layout feel larger, but they require wall cavity space and slightly higher installation complexity; hinged doors are cheaper and simpler.
