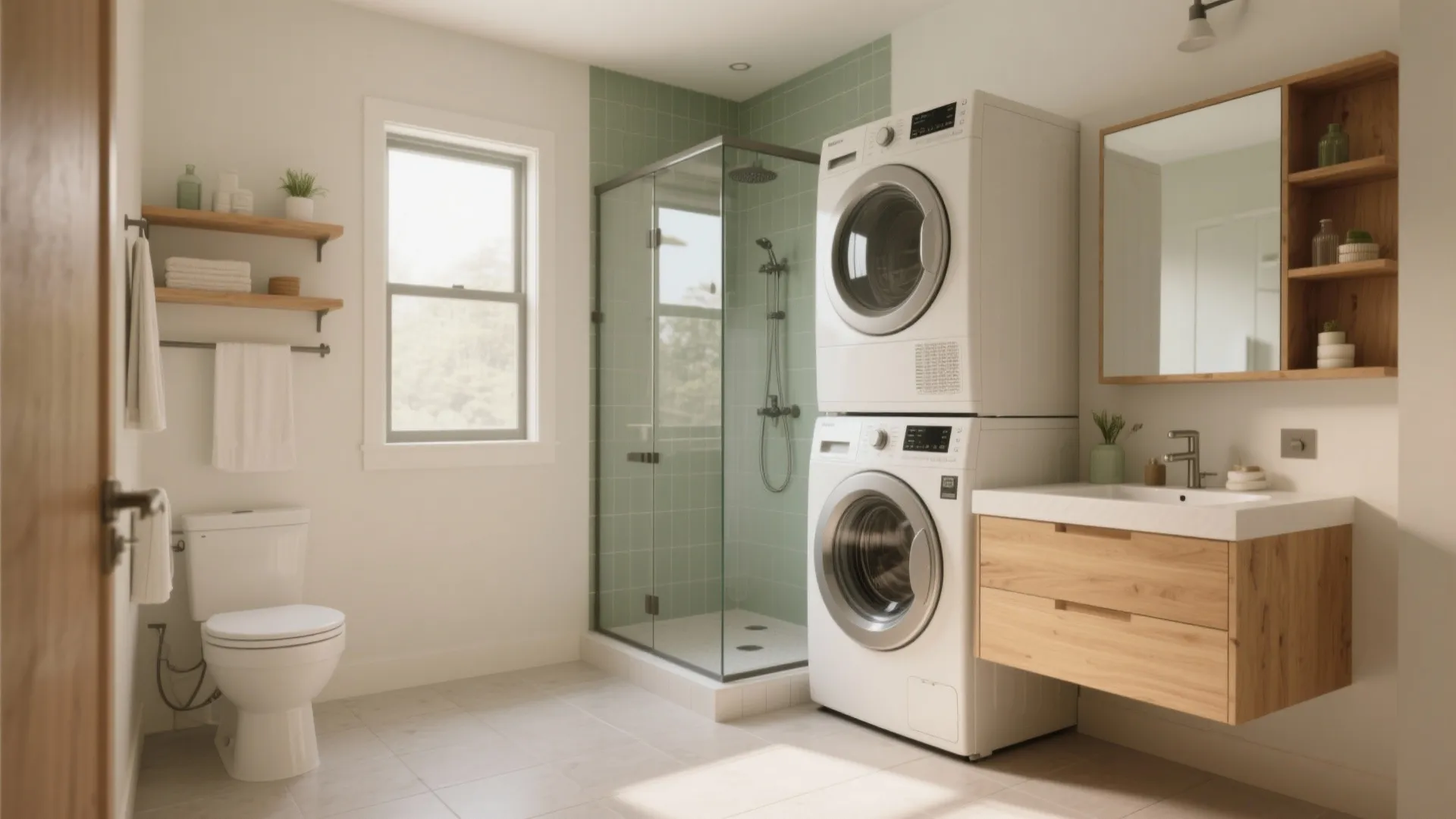

12x12 Half Laundry Half Bathroom: 5 Smart Ideas: Clever layouts and real-world tips for a 12 x 12 room that must serve as both laundry and half-bath

I once had a client who insisted their 12 x 12 room must fit a full shower, a washer-dryer, a vanity, and a towel heater—and still feel airy. That near-impossible ask taught me that small spaces spark big creativity, and sometimes the best solution comes from studying a compact layout case study to steal the good bits. In this piece I share 5 practical design ideas for a 12 x 12 room half laundry half bathroom ideas, drawn from real projects, with pros, trade-offs, and budget tips.

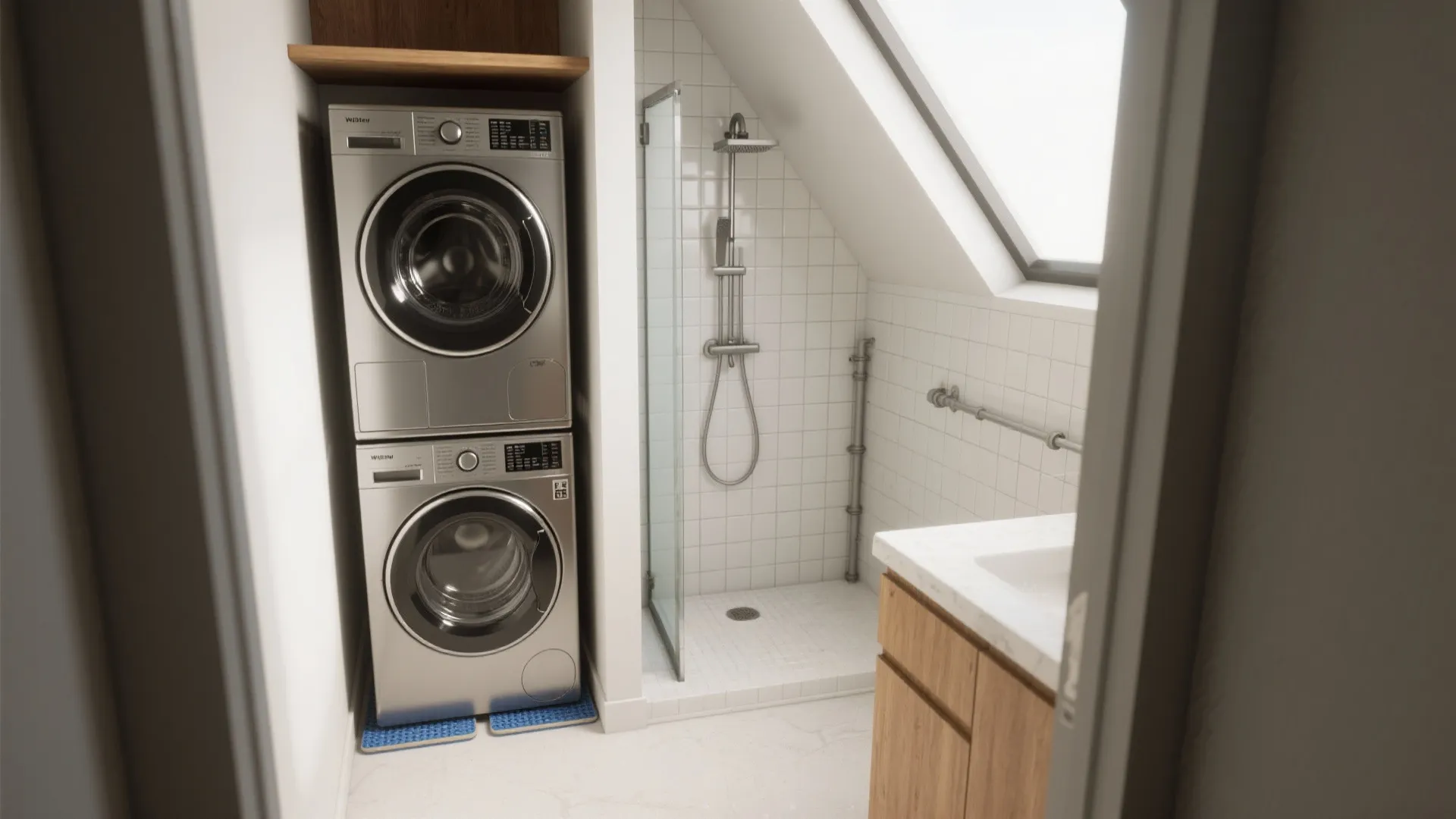

1. Stacked Washer-Dryer with Corner Shower

Stacking the washer and dryer frees a linear run of wall for plumbing and gives room for a corner neo-angle shower. I used this in a walk-up apartment—advantages are clear: minimal footprint and simple plumbing risers; challenges are vibration isolation and access for service. Budget tip: choose a robust stacked kit and add cheap rubber anti-vibe pads to protect finishes; you’ll save money compared to custom cabinetry.

save pin

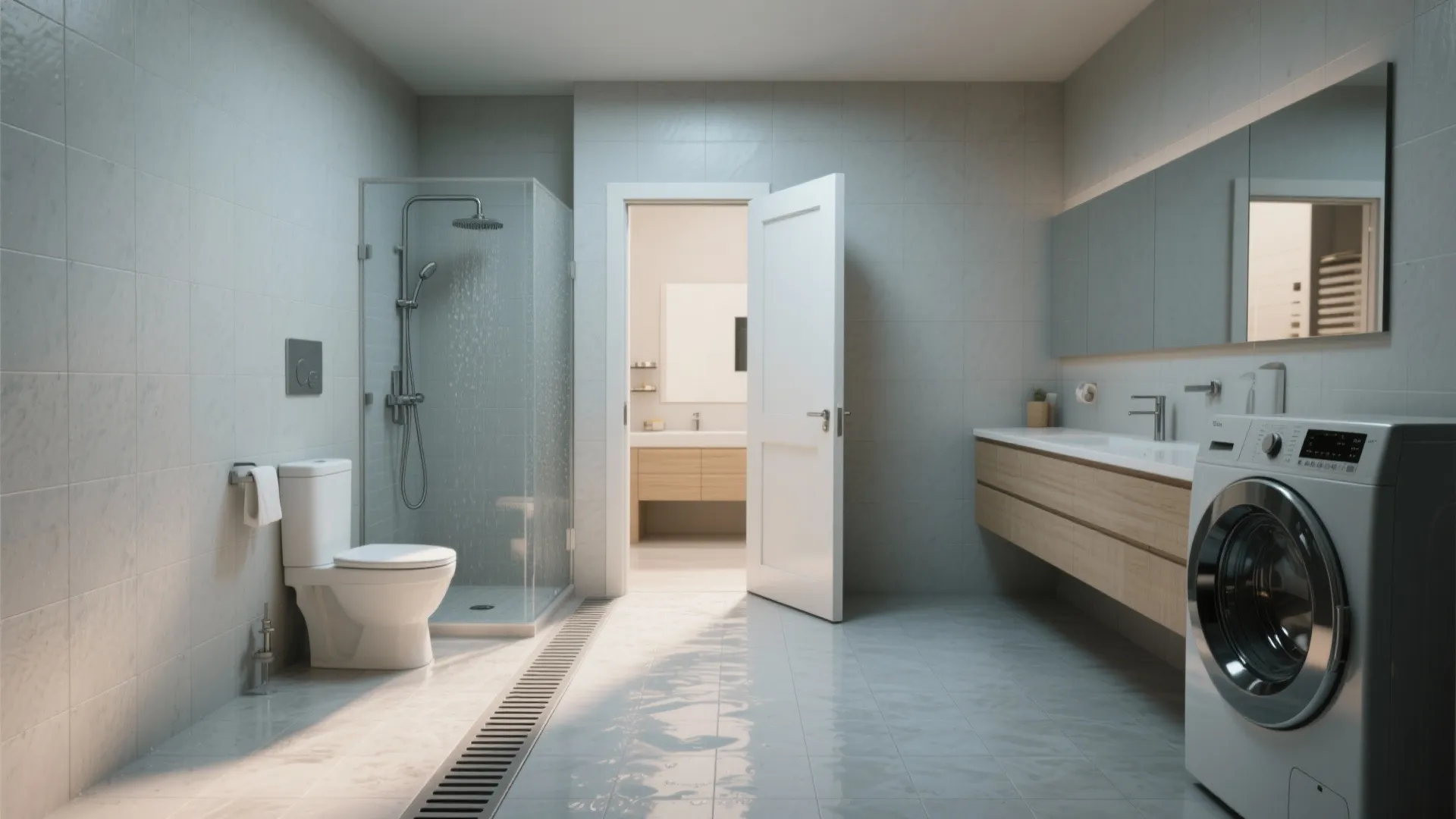

2. Wet Zone with Pocket Door

Create a single wet zone where the shower, toilet, and washer sit on the same waterproofed floor plane, separated by a pocket door from the dry vanity area. This is great for moisture control and makes future upgrades easier, but you need excellent waterproofing and a drained floor. For laying out that shared wet area I often mock up a space-saving combo plan to confirm clearances before buying fixtures.

save pin

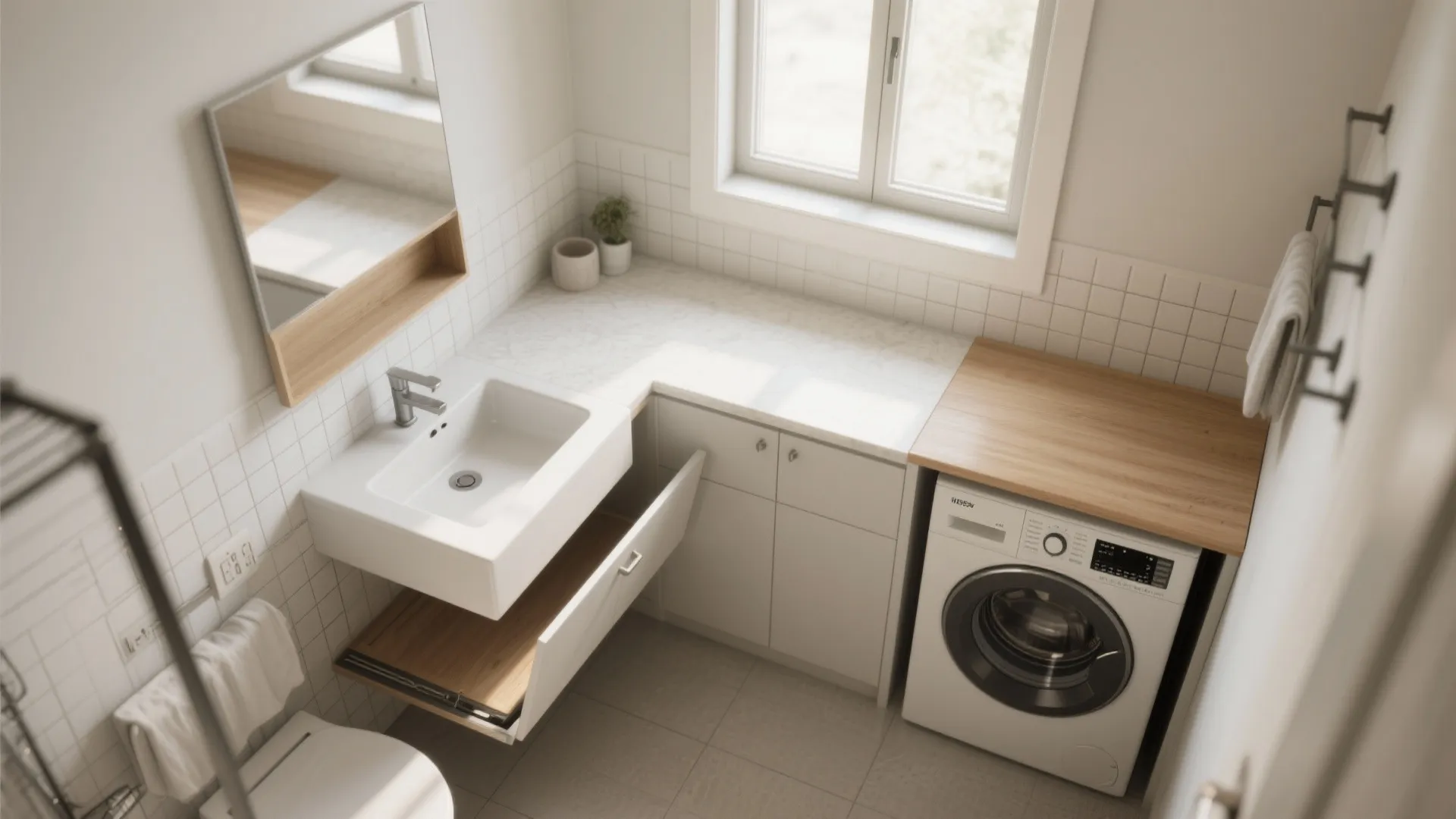

3. Split Zone: Vanity Nook and Fold-Down Counter

Split the room visually: a small floating vanity under a window and a fold-down counter over the washer for folding clothes. It keeps the vanity feeling like a bathroom while giving real laundry work surface; the downside is less permanent counter storage. I once installed a simple wall hinge counter that saved cabinetry costs and felt surprisingly premium.

save pin

4. Closet-Turned-Laundry with Walk-In Shower

If one corner can be sacrificed, convert a shallow closet into a stacked laundry closet with bi-fold doors and run the shower adjacent with a shared chase for plumbing. That approach hides machines when guests visit and centralizes service lines, but requires careful planning of venting and dryer exhaust routing. Waterproofing and an accessible maintenance panel are non-negotiable; I recommend budgeting a bit extra for a removable access panel—trust me, you’ll thank me on day two of appliance servicing.

save pin

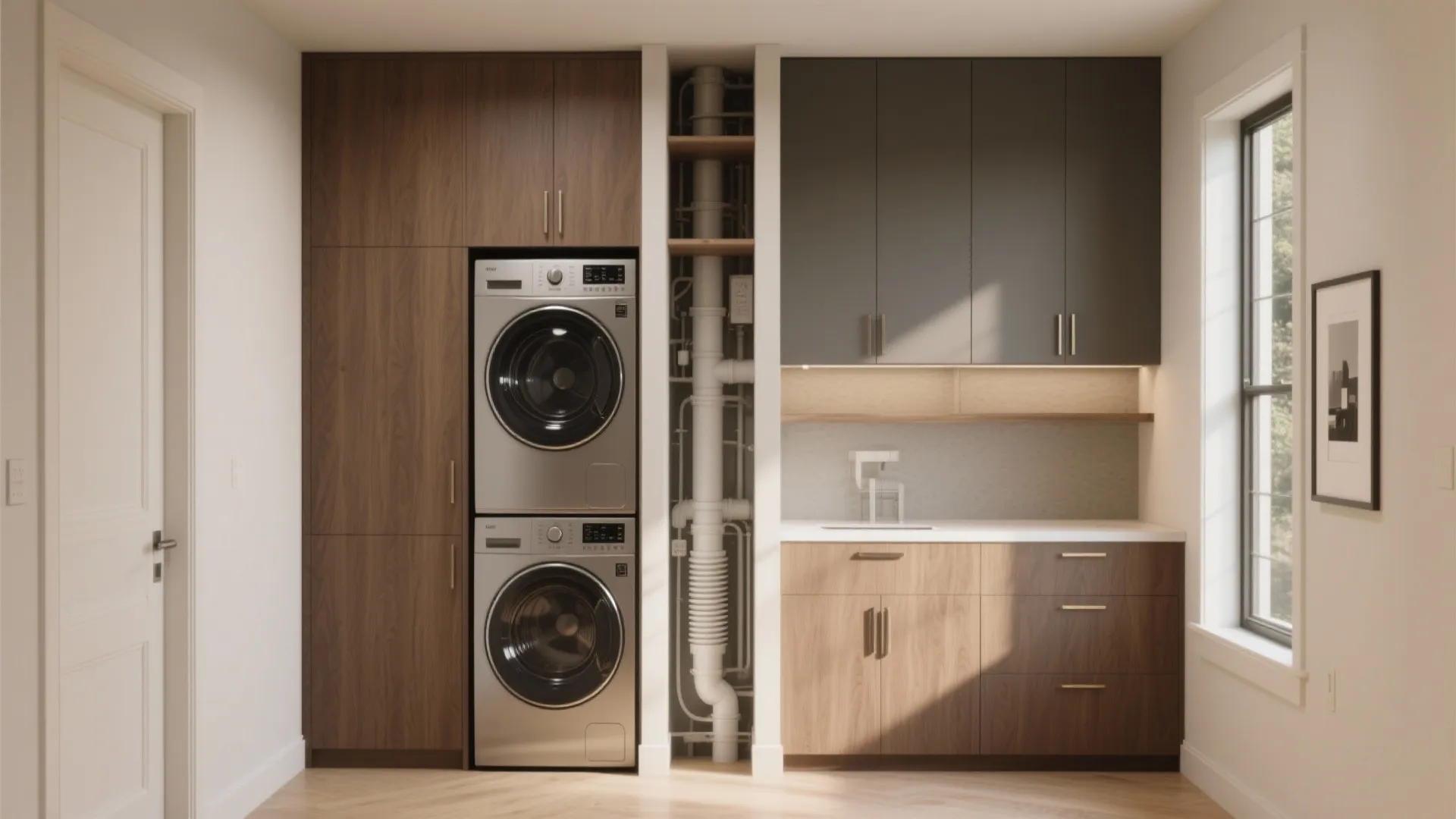

5. Elegant Stack with Shared Mechanical Chase

Design a vertical mechanical chase that carries plumbing, venting, and electrical so both the shower and the washer tap into the same service column. It looks tidy, simplifies future repairs, and creates space for built-in cabinetry opposite the chase, but initial framing is more work. For a polished finish, pick consistent hardware and open shelving above the washer to keep the room light and functional—this approach works well if you want a more permanent, high-end feel and a true laundry-bathroom case to show off.

save pin

Quick practical tips

Keep clearances real: 24-30 inches in front of machines and fixtures is comfortable. Use moisture-resistant paint and tile at least up to the splash lines; I always prioritize a shower curb design that matches the floor slope. Lighting and ventilation will make or break the room—don’t skimp on an exhaust fan with a timer.

save pin

FAQ

1. Can I legally combine a laundry and bathroom in a 12 x 12 room?

Most jurisdictions allow combining functions, but you must follow local plumbing and electrical codes. Always check with your local building department before starting work.

2. Do I need a special dryer vent for this setup?

Yes—if you use a vented dryer you’ll need a short, straight duct to an outside vent. Consider a condensate (ventless) dryer if routing ductwork is impossible, but note performance and energy trade-offs.

3. How do I prevent moisture issues when laundry and shower share space?

Use a good exhaust fan rated for the room size and a full wet-area waterproofing system in the shower. A timer fan and proper sealing around penetrations are inexpensive ways to keep mold away.

4. What’s the best washer/dryer configuration for space?

Stacked front-load units or a washer-dryer combo are the most compact. I recommend stacked units for durability, but combos save the most floor space if you accept longer cycle times.

5. How much should I budget for plumbing rework?

Costs vary, but expect plumbing rough-in work for a shared chase to be a significant portion of the budget—plan for a contingency around 15–20% for surprises behind walls. Getting a plumber to quote after seeing the existing chase is the most reliable route.

6. Are there noise concerns with machines adjacent to a bathroom?

Yes; vibration isolation pads and resilient mounting help. Consider locating the stack away from sleeping areas and using sound-dampening drywall if noise is a concern.

7. Any authoritative guidance on ventilation standards?

Follow ASHRAE Standard 62.2 for residential ventilation minimums; it’s the industry standard for acceptable indoor air quality (see ASHRAE at www.ashrae.org for details). Proper ventilation lowers humidity and protects finishes in combined spaces.

8. Can I do a lot of this myself to save money?

DIY is possible for cosmetic work like painting, shelving, and simple carpentry, but plumbing, electrical, and waterproofing are best left to licensed pros unless you’re experienced. Poorly done wet-area work leads to expensive fixes later.
