2D Oven Symbols vs Real Appliance Dimensions in Floor Plans: How oven symbols in architectural drawings translate into real appliance sizes—and how to avoid costly kitchen layout mistakes.

Direct Answer

In most kitchen floor plans, a 2D oven symbol represents the placement and clearance zone of an appliance rather than its exact physical size. Designers typically scale the symbol to standard appliance widths—most commonly 24, 27, or 30 inches—while leaving additional space for cabinetry, ventilation, and installation tolerance.

Understanding how these simplified symbols map to real oven dimensions helps prevent layout errors that can cause installation conflicts during construction.

Quick Takeaways

1. Most oven symbols represent standard appliance widths rather than exact external dimensions.
2. Common oven widths used in plans are 24, 27, and 30 inches.
3. Clearance space and cabinetry thickness often make installations larger than the appliance itself.
4. Built‑in ovens, wall ovens, and ranges use different symbol conventions.
5. Scaling mistakes usually happen when designers ignore cabinet integration.

Introduction

One of the most common questions I hear from homeowners and junior designers is this: why does the oven in a floor plan look so small compared to the real appliance?

The confusion usually comes from the way a 2D oven symbol size floor plan drawing simplifies reality. Architectural drawings prioritize spatial relationships over physical detail. That small rectangle in the plan isn't meant to replicate every inch of the appliance—it's a spatial placeholder that aligns with standardized kitchen modules.

After working on residential kitchens for more than a decade, I've seen projects run into expensive problems simply because the designer assumed the symbol matched the appliance exactly. Cabinets arrived with the wrong cutouts. Wall ovens didn't align with electrical boxes. In one renovation in Pasadena, a 30‑inch oven technically "fit" the symbol but couldn't slide into the cabinet because the ventilation clearance wasn't accounted for.

Before starting a layout, many designers experiment with placement using tools that visualize appliances in context. If you're mapping a kitchen from scratch, this guide on planning an efficient kitchen layout with appliance zonesshows how ovens integrate with cabinets and workflow.

In this article, I'll break down how oven symbols relate to real appliance dimensions, where floor plan drawings can mislead you, and how professionals keep everything aligned from sketch to installation.

save pin

Why Oven Dimensions Matter in Floor Plan Design

Key Insight: Even small mistakes in oven sizing can cascade into major layout issues because ovens interact with cabinetry, ventilation space, and kitchen circulation.

On paper, an oven is just a rectangle in the kitchen plan. In reality, it's a mechanical appliance that needs airflow, power connections, cabinet framing, and door clearance.

Here are the areas where real oven dimensions influence design decisions:

1. Cabinet cutout size – built‑in ovens require precise opening dimensions.
2. Door swing clearance – oven doors typically extend 19–22 inches when open.
3. Ventilation spacing – manufacturers often require 1–2 inches around the unit.
4. Ergonomic height – wall ovens must align with user reach range.

According to the National Kitchen & Bath Association (NKBA) planning guidelines, appliance landing space and clearance zones are essential for safe kitchen workflow. These functional spaces rarely appear in simplified 2D symbols but must be considered in real installations.

Standard 2D Oven Symbols Used in Architectural Drawings

Key Insight: Most architectural oven symbols are schematic icons that represent appliance categories, not exact product models.

Different drawing standards use slightly different visual conventions, but the core idea stays the same: the symbol marks the appliance footprint.

Common 2D oven symbol styles include:

1. Rectangle with interior circle or burner lines (range oven)
2. Simple rectangle labeled "OV" (wall oven)
3. Stacked rectangles (double oven)
4. Cabinet rectangle with appliance marking

In professional drawings, these symbols usually align with modular cabinet widths.

Typical symbol widths used in plans

1. 24 in (compact ovens)
2. 27 in (some wall ovens)
3. 30 in (standard North American ovens)
4. 36 in (professional ranges)

If you're drafting layouts digitally, tools that visualize appliances at scale—like a 3D floor plan layout that shows appliance placement in context—help confirm whether the symbol actually fits the cabinetry around it.

save pin

Typical Oven Sizes and Installation Requirements

Key Insight: The external dimensions of an oven rarely match the required cabinet opening, which is why symbols alone can be misleading.

Manufacturers publish two important measurements:

1. Overall appliance size
2. Required installation cutout

For example, a standard 30‑inch wall oven usually measures around 29.75 inches wide but requires a cabinet cutout slightly larger for ventilation.

Typical installation ranges

1. 24" oven: cutout width around 22–23"
2. 27" oven: cutout width around 25–26"
3. 30" oven: cutout width around 28.5–29"

Major manufacturers like Bosch, GE, and KitchenAid publish specification sheets showing these tolerances. Experienced designers rely on those documents rather than the symbolic dimensions in early drawings.

Differences Between Built-in, Wall, and Range Ovens

Key Insight: Each oven type uses a different spatial logic, which changes how its symbol should be interpreted in a floor plan.

Many layout mistakes come from treating all oven symbols as interchangeable.

Range ovens

1. Combined cooktop and oven
2. Typically 30" wide
3. Slides between base cabinets

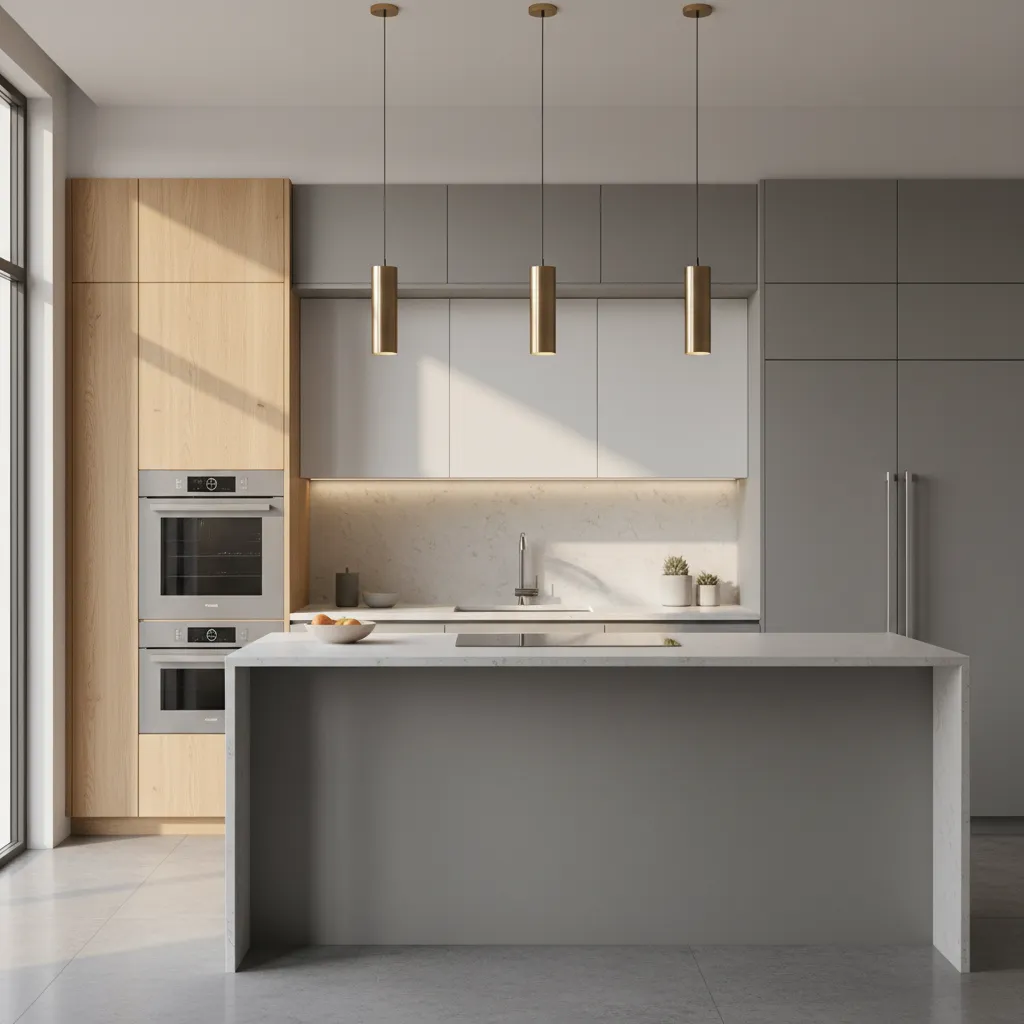

Wall ovens

1. Installed inside tall cabinets
2. Often paired with microwave units
3. Mounted at ergonomic height

Built‑in ovens

1. Flush installation with cabinetry
2. Precise cutout requirements
3. Often part of premium kitchen designs

The symbol for each appliance might occupy similar space in the plan, but the surrounding cabinetry structure is completely different.

save pin

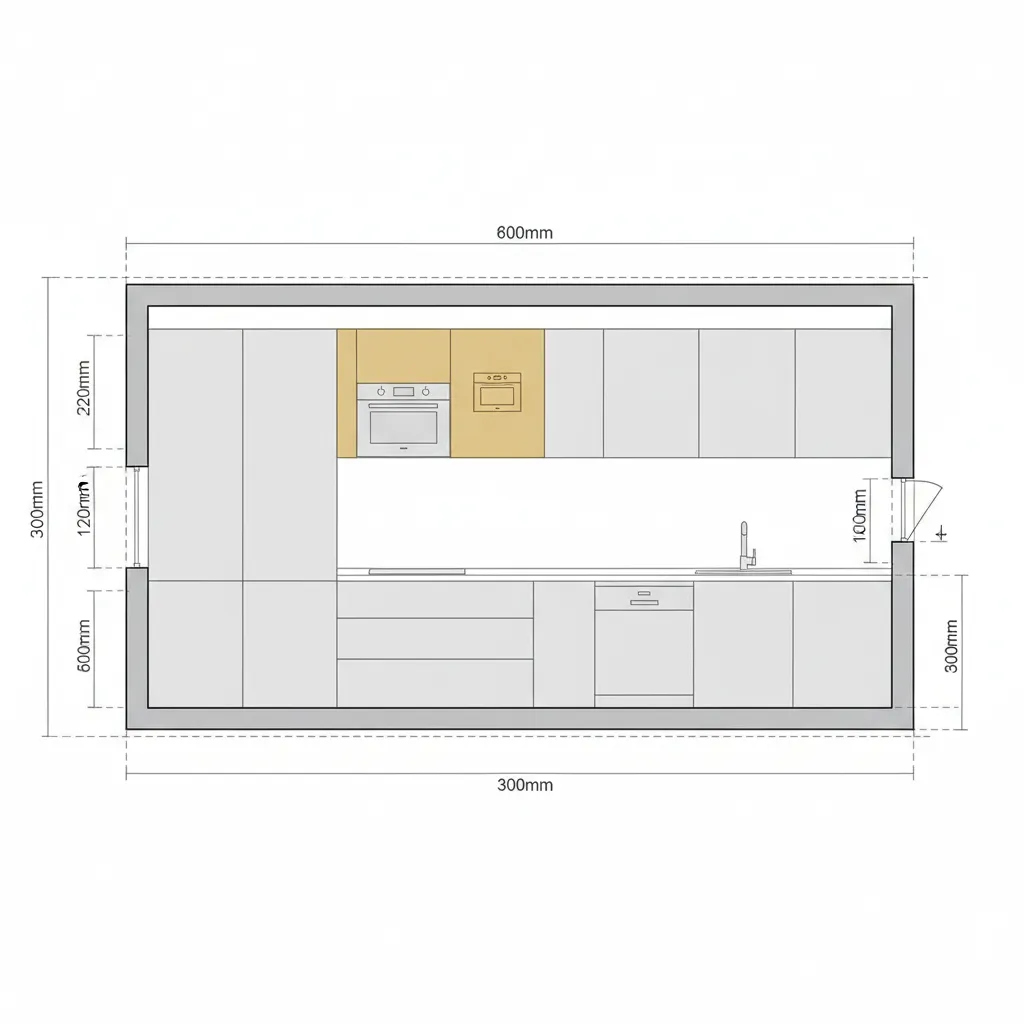

Mapping Real Measurements to 2D Symbols

Key Insight: The safest way to interpret a floor plan oven symbol is to treat it as a cabinet module rather than an appliance outline.

Professional kitchen designers usually translate symbols into real dimensions through a simple process.

Step‑by‑step mapping method

1. Identify the cabinet width associated with the symbol.
2. Confirm appliance width compatibility with the cabinet module.
3. Add manufacturer clearance requirements.
4. Check door swing and landing space.
5. Verify electrical or gas connection placement.

When testing different layouts, many designers prototype spaces using a free tool that lets you experiment with appliance sizes inside floor plans. Seeing the relationship between cabinets, appliances, and walkways often reveals spacing conflicts immediately.

Answer Box

2D oven symbols in floor plans represent standardized cabinet modules rather than exact appliance dimensions. Most residential kitchens are designed around 24‑, 27‑, or 30‑inch modules, and the real appliance size must always be verified using manufacturer specifications.

Common Dimension Mismatches and How to Avoid Them

Key Insight: Most oven installation problems come from ignoring cabinet structure, not from choosing the wrong appliance size.

Across many residential projects, the same mistakes show up repeatedly.

Common planning errors

1. Assuming symbol width equals appliance width
2. Ignoring cabinet wall thickness
3. Forgetting ventilation clearance
4. Not checking door swing space
5. Misplacing electrical outlets

A practical rule I use: always compare three documents before finalizing the plan.

1. Architectural floor plan
2. Cabinet shop drawings
3. Manufacturer specification sheet

If all three align, the oven will almost always install without surprises.

Final Summary

1. Oven symbols represent spatial placeholders, not exact appliance sizes.
2. Most kitchen layouts rely on 24, 27, or 30 inch appliance modules.
3. Cabinet cutouts and ventilation clearances often exceed appliance dimensions.
4. Different oven types require different layout interpretations.
5. Always verify manufacturer specs before finalizing floor plans.

FAQ

1. What size is a standard oven in a floor plan?

Most floor plans represent standard ovens as 30‑inch modules, though compact kitchens may use 24‑inch appliances.

2. Does a 2D oven symbol match the real appliance size?

Not exactly. The symbol usually represents the cabinet module rather than the exact external appliance dimensions.

3. What are typical built in oven dimensions for floor plan layouts?

Built‑in ovens commonly fit 24", 27", or 30" cabinet openings, with cutouts slightly larger for ventilation.

4. How do you scale an oven in a floor plan drawing?

Designers usually scale ovens according to standard cabinet widths rather than exact appliance measurements.

5. Why does my oven not fit the cabinet opening?

The cabinet cutout may not match the manufacturer’s installation specification sheet.

6. What is the difference between an oven symbol and a range symbol?

A range symbol usually includes cooktop burners, while a wall oven symbol represents a cabinet‑mounted appliance.

7. Do kitchen designers rely on oven symbols alone?

No. Professionals always confirm dimensions using appliance specification sheets.

8. What is the most common mistake when planning oven space?

Assuming the symbol represents the appliance's exact size instead of the cabinet module.

References

1. National Kitchen & Bath Association Kitchen Planning Guidelines
2. GE Appliances Installation Specifications
3. Bosch Built‑In Oven Planning Guides
4. KitchenAid Appliance Dimension Manuals
