3D Isometric vs 2D Floor Plans Which Should You Use: Understand the real differences between 2D and 3D isometric floor plans and choose the right format for design, marketing, or renovation projects.

Direct Answer

A 2D floor plan shows a space from a flat top‑down perspective, focusing on measurements, walls, and layout accuracy. A 3D isometric floor plan adds depth and visual context, making it easier for non‑designers to understand how a space actually feels. In practice, professionals often use 2D plans for technical work and 3D isometric plans for communication and presentation.

Quick Takeaways

1. 2D floor plans prioritize measurement accuracy and construction documentation.
2. 3D isometric floor plans improve visual understanding for clients and buyers.
3. Architects typically start with 2D plans before generating 3D visuals.
4. Isometric views are especially effective for marketing and design presentations.
5. Both formats often work best when used together rather than choosing only one.

Introduction

In many projects I’ve worked on, the debate around 3D isometric vs 2D floor plan formats usually comes down to one simple question: who is the drawing actually for?

Contractors, architects, and engineers typically prefer 2D plans because they are precise and standardized. But clients, homeowners, and real estate buyers often struggle to read them. After ten years in residential interior design, I’ve learned that most misunderstandings about layouts come from people trying to interpret flat technical drawings.

That’s exactly where isometric visualization changed the game. A 3D layout lets people instantly see walls, furniture placement, and spatial relationships without needing architectural training.

If you want to see how designers build accurate layouts before visualizing them, this walkthrough showing how to create a detailed home layout using a 3D floor planning workflowdemonstrates the process many studios now follow.

In this guide, I’ll break down when each format works best, where designers often make the wrong choice, and how to decide which one fits your project.

save pin

What Is a 2D Floor Plan?

Key Insight: A 2D floor plan is primarily a technical document designed for accuracy, measurement, and construction coordination.

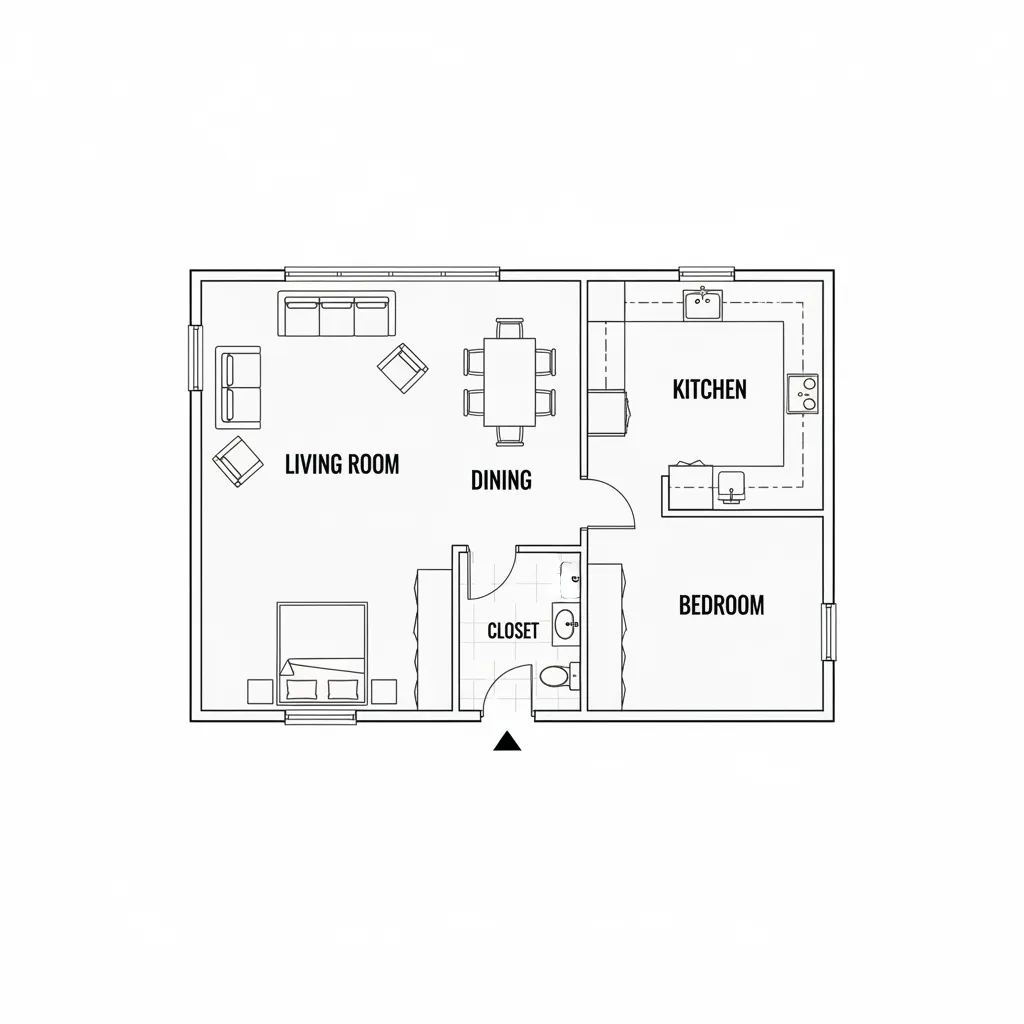

A traditional 2D plan shows the layout of a space from a bird’s‑eye view. Walls appear as lines, doors as arcs, and furniture as simplified shapes. It’s not meant to be visually realistic—it’s meant to communicate structure.

In architecture schools and design studios, 2D drawings remain the foundation of every project. According to the American Institute of Architects, construction documentation still relies heavily on standardized 2D plans because they communicate measurements with clarity.

Typical elements in a 2D floor plan include:

1. Wall dimensions
2. Door and window placements
3. Room labels
4. Structural elements
5. Furniture symbols

The downside is readability. Most homeowners can’t intuitively translate lines into a real spatial experience.

What Is a 3D Isometric Floor Plan?

Key Insight: A 3D isometric floor plan translates architectural layouts into visually understandable spaces without losing structural accuracy.

An isometric plan shows the building at an angled perspective where walls, floors, and furniture have depth. Unlike full perspective renders, isometric views maintain proportional scale across the drawing.

This means the layout stays technically correct while becoming far easier to interpret.

Typical characteristics include:

1. Angled top‑down perspective
2. Visible furniture and décor
3. Wall height representation
4. Room separation with depth
5. Clear spatial relationships

In real estate marketing, these visuals have become extremely common because buyers instantly understand the flow of a home.

save pin

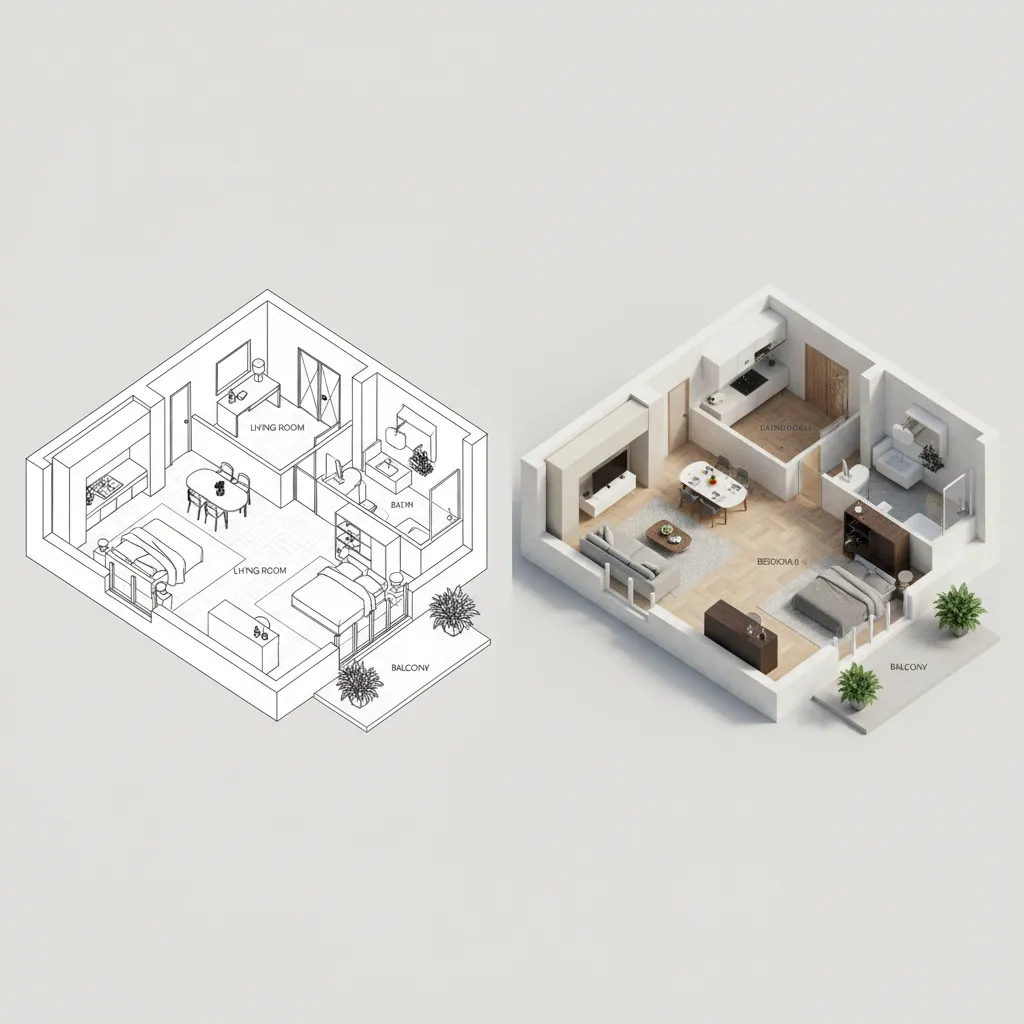

Key Differences Between 2D and Isometric Layouts

Key Insight: The biggest difference is not technical accuracy but how easily people understand the space.

Both drawings represent the same layout. The real distinction lies in communication.

1. Perspective: 2D is flat; isometric adds depth.
2. Readability: 2D favors professionals; isometric favors general audiences.
3. Detail: 2D focuses on measurements; isometric shows furniture and visual context.
4. Usage: 2D supports construction; isometric supports presentation.

One hidden mistake I see often is teams trying to replace 2D plans entirely with 3D visuals. That rarely works. Builders still need precise technical drawings.

When 3D Isometric Floor Plans Work Best

Key Insight: Isometric layouts shine whenever the goal is understanding, not documentation.

In client presentations, I’ve watched people instantly grasp layouts that previously confused them in 2D. That clarity is the real value.

Situations where isometric plans work especially well:

1. Real estate listings
2. Interior design proposals
3. Apartment marketing
4. Furniture layout planning
5. Online property listings

Design teams also use them when presenting concepts remotely. A visual layout often prevents long explanation calls.

Many studios now generate them directly from planning software like the systems used in this example showing how designers turn simple layouts into clear visual floor plans.

save pin

When a Traditional 2D Plan Is More Practical

Key Insight: For construction accuracy and documentation, 2D plans remain the industry standard.

No contractor installs plumbing or electrical systems from an isometric drawing. They rely on dimensioned 2D documents.

Use 2D plans when the project requires:

1. Permit applications
2. Construction documentation
3. Engineering coordination
4. Structural planning
5. Precise measurement annotations

The clarity of standardized symbols makes collaboration easier across architects, engineers, and builders.

Cost Production Time and Skill Requirements

Key Insight: Historically, isometric plans were slower and more expensive—but modern tools have largely eliminated that gap.

Ten years ago, producing a polished isometric layout required manual 3D modeling and rendering. Today, automated visualization tools can generate them directly from floor plans.

Typical comparison:

1. 2D floor plan: fastest to produce
2. 3D isometric plan: slightly longer but far more communicative
3. Full photorealistic render: longest production time

Design platforms that combine planning and rendering—like those used in this guide on visualizing interior layouts with AI assisted design workflows—have significantly reduced production time.

save pin

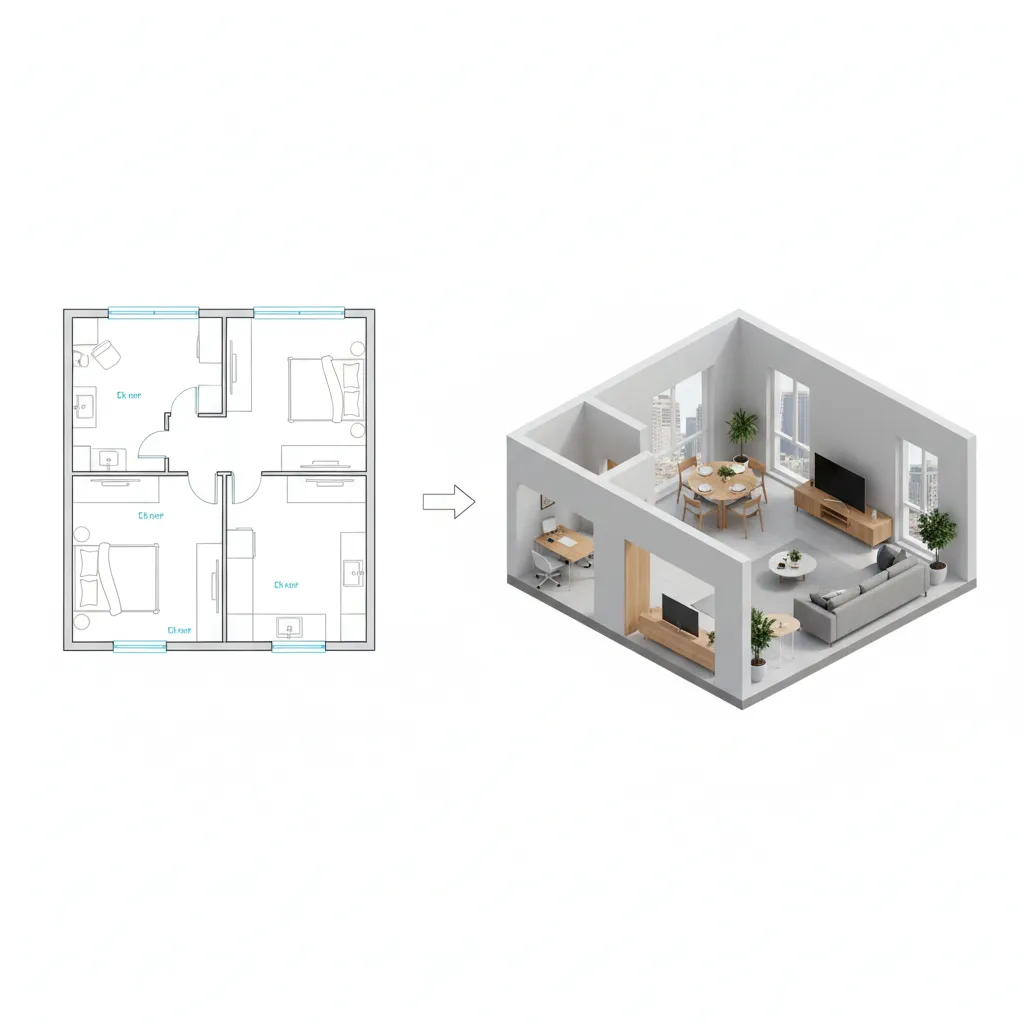

How to Create a 3D Isometric Floor Plan Step by Step

Key Insight: The fastest workflow is building an accurate 2D layout first and converting it into an isometric view.

Professional designers usually follow this sequence:

1. Create the base 2D layout with correct room dimensions.
2. Add doors, windows, and structural elements.
3. Place major furniture pieces.
4. Switch the camera to an isometric perspective.
5. Adjust wall height, lighting, and materials.
6. Export the final visualization.

This approach ensures accuracy while still producing an easy‑to‑understand visual layout.

Answer Box

A 2D floor plan is best for construction accuracy and technical documentation. A 3D isometric floor plan is better for communication, visualization, and marketing. Most professional projects use both formats together.

Final Summary

1. 2D floor plans prioritize measurement accuracy.
2. 3D isometric plans improve visual understanding.
3. Clients usually prefer isometric layouts.
4. Builders still rely on technical 2D drawings.
5. The most effective workflow combines both formats.

FAQ

What is the main difference between a 3D isometric vs 2D floor plan?

2D plans show spaces from a flat overhead view, while 3D isometric plans add depth and perspective to make rooms easier to visualize.

Are 3D isometric floor plans accurate?

Yes. When generated from precise layouts, isometric floor plans maintain correct proportions while improving visual clarity.

Should I use a 3D isometric floor plan for real estate listings?

Yes. Many real estate agents use them because buyers understand property layouts much faster than with traditional 2D plans.

Do architects still use 2D floor plans?

Absolutely. 2D drawings remain essential for permits, construction documents, and engineering coordination.

Is a 3D floor plan better than a 2D plan?

Neither is universally better. 2D plans are ideal for technical work, while 3D visuals are better for presentations.

Can beginners create isometric floor plans?

Yes. Modern design software can convert simple layouts into isometric views with minimal modeling experience.

What industries use isometric floor plans?

Real estate marketing, interior design, architecture presentations, and property development frequently use them.

Do isometric floor plans replace architectural drawings?

No. They complement traditional drawings but rarely replace them in professional construction workflows.
