3D Modeling in AutoCAD A Practical Guide for Beginners: Learn how designers actually use 3D modeling in AutoCAD to build clear, buildable models without overcomplicating the workflow

Direct Answer

3D modeling in AutoCAD is the process of creating three‑dimensional digital objects using solid, surface, and mesh tools built into the software. Designers typically start with accurate 2D drawings and convert them into 3D forms using extrusion, revolve, sweep, and loft commands. In practice, the key to efficient AutoCAD 3D modeling is not complexity but maintaining clean geometry and logical construction steps.

Quick Takeaways

1. Most efficient AutoCAD 3D models start from well‑structured 2D drawings.
2. Extrude, Revolve, Sweep, and Loft are the four core tools most designers rely on.
3. Clean layers and simple solids prevent heavy, unstable files.
4. AutoCAD 3D works best for technical modeling rather than complex organic shapes.
5. Understanding UCS and view control dramatically improves modeling speed.

Introduction

When people first try 3D modeling in AutoCAD, they often assume it works like modern parametric modeling software. After working on residential design documentation and visualization workflows for more than a decade, I can tell you that AutoCAD approaches 3D differently. It is precise, geometry‑driven, and extremely powerful when used with the right expectations.

I have used AutoCAD 3D modeling in everything from custom furniture layouts to spatial planning models for interior architecture. The biggest mistake beginners make is jumping straight into complex forms without building a solid 2D foundation first. Once you understand the practical workflow professionals use, AutoCAD becomes surprisingly efficient for structured 3D work.

In this guide, I will walk through how professionals approach 3D modeling in AutoCAD, the tools that matter most, and several hidden pitfalls that rarely get explained in tutorials.

save pin

Why Start 3D Modeling in AutoCAD With 2D Geometry

Key Insight: The fastest way to build accurate 3D models in AutoCAD is starting from precise 2D drawings rather than modeling directly in 3D space.

Many beginners try to sketch objects directly in 3D view. In reality, most experienced AutoCAD users build a clean 2D profile first and then transform it into a solid model. This approach keeps geometry accurate and dramatically reduces modeling errors.

Typical professional workflow:

1. Create 2D plan or profile geometry
2. Organize layers for different components
3. Convert closed polylines into regions
4. Use solid modeling commands to generate volume

Autodesk documentation and training courses consistently recommend this workflow because AutoCAD was historically designed around drafting first, modeling second.

What Are the Core 3D Modeling Tools in AutoCAD

Key Insight: Most AutoCAD 3D modeling tasks rely on just four commands: Extrude, Revolve, Sweep, and Loft.

Although AutoCAD includes dozens of modeling commands, professional workflows tend to revolve around a small set of reliable tools.

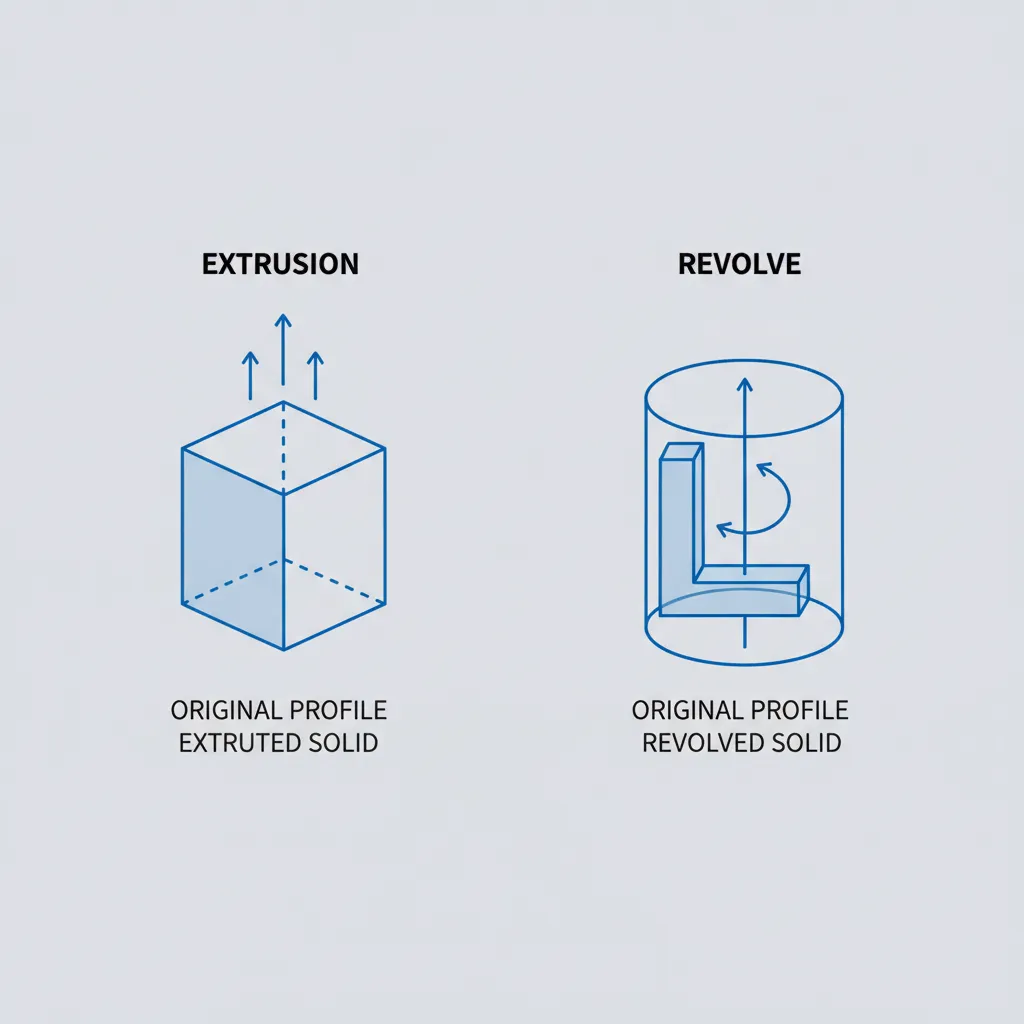

1. Extrude – Turns 2D profiles into solids by extending them along an axis
2. Revolve – Creates circular or rotational forms such as columns or bowls
3. Sweep – Moves a profile along a path to create complex shapes
4. Loft – Connects multiple profiles to generate transitional geometry

For example, in interior design modeling:

1. Cabinets often start with extruded rectangles
2. Table legs may be generated using revolve
3. Handrails often use sweep along a spline path

save pin

How Do Professionals Control View and Orientation in AutoCAD 3D

Key Insight: Efficient 3D modeling in AutoCAD depends heavily on mastering UCS and view controls rather than modeling commands themselves.

This is one of the most overlooked topics in beginner tutorials. Without understanding the User Coordinate System (UCS), even simple tasks become frustrating.

Three controls make a major difference:

1. UCS – Reorients the drawing axis to match the modeling surface
2. ViewCube – Allows quick switching between orthographic views
3. Orbit – Enables smooth inspection of 3D geometry

In large interior modeling projects, we frequently shift UCS to match walls, furniture angles, or ceiling slopes. It keeps extrusion directions accurate and reduces alignment errors.

Common Mistakes Beginners Make in AutoCAD 3D Modeling

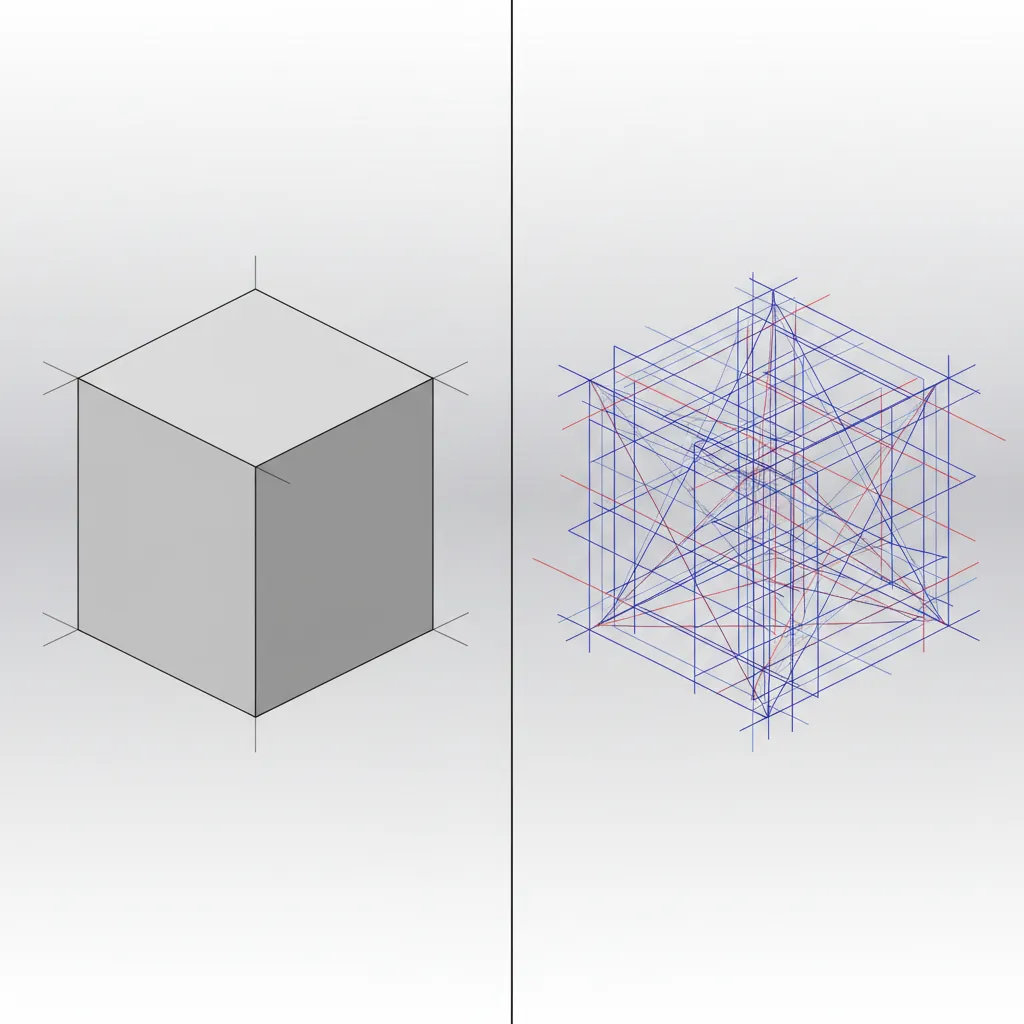

Key Insight: Most AutoCAD 3D problems come from messy geometry, not lack of modeling skill.

After reviewing many junior designers' files over the years, I see the same issues repeatedly.

1. Open profiles preventing solid creation
2. Too many tiny segments creating unstable geometry
3. Mixed units or scale errors
4. Unorganized layers making editing difficult
5. Over‑modeling unnecessary details

A practical rule many professionals follow is simple: model only what needs to be communicated. If a screw head will never appear in drawings or renderings, it usually does not belong in the model.

save pin

When Is AutoCAD the Right Tool for 3D Modeling

Key Insight: AutoCAD excels at precise technical 3D models but is not ideal for complex sculptural modeling.

This is an important trade‑off many tutorials avoid discussing.

AutoCAD performs best for:

1. Architectural components
2. Interior layout modeling
3. Furniture block creation
4. Technical product modeling
5. Construction documentation

However, software like Rhino, Blender, or Fusion 360 handles organic surfaces and parametric systems more efficiently.

In many studios today, AutoCAD is used for precise drafting models while visualization or complex forms are handled in other software.

Answer Box

The most effective way to approach 3D modeling in AutoCAD is to start with clean 2D profiles, convert them using core solid commands, and maintain organized geometry. Mastering UCS and view control dramatically improves modeling speed and accuracy.

How to Build Your First Simple 3D Model in AutoCAD

Key Insight: A simple step‑by‑step modeling workflow prevents most beginner errors.

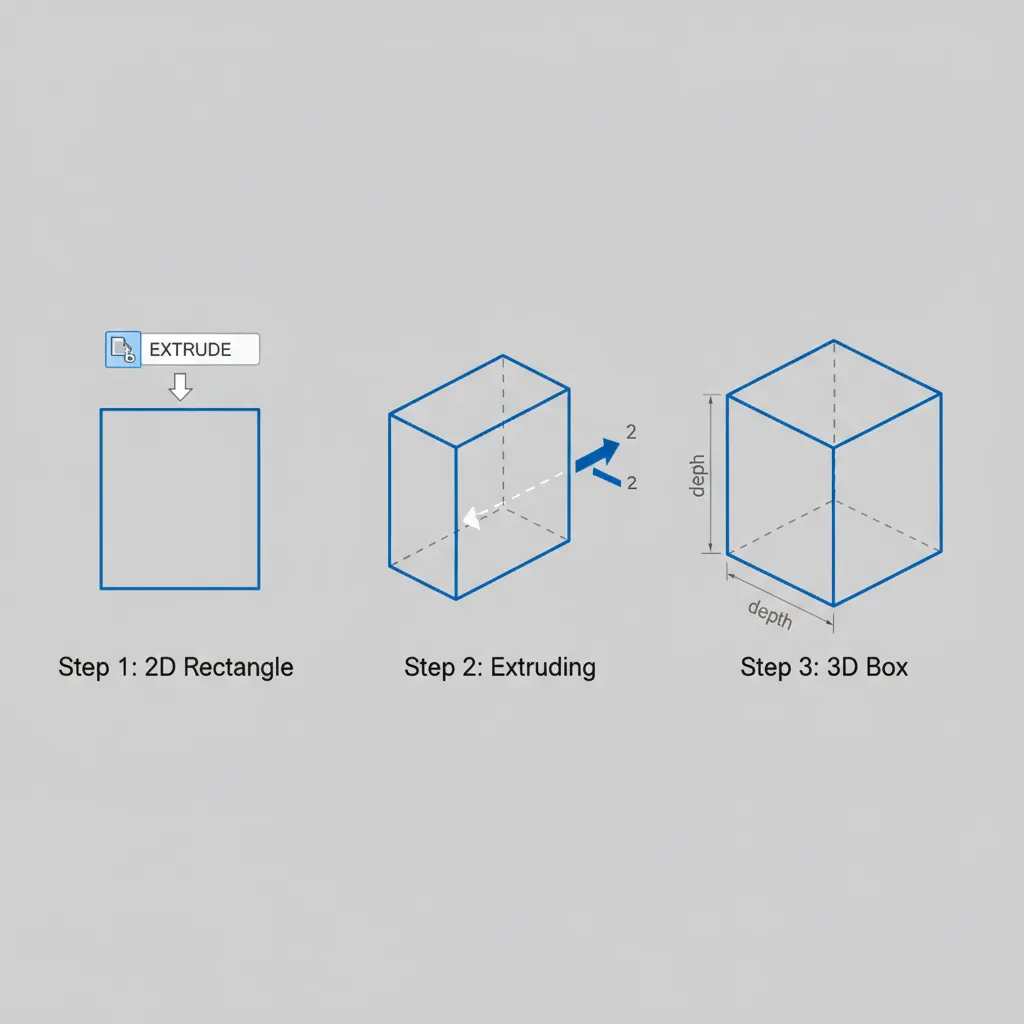

Basic starter workflow:

1. Create a rectangle in 2D plan view
2. Convert it into a closed polyline
3. Use the Extrude command to give it height
4. Switch to 3D orbit to inspect the model
5. Apply fillet or chamfer if needed

This method is often used to create simple architectural elements such as walls, cabinets, or platforms.

save pin

Final Summary

1. 3D modeling in AutoCAD works best when built from clean 2D geometry.
2. Extrude, Revolve, Sweep, and Loft handle most modeling tasks.
3. Mastering UCS and view controls dramatically improves workflow.
4. Clean geometry and layer organization prevent most modeling errors.
5. AutoCAD is ideal for technical models rather than organic shapes.

FAQ

Is AutoCAD good for 3D modeling?

Yes. AutoCAD is effective for precise technical models, architectural elements, and interior layouts, though it is less suited for complex organic shapes.

Is 3D modeling in AutoCAD difficult to learn?

It becomes much easier once you understand UCS control and core commands like Extrude and Revolve.

Do professionals still use AutoCAD for 3D modeling?

Yes. Many architecture and interior design teams use AutoCAD for technical 3D drafting and documentation models.

What is the most important command for AutoCAD 3D modeling?

Extrude is often the most frequently used command because it quickly converts 2D profiles into solid objects.

Can beginners learn 3D modeling in AutoCAD?

Absolutely. Starting with simple extruded shapes helps beginners understand the modeling workflow quickly.

What is the difference between 2D and 3D AutoCAD?

2D AutoCAD focuses on drafting lines and plans, while 3D modeling in AutoCAD creates volumetric objects that can be viewed from any angle.

Do you need 2D skills before learning AutoCAD 3D?

Yes. Strong 2D drafting skills make 3D modeling in AutoCAD much faster and more accurate.

Which industries use AutoCAD 3D modeling?

Architecture, interior design, mechanical drafting, product design, and construction planning frequently use AutoCAD 3D workflows.
