3D render passes compositing in Nuke means combining separate render layers such as diffuse specular shadows and reflections to rebuild and control the final image. Instead of re rendering a full 3D scene every time something changes artists adjust lighting color and effects directly in Nuke. This workflow gives far more flexibility and is standard in film VFX and high end architectural visualization.

Quick Takeaways

1. Render passes allow lighting and shading changes without re rendering the 3D scene.
2. Nuke reconstructs the beauty pass by combining multiple render layers mathematically.
3. Professional pipelines separate diffuse specular reflection shadow and emission passes.
4. Good naming and linear color workflow prevent most compositing mistakes.
5. Compositing render passes often saves hours or even days of re rendering time.

Introduction

When I first started working with high resolution architectural renders and VFX shots, I kept running into the same problem. A client would say something simple like “Can we make the lighting warmer?” or “The reflections feel too strong.” If you only render a single beauty image, that request means starting the entire render again.

That is exactly why professional pipelines rely on 3D render passes compositing in Nuke. By separating lighting information into layers, you can rebuild the image in compositing and adjust it almost like editing a photograph. Over the last decade working with rendering pipelines and visualization teams, I have found that artists who master this workflow work dramatically faster and deliver more flexible results.

Let’s walk through how render passes actually work and how they are combined inside Nuke.

save pin

What Are 3D Render Passes and Why Do Artists Separate Them

Key Insight: Render passes separate lighting and shading information so each visual component can be adjusted independently in compositing.

Most beginners render a single image called the beauty pass. While that works for quick previews, it removes control once the image is finished. Professional rendering instead outputs multiple passes that describe different lighting contributions.

Typical render passes include:

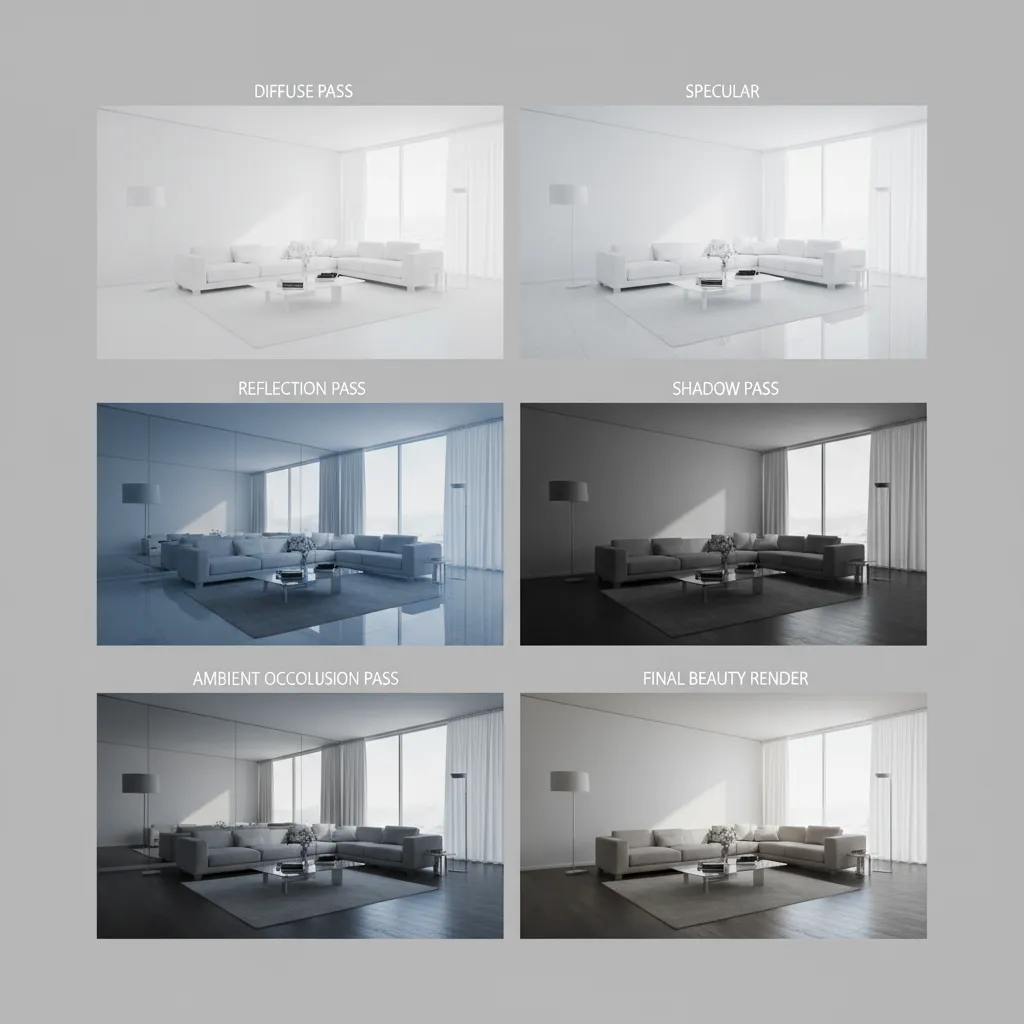

1. Diffuse
2. Specular
3. Reflection
4. Refraction
5. Shadow
6. Ambient Occlusion
7. Emission
8. Z depth

Each pass represents a specific part of how light interacts with surfaces. In Nuke these passes are mathematically recombined to rebuild the final image.

A simple reconstruction often follows a formula like:

1. Diffuse × Lighting
2. Add Specular
3. Add Reflection
4. Multiply Shadow
5. Add Emission

This approach mirrors how modern render engines such as Arnold V Ray and Redshift structure their outputs. Large studios use this method because it allows adjustments without expensive re renders.

How Does Nuke Rebuild the Beauty Pass From Render Layers

Key Insight: Nuke reconstructs the final render by combining passes using merge operations that replicate the renderer's lighting math.

In a compositing script, passes are connected through nodes that rebuild the lighting stack. If the correct math is used, the result should match the original beauty render perfectly.

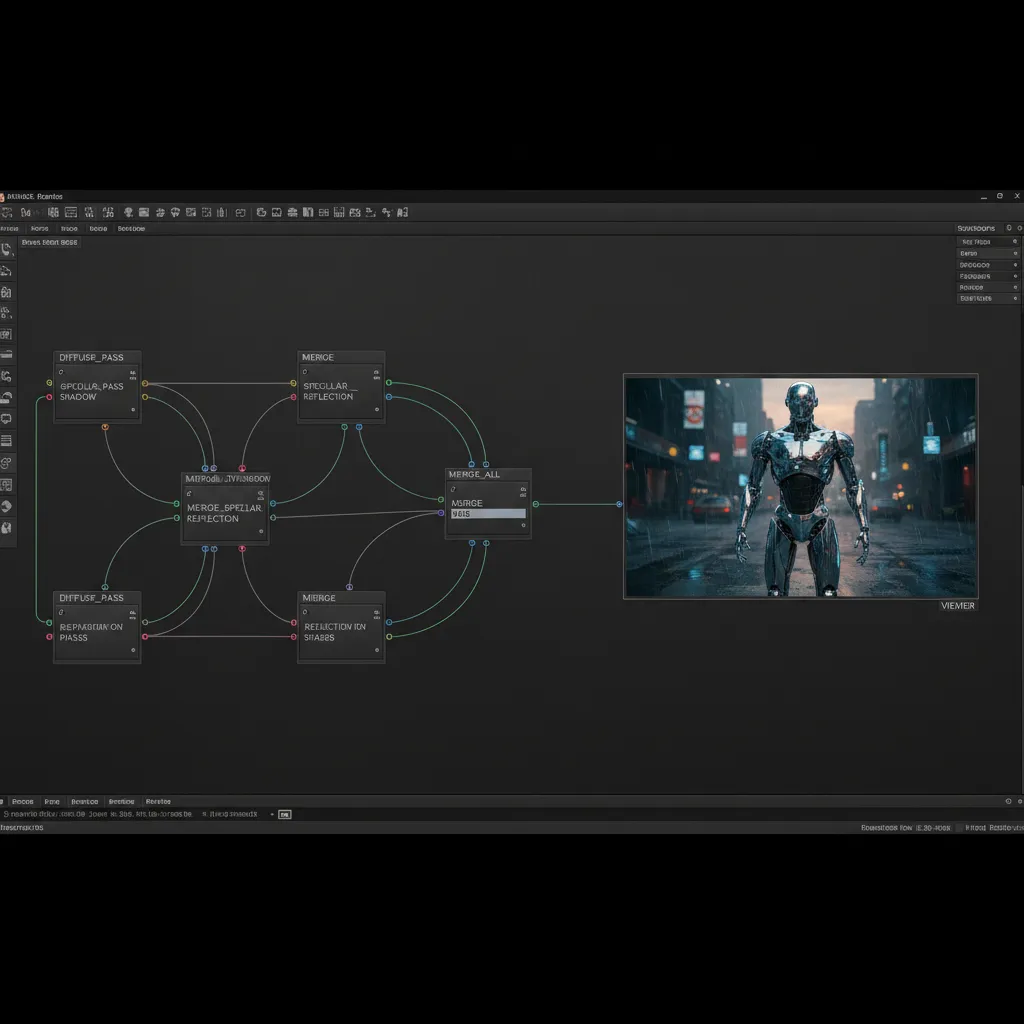

A common node flow looks like this:

1. Import EXR multi layer file
2. Shuffle or Extract individual passes
3. Merge diffuse and indirect lighting
4. Add specular highlights
5. Add reflections and refractions
6. Multiply shadows and ambient occlusion
7. Apply grade or color correction

This layered approach is why compositing tools like Nuke are so powerful. Instead of adjusting the scene in 3D and waiting hours for rendering, artists tweak individual light contributions instantly.

save pin

Which Render Passes Matter Most in Real Production Workflows

Key Insight: Most production pipelines rely on a small core set of passes even though render engines can output dozens.

A common mistake I see in new visualization teams is exporting too many passes. More passes do not automatically create better compositing control. In fact they often slow down the pipeline.

The passes that consistently matter most include:

1. Diffuse base color of materials
2. Specular highlights from direct lights
3. Reflection environmental reflections
4. Shadow light blocking information
5. Ambient Occlusion small contact shadows

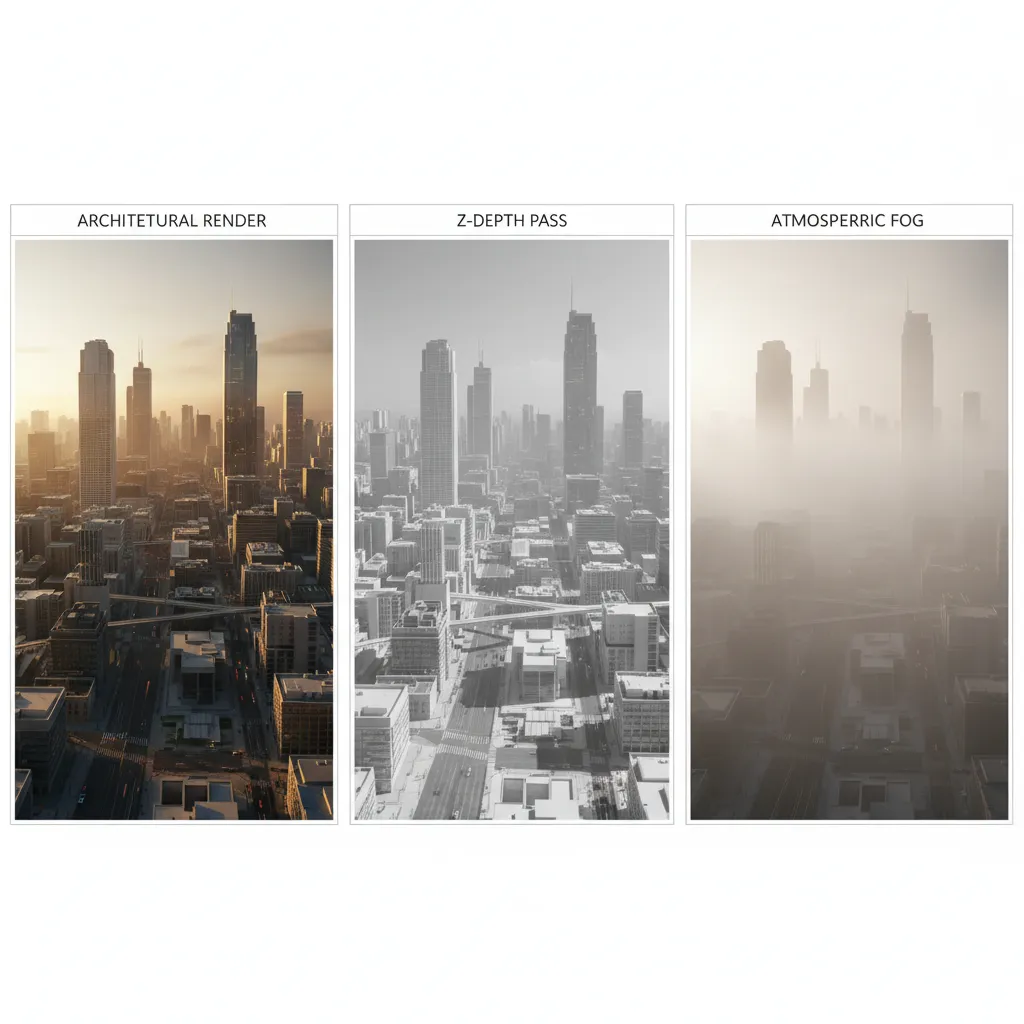

6. Z Depth used for atmospheric effects

In many interior visualization projects I have supervised, those six passes alone allow nearly every lighting adjustment needed in compositing.

Studios like Weta Digital and ILM also emphasize keeping render layers manageable because large EXR files can quickly become heavy for compositing artists.

save pin

Why Many Beginners Break Their Render Pass Composites

Key Insight: Most compositing errors come from incorrect color space or merge operations rather than the render passes themselves.

One of the most overlooked issues in render pass compositing is working in the wrong color space. Modern VFX pipelines almost always use a linear workflow.

Common mistakes include:

1. Working in sRGB instead of linear space
2. Using the wrong merge operation
3. Adding shadows instead of multiplying them
4. Grading the beauty pass instead of individual layers
5. Mixing premultiplied and unpremultiplied images

I have seen artists spend hours troubleshooting renders that were actually correct from the renderer. The issue was simply that the compositing math was wrong.

Once the workflow is properly set up, the rebuilt image should match the original beauty pass perfectly before any artistic adjustments are made.

How Compositing Render Passes Saves Massive Rendering Time

Key Insight: Adjusting lighting in compositing can eliminate the need for expensive re renders.

Rendering high quality interiors or VFX shots can take hours per frame. If a small lighting change requires a full render again, production slows dramatically.

With render pass compositing in Nuke, artists can adjust:

1. Specular intensity
2. Reflection strength
3. Shadow contrast
4. Color temperature
5. Atmospheric depth

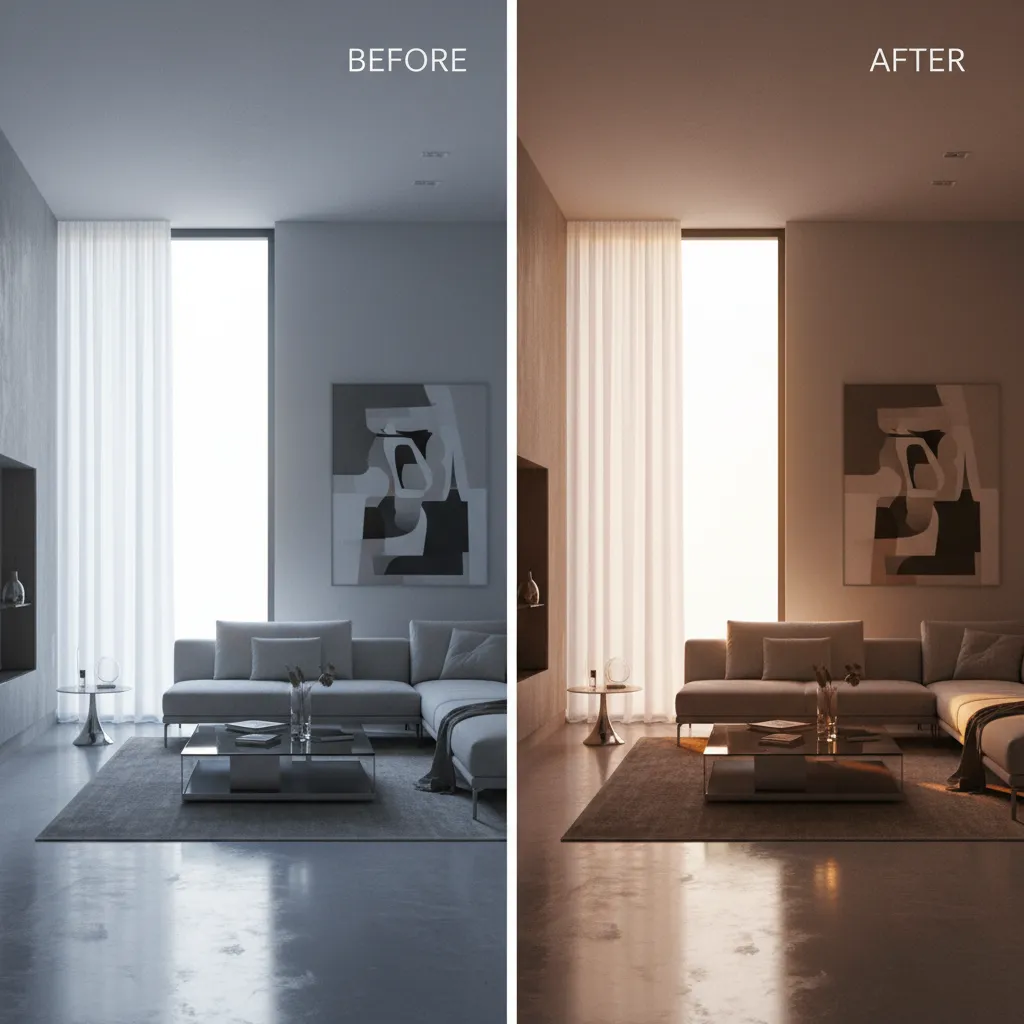

On a hotel visualization project I worked on a few years ago, the client requested warmer lighting across dozens of images. Because the renders were separated into passes, the change was completed in compositing within an hour instead of re rendering overnight.

This flexibility is exactly why film studios and architectural visualization companies rely heavily on compositing based pipelines.

save pin

Should You Always Composite Render Passes Instead of Using a Beauty Render

Key Insight: Render pass compositing is powerful but unnecessary for small or quick projects.

There is a trade off that many tutorials ignore. Render pass workflows introduce complexity and larger file sizes.

For quick renders or concept previews, a beauty render is often enough. But for professional work the advantages usually outweigh the extra setup.

A simple comparison:

1. Beauty Render fast setup but limited flexibility
2. Render Pass Workflow slower setup but extensive control

In production environments where revisions are inevitable, render passes almost always save time overall.

Final Summary

1. Render passes separate lighting components for flexible compositing.
2. Nuke rebuilds the beauty image using merge operations.
3. Diffuse specular reflection shadow and AO are the most essential passes.
4. Linear color workflow prevents most compositing errors.
5. Pass based workflows dramatically reduce re rendering time.

FAQ

What are render passes in 3D rendering?

Render passes are separate image layers representing lighting components such as diffuse specular reflections and shadows. They are recombined during compositing to build the final image.

Why use Nuke for render pass compositing?

Nuke provides node based compositing that allows precise control over how render passes combine. It is widely used in film VFX and professional visualization pipelines.

Can you composite render passes in Photoshop?

Yes but it is limited. Photoshop works for simple adjustments, while Nuke handles complex node based workflows and large EXR files more efficiently.

Do render passes increase render time?

Usually no. Most render engines generate passes during the same render process. The main cost is larger file sizes rather than longer render times.

What file format is best for render passes?

Multi layer OpenEXR is the industry standard because it stores many passes in one file while maintaining high dynamic range.

What is the difference between render layers and render passes?

Render passes separate lighting components, while render layers separate groups of objects such as characters background or effects.

Is 3D render passes compositing in Nuke difficult to learn?

The basics are straightforward. Once you understand merge operations and linear color workflow the process becomes much easier.

Which render engines support render passes?

Most modern engines support them including Arnold V Ray Redshift Blender Cycles and Unreal Engine.
