3D Safety Pin Model: Blender vs Fusion 360 vs SolidWorks: A practical comparison of Blender, Fusion 360, and SolidWorks for accurately modeling a small mechanical object like a safety pin.

Direct Answer

The best software for creating a 3D safety pin model depends on your goal. Blender is fastest for visual models and rendering, Fusion 360 balances precision with accessibility, and SolidWorks provides the highest mechanical accuracy for engineering workflows.

If the model is for visualization or animation, Blender works well. For functional dimensions and adjustable parameters, Fusion 360 or SolidWorks is usually the better choice.

Quick Takeaways

1. Blender excels at fast visual modeling but lacks parametric control.
2. Fusion 360 offers strong precision while remaining accessible for most designers.
3. SolidWorks delivers the highest engineering accuracy for mechanical parts.
4. A safety pin model benefits from parametric tools when spring dimensions must be exact.
5. Rendering workflows are significantly faster when the model originates in Blender.

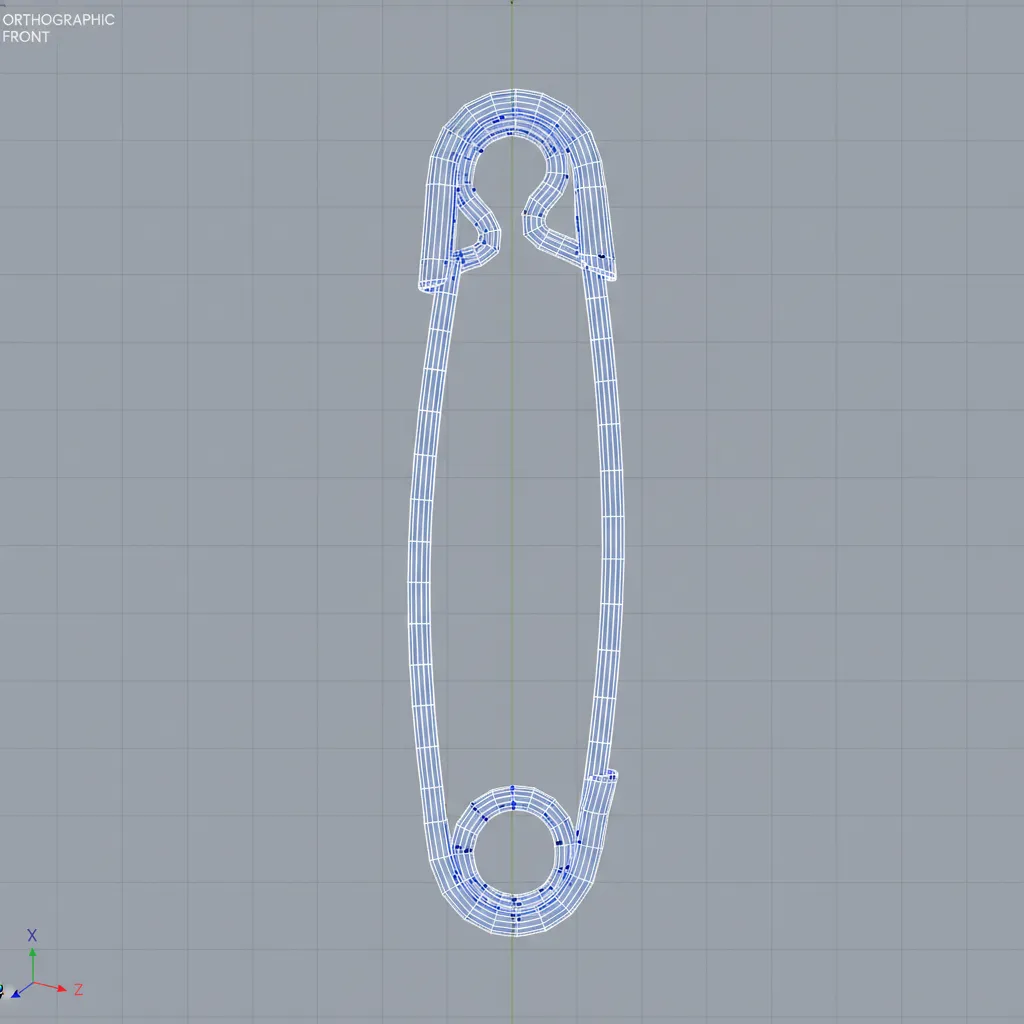

Introduction

Designing a 3D safety pin model sounds simple until you actually start building one. After working on dozens of small metal objects—hooks, clips, jewelry hardware, and fasteners—I’ve learned that tiny mechanical shapes often expose the strengths and weaknesses of modeling software faster than large projects do.

A safety pin combines several tricky elements: a curved spring coil, a tapered wire body, and a clasp mechanism that must look believable at close range. Many tutorials gloss over these details, but when the scale is small, even a millimeter error becomes visually obvious.

In professional visualization workflows, designers often prototype shapes quickly before refining them in specialized tools. When teams want to experiment with layout and spatial visualization, they sometimes begin with tools similar to those used for visualizing a full room layout in 3D before finalizing measurements. The same principle applies to object modeling: start with the right tool for your purpose.

In this guide, I’ll compare Blender, Fusion 360, and SolidWorks specifically for modeling a safety pin. More importantly, I’ll highlight the trade‑offs most comparison articles ignore—especially the hidden cost of rebuilding geometry when you choose the wrong modeling approach.

save pin

Overview of 3D Modeling Tools for Small Mechanical Objects

Key Insight: Small mechanical objects expose the core difference between polygon modeling and parametric CAD.

A safety pin looks simple, but its geometry is fundamentally mechanical. The wire diameter must remain consistent, the coil radius needs continuity, and the clasp requires clean intersections. These characteristics determine which modeling paradigm works best.

Two major modeling approaches:

1. Polygon modeling – Flexible shapes built from vertices and faces.
2. Parametric CAD – Dimension-driven geometry controlled by constraints.

Comparison of modeling paradigms

1. Polygon modeling: Fast, flexible, ideal for visual assets
2. Parametric modeling: Precise, adjustable, engineering-focused
3. Hybrid workflow: Often used in professional pipelines

Industry reports from Autodesk and Dassault Systèmes consistently show that CAD environments dominate mechanical design, while polygon tools dominate visualization and media production.

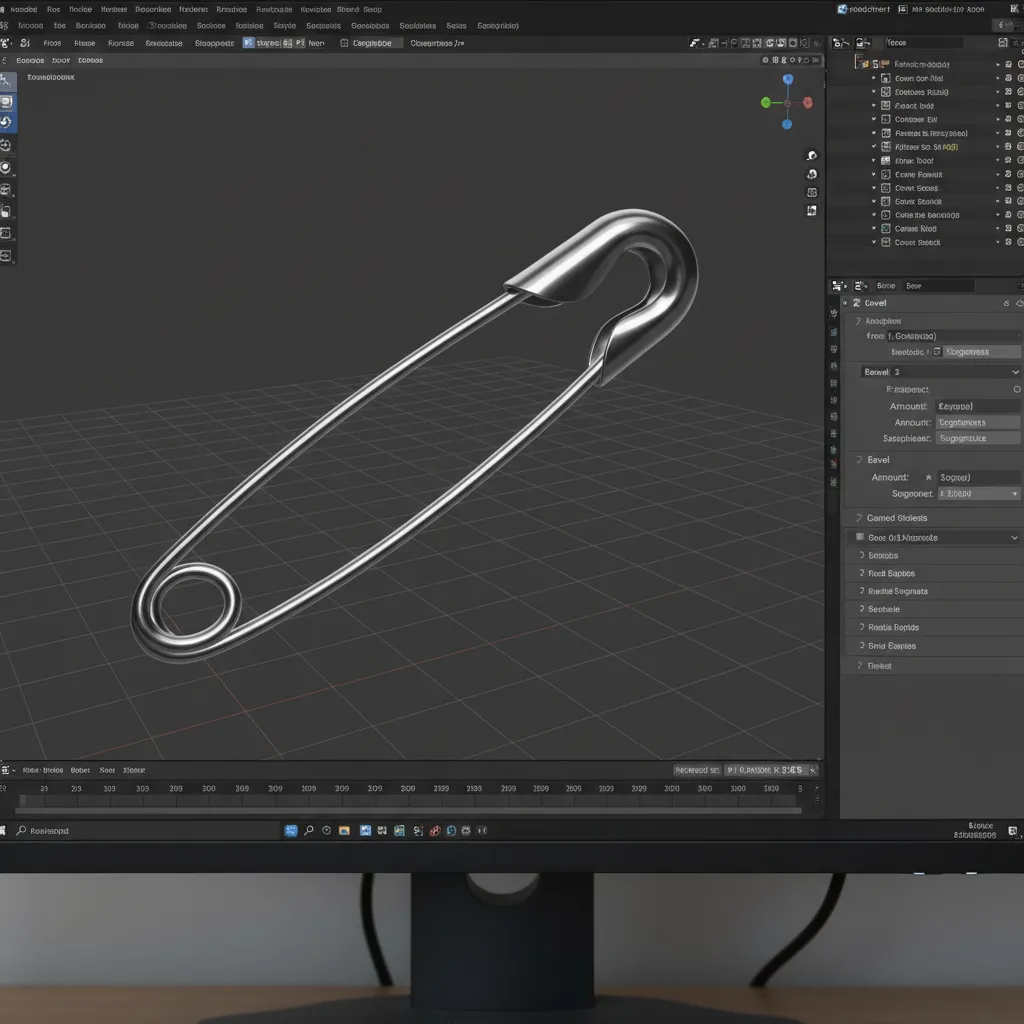

Creating a Safety Pin in Blender

Key Insight: Blender is the fastest way to create a visually convincing safety pin, but changes to dimensions later can become frustrating.

In Blender, a safety pin usually starts with a curve or a simple cylinder that is bent into shape using modifiers. Because Blender is polygon‑based, it excels at shaping smooth curves quickly.

Typical Blender workflow

1. Create a curve path representing the wire shape.
2. Add a bevel profile to define wire thickness.
3. Model the coil using a spiral curve.
4. Convert to mesh if additional detailing is needed.

The biggest advantage is speed. I’ve built convincing safety pin models in under ten minutes using curve modifiers.

Hidden drawback most tutorials ignore:

1. Adjusting wire diameter later can break intersections
2. Precise spring spacing is difficult to control
3. Mechanical tolerances require manual tweaking

This is why Blender works best when the final goal is rendering or animation rather than manufacturing.

save pin

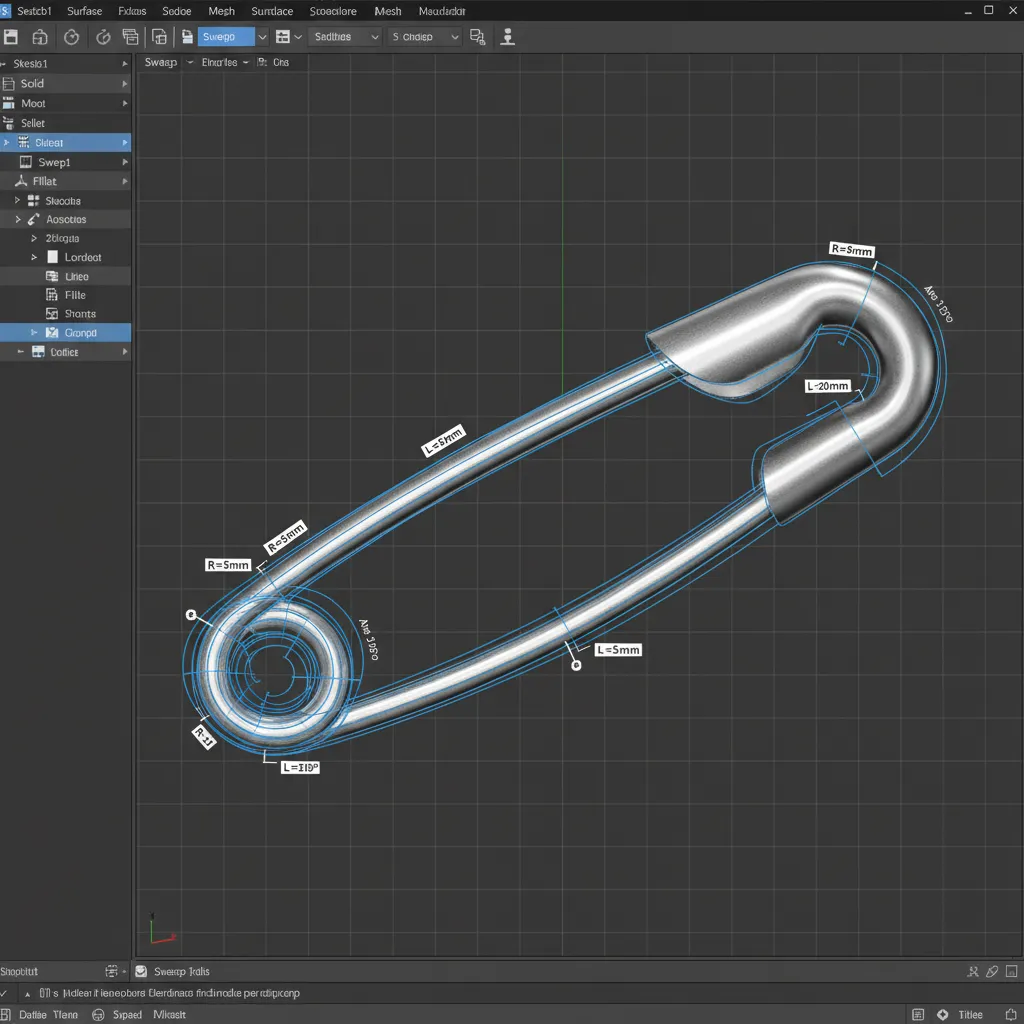

Parametric Modeling in Fusion 360

Key Insight: Fusion 360 balances precision and usability, making it one of the most practical tools for building a reusable safety pin model.

Fusion 360 uses parametric sketches and constraints. Instead of manually shaping geometry, you define relationships between dimensions.

Typical Fusion 360 workflow

1. Create a sketch for the pin profile.
2. Define wire diameter as a parameter.
3. Use sweep operations along a path.
4. Create the coil using a helix or patterned sweep.

The advantage appears later: if you change one dimension, the entire model updates automatically.

For example, adjusting the wire thickness from 1.2 mm to 1.6 mm automatically updates the entire model—coil included.

This parametric flexibility is similar to how designers experiment with spatial configurations using tools built for testing different room layouts before committing to a final design. The concept is identical: adjustable structure saves time during iteration.

Where Fusion 360 excels

1. Adjustable dimensions
2. Accurate curvature
3. Clean mechanical intersections

save pin

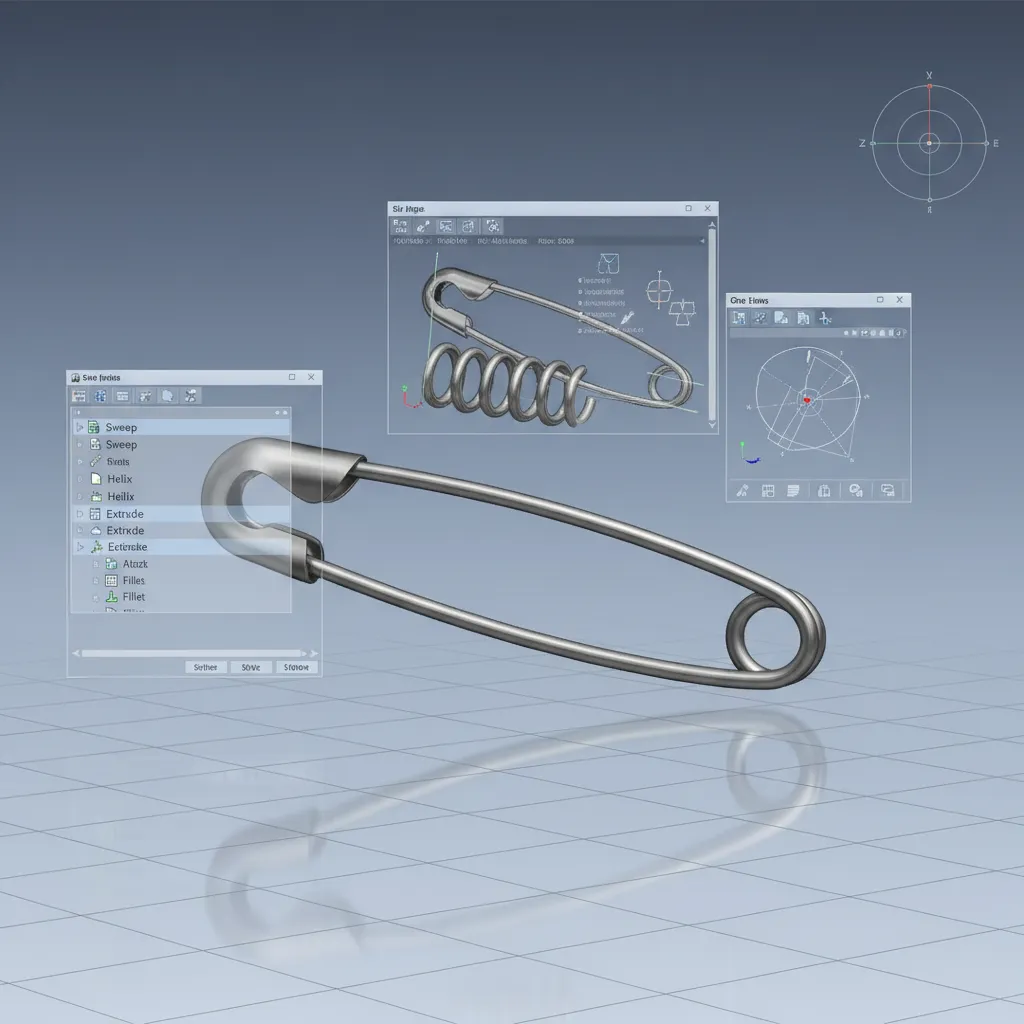

Precision CAD Modeling in SolidWorks

Key Insight: SolidWorks provides the most mechanically accurate safety pin model, but it’s often overkill for visual projects.

SolidWorks dominates professional mechanical engineering environments. When modeling springs, wires, or clips, its constraint system ensures extremely precise geometry.

SolidWorks modeling approach

1. 3D sketch for wire path
2. Sweep feature for cylindrical wire
3. Helix feature for spring coil
4. Assembly tools for moving parts

The result is mathematically precise geometry suitable for simulation or manufacturing.

The hidden trade‑off:

1. Steeper learning curve
2. Slower iteration for visual work
3. Expensive licensing

In my experience, SolidWorks becomes worthwhile only when the safety pin is part of a larger mechanical assembly.

Accuracy vs Speed: Which Tool Performs Best

Key Insight: The "best" tool depends entirely on whether speed or precision matters more.

Speed vs precision comparison

1. Fastest modeling: Blender
2. Best balance: Fusion 360
3. Highest engineering precision: SolidWorks

In real projects, teams frequently combine tools.

Example workflow I’ve seen in studio pipelines:

1. Model mechanically accurate part in CAD
2. Export to Blender for rendering
3. Use visualization tools for presentation

Many designers apply similar hybrid thinking when creating full environments using platforms built for producing photorealistic interior renders for client presentations.

save pin

Answer Box

Blender is best for fast visual modeling, Fusion 360 offers the most balanced workflow for a parametric 3D safety pin model, and SolidWorks delivers the highest mechanical precision. The right choice depends on whether your goal is rendering, prototyping, or engineering accuracy.

Choosing the Right Tool for Your 3D Safety Pin Model

Key Insight: Your final use case—not the tool’s popularity—should determine the modeling software.

Recommended choice by project goal

1. Rendering or animation → Blender
2. Product prototyping → Fusion 360
3. Mechanical engineering → SolidWorks

After years of working with both visualization artists and engineers, I’ve noticed one consistent mistake: people choose tools based on tutorials instead of outcomes.

A safety pin is a small object, but its geometry touches multiple disciplines—industrial design, CAD modeling, and rendering. Choosing the right software early can save hours of rebuilding later.

Final Summary

1. Blender creates safety pin models fastest for visual work.
2. Fusion 360 offers the best balance of usability and precision.
3. SolidWorks provides engineering‑level mechanical accuracy.
4. Parametric modeling prevents time‑consuming geometry rebuilds.
5. The correct tool depends on whether the model is visual or functional.

FAQ

What is the best software to model a safety pin in 3D?

Fusion 360 is often the best balance. It provides parametric control while remaining easier to learn than professional engineering CAD systems.

Can Blender create an accurate 3D safety pin model?

Yes, but Blender is primarily a polygon modeling tool. It works best for visual assets rather than mechanically precise models.

Why use CAD software for a safety pin model?

CAD tools maintain consistent dimensions, which is important for curved metal objects like springs or clips.

Is SolidWorks better than Fusion 360 for small mechanical parts?

SolidWorks offers deeper engineering features, but Fusion 360 is often faster for small standalone parts.

What modeling method works best for metal wire objects?

Parametric sweep operations along curves usually produce the cleanest geometry.

How long does it take to create a 3D safety pin model?

In Blender it may take under 10 minutes. In CAD tools it can take longer but produces adjustable geometry.

Can a 3D safety pin model be used for 3D printing?

Yes, but CAD‑based models usually provide better dimensional control for printable parts.

Which file format is best for sharing a safety pin model?

STEP files work well for CAD exchange, while OBJ or FBX are better for rendering pipelines.
