5 Heat Cable Clip Placement Tricks for Metal Roofs: Practical ways I optimize heat cable clip spacing and layouts on metal roofs to prevent ice dams and improve long‑term performance.

A few winters ago I made a mistake that still makes me laugh a little. I installed heat cables perfectly… or so I thought. First snowfall came, and the ice formed neatly between the cables like it was following a blueprint. That job taught me something important: clip placement matters just as much as the cable itself. When I now visualize cable paths across tricky roof edges before installation, the entire system performs better.

Metal roofs are fantastic for snow shedding, but they can also create dramatic ice buildup along eaves and valleys. Over the years, I've learned that small adjustments in clip spacing and cable layout can dramatically improve deicing efficiency. Here are five placement strategies I regularly use when optimizing heat cable systems.

How Clip Placement Affects Roof Deicing Efficiency

When clips are spaced inconsistently, heat cables drift away from the melt path they’re supposed to protect. I’ve seen perfectly good heating cables fail simply because the clips allowed them to sag or shift.

My rule is simple: clips should guide the cable exactly where melting needs to start—usually the eave edge and gutter line. If the cable wanders even a few inches, water refreezes before it drains.

Recommended Clip Spacing for Metal Roof Heat Cables

Most manufacturers recommend spacing clips roughly every 12 to 18 inches along the cable run. In practice, I tighten that spacing slightly on steep metal roofs because snow slides faster and can pull cables out of alignment.

Too few clips leads to cable drift, but too many can stress the cable and slow installation. I usually aim for consistent intervals that keep the cable snug but not pinched.

Zigzag vs Straight Cable Layouts

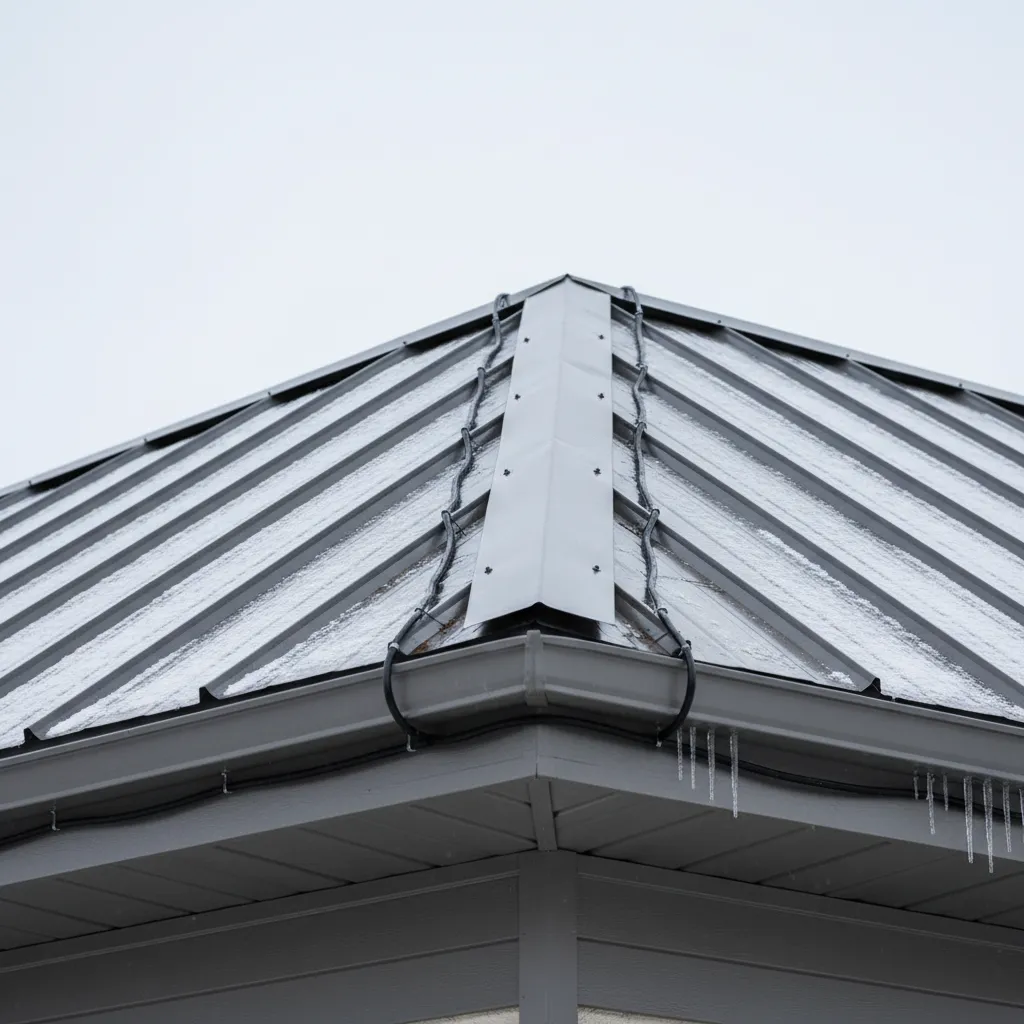

The classic zigzag pattern works beautifully along roof edges because it creates multiple melt channels. I normally set clip rows that guide the cable up and down in triangles across the eave area.

Before installing anything, I like doing a quick 3D layout preview before installing clips. Even a simple visualization helps me determine where the melt paths will actually form once snow accumulates.

Optimizing Clips for Snow Heavy Regions

In heavy snow climates, cables experience far more mechanical stress. I add additional clips near valleys, roof transitions, and long eave runs where sliding snow tends to tug the cable downward.

This doesn’t mean doubling clip density everywhere. I focus reinforcement on stress points—those are the places where cable systems usually fail after a few winters.

Reducing Cable Movement with Proper Clip Density

If heat cables move during freeze–thaw cycles, their melt channels shift and ice dams start forming again. Strategic clip placement prevents that slow drift.

When planning systems, I often experiment with layout ideas digitally first to estimate where cables might flex or shift over time. That extra planning step saves hours of adjustment later.

FAQ

1. What is the ideal heat cable clip spacing for metal roofs?

Most installations work best with clips spaced 12–18 inches apart. Steeper roofs or heavy snow regions may require slightly closer spacing to prevent cable movement.

2. Should heat cables be installed in a zigzag pattern?

Yes, zigzag layouts are common along roof edges because they create multiple melt channels that guide water safely into gutters.

3. How many clips are needed for a typical roof heat cable?

The exact number depends on cable length and spacing. For example, a 100‑foot cable spaced at 15 inches typically needs around 80 clips.

4. Can clips damage a metal roof?

Quality clips designed for metal roofing attach without penetrating the panels. This protects both the roof coating and waterproofing layer.

5. Why do heat cables sometimes fail to prevent ice dams?

Common causes include poor cable placement, inconsistent clip spacing, or insufficient coverage along the eave area where ice dams form.

6. Do heavy snow areas require different clip layouts?

Yes. In snow‑heavy regions I usually reinforce valleys, roof edges, and long eave runs with additional clips to resist snow slide forces.

7. Can I install heat cable clips myself?

Many homeowners do, but roof safety and proper layout are important. Contractors typically ensure better long‑term placement and cable routing.

8. What standards guide roof deicing cable installations?

The U.S. National Electrical Code (NEC Article 426) provides safety guidelines for fixed outdoor electric deicing equipment, including proper installation practices.
