5 Living Room Furniture Layouts with Dimensions: Smart, space-saving living room furniture plans with real measurements and practical tips from a seasoned designer

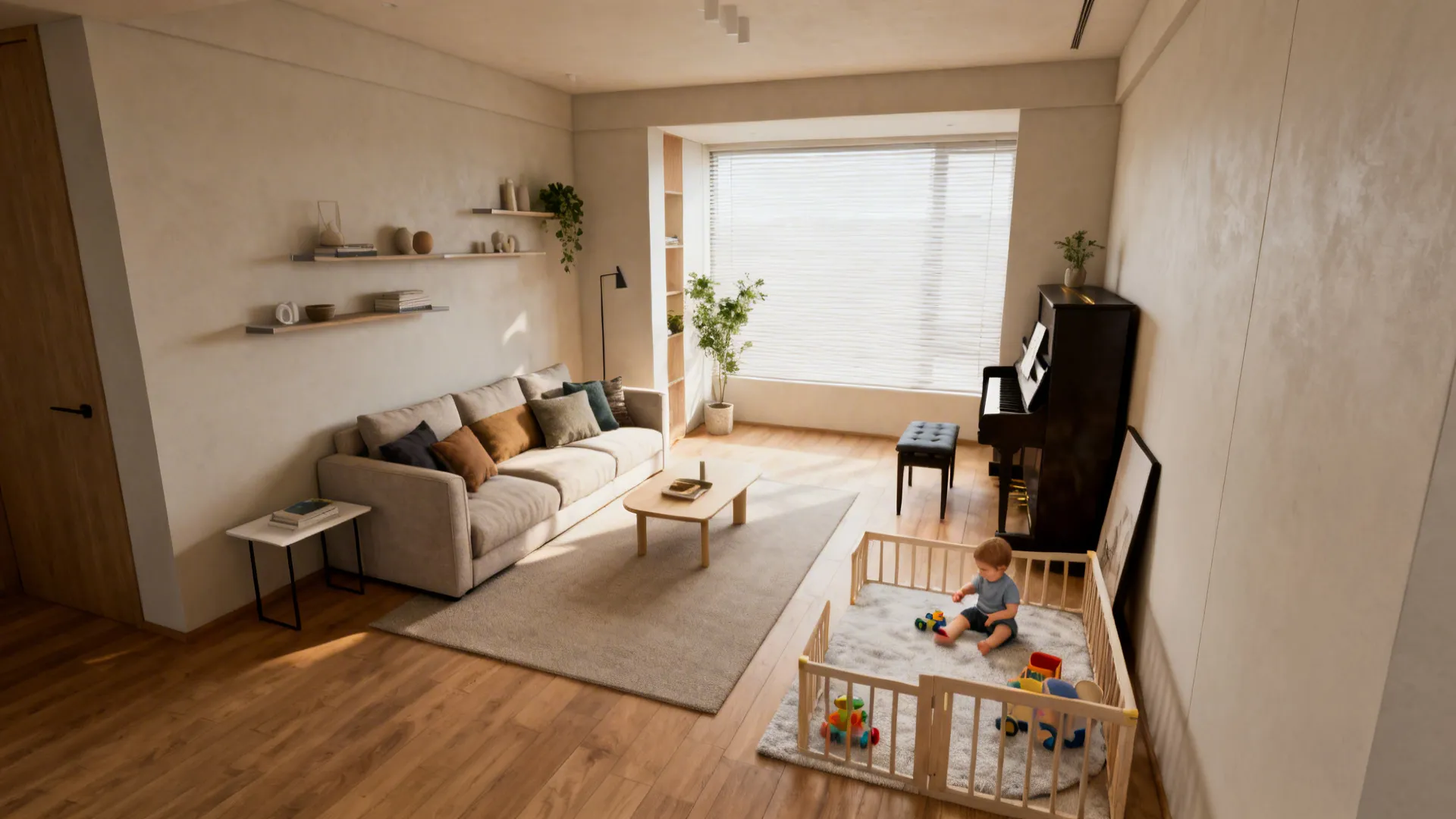

Once a client asked me to fit a king-size sofa, a grand piano, and a toddler’s play area into a 12㎡ living room — I laughed, sketched, and then surprised both of us by making it work. Small spaces force you to be creative; that day taught me that thoughtful dimensions and layout rules trump oversized ambition. In this article I’ll share 5 furniture living room plans with dimensions that I’ve used in real projects, plus tips and trade-offs from my decade of experience.

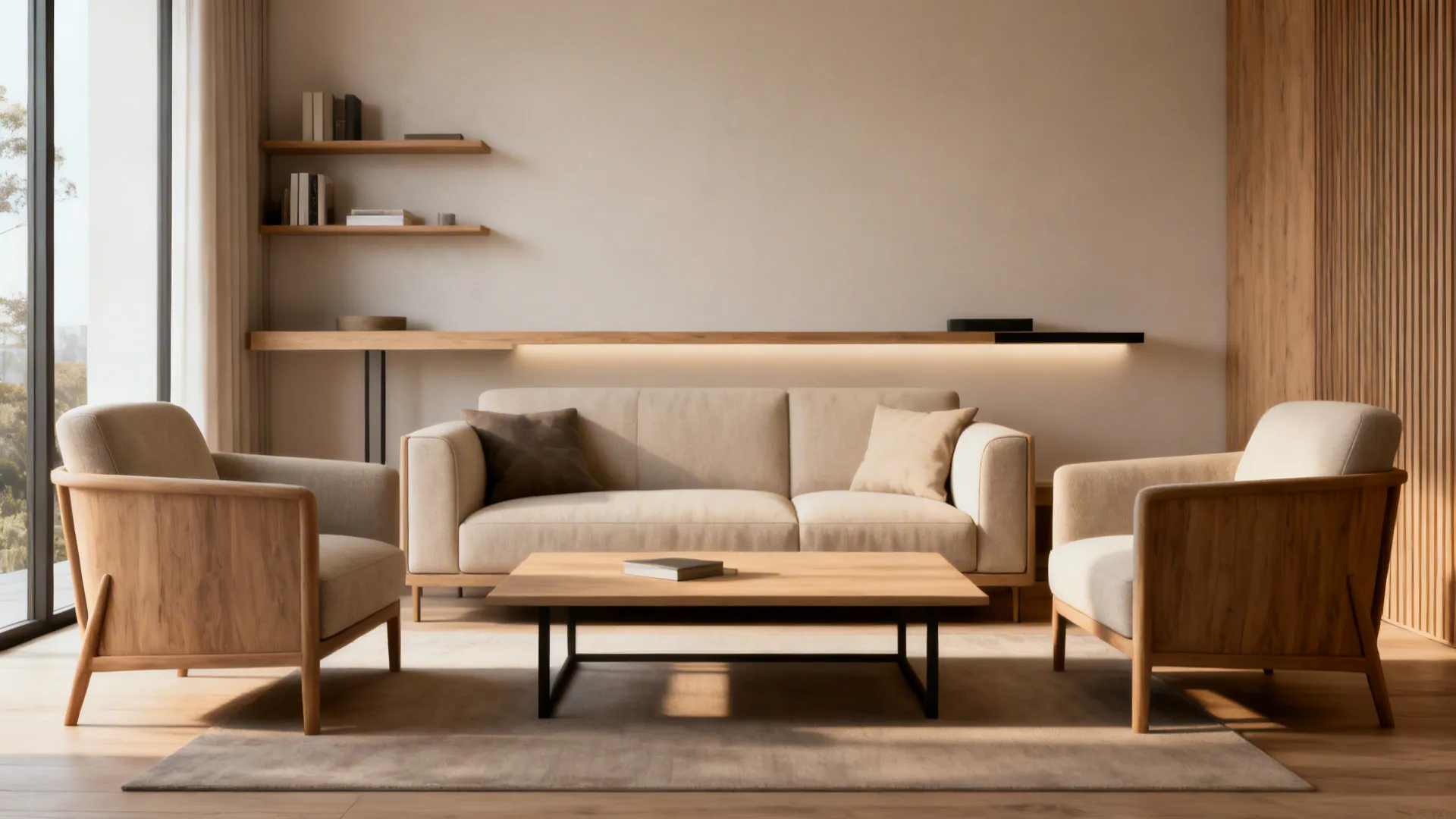

1. Compact Conversation Layout (for 10–15㎡)

This plan centers on a 2.2m sofa facing two armchairs (0.8–0.9m each) with a 1.0–1.2m coffee table between them. Leave at least 45–60cm circulation around the table and 30–40cm behind the sofa if it’s against a wall. The benefit is sociable seating in a tight area; the challenge is limited storage — I solve that with wall-mounted shelves or a slim console behind the sofa.

save pin

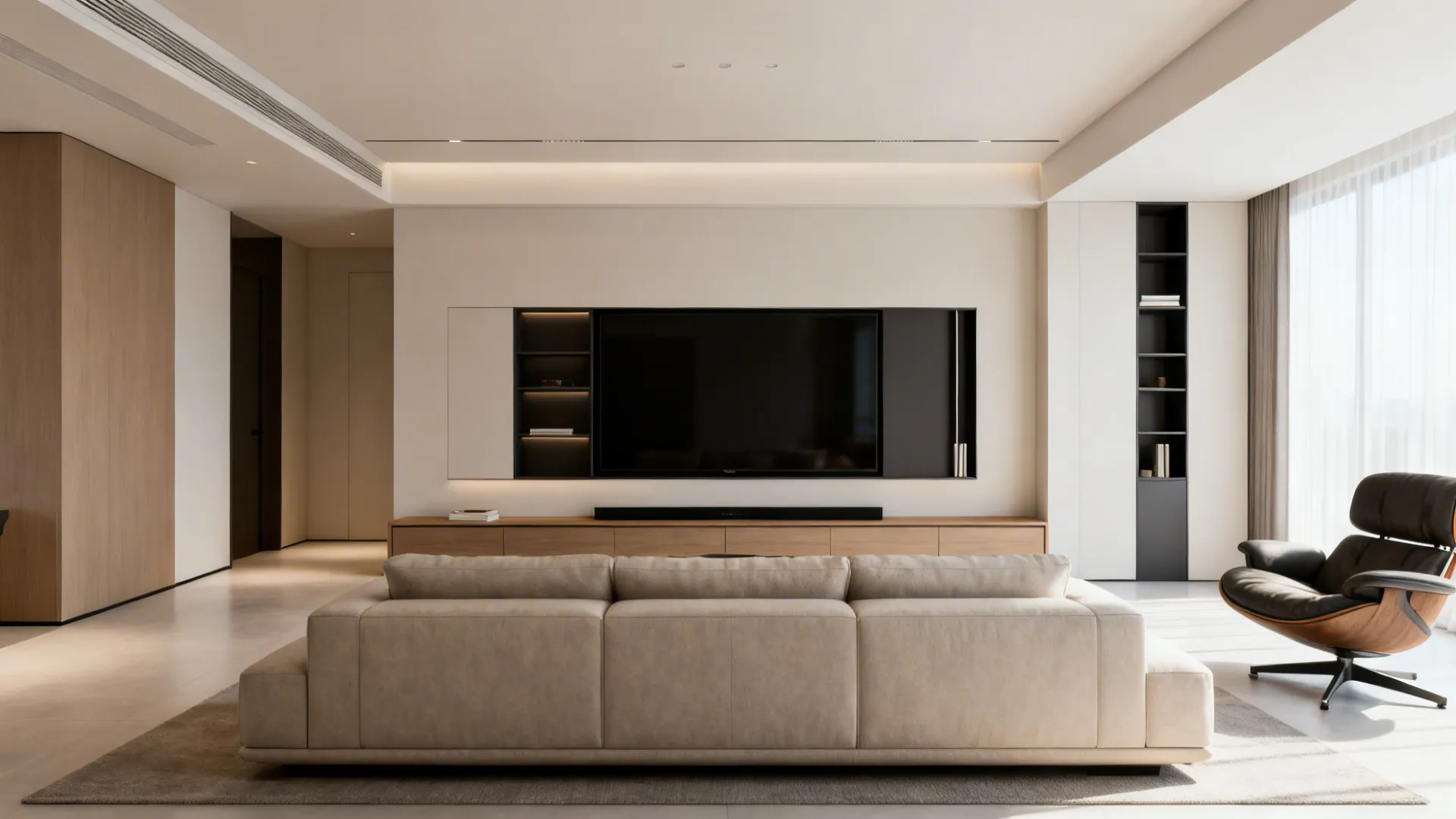

2. TV-Focused Long Room (for 12–18㎡)

Place a 1.8–2.4m TV cabinet opposite a 2–2.4m sofa, allowing 2.5–3.5m viewing distance for comfortable sightlines. Flank the TV with slim storage (30–40cm deep) and keep pathways of 60–80cm. This layout prioritizes media viewing and storage consistency, but can feel static; I often add a swivel chair (0.8m) to introduce flexibility.

save pin

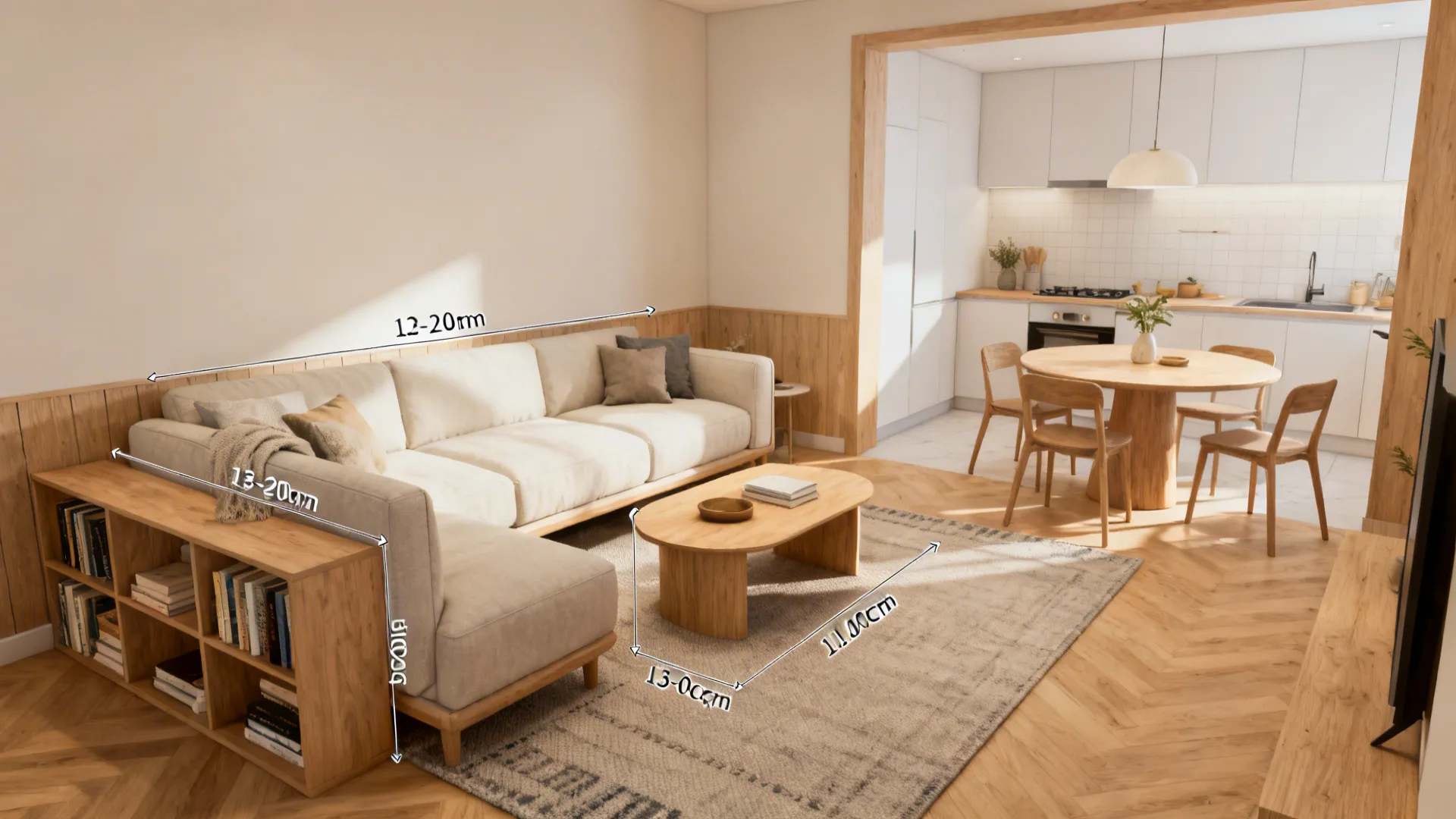

3. Open Plan with Dining Nook (for 15–20㎡)

Combine a 2.2m sofa and a 1.0–1.2m coffee table with a small dining table (0.9–1.2m round or 1.2m square) placed near the kitchen. Maintain 90cm between sofa back and dining chairs for easy movement. The upside is multifunctional living; the trade-off is visual clutter — use a low bookshelf or rug to zone the areas and keep proportions balanced.

save pin

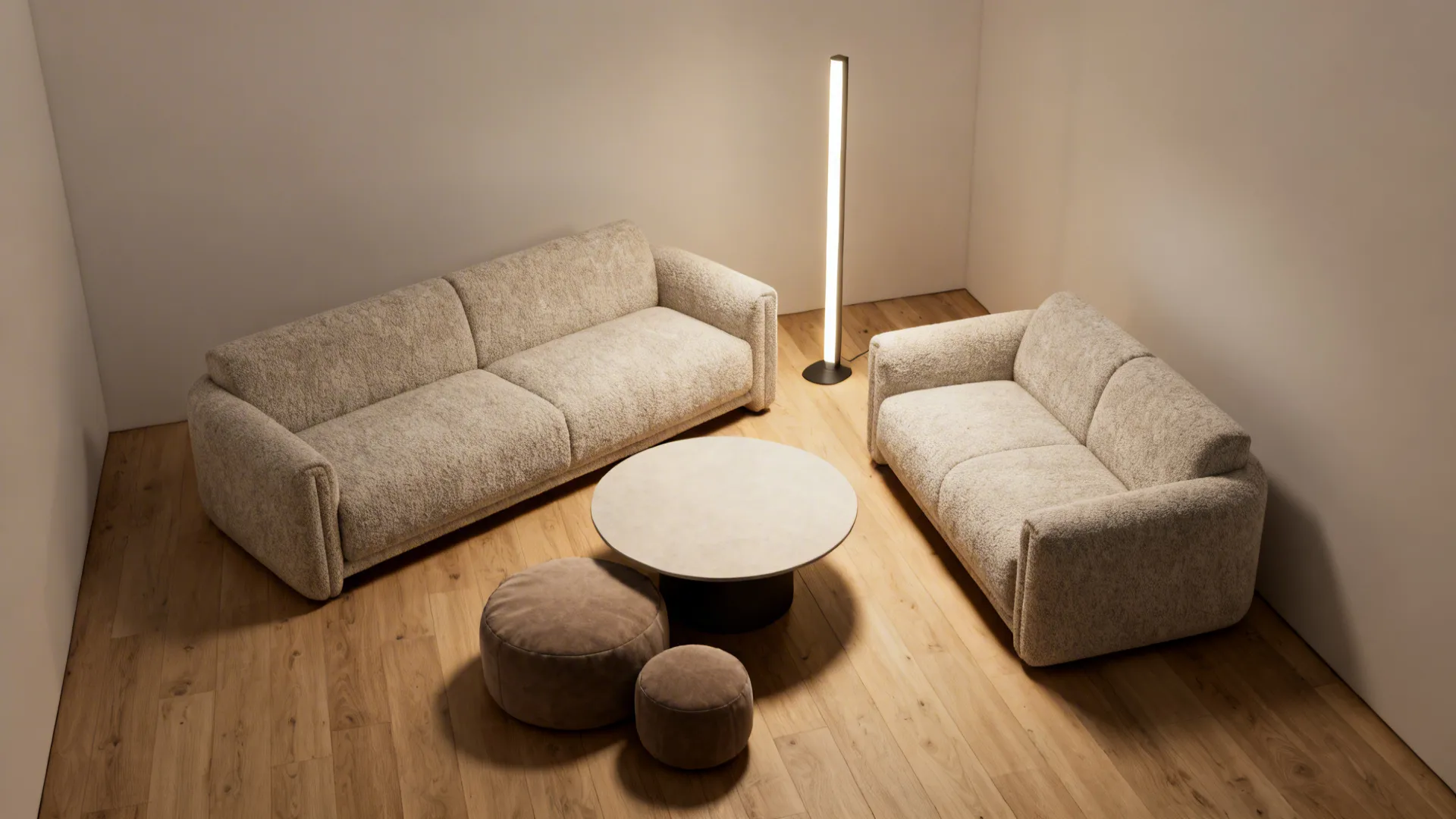

4. Cozy Corner Layout (for studios or L-shaped rooms, 8–12㎡)

Tuck a 1.6–2.0m loveseat into a corner at 45 degrees to create a conversational corner. Add a small round coffee table (60–70cm) and a narrow floor lamp. This feels intimate and leaves more open floor, but seating is limited — I sometimes pair with poufs that tuck under tables for extra guests.

save pin

5. Minimal Multifuntion Layout for Narrow Rooms (for 8–14㎡)

Use a 1.6–2.0m sofa against one long wall, a slim 30–35cm deep console or floating shelf opposite, and a wall-mounted TV to save depth. Keep a 60–75cm circulation path and a coffee table no wider than 50–60cm. The big advantage is an airy feel; the drawback is less cozy depth, which I counter by layering cushions and a narrow runner rug.

Practical Dimension Tips I Always Use

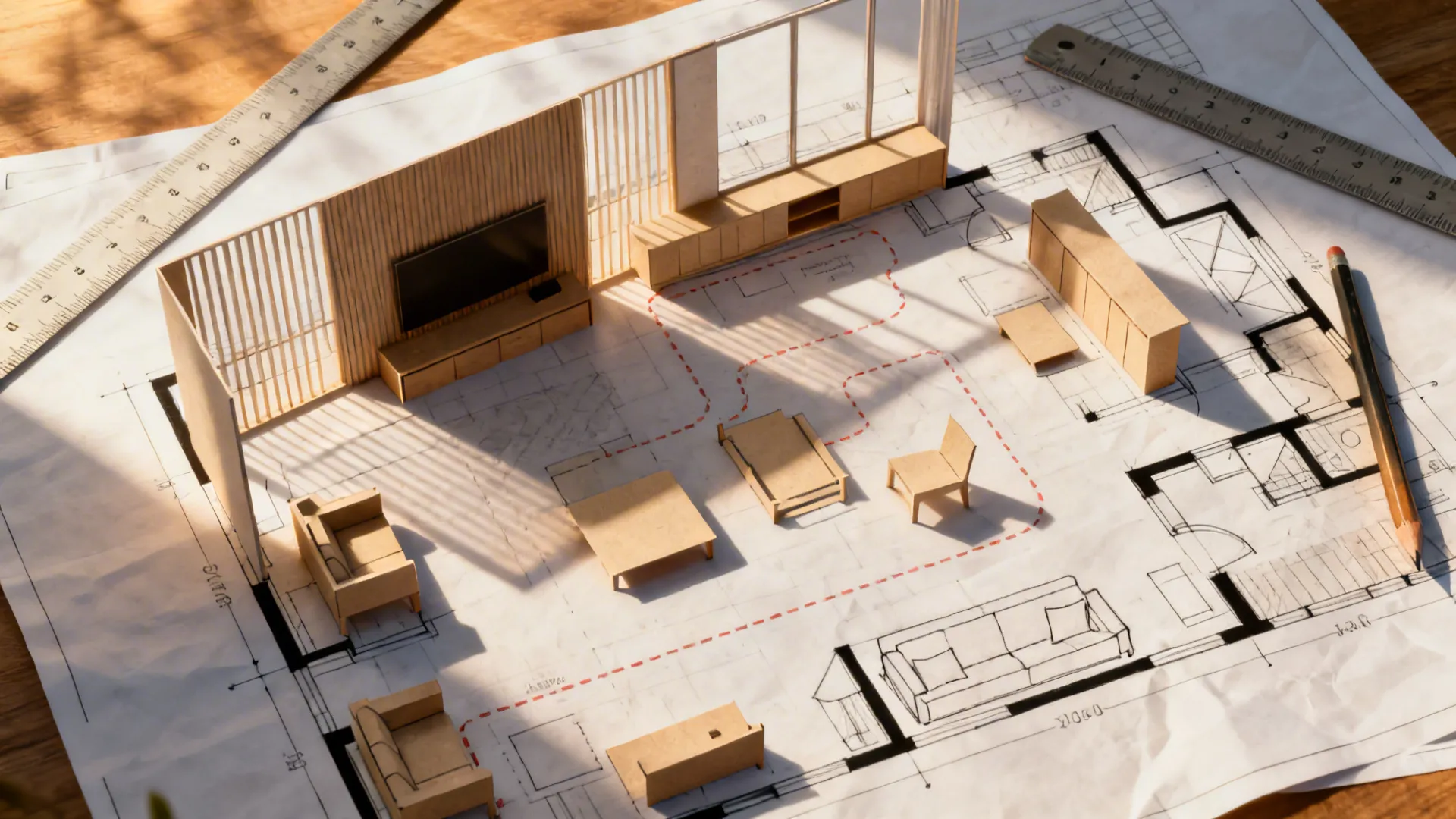

Measure twice and sketch to scale — it saves costly mistakes. Standard clearances I stick to: 45–60cm for casual circulation, 60–90cm for primary walkways, and 2.5–3.5m for TV viewing depending on screen size. For storage, go vertical if the floor footprint is precious; tall cabinets only need 30–40cm depth to be useful.

save pin

Tools I Recommend

When I need to communicate exact placement to clients, I use simple floor planners to mock up scaled arrangements — it removes guesswork and helps test sightlines. For quick 3D previews I also try single-click renderers that show how light and materials change the perception of size. These steps make my proposals feel realistic and trustworthy.

save pin

Tips 1:

Want dimension templates? Start by drawing your room to scale and place the largest piece first. Keep circulation and visual sightlines as your second priority. If storage is key, choose multi-purpose furniture like consoles that can double as media units.

save pin

FAQ

Q: What is the minimum distance between a sofa and a coffee table? A: Aim for 30–45cm so people can reach the table comfortably without feeling cramped.

Q: How far should a TV be from seating? A: Generally 2.5–3.5m depending on screen size; larger TVs can sit further back for comfortable viewing.

Q: What sofa depth works best in small living rooms? A: A depth of 80–90cm (seat depth 50–60cm) balances comfort and saves floor space.

Q: How to make a narrow living room feel wider? A: Use low-profile furniture, mirror accents, and align the main sofa along the longest wall to open sightlines.

Q: Should I place a rug under all furniture? A: Ideally the front legs of major pieces should sit on the rug to unify the group; in tight spaces a smaller rug under the coffee table can suffice.

Q: What’s a good sofa size for a 12㎡ living room? A: A 1.8–2.2m sofa often fits well, leaving room for circulation and a small coffee table.

Q: Are modular sofas worth it in small rooms? A: Yes — modular pieces adapt to layout changes, but watch for visual bulk; choose low arms and light fabrics to keep the space airy. Source: American Society of Interior Designers (ASID) guidelines for residential space planning.

Q: Can I fit dining and living areas in 15㎡? A: Yes — by choosing a compact dining set (0.9–1.2m) and zoning with rugs or shelving, you can create both functions comfortably.
