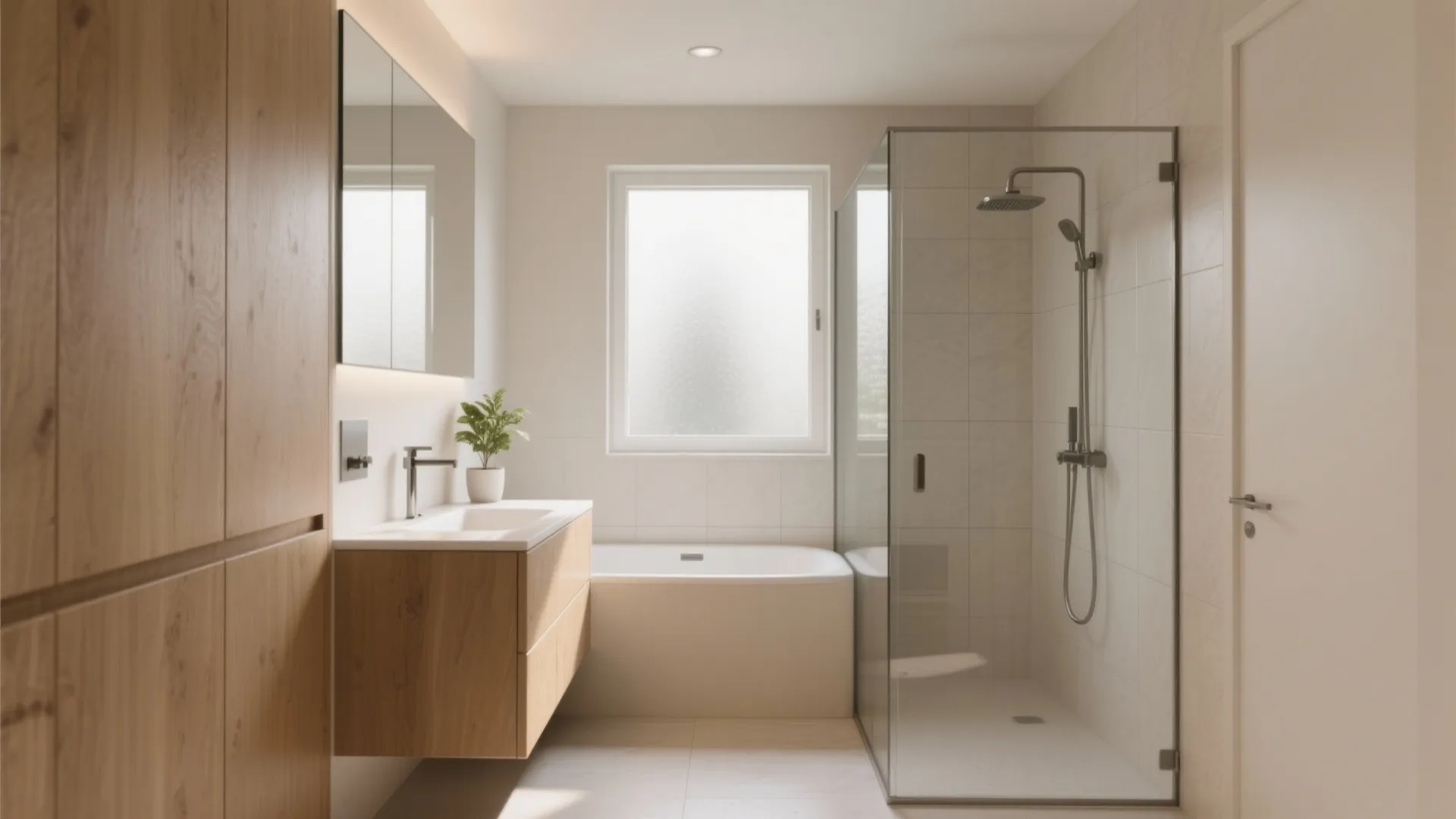

5 Small Bathroom Layouts with Tub and Shower: Smart, stylish layouts for tiny bathrooms that need both a tub and a shower

I once tried to cram a full-sized clawfoot tub into a 3.5-square-meter bathroom because the client swore it was a “must-have.” It looked adorable in the catalog, disastrous in real life, and taught me a rule I now follow: small bathrooms demand clever compromises, not stubborn showpieces. Small spaces can inspire big creativity—so I’ll share five practical layout ideas that let you have both a tub and a shower without turning the room into an obstacle course.

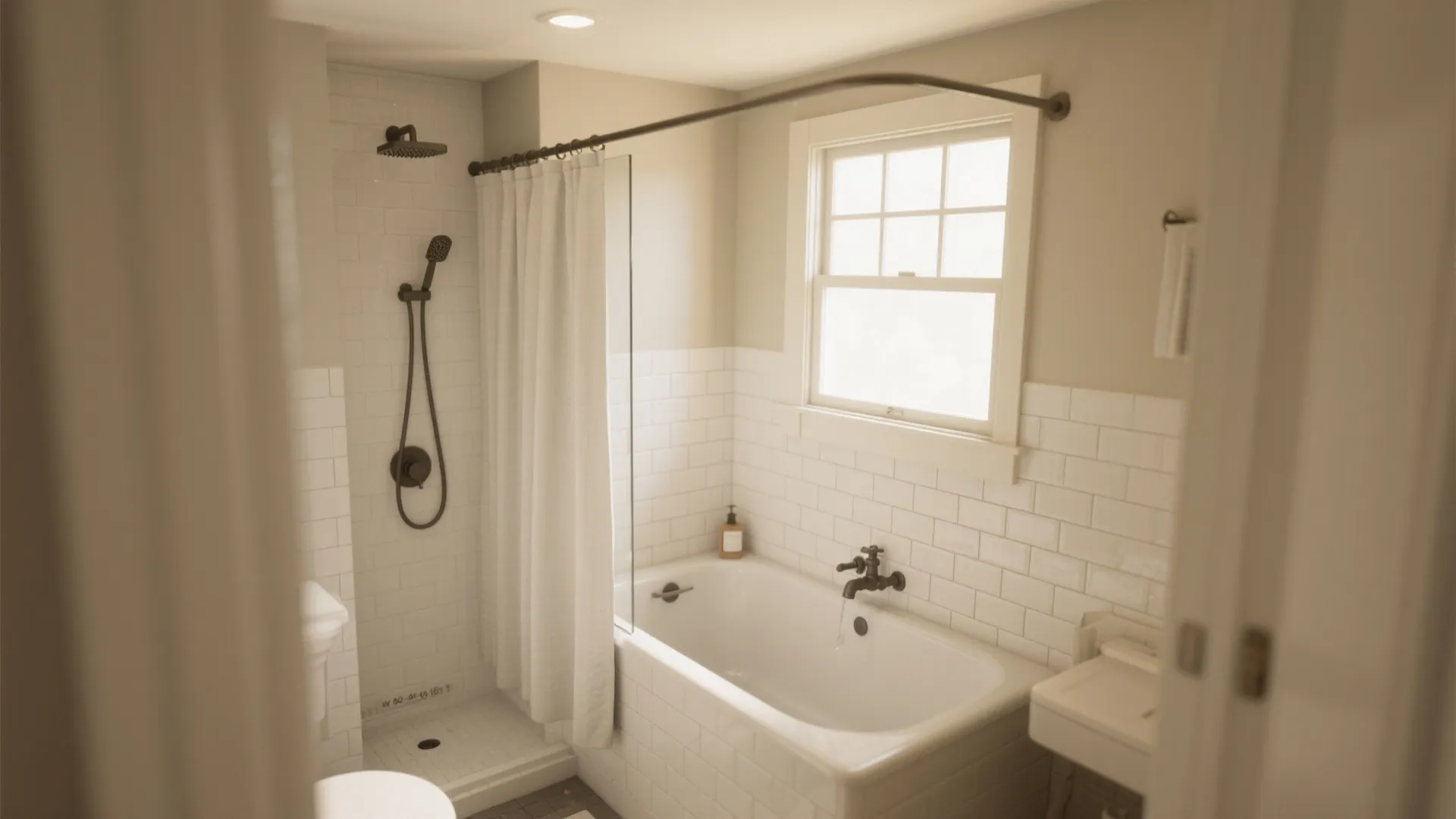

1. Alcove Tub with Overhead Shower

This is the classic space-saver: tuck a 60–66 inch alcove tub against one wall and add a ceiling or wall-mounted shower. It keeps plumbing simple and uses a single wet zone, which reduces waterproofing headaches. Pros: efficient, economical, easy to curtain or glass in. Cons: limited step-in width and less lounging space; choose a compact tub or shallow depth model for truly tiny footprints. I used this in a 4.2 sqm renovation and the owner loved the simplicity.

save pin

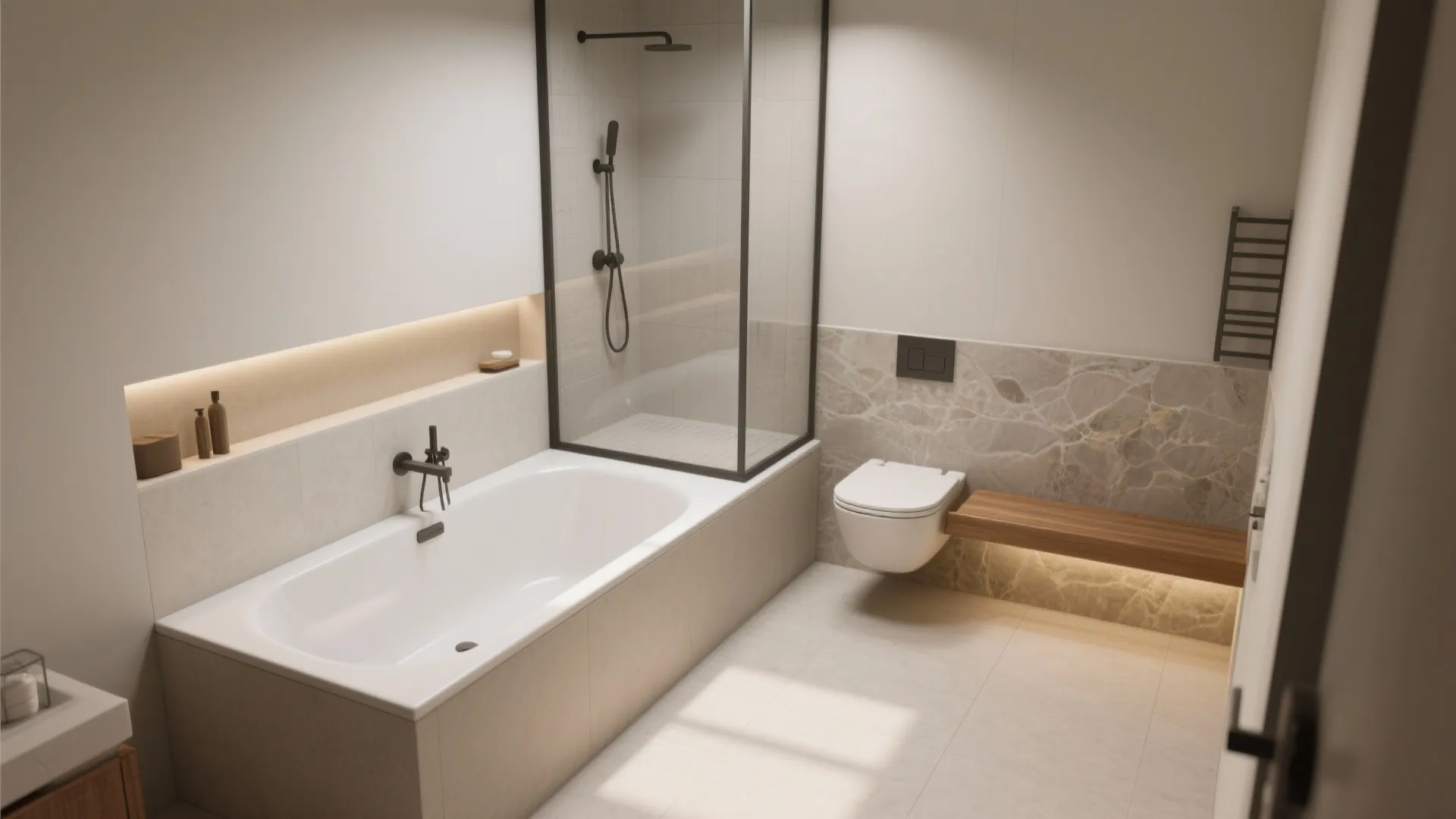

2. L-Shaped Tub and Shower Corner

The L-shaped (or shower-bath combo with one extended ledge) places the tub along one wall and a dedicated shower corner at the foot. It separates functions visually, gives a standing shower area, and lets you have a small bench or niche. Pros: more functional flexibility and storage ledge; cons: needs slightly more floor area than an alcove layout. For a budget-friendly variant, use a partial glass screen to avoid full-height glazing costs.

save pin

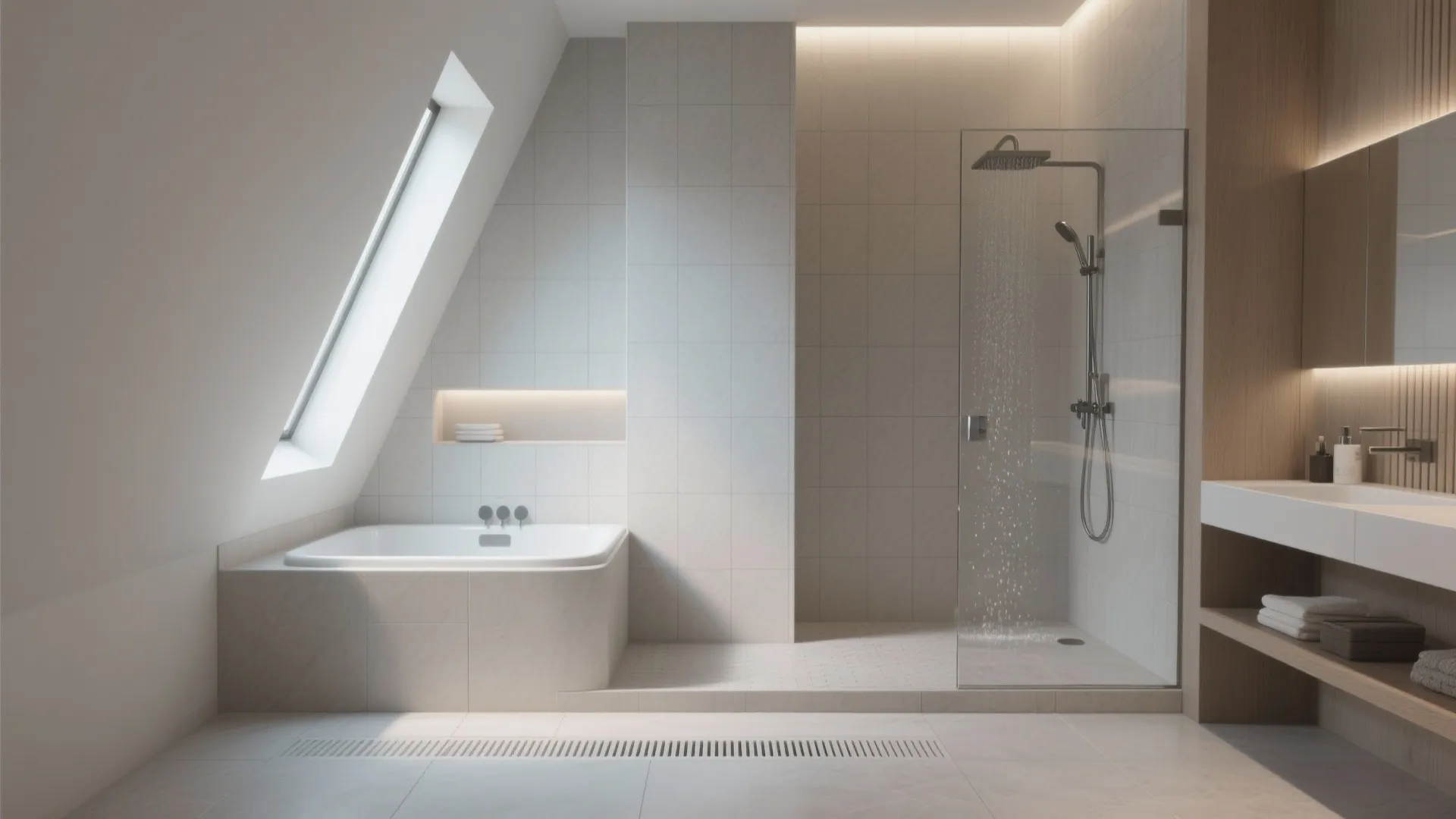

3. Walk-Through Wet Room with Embedded Tub

If your budget and waterproofing tolerance allow, convert the whole room into a wet room and recess a compact tub into a niche. This approach maximizes perceived space and lets the shower flow freely. Advantages: airy, modern look and easier cleaning. Drawbacks: higher waterproofing cost and you’ll need a good drainage slope. I helped a couple who loved open layouts choose this, and the small space felt much larger afterwards.

save pin

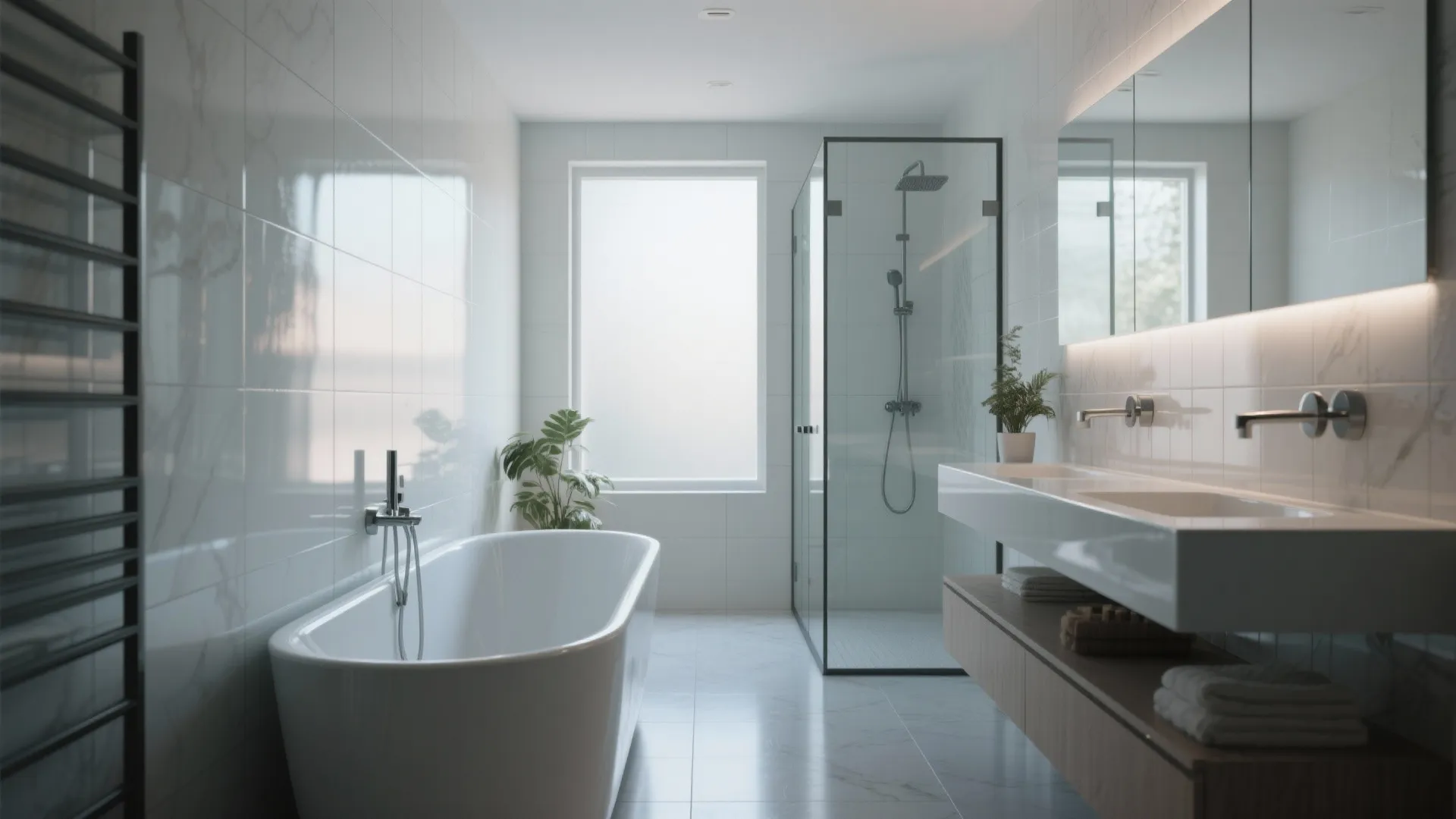

4. Soaking Tub Opposite a Glass Shower

Place a narrow soaking tub on one wall and a frameless glass shower opposite to create visual balance. The transparent shower keeps sightlines open, so the bathroom feels less cramped. Pros: elegant, great for long skinny baths; cons: requires precise measurement to avoid door swing conflicts. I often sketch this layout in a room planner to confirm clearances before buying fixtures.

save pin

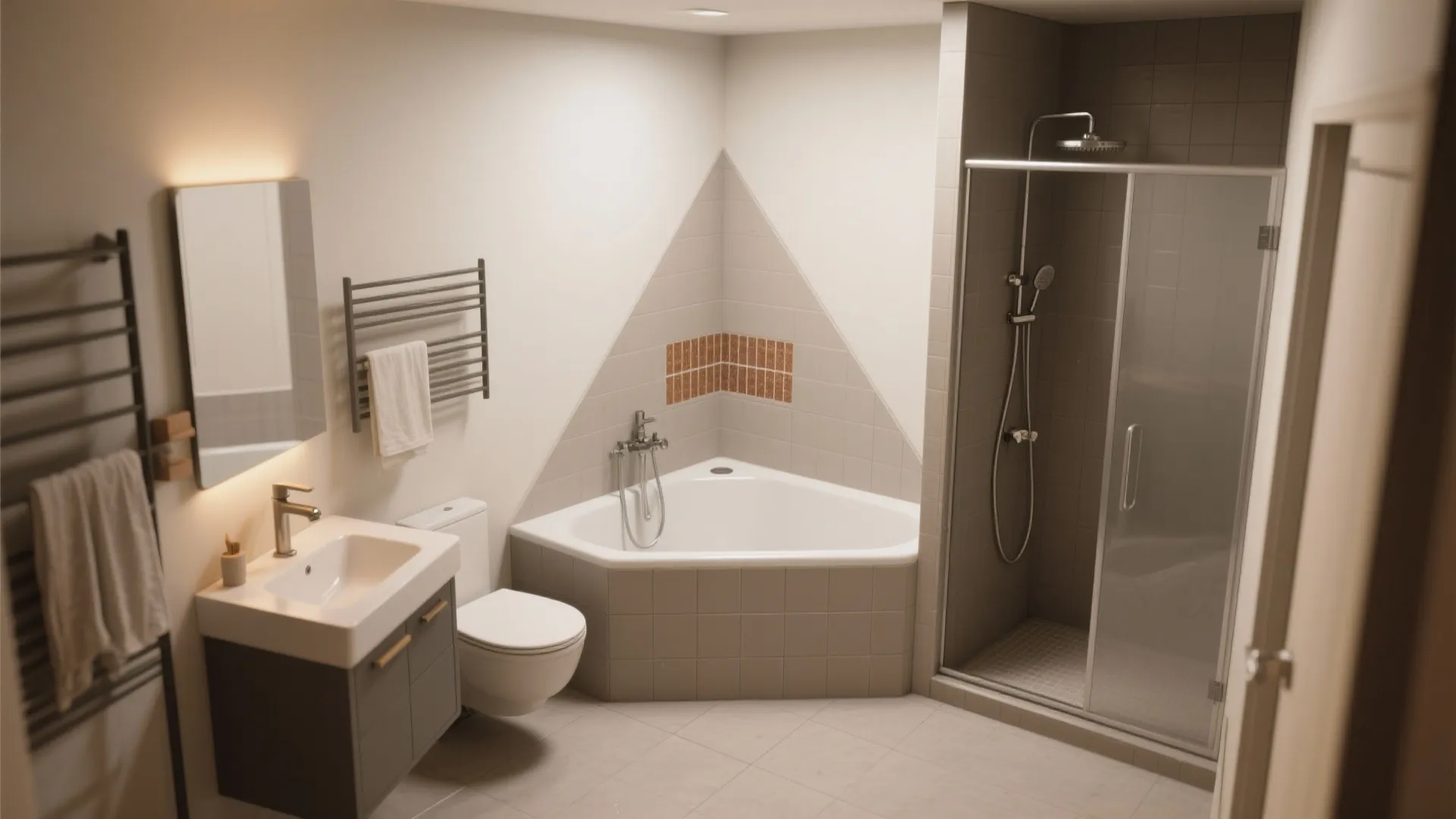

5. Corner Triangular Tub with Compact Shower

When floor area is the enemy, go triangular: a small triangular or neo-angle tub in the corner paired with a compact shower booth can free up central circulation. Benefits: saves corridor space and creates an interesting focal point; trade-offs: tub comfort is reduced and retrofitting plumbing can be fiddly. I did this for a client who prioritized a full tub despite a tiny plan—score for courage, mixed feelings about weekend lounging.

save pin

Practical Tips and Budget Notes

Short tip: always measure the door swing and the bath/shower entry before ordering fixtures. If working on a strict budget, choose a combined tub-shower valve and a single waterproofing team to avoid doubled labor costs. For visual tricks, use large tiles and a generous mirror to expand perceived space. Also try sketching your plan in a 3D floor planner to catch clearance issues early.

save pin

Tips 1:

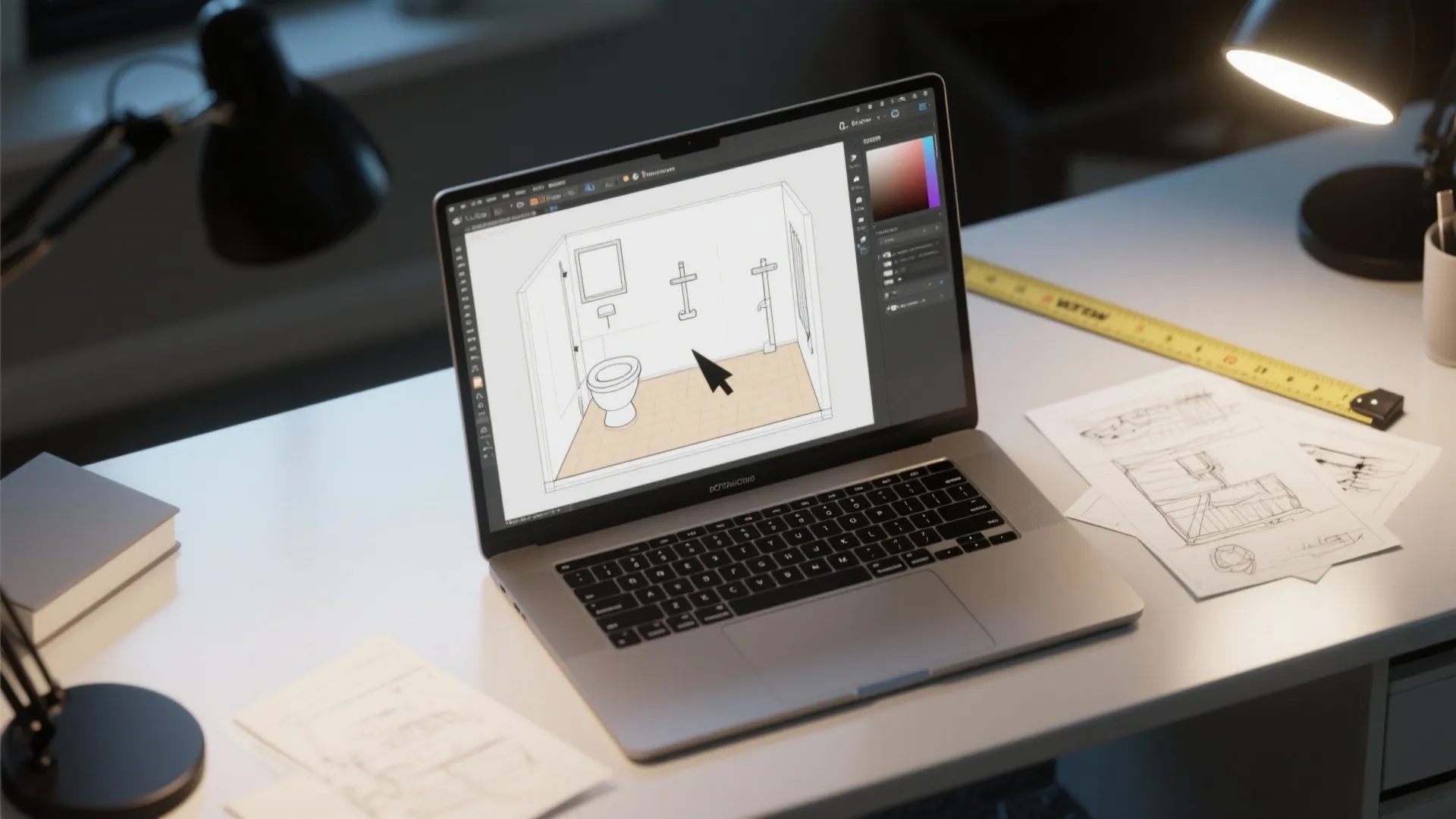

Want to test a quick layout before committing? I recommend trying an online room planner mock-up so you can move fixtures and see sightlines. At about midpoint through a project I usually rework the plan using a dedicated free floor plan creator to validate plumbing runs and door swings, which prevents last-minute surprises.

save pin

FAQ

Q1: What is the minimum bathroom size to fit a tub and a shower? A1: Practically, you need at least 4.0–4.5 square meters to comfortably fit both; smaller spaces require combined solutions like an alcove tub with overhead shower.

Q2: Is a tub and shower in a small bathroom expensive to waterproof? A2: It can be more costly than a simple shower because you must waterproof the entire wet zone; consider a single contractor to reduce overlap and mistakes.

Q3: Are glass shower screens worth it in tiny bathrooms? A3: Yes—clear glass maintains sightlines and makes the room feel larger, though it costs more than a curtain and needs occasional maintenance.

Q4: How do I choose between an alcove tub and a corner tub? A4: Choose an alcove tub if you want a more ergonomic bathing position and easier installation; pick a corner tub when floor plan constraints make a straight tub impractical.

Q5: Can I convert a tub into a shower later? A5: Generally yes, but check plumbing placement and tile/wetproofing condition; planning for conversion can save future demolition costs.

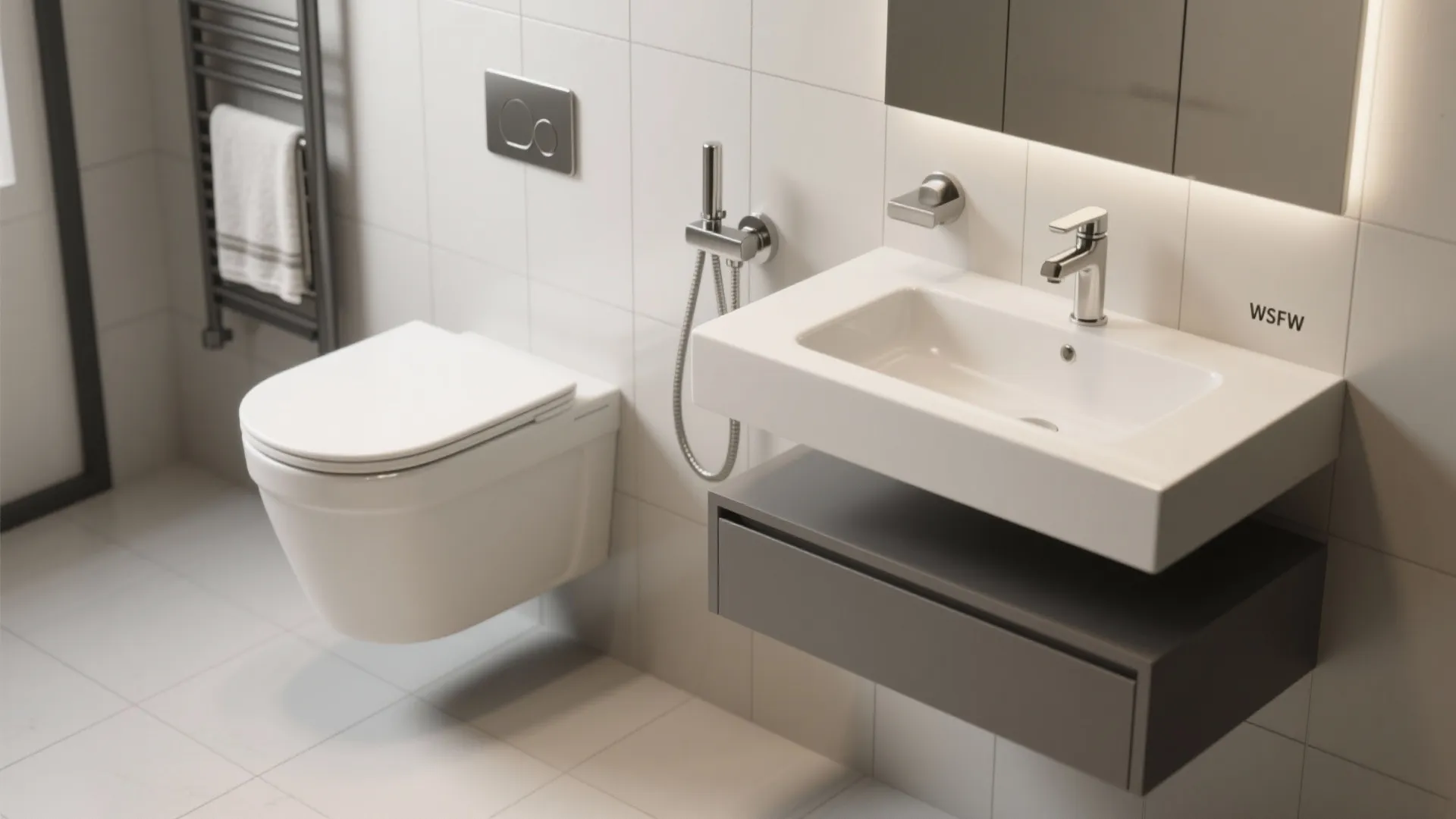

Q6: What fixtures save the most space? A6: Wall-hung toilets, narrow vanities, and towel radiators free up floor area. For layout checking, use an office layout planner or 3D floor planner to visualize these compact fixtures in context.

Q7: Where can I find authoritative guidance on bathroom waterproofing standards? A7: Refer to national building codes or standards like the International Residential Code (IRC) and local plumbing codes; industry sources such as the International Code Council (https://www.iccsafe.org) provide precise requirements.

Q8: How can I ensure good ventilation in a small bath with both tub and shower? A8: Install an adequately sized exhaust fan (CFM matched to room volume) and, if possible, a window; run the fan for at least 20 minutes after bathing to control humidity.
