5x9 vs 5x8 Bathroom Layout: Space Efficiency and Fixture Placement Compared: See how one extra foot can change vanity size, shower options, and everyday comfort in a small bathroom layout.

Direct Answer

A 5x9 bathroom layout generally offers better usability than a 5x8 bathroom because the extra foot allows more flexible fixture placement, a larger vanity, and improved movement space. While both layouts fit the same core fixtures, the additional length in a 5x9 layout makes storage and circulation noticeably easier.

Quick Takeaways

1. A 5x9 bathroom typically allows a larger vanity or improved storage placement.
2. 5x8 bathrooms are efficient but often feel tighter around the toilet and shower.
3. The extra foot in a 5x9 layout improves circulation and door clearance.
4. Both layouts support a standard tub-shower combo, but 5x9 offers more flexibility.
5. Fixture spacing often determines comfort more than total square footage.

Introduction

After designing dozens of compact bathrooms in apartments and older homes, I've noticed something interesting: the difference between a cramped bathroom and a comfortable one is sometimes just a single foot. That's exactly what happens when comparing a 5x9 vs 5x8 bathroom layout.

Both sizes are considered standard small bathroom dimensions in North American homes. You'll typically see them in guest bathrooms, hallway bathrooms, and many mid‑century houses. On paper, the difference between 40 square feet and 45 square feet seems small. In real projects, however, that extra foot often changes where fixtures can go and how the room actually feels.

If you're planning a remodel, visualizing layouts first makes a huge difference. I often recommend experimenting with a simple tool that helps visualize small bathroom floor plans before renovationso homeowners can see how fixture spacing changes usability.

In this guide, I'll walk through the real design differences between these two layouts, where the extra foot actually matters, and when upgrading to a 5x9 layout is worth it.

save pin

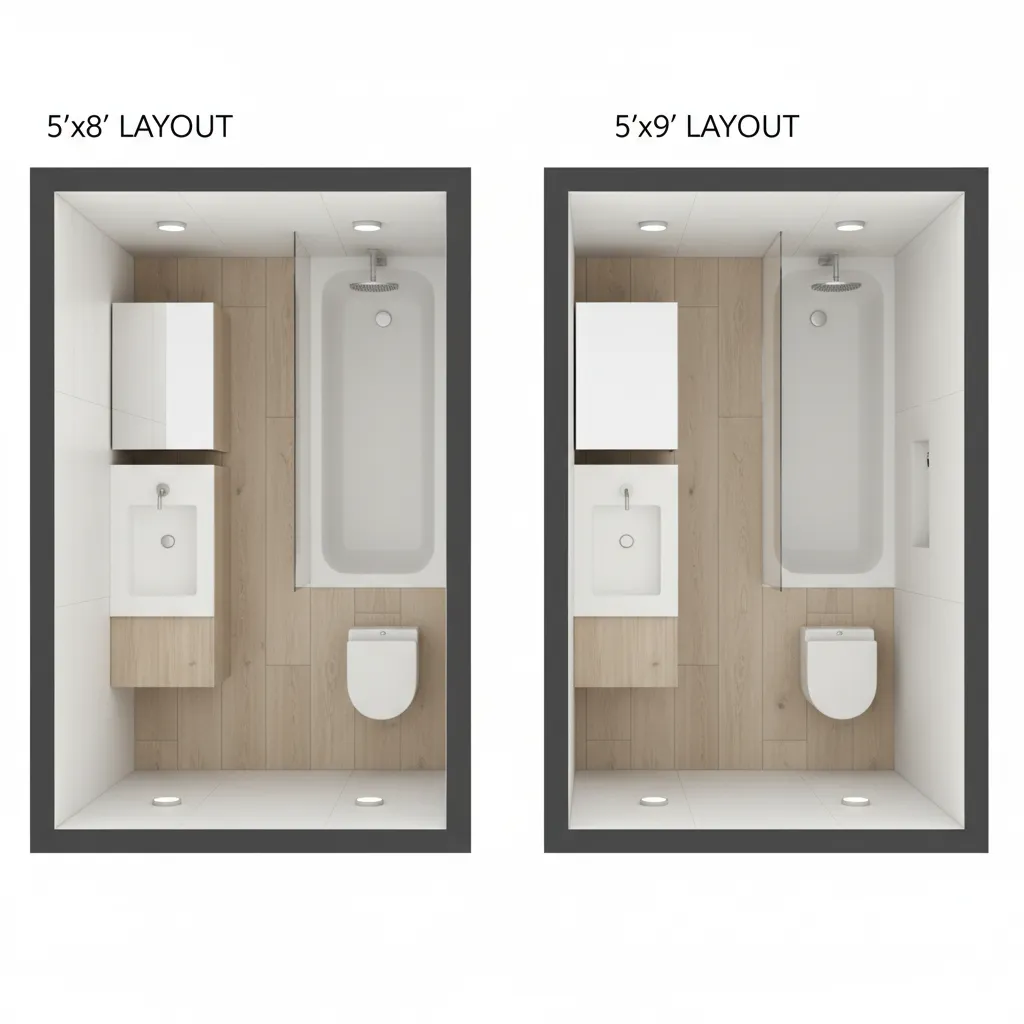

Overview of 5x9 and 5x8 Bathroom Dimensions

Key Insight: Both layouts fit the same essential fixtures, but a 5x9 bathroom adds valuable circulation space that designers can redistribute.

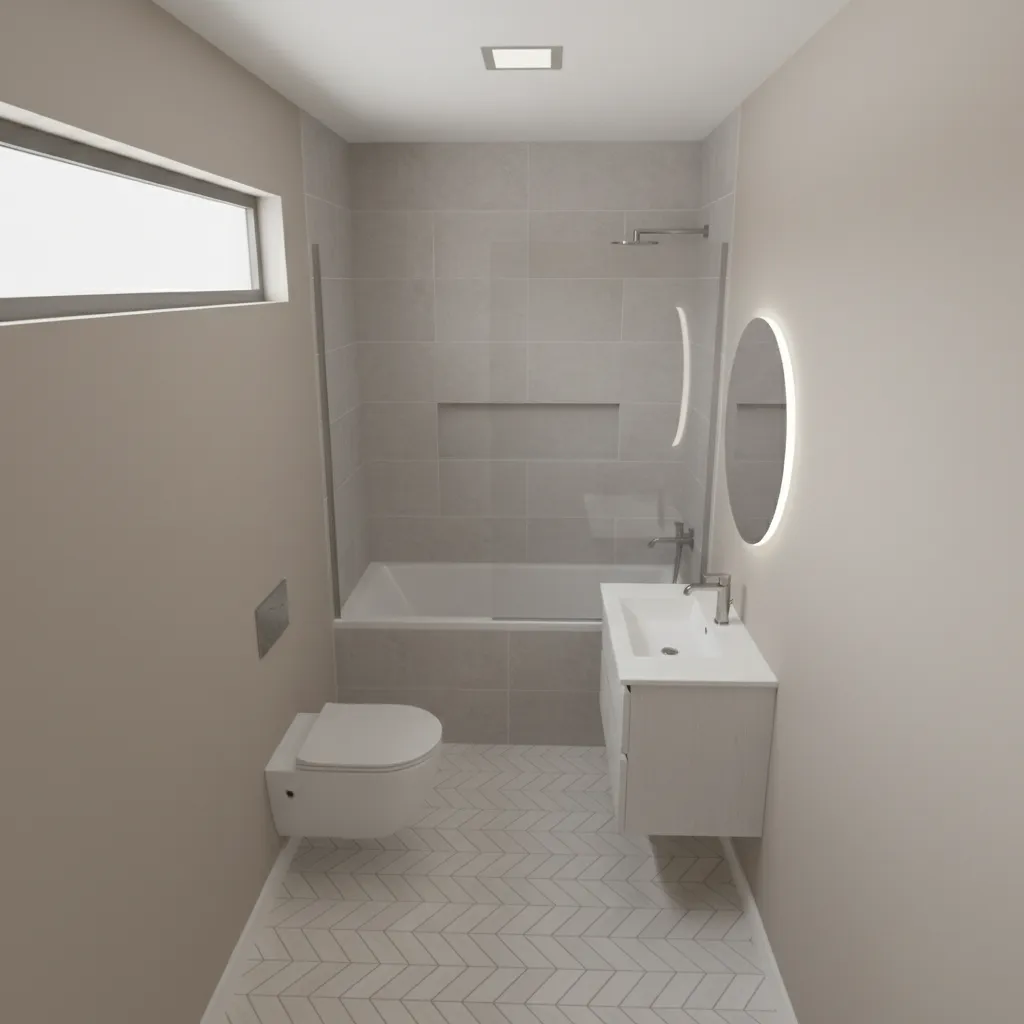

A standard 5x8 bathroom measures 40 square feet and has historically been the most common full bathroom size in U.S. homes. A 5x9 bathroom expands that footprint to 45 square feet, typically by extending the length opposite the vanity wall.

That extra foot usually changes how fixtures align along the long wall, especially around the toilet and vanity area.

Typical Layout Structure

1. 5x8 bathroom: Vanity → Toilet → Tub or shower along the long wall
2. 5x9 bathroom: Larger vanity → Toilet with more spacing → Tub or walk‑in shower

Dimension Comparison

1. 5x8 bathroom: 5 ft × 8 ft (40 sq ft)
2. 5x9 bathroom: 5 ft × 9 ft (45 sq ft)
3. Space difference: 5 additional square feet

Five square feet might not sound like much, but in small-bathroom design it's often the difference between a 24-inch vanity and a 36-inch vanity.

Fixture Placement Differences Between the Two Layouts

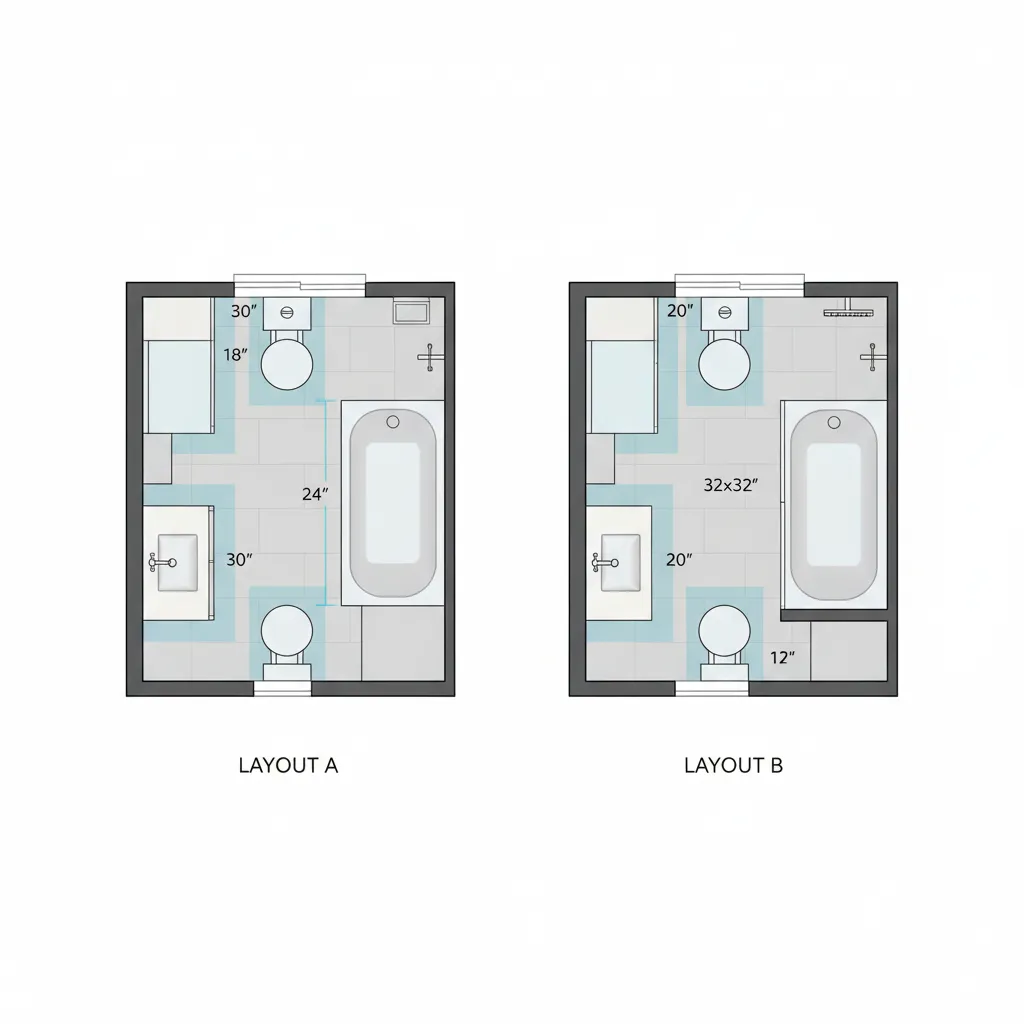

Key Insight: The biggest functional difference between a 5x9 vs 5x8 bathroom layout is how comfortably fixtures can be spaced along the main wall.

In a 5x8 bathroom, fixture placement is usually forced into a tight sequence because the tub already consumes five feet of width. Designers must compress the remaining fixtures.

In a 5x9 bathroom, we gain an additional 12 inches that can be distributed in several ways.

Common Fixture Placement Adjustments

1. Increase vanity width
2. Add spacing between toilet and vanity
3. Improve door swing clearance
4. Install a slightly deeper vanity cabinet

Many homeowners experiment with layouts first using a visual bathroom layout planner that shows fixture spacing in 3D. Seeing clearance zones in a model often reveals how cramped a 5x8 can become.

save pin

Storage and Vanity Size Comparison

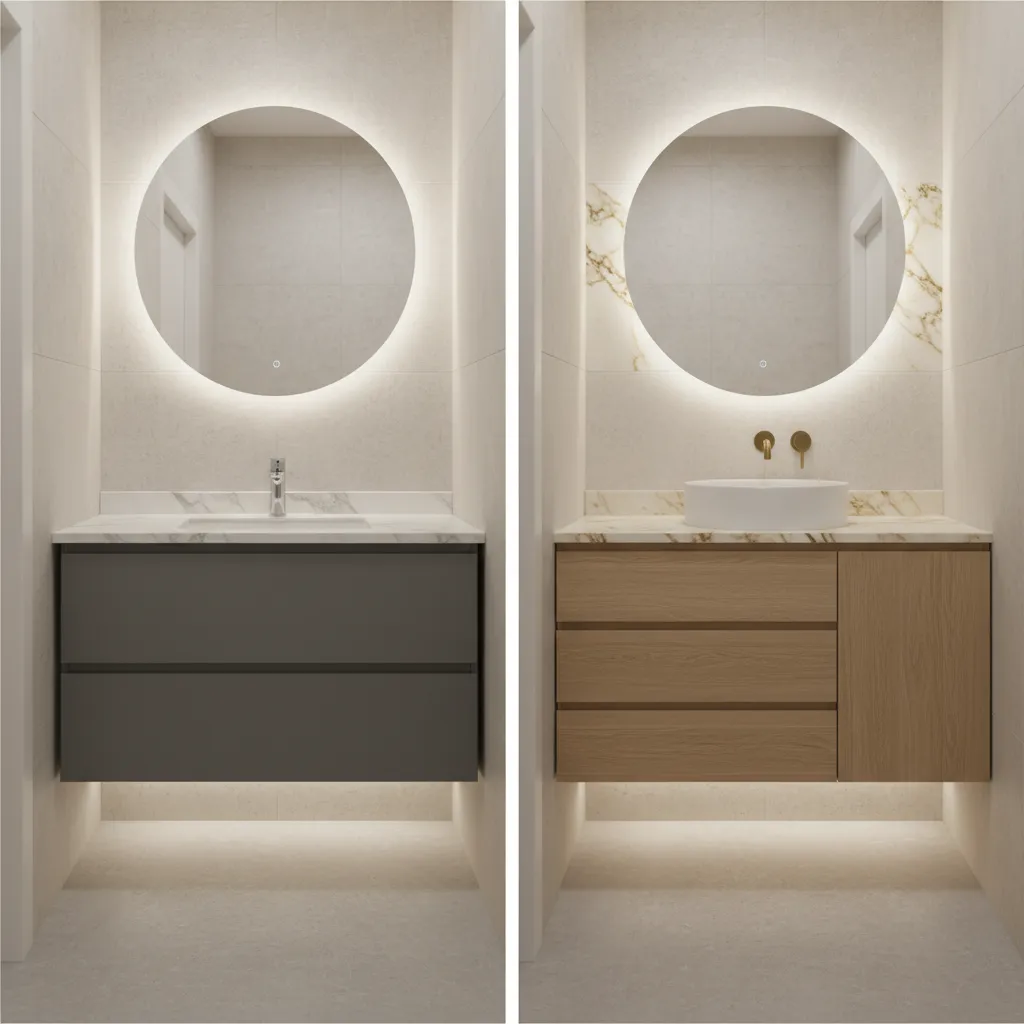

Key Insight: The extra foot in a 5x9 bathroom is most valuable when converted into vanity storage.

In my projects, storage is the first thing homeowners complain about in small bathrooms. Toothbrushes, skincare, hair tools—modern bathrooms simply carry more items than older homes were designed for.

Typical Vanity Sizes

1. 5x8 bathroom: 24–30 inch vanity
2. 5x9 bathroom: 30–36 inch vanity

That difference may seem small, but a 36‑inch vanity usually doubles the drawer storage compared with a 24‑inch cabinet.

Hidden Design Issue Many People Miss

1. Small vanities often lack drawers
2. Reduced counter space increases clutter
3. Mirror cabinets become necessary

So while a 5x8 bathroom technically works, it frequently pushes storage problems elsewhere in the home.

save pin

Shower and Tub Options in Each Layout

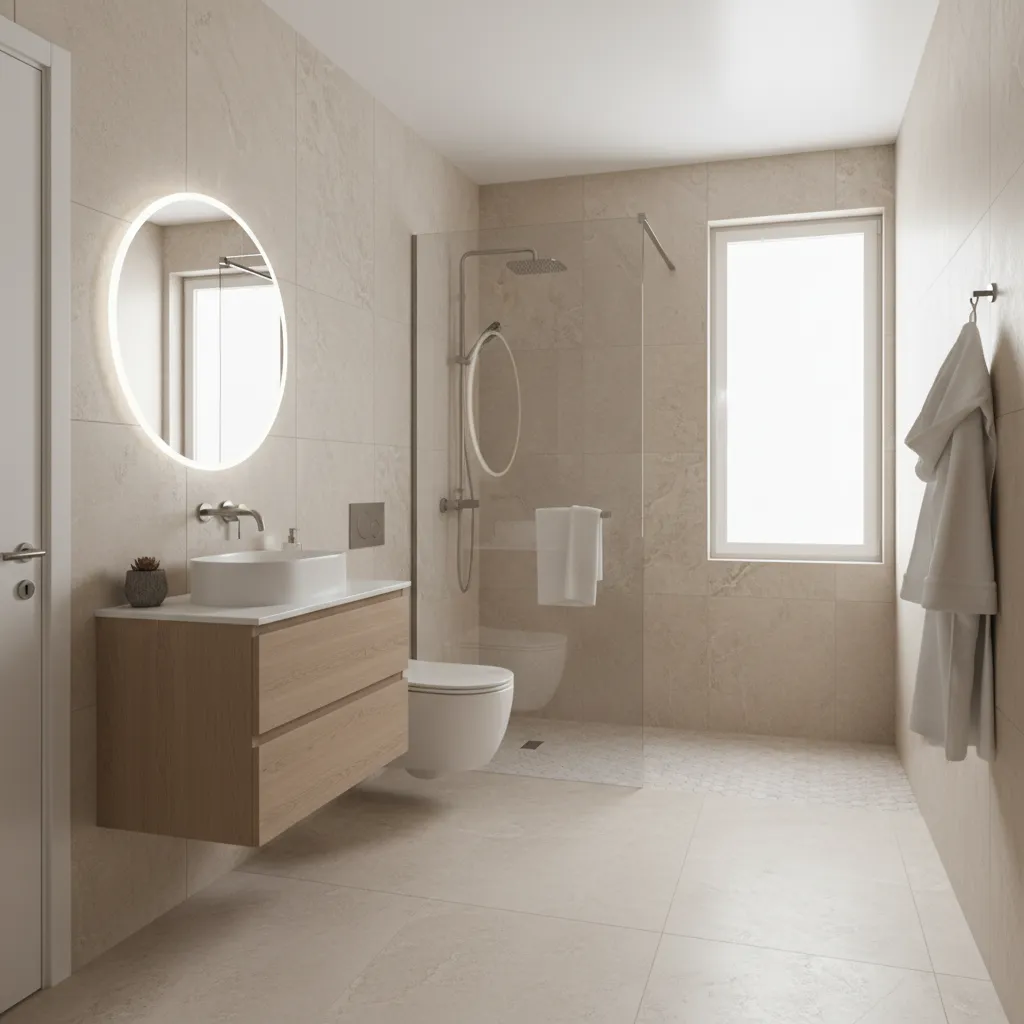

Key Insight: Both layouts fit a standard 60‑inch tub, but a 5x9 bathroom allows more modern shower alternatives.

Most 5x8 bathrooms are designed around a traditional tub-shower combo because it's the most space‑efficient configuration.

In a 5x9 bathroom, designers have more flexibility.

Common Fixture Options

1. 60-inch tub with larger vanity
2. Walk-in shower with glass partition
3. Tub plus storage niche wall
4. Compact double vanity (rare but possible)

Another advantage is better shower entry clearance. Tight bathrooms often create awkward door conflicts, which you can better evaluate with a bathroom layout simulator for testing shower and vanity placement.

save pin

Answer Box

A 5x9 bathroom layout is generally more comfortable than a 5x8 layout because the additional foot improves fixture spacing, vanity size, and circulation. While both layouts support a full bathroom, the 5x9 configuration offers noticeably better flexibility for storage and modern fixtures.

Which Layout Feels More Comfortable in Daily Use

Key Insight: Comfort in small bathrooms depends more on movement space than fixture count.

One of the most overlooked factors in small bathrooms is circulation—the space you have to move around fixtures.

Typical clearance recommendations from design guidelines include:

1. 15 inches from toilet centerline to wall
2. 21 inches clearance in front of fixtures
3. 30 inches recommended walkway width

In 5x8 bathrooms, these clearances are often met only at the minimum level. In a 5x9 layout, designers can exceed them slightly, which makes the room feel less cramped.

This is why many homeowners report that a 5x9 bathroom “feels bigger” even though the size difference is only five square feet.

When to Choose a 5x9 Layout Over a 5x8 Bathroom

Key Insight: Upgrading to a 5x9 layout is worth it if storage, vanity size, or circulation comfort are priorities.

Not every renovation allows expanding a bathroom, but when the option exists, the additional foot can dramatically improve usability.

Choose a 5x9 bathroom if:

1. You want a 36-inch vanity
2. Storage is currently limited
3. The bathroom is used daily by multiple people
4. You prefer a walk-in shower instead of a tub

A 5x8 bathroom still works well if:

1. It's a guest bathroom
2. Space expansion is impossible
3. You want a simple tub-shower layout

In many remodels I've worked on, extending a bathroom wall by just one foot transformed a cramped space into something that feels noticeably more functional.

Final Summary

1. A 5x9 bathroom adds only five square feet but significantly improves layout flexibility.
2. Vanity size is the biggest practical difference between the two layouts.
3. Both layouts fit a tub-shower combo, but 5x9 supports more modern options.
4. Circulation space often determines comfort more than total square footage.
5. If remodeling allows expansion, a 5x9 layout is usually the better long‑term choice.

FAQ

Is a 5x8 bathroom considered small?

Yes. A 5x8 bathroom is the standard size for small full bathrooms in many homes, typically containing a tub, toilet, and vanity.

Is a 5x9 bathroom layout better than a 5x8?

In most cases, yes. The extra foot improves vanity size, circulation space, and fixture flexibility in a 5x9 bathroom layout.

Can a 5x8 bathroom fit a walk-in shower?

Yes, but it usually replaces the bathtub and requires careful fixture placement to maintain clearance space.

What vanity size fits in a 5x8 bathroom?

Most 5x8 bathrooms use a 24–30 inch vanity to maintain clearance around the toilet and door.

What vanity size works in a 5x9 bathroom?

A 30–36 inch vanity fits comfortably in most 5x9 layouts, offering more storage and counter space.

How much bigger is a 5x9 bathroom compared to 5x8?

A 5x9 bathroom adds 5 square feet, increasing total space from 40 to 45 square feet.

Does a 5x9 bathroom feel significantly larger?

Yes. Even though the size difference is small, the extra length improves spacing and circulation.

Which bathroom layout is better for resale value?

A slightly larger layout like a 5x9 bathroom often appeals more to buyers because it supports larger vanities and modern shower designs.

References

International Residential Code (IRC) Bathroom Clearance Guidelines

National Kitchen and Bath Association Planning Guidelines
