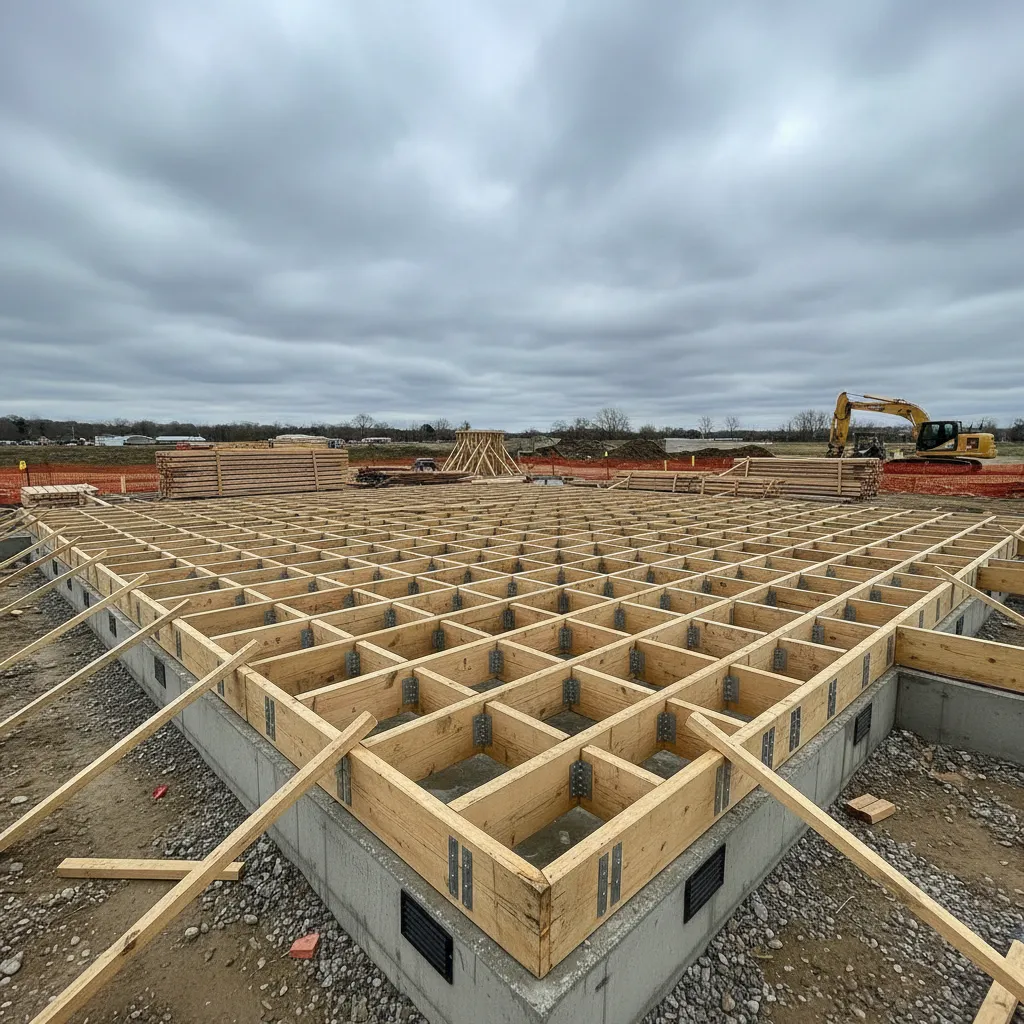

6 Safety Risks in Floor Truss Installation: A contractor-focused guide to structural risks, temporary bracing, load limits, and inspection practices when installing engineered floor trusses.

The first time I supervised a floor truss install, I thought the hard part was just getting the spans right. Turns out, the real challenge was keeping everyone safe while the structure was still fragile. One crew member stepped onto an unbraced truss line and the whole row started wobbling like dominoes—lesson learned the stressful way.

Since then, I’ve treated floor truss installation like a choreography of safety checks, sequencing, and patience. Small oversights can create huge structural risks, especially before the subfloor locks everything together. Over the years on site, I’ve picked up a handful of practical lessons that make engineered floor systems much safer to install.

In this guide, I’ll walk through the most important safety considerations I’ve learned—from bracing rules to inspection habits—so contractors and site managers can avoid the mistakes I once made.

Major Structural Risks During Floor Truss Installation

The biggest risk during floor truss installation is instability before the system is fully braced and sheathed. Individual trusses are strong in design conditions but surprisingly vulnerable during installation, especially when loads are uneven or lateral forces appear.

I’ve seen crews stack materials on newly placed trusses before the subfloor was attached. That’s asking for trouble. One trick I always recommend is visualizing the floor framing layout in 3D before installation begins, which helps teams understand load paths and support points before anyone steps onto the structure.

Another common risk is misalignment during placement. Even a small offset at the bearing point can cause cumulative problems across a span.

Temporary Bracing Requirements for Floor Trusses

If there’s one thing I repeat to every new crew member, it’s this: temporary bracing is not optional. Until the sheathing is installed, floor trusses behave more like a flexible frame than a rigid floor system.

Temporary lateral bracing along the top chords keeps the trusses aligned and prevents buckling during installation. I usually insist on installing bracing as soon as every few trusses are set instead of waiting until the whole row is placed. It slows the crew slightly but dramatically improves stability.

Diagonal bracing also helps distribute forces if workers move across the structure during installation.

Load Limits Before Sheathing Is Installed

A mistake I still see on job sites is crews treating unfinished truss systems like completed floors. Until the sheathing is attached, load capacity is extremely limited and uneven loading can twist or collapse members.

I always establish a simple rule: no palletized materials on open trusses and minimal foot traffic until decking is installed. Planning the framing in advance—sometimes using tools for accurate structural floor layout planning—helps crews identify safe staging areas before construction even begins.

Even something as small as a stack of drywall can exceed localized capacity on an unfinished truss system.

Preventing Truss Damage During Handling and Storage

Damage often happens before installation even begins. I’ve walked onto sites where trusses were stored directly on uneven ground, which can twist members or introduce permanent warping.

Good storage practices are simple but critical: keep trusses off the ground, stack them evenly, and protect them from moisture exposure. Lifting should also occur at designated points to prevent bending forces that the truss wasn’t designed to handle.

One cracked connector plate can compromise the structural performance of the entire assembly.

Inspection Points Before Closing the Floor System

Before the subfloor goes down, I always do a slow walkthrough with the framing crew. This is the last chance to catch problems that will be hidden forever once the floor system is sealed.

I check bearing alignment, bracing placement, and connector plate integrity. Sometimes I even review the framing arrangement with a quick digital room layout visualization of the structural plan to confirm the spacing matches the design documents.

It might sound obsessive, but catching a misaligned truss now is far easier than fixing a sagging floor later.

Building Code and Engineering Compliance Considerations

Engineered floor trusses are designed according to strict engineering calculations, and those specifications must be followed exactly on site. Changing spacing, cutting members, or drilling holes without engineering approval can invalidate the design.

Local building codes also specify load requirements, fire protection measures, and inspection procedures. I always recommend keeping the engineered truss drawings on site and making sure supervisors review them before installation begins.

In my experience, most structural problems come not from bad designs—but from good designs installed incorrectly.

FAQ

1. What are the main safety risks when installing floor trusses?

Common risks include truss instability, improper bracing, overloading before sheathing installation, and damage during handling. These issues can lead to structural failure if not managed carefully.

2. Why is temporary bracing important for floor trusses?

Temporary bracing stabilizes the trusses before the subfloor is installed. Without it, lateral movement or worker loads can cause the trusses to buckle or shift out of alignment.

3. Can workers walk on floor trusses before the subfloor is installed?

Limited movement is sometimes necessary during installation, but traffic should be minimized. Workers should step near bearing points and follow bracing guidelines to reduce risk.

4. How much weight can unfinished floor trusses support?

Very little compared to a completed floor system. Until sheathing is installed, loads should be limited to essential workers and installation tools.

5. What causes floor truss damage during storage?

Uneven ground, moisture exposure, and improper stacking are common causes. Twisting or bending during lifting can also weaken structural members.

6. Are building inspections required before closing the floor system?

In many jurisdictions, framing inspections are required before the floor system is covered. Local regulations vary, so contractors should check municipal building requirements.

7. What building codes regulate floor truss installations?

In the United States, the International Residential Code (IRC) and International Building Code (IBC) provide structural guidelines for floor systems and engineered trusses.

8. Why must engineered trusses follow manufacturer specifications?

Engineered trusses are designed with precise calculations. According to the Structural Building Components Association (SBCA), altering truss components without engineering approval can compromise structural integrity.
