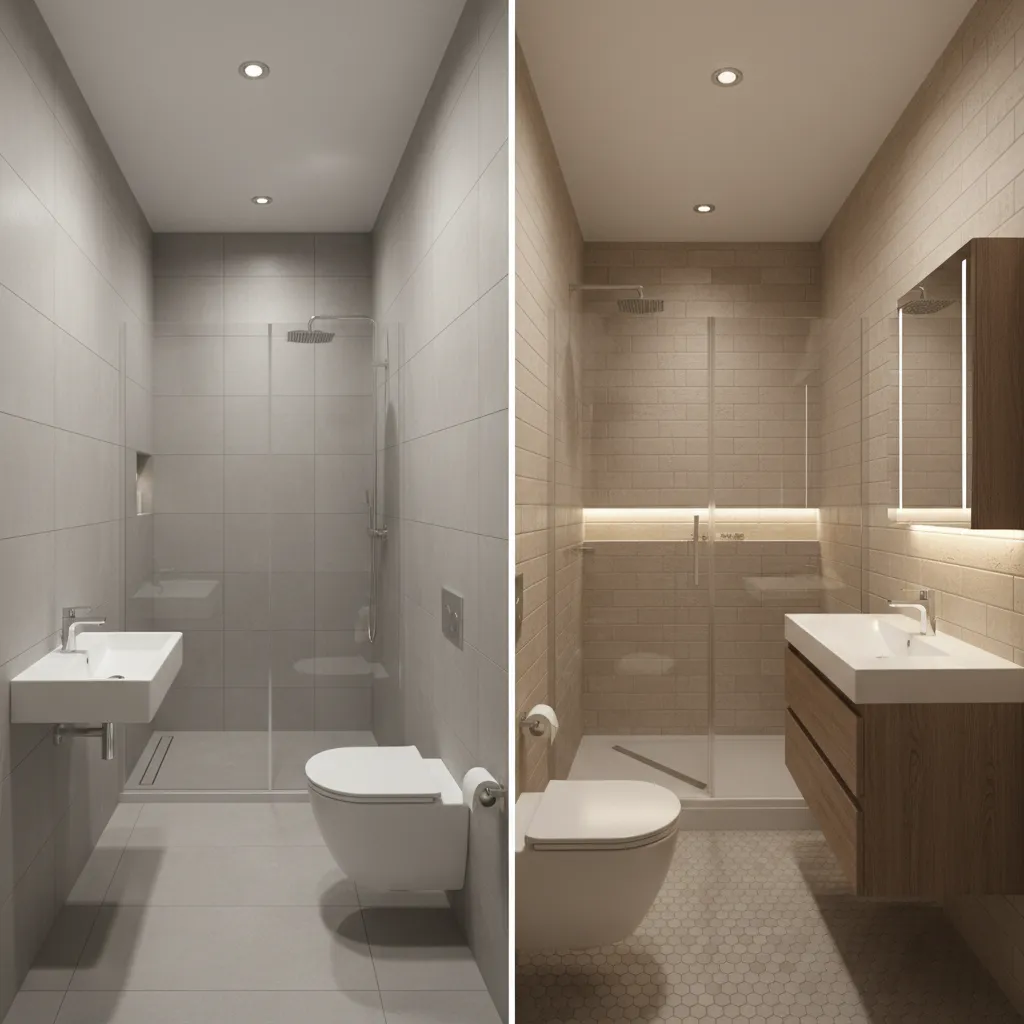

7x4 Bathroom Layout vs Traditional Small Bathroom Layouts: How an interface‑style 7x4 bathroom plan compares with common compact layouts in space efficiency, usability, and fixture placement.

Direct Answer

A 7x4 bathroom layout organizes fixtures in a linear, interface‑style arrangement designed for extremely narrow spaces. Compared with traditional small bathroom layouts, it prioritizes straight movement flow and wall‑aligned fixtures rather than central turning space. This approach often improves usability in ultra‑narrow rooms where conventional layouts feel cramped.

Quick Takeaways

1. A 7x4 bathroom layout works best when the room width is under 4.5 feet.
2. Traditional compact layouts rely on turning radius, while the 7x4 layout prioritizes linear movement.
3. Interface‑style layouts reduce wasted corner space in narrow bathrooms.
4. Fixture stacking and wall alignment are critical in a successful 7x4 design.
5. Storage planning becomes more important because cabinetry options are limited.

Introduction

After designing dozens of micro bathrooms in city apartments and ADUs, I've noticed one recurring problem: most small bathrooms are designed using layouts that were originally meant for wider rooms. That mismatch is where frustration begins.

The 7x4 bathroom layout is interesting because it challenges the traditional logic of compact bathrooms. Instead of centering the room around a turning circle, it behaves more like a user interface — fixtures line up logically along a path, guiding movement from door to shower.

In practice, this becomes incredibly useful in apartments where the bathroom is squeezed between structural walls or plumbing shafts. If you're experimenting with different spatial arrangements, a good starting point is exploring layouts using a visual floor plan builder for testing narrow bathroom layoutsso you can immediately see how each configuration affects movement and fixture spacing.

Below, I'll break down how the 7x4 layout compares with traditional compact bathroom designs — and more importantly, when each approach actually works best.

save pinOpen in 3D Planner Processing...

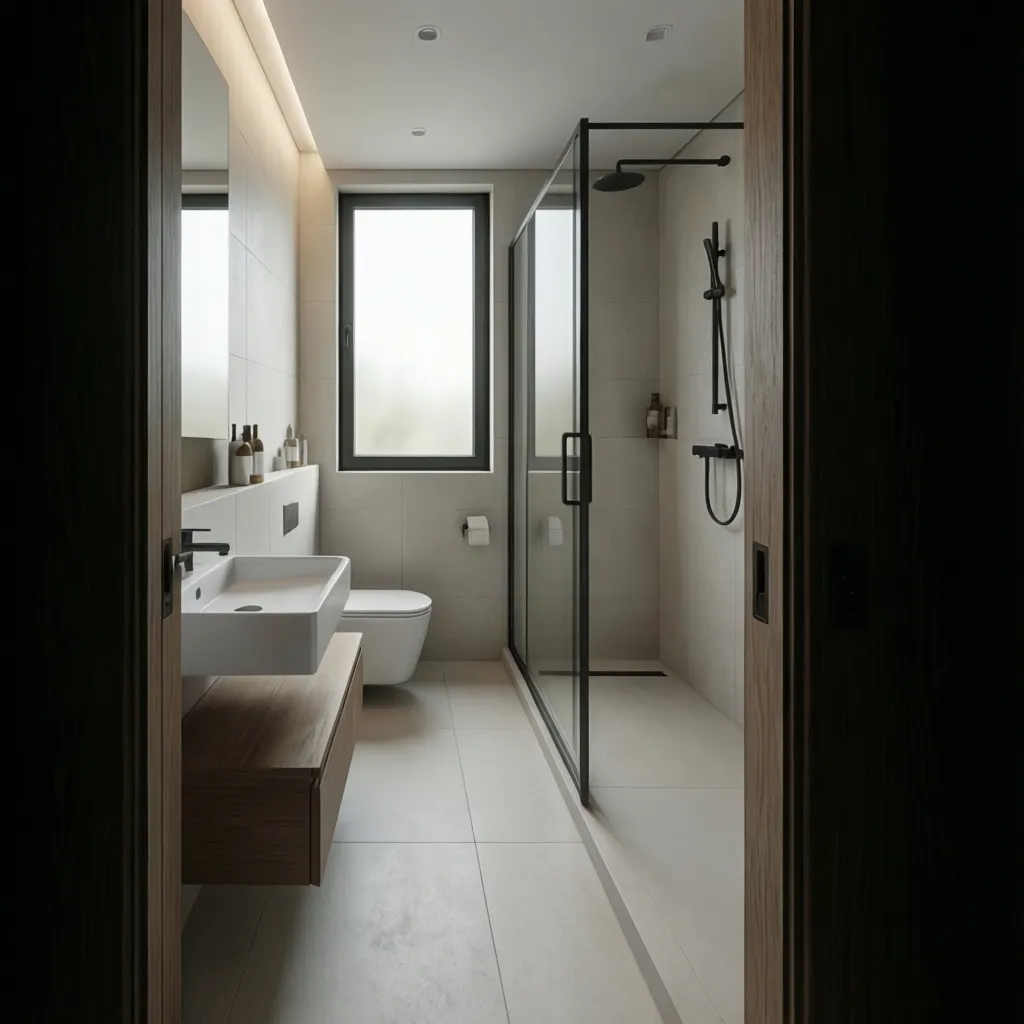

Overview of the 7x4 Interface-Style Bathroom Layout

Key Insight: The 7x4 layout works by aligning all fixtures along one side or two parallel walls, creating a straight functional path.

This configuration usually places the vanity near the entrance, the toilet in the middle, and the shower at the far end. It resembles a workflow: enter, wash, use, exit.

In projects where the bathroom width is barely four feet, this sequencing prevents awkward diagonal movement. Instead of rotating your body to navigate fixtures, you move forward step by step.

Typical fixture sequence in a 7x4 layout:

1. Door swing or pocket door
2. Compact wall-mounted sink or floating vanity
3. Toilet positioned mid-room
4. Walk-in shower or wet-room zone

Design trend evidence: urban micro‑apartment developments in cities like Tokyo, New York, and London increasingly rely on linear bathrooms because plumbing stacks are easier to align and floor area is minimized.

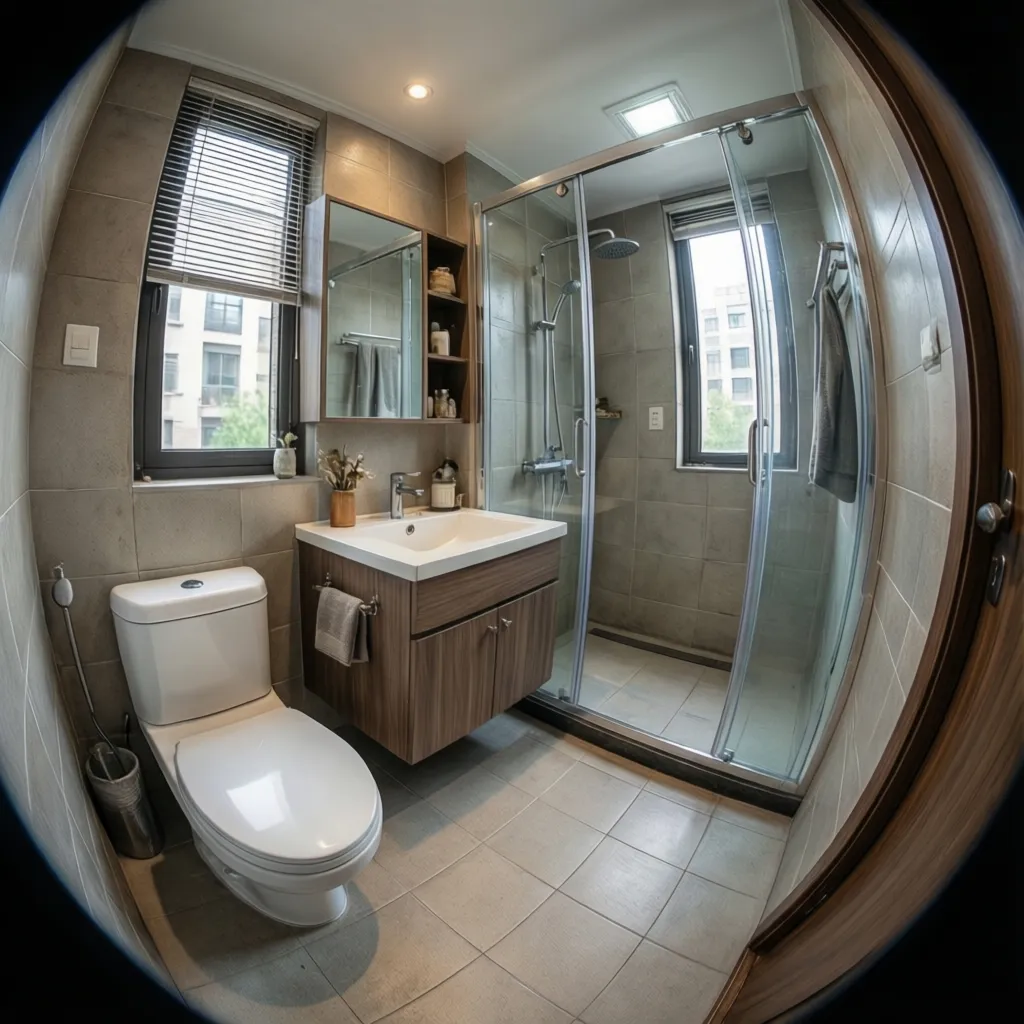

Common Compact Bathroom Layout Types

Key Insight: Traditional small bathrooms prioritize balance and turning space rather than directional movement.

Most compact bathrooms follow patterns developed decades ago when bathrooms were typically at least five feet wide. These layouts assume you have room to pivot between fixtures.

The most common configurations include:

1. Three‑fixture wall layout — sink, toilet, and shower along one wall.
2. L‑shape layout — sink and toilet on one wall, shower on the adjacent wall.
3. Opposite wall layout — vanity on one side, toilet and tub opposite.
4. Corner shower layout — used to preserve central walking space.

These work well in bathrooms measuring around 5x8 or larger. But once the width drops below 4.5 feet, these patterns begin to break down because circulation becomes restricted.

save pinOpen in 3D Planner Processing...

Spatial Efficiency Comparison in Narrow Bathrooms

Key Insight: The 7x4 layout usually wastes less space in extremely narrow rooms.

When designing bathrooms under 30 square feet, the biggest hidden problem is unusable corner space. Traditional layouts often leave awkward triangular gaps between fixtures.

Here's how the two approaches compare:

1. Traditional layout: relies on turning clearance, often leaving small unusable gaps.
2. 7x4 layout: fixtures stack along walls, minimizing leftover floor pockets.

In several renovation projects I've worked on, switching from a corner‑shower layout to a linear 7x4 configuration freed up nearly a full foot of walkable path.

If you're modeling layouts before construction, experimenting with a 3D planner for visualizing narrow bathroom floor plans can quickly reveal which arrangement creates smoother movement.

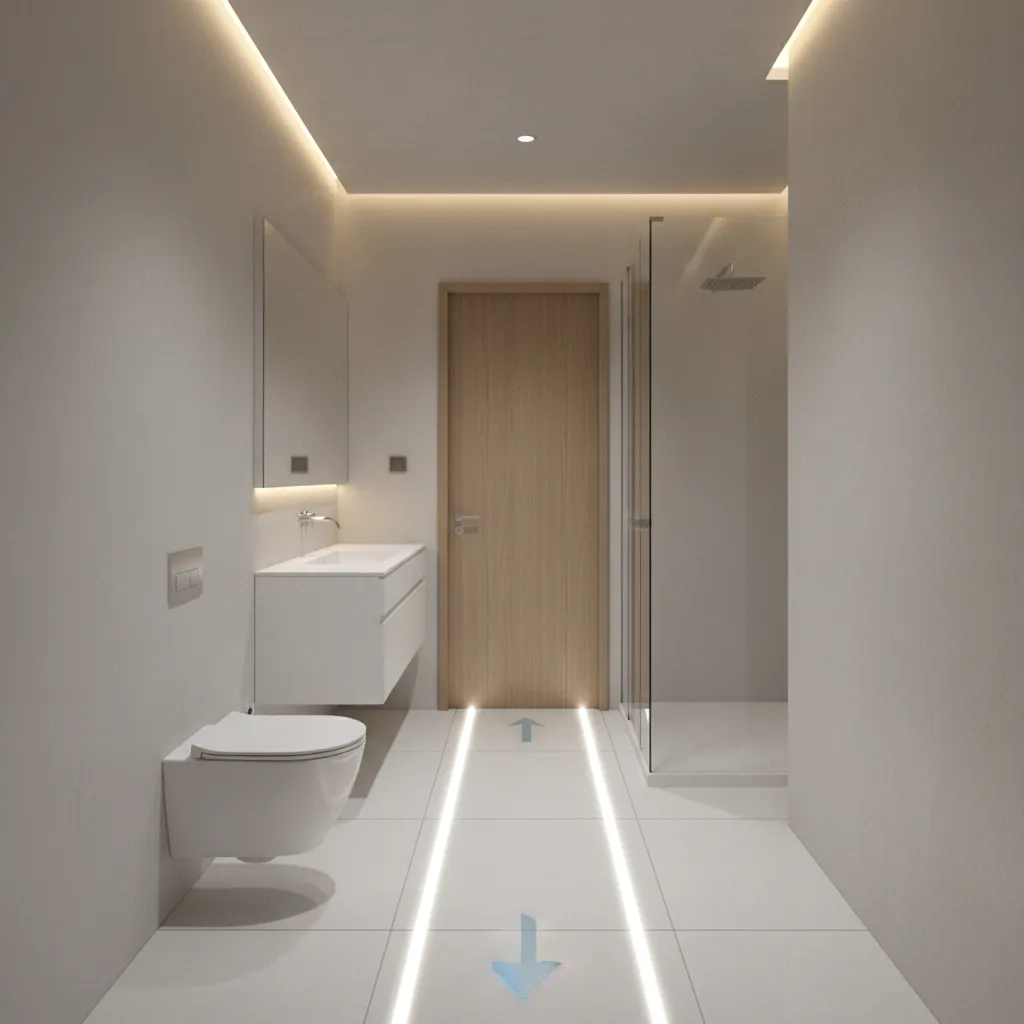

User Flow and Movement Analysis

Key Insight: Linear layouts guide movement naturally, while traditional layouts prioritize flexibility.

Think about how people actually use a bathroom. Movement usually follows a sequence: enter → sink → toilet → shower.

The 7x4 design reinforces this order. That makes it feel surprisingly intuitive despite the limited space.

Movement patterns comparison:

1. 7x4 layout: forward progression along the room axis.
2. Traditional compact layout: rotational movement around fixtures.
3. User experience: linear designs reduce shoulder collisions in narrow spaces.

However, there's a trade‑off. Two people using the bathroom at once becomes more difficult because the circulation path is shared.

save pinOpen in 3D Planner Processing...

Storage and Fixture Placement Differences

Key Insight: Storage planning becomes the biggest design challenge in a 7x4 bathroom.

Most traditional layouts allow for vanity cabinets or recessed shelves. In a 7x4 configuration, depth is limited, so bulky storage blocks movement.

Design strategies that work best:

1. Floating vanities under 18 inches deep
2. Recessed wall niches
3. Over‑toilet shelving
4. Tall vertical cabinets near the entrance

In real projects, the most successful narrow bathrooms rely on vertical storage rather than base cabinets. That keeps the floor visually open while still providing function.

Answer Box

The main difference between a 7x4 bathroom layout and traditional small bathroom layouts is spatial logic. The 7x4 design prioritizes linear movement and wall‑aligned fixtures, making it more efficient for ultra‑narrow rooms, while traditional layouts rely on turning space and work better in wider bathrooms.

When Each Layout Works Best

Key Insight: The best layout depends primarily on bathroom width.

Based on renovation projects I've worked on, here's a simple rule designers often follow:

1. Under 4.5 ft width: 7x4 linear layout performs better.
2. 5–6 ft width: traditional compact layouts are more comfortable.
3. Over 6 ft width: hybrid layouts offer the most flexibility.

Before finalizing any design, it's helpful to test fixture spacing with a layout simulator for testing compact bathroom fixture placement so you can see how door swings, clearances, and shower zones interact.

That step alone prevents one of the most common renovation mistakes: discovering the toilet clearance fails code after the walls are already framed.

Final Summary

1. The 7x4 bathroom layout is optimized for extremely narrow spaces.
2. Traditional layouts perform better in bathrooms wider than five feet.
3. Linear fixture alignment reduces wasted space in micro bathrooms.
4. Storage planning becomes the main challenge in interface‑style layouts.
5. Testing layouts visually helps avoid costly renovation errors.

FAQ

Is a 7x4 bathroom layout practical?

Yes. When designed correctly, a 7x4 bathroom layout can function efficiently for single‑user bathrooms in apartments, ADUs, or guest spaces.

What is the biggest advantage of a 7x4 bathroom layout?

It maximizes usable floor space in narrow rooms by aligning fixtures along the walls instead of creating central turning space.

Can a shower fit in a 7x4 bathroom?

Yes. Most designs use a compact walk‑in shower at the far end of the room, often around 30–36 inches deep.

Is a 7x4 bathroom layout code compliant?

It can be, as long as minimum clearances for toilets, sinks, and showers meet local building codes.

How does a 7x4 bathroom layout compare to a 5x8 bathroom?

A 5x8 bathroom allows more flexible layouts and better storage, while a 7x4 bathroom layout is optimized strictly for narrow efficiency.

What sink works best in a 7x4 bathroom?

Wall‑mounted sinks or shallow floating vanities under 18 inches deep usually work best.

Are tubs possible in a 7x4 bathroom?

Rarely. Most 7x4 layouts use showers because tubs require more width and clearance.

What is the best layout for a 7 by 4 bathroom?

A linear sequence placing the sink near the door, toilet in the middle, and shower at the end typically works best.
